XYO-AN99GPS TRACKER

AN99 User Manual Version 1.0 Basic AN99 tracker is designed and optimized to implement the latest technologies in IoT tracker applications such as asset tracking as well as fleet management. The device is mainly implemented with temperature sensor, light tamper and barometric sensor that can be used to tracking goods or products in airplane cargo or ship. AN99 also can be used to track vehicles in real time, including GPS location, temperature, pressure and other environmental factors. It comes with comprehensive software, firmware libraries, tools, battery and plastic case. Appearance Specification Cat. Main GNSS (GPS, GLONASS, BDS, QZSS & Galileo) BLE 5.0 WIFI SENSOR Accelerometer Temperature Sensor Barometer Sensor BATTERY Non-Rechargeable, 6400mAh @ 4.5V More than total 1200 reports, up to 3+ years @ 1 report per day CELLULAR LTE Cat-1 bis EGPRS: 850/900/1800/1900 MHz ENVIRONMENTAL Operation Temperature: -20°C to +50°C Storage Temperature: -20°C to +55°C PHYSICAL IP67 Rating Dimensions: 107.5 x 69.0 x 24.0 mm Weight: ~230g APPROVALS FCC, IC, SRRC 1.Getting started Device is in shipping mode by default, it needs to press button to power on when out of box. ▪LED Indicators oBlue LED–Blinking when power on. oRed LED– Flashing when enter ship mode. Cat. Status Meaning Blue Flash for more 5 seconds Device power on Red Flash for 5 seconds Device enter ship mode (Tabel 2 LED Indicators) Note: LED will not flash or show on when in work mode, it will not impact on transporting goods and products via aircraft or ship. ▪Button It is used to power on or wake up. ▪Serial Port It is used to configure device, FW upgrade and capture debug logs. ▪Light Tamper It is used to detect the brightness changed then trigger Tamper alert 2.SIM Card SIM cards should have access to LTE Cat-1 bis internet. In genera l terms, device has implemented SIM card, please make sure the device needs to change SIM cards. 1)To insert the SIM card into the slot, please open the housing with screwdriver to remove 6 fixed screws. 2)After removing the 6 screws, open the upper and lower shells, then remove the 4 screws from the motherboard. 3)Remove the battery port and remove the motherboard. 4)Insert a new SIM card. if there is a SIM card, remove it and insert the new SIM card. 5)Plug the battery port into the power port on the motherboard. 6)After reconnect the battery, install the PCBA board on the upper shell, use a Phillips screwdriver to lock the previous screw back 7)Close the upper and lower shell to lock the screw. Now, the SIM card installation or replacement process is complete. 3.Installation With two holes, the device has easy installation and can be hung on items. Attached 3M foam tape to help fix the device on planes items. The products are mainly used in the interior of containers, attach device near the box cover that it is easier to get light sensitive Note: To get better signal, the device should face up to the sky when used to monitor vehicle as GPS tracker. 4.Operation This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. 4.1 Power ON/OFF Power on: press power button for 3 seconds Power off: it should remove the battery; it is recommended to enter ship mode. 4.2 Upgrade To upgrade software or configuration file when devices are in hand, it should exposure serial port and use the debug cable connect device with PC. 1)Remove the rubber stopper to expose the Debug PIN on device. 2)Put device on the fixture (AN99 JIG) to fit the Debug 3 PIN direction. 3)Run the Xmodem tool and please refer to the document that using Xmodem tool to upgrade software. Note: it also can send AT command via SMS to devices when in field. 5.Troubleshooting 5.1 LED is not flash a)Please check whether the device is well connected to the battery after changing SIM cards. b)LED will not flash in work mode after power up, please check whether there any report on AGS server. 5.2 GPS is not fixed a)Please move the device to outside to get better GPS signal. b)Please try to keep “back side” up c)Please check and configure a reasonable GPS timer value via AT+XGPLT. 5.3 Fail to connect to AGS Platform a)Please check APN and IP settings. b)Please check the SIM cards are available. c)Metal thermal barrier or heating layer of the windshield affects the signal, please change installation places to receive better signal. 5.4 How to test Light Tamper a)Please try to cover device’s Light tamper slot then expose. b)check the reports on server from the device that should be Tamper detection and Tamper Removed. 5.5 Fail to detect door sensor status a)Please check the pairing with door sensors b)Please keep the distance with door sensors in 20 meters, device will get better BLE performance. 2 FCCStatement ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuantto Part15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful interferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradiofrequency energyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferenceto radiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticular installation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbe determinedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferenceby oneormoreofthefollowingmeasures: --Reorientorrelocatethereceivingantenna. --Increasetheseparationbetweentheequipmentandreceiver. --Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. --Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived, includinginterfe…

Text truncated - open the document above for the full version.

Asiatelco Technologies Co. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 11-13-2025 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: XYO-AN99 [Asiatelco Technologies Co.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Asiatelco Technologies Co.] (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Ella.chen Asiatelco Technologies Co. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 11-13-2025 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: XYO-AN99 [Asiatelco Technologies Co.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Ella chen

[Asiatelco Technologies Co.] [#289 Bisheng Road, Building-8, 3F, Zhang jiang Hi-Tech Park, Pudong, Shanghai 201204, China] Date: [2025/11/17] Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: [XYO-AN99] FRN: 0032571200 US Agent – Attestation Statement / Part 2.911(d)(7) [Asiatelco Technologies Co.] certifies, that as of [2025/11/17], we have designated Asiatelco Technologies Inc.to accept service of process on our behalf for FCC ID: [XYO-AN99]. [Asiatelco Technologies Inc.], accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. Asiatelco Technologies Inc., accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of [Asiatelco Technologies Co.] for FCC ID: [XYO-AN99]. Designated Agent Information: Company Name: Asiatelco Technologies Inc. FRN: 0029986338 Address: 4611 Teller Avenue, Suite 110, Newport Beach, CA 92660, USA Contact Person: Ella Chen Telephone: (949)398-6408 Email: [email protected] Sincerely, Company: [Asiatelco Technologies Co.] Designated Agent: Asiatelco Technologies Inc. Company Representative: [Ella Chen] Designated Agent Representative: Ella Chen Signature: Signature:

Asiatelco Technologies Co. Request for Confidentiality Date: December 3, 2025 Subject: Confidentiality Request for: FCC ID: XYO-AN99 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Schematics Short Term Permanent FCC SW SECURITY DESCRIPTION ） Short Term Permanent Tune Up Information Short Term Permanent Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Asiatelco Technologies Co. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of _ __ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TCB in the event information regarding the product or the product is made available to the public. TCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, Printed Name of Signee: Ella.chen Company: Asiatelco Technologies Co. Phone: 021-51688806 Email: [email protected] Job title: Certification Manager

Asiatelco Technologies Co. POWER OF ATTORNEY DATE: 2025-11-13 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 We, the undersigned, hereby authorize Eurofins TA Technology (Shanghai) Co., Ltd / Freda Shou on our behalf, to apply to FCC on our equipment for FCC ID: XYO-AN99. Any and all acts carried out by Eurofins TA Technology (Shanghai) Co., Ltd / Freda Shou on our behalf shall have the same effect as acts of our own. Sincerely, Signature： Printed Name of Signee: Ella.chen Company: Asiatelco Technologies Co. Phone: 021-51688806 Email: [email protected] Job title: Certification Manager

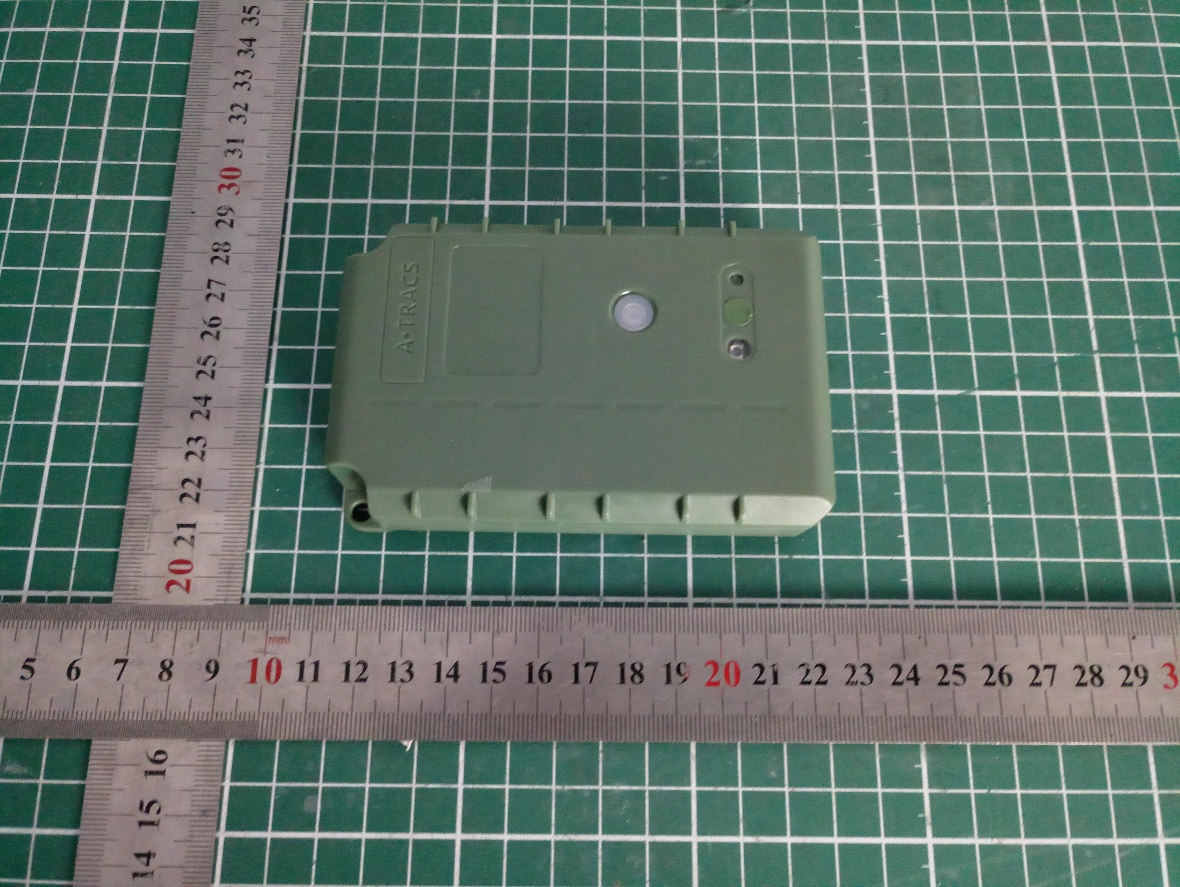

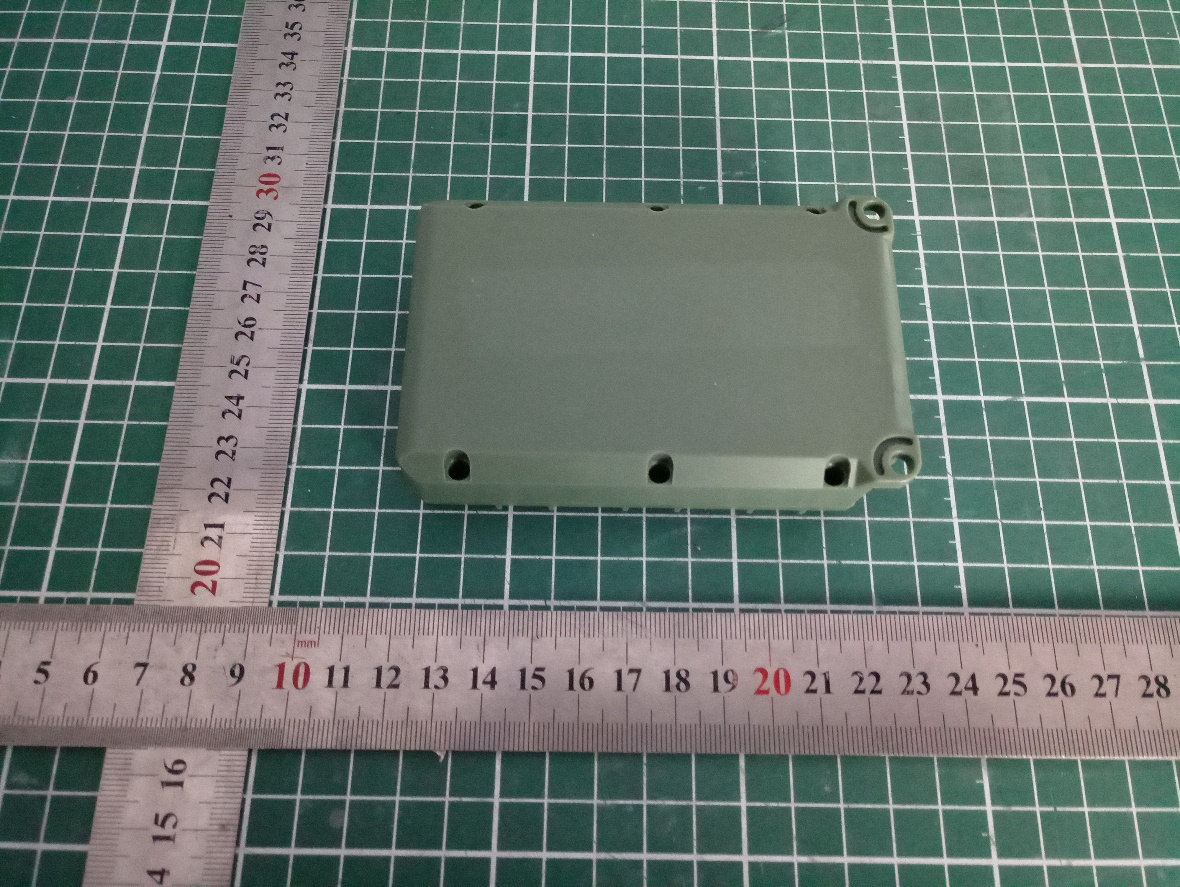

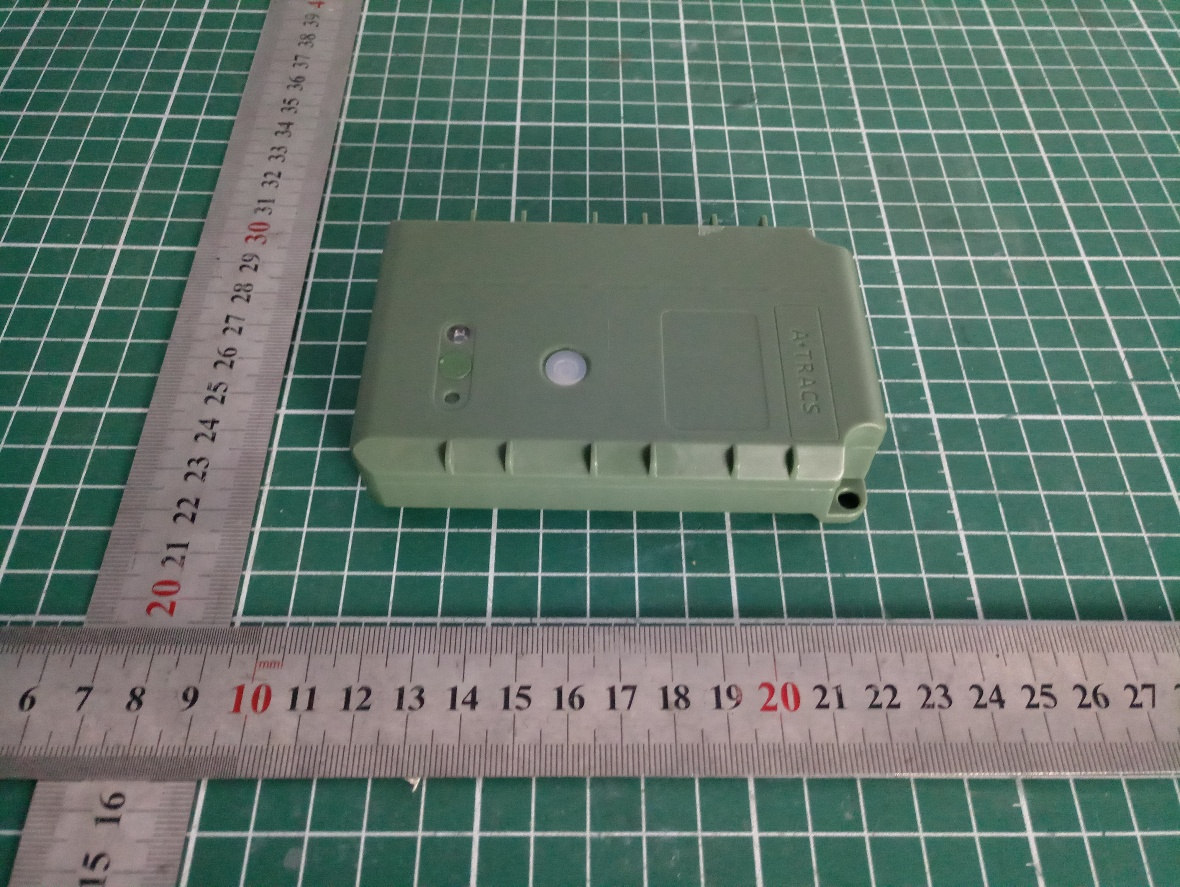

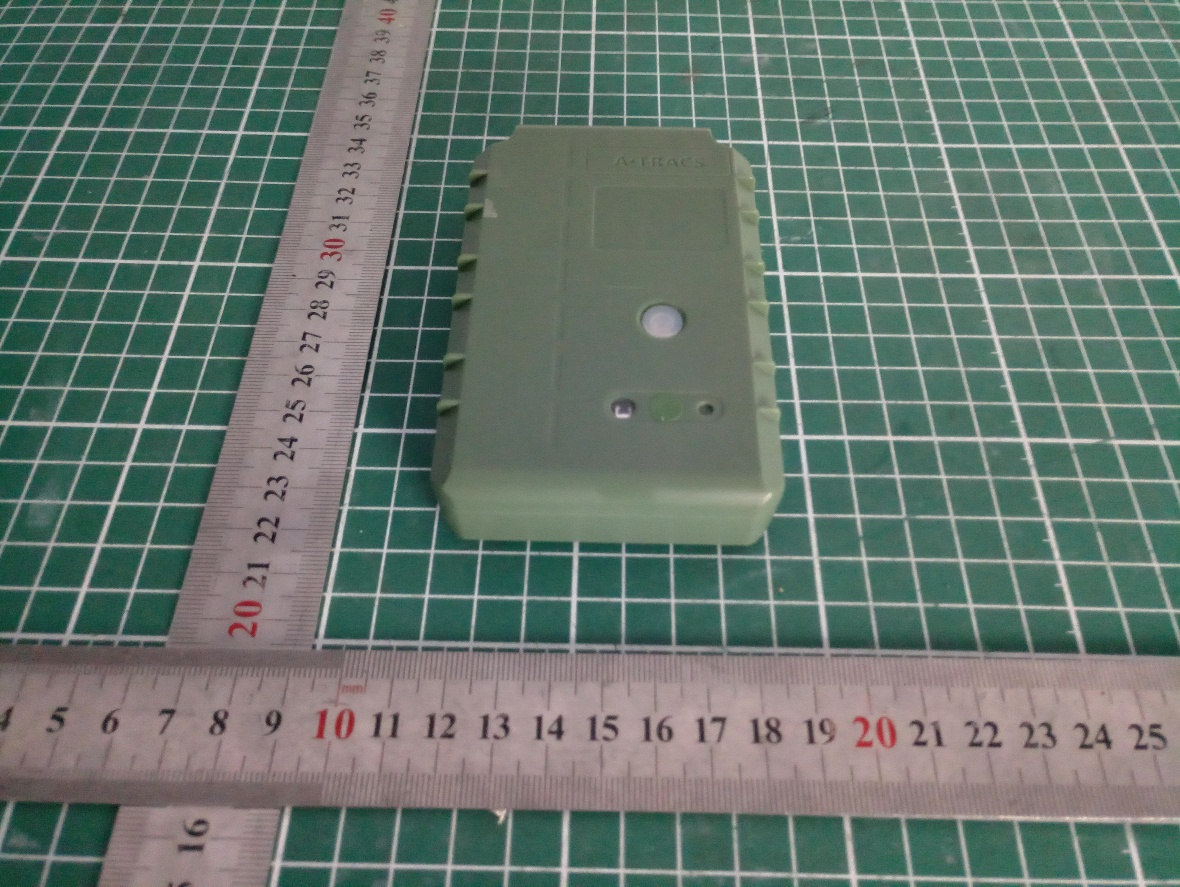

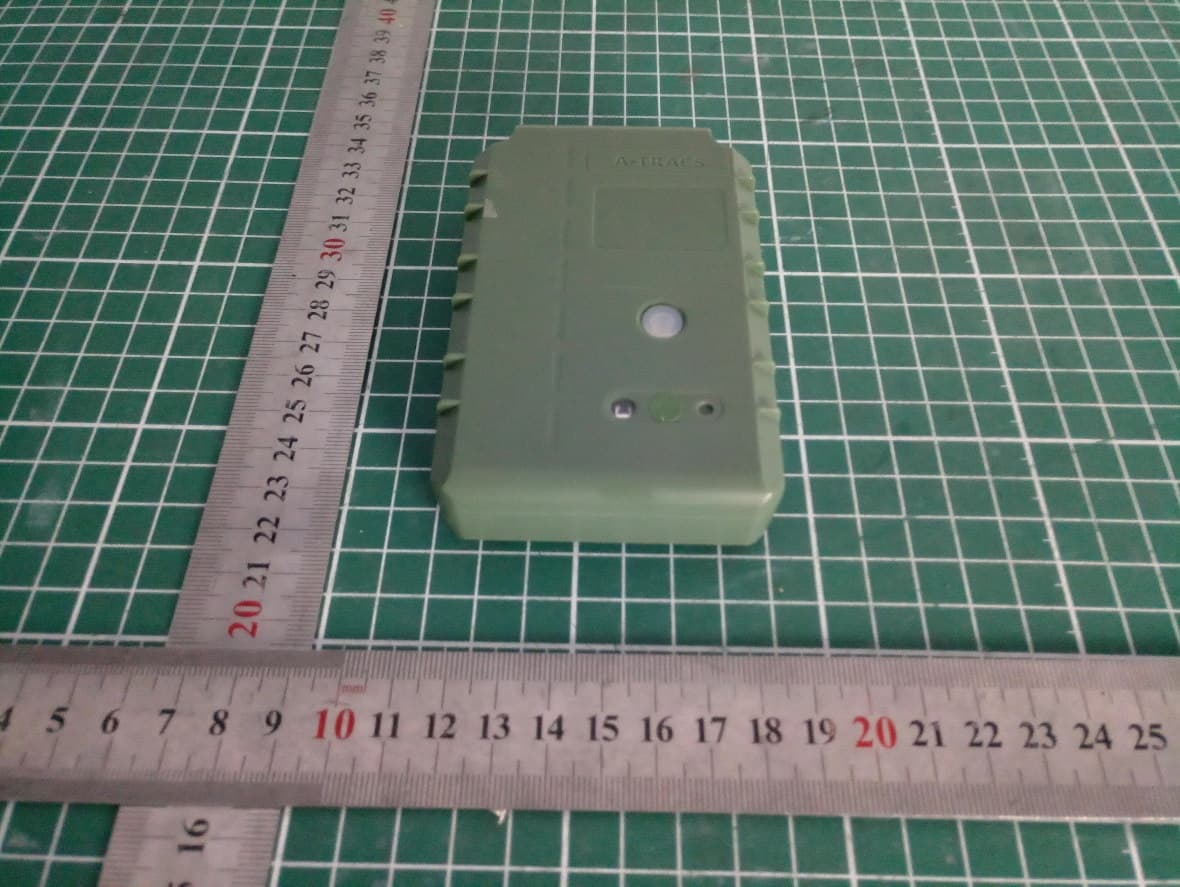

EUT Appearance Report No.: EFTA25090351 -IE-01 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-032E Page 1 of 3 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. EUT Appearance EUT Appearance Report No.: EFTA25090351 -IE-01 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-032E Page 2 of 3 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. EUT Appearance Report No.: EFTA25090351 -IE-01 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-032E Page 3 of 3 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Picture 1: Constituents of EUT

Internal photo FCC ID: XYO-AN99 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-033E Page 1 of 6 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Internal photo Internal photo FCC ID: XYO-AN99 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-033E Page 2 of 6 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: XYO-AN99 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-033E Page 3 of 6 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: XYO-AN99 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-033E Page 4 of 6 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: XYO-AN99 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-033E Page 5 of 6 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Internal photo FCC ID: XYO-AN99 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-033E Page 6 of 6 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd.

Prepared by: Liu Wei Approved by: Xu Kai Eurofins TA Technology (Shanghai) Co., Ltd. Building 3, No.145, Jintang Rd, Pudong Shanghai, P.R.China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 EMC TEST REPORT Applicant Asiatelco Technologies Co. FCC ID XYO-AN99 Product GPS TRACKER Brand ATEL Model AN99 Report No. EFTA25090351-IE-01-E1 Issue Date November 18, 2025 Eurofins TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in FCC Code CFR47 Part15B (2025)/ ANSI C63.4-2014. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Test Report Report No.: EFTA25090351-IE-01-E1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-001E Page 2 of 18 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Table of Contents 1 Test Laboratory ................................................................................................................................. 4 1.1 Notes of the Test Report ............................................................................................................ 4 1.2 Test Facility ................................................................................................................................ 4 1.3 Testing Location......................................................................................................................... 4 2 General Description of Equipment Under Test ................................................................................. 5 2.1 Applicant and Manufacturer Information ................................................................................... 5 2.2 General Information ................................................................................................................... 5 2.3 Applied Standards ..................................................................................................................... 6 2.4 Test Mode .................................................................................................................................. 7 3 Test Case Results ............................................................................................................................. 8 3.1 Radiated Emission ..................................................................................................................... 8 3.2 Conducted Emission ................................................................................................................ 13 4 Uncertainty Measurement ............................................................................................................... 15 5 Main Test Instruments ..................................................................................................................... 16 6 The EUT Appearance ...................................................................................................................... 17 7 Test Setup Photos ........................................................................................................................... 18 Test Report Report No.: EFTA25090351-IE-01-E1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-001E Page 3 of 18 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Summary of measurement results Number Test Case Clause in FCC Rules Conclusion 1 Radiated Emission FCC Part15.109, ANSI C63.4-2014 PASS 2 Conducted Emission FCC Part15.107, ANSI C63.4-2014 NA Note 1 Date of Testing: September 29, 2025 ~ November 2, 2025 Date of Sample Received: September 25, 2025 Note: 1. The equipment is not connected to the public network, so test items do not apply. 2. All indications of Pass/Fail in this report are opinions expressed by Eurofins TA Technology (Shanghai) Co., Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. Test Report Report No.: EFTA25090351-IE-01-E1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-001E Page 4 of 18 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. 1 Test Laboratory 1.1 Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2 Test Facility FCC (Designation number: CN1179, Test Firm Registration Number: 446626) Eurofins TA Technology (Shanghai) Co., Ltd. has been listed on the US Federal Communications Commission list of test facilities recognized to perform measurements. A2LA (Certificate Number: 3857.01) Eurofins TA Technology (Shanghai) Co., Ltd. has been listed by American Association for Laboratory Accreditation to perform measurement. 1.3 Testing Location Company: Eurofins TA Technology (Shanghai) Co., Ltd. Address: Building 3, No.145, Jintang Rd, Pudong Shanghai, P.R.China City: Shanghai Post code: 201201 Country: P. R. China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: https://www.eurofins.com/electrical-and-electronics E-mail: [email protected] Test Report Report No.: EFTA25090351-IE-01-E1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-001E Page 5 of 18 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. 2 General Description of Equipment Under Test 2.1 Applicant and M…

Text truncated - open the document above for the full version.

EMC Test Setup Report No.: EFTA25090351-IE-01 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-031E Page 1 of 1 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Part 15B EMC Test Setup 30MHz-1GHz 1GHz-18GHz Picture 1: Radiated Emission Test Setup
