XZ3-ALP55-TWi Stereo Digital Wireless Audio Transmitter

Pocket Portable Stereo Digital Wireless Stereo Lavalier & Audio Monitoring System TM AudioStream Pro SL TM OWNER’S MANUAL OPERATING INSTRUCTIONS Wi AudioStream Pro SL User Guide Final.indd 111/1/2013 11:22:10 AM Thank You For Choosing Wi Digital Systems. Congratulations on your purchase of the Wi AudioStream Pro SL Pocket Portable Digital Wireless Stereo Lavalier & Audio Monitoring System with 2-Way Wireless USB 2.0 Audio Interface. Please thoroughly read this User’s Manual for all the feature operation information necessary to install and operate your new Wi AudioStream Pro SL system. Notice: Product specifications and package contents are subject to change without notice. Package contents may vary according to the different regions. For additional support, please visit www.widigitalsystems.com CONGRATULATIONS! Wi AudioStream Pro SL User Guide Final.indd 211/1/2013 11:22:10 AM 3 TABLE OF CONTENTS TECHNICAL SUPPORT 4 PACKING LIST 5 SYSTEM CHARGING & PAIRING 6 LAVALIER FITTING 8 TRANSMITTER MIC CONNECTION 10 TRANSMITTER PLACEMENT 11 RECEIVER CAMERA CONNECTION 12 RECEIVER MIXER CONNECTION 14 RECEIVER SMART DEVICE CONNECTION 16 AUDIO MONITORING 18 2-WAY WIRELESS USB AUDIO INTERFACE 20 MAC USB SETUP 22 PC USB SETUP 24 iPad USB SETUP 26 Windows Surface & Tablet PC USB SETUP 27 WIRELESS USB AUDIO LISTENING 28 WIRELESS USB VoIP & PODCASTING 29 SMART DEVICE DIRECT MIC CONNECTION 30 WI TRANSMITTER & RECEIVER FEATURES 32 BUTTON FUNCTIONS & LED INDICATORS 40 SYSTEM SPECIFICATIONS 44 LAVALIER SPECIFICATIONS 46 FCC NOTICE & RECYCLING INFO 48 WARRANTY 50 ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------------ Wi AudioStream Pro SL User Guide Final.indd 311/1/2013 11:22:10 AM TECHNICAL SUPPORT Getting Answers! We want you to get the most from your new Wi AudioStream Pro SL stereo digital wireless audio system! Simply logon to www.widigitalsystems.com and access the resources available online including instructional manuals and more. Our customer service support staff are ready to assist you with any question you may have. Your Wi AudioStream Pro SL comes with 90 days of telephone support and one year of service coverage. There are several ways to contact Wi Digital Systems customer service support. E-Mail: [email protected] Website: www.widigitalsystems.com/support Technical support: (714) 505-4567 4 Wi AudioStream Pro SL User Guide Final.indd 411/1/2013 11:22:10 AM PACKING LIST MIC Windscreens Wi Sure-Sound™ Stereo Lavalier with Omnidirectional Microphone Capsules Single Feed Cable Clips Wi Transmitter Wi Receiver XLR to 1/8” TRS Cable 1/8” to 1/8” TRS Stereo Cable & 1/4” Adapter 1/8” Stereo to 1/4” Stereo Y-split Cable Hard Shell Carrying Case 1/4”-20 Camera Hot Shoe & Clip Universal USB AC Charger USB Y-Split Power Cable Dual Feed Cable Clip MIC/Headphone Adapter USB Data Cable 5 Stereo XLR to 1/8” TRS Cable Wi AudioStream Pro SL User Guide Final.indd 511/1/2013 11:22:13 AM 6 Charging The System Before using your new Wi AudioStream™ Pro digital wireless system, you need to fully charge the batteries for approximately 2 hours. 1. Plug the AC Charger into a power socket. 2. Connect the USB power cable to the USB port on the AC charger. 3. Connect one of the two mini USB connectors to the Transmitter USB port. 4. Connect the second mini USB connector to the Receiver USB port. 5. The Power/Status LED will turn to solid Red ON. 6. When charging is complete the Red LED will turn OFF. The system’s power source’s flexible design boasts 4 power options: • 4~6 hours internal rechargeable battery use. • 13 hours with USB AA battery adapter (optional accessory). • Continuous use with AC power adapter. • Continuous use with USB port bus power. POWER LINK AC Charger USB Port Mini USB Connector USB Port USB Connector CHARGING Wi AudioStream Pro SL User Guide Final.indd 611/1/2013 11:22:13 AM 7 PAIRING (Tx) p k z v (R…

Text truncated - open the document above for the full version.

J angus Music Inc Federal Communications Commission Authorization and Evaluation Division ATTESTATION FCC ID: XZ3-ALP55-T Product: Wi Stereo Digital Wireless Audio Transmitter Model: Wi-ALP55_TX, Wi-ASP55_TX FCC ID.: XZ3-ALP55-T Nov. 01 , 2013 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, --~..::;;?~~~~~~--------------------- jierre Abboud I Chief Operating & Technology Officer Jangus Music Inc 800 I Irvine Center Drive, 4th Floor, Suite 400 Irvine. CA, 92618 Tel : 714 505 4567

J angus Music Inc Jangus Music Inc 800 I Irvine Center Drive, 4th Floor, Suite 400 Irvine, CA, 92618 Tel: 714 505 4567 Fax: 949 45 93897 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID.: XZ3-ALP55-T ov. 01 ' 2013 Pursuant to Sections 0.457 and 0.459 of the Commission' s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (Wi-ALP55_TX) Schem Block Diagram: (Wi-ALP55_TX) BlkDia Operational Description: (Wi-ALP55_TX) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and prov ide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, 800 I Irvine Center Drive, 4th Floor, Suite 400 lrvine, CA, 92618 Tel : 714 505 4567

Jangus Music Inc 8001 Irvine Center Drive, 4th Floor, Suite 400 Irvine, CA, 92618 TEL No: 714 505 4567 FAX No: 949 459 3897 Attestation for FCC Declaration of Conformity FCC ID: XZ3-ALP55-T Data: Nov. 01, 2013 Please be notified that we, the undersigned, Jangus Music Inc declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 138121R-ITUSP02V02. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, t2~fc~~~icer Jangus Music Inc Tel: 714 505 4567 Fax: 949 459 3897 Email: [email protected]

Jangus Music Inc Declaration of Authorization We Name: Jangus Music Inc ................................ · ......... · ............... . RF 160. Issue 03 Address: 8001 Irvine Center Drive, 4th Floor, Suite 400 Irvine, CA, 92618 ..... . City: Irvine ... ... ... ................................................ ...... · ..... . Country: United States .................................... ..... ............................ . Declare that: Name Representative of agent: Gene Chang ( 1 > QuieTek Corp. Agent Company name: Address: City: Country Fl.2, No.345, Xin-hu 2nd Rd., Nei-hu District Taipei Taiwan is authorized to apply for Certification of the following product(s): Product description: WI Stereo Digital Wireless Audio Transmitter FCC ID: XZ3-ALP55-T Trademark: on our behal f. Date: Ci ty: Name: Function: Signature: Notes: WI Digital Systems ...... 2013/ 11/01 ... .... . ... . .. Laguna Niguel ... .......... . . . . . . . Pierre Abboud ........ ( 2 } .. .... Chief Operating & Technology Officer ...... . . . (1): Required for FCC application (2): For FCC it must be the Grantee Code "owner" or the authorized agent.

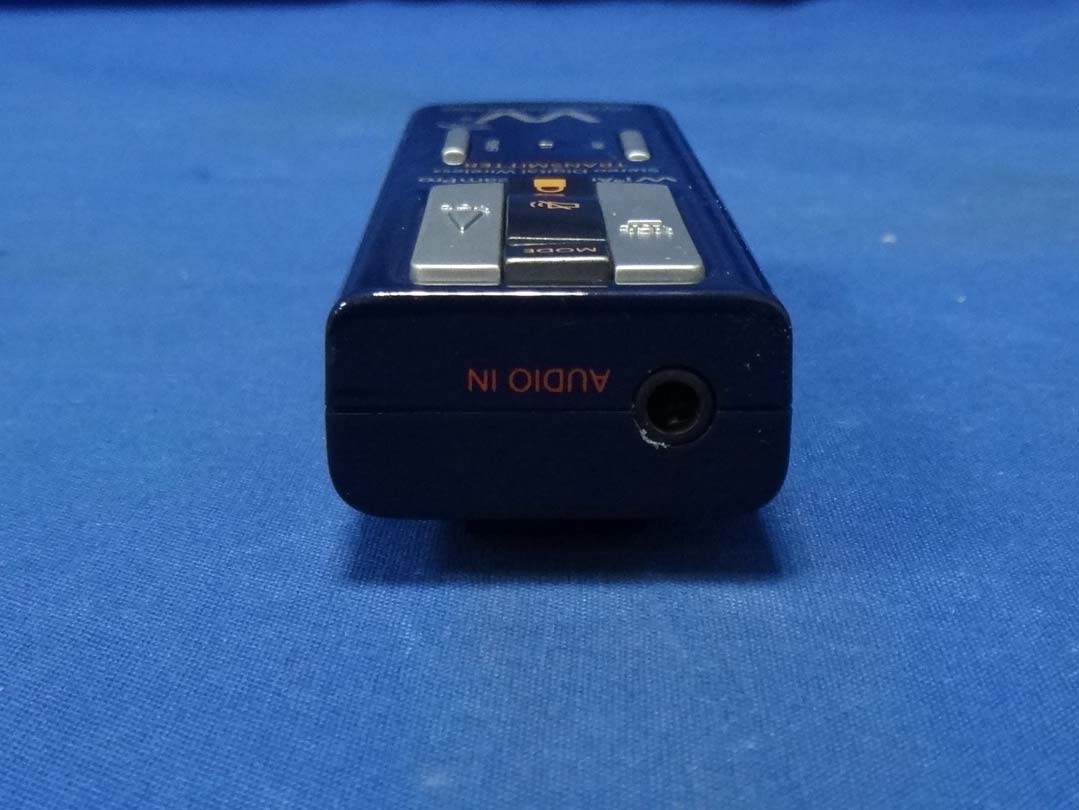

Report No.: 138121R-RFUSP42V01 Page : 1 of 8 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 138121R-RFUSP42V01 Page : 2 of 8 (3) EUT Photo (4) EUT Photo

Jangus Music Inc FCC ID.: XZ3-ALP55-T 8001 Irvine Center Drive, 4th Floor, Suite 400 Irvine, CA, 92618 Tel : 714 505 4567 FCC ID Label

Jangus Music Inc FCC ID.: XZ3-ALP55-T 8001 Irvine Center Drive, 4th Floor, Suite 400 Irvine, CA, 92618 Tel : 714 505 4567 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 138121R-RFUSP42V01 Page : 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 138121R-RFUSP42V01 Page : 4 of 8 (7) EUT Photo (8) EUT Photo Report No.: 138121R-RFUSP42V01 Page : 5 of 8 (9) EUT Photo (10) EUT Photo Report No.: 138121R-RFUSP42V01 Page : 6 of 8 (11) EUT Photo (12) EUT Photo Report No.: 138121R-RFUSP42V01 Page : 7 of 8 (13) EUT Photo (14) EUT Photo Antenna RF Chip Report No.: 138121R-RFUSP42V01 Page : 8 of 8 (15) EUT Photo (16) EUT Photo

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2. Measurement Result: According to KDB 447498 D01 Mobile Portable RF Exposure v05, Operation frequency = 2450MHz and antenna separation distance = 5mm, SAR Test Exclusion Threshold = 10mW The Device max peak output power = 3.63dBm, Equivalent to 2.30mW and less than 10mW The SAR/MPE measurement is not necessary.

Report No. 138121R-RFUSP42V01 Page : 1 of 43 FCC Test Report Product Name Wi Stereo Digital Wireless Audio Transmitter Model No Wi-ALP55_TX, Wi-ASP55_TX FCC ID. XZ3-ALP55-T Applicant Jangus Music, Inc. Address 8001 Irvine Center Drive, 4th Floor, Suite 400 Irvine, CA, 92618 Date of Receipt Aug. 02, 2013 Issue Date Oct. 21, 2013 Report No. 138121R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government Report No. 138121R-RFUSP42V01 Page : 2 of 43 Test Report Certification Issue Date: Oct. 21, 2013 Report No.: 138121R-RFUSP42V01 Product Name Wi Stereo Digital Wireless Audio Transmitter Applicant Jangus Music, Inc. Address 8001 Irvine Center Drive, 4th Floor, Suite 400 Irvine, CA, 92618 Manufacturer Jangus Music, Inc. Model No. Wi-ALP55_TX, Wi-ASP55_TX EUT Rated Voltage DC 3.7V EUT Test Voltage AC 120V/ 60Hz Trade Name Wi Digital Systems Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2003, ANSI C63.10: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : ( Engineer / Andy Lin ) Approved By : ( Manager / Vincent Lin) Report No. 138121R-RFUSP42V01 Page : 3 of 43 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Procedure .............................................................................................................................14 3.5. Uncertainty ..................................................................................................................................14 3.6. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................16 4.1. Test Equipment............................................................................................................................16 4.2. Test Setup ....................................................................................................................................17 4.3. Limits ..........................................................................................................................................18 4.4. Test Procedure .............................................................................................................................18 4.5. Uncertainty ..................................................................................................................................19 4.6. Test Result of Radiated Emission................................................................................................20 5. RF antenna conducted test........................................................................................................24 5.1. Test Equipment................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 138121R-RFUSP42V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 138121R-RFUSP42V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 138121R-RFUSP42V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
