XZ3-KEN4-TPROFESSIONAL STEREO DIGITAL WIRELESS AUDIO DONGLES (TRANSMITTER)

Wi AudioLink USER GUIDEJM-WAL35 Professional Stereo Digital Wireless Audio Dongles STEREO DIGITAL WIRELES CONGRATULATIONS! Thank You For Choosing Jangus Music! Congratulations on your purchase of the Wi-AudioLink Professional Stereo Digital Wireless Audio Dongles. In this manual, you’ll find information designed to help you understand the capability of your Wi-AudioLink as well as step-by-step explanation on how to install and operate your Wi-AudioLink professional stereo digital wireless audio dongles. Wi-AudioLink CONGRATULATIONS Getting Answers! We want you to get the most from your new Wi-AudioLink professional stereo digital wireless audio dongles! Simply logon to www.jangusmusic.com and access the powerful resources available online including instructional manuals and frequently asked questions. Our customer service support staff are ready to assist you with any question you may have. Your Wi-AudioLink comes with 90 days of telephone support and one year of service coverage. There are may ways to contact Jangus Music customer service support. E-Mail: [email protected] Website: https://www.jangusmusic.com/support Technical support: (949) 526-4877 [949-JANGUS7] Wi-AudioLink 3 TECHNICAL SUPPORT Making Grate Instruments Better! Jangus Music’s Wi-AudioLink JM-WAL35 professional stereo digital wireless audio dongles solution is the smallest, most advanced cable replacement technology available today that fits on the palm of your hand! This full function 2.4GHz point-to-point digital wireless audio solution provides up to 300 feet of secure, simultaneous un-compressed stereo 48KHz/16bit CD quality wireless audio connectivity without radio frequency (RF) interference with other wireless devices ,signal loss, crackle or AC hum making it the best wireless solution for live performances and studio recording environments. This Patents-Pending, plug-and-play digital wireless audio solution replaces the traditional audio wire cable and provide easy and user friendly way to connect any professional musical instrument such as Digital Pianos, Keyboards, Guitars, Effects Pedals, Electronic Drums and other analog audio devices to remote and hard to reach equipment such as Mixers, Amplifiers, Speakers, Samplers, Hard Disk Recorders, Computers and more. Simply connect the dongle size transmitter to the audio output jacks on the musical instrument then connect the dongle size receiver to the mixer, amplifier, speaker, surround sound or computer audio input jacks and you are done!... INTRODUCTION Wi-AudioLink 4 Meeting The Specs! The Wi-AudioLink transmitter small and rugged design, boasts three (3) different power up modes to support the following instruments connections: • Line-in (Stereo) • Active Guitars/Mono Line-in • Passive Guitars /Electric Acoustic Each of the power up modes are configured to apply the appropriate input impedance and input voltage levels to best match the electrical characteristics of the instrument connected to the transmitter dongle. INTRODUCTION Wi-AudioLink 5 Transmitter (Tx) Receiver (Rx) Stereo System MP3 Mixers DJ Gear Digital Recorders Computers Amplifiers Mixers Stereo System Digital Recorders In-ear Headphone Monitors Pianos & Keyboards Electric Acoustics Electronic Drums Electronic Wind instruments Effects Pedals Effects Pedals Flat Screen TV Electric Guitars Computers Professional Gear Consumer Smart Phone Extreme Flexibility! The Wi-AudioLink boasts an interchangeable 1/4” (6.35mm) TRS stereo connector jack, 1/8” (3.5mm) stereo miniature jack, 2.5mm subminiature jack and XLR connectors for maximum connectivity with audio devices. The Wi-AudioLink power source flexible design boasts an internal rechargeable battery for 6.5 hours of battery operations, powerful USB bus power connectivity to any USB equipped devices and optional ON-THE-GO AA battery power booster adapter for 19 hours of extended battery operations. INTRODUCTION Wi-AudioLink 6 XLR Unbalanced 6.3mm TSR Stereo 6.3mm TSR Mono 3.5mm Stereo 3.5mm Mono 2.5mm Stereo 2.5mm Mono RCA Charger USB Bus Power 3.5mm Stereo AA Battery Power Booster Creating Your Audio Matrix! Jangus Music’s built-in digital wireless audio signal patch routing feature allows users to re-rout the audio output signal from their instruments to up to eight (8) different digital wireless receivers including Jangus Music’s JM-WHM01 digital wireless headphone audio monitoring system for private listening and performance monitoring with a simple press of the Link button located on the transmitter dongle. No more removing the patch-bay devices, disconnecting cables, and flipping I/O circuit boards! INTRODUCTION Wi-AudioLink 7 Tx 1 Effects Pedals Rx 1 Headphone Rx 2 Mixer Rx 4 Computer Rx 5 Rx 7 Foot Pedals Rx 8 Rx 3 Digital Recorder Rx 6 What is included in the package? Verify that you have received all of the items listed below. Please visit our web site at www.jangusmsuic.com for additional accessories. PACKING LIST Wi-AudioLink 8 Wi-Transmitter Wi-ReceiverUniversal AC Charger (QTY 2) 1/4” Mono Male to 1/8” Stereo Male Cable (QTY 2) 1/4” Stereo Male to 1/8” Stereo Male Y-split Cable Carrying Bag USB Y-Split Power Cable User Manual w w w . j a n g u s m u s i c . c o m 1. Audio OUT Jack 2. Power ON/OFF 3. Link / Paring 4. Power/Status LED 5. Volume UP 6. Volume Down 7. Mute/ Play/Pause 8. Previous Track 9. Next Track 10. USB Charging Port 11. Belt Clip 11 ~ s ABOUT YOUR JM-WAL35 Wi-AudioLink 9 1. Audio IN Jack 2. Power ON/OFF 3. Link / Paring 4. Power/Status LED 5. Volume UP 6. Volume Down 7. Mute 8. Sleep 9. Mic Power Mode 10. USB Charging Port 11. Belt Clip 11 j r o n q p l m k u | } y { z w x v Wi Transmitter Wi Receiver Transmitter Dongle Controls and Connections j Audio IN Jack: Provide a stereo connection for professional musical instruments, mixers samplers and any analog devices such as MP3 players, cell phones, stereo systems, computers, home entertainment systems and more... k Power ON/OFF: Press and hold the Power button for 2 …

Text truncated - open the document above for the full version.

Wi AudioStream USER GUIDEJM-WAL45 Professional Stereo Digital Wireless Audio Dongles STEREO DIGITAL WIRELES CONGRATULATIONS! Thank You For Choosing Jangus Music! Congratulations on your purchase of the Wi-AudioStream Professional Stereo Digital Wireless Audio Dongles. In this manual, you’ll find information designed to help you understand the capability of your Wi-AudioStream as well as step-by-step explanation on how to install and operate your Wi-AudioStream professional stereo digital wireless audio dongles. Wi-AudioStream CONGRATULATIONS Getting Answers! We want you to get the most from your new Wi-AudioStream professional stereo digital wireless audio dongles! Simply logon to www.jangusmusic.com and access the powerful resources available online including instructional manuals and frequently asked questions. Our customer service support staff are ready to assist you with any question you may have. Your Wi-AudioStream comes with 90 days of telephone support and one year of service coverage. There are may ways to contact Jangus Music customer service support. E-Mail: [email protected] Website: https://www.jangusmusic.com/support Technical support: (949) 526-4877 [949-JANGUS7] Wi-AudioStream 3 TECHNICAL SUPPORT ENGLISH Making Great Musical Gear Better! Jangus Music’s Wi-AudioStream JM-WAL45 professional stereo digital wireless audio dongles solution is the smallest, most advanced cable replacement technology available today that fits on the palm of your hand! This full function 2.4GHz point-to-point digital wireless audio solution provides up to 300 feet of secure, simultaneous un-compressed stereo 48KHz/16bit CD quality wireless audio connectivity without radio frequency (RF) interference with other wireless devices, signal loss, crackle or AC hum making it the best wireless solution for live performances and studio recording environments. This Patents-Pending, plug-and-play digital wireless audio solution replaces the traditional audio wire cable and provide easy and user friendly way to connect professional musical gear such as Mono and Stereo Ear- worn or Clip-on Microphones, Acoustic and Wind Instruments Microphones, In-ear Monitors, Studio Monitors Headphones and other analog audio devices to remote and hard to reach equipment such as Mixers, Amplifiers, Speakers, Samplers, Hard Disk Recorders, Computers and more. Simply connect the audio source to the dongle size transmitter audio input jacks then connect the dongle size receiver to the In-ear monitors, Headphones, Mixer, Amplifier, Speaker or computer audio input jacks and you are done!... INTRODUCTION Wi-AudioStream 4 Meeting The Specs! The Wi-AudioStream transmitter small and rugged design, boasts three (3) different power up modes to support the following instruments connections: • Line-in (Stereo) • Stereo Microphones • Mono Microphones Each of the power up modes are configured to apply the appropriate input impedance and input voltage levels to best match the electrical characteristics of the instrument connected to the transmitter dongle. INTRODUCTION Wi-AudioStream 5 Transmitter (Tx) Receiver (Rx) Mono MIC Stereo MIC Stringed Instruments Brass Instruments Woodwinds Instruments Stereo System MP3 Smart Phone Mixers DJ Gear Digital Recorders Computers Amplifiers Mixers Stereo System Digital Recorders Headphones & In-ear Monitors Extreme Flexibility! The Wi-AudioStream boasts an interchangeable 1/4” (6.35mm) TRS stereo connector jack, 1/8” (3.5mm) stereo miniature jack, 2.5mm subminiature jack and XLR connectors for maximum connectivity with audio devices. The Wi-AudioStream power source flexible design boasts an internal rechargeable battery for 6.5 hours of battery operations, powerful USB bus power connectivity to any USB equipped devices and optional ON-THE-GO AA battery power booster adapter for 19 hours of extended battery operations. INTRODUCTION Wi-AudioStream 6 XLR Unbalanced 6.3mm TSR Stereo 6.3mm TSR Mono 3.5mm Stereo 3.5mm Mono 2.5mm Stereo 2.5mm Mono RCA Charger USB Bus Power 3.5mm Stereo AA Battery Power Booster Creating Your Audio Matrix! Jangus Music’s built-in digital wireless audio signal patch routing feature allows users to re-rout the audio output signal from their instruments to up to 8 different Rx digital wireless receivers including Jangus Music’s JM-WHM01 digital wireless headphone audio monitoring system for private listening and performance monitoring with a simple press of the Link button located on the transmitter dongle. No more removing the patch-bay devices, disconnecting cables, and flipping I/O circuit boards! INTRODUCTION Wi-AudioStream 7 Tx 1 In-ear Monitor Rx 1 Headphone Rx 2 Mixer Rx 4 Computer Rx 5 Rx 7 Rx 3 Digital Recorder Rx 6 Compressor/Limiter/ Gate/FX Rx 8 Amplifier What is included in the package? Verify that you have received all of the items listed below. Please visit our web site at www.jangusmsuic.com for additional accessories. PACKING LIST Wi-AudioStream 8 Wi-Transmitter Wi-ReceiverUniversal AC Charger (QTY 2) 1/4” Mono Male to 1/8” Stereo Male Cable (QTY 2) 1/4” Stereo Male to 1/8” Stereo Male Y-split Cable Carrying Bag USB Y-Split Power Cable User Manual w w w . j a n g u s m u s i c . c o m 11 12 1. Audio OUT Jack 2. Power ON/OFF 3. Link / Paring / VoIP 4. Power/Status LED 5. Volume UP 6. Volume Down 7. Mute/ Play/Pause 8. Previous Track 9. Next Track 10. (VoIP) Microphone 11. USB Charging Port 12. Belt Clip ~ s ABOUT YOUR JM-WAL45 Wi-AudioStream 9 1. Audio IN Jack 2. Power ON/OFF 3. Link / Paring 4. Power/Status LED 5. Volume UP 6. Volume Down 7. Mute 8. Sleep 9. MIC Mode 10. USB Charging Port 11. Belt Clip 11 j r o n q p l m k u | } y { z w x v Wi Transmitter Wi Receiver Transmitter Dongle Controls and Connections j Audio IN Jack: Provide stereo and mono connection for professional vocal and instruments capacitive microphones and any analog devices such as monitoring systems MP3 players, cell phones, stereo systems, computers and more... k Power ON/OFF: Press an…

Text truncated - open the document above for the full version.

Jangus Music Inc. FCC ID.: XZ3-KEN4-T Federal Communications Commission Dec. 11 , 2009 Authorization and Evaluation Division ATTESTATION FCC ID: XZ3-KEN4-T Product: Professional Stereo Digital Wireless Audio Dongles (Transmitter) Model: JM-WAL35-T1, KEN4-T1, JM-WAL45-T1, KEN5-T1 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, fierre Abboud / Chief Operating & Technology Officer Jangus Music Inc. 28202 Cabot Road, Third Floor Laguna Niguel, CA 92677 USA Tel : (949) 365-5788

Jangus Music Inc. FCC ID.: XZ3-KEN4-T Jangus Music Inc. 28202 Cabot Road, Third Floor Laguna Niguel, CA 92677 USA Tel: (949) 365-5788 Fax: (949) 365-7099 Federal Communications Commission Dec. 11,2009 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below. Block diagram, (JM-WAL35-Tl)BlkDia Schematics, (JM-WAL35-T1) Schem The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Pferre Abboud / Chief Operating^TieciinoIogy~Oflte«r Jangus Music Inc. 28202 Cabot Road, Third Floor Laguna Niguel, CA 92677 USA Tel: (949) 365-5788

RFJ60, Issue 02 Jangus Music Inc. Declaration of Authorization We Name: Jangus Music Inc. Address: 28202 Cabot Road, Third Floor Laguna Miguel, CA 92677 USA City: Laguna Niguel Country: United States... Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: FI.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Professional Stereo Digital Wireless Audio Dongles (Transmitter) Type designation: JM-WAL35-T1, KEN4-T1, JM-WAL45-T1, KEN5-T1 Trademark: Jangus Music Inc. on our behalf. Date: ...... 2009/12/11 ...... .. City: ...... Laguna Niguel..... Name: ...... Pierre Abboud ...... .. <2> Function: . . . Chief Operating & Technology Officer. . Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code "owner" or the authorized agent.

Jangus Music Inc. 28202 Cabot Road, Third Floor Laguna Miguel, CA 92677 USA TEL No: (949) 365-5788 FAX No.: (949) 365-7099 Attestation for FCC Declaration of Conformity FCC ID: XZ3-KEN4-T Data: Dec. 11 , 2009 Please be notified that we, the undersigned, Jangus Music Inc. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is DOCTR0001(09C134R-ITUSP02V02). Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Pierre Abboud / Chief Operating & Technology Officer Jangus Music Inc. Tel: (949) 365-5788 Fax: (949) 365-7099 Email: [email protected]

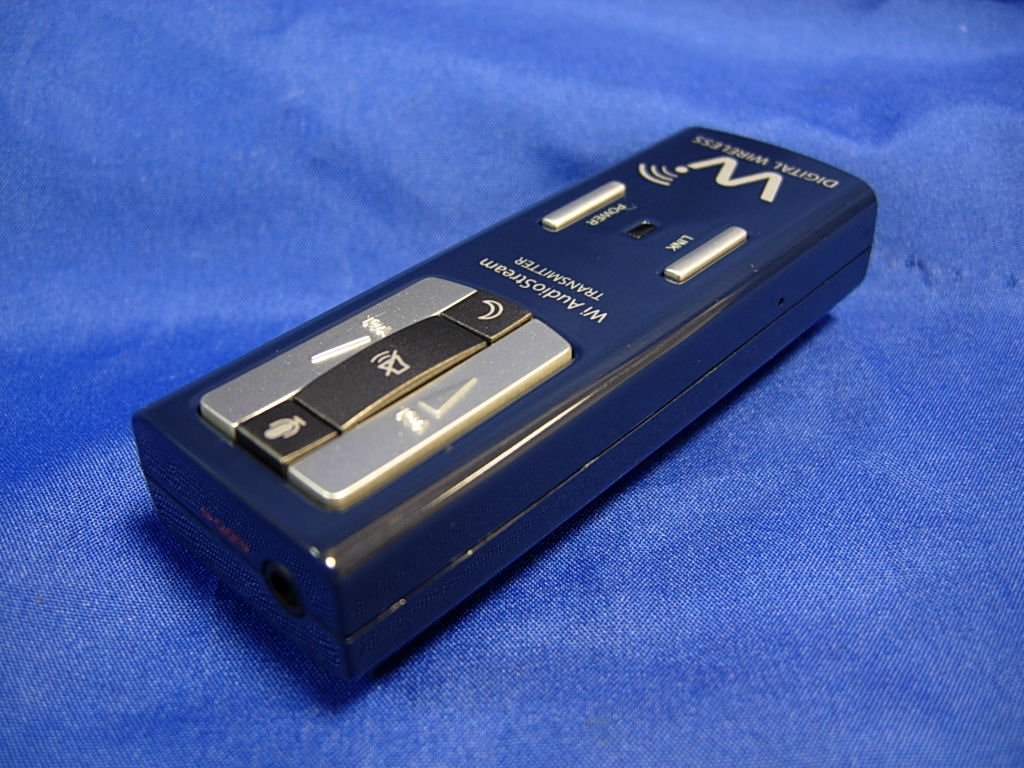

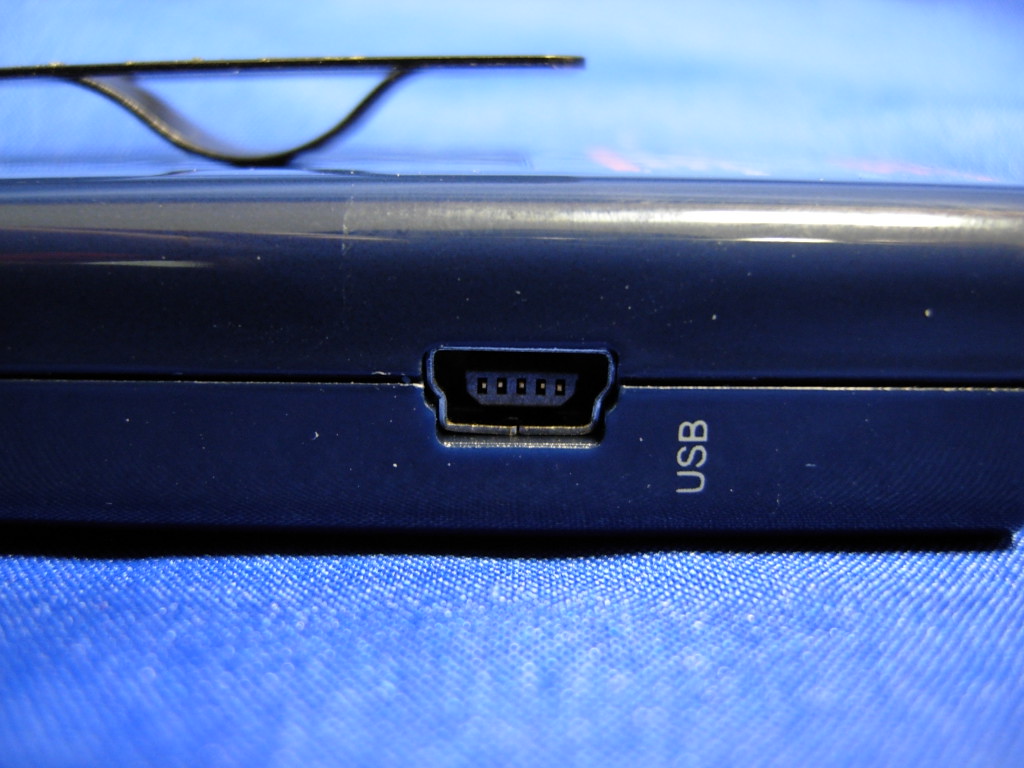

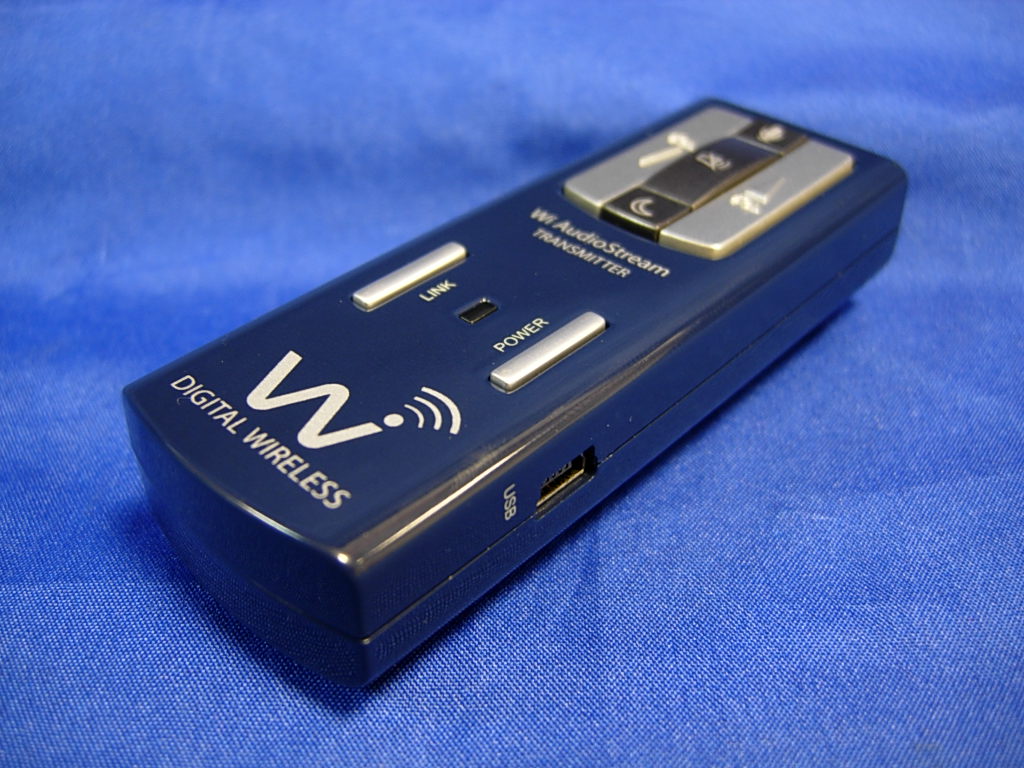

Report No.: 09C134R-RFUSP44V01 Page : 1 of 7 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 09C134R-RFUSP44V01 Page : 2 of 7 (3) EUT Photo (4) EUT Photo

Jangus Music Inc. FCC ID.: XZ3-KEN4-T 28202 Cabot Road, Third Floor Laguna Niguel, CA 92677 USA Tel : (949) 365-5788 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Jangus Music Inc. FCC ID.: XZ3-KEN4-T 28202 Cabot Road, Third Floor Laguna Niguel, CA 92677 USA Tel : (949) 365-5788 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Jangus Music Inc. FCC ID.: XZ3-KEN4-T 28202 Cabot Road, Third Floor Laguna Niguel, CA 92677 USA Tel : (949) 365-5788 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Jangus Music Inc. FCC ID.: XZ3-KEN4-T 28202 Cabot Road, Third Floor Laguna Niguel, CA 92677 USA Tel : (949) 365-5788 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Jangus Music Inc. FCC ID.: XZ3-KEN4-T 28202 Cabot Road, Third Floor Laguna Niguel, CA 92677 USA Tel : (949) 365-5788 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Jangus Music Inc. FCC ID.: XZ3-KEN4-T 28202 Cabot Road, Third Floor Laguna Niguel, CA 92677 USA Tel : (949) 365-5788 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Jangus Music Inc. FCC ID.: XZ3-KEN4-T 28202 Cabot Road, Third Floor Laguna Niguel, CA 92677 USA Tel : (949) 365-5788 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Jangus Music Inc. FCC ID.: XZ3-KEN4-T 28202 Cabot Road, Third Floor Laguna Niguel, CA 92677 USA Tel : (949) 365-5788 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Report No.: 09C134R-RFUSP44V01 Page : 3 of 7 (5) EUT Photo (6) EUT Photo Report No.: 09C134R-RFUSP44V01 Page : 4 of 7 (7) EUT Photo (8) EUT Photo Report No.: 09C134R-RFUSP44V01 Page : 5 of 7 (9) EUT Photo (10) EUT Photo Report No.: 09C134R-RFUSP44V01 Page : 6 of 7 (11) EUT Photo (12) EUT Photo Report No.: 09C134R-RFUSP44V01 Page : 7 of 7 (13) EUT Photo

Report No. 09C134R-RFUSP44V01 Page : 6 of 34 1.2. Operation Description The EUT is a Professional Stereo Digital Wireless Audio Dongles (Transmitter) with a built-in 2.4GHz transceiver. The EUT operation frequency is 2.405GHz-2.477GHz. The signals modulated by π/4 DQPSK (Differential Quadrature Phase Shift Keying) are transmitted from the Printer on PCB Antenna of the EUT.

Report No. 09C134R-RFUSP44V01 Page : 1 of 34 Test Report Product Name Professional Stereo Digital Wireless Audio Dongles (Transmitter) Model No. JM-WAL35-T1, KEN4-T1, JM-WAL45-T1, KEN5-T1 FCC ID. XZ3-KEN4-T Applicant Jangus Music Inc. Address 28202 Cabot Road, Third Floor Laguna Niguel, CA 92677 USA Date of Receipt June 24, 2009 Issued Date Dec. 07, 2009 Report No. 09C134R-RFUSP44V01 Report Version V1.0 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 09C134R-RFUSP44V01 Page : 2 of 34 Test Report Certification Issued Date: Dec. 07, 2009 Report No. : 09C134R-RFUSP44V01 Product Name Professional Stereo Digital Wireless Audio Dongles (Transmitter) Applicant Jangus Music Inc. Address 28202 Cabot Road, Third Floor Laguna Niguel, CA 92677 USA Manufacturer Jangus Music Inc. Model No. JM-WAL35-T1, KEN4-T1, JM-WAL45-T1, KEN5-T1 FCC ID. XZ3-KEN4-T EUT Rated Voltage DC 3.7V (Power by Battery) EUT Test Voltage AC 120V/60Hz Trade Name Jangus Music Inc. FCC CFR Title 47 Part 15 Subpart C: 2008 Applicable Standard ANSI C63.4: 2003 Test Result Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : (Engineer / Molin Huang ) Approved By : (Manager / Vincent Lin ) Report No. 09C134R-RFUSP44V01 Page : 3 of 34 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................4 1.1. EUT Description.........................................................................................................................4 1.2. Operation Description ................................................................................................................6 1.3. Tested System Details ................................................................................................................7 1.4. Configuration of Test System .....................................................................................................7 1.5. EUT Exercise Software ..............................................................................................................8 1.6. Test Facility ................................................................................................................................9 2. Conducted Emission.................................................................................................................10 2.1. Test Equipment.........................................................................................................................10 2.2. Test Setup .................................................................................................................................10 2.3. Limits........................................................................................................................................10 2.4. Test Procedure ..........................................................................................................................11 2.5. Uncertainty ...............................................................................................................................11 2.6. Test Result of Conducted Emission..........................................................................................12 3. Radiated Emission ....................................................................................................................14 3.1. Test Equipment.........................................................................................................................14 3.2. Test Setup .................................................................................................................................15 3.3. Limits........................................................................................................................................16 3.4. Test Procedure ..........................................................................................................................17 3.5. Uncertainty ...............................................................................................................................17 3.6. Test Result of Radiated Emission.............................................................................................18 4. Band Edge ................................................................................................................................25 4.1. Test Equipment.........................................................................................................................25 4.2. Test Setup .................................................................................................................................26 4.3. Limit .........................................................................................................................................26 4.4. Test Procedure ..........................................................................................................................27 4.5. Uncertainty ...............................................................................................................................27 4.6. Test Result of Band Edge .........................................................................................................28 5. EMI Reduction Method During Compliance Testing ..............................................................32 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Report No. 09C134R-RFUSP44V01 Page : 4 of 34 1. GENERAL INFOR…

Text truncated - open the document above for the full version.

Report No.: 09C134R-RFUSP44V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 09C134R-RFUSP44V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 09C134R-RFUSP44V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
