XZF-SM703DTDigital Wireless Camera and Receiver

DigioutAir User’s Manual Digital Wireless Outdoor/Indoor Color Camera Kit with Audio and Night Vision 1 © Copyright 2012 This manual is furnished under license and may be used or copied only in accordance with the terms of such license. Except as permitted by such license, no part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or any means, electronic, mechanical, recording, or otherwise, including translation to another language or format, without the prior written permission of SecurityMan. The content of this manual is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by SecurityMan. SecurityMan Inc assumes no responsibility or liability for any errors or inaccuracies that may appear in this book. FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device should not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Operation of this equipment in a residential area is likely to cause interference in which case, the user at his or her own risk and expense will be required to correct the interference. Warranty SecurityMan Inc warrants that this product will be free from defects in title, materials and manufacturing workmanship for one year or otherwise specified on the product packaging. This limited warranty shall commence from the date of purchase. SecurityMan products warranty is not transferable and is limited to the original purchaser. If the product is found to be defective then, as your sole remedy and as the manufacturer’s only obligation, SecurityMan will repair or replace the product. This warranty shall not apply to products that have been subjected to abuse, misuse, abnormal electrical or environmental conditions, normal wear and tear, or any condition other than what can be considered normal use. 2 Warranty Disclaimers SecurityMan Inc, makes no other warranties, express, implied or otherwise, regarding this product, and specifically disclaims any warranty for merchantability or fitness for a particular purpose. The exclusion of implied warranties is not permitted in some states and the exclusions specified herein may not apply to you. This warranty provides you with specific legal rights. There may be other rights that you have which vary from state to state. Limitation of Liability The liability of SecurityMan Inc, arising from this warranty and sale shall be limited to a refund of the purchase price. In no event shall SecurityMan be liable for costs of procurement of substitute products or services, or for any lost profits, or for any consequential, incidental, direct or indirect damages, however caused and on any theory of liability, arising from this warranty and sale. These limitations shall apply not withstanding any failure of essential purpose of any limited remedy. For Tech Support Call: 888-977-3777 SecurityMan 4601 E. Airport Drive Ontario, CA, 91761, USA Tel: 909-230-6668 Fax: 909-230-6889 Email: [email protected] Website: www.securitymaninc.com Copyright 2012 by SecurityMan v1.0 3 Table of Contents Introduction Important Restrictions Conditions Package Contents Specifications Features Product Basics Camera (SM-703DT) Receiver (SM-451DR) Quick Start On-Screen Display Operation Troubleshooting 4 4 5 7 8 9 10 11 11 11 12 14 14 15 4 Introduction Thank you for purchasing the SecurityMan DigioutAir. The DigioutAir is a “Do-It-Yourself” Digital Wireless Security camera kit designed for easy installation and operation. With surveillance made easy, this DIY kit will allow you to monitor your home, business, front or back doors, garage, backyard, or any location that you would like to keep an eye on. In comparison to the traditional wireless technology (analog), digital wireless provides three key features which include: Increased range of transmission, secure signal (neighbors cannot pick up the signal) and unlike analog, the digital signals are virtually interference-free from crowded wireless analog devices such as: Wi-Fi routers, Bluetooth devices, cordless phones, microwaves, and cell phones. Important This guide provides important information on the use and operation of your DigioutAir. Please read all the information carefully prior to using the product for the best performance and to prevent any damage/ injuries or misuse of the device(s). Customers are entitled to have read through this complete user’s manual before using the DigioutAir. Any unapproved changes or modifications will void your warranty. Please ensure to have a complete understanding of the following restrictions. 5 Restrictions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the product operating instructions. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observes the following precautions. PLEASE NOTE that under certain circumstances, audio/video recording may be PROHIBITED by law. This device should be used only in compliance with all applicable federal, state and local statutes. • DO NOT place this product too close to medical equipments. 1. Radio waves might potentially cause breakdown of medical electrical equipments and thus cause incidents. 2. Place the product at least 22cm from the heart pacemaker. Radio wave potentially influences heart pacemaker and thus leads to respiratory disturbance. • DO NOT use this product to monitor equipments or activities that are relevant to one’s privacy.Monitoring one’s private activities without consent is illegal and this product is not designed and manufactured for these purposes. • DO NOT this product to carry out any illegal activities such as sneak preview, and etc.…

Text truncated - open the document above for the full version.

SHENZHEN LYD TECHNOLOGY CO., LTD Date: 2012-07-23 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: XZF-SM703DT To Whom It May Concern: This letter is to ascertain that SHENZHEN LYD TECHNOLOGY CO., LTD. Product Digital Wireless Camera and Receiver (M/N: SM703DT) has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Mingsheng Deng/ Manager Title: Manager Tel: +86-0755-61112526 Fax: +86-0755-28066085 SHENZHEN LYD TECHNOLOGY CO., LTD Building A, Cunnan Industrial Estate, Shuidou Laowei, Longhua Town, Bao’an District, Shenzhen, China.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 SHENZHEN LYD TECHNOLOGY CO., LTD Date:2012-07.-23 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SHENZHEN LYD TECHNOLOGY CO., LTD hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product: Digital Wireless Camera and Receiver (M/N: SM703DT) We affirm that between SIEMIC and SHENZHEN LYD TECHNOLOGY CO., LTD, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Signature Mingsheng Deng/ Manager Title: Manager Tel: +86-0755-61112526 Fax: +86-0755-28066085 SHENZHEN LYD TECHNOLOGY CO., LTD Building A, Cunnan Industrial Estate, Shuidou Laowei, Longhua Town, Bao’an District, Shenzhen, China.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 SHENZHEN LYD TECHNOLOGY CO., LTD 2012-07-23 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: XZF-SM703DT We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Mingsheng Deng/ Manager Title: Manager Tel: +86-0755-61112526 Fax: +86-0755-28066085 SHENZHEN LYD TECHNOLOGY CO., LTD Building A, Cunnan Industrial Estate, Shuidou Laowei, Longhua Town, Bao’an District, Shenzhen, China.

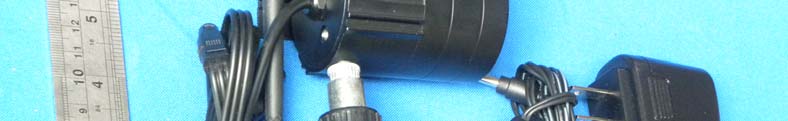

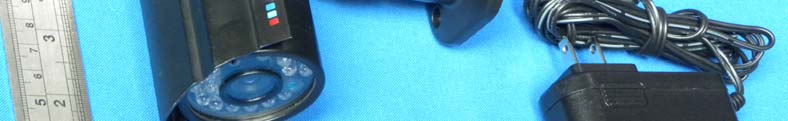

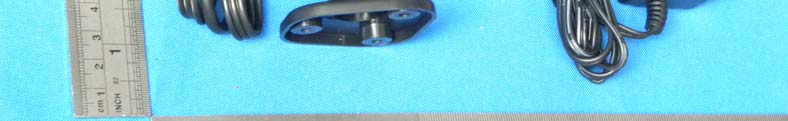

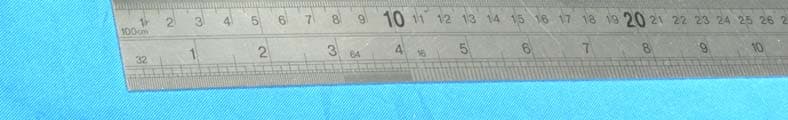

General Appearance of the EUT

FCC ID: XZF-SM703DT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Location On EUT

Antenna

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID：XZF-SM703DT EUT Specification EUT Digital Wireless Camera and Receiver Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 10.21dBm (10.49mW) Antenna gain (Max) 3 dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Antenna gain: 3 dBi Channel Channel Frequency (MHz) Output Peak power (mW) Antenna Gain (dBi) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) Low 2402 9.01 3 3.58e-03 1 Middle 2440 10.49 3 4.18e-03 1 High 2480 9.86 3 3.92e-03 1 Signature Mingsheng Deng/ Manager Title: Manager Tel: +86-0755-61112526 Fax: +86-0755-28066085 SHENZHEN LYD TECHNOLOGY CO., LTD Building A, Cunnan Industrial Estate, Shuidou Laowei, Longhua Town, Bao’an District, Shenzhen, China.

DONGGUAN EMTEK CO., LTD. REPORT NO.: KAD120703003E FCC ID: XZF-SM703DT DATE: 07/27/2012 Page 1 of 41 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Digital Wireless Camera and Receiver MODEL No.: SM703DT BRAND NAME: LYD FCC ID: XZF-SM703DT REPORT NO.: KAD120703003E ISSUE DATE: July 27, 2012 Prepared for SHENZHEN LYD TECHNOLOGY CO., LTD Building A, Cunnan Industrial Estate, Shuidou Laowei, Longhua Town, Bao’an District, Shenzhen, China. Prepared by DONGGUAN EMTEK CO., LTD. No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 DONGGUAN EMTEK CO., LTD. REPORT NO.: KAD120703003E FCC ID: XZF-SM703DT DATE: 07/27/2012 Page 2 of 41 VERIFICATION OF COMPLIANCE Applicant: SHENZHEN LYD TECHNOLOGY CO., LTD Building A, Cunnan Industrial Estate, Shuidou Laowei, Longhua Town, Bao’an District, Shenzhen, China. Product Description: Digital Wireless Camera and Receiver Brand Name: LYD Model Number: SM703DT Serial Number: N/A File Number: KAD120703003E Date of Test: July 03, 2012 to July 23, 2012 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved By Sam Lv / Q.A. Manager DONGGUAN EMTEK CO., LTD. DONGGUAN EMTEK CO., LTD. REPORT NO.: KAD120703003E FCC ID: XZF-SM703DT DATE: 07/27/2012 Page 3 of 41 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION .................................................................................................. 5 1.1 PRODUCT DESCRIPTION........................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 6 1.3 TEST METHODOLOGY.............................................................................................................................. 6 1.4 SPECIAL ACCESSORIES............................................................................................................................ 6 1.5 EQUIPMENT MODIFICATIONS.................................................................................................................. 6 1.6 TEST FACILITY........................................................................................................................................ 7 2. SYSTEM TEST CONFIGURATION .................................................................................... 8 2.1 EUT CONFIGURATION............................................................................................................................. 8 2.2 EUT EXERCISE........................................................................................................................................ 8 2.3 TEST PROCEDURE.................................................................................................................................... 8 2.4 LIMITATION............................................................................................................................................. 8 2.5 CONFIGURATION OF TESTED SYSTEM................................................................................................... 12 3. DESCRIPTION OF TEST MODES .................................................................................... 13 4. CONDUCTED EMISSIONS TEST ..................................................................................... 14 4.1 MEASUREMENT PROCEDURE:................................................................................................................ 14 4.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 14 4.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 14 4.4 MEASUREMENT RESULT:....................................................................................................................... 15 4.5 CONDUCTED MEASUREMENT PHOTOS: .................................................................................................. 17 5. RADIATED EMISSION TEST ............................................................................................. 18 5.1 MEASUREMENT PROCEDURE................................................................................................................. 18 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 18 5.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 19 5.4 MEASUREMENT RESULT........................................................................................................................ 20 5.5 RADIATED MEASUREMENT PHOTOS: ..................................................................................................... 24 6. CHANNEL SEPARATION TEST ....................................................................................... 25 6.1 MEASUREMENT PROCEDURE................................................................................................................. 25 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 25 6.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 25 6.4 MEASUREMENT RESULTS:.........................…

Text truncated - open the document above for the full version.

Setup Photos
