XZU9450Localisation Transceiver

Kapsch TrafficCom AG Technical Manual WAVE Transceiver with precise localization capability MTX-9450 and TRX-9450 This device is based on the IEEE WAVE Standards 1000005502-THb-02 1000005502-THb-02 Order number: 1000005502 Document type THb Document issue 02 Document status released Date of issue 2010-03-23 Valid from Author: Manfred Batko Assessor: Robert Povolny Release: Werner Lackner Disclaimer and Limitation of Liability The products described in this manual are provided “as is” and without any warranties of any kind, either express or implied. Kapsch TrafficCom disclaims all warranties, express or implied, including, but not limited to, warranties of title, legality or non-infringement or misappropriation of any intellectual property rights of third parties or implied warranties of merchantability or fitness for a particular purpose. Under no circumstances will Kapsch TrafficCom (including its affiliates, licensors, contractors, suppliers, assignees, subsidiaries, and the respective officers, directors, employees, shareholders, agents and representatives of each of them) be liable for any expenses, fees, claims, damages or losses in any way relating to or arising out of the products described in this manual. Applicable law may not allow certain warranty exclusions, so one or more of the above disclaimers may not apply to you. Copyright  Kapsch TrafficCom AG 2010 Duplication as well as utilization of contents of this documentation are illegal without our explicit consent. Page 3 of 26 1000005502-THb-02 Table of Contents Page Information about this document 5 Text conventions ............................................................................................. 5 Important text elements ................................................................................... 5 Abbreviations ................................................................................................... 6 Warning to users in the United States 7 Regulatory Information 8 Safety Instructions 9 Maintenance Instructions 9 Inspection Instructions 9 Environmental Information 10 Visual Inspection 10 Installation Instructions 10 General Information 11 Definitions ...................................................................................................... 11 System Overview 12 Performance Overview .................................................................................. 12 System Architecture ...................................................................................... 13 Modular Architecture .............................................................................. 13 Compact Architecture ............................................................................. 15 Installation 17 Mounting position and height ........................................................................ 17 Mounting plate for MTX-9450 and TRX-9450 ............................................... 17 Bracket for MTX-9450 and TRX-9450........................................................... 18 Electrical Installation...................................................................................... 19 Connection Cable (Ethernet + Power Supply) ....................................... 19 Signals at connector “IN” of MTX-9450/TRX-9450 ................................ 20 Line Connection Cable (Ethernet + Power Supply) ............................... 21 Signals at connector “OUT” of MTX-9450.............................................. 22 Product Specifications 23 Transceivers MTX-9450 and TRX-9450 ....................................................... 23 Conformity 25 Standards ...................................................................................................... 25 Page 4 of 26 Technical Manual | WAVE Transceiver with precise localization capability MTX-9450 and TRX-9450 1000005502-THb-02 Table of Figures Page Figure 1 WAVE Localization Transceiver..................................................... 12 Figure 2 System variant “Modular Architecture“ ......................................... 13 Figure 3 System variant “Line application with Master-Transceiver“ ........... 15 Figure 4 Mounting plate for MTX-9450 and TRX-9450 ................................ 17 Figure 5 Bracket for MTX-9450 and TRX-9450 ........................................... 18 Figure 6 Connection Cable (Ethernet + Power Supply) .............................. 19 Figure 7 Connector pin assignment Connection Cable (Ethernet + Power Supply) ......................................................................................... 19 Figure 8 Line Connection Cable (Ethernet + Power Supply) ...................... 21 Figure 9 Connector pin assignment Line Connection Cable (Ethernet + Power Supply) .............................................................................. 21 List of Tables Page Table 1 Text formats and their meaning ........................................................ 5 Table 2 Transceivers for the system variant “Modular Architecture” ........... 13 Table 3 Available TCM and TIM modules .................................................... 14 Table 4 Available PPS-RS422-MUX modules ............................................ 14 Table 5 Recommended power supplies ....................................................... 14 Table 6 Available Transceiver Controllers TRC-1040-IPC .......................... 14 Table 7 Localization Transceivers for the system variant “Line application with Master-Transceiver” .............................................................. 15 Table 8 Available TCM and TIM modules .................................................... 16 Table 9 Available lengths of Connection Cable ........................................... 19 Table 10 Signals at connector “IN” of MTX-9450/TRX-9450 ....................... 20 Table 11 Available cable lengths Line Connection Cable ............................ 21 Table 12 Signals at connector “OUT” of MTX-9450 .............................…

Text truncated - open the document above for the full version.

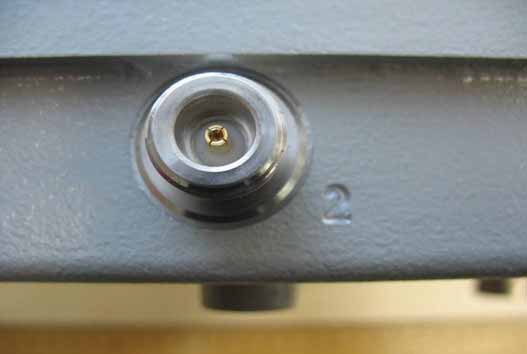

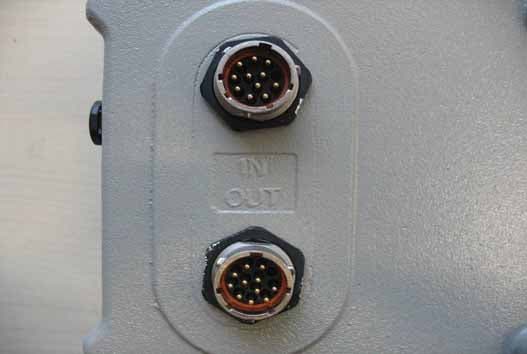

CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 110 of 133 8 Photographs of the EUT Photo documentation: External photos Photo 1: Photo 2: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 111 of 133 Photo 3: Photo 4: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 112 of 133 Photo 5: Photo 6: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 113 of 133 Photo 7: Photo 8:

MTX-9450 *GFE00001* GS: 01 34026470100 24V-48V DC - max.:1,5A Fuse=3AT/125V MTX-9450 Kapsch TrafficCom AG FCC ID: XZU9450

CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 114 of 133 Photo documentation: Internal photos Photo 1: Photo 2: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 115 of 133 Photo 3: Photo 4: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 116 of 133 Photo 5: Photo 6: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 117 of 133 Photo 7: Photo 8: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 118 of 133 Photo 9: Photo 10: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 119 of 133 Photo 11: Photo 12: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 120 of 133 Photo 13: Photo 14: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 121 of 133 Photo 15: Photo 16: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 122 of 133 Photo 17: Photo 18: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 123 of 133 Photo 19: Photo 20: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 124 of 133 Photo 21: Photo 22: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 125 of 133 Photo 23: Photo 24: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 126 of 133 Photo 25: Photo 26: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 127 of 133 Photo 27: Photo 28: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 128 of 133 Photo 29: Photo 30: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 129 of 133 Photo 31: Photo 32: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 130 of 133 Photo 33: Photo 34: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 131 of 133 Photo 35: Photo 36:

CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 132 of 133 9 Annex A (MPE) Prediction of MPE This device is designed to be used only for fixed and mobile applications. It has integrated internal antennas. External connectors are provided which allows connection of external antennas. Connection of external antennas automatically disconnects the internal antennas. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all the persons and must not be co-located or operating in conjunction with any other antenna or transmitter. The table below is excerpted from Table 1B of 47 CFR 1.1310 titled Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure: Frequency Range (MHz) Power density (mW/cm 2 ) Averaging time (minutes) 300 – 1500 f (MHz) /1500 30 1500 – 100.000 1.0 30 Based on the above table the limits are: For 5900 MHz frequency band device: 1 mW/cm 2 § 2.1091: The limit for 5900 MHz mobile operations, where no routine evaluation is required, is: 3W EIRP Max permissive power according to §90.377: 5855 MHz to 5895 MHz : 33 dBm 5895 MHz to 5915 MHz : 23 dBm 5915 MHz to 5925 MHz : 33 dBm Using the equation from page 19 of OET Bulletin 65, Edition 97-01: 2 4R PG S π = where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Compliance with MPE limits can be guaranteed as the calculations below show: Internal Antennas Band Maximum radiated output power (dBm) Maximum radiated output power (mW) Duty cycle Equivalent radiated output power (Maximum radiated output power x duty cycle) (mW) 5855 MHz to 5895 MHz 29.6 912 100% 912 5895 MHz to 5915 MHz 19.3 86 100% 86 5915 MHz to 5925 MHz 29.9 978 100% 978 CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 133 of 133 Maximum output power considerations: P x G 1 Maximum power input to the antenna x Antenna gain (dBi) to comply with MPE limits: 979 mW R Distance: 20 cm S MPE limit for uncontrolled exposure: 0.20 mW/cm 2 Internal antenna configuration complies with MPE limits. External Antennas Band Maximum conducted output power (dBm) Maximum conducted output power (mW) Duty cycle Equivalent conducted output power (Maximum conducted output power x duty cycle) (mW) 5855 MHz to 5895 MHz 19.3 86 100% 86 5895 MHz to 5915 MHz 9.4 9 100% 9 5915 MHz to 5925 MHz 18.9 78 100% 78 Maximum output power considerations: P Maximum power input to the antenna: 9 mW R Distance: 20 cm S MPE limit for uncontrolled exposure: 1 mW/cm 2 G 1 Antenna gain (dBi) to comply with MPE limits: 37.4 dBi EIRP power limit according to §2.1091: 3 W EIRP G 2 Antenna gain (dBi) to comply with ERP limits: 25.3 dBi (EIRP = Maximum conducted output power x Antenna gain ) ERP power limit according to §90.377: 0.2 W EIRP G 3 Antenna gain (dBi) to comply with ERP limits: 13.6 dBi (ERP = Maximum conducted output power x Antenna gain) G 5900 MHz band Min (G 1 , G 2, G 3 ) 13.6 dBi Therefore the maximum antenna gain for mobile operation to comply with MPE and EIRP limits shall not exceed 13.6 dBi.

CETECOM ICT Services GmbH Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Phone: +49 (0) 681-598-0 Fax: -9075 RSC-Laboratory 2010-01-13 Page 1 of 133 Accredited testing-laboratory DAR registration number: DGA-PL-176/94-D1 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3462C-1 (IC) Certification ID: DE 0001 Accreditation ID: DE 0002 Accredited Bluetooth ® Test Facility (BQTF) The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license Test report no. : 1-1440-01-04/09 A Type identification : Transceiver MTX-9450 / TRX-9450 Applicant : KAPSCH TrafficCom AG FCC ID : XZU9450 IC Certification No : -/- Test standards : 47 CFR Part 2 47 CFR Part 90 M ASTM E2213 IEEE 802.11a CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 2 of 133 Table of contents 1 General information....................................................................................................3 1.1 Notes ...................................................................................................................................................................3 1.2 Testing laboratory ...............................................................................................................................................4 1.3 Details of applicant .............................................................................................................................................4 1.4 Application details ..............................................................................................................................................4 2 Test standard/s ...........................................................................................................5 3 Technical tests ............................................................................................................6 3.1 Details of manufacturer .......................................................................................................................................6 3.1.1 Test item......................................................................................................................................................6 3.1.2 Extreme conditions testing values ...............................................................................................................7 4 Summary of Measurement Results and list of all performed test cases ..........................8 5 RF measurement testing ..............................................................................................9 5.1 Measurements and results ...................................................................................................................................9 5.2 Referenced Documents .......................................................................................................................................9 5.3 Additional comments ..........................................................................................................................................9 5.4 Antenna gain .....................................................................................................................................................10 5.5 Frequency Tolerance (2.1055 / 90.213 / 90.379 / ASTM §8.9.4 / IEEE 802.11 a 17.3.9.4 /) ...........................11 5.6 Spectrum Bandwidth of a OFDM System / 99% Bandwidth (2.1049 / 90.209 / 90.379 /ASTM E2213) .........13 5.7 Transmit Spectrum Mask (90.210 / 90.379 / ASTM 8.9.2)...............................................................................23 5.8 Modulation characteristics (ASTM Table 3 / 2.1047 / 90.207)........................................................................32 5.9 Maximum output power (conducted) (2.1046 / 90.205 / 90.379 / ASTM 8.9.1) ..............................................33 5.10 Max. peak output power (radiated) (2.1046 / 90.205 / 90.379 / ASTM 8.9.1)..............................................44 5.11 Spurious Emissions - conducted Transmitter (2.1051 / 90.210 / 90.379 / ASTM 8.9.2) ..............................45 5.12 Spurious Emissions - radiated (Transmitter) (2.1053 / 90.210 / 90.379 / ASTM 8.9.2) ...............................79 6 Test equipment and ancillaries used for tests ........................................................... 105 7 Photographs of the Test Set-up ................................................................................ 108 8 Photographs of the EUT .......................................................................................... 110 9 Annex A (MPE) ....................................................................................................... 132 CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 3 of 133 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 3.1.1. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test laboratory manager: 2010-01-13 Marco Bertolino Date Name Signature 2010-01-13 Stefan Bös Date Name Signature Technical responsibility for area of testing: 2010-01-13 Michael Berg Date Name Signature CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 4 of 133 1.2 Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 e-mail: info@…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 108 of 133 7 Photographs of the Test Set-up Photo documentation: Photo 1: Photo 2: CETECOM ICT Services GmbH Test report no.: 1-1440-01-04/09 A 2010-01-13 Page 109 of 133 Photo 3:
