Y2A-ECON-Z83ECON-Z83

POSLAB ECON-Z83 USER MANUAL USER MANUAL Page. 1 1. Introduction ECON-Z83 would like to announce a low-cost and low-power consumption module which has all of the WiFi, Bluetooth and FM functionalities. The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets, FM radio functional applications and other applications. With seamless roaming capabilities and advanced security, also could interact with different vendors’ 802.11b/g/n Access Points in the wireless LAN. The wireless module complies with IEEE 802.11 b/g/n standard and it can achieve up to a speed of 72.2Mbps with single stream in 802.11n draft, 54Mbps as specified in IEEE 802.11g, or 11Mbps for IEEE 802.11b to connect to the wireless LAN. The integrated module provides SDIO interface for WiFi, UART / I2S / PCM interface for Bluetooth and UART / I2S / PCM interface for FM. This compact module is a total solution for a combination of WiFi + BT + FM technologies. The module is specifically developed for Smart phones and Portable devices. 2. Features  802.11b/g/n single-band radio  Bluetooth V4.0(HS) with integrated Class 1.5 PA  BT/WLAN receive with single antenna  WLAN host interface options: - SDIO v2.0 — up to 50 MHz clock rate  BT host digital interface: - UART (up to options: I2S, PCM, eSCO, A2DP  IEEE Co-existence technologies are integrated die solution  ECI — enhanced coexistence support, ability to coordinate BT SCO transmissions around WLAN receives A simplified block diagram of the module is depicted in the figure below. USER MANUAL Page. 2 3. Deliverables 3.1 Deliverables The following products and software will be part of the product.  Module with packaging  Evaluation Kits  Software utility for integration, performance test.  Product Datasheet.  Agency certified pre-tested report with the adapter board. 3.2 Regulatory certifications The product delivery is a pre-tested module, without the module level certification. For module approval, the platform’s antennas are required for the certification. USER MANUAL Page. 3 USER MANUAL Page. 4 USER MANUAL Page. 5 USER MANUAL Page. 6 USER MANUAL Page. 7 USER MANUAL Page. 8 USER MANUAL Page. 9 USER MANUAL Page. 10 USER MANUAL Page. 11 USER MANUAL Page. 12 10.1 SDIO Pin Description The module supports SDIO version 2.0 for 4-bit modes (100 Mbps), and high speed 4-bit (50 MHz clocks – 200 Mbps). It has the ability to stop the SDIO clock and map the interrupt signal into a GPIO pin. This ‘out-of-band’ interrupt signal notifies the host when the WLAN device wants to turn on the SDIO interface. The ability to force the control of the gated clocks from within the WLAN chip is also provided.  Function 0 Standard SDIO function (Max BlockSize / ByteCount = 32B)  Function 1 Backplane Function to access the internal System On Chip (SOC) address space (Max BlockSize / ByteCount = 64B)  Function 2 WLAN Function for efficient WLAN packet transfer through DMA (Max BlockSize/ByteCount=512B) 11. Host Interface Timing Diagram 11.1 Power-up Sequence Timing Diagram The module has signals that allow the host to control power consumption by enabling or disabling the Bluetooth, WLAN and internal regulator blocks. These signals are described below. Additionally, diagrams are provided to indicate proper sequencing of the signals for carious operating states. The timing value indicated are minimum required values: longer delays are also acceptable. ※ WL_REG_ON: Used by the PMU to power up the WLAN section. When this pin is high, the regulators are enabled and the WLAN section is out of reset. When this pin is low the WLAN section is in reset. ※ BT_RST_N: Low asserting reset for Bluetooth and FM only. This pin has no effect on WLAN and does not control any PMU functions. This pin must be driven high or low (not left floating). USER MANUAL Page. 13 USER MANUAL Page. 14 USER MANUAL Page. 15 USER MANUAL Page. 16 USER MANUAL Page. 17 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: The product comply with the US portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Cou…

Text truncated - open the document above for the full version.

RF_734_02 04 April 16 Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: Y2A-ECON-Z83 Items to be covered by Single limited modular transmitters. Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular has a shielding Case. Please refer to EUT Photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The component number is BCM4343 3. The modular transmitter must have its own power supply regulation. The module has no regulator. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The module complies with this Requirement. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. This modular is tested under stand-alone configuration. Please refer to Test setup photo. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number in accordance with 15.212 (a)(1)(vi)(A) / (B). The modular transmitter is labeled with its own FCC ID number. Please refer to label sample and label location. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular complies with this requirement. Please refer to user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The device complies with this requirement. Please refer to RF exposure report. RF_734_02 04 April 16 Items to be covered by Split modular transmitters. Answer from applicant 1. The modular transmitter must comply with all requirements of a single modular transmitter except for items (1) & (5) of the above single modular approval requirements. 2. Only the radio front end must be shielded. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The interface between the split sections of the modular system must be digital with a minimum signalling amplitude of 150 mV peak-to-peak. 3. Control information and other data may be exchanged between the transmitter control elements and radio front end. 4. The sections of a split modular transmitter must be tested installed in a host device(s) similar to that which is representative of the platform(s) intended for use. 5. Manufacturers must ensure that only transmitter control elements and radio front end components that have been approved together are capable of operating together. The transmitter module must not operate unless it has verified that the installed transmitter control elements and radio front end have been authorized together. Manufacturers may use means including, but not limited to, coding in hardware and electronic signatures in software to meet these requirements, and must describe the methods in their application for equipment authorization. Note: A limited modular approval (LMA) may be granted for single or split modular transmitters that comply partially with the requirements above. Name and surname of applicant (or authorized representative): __________________ Date: ___25 May 2020____ Signature: __________________________

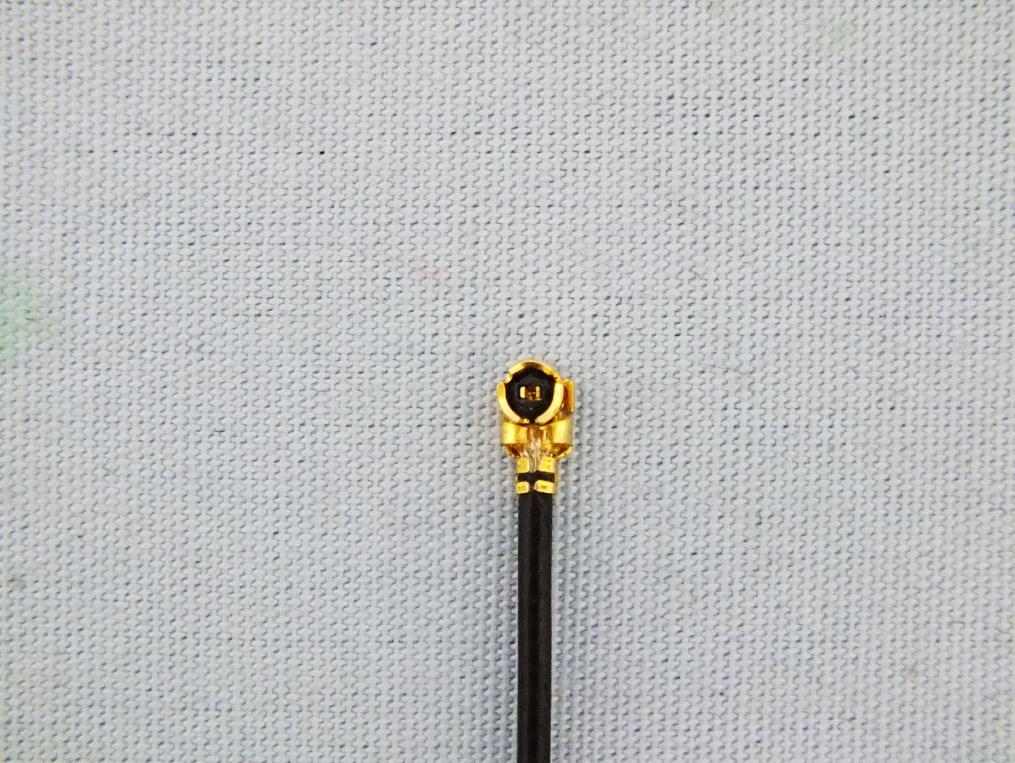

Project No.: 022101 Page No. : 1 of 4 Photographs of EUT Project No.: 022101 Page No. : 2 of 4 Project No.: 022101 Page No. : 3 of 4 Project No.: 022101 Page No. : 4 of 4

FCC ID: Y2A-ECON-Z83

Project No.: 022101 Page No. : 1 of 2 Photographs of EUT Project No.: 022101 Page No. : 2 of 2

Report No.: FA022101 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : Y2A-ECON-Z83 Equipment : ECON-Z83 Model No. : ECON-Z83 Brand Name : POSLAB Applicant : Poslab Technology Corporation Address : 11F-1, No.258, Liancheng Rd., Zhonghe Dist., New Taipei City 23553, Taiwan Standard : 47 CFR FCC Part 2.1091 Received Date : Feb. 21, 2020 Tested Date : Apr. 11 ~ Apr. 22, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA022101 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 4 1.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 4 1.5 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA022101 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA022101 Rev. 01 Initial issue May 04, 2020 Report No.: FA022101 Page : 4 of 6 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 1.4 MEASUREMENT UNCERTAINTY The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2) Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA022101 Page : 5 of 6 Report Version: Rev. 01 1.5 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Ratio* Pass / Fail 2412~2462 (Wi-Fi) 16.13 16.5 2 20 0.014 1 0.014 Pass 2402-2480 (BT EDR) 8.64 9.0 2 20 0.003 1 0.003 Pass 2402-2480 (BT LE) 7.72 8.0 2 20 0.002 1 0.002 Pass *Ratio = Power density / Limit. Report No.: FA022101 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp (EMC and Wireless Communication Laboratory), it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan District. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C.. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR022101AC Page : 1 of 53 Report Version: Rev. 01 FCC Test Report FCC ID : Y2A-ECON-Z83 Equipment : ECON-Z83 Model No. : ECON-Z83 Brand Name : POSLAB Applicant : Poslab Technology Corporation Address : 11F-1, No.258, Liancheng Rd., Zhonghe Dist., New Taipei City 23553, Taiwan Standard : 47 CFR FCC Part 15.247 Received Date : Feb. 21, 2020 Tested Date : Apr. 11 ~ Apr. 22, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR022101AC Page : 2 of 53 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Test Standards ....................................................................................................................................... 9 1.6 Deviation from Test Standard and Measurement Procedure ................................................................. 9 1.7 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Condition ................................................................................................................................. 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TRANSMITTER TEST RESULTS ........................................................................................................ 11 3.1 Conducted Emissions ........................................................................................................................... 11 3.2 6dB and Occupied Bandwidth .............................................................................................................. 14 3.3 RF Output Power .................................................................................................................................. 19 3.4 Power Spectral Density ........................................................................................................................ 22 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 27 3.6 Emissions in Non-Restricted Frequency Bands ................................................................................... 49 4 TEST LABORATORY INFORMATION ............................................................................................... 53 Report No.: FR022101AC Page : 3 of 53 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR022101AC Rev. 01 Initial issue May 04, 2020 Report No.: FR022101AC Page : 4 of 53 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 19.224MHz 39.87 (Margin -10.13dB) - AV Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 2390.00MHz 52.87 (Margin -1.13dB) - AV Pass 15.247(b)(3) Maximum Output Power Max Power [dBm]: 22.65 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR022101AC Page : 5 of 53 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11] 1 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11] 1 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 1 MCS 0-7 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Details Ant. No. Model Type Connector Gain (dBi) Remarks 1 AP6212 wire IPEX 2 --- 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 24Vdc from AC adapter 1.1.4 Accessories N/A Report No.: FR022101AC Page : 6 of 53 Report Version: Rev. 01 1.1.5 Channel List Channel Frequency(MHz) 1 2412 2 2417 3 2422 4 2427 5 2432 6 2437 7 2442 8 2447 9 2452 10 2457 11 2462 1.1.6 Test Tool and Duty Cycle Test Tool Ampak RF test tool, Version: V6.1 Duty Cycle and Duty Fac…

Text truncated - open the document above for the full version.

Report No.: FR022101AE Page : 1 of 34 Report Version: Rev. 01 FCC Test Report FCC ID : Y2A-ECON-Z83 Equipment : ECON-Z83 Model No. : ECON-Z83 Brand Name : POSLAB Applicant : Poslab Technology Corporation Address : 11F-1, No.258, Liancheng Rd., Zhonghe Dist., New Taipei City 23553, Taiwan Standard : 47 CFR FCC Part 15.247 Received Date : Feb. 21, 2020 Tested Date : Apr. 16 ~ Apr. 22, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR022101AE Page : 2 of 34 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 Test Equipment List and Calibration Data .............................................................................................. 8 1.5 Test Standards ....................................................................................................................................... 9 1.6 Deviation from Test Standard and Measurement Procedure ................................................................. 9 1.7 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Condition ................................................................................................................................. 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TRANSMITTER TEST RESULTS ........................................................................................................ 11 3.1 Conducted Emissions ........................................................................................................................... 11 3.2 6dB and Occupied Bandwidth .............................................................................................................. 14 3.3 RF Output Power .................................................................................................................................. 17 3.4 Power Spectral Density ........................................................................................................................ 19 3.5 Emissions in Restricted Frequency Bands ........................................................................................... 22 3.6 Emissions in non-restricted Frequency Bands ..................................................................................... 32 4 TEST LABORATORY INFORMATION ............................................................................................... 34 Report No.: FR022101AE Page : 3 of 34 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR022101AE Rev. 01 Initial issue May 04, 2020 Report No.: FR022101AE Page : 4 of 34 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC Power Line Conducted Emissions [dBuV]: 19.326MHz 38.94 (Margin -11.06dB) - AV Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 583.92MHz 40.46 (Margin -5.54dB) - PK Pass 15.247(b)(3) Maximum Output Power Power [dBm]: 7.79 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR022101AE Page : 5 of 34 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Freq. (MHz) Channel Number Data Rate 2400-2483.5 V4.0 LE 2402-2480 0-39 [40] 1 Mbps Note 1: Bluetooth LE (Low energy) uses GFSK modulation. 1.1.2 Antenna Details Ant. No. Type Connector Gain (dBi) Remarks 1 WIRE IPEX 2 --- 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 24Vdc from AC adapter 1.1.4 Accessories N/A Report No.: FR022101AE Page : 6 of 34 Report Version: Rev. 01 1.1.5 Channel List Frequency band (MHz) 2400~2483.5 Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 37 2402 9 2422 18 2442 28 2462 0 2404 10 2424 19 2444 29 2464 1 2406 38 2426 20 2446 30 2466 2 2408 11 2428 21 2448 31 2468 3 2410 12 2430 22 2450 32 2470 4 2412 13 2432 23 2452 33 2472 5 2414 14 2434 24 2454 34 2474 6 2416 15 2436 25 2456 35 2476 7 2418 16 2438 26 2458 36 2478 8 2420 17 2440 27 2460 39 2480 1.1.6 Test Tool and Duty Cycle Test Tool Ampak RF test tool, Version:…

Text truncated - open the document above for the full version.

Report No.: FR022101 Page: : 1 of 8 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR022101 Page: : 2 of 8 Report Version: Rev. 01 Conducted Emission Test Report No.: FR022101 Page: : 3 of 8 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR022101 Page: : 4 of 8 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR022101 Page: : 5 of 8 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR022101 Page: : 6 of 8 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR022101 Page: : 7 of 8 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR022101 Page: : 8 of 8 Report Version: Rev. 01 Radiated Emission Above 1GHz Test
