Y2EAH4033BWIP Camera

MegapixelIPCamera H.264 (ForIEBrowser) UserManual MoreSecurity,MoreConvenience 2of40 Statement ThankyouforusingourIPcameraproducts.TheIPcameradesignedfornetworkvideosurveillance,adopted highperformanceandpowerfulsingleSOCchipmediaprocessortointegrateaudioandvideocapture, compressionandtransmission.StandardH.264MainProfilecodingalgorithmensuresclearerandsmoother videotransmissioneffect.Built-inWebServerallowsuserstoeasilyperformreal-timemonitoringandremote controloverfront-endcamerasviaIEbrowser. TheIPcamerasaresuitableforsmallandmedium-sizedenterprises,families,andotherenvironmentsthat requireremotenetworkvideotransmissionandmonitoring.Itiseasytobeinstalledandoperated. Beforeinstallation,pleasechecktheproductandallaccessories.Ifanythingismissing,pleasecontactyour supplierintime. PackageContents: 1IPCameraX1 2PowerAdapter(refertocameramodel)X1 3CDX1 4UserManualX1 5WIFIAntenna（forwirelessmodel）X1 6BracketX1 7NetworkCableX1 NOTE: Contentsinthismanualmaybedifferentfromtheeditionthatyouareusing.Shouldanyunsolvedproblem occurgiventhattheproductisusedaccordingtothismanual,pleasecontactourtechnicalsupport departmentoryourproductsuppliers. Thecontentofthismanualmaybeupdatedatirregularintervalswithoutpriornotice. MoreSecurity,MoreConvenience 3of40 CONTENTS 1.INTRODUCTION ........................................................................................................................................................... 1 1.1.GeneralDescription ........................................................................................................................................... 1 1.2.Characteristic ...................................................................................................................................................... 1 1.3.Specification ....................................................................................................................................................... 2 2.INSTALLATIONANDSETTINGS ............................................................................................................................... 3 2.1.NetworkConnection .......................................................................................................................................... 3 2.2.IEBrowserSettings ........................................................................................................................................... 4 2.3.UPnPService ..................................................................................................................................................... 5 2.4.IPCamIPAddressSearchTool ....................................................................................................................... 5 2.5.InstalltheOCXActiveX ..................................................................................................................................... 6 3.SOFTWAREOPERATION(IEBROWSER) ............................................................................................................. 7 3.1.Threemainfunctions ......................................................................................................................................... 8 3.2.ForLiveVideo .................................................................................................................................................... 8 4.PARAMSSETTINGS ................................................................................................................................................. 12 4.1.DeviceInfo. ....................................................................................................................................................... 12 4.2.VideoInfo. ......................................................................................................................................................... 12 4.3.AudioSettings .................................................................................................................................................. 13 4.4.MotionDetection .............................................................................................................................................. 14 4.5.AlarmSettings .................................................................................................................................................. 16 4.6.BasicNetworkSettings ................................................................................................................................... 18 4.7.WirelessLanSettings ..................................................................................................................................... 22 4.8.UPNPSettings ................................................................................................................................................. 23 4.9.CruiseSettings ................................................................................................................................................. 23 4.10.IndicatorsSettings............................................................................................................................23 4.11.UserManage .................................................................................................................................................. 24 4.12.Log ................................................................................................................................................................... 24 4.13.DateTimeSettings ........................................................................................................................................ 25 4.14.Multi-DeviceSettings .................................................................................................................................... 26 4.15.MailServiceSettings ...........................................................................................................…

Text truncated - open the document above for the full version.

SCS-F18:ProjectandProductCertificationRepresentativeAuthorizationLetterPage1of2Rev5.0 775MontagueExpressway Milpitas,CA95035 Tel:408-526-1188 Fax:408-526-1088 Email:[email protected] ProjectandProduct Certification Representative AuthorizationLetter ReasonforAmendment(current/obsolete) RevisionHistory ApprovedDate FromTo InitialRelease(obsolete)1.01.0Nov-14-2006 Revisedwording(obsolete)1.02.0Sept–25-2007 Updatedcompanytemplate(obsolete)2.03.0Jan-31-2012 Updatedletterinformation(obsolete)3.04.0May-23-2014 AddedFCCIDfield(current)4.05.0Sept162014 SCS-F18:ProjectandProductCertificationRepresentativeAuthorizationLetterPage2of2Rev5.0 (SHENZHENAPEXISELECTRONICCO.,LTD.) (2015-02-03) To:SIEMIC,INC. 775MontagueExpressway, Milpitas,CA95035 USA DearSir/Madam, Re:ProductCertificationRepresentativeAuthorizationLetter We,_____SHENZHENAPEXISELECTRONICCO.,LTD._____hereby authorizeSIEMIC,Inc.toactasaCertificationBodyforcertifyingforthe followingproject(s): Productdescription:IPCamera Modelname:AH4033BW,AH6233BW,AH6243BW,AH9013BW,AH4033CW, AH6233CW,AH6243CW,AH9013CW,AH4036DW,AH6236DW,AH6246DW, AH9016DW,AH8093BW,AH6193BW,AH7173B,AH9063BW,AH8093CW, AH6193CW,AH7173C,AH9063CW,AH8096DW,AH6196DW,AH7176D, AH9066DW,AH8073BW,AH4105BW,AH7183B,AH8073CW,AH4105CW, AH7183C,AH8076DW,AH4106DW,AH7186D FCCID:Y2EAH4033BW Sincerely, Client’ssignature ZhipengLi/Engineer CompanyName:SHENZHENAPEXISELECTRONICCO.,LTD. Address:502EastKejiBuilding,ShenZhenHigh-TechInd-Park,NanshanDistrict, Shenzhen,518057,China Email:[email protected]

SCS-F19:ConfidentialityRequestLetterPage 1 of 2 Rev3.0 775MontagueExpressway Milpitas,CA95035 Tel:408-526-1188 Fax:408-526-1088 Email:[email protected] Confidentiality RequestLetter ReasonforAmendment(current/obsolete) RevisionHistory ApprovedDate FromTo InitialRelease(obsolete)1.01.0Nov-14-2006 AddingCFR2.459(obsolete)1.02.0August–11-2008 Updatedcompanytemplate&Addedtextbox (current) 2.03.0Jan-31-2012 SCS-F19:ConfidentialityRequestLetterPage 2 of 2 Rev3.0 (SHENZHENAPEXISELECTRONICCO.,LTD.) (2015-02-03) To: FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD Subject:PermanentConfidentialityRequestforFCCID:Y2EAH4033BW Weherebyrequestconfidentialtreatmentofinformationaccompanyingthisapplicationasoutlined below: -BlockDiagram -Schematics -OperationalDescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457&0.459oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrantfor thisapplication. Sincerely, ZhipengLi/Engineer CompanyName:SHENZHENAPEXISELECTRONICCO.,LTD. Address:502EastKejiBuilding,ShenZhenHigh-TechInd-Park,NanshanDistrict, Shenzhen,518057,China Email:[email protected]

SHENZHENAPEXISELECTRONICCO.,LTD. DeclarationonModelDifferences We, SHENZHENAPEXISELECTRONICCO.,LTD. 502EastKejiBuilding,ShenZhenHigh-TechInd-Park,NanshanDistrict,Shenzhen, 518057,China Declarethatthefollowingproduct(s): ProductName:IPCamera ModelNumber:AH4033BW,AH6233BW,AH6243BW,AH9013BW,AH4033CW, AH6233CW,AH6243CW,AH9013CW,AH4036DW,AH6236DW,AH6246DW,AH9016DW, AH8093BW,AH6193BW,AH7173B,AH9063BW,AH8093CW,AH6193CW,AH7173C, AH9063CW,AH8096DW,AH6196DW,AH7176D,AH9066DW,AH8073BW,AH4105BW, AH7183B,AH8073CW,AH4105CW,AH7183C,AH8076DW,AH4106DW,AH7186D FCCID:Y2EAH4033BW Utilizetheidenticalcircuitdesign,PCBlayout,shieldingandinterfacewith(AH4033BW), onlythemodelnumberisdifference.Thereforethisapplicationcanberegardedasidentical inperformancetothesubmittedtestsample. Themanufacturerwouldtakealltheresponsibilitiesfortheaboveproduct(s). Forandonbehalfof Shenzhen,China AuthorizedpersonLocation Name:ZhipengLi Position:Engineer Dateofissue:2015-02-03 *IherebydeclarethatIamentitledtosignonbehalfoftheapplicantandthattheinformationsuppliediscorrectandcomplete.

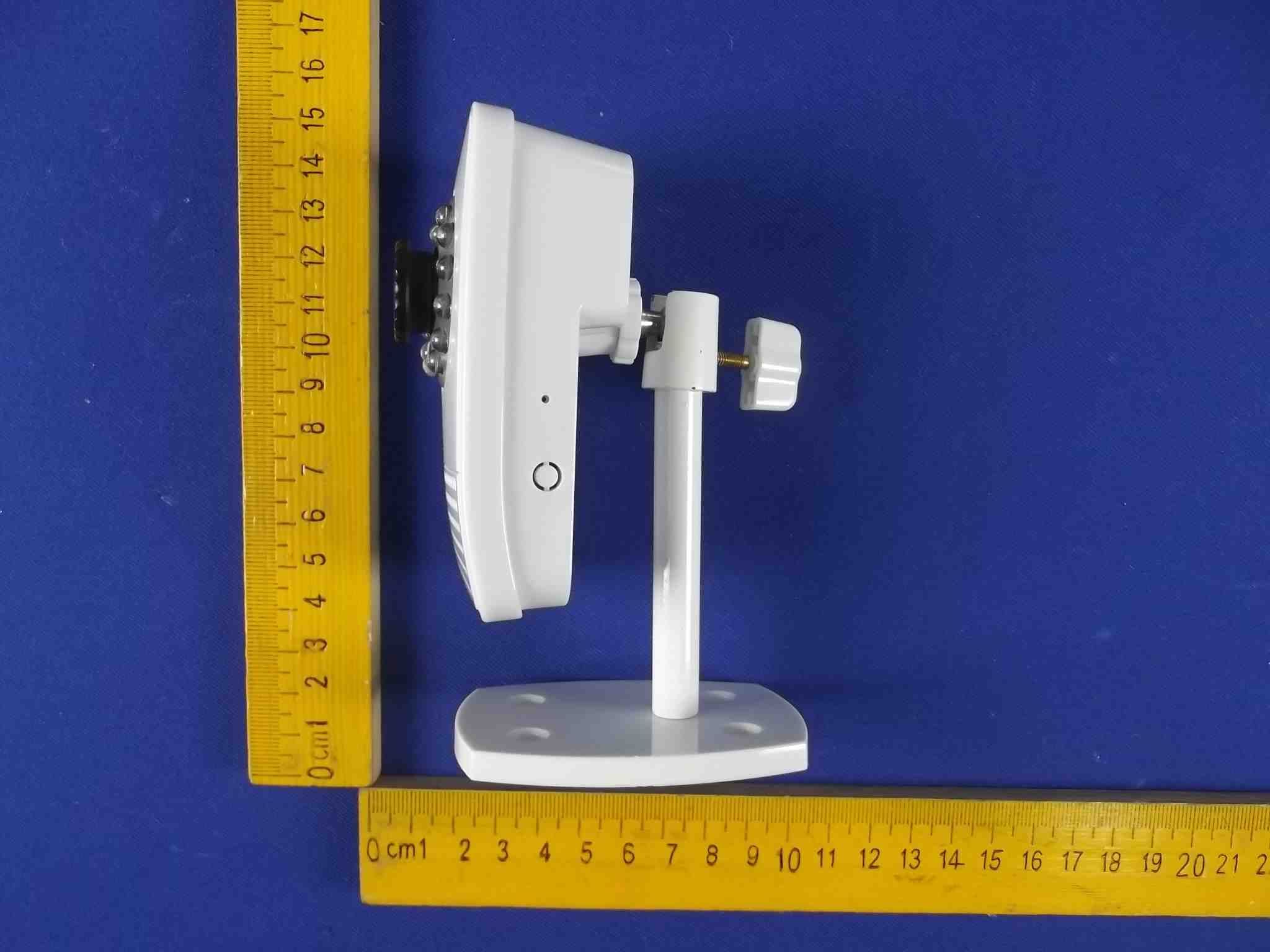

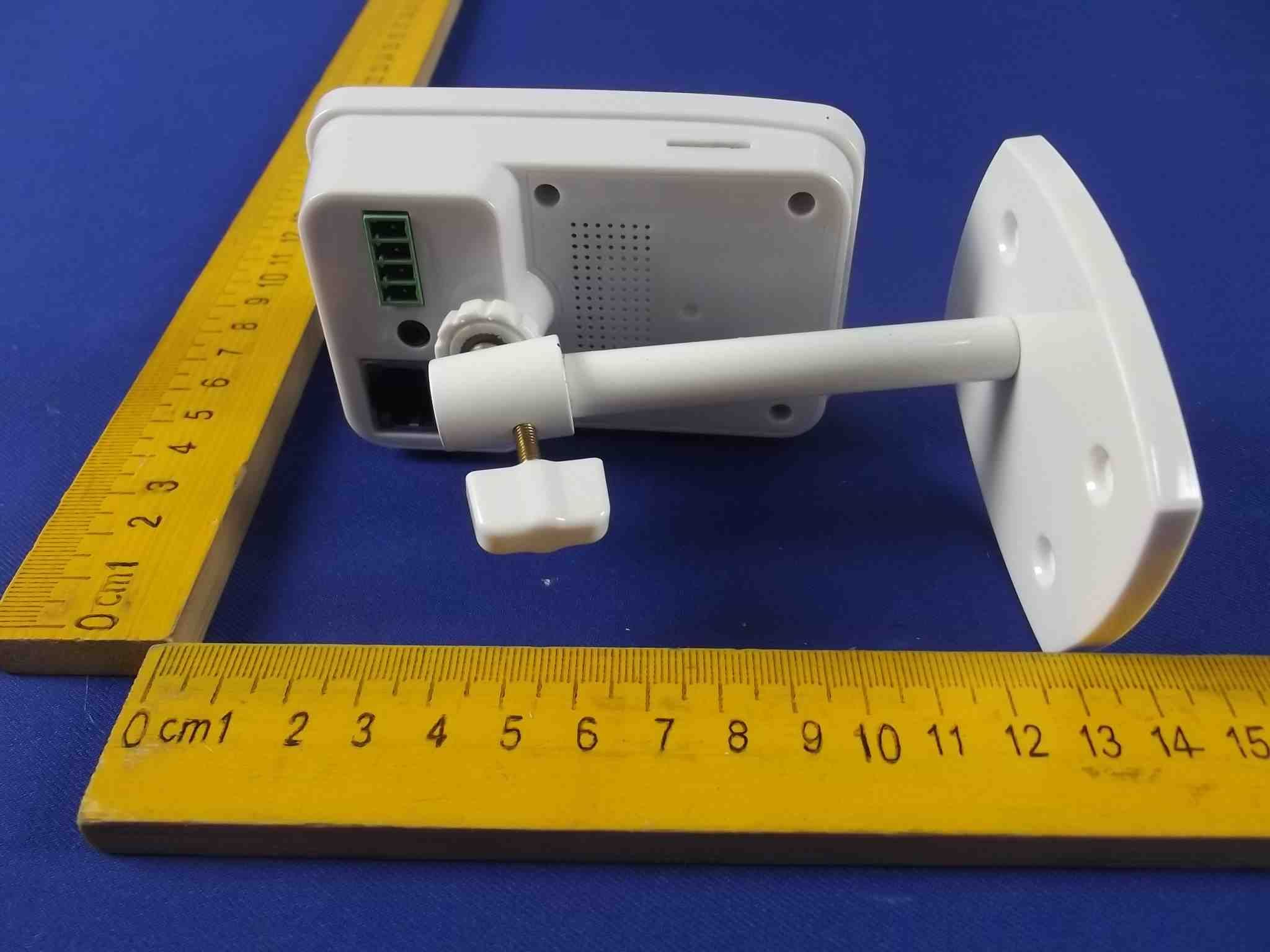

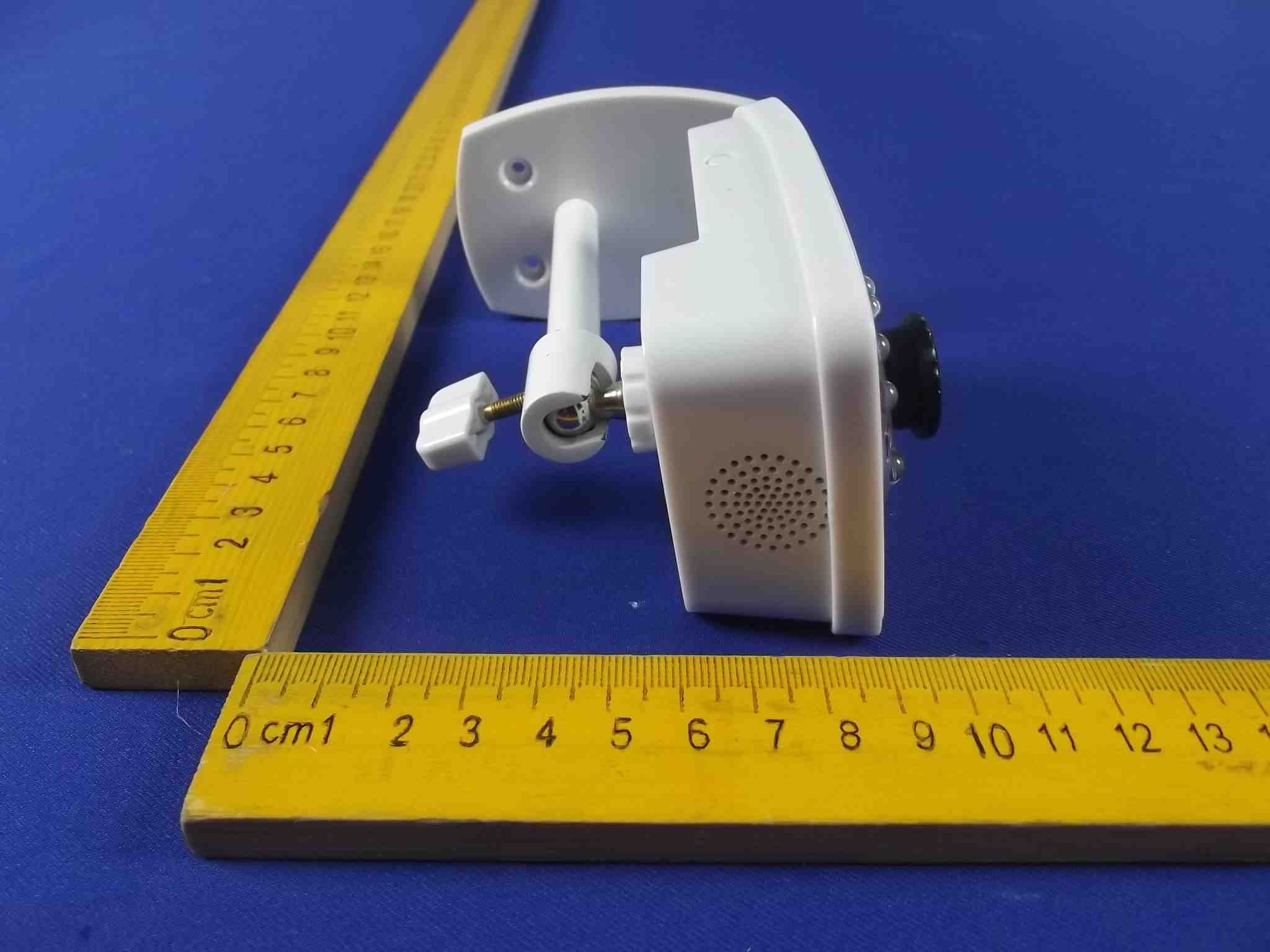

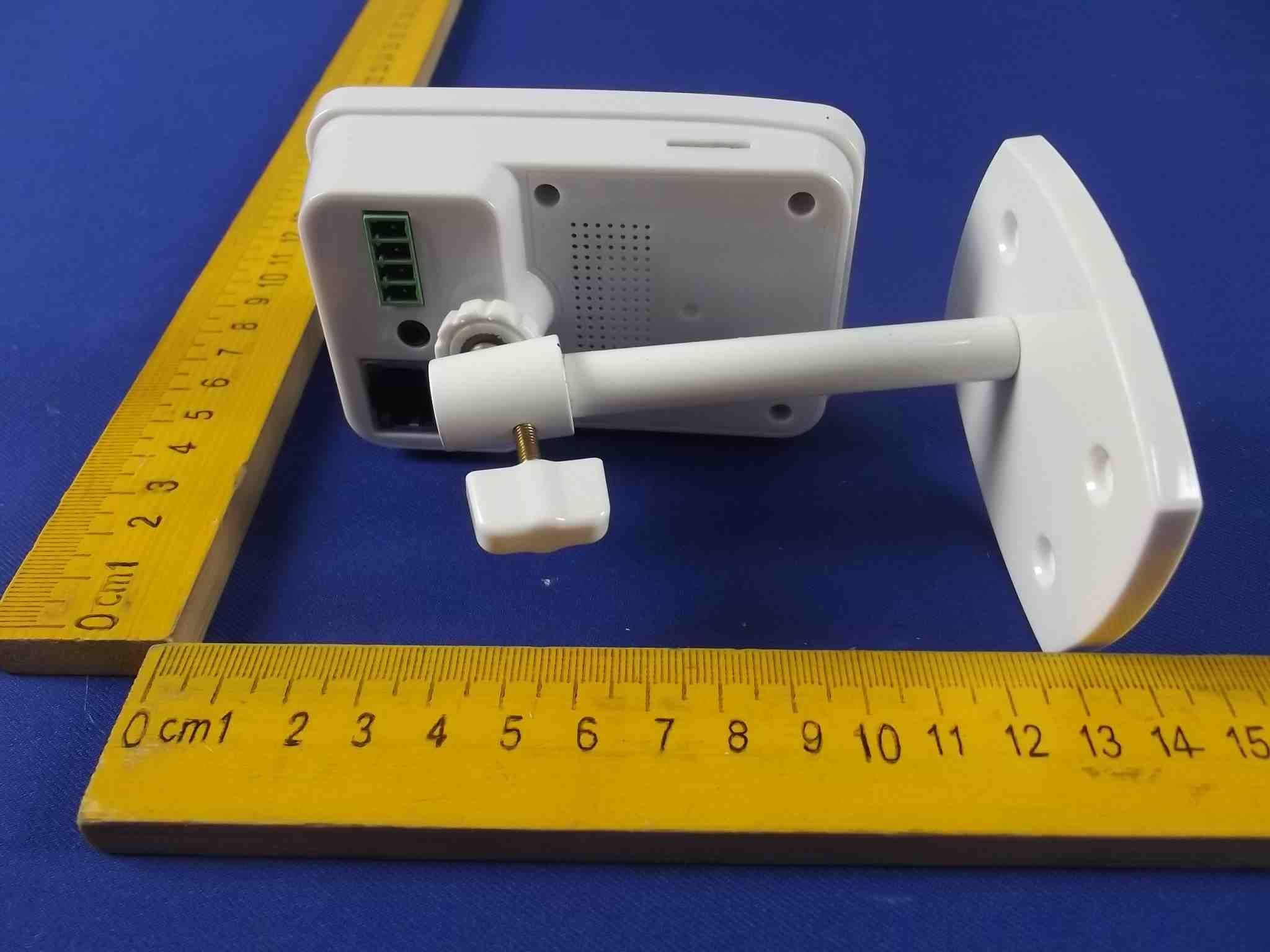

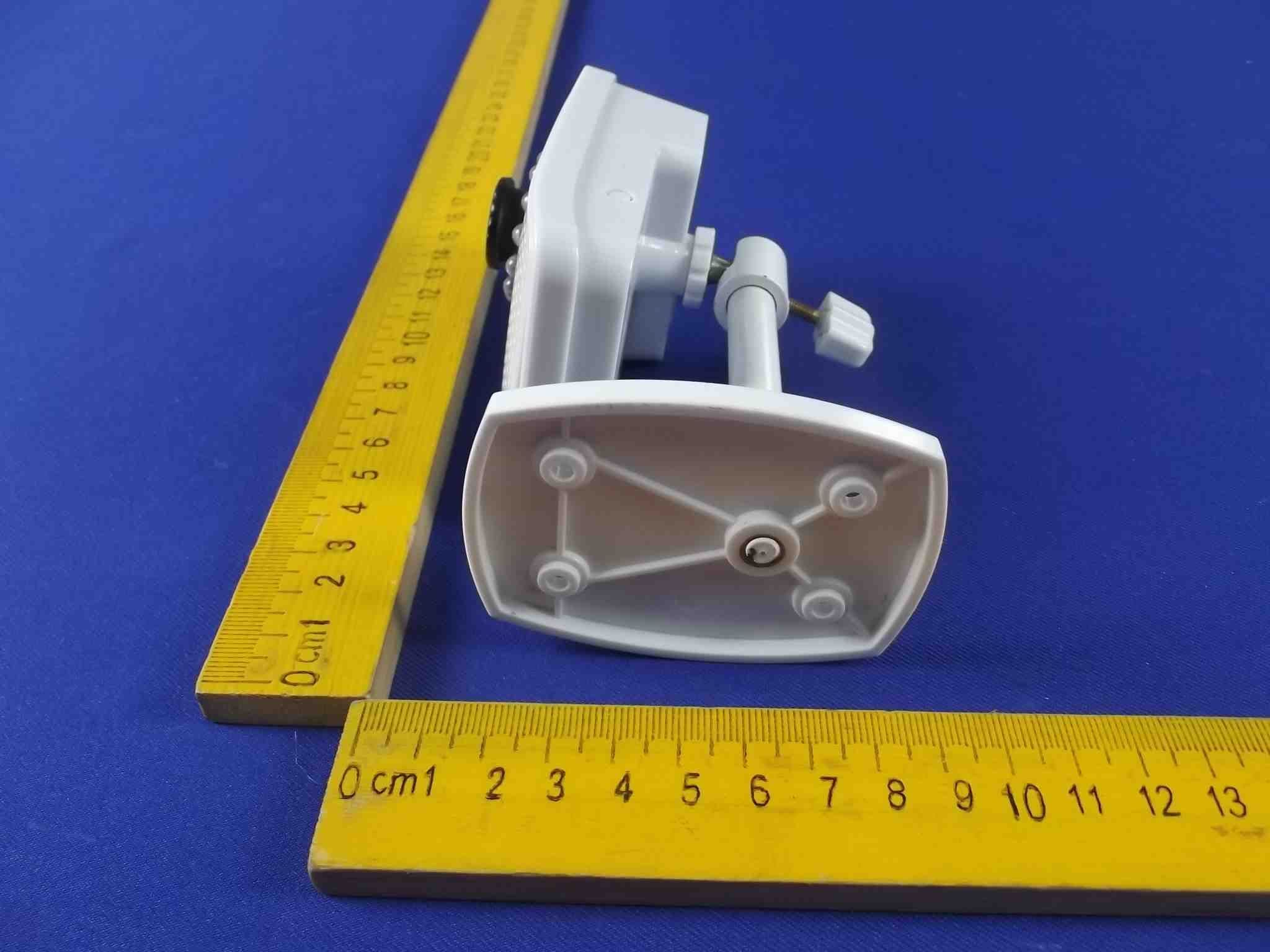

Figure1 TheEUT-OverallView Figure2 TheEUT-TopView Figure3 TheEUT-BottomView Figure4 TheEUT-LeftView Figure5 TheEUT-RightView Figure6 TheEUT-FrontView Figure7 TheEUT-BackView

ProductName:IPCamera ModelNo.:AH4033BW FCCID:Y2EAH4033BW ThisdevicecomplieswithPart15oftheFCCRules.Operation issubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation.

LabelLocationOnEUT

Figure8 TheEUT-InsideView Figure9 TheEUT-InsideView Figure10 PCBofTheEUT-FrontView Figure11 PCBofTheEUT-BackView Figure12 PCBofTheEUT-FrontView Figure13 PCBofTheEUT-FrontView Figure14 PCBofTheEUT-FrontView Figure15 PCBofTheEUT-BackView Antenna Figure16 PCBofTheEUT-FrontView(WiFiModuleWithShielding) Figure17 PCBofTheEUT-BackView(WiFiModuleWithoutShielding) Figure18 PCBofTheEUT-BackView

RFEXPOSUREEVALUATION AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeusedto evaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF)Radiation asspecifiedin§1.1307(b) FCCID ： Y2EAH4033BW EUTSpecification EUTSPORTDVR Frequencyband(Operating)WLAN:2.412GHz~2.462GHz WLAN:5.18GHz~5.32GHz/5.50GHz~5.70GHz WLAN:5.745GHz~5825GHz Others DevicecategoryPortable(<20cmseparation) Mobile(>20cmseparation) Others___ ExposureclassificationOccupational/Controlledexposure(S=5mW/cm2) GeneralPopulation/Uncontrolledexposure(S=1mW/cm2) AntennadiversitySingleantenna Multipleantennas Txdiversity Rxdiversity Tx/Rxdiversity Max.outputpower16.67dBm(0.046W) Antennagain(Max)2dBi EvaluationappliedMPEEvaluation SAREvaluation LimitsforMaximumPermissibleExposure(MPE) Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) Power Density(mW/cm 2 ) Average Time (A)LimitsforOccupational/ControlExposures 300-1500----F/3006 1500-100000----56 (B)LimitsforGeneralPopulation/UncontrolExposures 300-1500----F/15006 1500-100000----130 Friistransmissionformula:Pd=(Pout*G)\(4*pi*R2) Where Pd=PowerdensityinmW/cm 2 Pout=outputpowertoantennainMw G=gainofantennainlinearscale Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorincm PdthelimitofMPE,1mW/cm2.Ifweknowthemaximumgainoftheantennaand totalpowerinputtotheantenna,throughthecalculation,wewillknowthedistance wheretheMPElimitisreached. MeasurementResult Operating Mode Channel Frequency (MHz) Measured Power (dBm) Tuneup tolerance (dBm) Max.Tune upPower (dBm) Antenna Gain (dBi) Powerdensity at20cm (mW/cm 2 ) Powerdensity Limits (mW/cm 2 ) 802.11b 241214.4414.44±115.4420.011031 243714.9614.96±115.9620.012441 246215.6715.67±116.6720.014651 802.11g 241210.7010.70±111.7020.004661 243712.1112.11±113.1120.006451 246212.3912.39±113.3920.006881 802.11n (HT20) 241210.9310.93±111.9320.004921 243711.4511.45±112.4520.005541 246212.2412.24±113.2420.006651 802.11n (HT40) 242210.2110.21±111.2120.004191 243710.7910.79±111.7920.004761 245211.4311.43±112.4320.005521

ShenzhenAnbotekComplianceLaboratoryLimited FCCID: Y2EAH4033BWPage1 of 105ReportNo. : R011501677E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com FCCTESTREPORT for SHENZHENAPEXISELECTRONICCO.,LTD. IP Camera ModelNo.: AH4033BW,AH6233BW,AH6243BW,AH9013BW,AH4033CW, AH6233CW,AH6243CW,AH9013CW,AH4036DW,AH6236DW,AH6246DW, AH9016DW,AH8093BW,AH6193BW,AH7173B,AH9063BW,AH8093CW, AH6193CW,AH7173C,AH9063CW,AH8096DW,AH6196DW,AH7176D, AH9066DW,AH8073BW,AH4105BW,AH7183B,AH8073CW,AH4105CW, AH7183C,AH8076DW,AH4106DW,AH7186D ReportNumber:R011501677E DateofTest:Jan.20~Feb.02,2015 DateofReport:Feb.03,2015 Preparedfor:SHENZHENAPEXISELECTRONICCO.,LTD. Address: 502 East Keji Building,ShenZhenHigh-TechInd-Park,Nanshan District,Shenzhen,518057,China PreparedBy:ShenzhenAnbotekComplianceLaboratoryLimited Address: 1/F.,Building1, SECIndustrialPark,No.0409QianhaiRoad, NanshanDistrict,Shenzhen,Guangdong,China Tel:(86)755-26066544 Fax:(86)755-26014772 ShenzhenAnbotekComplianceLaboratoryLimited FCCID: Y2EAH4033BWPage2 of 105ReportNo. : R011501677E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com TABLEOF CONTENT Description Page Test Report 1. GENERALINFORMATION......................................................................................................4 1.1. Descriptionof Device(EUT)................................................................................................................4 1.2. AuxiliaryEquipmentUsedduringTest ................................................................................................5 1.3. Descriptionof Test Facility..................................................................................................................6 1.4. MeasurementUncertainty.....................................................................................................................6 2. TESTMETHODOLOGY............................................................................................................7 2.1. Summaryof Test Results......................................................................................................................7 2.2. Descriptionof Test Modes....................................................................................................................7 2.3. List of channels:....................................................................................................................................8 3. CONDUCTEDEMISSIONTEST..............................................................................................9 3.1. BlockDiagramof Test Setup................................................................................................................9 3.2. PowerLineConductedEmissionMeasurementLimits(15.207).........................................................9 3.3. Configurationof EUTon Measurement...............................................................................................9 3.4. OperatingConditionof EUT ................................................................................................................9 3.5. Test Procedure....................................................................................................................................10 3.6. Test equipment....................................................................................................................................10 3.7. PowerLineConductedEmissionMeasurementResults....................................................................10 4. FCCPART15.247REQUIREMENTSFORDSSS& OFDMMODULATION.................13 4.1 Test Setup.............................................................................................................................................13 4.2 6dB Bandwidth....................................................................................................................................13 4.3. MaximumOutputPowerTest .............................................................................................................29 4.4. BandEdgesMeasurement...................................................................................................................37 4.5. PeakPowerSpectralDensity..............................................................................................................74 4.6. Radiated Emissions.............................................................................................................................82 5. ANTENNAAPPLICATION......................................................................................................93 5.1. Antennarequirement...........................................................................................................................93 5.2. Result..................................................................................................................................................93 6. PHOTOGRAPH.........................................................................................................................94 6.1 . Photoof ConductedEmissionMeasurement......................................................................................94 6.2 . Photoof RadiationEmissionTest .......................................................................................................94 APPENDIXI (EXTERNALPHOTOS)........................................................................................96 APPENDIXII(INTERNALPHOTOS)....................................................................................100 ShenzhenAnbotekComplianceLaboratoryLimited FCCID: Y2EAH4033BWPage3 of 105ReportNo. : R011501677E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com TESTREPORT Applicant: SHENZHENAPEXISELECTRONICCO.,LTD. Manufacturer: SHENZHENAPEXISELECTRONICCO.,LTD. EUT: IP Camera ModelNo.: AH4033BW,AH6233BW,AH6243BW,AH9013BW,AH4033CW, AH6233CW,…

Text truncated - open the document above for the full version.

ShenzhenAnbotekComplianceLaboratoryLimited FCCID: Y2EAH4033BWPage74 of 105ReportNo. : R011501677E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com 4.5 . PeakPowerSpectralDensity a. Limit 1. For directsequencesystems,the peakpowerspectraldensityconductedfromthe intentional radiatorto the antennashallnot be greaterthan 8dBmin any 3kHzbandduringany timeintervalof continuoustransmission. 2. The directsequenceoperatingof the hybridsystem,withthe frequencyhoppingoperationturned off, shallcomplywiththe powerdensityrequirementsof paragraph(d) of this section. b. Test Procedure 1. Placethe EUTon the tableand set it in transmittingmode.Removethe antennafromthe EUT and then connecta low loss RF cablefromthe antennaport to the spectrumanalyzer. 2. Set the spectrumanalyzeras RBW= 3kHz,VBW= 10kHz,Span= 1.5 timesDTSBW , Sweep=500s 3. Recordthe max.reading. 4. Repeatthe aboveprocedureuntilthe measurementsfor all frequenciesare completed. c. TestEquipment Sameas the equipmentlistedin 4.2. d. TestSetup See 4.1 e. Test Results Pass f. TestData Pleasereferto the followingdata. g. TestPlotSee the followingpages ShenzhenAnbotekComplianceLaboratoryLimited FCCID: Y2EAH4033BWPage75 of 105ReportNo. : R011501677E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com Test mode:IEEE802.11b Channel Frequency (MHz) PPSD (dBm/3KHz) ∑PPSD (dBm/3KHz) Limit (dBm) Result Low2412-9.88- 8.00 Pass Mid2437-9.35-Pass High2462-8.94-Pass Test mode:IEEE802.11g Channel Frequency (MHz) PPSD (dBm) ∑PPSD (dBm) Limit (dBm) Result Low2412-13.64- 8.00 Pass Mid2437-12.90-Pass High2462-12.40-Pass Test mode:IEEE802.11n(HT20) Channel Frequency (MHz) PPSD (dBm/3KHz) ∑PPSD (dBm/3KHz) Limit (dBm) Result Low2412-12.65- 8.00 Pass Mid2437-12.59-Pass High2462-11.67-Pass Test mode:IEEE802.11n(HT40) Channel Frequency (MHz) PPSD (dBm/3KHz) ∑PPSD (dBm/3KHz) Limit (dBm) Result Low2422-12.43- 8.00 Pass Mid2437-12.27-Pass High2452-11.91-Pass ShenzhenAnbotekComplianceLaboratoryLimited FCCID: Y2EAH4033BWPage76 of 105ReportNo. : R011501677E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com 802.11bCH--Low 802.11bCH--Mid ShenzhenAnbotekComplianceLaboratoryLimited FCCID: Y2EAH4033BWPage77 of 105ReportNo. : R011501677E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com 802.11b CH--High 802.11gCH --Low ShenzhenAnbotekComplianceLaboratoryLimited FCCID: Y2EAH4033BWPage78 of 105ReportNo. : R011501677E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com 802.11gCH--Mid 802.11gCH--High ShenzhenAnbotekComplianceLaboratoryLimited FCCID: Y2EAH4033BWPage79 of 105ReportNo. : R011501677E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com 802.11n(HT20)CH —Low 802.11n(HT20)CH—Mid ShenzhenAnbotekComplianceLaboratoryLimited FCCID: Y2EAH4033BWPage80 of 105ReportNo. : R011501677E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com 802.11n(HT20)CH —High 802.11n(HT40)CH —Low ShenzhenAnbotekComplianceLaboratoryLimited FCCID: Y2EAH4033BWPage81 of 105ReportNo. : R011501677E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com 802.11n(HT40)CH —Mid 802.11n(HT40)CH —High ShenzhenAnbotekComplianceLaboratoryLimited FCCID: Y2EAH4033BWPage82 of 105ReportNo. : R011501677E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com 4.6. RadiatedEmissions 4.6.1.1.Test Limits(< 30 MHZ) FrequencyFieldStrengthMeasurementDistance (MHz)(microvolts/meter)(meter) 0.009-0.4902400/F(kHz)300 0.490-1.70524000/F(kHz)30 1.705-30.03030 4.6.1.2.Test Limits(≥30 MHZ) FIELDSTRENGTHFIELDSTRENGTHS15.209 of Fundamental:of Harmonics30 - 88 MHz40 dBuV/m @3M 902-928MHZ88 - 216 MHz43.5 2.4-2.4835GHz216 - 960 MHz46 94 dBμV/m@3m54 dBμV/m@3mABOVE960 MHz54dBuV/m In any 100 kHz bandwidthoutsidethe frequencybandin whichthe spreadspectrumor digitally modulatedintentionalradiatoris operating,the radiofrequencypowerthat is producedby the intentionalradiatorshallbe at least20 dB belowthat in the 100 kHz bandwidthwithinthe band that containsthe highestlevelof the desiredpower,basedon eitheran RF conductedor a radiatedmeasurement.Attenuationbelowthe generallimitsspecifiedin Section15.209(a)is not required.In addition,radiatedemissionswhichfall in the restrictedbands,as definedin Section15.205(a),mustalso complywiththe radiatedemissionlimitsspecifiedin Section 15.209(a)(see Section15.205(c)). Test Equipment ItemEquipmentManufacturerModelNo.SerialNo.LastCal.Cal.Interval 1.SpectrumAnalysisAgilentE4407BUS39390582Aug.08,20141Year 2.Preamplifier Instruments corporation EMC01183 0 980100Aug.08, 20141 Year 3.EMITestReceiverRohde&SchwarzESPI101604Apr.22,20141Year 4. DoubleRidged HornAntenna Instruments corporation GTH-0118351600Apr.04, 20141 Year 5. BilogBroadband Antenna SchwarzbeckVULB9163 VULB 9163-289 Apr.24, 20141 Year 6.Pre-amplifierSONOMA310N186860Aug.08,20141Year 7. EMITest Software EZ-EMC SHURPLEN/AN/AN/AN/A ShenzhenAnbotekComplianceLaboratoryLimited FCCID: Y2EAH4033BWPage83 of 105ReportNo. : R011501677E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com 4.6.2. Test Configuration: 4.6.2.1.9k to 30MHzemissions: 4.6.2.2.30Mto 1G emissions: 4.6.2.3.1G to 40G emissions: ShenzhenAnbotekComplianceLaboratoryLimited FCCID: Y2EAH4033BWPage84 of 105ReportNo. : R011501677E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com 4.6.3. Test Procedure The EUTis placedon a turn tablewhichis 0.8 meterhighabovethe ground.The turn tablecan rotate360 degreesto determinethe positionof the maximumemissionlevel.The EUTis set 3 metersawayfromthe receivingantennawhichis mountedon a antennatower.The antennacan be movedup and downfrom1 to 4 metersto find o…

Text truncated - open the document above for the full version.

1.PhotoofConductedEmissionMeasurement 2.PhotoofRadiationEmissionTest
