Y2EAPM-J4035-WSIP Camera

IP Wireless / Wired Camera UserManual More Security, More Convenience 2 CONTENTS 1WELCOME ........................................................................................................................................................................ 3 1.1 FEATURES..................................................................................................................................................................................................3 1.2 P ACKINGLIST........................................................................................................................................................................................... 3 1.3 P RODUCTVIEWS....................................................................................................................................................................................... 4 1.4 PC S YSTEMREQUIREMENTS..................................................................................................................................................................... 5 1.5 H ARDWAREINSTRUCTION.........................................................................................................................................................................5 1.6 S OFTWAREINSTALLATION.........................................................................................................................................................................6 2. SOFTWARE OPERATION ............................................................................................................................................. 9 2.1 IP CAMERATOOL......................................................................................................................................................................................9 2.2 C AMERALOGIN.......................................................................................................................................................................................12 2.3 F ORIE BROWSER....................................................................................................................................................................................14 2.4 F ORSAFARI,FIREFOX,GOOGLEBROWSER............................................................................................................................................16 2.5 F ORMOBILEPHONE............................................................................................................................................................................... 16 2.6 A CTIVEXMODE(FORIE BROWSER)...................................................................................................................................................... 17 2.7 F ORVISITOR............................................................................................................................................................................................17 2.8 F OROPERATOR....................................................................................................................................................................................... 21 2.9 F ORADMINISTRATOR..............................................................................................................................................................................22 3 SETTINGS AS ADMINISTRATOR .............................................................................................................................. 23 3.1 MULTI-DEVICESETTINGS........................................................................................................................................................................23 3.2 N ETWORKSETTINGS................................................................................................................................................................................28 3.3 B ASICNETWORKSETTINGS.....................................................................................................................................................................28 3.4 W IRELESSLANSETTINGS....................................................................................................................................................................... 30 3.5 ADSL S ETTINGS......................................................................................................................................................................................32 3.6 UP NPSETTINGS...................................................................................................................................................................................... 32 3.7 DDNS S ERVICESETTINGS...................................................................................................................................................................... 32 3.8P2P SETTINGS .......................................................................................................................................................................................33 3.9 S YSTEMSETTINGS...................................................................................................................................................................................36 3.10 A LIASSETTINGS....................................................................................................................................................................................37 3.11 D ATE&TIMESETTINGS.........................................................................................................................................................................37 3.12 U SERSSETTINGS................................................................................................................................................................................... 38 3.13 I NDICATORSETTINGS................................…

Text truncated - open the document above for the full version.

SHENZHEN APEXIS ELECTRONIC CO., LTD. FCC Confidentiality Request Number:CF303 Version:V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company nameSHENZHEN APEXIS ELECTRONIC CO., LTD. Address502 East Keji Building, ShenZhen High-Tech Ind-Park, Nanshan District, CityShenzhen, 518057, CountryChina request for this certification filing under: Grantee CodeProduct Number FCC ID:Y2EAPM-J4035-WS to maintainpermanent confidentialityfor the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) ExhibitFile NameDescription √ Operational DescriptionOperational Descriptionexplaining the functioning of the block diagram √ Block DiagramsBlock Diagramsshowing the systematic building blocks of the EUT √ Schematics DiagramsSchematicsshowing components, their values and interconnection Bill of MaterialsList of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Shenzhen, China2014-05-04 Zhipeng LiEngineer

SHENZHEN APEXIS ELECTRONIC CO., LTD. FCC Authorization Letter Number:CF304 Version:V03 Date: 01-08-2011 We, (the approval holder) Company nameSHENZHEN APEXIS ELECTRONIC CO., LTD. Address502 East Keji Building, ShenZhen High-Tech Ind-Park, Nanshan District, CityShenzhen, 518057, CountryChina declare that the following representative (agent): Name (person)Tom Chen Company nameShenzhen Anbotek Compliance Laboratory Limited Addresss1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, CityShenzhen CountryChina is hereby authorized to apply the following equipment for certification on our behalf: Product DescriptionIP Camera Type or Model(s)APM-J4035-WS Tradename or Brand(s) We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Shenzhen, China2014-05-04 Zhipeng LiEngineer

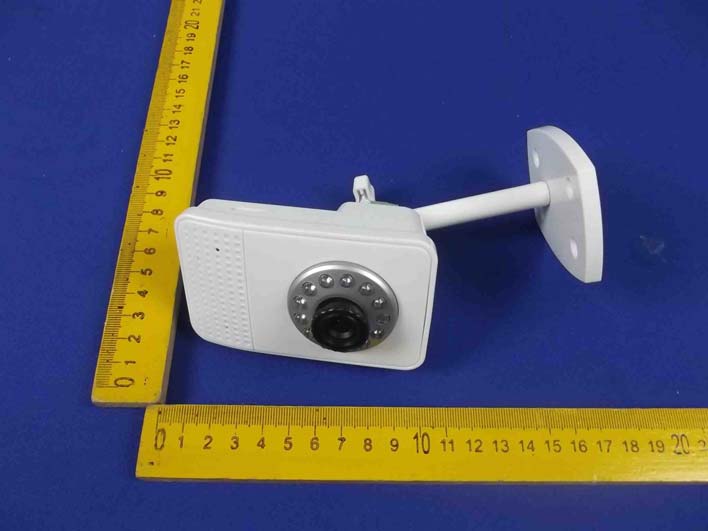

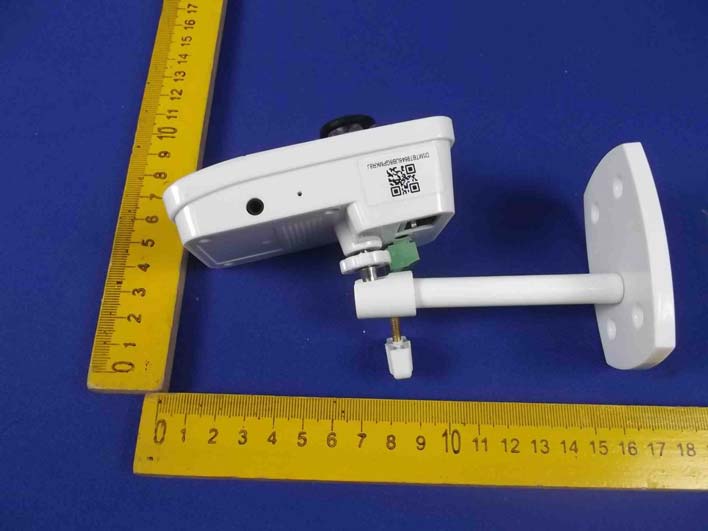

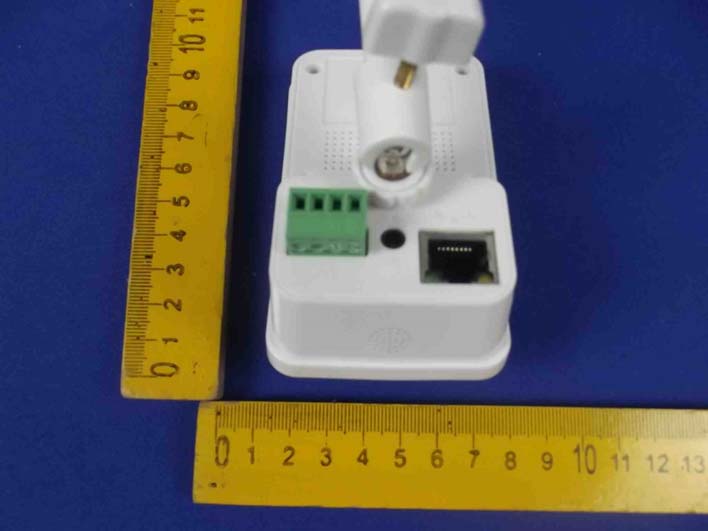

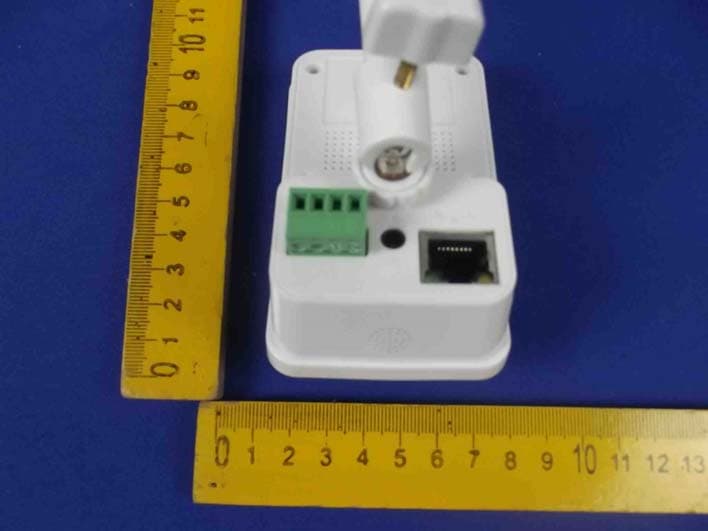

Figure 1 The EUT-Overall View Figure 2 The EUT-Front View Figure 3 The EUT- Back View Figure 4 The EUT- Back View

Label Location On EUT

SHENZHEN APEXIS ELECTRONIC

Figure 5 TheEUT-InsideView Figure 6 PCB of the EUT-Front View Figure 7 PCB of the EUT-Back View Figure 8 PCB of the EUT-Front View Figure 9 PCB of the EUT-Back View Figure 10 PCB of the EUT-Front View Figure 11 PCB of the EUT-Back View Figure 12 PCB of the EUT-Front View Figure 13 PCB of the EUT-Back View

MPE Calculation FCC ID: Y2EAPM-J4035-WS EUT Description: IP Camera Typical use distance: d ≥ 20 cm Power density limit for mobile devices at 2.4GHz: S ≤ 1 mW/cm 2 Remark: Average ≤ Peak, which means that calculating the power density applying Peak power is worst case. The worst case operation mode generating the highest power in each frequency range is taken for calculation. Frequency range: 2412-2462MHz, 2422-2452 Maximum measured conducted power (Peak): P conducted = 21.94 dBm = 157 mW Antenna Gain: G = 0 dBi Calculation: P radiated = P conducted + G linear = 21.94 dBm + 0 dBi = 21.94 dBm = 157 mW Power density S = (P radiated ) / (4π x d 2 ) = 157 / 5026 =0.0312 mW/cm 2 is below the limit, so pass.

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: Y2EAPM-J4035-WS Page 1 of 93 Report No.: 201404773F Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for SHENZHEN APEXIS ELECTRONIC CO., LTD. IP Camera Model No.: APM-J4035-WS Report Number: 201404773F Date of Test:Apr. 10 ~29, 2014 Date of Report:Apr. 30, 2014 Prepared fo r: SHENZHEN APEXIS ELECTRONIC CO., LTD. Address: 502 East Keji Building, ShenZhen High-Tech Ind-Park, Nanshan District, Shenzhen, 518057, China Prepared By: Shenzhen AnbotekCompliance Laboratory Limited Address: 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: Y2EAPM-J4035-WS Page 2 of 93 Report No.: 201404773F Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENT Description Page Test Report 1. GENERAL INFORMATION......................................................................................................4 1.1. Description of Device (EUT)................................................................................................................4 1.2. Auxiliary Equipment Used during Test................................................................................................ 5 1.3. Description of Test Facility.................................................................................................................. 6 1.4. Measurement Uncertainty.....................................................................................................................6 2. TEST METHODOLOGY............................................................................................................7 2.1. Summary of Test Results......................................................................................................................7 2.2. Description of Test Modes....................................................................................................................7 2.3. List of channels:....................................................................................................................................8 3. CONDUCTED EMISSION TEST.............................................................................................. 9 3.1. Block Diagram of Test Setup................................................................................................................9 3.2. Power Line Conducted Emission Measurement Limits (15.207).........................................................9 3.3. Configuration of EUT on Measurement............................................................................................... 9 3.4. Operating Condition of EUT................................................................................................................ 9 3.5. Test Procedure.................................................................................................................................... 10 3.6. Test equipment....................................................................................................................................10 3.7. Power Line Conducted Emission Measurement Results.................................................................... 10 4. FCC PART 15.247 REQUIREMENTS FOR DSSS & OFDM MODULATION................. 13 4.1 Test Setup.............................................................................................................................................13 4.2 6dB Bandwidth.................................................................................................................................... 13 4.3. Maximum Peak output power test...................................................................................................... 21 4.4. Band Edges Measurement...................................................................................................................29 4.5. Peak Power Spectral Density..............................................................................................................66 4.6. Radiated Emissions.............................................................................................................................74 5. PHOTOGRAPH......................................................................................................................... 85 5.1. Photo of Conducted Emission Measurement......................................................................................85 5.2. Photo of Radiation Emission Test.......................................................................................................85 APPENDIX I (EXTERNAL PHOTOS)........................................................................................87 APPENDIXII(INTERNAL PHOTOS)...................................................................................... 89 Appendix I (2 Pages) Appendix II (5 Pages) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: Y2EAPM-J4035-WS Page 3 of 93 Report No.: 201404773F Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TEST REPORT Applicant: SHENZHEN APEXIS ELECTRONIC CO., LTD. Manufacturer: SHENZHEN APEXIS ELECTRONIC CO., LTD. EUT: IP Camera Model No.: APM-J4035-WS Serial No.: N.A. Trade Mark: Rating: 5V,2A Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.247 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emissionlevels emanating from the device and the severe levels of the device can endure and itsperformance criterion. The measurement results are contained in this test report andShenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this r…

Text truncated - open the document above for the full version.

1. Photo of Conducted Emission Measurement 2. Photo of Radiation Emission Test
