Y3H710331032004wireless video transmitter system

CONTENTS User instructions Thank you for choosing CVW's professional wireless high- definition audio and video transmission products. Before using this product, please read the following precautions carefully: * Avoid using this product for long-term exposure to the sun or dust * Be sure to use the product within the temperature and humidity range * Do not operate the product under vibration or strong magnetic field * Do not put conductive materials in the ventilation holes of the product * Without the guidance of professionals of our company, please do not open the product case by yourself * Before power on, make sure that the input voltage of the adapter is AC110V-220V, and the output voltage and current meet the product specifications * Before inserting the battery, ensure that the battery voltage meets the product specifications About this manual This manual details the product specifications and interface descriptions, instructions for use, precautions, and troubleshooting. Please read the instructions carefully before using the product. If you have any questions or difficulties in using this product, please contact our company or distributor in time. Product Brief This product is a wireless video transmission system based on the 5GHz frequency band, with a maximum video resolution of 1080P60Hz, which can be widely used in commercial live broadcast, event live broadcast, film and television shooting, campus radio and other fields. System connection diagram This product includes a transmitter and a receiver. The transmitter supports 1 HDMI input and SDI input and loop-out. The receiver supports 1 HDMI and 2 SDI output at the same time. The following is a schematic diagram of the application connection of this product. Product Highlights High-quality low-latency video Support HD-SDI & 3G-SDI input and output, support HDMI full HD input and output, the highest resolution is 1080P60Hz. Using H.264 codec technology, the image is high-definition, and the delay is as low as 70ms Product packaging details After unpacking, please check the packing list details, if there are missing parts, please contact the dealer. The parts involved in each model are subject to the following packing list. Beam-Forming Combining 2x2 MIMO and Beam-Forming (beam forming) technology makes the wireless beam more concentrated and more directional in the direction of transmission to reception, higher signal-to-noise ratio, and a longer transmission distance Stronger anti-interference ability Point-to-point mode and pull flow mode Support two working modes of point-to-point and RTSP pull flow and can be switched. In the point-to-point mode, the product supports one send and one receive and the video output interface is HDMI and SDI. In the RTSP pull-stream mode, the product supports one send, one receive, and one send, multiple receive. There are more options for different applications. 01 02 A B C D E K USB H I J Product interfaceintroduction Transmitter 7103 interface description TX F G Antenna interface Power button OLED display CH button MODE button HDMI input DC IN USB interface SDI loop output SDI input NP-F battery interface A B C D E F G H I J K SWIFT 800 PRO 03 04 Receiver interface introduction Receiver 3103 interface description: RX:3103 A B C D E F G USB H K I J 05 06 Antenna interface power button OLED display CH button MODE button HDMI output DC IN USB interface SDI output SDI output NP-F battery interface A B C D E F G H I J K 说明 序号 SWIFT 800 PRO RF signal VIDEO Video signal CH 1 Work channel OLEDDisplay instructions TX:7103 Transmission distance Factors affecting distance The installation height of the transmitter and the receiver: a higher installation height will avoid being blocked by objects and humans, increasing the distance Wireless transmission code rate, the larger the code rate, the shorter the transmission distance, the recommended single channel code rate is 15Mbps Blocking of objects such as metals, walls, or human bodies will cause the wireless signal strength to be greatly attenuated, resulting in a reduction in transmission distance Whether there is interference Whether the antenna placement angle is in an ideal state RX:3103 RF signal VIDEO Video signal CH 1 Work channel 05 06 Product installation instructions Transmitter installation instructions 1. Please install the antenna to the antenna interface of the transmitter as shown in the figure. To obtain the best wireless transmission distance, the antenna The following picture is placed (90 ° angle between 2 antennas) (as the picture shows) 3. Fix the transmitter to the camera head or handle through the nut hole on the bottom of the fuselage (as shown in the figure) Warning: When the device is not in use, the battery needs to be removed. Receiver installation instructions 1,Please install the antenna to the antenna interface of the receiver according to the figure. 1. Install the transmitter battery (as shown) 90 90 SWIFT 800 PRO SWIFT 800 PRO 07 08 Product operation 1. Product connection Use HDMI or SDI cable to connect the transmitter to the camera \ SLR camera 2. Use HDMI or SDI cable to connect the receiver and monitor, or other receiver products。 SDI HDMI SDI HDMI SWIFT 800 PRO 09 10 DC Power supply and start The transmitter uses any of the following power supply methods, long press the power button 3S to start the transmitter a) Install the NP-F battery in the NP-F battery slot on the back of the transmitter 1. The receiver uses any of the following methods to supply power. Press and hold the power button 3S to start the receiver 2. Use the included DC power adapter to power the product a) D-type to DC cable is required to use V-bucket batteries to power the product D-type- DC b) Use V button battery to power the product (need to use D-type to DC cable) D-type-DC 09 10 Switch channel Tap the CH button of the transmitter or receiver to switch channels. Both the OLED screens of the receiver and transmitter will display the chann…

Text truncated - open the document above for the full version.

Shenzhen Crystal Video Technology Co., LTD. Agent Authorization Company: Shenzhen Crystal Video Technology Co., LTD. Address: F13, F518 Idea Land, Baoyuan Road, Baoan Central Area Shenzhen China Product Name: wireless video transmitter system Trade Mark: / Model Number(s): 7103&3103 FCC ID: Y3H710331032004 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-05-15 Name: Zhang Zude Title: Majordomo Company: Shenzhen Crystal Video Technology Co., LTD.

Shenzhen Crystal Video Technology Co., LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-05-15 Subject; Request for Confidentiality FCC ID: Y3H710331032004 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Zhang Zude Title: Majordomo

Shenzhen Crystal Video Technology Co., LTD. FCC Software Configuration Control Declaration Date: May 18, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product Name: wireless video transmitter system Model Number: 7103&3103 Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 Software Configuration Control v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Zhang Zude Date: 2020-05-18 Title: Product manager Signature of applicant FCC Software Configuration Control Declaration Rev1.1

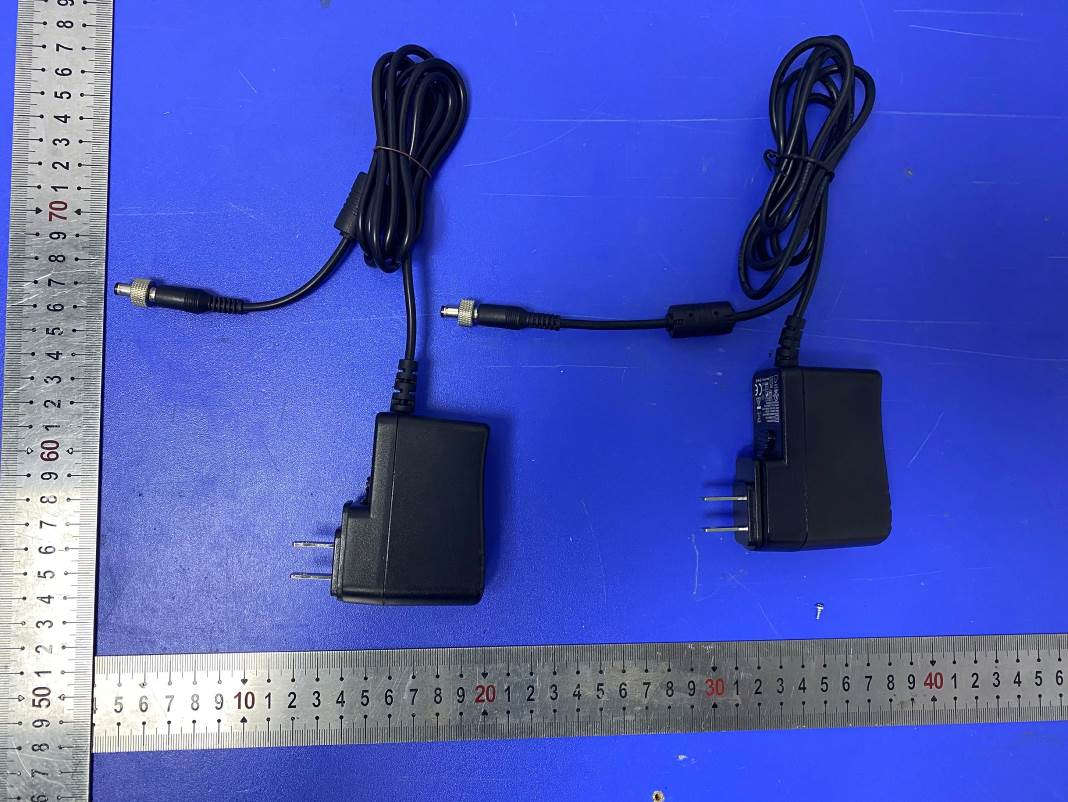

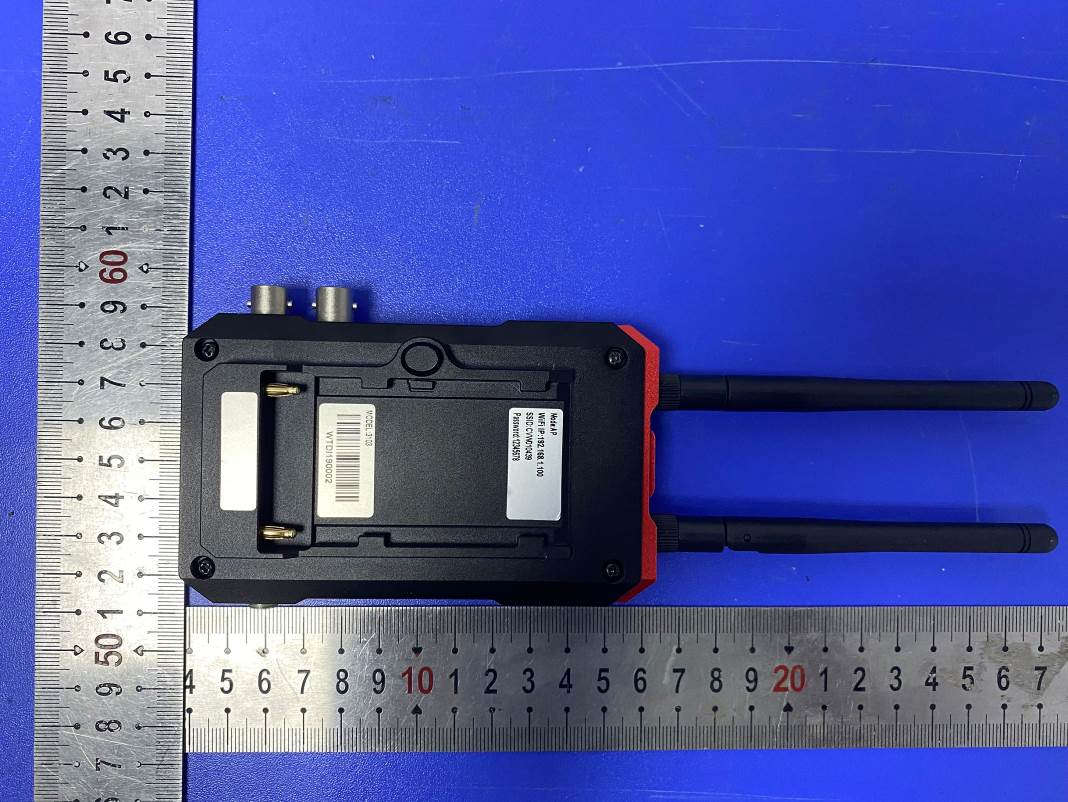

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 External Photos of the EUT Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 ANT 0 ANT 1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Label and Location Size: L2.0cm*W1.5cm Label Location wireless video transmitter system Model No.: 7103&3103 FCC ID: Y3H710331032004 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 Internal Photos of the EUT Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 5 Fig. 9 Fig. 10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Maximum Permissible Exposure Report 1. Product Information FCC ID: Y3H710331032004 Product name wireless video transmitter system Model number 7103&3103 Test Model 7103&3103 Power supply Input: 100-240V~, 50/60Hz, 0.75A Output:12V2000mA Operation frequency 5180MHz-5240MHz 5745MHz-5825MHz Antenna Type External Antenna Antenna Gain 2.5dBi Hardware version 02 Software version 1.05 Channel Number 4 channels for 20MHz bandwidth (5180-5240MHz) 2 channels for 40MHz bandwidth (5190~5230MHz) 5 channels for 20MHz bandwidth (5745-5825MHz) 2 channels for 40MHz bandwidth (5755~5795MHz) Channel Spacing 5MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Fixed Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information wireless video transmitter system can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Notes Antenna 0 External Antenna 5000 MHz – 5800 MHz 2.5 dBi WiFi Antenna Antenna 1 External Antenna 5000 MHz – 5800 MHz 2.5 dBi WiFi Antenna This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 6. Conducted Power [5G U-NII-1 WIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) Max Conducted Power(dBm) ANT 0 ANT 1 11N20 SISO 36 5180 12.30 11.78 40 5200 12.11 11.97 48 5240 11.46 10.63 11N40 SISO 38 5190 9.95 6.50 46 5230 9.93 6.17 [5 G U-NII-1 WIFI MIMO Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) ANT 0+1 11N20 SISO 36 5180 15.06 40 5200 15.05 48 5240 14.08 11N40 SISO 38 5190 11.57 46 5230 11.46 [5G U-NII-3 WIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) Max Conducted Power(dBm) ANT 0 ANT 1 11N20 SISO 149 5745 16.87 9.69 157 5785 10.08 10.04 165 5825 10.39 9.52 11N40 SISO 151 5755 10.01 10.87 159 5795 10.67 10.24 [5 G U-NII-3 WIFI MIMO Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) ANT 0+1 11N20 SISO 149 5745 17.63 157 5785 13.07 165 5825 12.99 11N40 SISO 151 5755 13.47 159 5795 13.47 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 7. Measurement Results 5G U -NII-1WIFI 11N20 SISO (Peak) Channel Channel 36…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA Appendix A RF Test Data for 5.2G WLAN (Conducted Measurement) Product Name: wireless video transmitter system Trade Mark: N/A Test Model: 7103&3103 Environmental Conditions Temperature: 25 ° C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: Jack Liu Supervised by: Li Huan A.1 Duty Cycle Antenna 0 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11N20 SISO 5200 100 0 0.01 11N40 SISO 5190 100 0 0.01 Page 1 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA On Time and Duty Cycle IEEE 802.11n HT20 IEEE 802.11n HT40 Page 2 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA Antenna 1 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11N20 SISO 5200 100 0 0.01 11N40 SISO 5190 100 0 0.01 Page 3 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA On Time and Duty Cycle IEEE 802.11n HT20 IEEE 802.11n HT40 Page 4 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA A.2 Maximum Conduct Output Power Antenna 0 Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor( dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11N20 SISO 36 5180 12.3 0.00 12.3 24 Pass 40 5200 12.11 0.00 12.11 Pass 48 5240 11.46 0.00 11.46 Pass 11N40 SISO 38 5190 9.95 0.00 9.95 24 Pass 46 5230 9.93 0.00 9.93 Pass Page 5 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA Maximum Conducted Output Power IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz Page 6 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA IEEE 802.11n20 / Channel 48 / 5240MHz Page 7 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA Maximum Conducted Output Power IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz Page 8 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA Antenna 1 Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor( dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11N20 SISO 36 5180 11.78 0 11.78 24 Pass 40 5200 11.97 0 11.97 Pass 48 5240 10.63 0 10.63 Pass 11N40 SISO 38 5190 6.5 0 6.5 24 Pass 46 5230 6.17 0 6.17 Pass Page 9 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA Maximum Conducted Output Power IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz Page 10 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA IEEE 802.11n20 / Channel 48 / 5240MHz Page 11 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA Maximum Conducted Output Power IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz Page 12 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA Ant0+1 Test Mode Chann el Frequency (MHz) ANT 0 AVG Conducted Power (dBm) ANT 1 AVG Conducte d Power (dBm) ANT 0+1 AVG Conducted Power (dBm) Duty Cycle Factor(d B) Report Conducte d Power(dB m) Limit (dBm) Verdi ct 11N20 SISO 36 5180 12.3 11.78 15.06 0 15.06 24 Pass 40 5200 12.11 11.97 15.05 0 15.05 Pass 48 5240 11.46 10.63 14.08 0 14.08 Pass 11N40 SISO 38 5190 9.95 6.5 11.57 0 11.57 24 Pass 46 5230 9.93 6.17 11.46 0 11.46 Pass Page 13 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA A.3 Power Spectral Density Antenna 0 Test Mode Channe l Frequenc y (MHz) Power Density (dBm/MHz) Duty Cycle Factor(d B) Report Power Density (dBm/MHz) Limit (dBm/MH z) Verdic t 11N2 0 SISO 36 5180 2.21 0 2.21 11 Pass 40 5200 2.58 0 2.58 Pass 48 5240 1.65 0 1.65 Pass 11N4 0 SISO 38 5190 -2.85 0 -2.85 11 Pass 46 5230 -3.06 0 -3.06 Pass Page 14 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA Power Spectral Density IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz Page 15 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA IEEE 802.11n20 / Channel 48 / 5240MHz Page 16 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA Power Spectral Density IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz Page 17 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA Antenna 1 Test Mode Channe l Frequenc y (MHz) Power Density (dBm/MHz) Duty Cycle Factor(d B) Report Power Density (dBm/MHz) Limit (dBm/MH z) Verdic t 11N2 0 SISO 36 5180 2.09 0 2.09 11 Pass 40 5200 2.32 0 2.32 Pass 48 5240 1.91 0 1.91 Pass 11N4 0 SISO 38 5190 -0.35 0 -0.35 11 Pass 46 5230 -0.70 0 -0.70 Pass Page 18 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA Power Spectral Density IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz Page 19 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA IEEE 802.11n20 / Channel 48 / 5240MHz Page 20 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA Power Spectral Density IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz Page 21 of 41 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEA Ant0+1 Tes t Mo de Chan nel Frequ ency (MHz) ANT 0 Power Density (dBm/MHz) ANT 1 Power Den…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB Appendix B RF Test Data for 5.8G WLAN (Conducted Measurement) Product Name: wireless video transmitter system Trade Mark: N/A Test Model: 7103&3103 Environmental Conditions Temperature: 25 ° C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: Jack Liu Supervised by: Li Huan B.1 Duty Cycle Antenna 0 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11N20 SISO 5785 100 0.0 0.01 11N40 SISO 5755 100 0.0 0.01 Page 1 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB On Time and Duty Cycle IEEE 802.11n HT20 IEEE 802.11n HT40 Page 2 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB Antenna 1 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11N20 SISO 5785 100 0.0 0.01 11N40 SISO 5755 100 0.0 0.01 Page 3 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB On Time and Duty Cycle IEEE 802.11n HT20 IEEE 802.11n HT40 Page 4 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB B.2 Maximum Conduct Output Power Antenna 0 Test Mode Channe l Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor(dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11N20 SISO 149 5745 16.87 0 16.87 30 Pass 157 5785 10.08 0 10.08 Pass 165 5825 10.39 0 10.39 Pass 11N40 SISO 151 5755 10.01 0 10.01 30 Pass 159 5795 10.67 0 10.67 Pass Page 5 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB Maximum Conducted Output Power IEEE 802.11n20 / Channel 149 / 5745MHz IEEE 802.11n20 / Channel 157 / 5785MHz Page 6 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB IEEE 802.11n20 / Channel 165 / 5825MHz Page 7 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB Maximum Conducted Output Power IEEE 802.11n40 / Channel 151 / 5755MHz IEEE 802.11n40 / Channel 159 / 5795MHz Page 8 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB Antenna 1 Test Mode Channe l Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor(dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11N20 SISO 149 5745 9.69 0 9.69 30 Pass 157 5785 10.04 0 10.04 Pass 165 5825 9.52 0 9.52 Pass 11N40 SISO 151 5755 10.87 0 10.87 30 Pass 159 5795 10.24 0 10.24 Pass Page 9 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB Maximum Conducted Output Power IEEE 802.11n20 / Channel 149 / 5745MHz IEEE 802.11n20 / Channel 157 / 5785MHz Page 10 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB IEEE 802.11n20 / Channel 165 / 5825MHz Page 11 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB Maximum Conducted Output Power IEEE 802.11n40 / Channel 151 / 5755MHz IEEE 802.11n40 / Channel 159 / 5795MHz Page 12 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB Ant0+1 Test Mode Chann el Frequency (MHz) ANT 0 AVG Conducted Power (dBm) ANT 1 AVG Conducte d Power (dBm) ANT 0+1 AVG Conducted Power (dBm) Duty Cycle Factor(d B) Report Conducte d Power(dB m) Limit (dBm) Verdi ct 11N20 SISO 149 5745 16.87 9.69 17.63 0 17.63 30 Pass 157 5785 10.08 10.04 13.07 0 13.07 Pass 165 5825 10.39 9.52 12.99 0 12.99 Pass 11N40 SISO 151 5755 10.01 10.87 13.47 0 13.47 30 Pass 159 5795 10.67 10.24 13.47 0 13.47 Pass Page 13 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB B.3 Power Spectral Density Antenna 0 Test Mode Channel Frequency (MHz) Power Density (dBm/300KHz) Duty Cycle Factor (dB) RBW Factor (dB) Report Power Density (dBm/500KHz) Limit (dBm/500KHz) Verdict 11N20 SISO 149 5745 5.14 0 2.218 7.358 30 Pass 157 5785 -3.27 0 2.218 -1.052 Pass 165 5825 -3.31 0 2.218 -1.092 Pass 11N40 SISO 151 5755 -6.87 0 2.218 -4.652 30 Pass 159 5795 -5.94 0 2.218 -3.722 Pass Power Spectral Density IEEE 802.11n20 / Channel 149 / 5745MHz Page 14 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB IEEE 802.11n20 / Channel 157 / 5785MHz IEEE 802.11n20 / Channel 165 / 5825MHz Page 15 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB Power Spectral Density IEEE 802.11n40 / Channel 151 / 5755MHz IEEE 802.11n40 / Channel 159 / 5795MHz Page 16 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB Antenna 1 Test Mode Channel Frequency (MHz) Power Density (dBm/300KHz) Duty Cycle Factor (dB) RBW Factor (dB) Report Power Density (dBm/500KHz) Limit (dBm/500KHz) Verdict 11N20 SISO 149 5745 4.73 0 2.218 6.948 30 Pass 157 5785 2.66 0 2.218 4.878 Pass 165 5825 5.36 0 2.218 7.578 Pass 11N40 SISO 151 5755 2.68 0 2.218 4.898 30 Pass 159 5795 -3.87 0 2.218 -1.652 Pass Page 17 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB Power Spectral Density IEEE 802.11n20 / Channel 149 / 5745MHz IEEE 802.11n20 / Channel 157 / 5785MHz Page 18 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB IEEE 802.11n20 / Channel 165 / 5825MHz Page 19 of 40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: Y3H710331032004 Report No.: LCS200410082AEB Power Spectral Density IEEE 802.11n40 / Ch…

Text truncated - open the document above for the full version.
