Product Manual 1. Product: SAK Wireless Transmitter 2. Model : CY009BX 3. Function CY009BX is a reliable remote control with self-learning chip, ASK transmitter, suitable to apply on remote control, security system, data transmission and process ... etc. 4. Product Application Wireless Security System Wireless Data Transmitting and Processing System Remote Control System Vehicle Security System 5. Product Technical Specification Power Voltage: BAT-12V/27A Power Frequency: 315MHZ Current: 9-11 mA Resistance:430K Transmission Power:90 db 6. Product AC-DC Parameter The parameter is measured under +25? environmental condition: Parameter Min. Typical Max. Unit Operation Voltage 5 12 15 Volt Operating Current 7 10 12 mA Transmission Power 70 90 100 db Data Transmission Rate 1 2.4 8 kHz 7.Product Dimension LED Orange315M 8. Pin Definition Symbol Description Remark Unlock K0 Pin : EV1527—5 Lock K1 Pin : EV1527—6 9. Warning The Module shall work in an environment that is far from electromagnetic interference. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Transmitter CY009BX Y3OW101

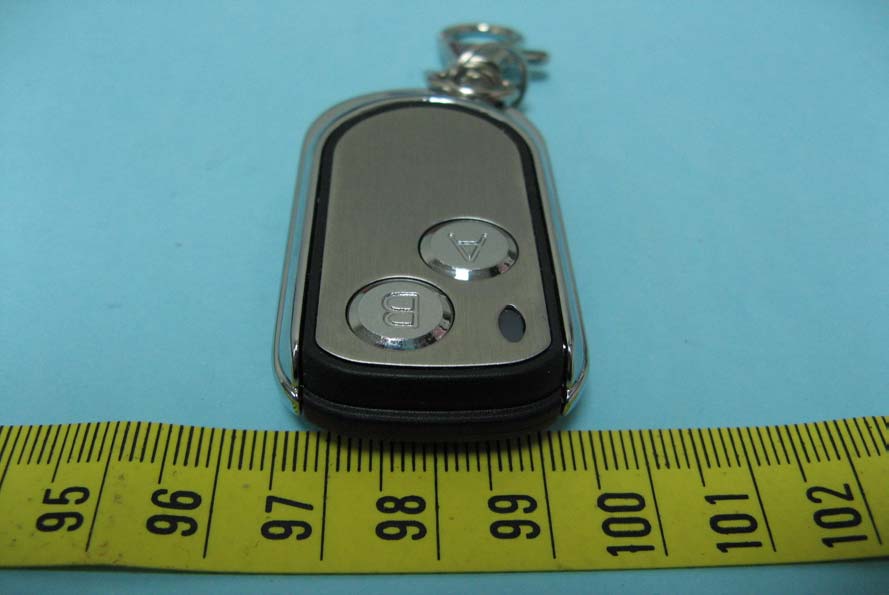

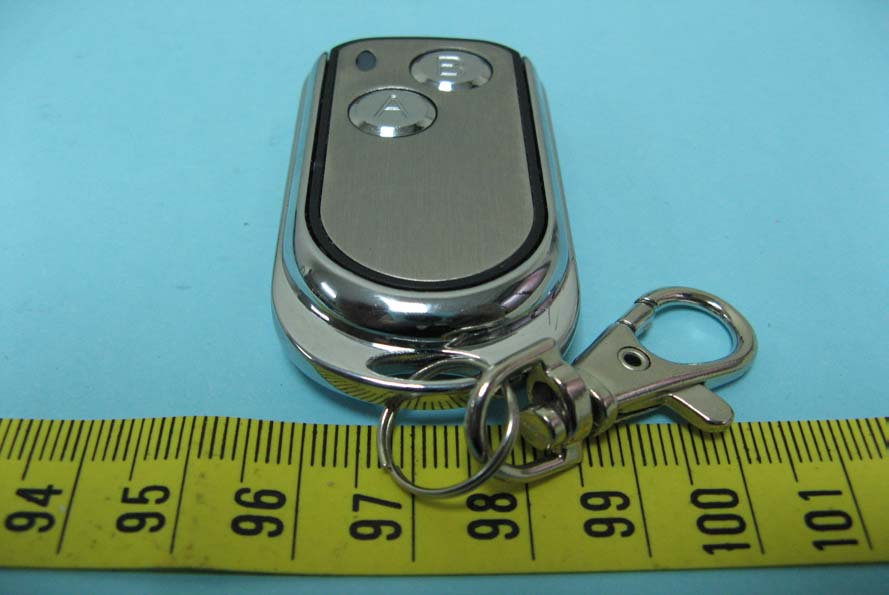

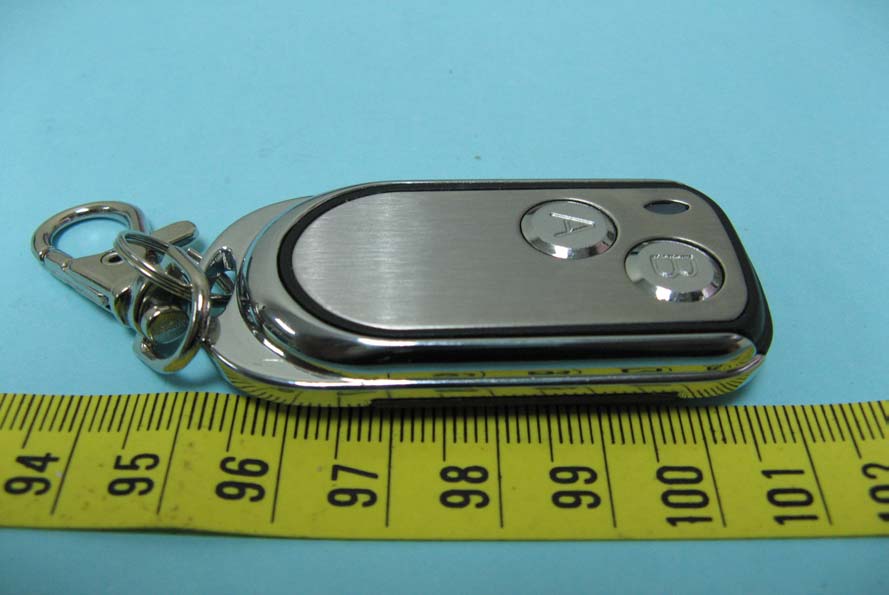

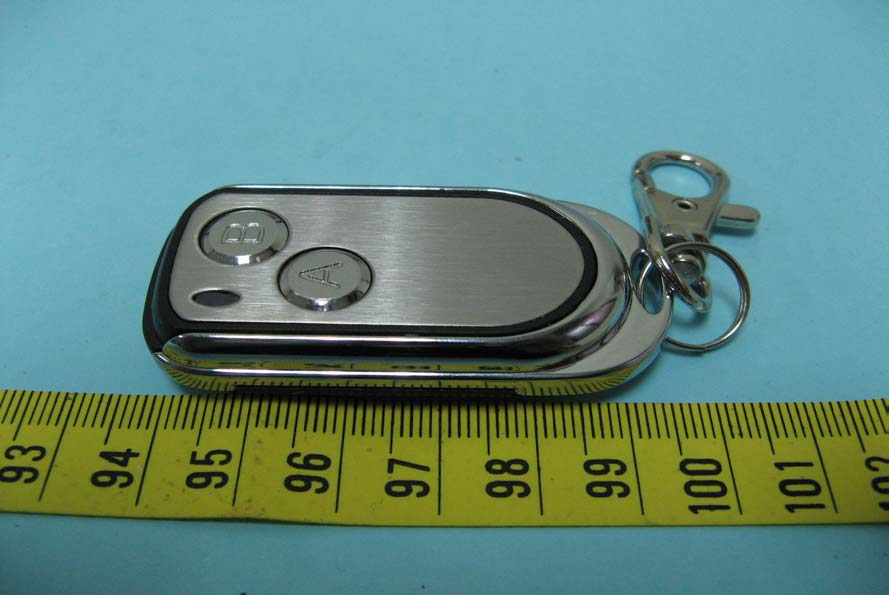

ETC Report No.:10-11-RBF-078 Sheet 1 of 5 Sheets FCC ID.: Y3OW101 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Rear View of EUT ETC Report No.:10-11-RBF-078 Sheet 2 of 5 Sheets FCC ID.: Y3OW101 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Front View of EUT ETC Report No.:10-11-RBF-078 Sheet 3 of 5 Sheets FCC ID.: Y3OW101 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Side View of EUT 6. Bottom View of EUT

910805 1 M/N: CY009BX Fcc ID: Y3OW101 2.5 CM 1 CM LABEL

ETC Report No.:10-11-RBF-078 Sheet 4 of 5 Sheets FCC ID.: Y3OW101 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Internal View of EUT ETC Report No.:10-11-RBF-078 Sheet 5 of 5 Sheets FCC ID.: Y3OW101 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 8. Component View of Main PCB 9. Solder View of Main PCB

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Transmitter FCC ID : Y3OW101 MODEL : CY009BX Working Frequency : 315 MHz for APPLICANT : YI TORNG ENTERPRISE CO., LTD ADDRESS : NO. 73-3,LANE854,SECl ,SHIA TIEN ROAD ,DAH-DUUHSIANG, TAICHUNG HSIEN, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO.34, LIN 5, DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 10-11-RBF-078 ETC Report No.:10-11-RBF-078 FCC ID.: Y3OW101 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : YI TORNG ENTERPRISE CO., LTD NO. 73-3, LANE854, SECI, SHIA TIEN ROAD,DAH-DUU HSIANG, TAICHUNG HSIEN, TAIWAN, R.O.C. Manufacturer : YI TORNG ENTERPRISE CO., LTD NO. 73-3, LANE854, SECI, SHIA TIEN ROAD,DAH-DUU HSIANG, TAICHUNG HSIEN, TAIWAN, R.O.C. Description of EUT : a) Type of EUT : Transmitter b) Trade Name : --- c) Model No. : CY009BX d) FCC ID : Y3OW101 e) Working Frequency : 315 MHz f) Power Supply : DC 12V Battery*1 Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2009) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. ETC Report No.:10-11-RBF-078 FCC ID.: Y3OW101 Rev. No 1.0 Date Test Item Received : Nov. 09, 2010 Date Test Campaign Completed : Dec 02, 2010 Date of Issue : Dec. 29, 2010 Test Engineer : ( Falcon Shi, Engineer ) Check By : ( Charles Wang, Supervisor ) Approve & Authorized : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:10-11-RBF-078 FCC ID.: Y3OW101 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION.....................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................1 2. DEFINITION AND LIMITS.......................................................................................................................................................2 2.1 DEFINITION................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.....................................................................................................................................2 2.3 LIMITATION...............................................................................................................................................................................2 2.4 LABELING REQUIREMENT.......................................................................................................................................................4 2.5 USER INFORMATION.................................................................................................................................................................4 3 SYSTEM TEST CONFIGURATION.........................................................................................................................................5 3.1 JUSTIFICATION..........................................................................................................................................................................5 3.2 DEVICES FOR TESTED SYSTEM...............................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT.............................................................................................................................6 4.1 APPLICABLE STANDARD.........................................................................................................................................................6 4.2 MEASUREMENT PROCEDURE..................................................................................................................................................6 4.3 TEST DATA.................................................................................................................................................................................8 4.4 FIELD STRENGTH CALCULATION........................................................................................................................................10 4.5 ACTIVATE TIME......................................................................................................................................................................10 4.6 CALCULATION OF DUTY FACTOR.......................................................................................................................................10 4.7 RADIATED TEST EQUIPMENT...............................................................................................................................................14 4.7 RADIATED TEST EQUIPMENT............................................................................…
