Y3OW201Transmitter

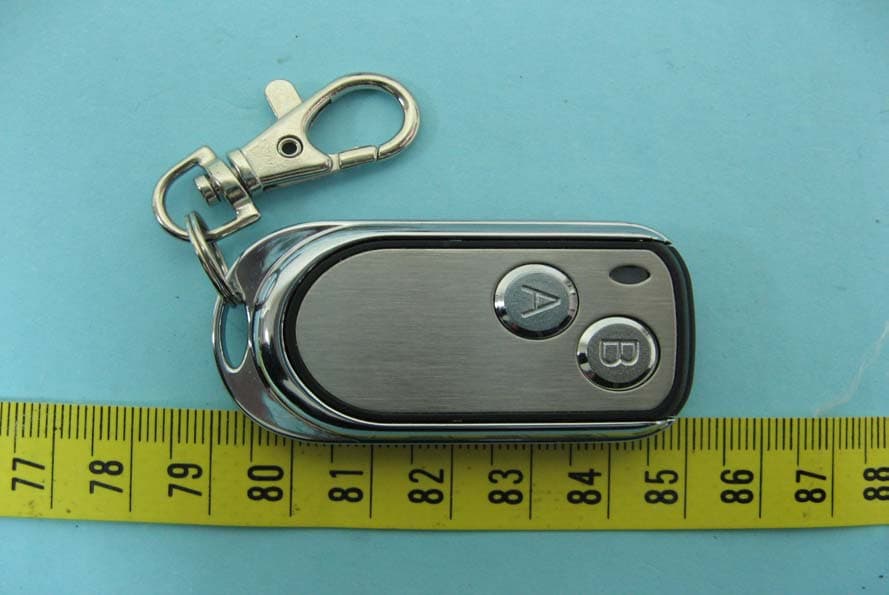

User Manual 1. Product: Transmitter 2. Model: CY009BX-315 3. Function: CY009BX-315 is a reliable remote control with self-learning chip, ASK transmitter, suitable for apply on remote control. 4. Product technical specification Power Voltage: BAT-12V/27A Power Frequency: 315MHz 5. Product Board: IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

LABEL’S LOCATION 20mm 9mm 標籤作成 “白色底黑字”! ※這項警語將顯示在說明書內 WARNING: “THIS DEVICE COMPLIES WITH PAER 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION.” FCC ID：Y3OW201

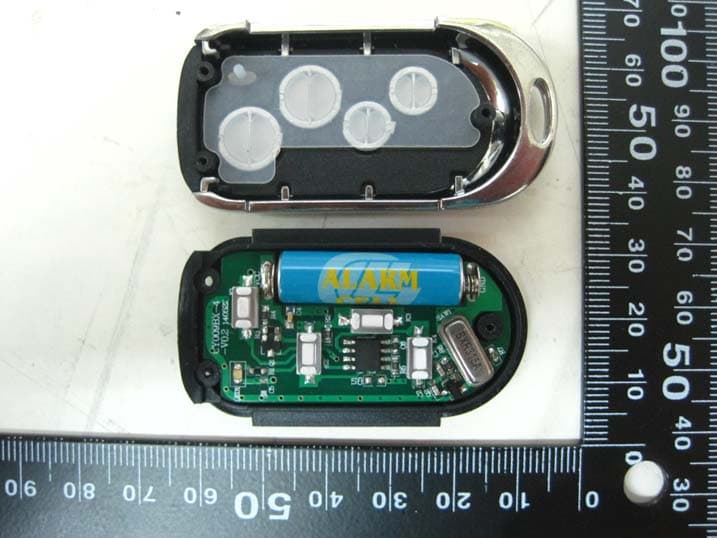

HongAn TECHNOLOGY CO., LTD. Report No.: HA140420-FID FCC Test Report Page 42 of 43 Inside View of the EUT Front View of the PCB PCB Antenna HongAn TECHNOLOGY CO., LTD. Report No.: HA140420-FID FCC Test Report Page 43 of 43 Rear View of the PCB PCB Antenna

HongAn TECHNOLOGY CO., LTD. Report No.: HA140420-FID FCC Test Report Page 1 of 43 FCC COMPLIANCE TEST REPORT Technical Statement of Conformity in accordance with 47 CFR Part 15 Subpart C The product Equipment Under Test ： Transmitter Model Number ： CY009BX-315 Product Series ： N/A Report Number ： HA140420-FID Issue Date ： 18-Jun-2014 Test Result ： Compliance is produced by YI TORNG ENTERPRISE CO., LTD. NO.73-3, LANE 854, SEC. 1 , SHIA TIEN ROAD, DAH-DUU HSIANG, TAICHUNG HSIEN, TAIWAN R.O.C HongAn TECHNOLOGY CO., LTD. NO.15-1, CWEISHUH KENG, CWEIPIN VILLAGE, LINKOU, TAIPEI COUNTY, TAIWAN, R. O. C. TEL: +886-2-26030362 FAX: +886-2-26019259 E-mail: [email protected] BSMI Registration No.: SL2-IN-E-0023, SL2-A1-E-0023, FCC Designation No.: TW1071 SL2-IS-E-0023, SL2-R1-E-0023, TAF Accreditation No.: 1163 SL2-R2-E-0023, SL2-L1-E-0023 VCCI Registration No.: R-2156, C-2329, T-219 HongAn TECHNOLOGY CO., LTD. Report No.: HA140420-FID FCC Test Report Page 2 of 43 Contents 1 General Description 6 1.1 Description of EUT 6 1.2 Test Instruments 7 1.3 Auxiliary Equipments 8 1.4 EUT SETUP 8 1.5 Identifying the Final Test Mode 8 1.6 Final Test Mode 8 1.7 Condition of Power Supply 9 1.8 EUT Configuration 9 1.9 Test Methodology 9 1.10 General Test Procedures 9 1.11 Modification 9 1.12 FCC Part 15.205 restricted bands of operations 10 1.13 Qualification of Test Facility 10 2 Power line Conducted Emission Measurement 11 2.1 Test Instruments 11 2.2 Test Arrangement and Procedure 11 2.3 Limit (§ 15.207) 11 2.4 Test Result 11 3 Radiated Emission Test 12 3.1 Test Instruments 12 3.2 Test Arrangement and Procedure 12 3.3 Limit of Field Strength of Fundamental (§ 15.231(b)) 13 3.4 Limit of Spurious Emission (§ 15.209) 14 3.5 Test Result 14 4 Conditions for intentional radiators to comply with periodic operation 33 4.1 Test Instruments 33 4.2 Test Arrangement and Procedure 33 4.3 Limit (§ 15.231(a)) 33 4.4 Test Result 34 5 Emission Bandwidth 36 5.1 Test Instruments 36 5.2 Test Arrangement and Procedure 36 5.3 Limit (§ 15.231(c)) 36 HongAn TECHNOLOGY CO., LTD. Report No.: HA140420-FID FCC Test Report Page 3 of 43 5.4 Test Result 36 6 Antenna requirement 38 6.1 Limit (§ 15.203) 38 6.2 Test Result 38 7 Photographs of the Tests 39 7.1 Radiated Disturbances Emission Test (Below 1G) 39 8 Photographs of the EUT 41 HongAn TECHNOLOGY CO., LTD. Report No.: HA140420-FID FCC Test Report Page 4 of 43 Test Result Certification Applicant ： YI TORNG ENTERPRISE CO., LTD. Address of Applicant ： NO.73-3, LANE 854, SEC. 1 ,SHIA TIEN ROAD, DAH-DUU HSIANG, TAICHUNG HSIEN, TAIWAN, R.O.C Manufacturer ： YI TORNG ENTERPRISE CO., LTD. Address of Manufacturer ： NO.73-3, LANE 854, SEC. 1, SHIA TIEN ROAD, DAH-DUU HSIANG, TAICHUNG HSIEN, TAIWAN, R.O.C Trade Name ： N/A Equipment Under Test ： Transmitter Model Number ： CY009BX-315 Product Series ： N/A FCC ID ： Y3OW201 Filing Type ： Certification Sample Received Date ： 12-JUN-2014 Test Standard ： FCC Part 15 Subpart C §15.231 Deviations from standard test methods & any other specifications : NONE Remark: 1. This report details the results of the test carried out on one sample. 2. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.203, 15.207, 15.209, 15.231. 3. This report applies to the above sample only and shall not be reproduced in part without written approval of HongAn Technology Co., Ltd. Documented by: Kay Wang/ ADM. Dept Staff 2014-07-02 Tested by: Eason Hsieh/ ENG. Dept. Staff 2014-07-02 Approved by: Date: Peter Chin / Section Manager 2014-07-02 HongAn TECHNOLOGY CO., LTD. Report No.: HA140420-FID FCC Test Report Page 5 of 43 Summary of Test Result Test Item Applicable Standard Test Result 1 Antenna Requirement FCC part 15 subpart C §203 Compliance 2 Conducted limits FCC part 15 subpart C §207 N/A 3 Radiated emission limits FCC part 15 subpart C §209 Compliance 4 Conditions of Intentional radiators to comply with periodic operation FCC part 15 subpart C §231(a) Compliance 5 Field Strength FCC part 15 subpart C §231(b) Compliance 6 Emission Bandwidth FCC part 15 subpart C §231(c) Compliance 7 Requirements for devices operating within 40.66~40.70MHz band FCC part 15 subpart C §231(d) N/A 8 Conditions for intentional radiators to comply with periodic operation FCC part 15 subpart C §231(e) N/A HongAn TECHNOLOGY CO., LTD. Report No.: HA140420-FID FCC Test Report Page 6 of 43 1 General Description 1.1 Description of EUT Equipment Under Test : Transmitter Model Number of EUT : CY009BX-315 Product Series : N/A Power Supply : DC 12V A27S Battery x 1 Frequency Range : 315 MHz Number of Channels : 1 Channel Spacing : N/A Antenna Specification : PCB Antenna, 0 dBi Gain Modulation Technique : ASK Specification : Dimensions : 58 mm (L) X 30 mm (W) X 13 mm (H) Weight : 30g Function：The EUT is a remote controller. Its transmitting frequency is 315MHz. ※For more detail specification, please refer to the User Manual. HongAn TECHNOLOGY CO., LTD. Report No.: HA140420-FID FCC Test Report Page 7 of 43 1.2 Test Instruments 1.2.1. Instruments Used for Measurement HA1 Instrument Name Manufacture Mode Model Number Serial NumberLast Cal. Date Next Cal. Date RF Amplifier AR 15S1G3 306578 11-AUG-2013 11-AUG-2014 EMI Receiver R&S ESCI 100615 03-MAR-2014 03-MAR-2015 Spectrum Analyzer R&S FSL6 100323 11-JUN-2014 11-JUN-2015 Spectrum Analyzer Advantest R3172 101202158 24-JUN-2013 24-JUN-2014 Preamplifier WIRELESS FPA-6592G 060009 09-JUL-2013 09-JUL-2014 Preamplifier HD HD17187 004 04-AUG-2012 04-AUG-2013 Bilog Antenna TESEQ CBL6111D 25769 03-MAR-2014 03-MAR-2015 Bilog Antenna Schaffner CBL6112B 2860 12-AUG-2013 12-AUG-2014 Double-Ridged Waveguide Horn EMCO 3115 9912-5992 04-MAY-2014 04-MAY-2015 Te m p . & Humidity Chamber Giant Force GTH-150-20-SP -AR MMA0907-01222-JU…

Text truncated - open the document above for the full version.

HongAn TECHNOLOGY CO., LTD. Report No.: HA140420-FID FCC Test Report Page 39 of 43 7 Photographs of the Tests 7.1 Radiated Disturbances Emission Test (Below 1G) Front View Rear View HongAn TECHNOLOGY CO., LTD. Report No.: HA140420-FID FCC Test Report Page 40 of 43 7.2 Radiated Disturbances Emission Test (Below 1G) Front View Rear View
