Y4GCU500-1

SHENZHEN COVALUE COMMUNICATIONS CO., LTD.

Two Way Radio

Click to zoom

Application Details

Equipment Class: TNF - Licensed Non-Broadcast Transmitter Held to Face
Date of Grant: Jun 06, 2013
Application Purpose: Original Equipment
Date of Application: Jun 06, 2013
Equipment Note: Two Way Radio
Frequency Range: 136.00000000 - 174.00000000
Company: SHENZHEN COVALUE COMMUNICATIONS CO., LTD.
Country: China

Documents & Files

Select a file to view

Users Manual

Block Diagram

Cover Letter(s)

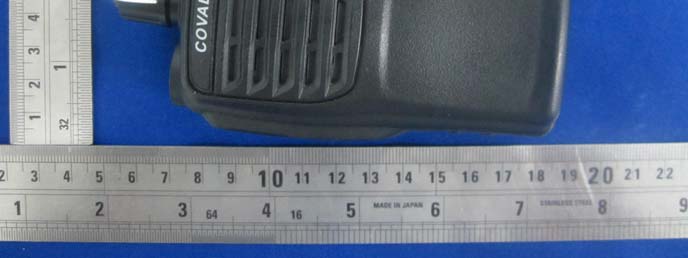

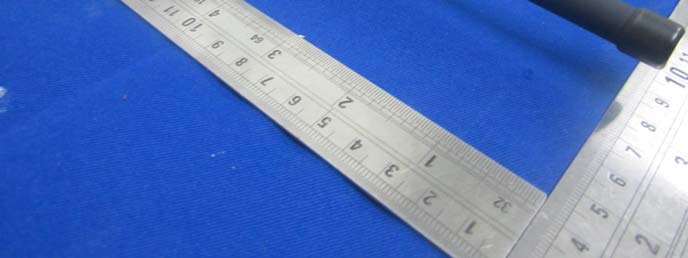

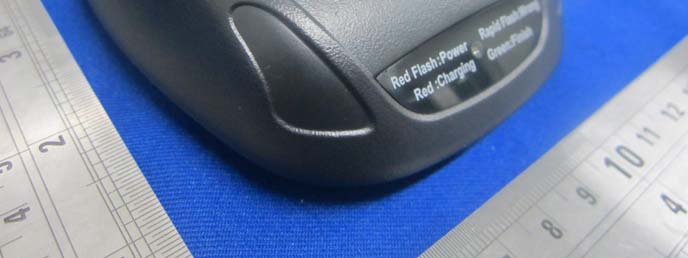

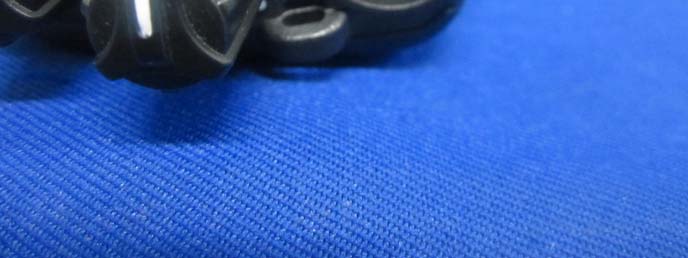

External Photos

ID Label/Location Info

Internal Photos

Operational Description

Parts List/Tune Up Info

RF Exposure Info

Schematics

Test Report

Test Setup Photos

Contact Information

Applicant

Chengtao Shu(Engineer)

[email protected]+86-0755-86345789Fax: +86-0755-86345790

Test Firm

Bay Area Compliance Laboratories Corp. (Dongguan)John Chan

[email protected]86-769-86858888

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	90	136 MHz - 174 MHz	5.117 W	10K4F3E	0.5000000000 ppm

Grant Notes

Certification is approved pursuant to FCC Order 13-431. Power output listed is conducted. This device must be restricted to work-related operations only in an Occupational/Controlled RF exposure environment and must operate with a duty factor not exceeding 50%. This transmitter may operate with the antenna(s) documented in this filing in Push-to-Talk and body-worn configurations. RF exposure compliance is limited to the specific belt-clip and accessory configurations as documented in this filing and the separation distance between user and the device or its antenna shall be at least 2.5 cm. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration to comply with Occupational/Controlled Exposure limit and requirements. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational Exposure Requirements. The highest reported SAR values for Face held and Body-worn accessory are 1.30 W/Kg and 2.89 W/Kg respectively when operating at 50% duty cycle.
