Y6FELE19066-key remote controller

USER MANUAL Tips of using the Remote Controller: * Line of sight from the Remote Switch to the Receiver is not required. The control signal can pass through walls and ceilings. * As with all RF transmitter devices, electrical fields, metal doors, and motor devices can decrease the strength of the transmitting control signal. Reorient the Remote Controller may increase the control range. * It is not guaranteed that every control signal sent out by the Remote Controller will be received by the paired Receiver. Check to make sure of the Receiver has responded after your press on the Remote Controller. * If the LED indicator of the Remote Controller dimmed, replace the battery according to the polarity sign on the battery apartment. One new CR2032 lithium battery is needed. 6-key Remote Controller This is a remote controller that can generate radio wave carrying control signal. After paired with a suitable Receiver, the remote controller can control the Receiver by pressing on the remote. Each button of the remote contains one unique ID. The paired Receiver is capable to identify the ID and then take action accordingly. SAFE ON SAFE OFF 1HR ALL 3HR ALL 1HR CYCLE 3HR CYCLE Specifications: Product: 6-key Remote Controller Model No.: ELE1906 Transmission Media: 433.92MHz radio frequency Power Supply: 1 x CR2032 3V battery WEEE Directive & Product Disposal At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. Designed and Manufactured by: Sino Wealthy (HK) Limited Room 1801, Great Eagle Centre, No.23, Harbour Road,Wanchai, Hong Kong [email protected] Manufactured under ISO9001 quality management system Made in Shenzhen,China This Remote Controller conforms with Part 15 of FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference; 2. This device must accept any interference received, including interference may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the device. NOTE: This device have ben tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential use. This device generates, uses and can radiate radio frequency energy and, if not used in accordance with the instructions, may cause harmful interference to radio communications.

Working Diagram of 6-key Remote Controller ELE1906 battery power supply key input generate ASK on/off code for each key tranmission network including PCB antenna MCU: Tranmission IC: generate 433.92MHz base wave 433.92MHz saw resonator

PC Locs Pty Ltd ______________________________________________________ SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 PC Locs Pty Ltd ______________________________________________________ SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 (December 30, 2010) To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, PC Locs Pty Ltd hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description, model name) FCC ID: Y6FELE1906 Product name: 6-key remote controller Model: ELE1906 We affirm that between SIEMIC and PC Locs Pty Ltd , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature David Shawcross / Innovations Manager Title: Innovations Manager Telephone: +61-1300 725 627 Email: [email protected] Date: December 30, 2010

Label for ELE1906 6-key Remote Controller Model No.: ELE1906 Transmission media: Radio frequency 433.92MHz Power Supply: One CR2032 3.0V lithium battery ID:Y6FELE1906 25 mm 19 mm

Label Location

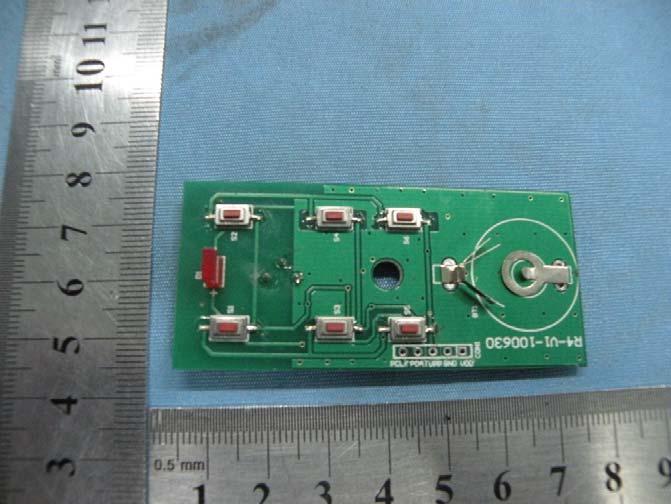

Top View Bottom View ANTENNA

Shenzhen Certification Technologh Service Co., Ltd 3F, Bldg27,Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, ShenZhen, Guang dong, P.R. China. FCCID: Y6FELE1906 Page 1 of 32 TEST REPORT FCC ID: Y6FELE1906 Applicant : PC Locs Pty Ltd Address : 187 Mulgul Road, Malaga Western Australia 6090, Australia Equipment under Test (EUT): Name : 6-key remote controller Model : ELE1906 Standards : FCC PART 15, SUBPART C : 2010 (Section 15.231) Report No. : STE101224014 Date of Test : December 24-28, 2010 Date of Issue : December 30, 2010 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.:STE101224014 FCCID: Y6FELE1906 Page 2 of 32 TABLE OF CONTENT Description Page 1 General Information------------------------------------------------------------------------------------- 3 1.1 Description of Device (EUT)---------------------------------------------------------------------3 1.2 Description of Test Facility -----------------------------------------------------------------------4 2 EMC Equipment List --------------------------------------------------------------------------------- 4 3 Test Procedure ------------------------------------------------------------------------------------------- 5 4 Summary of Measurement ------------------------------------------------------------------------- 6 Occupied bandwidth -------------------------------------------------------------------------------------- 6 5 Radiation Emission----------------------------------------------------------------------------------- 7 5.1 Duty cycle------------------------------------------------------------------------------------------7 5.2 Radiation Emission Limits(15.209&231)------------------------------------------------- 14 5.3 Test Setup--------------------------------------------------------------------------------------- 14 5.4 Test Procedure--------------------------------------------------------------------------------- 16 5.5 Test Equipment Setting For emission test.est Result--------------------------------- 17 5.6 Test Condition---------------------------------------------------------------------------------- 17 5.7 Test Result-------------------------------------------------------------------------------------- 17 6 Occupied bandwidth -------------------------------------------------------------------------------- 21 6.1 Test limit------------------------------------------------------------------------------------------ 21 6.2 Method of measurement--------------------------------------------------------------------- 21 6.3 Test Setup--------------------------------------------------------------------------------------- 21 6.4 Test Results------------------------------------------------------------------------------------- 21 7 Transmission time ----------------------------------------------------------------------------------- 23 7.1 Test limit------------------------------------------------------------------------------------------ 23 7.2 Method of measurement--------------------------------------------------------------------- 23 7.3 Test Setup--------------------------------------------------------------------------------------- 23 7.4 Test Results------------------------------------------------------------------------------------- 23 8 Band Edge Check------------------------------------------------------------------------------------ 25 8.1 Test limit------------------------------------------------------------------------------------------ 25 Please refer section15.231 and section 15.205.----------------------------------------------- 25 8.2 Test Procedure--------------------------------------------------------------------------------- 25 8.3 Test Setup--------------------------------------------------------------------------------------- 25 8.4 Test Result-------------------------------------------------------------------------------------- 25 9 Antenna Requirement ------------------------------------------------------------------------------ 26 9.1 Standard Requirement----------------------------------------------------------------------- 26 9.2 Antenna Connected Construction---------------------------------------------------------- 26 9.3 Result--------------------------------------------------------------------------------------------- 26 10 Photographs of Test Setup ----------------------------------------------------------------------- 27 11 Photographs of EUT--------------------------------------------------------------------------------- 29 Report No.:STE101224014 FCCID: Y6FELE1906 Page 3 of 32 1 General Information 1.1 Description of Device (EUT) Trade Name : lockncharge EUT : 6-key remote controller Model No. : ELE1906 Type of Antenna : Integral Antenna Operation Frequency : 433.92 MHZ Channel number : 1 Modulation type : ASK Power Supply : DC 3V Supply by battery Rated PF output Power 76.51 dBuV (PK detector) Applicant : PC Locs Pty Ltd Address : 187 Mulgul Road, Malaga Western Australia 6090, Australia Manufacturer : Sino Wealthy (Hong Kong) Limited Address : Room 1801, Great Eagle Center, No.23, Harbour Road, Wanchai, Hong Kong Report No.:STE101224014 FCCID: Y6FELE1906 Page 4 of 32 1.2 Description of Test Facility Shenzhen Certification Technology Servic…
