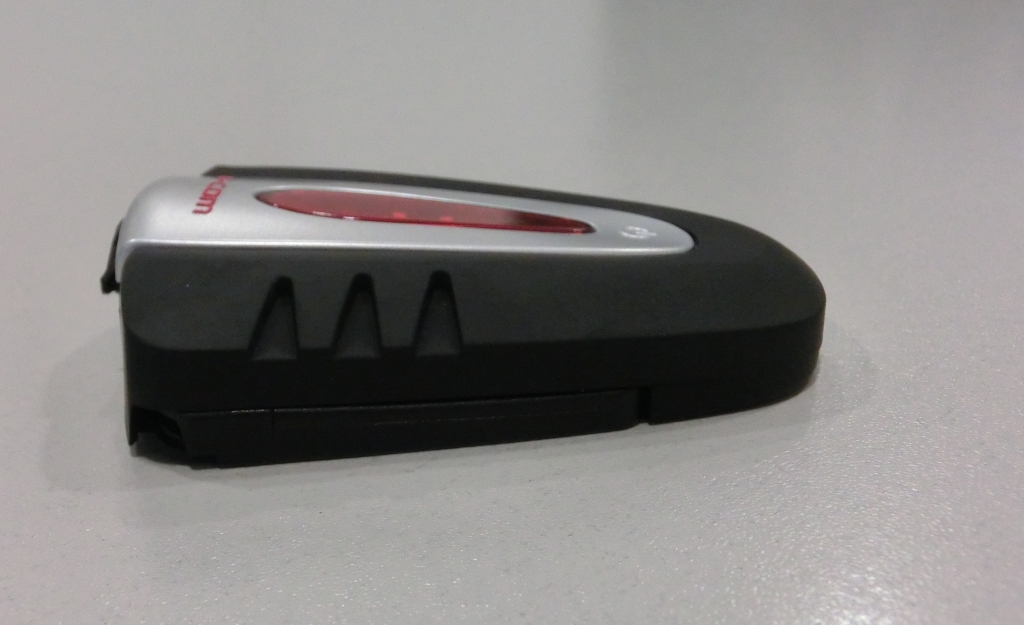

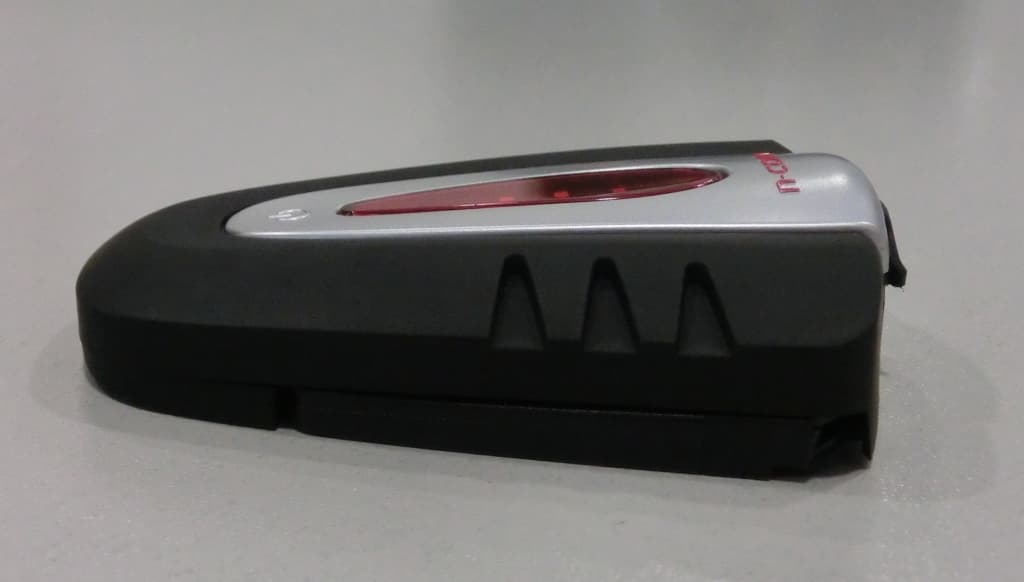

Y6MNCOM9Bluetooth hands-free kit

Firmware Version: 5.0x EN USER INSTRUCTIONS AND SAFETY Congratulations on your purchase of an N-Com product. N-Com M5 was made using the most advanced technologies and the best materials. Long-running tests and thorough system development have allowed the highest audio quality to be achieved. For additional information about M5 visit the website www.n-com.it REFERENCE STANDARDS The products of the N-Com line are in compliance with standards as per the table below: M5 The Bluetooth system complies with the main safety requirements and other applicable provisions of Directive 99/5/CE, Directive 2002/95/CE, Directive 2011/65/CE, Directive 2002/96/CE Battery charger Directive 2006/95, 2004/108, 2002/95/CE, 2011/65/CE, 2002/96/CE, 2009/125/CE Battery Directive 2006/66 The Declarations of Compliance can be downloaded from the website www.n-com.it (Download section). FccID: XXXXXX N21550 Bluetooth is a registered trademark property of Bluetooth SIG, Inc. M5 3 Sommario 1. WARNINGS AND SAFETY.................................................................................................4 1.1.Road safety................................................................................................................................................................4 1.2.Switching on the system in safe environments.........................................................................................4 1.3.Interferences..............................................................................................................................................................4 1.4.Appropriate use.......................................................................................................................................................4 1.5.Qualified personnel................................................................................................................................................5 1.6.Accessories and batteries....................................................................................................................................5 1.7. Disposal.....................................................................................................................................................................6 2. INSTALLATION....................................................................................................................6 2.1.Positioning the speakers and the microphone..........................................................................................6 2.2.E-box installation.....................................................................................................................................................6 2.3.Positioning the wireless keypad.......................................................................................................................7 3. BASIC FUNCTIONS.............................................................................................................7 3.1.N-Com Wizard..........................................................................................................................................................7 3.2.N-Com App................................................................................................................................................................8 3.3.Pairing up Bluetooth devices.............................................................................................................................8 4. MOBILE PHONE..................................................................................................................8 4.1.Double bluetooth device management........................................................................................................9 5. Music via Bluetooth – A2DP Bluetooth Protocol.........................................................9 6. Music via caBLE...................................................................................................................9 7. BIKE SATELLITE NAVIGATOR............................................................................................9 8. FM RADIO..........................................................................................................................10 9. RIDER-PasseNGER INTERCOM......................................................................................10 9.1.Rider-Passenger intercom pair up.................................................................................................................10 9.2.Rider-Passenger intercom function..............................................................................................................10 10. BIKE TO BIKE INTERCOM................................................................................................10 10.1.Bike to Bike intercom pair up........................................................................................................................11 10.2.Bike to Bike intercom function.....................................................................................................................11 10.3.Helmet connection/disconnection.............................................................................................................11 11. Setting................................................................................................................................12 12. Auto On / Off....................................................................................................................12 13. BATTERY.............................................................................................................................12 13.1.Battery discharged signal................................................................................................................................12 13.2.Recharging the system..............................................................................................................…

Text truncated - open the document above for the full version.

Firmware Version: 1.00 EN USER INSTRUCTIONS AND SAFETY Congratulations on your purchase of an N-Com product. N-Com M5 was made using the most advanced technologies and the best materials. Long-running tests and thorough system development have allowed the highest audio quality to be achieved. For additional information about M5, and to download high-definition instructions as well as the latest Firmware version, visit the website www.n-com.it REFERENCE STANDARDS The products of the N-Com line are in compliance with standards as per the table below: M5 The Bluetooth system complies with the main safety requirements and other applicable provisions of Directive 99/5/CE, Directive 2009/65/EC, Directive 2011/65/CE, Directive 2012/19/EU Battery charger Directive 2006/95, 2004/108, 2009/65/EC, 2011/65/CE, 2012/19/EU, 2009/125/CE Battery Directive 2006/66/CE The Declarations of Compliance can be downloaded from the website www.n- com.it (Download section). M5 system: FccID: Y6MNCOM9 N21550 Bluetooth is a registered trademark property of Bluetooth SIG, Inc. M5 Wireless Keypad: FccID: Y6MNCOM11 N21550 Bluetooth is a registered trademark property of Bluetooth SIG, Inc. FOR USA AND CANADA MARKET ONLY: SPECIAL WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,, including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. M5 system: FccID: Y6MNCOM9 21550 Bluetooth is a registered trademark property of Bluetooth SIG, Inc. M5 Wireless Keypad: FccID: Y6MNCOM11 21550 Bluetooth is a registered trademark property of Bluetooth SIG, Inc. Version micrologiciel : 1.00 FR SÉCURITÉ ET MODE D'EMPLOI Félicitations ! Vous venez d'acheter un produit Nolan N-Com. Le N-Com M5 a été réalisé en faisant recours aux toutes dernières technologies et en utilisant les meilleurs matériaux. Les nombreux tests effectués et la mise au point du système dans les moindres détails ont permis d'obtenir une qualité audio sans égal. Pour plus d'informations concernant le M5, visitez le site www.n-com.it et téléchargez le mode d'emploi en haute définition ainsi que la dernière version de micrologiciel disponible. NORMES DE RÉFÉRENCE Les produits de la ligne N-Com sont conformes aux normes comme cela est indiqué ci-après : M5 Le système Bluetooth est conforme aux prescriptions essentielles de sécurité et aux autres dispositions de la Directive 99/5/CE, Directive 2009/65/EC, Directive 2011/65/CE, Directive 2012/19/EU pertinentes en la matière. Chargeur de batterie Directive 2006/95, Directive 2004/108, Directive 2009/65/EC, 2011/65/CE, Directive 2012/19/EU, Directive 2009/125/CE Batterie Directive 2006/66/CE Les déclarations de Conformité peuvent être téléchargées sur le site www.n-com.it, rubrique Téléchargement. Système M5 : FccID: Y6MNCOM9 N21550 Bluetooth est une marque déposée de Bluetooth SIG, Inc. Pavé sans fil M5 : FccID: Y6MNCOM11 N21550 Bluetooth est une marque déposée de Bluetooth SIG, Inc. POUR LE MARCHE US et CANADIEN UNIQUEMENT: MISE EN GARDE SPECIALE Cet appareil est conforme à la section 15 de la réglementation FCC. Son fonctionnement est soumis aux deux conditions suivantes : (1) Cet appareil ne doit pas créer d’interférences nuisibles, et (2) cet appareil doit accepter les interférences reçues, y compris les interférences pouvant provoquer des dysfonctionnements de l’appareil. Les changements ou modifications non expressément approuvés par les autorités compétentes en matière de conformité peuvent priver l'utilisateur du droit d'utiliser l'équipement en question. REMARQUE : Le fabriquant n’est pas responsable de l’interférence radio ou TV causée par les modifications apportées à cet équipement sans autorisation préalable. De telles modifications pourraient annuler l’autorisation de l’utilisateur de faire fonctionner cet équipement. A l’issue des tests dont il a fait l’objet, ce produit est conforme à la section 15 de la réglementation FCC applicable aux appareils numériques de classe B. Ces limites sont conçues pour fournir une protection su…

Text truncated - open the document above for the full version.

M5_antenna_information ---------- Antenna M5 ---------- ANTENNA GAIN: 0 dB Page 1

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Nolangroup s.p.a. Address : via Terzi di S.Agata 2 City: Brembate di sopra, Italy Country: 24030 To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: Y6MNCOM9 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Release of this information prior the availability of the product could cause substantial competitive harm and provide unjustified benefits to competitors. Planned Release Date STC: 180 Days from filing (notes 2, 3, 4, 5) Date: 03/13/2015 Name and signature of applicant: Imad Hjije Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

N-Com M5 Label - Labels on the product Located on the external surface of the plastic Box containing the Bluetooth PCB. Labels on the packaging Located on the external pack of the Bluetooth device 23 mm Located on the external surface of the plastic Box containing the Bluetooth PCB. Located on the external pack of the Bluetooth device (including M5 and WRC) 23 mm Located on the external surface of the plastic Box containing the Bluetooth PCB. (including M5 and WRC) Labels on the instruction leaflet See page no.3 of instructions leaflet (we will insert both FCC ID for N-Com M5 and N-Com WRC)

Redox S.r.l. SEMILAV. SMD SCHEDA NCOM EVO (MOD. M5) NOLAN V.1.0 Description Qty Note Reference Cod. Redox 10nF 0402 X7R ±10% 25 V COND. CER. SMD 1 C60 CC10n25S041 10pF 0402 C0G ±5% 50V COND. CER. SMD 1 C34 CC10p50S041 10uF 0603 X5R ±20% 6,3V COND. CER. SMD 4 C9,C10,C14,C74 CC10u6V3S061 15pF 0402 C0G ±5% 50V COND. CER. SMD 1 C54 CC15p50S041 1nF 0402 C0G ±5% 50V COND. CER. SMD 8 C3,C6,C31,C35,C36,C37,C38,C77 CC1n050S041 1uF 0402 X5R ±10% 6,3V COND. CER. SMD 18 C2,C4,C5,C15,C16,C21,C22,C24,C25,C26,C27,C32,C58,C59,C63,C65,C68,C70 CC1u06V3S041 22pF 0402 C0G ±5% 50V COND. CER. SMD 7 C33,C62,C64,C66,C67,C69,C71 CC22p50S041 2,2uF 0402 X5R ±20% 6,3V COND. CER. SMD 9 C39,C40,C41,C42,C44,C45,C47,C61,C83 CC2u26V3S041 47nF 0402 X7R ±10% 10V COND. CER. SMD 1 C13 CC47n10S041 4,7uF 0603 X5R ±10% 6,3V COND. CER. SMD 1 C82 CC4u76V3S061 100pF 0402 C0G 5% 50V COND. CER. SMD 3 C12,C55,C87 CCn1050S041 100nF 0402 X7R ±10% 16V COND. CER. SMD 17 C1,C11,C23,C28,C29,C30,C43,C48,C49,C51,C52,C53,C72,C73,C75,C76,C84 CCu1016S041 470nF 0402 X5R ±10% 10V COND. CER. SMD 2 C46,C50 CCu4710S041 BAV70W SOT323 DIODO SWITCHING DOPPIO SMD 70V 200mA 1 D3 DFBAV70WS1 BAT60A SOD323 DIODO SCHOTTKY SMD 10V 3A 1,35W 1 D4 DHBAT60AS1 BZX585-B5V1 SC79 DIODO ZENER SMD 5,1V 0,3W 1 D2 DZBZX585B5S1 BZX84C6V2LT1 SOT23 DIODO ZENER SMD 6,2 V 0,3W 1 D1 DZBZX84C6VS1 LIS331DLH LGA-16 3-AXIS ACCELEROMETER SMD 1 U9 IALIS331DLS1 TPA6020A2 20-VQFN-EP AMPL. AUDIO STEREO SMD CL. AB 1 U2 IATPA6020AS1 74HC4066BQ DHVQFN14 QUAD BILATERAL SWITCH SMD 2 U1,U3 ID74HC4066S2 NC7WZU04P6X SC70-6 DUAL UNBUFFERED INVERTER SMD 1 U4 IDNC7WZU04S1 CSR8670C-IBBH-R VFBGA BT RADIO IC+AUDIO SYSTEM SMD 1 U6 IRCSR8670S1 TEA5991UK WLCSP FM STEREO RADIO IC CON RDS SMD 1 U5 IRTEA5991S2 MFI337S3959 USON8 iPOD AUTHENT. COPROCES. 2.0C SMD 1 U8 ISMFI337S3S1 LP2985IM5-3.3 SOT23-5 REG LDO SMD LOW NOISE V.NOTE 1 U7 IWLP2985IMS2 CONN. 14 PIN 0.8mm PITCH 90° WAFER-SMT MAS. SMD 3 J2,J4,J6 JC0V80M14S91 CONN.1x2 MAS. 90° SMD 1,25mm MOLEX 53261-0271 2 J3,J7 JC1V25M02S91 CONN. MINI USB TYPE B 5VIE FEM 90° SMD 7.7x3.9x9.2 1 J1 JCUSBBF05S92 CONN. RF RECEPTACLE 0° SMD I-PEX MHF SERIES 1 J5 JRMHFM02S01 180nH 0603 ±5% INDUTT SMD 140mA Q25 LQW18ANR18J00D 1 L1 LAu18S061 4 x 600 OHM A 100 MHZ 1206 SMD ARRAY BEAD 2 L2,L3 LS600RS121 4.7uH ±20% 800mA 1008 MURATA LQM2HPN4R7MGCL 1 L5 LX4U7S105 BC847BPN SOT363 DUAL TRANS. NPN + PNP SMD 45V 0,1A 1 U10 QBBC847BPCS1 BCX51 SOT89 TRANSISTOR PNP SMD 45V 1A 1 Q1 QBBCX51PS1 DMG1012T SOT523 20V 630mA ENH. N MOSFET 1 Q2 QMDMG1012NS1 100 OHM 4x0402 DIL 5% RES SMD 63mW 50V SER. CRA04S 1 RR3 RD100RS041 10K 4x0402 DIL 5% RES. SMD 63mW 50V SERIE CRA04S 2 RR2,RR4 RD10K0S041 3,9K 4x0603 3,2x1,6mm DIL 5% RES. SMD 62,5mW 1 RR1 RD3K90S061 0 OHM 0402 RES. SMD 3 R29,R30,R39 RE0R00S041 100K 0402 5% RES. SMD 1 R26 RE100KS041 100 OHM 0402 5% RES. SMD 4 R12,R14,R17,R28 RE100RS041 10K 0402 5% RES. SMD 6 R2,R3,R5,R8,R22,R34 RE10K0S041 120 OHM 0402 5% RES. SMD 1 R21 RE120RS041 1K 0402 5% RES. SMD 3 R4,R7,R36 RE1K00S041 22M 0402 5% RES. SMD 1 R19 RE22M0S041 22 OHM 0402 5% RES. SMD 1 R18 RE22R0S041 2,2K 0402 5% RES. SMD 2 R9,R11 RE2K20S041 330K 0402 5% RES. SMD 1 R20 RE330KS041 33K 0402 5% RES. SMD 2 R1,R6 RE33K0S041 Page 1 of 2 Redox S.r.l. 3,3 OHM 1210 5% RES. SMD 1 R33 RE3R30S141 470K 0402 5% RES. SMD 2 R32,R38 RE470KS041 4,7K 0402 5% RES. SMD 1 R31 RE4K70S041 0,22 OHM 0603 5% 1/10W RES. SMD 1 R40 RER220S061 0,39 OHM 1210 1% RES. SMD 1 R41 RER390S141 SWITCH PULS MONOST 4.5x4.5mm SPST-NO 50mA 12V SMD 1 SW1 SP2P2S14 LFB182G45SG9A246 FILTRO PASSA-BANDA 2,45 GHz SMD 1 BP1 XF248S2 QUARZO 26MHz GSX-333/X 3.2x2.5x0.7mm SMD 10pF 1 Y2 XQ266S2 CM7V QUARZO 32,768KHz 3.3x1.6mm SMD ±20ppm 12,5pF 1 Y1 XQ323S4 C.S. SCHEDA NCOM EVO NOLAN VER. 1.0 Q. 3x4 1 PCS358V1P0 Page 2 of 2

ANNEX for SAR Exemption Model: M5 FCC ID: Y6MNCOM9 IC: 9455A- NCOM9 The N-COM B5 device has a maximum output power of 9.75 dBm (9.4 mW) and is therefore exempted from SAR as per KDB 447498 D01 General RF Exposure Guidance v05r02. Yous sincerely, Imad Hjije

Final Report on N-Com M5 FCC ID Y6MNCOM9 IC: 9455A-NCOM9 MDE_REDOX_1401_FCCa acc. Title 47 CFR chapter I part 15 subpart C Report Reference: February 17, 2015Date: Test Laboratory: 7 layers AG Borsigstrasse 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7 layers AG Aufsichtsratsvorsitzender Registergericht registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Peter Mertel USt-IdNr VAT No.: Phone: +49 (0) 2102 749 0 Vorstand Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H. Ansorge TAX No. 147/5869/0385 www.7Layers.com A Bureau Veritas Group Company Reference: MDE_REDOX_1401_FCCa acc. Title 47 CFR chapter I part 15 subpart C 2.2 Detailed Description of OUT Samples Sample : aa01 OUT IdentifierN-Com M5 FCC ID Y6MNCOM9 IC: 9455A-NCOM9 Sample DescriptionStandard sample HW Status1.0 SW Status1.0 Low VoltageLow Temp.3.3 V-20 °C High Temp.High Voltage4.2 V60 °C Normal Temp.Nominal Voltage3.7 V23 °C Sample : ab01 OUT IdentifierN-Com M5 FCC ID Y6MNCOM9 IC: 9455A-NCOM9 Sample DescriptionStandard sample HW Status1.0 SW Status1.0 Low VoltageLow Temp.3.3 V-20 °C High Temp.High Voltage4.2 V60 °C Normal Temp.Nominal Voltage3.7 V23 °C Sample : ac01 OUT IdentifierN-Com M5 FCC ID Y6MNCOM9 IC: 9455A-NCOM9 Sample DescriptionC-duplicated 2014-12-09 10:58:55 HW Status1.0 SW Status1.0 Low VoltageLow Temp.3.3 V-20 °C High Temp.High Voltage4.2 V60 °C Normal Temp.Nominal Voltage3.7 V23 °C Page 4 of 96 Reference: MDE_REDOX_1401_FCCa acc. Title 47 CFR chapter I part 15 subpart C 2.3 OUT Features Features for OUT: N-Com M5 FCC ID Y6MNCOM9 IC: 9455A-NCOM9 Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 ACThe OUT is powered by or connected to AC Mains BTEUT supports Bluetooth data rate of 1 Mbps with GFSK modulation in the band 2400 MHz - 2483.5 MHz EDR2EUT supports Bluetooth using data rate of 2 Mbps with PI/4 DQPSK modulation in the band 2400 MHz - 2483.5 MHz EDR3EUT supports Bluetooth using data rate of 3 Mbps with 8DPSK modulation in the band 2400 MHz - 2483.5 MHz IantIntegral Antenna: permanent fixed antenna, which may be built-in, designed as an indispensable part of the equipment TantCtemporary antenna connector, which may be only built-in for testing, designed as an example part of the equipment 2.4 Setups used for Testing For each setup a relation is given to determine if and which samples and auxiliary equipment is used. The left side list all OUT samples and the right side lists all auxiliary equipment for the given setup. Sample No.Sample DescriptionAE No.AE Description Setup No. List of OUT samplesList of auxiliary equipment AA01_Setup aa01Standard sampleSample: AB01 ab01Standard sampleSample: AC01_Setup ac01C-duplicated 2014-12-09 10:58:55 Sample: Page 5 of 96 Reference: MDE_REDOX_1401_FCCa acc. Title 47 CFR chapter I part 15 subpart C 3Results 3.1 General Available at the test laboratory. The results of the inspection are described on the following pages, where 'Conformity' or 'Passed' means that the certification criteria were verified and that the tested device is conform to the applied standard. In cases where 'Declaration' is printed, the required documents are available in the manufacturers product documentation. In cases where 'not applicable' is printed, the test case requirements are not relevant to the specific equipment implementation. Documentation of tested devices: Interpretation of the test results: 1. All tests are performed under environmental conditions within the requirements of the specifications. Environmental conditions are available at the laboratory. 2. The device is a hands-free kit containing a BT and BTLE Transceiver operating in the 2.4 GHz ISM band. 3. This report focuses only on the BT part using Frequency Hopping Spread Spectrum (FHSS) Modulation Note: 3.2 List of the Applicable Body (Body for Scope: FCC_v2) DesignationDescription Subpart C - Intentional Radiators; 15.247 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. FCC47CFRChIPART15c247RADIO FREQUENCY DEVICES 3.3 List of Test Specification Test Specification:FCC part 2 and 15 Version10-1-13 Edition Title:PART 2 - GENERAL RULES AND REGULATIONS PART 15 - RADIO FREQUENCY DEVICES Page 6 of 96 Reference: MDE_REDOX_1401_FCCa acc. Title 47 CFR chapter I part 15 subpart C 3.4 Summary Test Case Identifier / Name SetupDate of TestResultTest (condition)Ref. Lab 15c.1 Conducted emissions (AC power line) §15.207 15c.1; Mode = transmit2014/11/13AB01Lab 1Passed 15c.2 Spurious radiated emissions §15.247 (d), §15.35 (b), §15.209 15c.2; Frequency = 2402, Mode = BT transmit using 1 Mbps with GFSK modulation, Channel = low 2014/12/13AA01_SetupLab 2Passed 15c.2; Frequency = 2402, Mode = BT transmit using 2 Mbps with PI/4 DQPSK modulation 2014/12/13AA01_SetupLab 2Passed footnote: 1 15c.2; Frequency = 2441, Mode = BT transmit using 1 Mbps with GFSK modulation, Channel = mid 2014/12/13AA01_SetupLab 2Passed 15c.2; Frequency = 2441, Mode = BT transmit using 2 Mbps with PI/4 DQPSK modulation 2014/12/13AA01_SetupLab 2Passed footnote: 1 15c.2; Frequency = 2480, Mode = BT transmit using 1 Mbps with GFSK modulation, Channel = highest 2014/12/13AA01_SetupLab 2Passed 15c.2; Frequency = 2480, Mode = BT transmit using 2 Mbps with PI/4 DQPSK modulation 2014/12/13AA01_SetupLab 2Passed footnote: 1 15c.3 Occupied bandwidth §15.247 (a) (1) 15c.3; Frequency = 2402, Mode = BT transmit using 1 Mbps with GFSK modulation 2014/12/09AC01_SetupLab 3Passed 15c.3; Frequency = 2402, Mode = BT transmit using 2 Mbps with PI/4 DQPSK modulation 2014/12/09AC01_SetupLab 3Passed 15c.3; Frequency = 2402, Mode = BT transmit using 3 Mbps with 8DPSK modulation 2014/12/09AC01_SetupLab 3Passed 15c.3; Frequency = 2441, Mode = BT transmit using 1 Mbps with GFSK modulation 2014/12/09AC01_SetupLab 3Passe…

Text truncated - open the document above for the full version.

Test Laboratory: 7Layers AG Borsigstrasse 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7 layers AG Aufsichtsratsvorsitzender h Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Peter Mertel USt-IdNr h VAT No.: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H. Ansorge TAX No. 147/5869/0385 www.7Layers.com A Bureau Veritas Group Company Photo Report on Test Setups Report Reference: MDE_REDOX_1401_FCC_Photo_Setups Test report Reference: MDE_REDOX_1401_FCC_Photo_Setups Page 2 of 7 Photo 1: Test setup for radiated measurements (Enclosure, below 30 MHz, intentional radiator §15) Test report Reference: MDE_REDOX_1401_FCC_Photo_Setups Page 3 of 7 Photo 2: Test setup for radiated measurements (Enclosure, semi-anechoic chamber, 30 MHz to 1 GHz, intentional radiator §15) Test report Reference: MDE_REDOX_1401_FCC_Photo_Setups Page 4 of 7 Photo 3: Test setup for radiated measurements (Enclosure, fully-anechoic chamber, 1-18 (15) GHz intentional radiator §15 Test report Reference: MDE_REDOX_1401_FCC_Photo_Setups Page 5 of 7 Photo 4: Test setup for radiated measurements (Enclosure, fully-anechoic chamber, 18-25 GHz, intentional radiator § 15.247) Test report Reference: MDE_REDOX_1401_FCC_Photo_Setups Page 6 of 7 Photo 5: Test setup for conducted measurements (computer peripheral setup, EUT supplied by USB-cable from computer, charging mode, unintentional radiator §15) Test report Reference: MDE_REDOX_1401_FCC_Photo_Setups Page 7 of 7 Photo 6: Test setup for radiated measurements (computer peripheral setup, EUT supplied by external DC power to enable USB data transfer to computer, unintentional radiator §15)
