Y6YWBRC01Wheeebo Remote controller

Boost button LED Indicator REMOTE USER GUIDE WB-RC01 Throttle Snap latch Take out the screw Note : Battery size:3AAA First time pairing. How to control the Wheeebo ? 1. Once you fall down from the Wheeebo, release the throttle instantly ! 2. When waterproof case get damaged, stop to use the remote ! Keep pressing the throttle to ride the Wheeebo How to change battery ? After standby 10 minutes, the remote will change to sleep mode, press Boost button to wake it up. 1.Turn ON the Wheeebo’s power. 2.Press Boost button to wake up the remote. 3.When the remote’s LED slow flashes is stop, it means they are paired Battery level check 1.Press BOOST button to wake up the remote. 2.Press BOOST button twice to check battery voltage: LED flashes once = battery low ,flashes twice = battery half0, flashes thrice = battery full Waterproof case Using time Battery size Weight *without battery Standby time Water-proof *must in the waterproof case 15 hr AAA 116 g 17 hr IPX 7 SPECS Release the throttle Keep pressing throttle then press and hold Boost button to make the speed faster WARNING FCC Statement This device complies with Part 15 of the FCC Rules. Opera�on is subject to the following two condi�ons: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera�on. FCC Cau�on! Any changes or modifica�ons not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec�on against harmful interference in a residen�al installa�on. cause harmful interference to radio communica�ons. However, there is no guarantee that interference will not occur in a par�cular installa�on. If this equipment does cause harmful interference to radio or television recep�on, which can be determined by turning the equipment off and on, The user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separa�on between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. “RF Exposure Warning! This device contains transmitters and receivers which emit Radio Frequency (RF) energy. The device is designed to comply with the limits for exposure to RF energy set by the Federal Communications Commission (FCC) of the United States,Industry Canada (IC) of Canada, and the regulating entities of other countries.” `

DATE: 2019/04/18 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Y6YWBRC01 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature Name/Title: Ryuji Ninomiya / Manager Company Name: Yanmar Co., Ltd. Address: 1-32, Chayamachi, Kita-Ku, Osaka-shi Osaka Japan 530-8311 TEL: +81-6-6376-6211 FAX: +81-6-6292-5352 Email: [email protected]

DATE: 2019/04/18 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Y6YWBRC01 Request for Short-Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.:  Test Setup Photos  External Photos  Internal Photos  User Manual These documents contain detailed system and equipment description and related information about the product which （Yanmar Co., Ltd.） considers to be proprietary, confidential, and a custom design and, otherwise would not release to the general public. Since this design is a basis from which future technological products will evolve, （Yanmar Co., Ltd.） considers this information to be of benefit to its competitors, and that the disclosure of information in these documents would give competitors an unfair advantage in the market. This request is being made retroactively due to an over site on our part. We understand that the information has been publicly available 180 days after date of grant. Signature Name/Title: Ryuji Ninomiya / Manager Company Name: Yanmar Co., Ltd. Address: 1-32, Chayamachi, Kita-Ku, Osaka-shi Osaka Japan 530-8311 TEL: +81-6-6376-6211 FAX: +81-6-6292-5352 Email: [email protected]

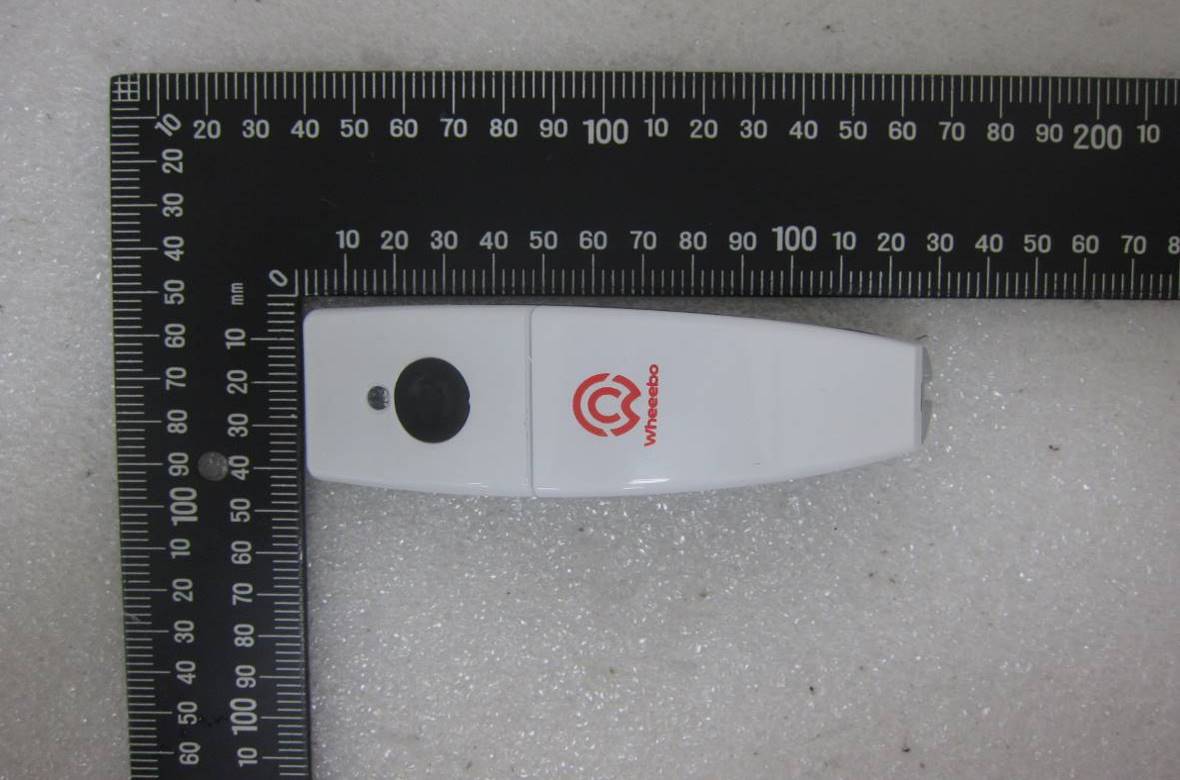

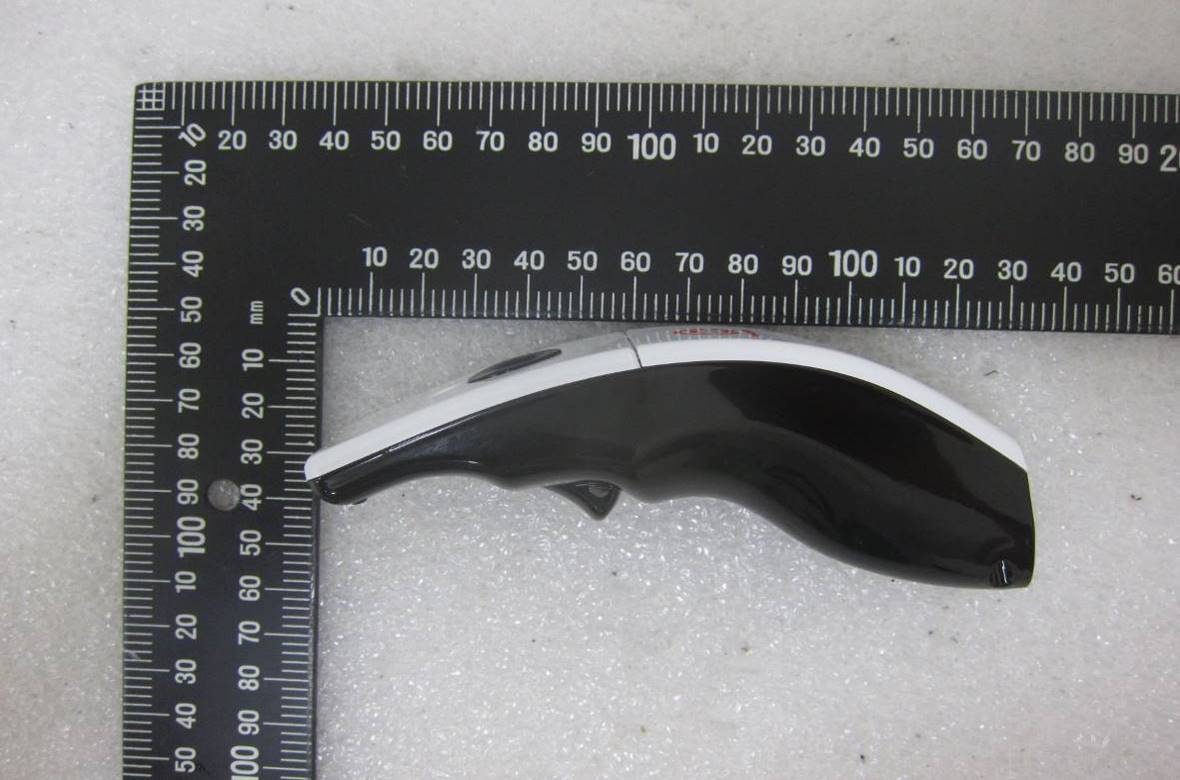

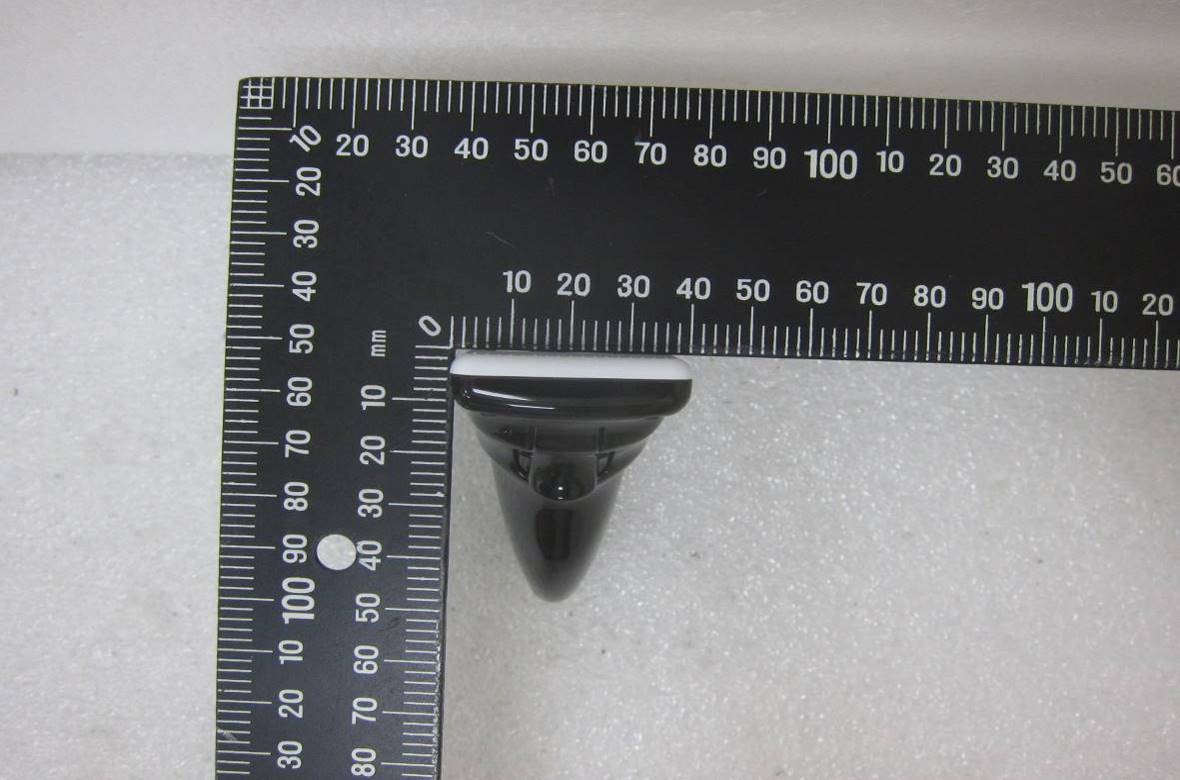

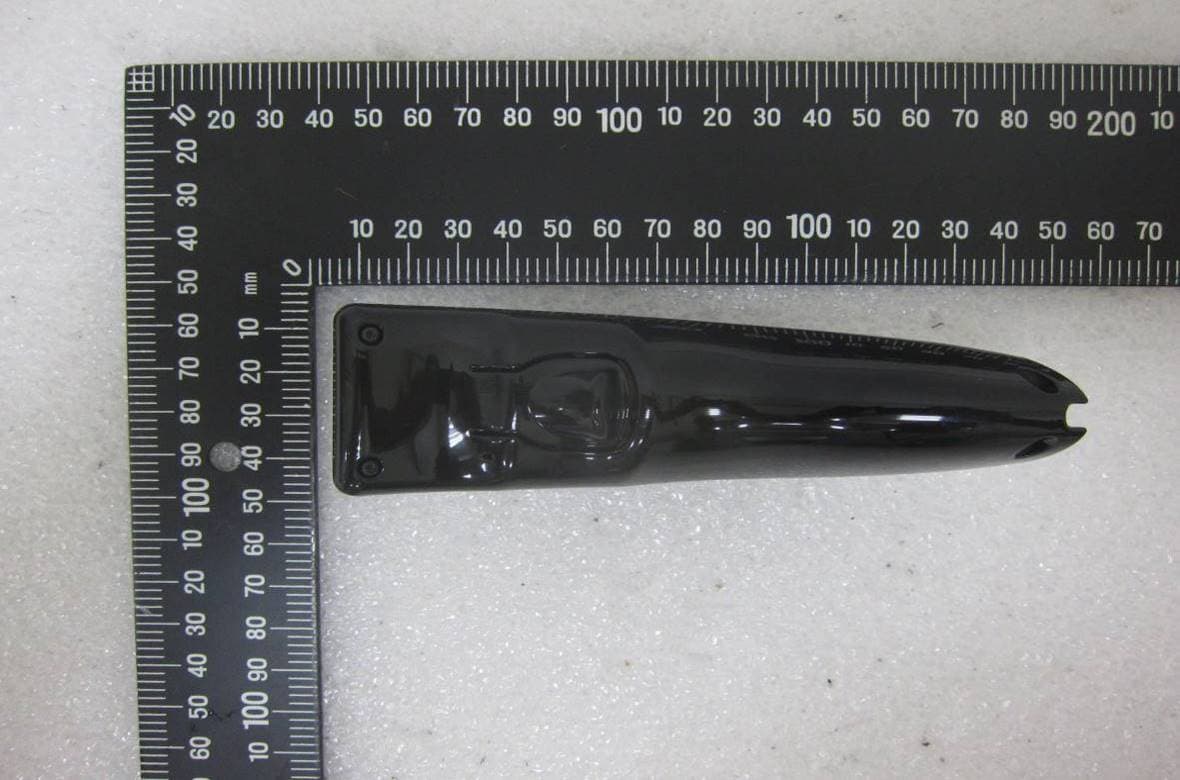

FCC ID: Y6YWBRC01 International Standards Laboratory Corp. Report Number: ISL-19LR079FC EUT 1 EUT 2 FCC ID: Y6YWBRC01 International Standards Laboratory Corp. Report Number: ISL-19LR079FC EUT 3 EUT 4 FCC ID: Y6YWBRC01 International Standards Laboratory Corp. Report Number: ISL-19LR079FC EUT 5 EUT 6

FCC ID Label Applicant: Yanmar Co., Ltd. FCC ID: Y6YWBRC01

FCC ID: Y6YWBRC01 International Standards Laboratory Corp. Report Number: ISL-19LR079FC EUT 1 EUT 2 FCC ID: Y6YWBRC01 International Standards Laboratory Corp. Report Number: ISL-19LR079FC EUT 3 EUT 4 Antenna

FCC ID: Y6YWBRC01 International Standards Laboratory Corp. Radio Frequency Exposure Evaluation Standard Applicable According to KDB 447498 Section: 4.3.1. Standalone SAR test exclusion considerations a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison  The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. SAR Exclusion Calculation Table Frequenc y (MHz) Max power (dBm) Antenna Gain(dBi ) EIRP Power (dBm) tune-up tolerance (dB) Max power (mW) Min Distance (mm) Result Limit (3.0 @ 1 g SAR) 2402-2.20-0.98-3.1810.6053415.000.1883.0 2402-2.52-0.98-3.5010.5623415.000.1743.0 2402-2.52-0.98-3.5010.5623415.000.1743.0 ~ end ~

Page: 1 of 43 TEST REPORT of FCC Part 15 Subpart C New Application; Class I PC; Class II PC Product : Wheeebo Remote controller Brand: Wheeebo Model: WB-RC01 Model Difference: N/A FCC ID: Y6YWBRC01 FCC Rule Part: §15.247, Cat: DTS Applicant: Yanmar Co., Ltd. Address: 1-32, Chayamachi, Kita-Ku, Osaka-shi Osaka Japan 530-8311 Test Performed by: International Standards Laboratory Corp. <LT Lab.> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW0997; TAF: 0997; IC: IC4067B-4; *Address: No. 120, Lane 180, Hsin Ho Rd. Lung-Tan Dist., Tao Yuan City 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-19LR079FC Issue Date : 2019/04/18 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory Corp. -2 of 39- FCC ID: Y6YWBRC01 International Standards Laboratory Corp. Report Number: ISL-19LR079FC VERIFICATION OF COMPLIANCE Applicant: Yanmar Co., Ltd. Product Description: Wheeebo Remote controller Brand Name: Wheeebo Model No.: WB-RC01 Model Difference: N/A FCC ID: Y6YWBRC01 Date of test: 2019/04/01 ~2019/04/15 Date of EUT Received: 2019/04/01 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory Corp. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2019/04/18 Bill Huang / Engineer Prepared By: Date: 2019/04/18 Elisa Chen / Sr. Engineer Approved By: Date: 2019/04/18 Jerry Liu / Technical Manager -3 of 39- FCC ID: Y6YWBRC01 International Standards Laboratory Corp. Report Number: ISL-19LR079FC Version Version No. Date Description 00 2019/04/18 Initial creation of document 01 2020/02/25 Add FCC ID for filing Uncertainty of Measurement Description Of Test Uncertainty Conducted Emission (AC power line) 2.586 dB Field Strength of Spurious Radiation ≤30MHz: 2.96dB 30-1GHz: 4.22 dB 1-40 GHz: 4.08 dB Conducted Power 2.412 GHz: 1.30 dB 5.805 GHz: 1.55 dB Power Density 2.412 GHz:1.30 dB 5.805 GHz: 1.67 dB Frequency 0.0032% Time 0.01% DC Voltage 1% -4 of 39- FCC ID: Y6YWBRC01 International Standards Laboratory Corp. Report Number: ISL-19LR079FC Table of Contents 1 General Information ................................................................................................................... 6 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 7 1.2 Test Methodology .......................................................................................................................... 7 1.3 Test Facility .................................................................................................................................... 7 1.4 Special Accessories ........................................................................................................................ 7 1.5 Equipment Modifications ............................................................................................................... 7 2 System Test Configuration ......................................................................................................... 8 2.1 EUT Configuration ........................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................. 8 2.3 Test Procedure ................................................................................................................................ 8 2.4 Configuration of Tested System ..................................................................................................... 9 3 Summary of Test Results .......................................................................................................... 10 4 Description of Test Modes ........................................................................................................ 10 5 Conduced Emission Test .......................................................................................................... 11 5.1 Standard Applicable: .................................................................................................................... 11 5.2 Measurement Equipment Used: ................................................................................................... 11 5.3 EUT Setup: ................................................................................................................................... 11 5.4 Measurement Procedure: ............................................................................................................. 12 5.5 Measurement Result: ................................................................................................................... 12 6 Peak Output Power ................................................................................................................... 13 6.1 Standard Applicable: .................................................................................................................... 13 6.2 Measurement Equipment Used: ................................................................................................... 14 6.3 Test Set-up: ............................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: Y6YWBRC01 International Standards Laboratory Corp. Report Number: ISL-19LR079FC Radiated Emission Setup Photos (below 1G) FCC ID: Y6YWBRC01 International Standards Laboratory Corp. Report Number: ISL-19LR079FC Radiated Emission Setup Photos (above 1G) FCC ID: Y6YWBRC01 International Standards Laboratory Corp. Report Number: ISL-19LR079FC
