Y6YYSAR023GController Mobile Communicator

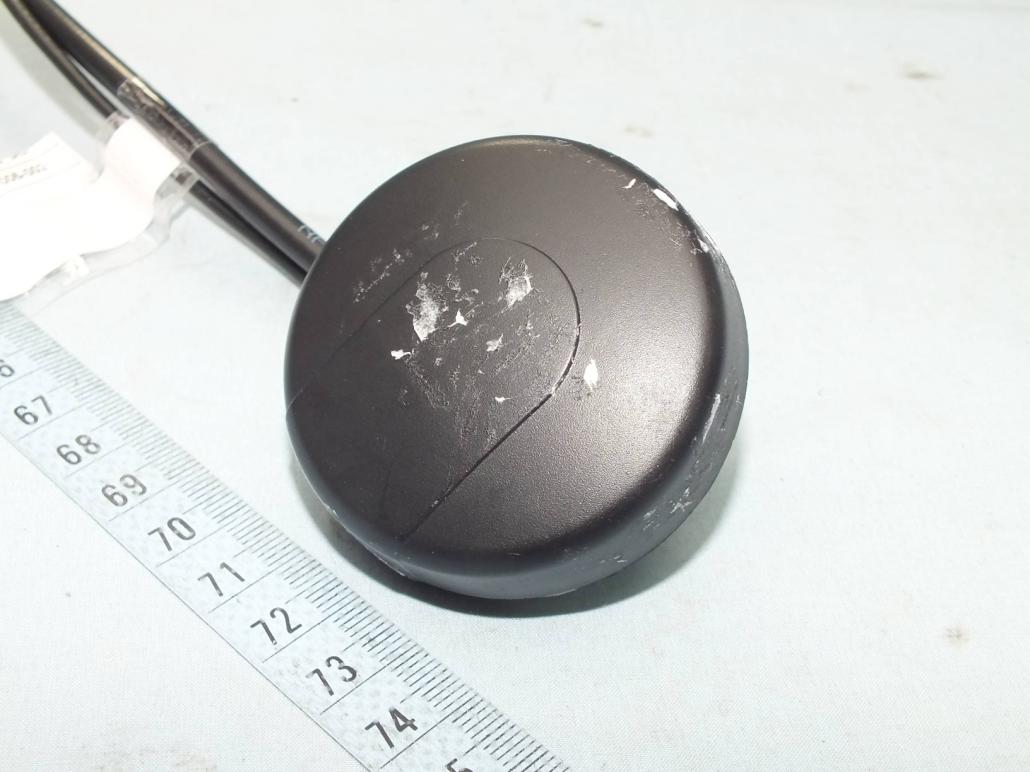

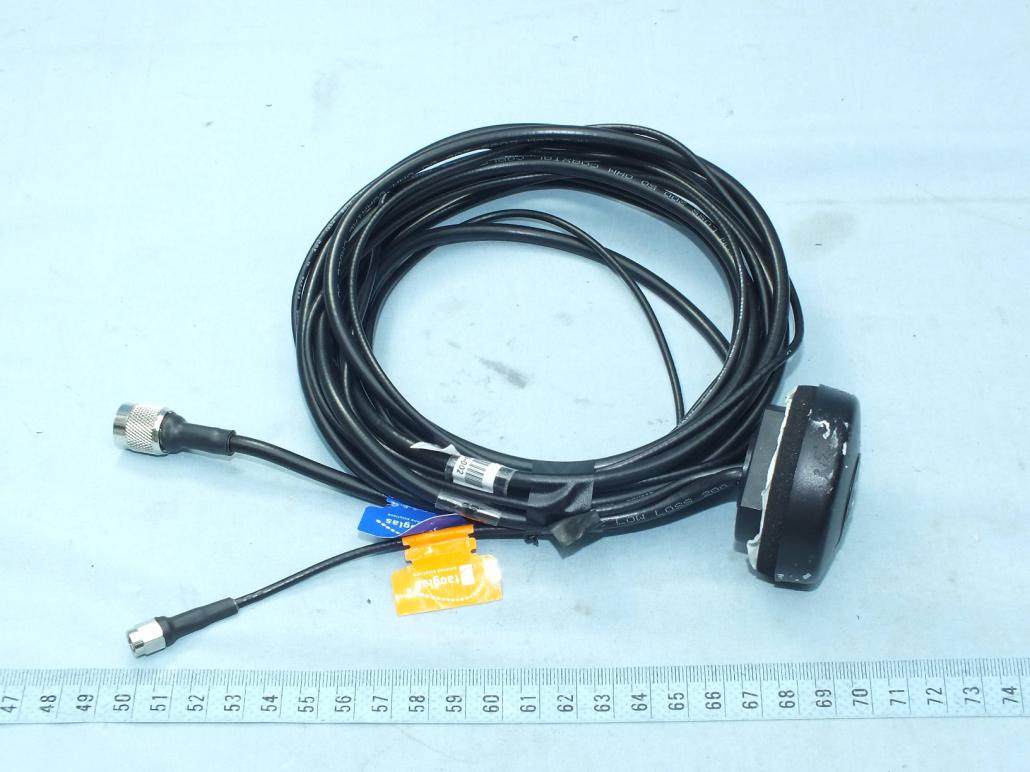

-1- Product Controller Mobile Communicator Model YSAR02-3G Cellular Module Model u-blox AG LISA-U200 Antenna Model Taoglas Limited MA.110.C.AB.006.fh (Cable Length : 3m) Bands FCC-GSM 850/1900、CE-GSM 900/1800 FCC-UMTS 850/1700/1900、CE-UMTS 900/2100 Localization GPS, SBAS, QZSS CAN 2-channel Digital Input 6-channel Digital Output 2-channel External Dimensions (W×H×D) 150mm×32mm×127.8mm Weight 0.32kg Case PV resin Power Supply DC12V (DC10～16V) Current Consumption MAX 1A Storage Temperature Range -40°C～85°C Operating Temperature Range -30°C～65°C Operating Humidity Range 95%(55°C) Vibration Resistance 90m/s 2 (8.9G)10～500Hz Test Standard ・CE This device complies with the R&TTE Directive (1999/5/EC) issued by the Commission of the European Community. EN301 908-1, EN301 511, EN300 440-2 EN301 489-1,EN301 489-3,EN301 489-7,EN301 489-24 EN60950-1 EN62209-2 ・FCC FCC Part22, FCC Part24 FCC Part15b OET Bulletin 65 Supplement C SPECIFICATIONS -2- Product Controller Mobile Communicator Model YSAR02-3G Responsible Party YANMAR CO., LTD. Address 1600-4,Umegahara,Maibara,Shiga,Japan Telephone +81-749-52-8408 FCC STATEMENTS 1. Statement according to Part 15.105 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 2. Statement according to Part 15.19 and Canada CAN ICES-3 (B)/NMB-3(B) This device complies with Part 15 of the FCC Rules and with CAN ICES-3 (B)/NMB-3(B) of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC DECLARATION OF CONFORMITY -3- 3. Statement according to Part 15.21 Changes or modifications made to this equipment not expressly approved by YANMAR CO., LTD. may void the user's authorization to operate this equipment. 4. Statement according to RF Exposure Radiofrequency radiation exposure Information: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 2 cm between the radiator and your body and at least 20 cm between the radiator and the head of all persons. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. A minimum separation distance of 2 cm must be maintained between the user’s body and the device, 20 cm must be maintained between the user's head and the device, including the antenna during body-worn operation to comply with the RF exposure requirements in Europe. -4- SYSTEM BLOCK DIAGRAM COMPONENTS COM board GSM/UMTS and GNSS antenna (Multi Function antenna) GNSS antenna connector Power supply , CAN , DI・DO GSM/UMTS antenna connector Interface connector MAIN board Power circuit , CPU, etc Cellular module LISA-U200 GNSS module NEO-7N -5- EXTERNAL DIMENSIONS * reference size. 1) GSM/UMTS antenna connecter 2) GNSS antenna connecter 3) Interface connecter (Power Supply , CAN , DI・DO) 150mm 120mm 110mm 32mm *(127.8)mm 1) 2) 3) -6- FIGURE OF THE INSTALLATION *1 Minimum distance of 2cm between the antenna and your body. *2 Minimum distance of 20cm between the antenna and your head. Installation of the antenna and this equipment will be different depending on each machine. NOTICE TO INSTALL Do not install this equipment to a place where - it will receive strong vibrations, impacts , direct sunshine and rain. - temperature rises or lowers extremely, or changes rapidly. Put in fuse (MAX 30A) between this equipment and battery. Antenna *1 *2 Equipment -7- ABOUT INSTALL This equipment is installed to Products made by YANMAR. Ex) Agriculture, Construction, and Marine Machine, or Engine, etc. FUNCTION This equipment has some following functions. This equipment can - collect the state of the operation machine. - get the position by GNSS. - communicate with the remote center by a mobile communication network. This equipment communicates with the remote center, when the machine operating starts or finishes, or various events occur. FUNCTION OVERWIEW Remote Center (YANMAR) GNSS Satellite Machine Mobile Communication Network

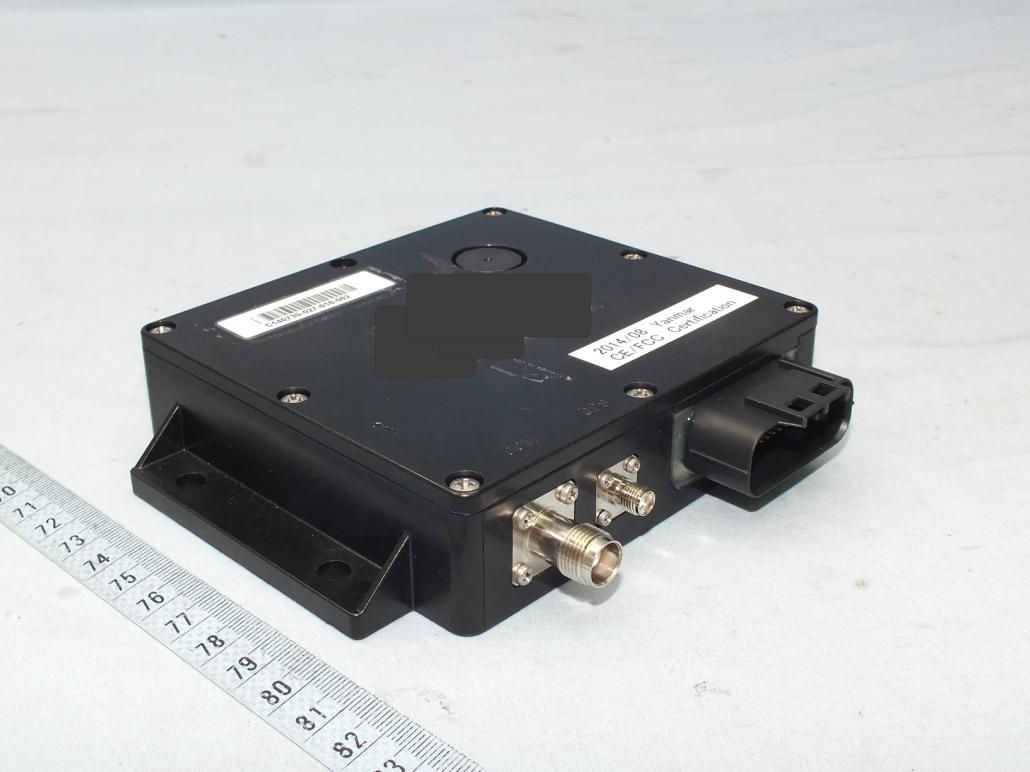

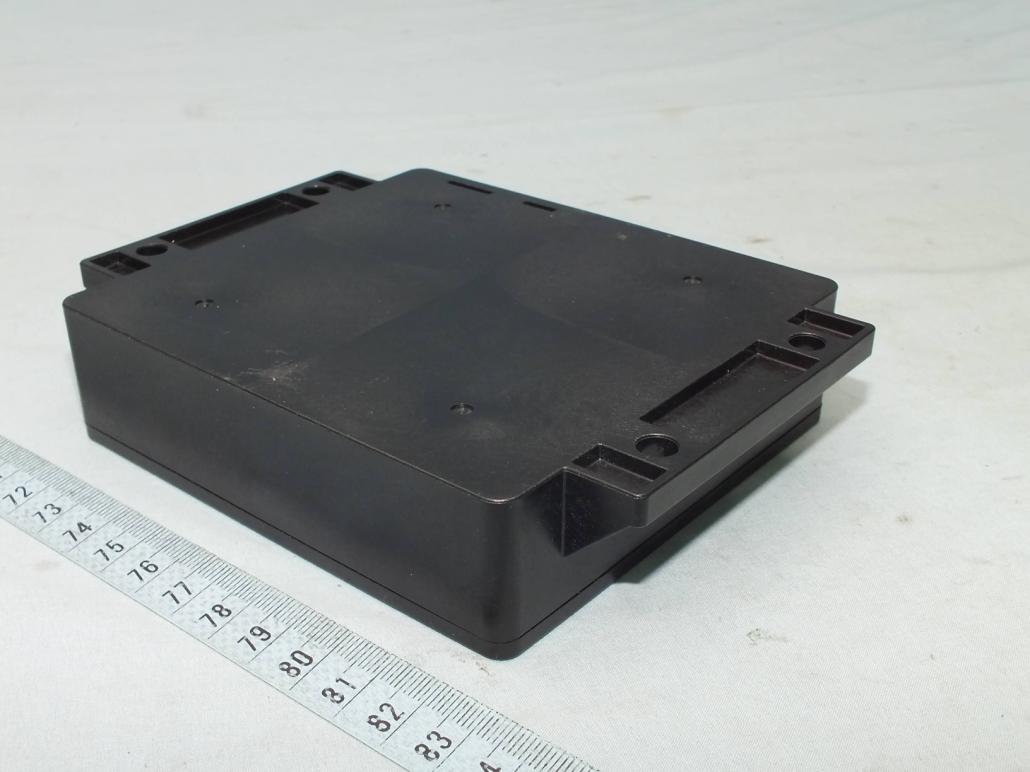

Report No.: 140717C05 1 of 8 CONSTRUCTION PHOTOS OF EUT Report No.: 140717C05 2 of 8 Report No.: 140717C05 3 of 8

Label Location FCC ID：Y6YYSAR023G

© YANMAR Co., Ltd. Page1/00 2013/12/20 YSAR02-3G Label design FCC ID:Y6YYSAR023G IC:9461A-YSAR023G 1RF001-00110 Model (型号):YSAR02-3G Phone No:090-1234-5678 SERIAL No:000001 Manufactured Date：2014.11 Made in Japan（日本制造 ） Manufacturer(制造商)：YANMAR CO., LTD. Voltage Rating：DC10 - 16V (MAX 1.0A) 0560 50mm 70mm

Report No.: 140717C05 4 of 8 Report No.: 140717C05 5 of 8 Report No.: 140717C05 6 of 8 Report No.: 140717C05 7 of 8 Report No.: 140717C05 8 of 8

FCC SAR Test Report Report Format Version 5.0.0Page No.:1of24 Report No. : SA140717C05Issued Date:Sep. 10, 2014 FCC SAR Test Report Report No.:SA140717C05 Applicant:YANMAR CO., LTD. Address:Umeda Gate Tower, 1-9, Tsurunocho, Kita-ku, Osaka, Japan Product:Controller Mobile Communicator FCC ID:Y6YYSAR023G Brand:YANM AR Model No.:YSAR02-3G Standards:FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 IEEE 1528a -2005 / KDB 865664 D01 v01r03 / KDB 447498 D01 v05r02 KDB 941225 D01 v02 / KDB 941225 D02 v02r02 / KDB 941225 D03 v01 Sample Received Date:Jul. 17, 2014 Date of Testing:Sep. 04, 2014 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Rona Chen / Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you providedto us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0Page No.:2of24 Report No. : SA140717C05Issued Date:Sep. 10, 2014 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation ........................................................................................................................... 16 3.4.5 SAR Averaged Methods .........................................…
