Y7A-P184502.4GHz Wireless 802.11b/g/n + BTv2.1+EDR Device

Integration Guide and Regulatory Approval 2.4GHz Wireless 802.11b/g/n +BT v2.1+EDR Device Model No. SOMDM3730-10-1782IFXR FCC ID: Y7A-P18450 IC ID: 10226A-P18450 Date: October 31, 2012 Revision History Revision Effective Date Change Description Prepared By A 2012-10-31 Initial Release M SWAIN 1. Regulatory Compliance Notice USA‐Federal Communications Commission (FCC) FCC Radio-Frequency Exposure & Approval conditions: FCC ID: Y7A-P18450 IC ID: 10226A-P18450 1) Only those antennas filed under FCC ID: Y7A-P18450 can be used with this device. The device was approved with Laird Technologies antenna model MAF95282. The antenna is a Flex PCB printed dipole antenna with a Peak Gain of 5dBi for 2.45GHz Band. The antenna utilizes a MHF RF connector. Only the same type and equal or lesser gain antenna may be used with the device. 2) The final system integrator must ensure there is no instruction provided in the user manual or customer documentation indicating how to install or remove the transmitter module. 3) The regulatory label on the host system must include the FCC statement: “Contains FCC ID: Y7A-P18450”. 4) The regulatory label on the host system must include the IC statement: “Contains IC ID: 10226A-P18450”. 5) The transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. Regulatory Compliance Statement User Manual A user manual or instruction manual must be included with the customer product and contain by law the following compliance statements: 1) FCC Compliance Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modification cautions to this device not explicitly approved by manufacturer could void your authority to operate this equipment. 2) Canada- Industry Canada (IC): This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device." Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement."

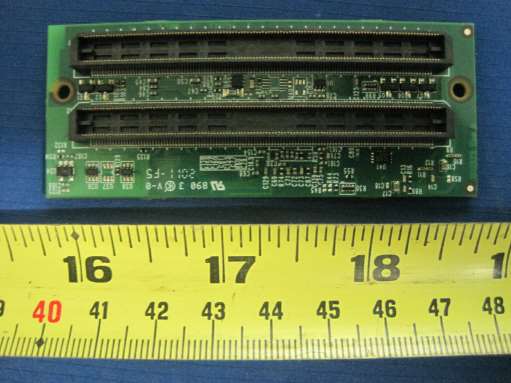

EUT EXTERNAL PICTURES Manufacture: Aircell Business Aviation Services LLC Product: 2.4 GHz Wireless 802.11b/g/n + BT V2.1 + EDR Device Model: SOMDM3730-10-1782IFXR EUT Top View EUT Back View Antenna View -1 Antenna View -2

Product Label Label Location Aircell Business Aviation Services LLC FCC ID: Y7A-P18450 IC: 10226A-P18450 Model: P18450 Aircell Business Aviation Services LLC FCC ID: Y7A-P18450 IC: 10226A-P18450 Model: P18450

EUT INTERNAL PICTURES Manufacture: Aircell Business Aviation Services LLC Product: 2.4 GHz Wireless 802.11b/g/n + BT V2.1 + EDR Device Model: SOMDM3730-10-1782IFXR EUT Top View EUT Back View

According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to TCB Exclusions list, no SAR required if power is lower than the flowing threshold: Bluetooth Frequency Range Center frequency (MHz) 60/f SAR Limitation (mW) Low Frequency (MHz) High Frequency(MHz) 2402 2480 2441 25 WLAN Frequency Range Center frequency (MHz) 60/f SAR Limitation (mW) Low Frequency (MHz) High Frequency(MHz) 2412 2462 2437 25 Bluetooth Maximum measured transmitter power: Conducted Power (mW) Max Antenna Gain (dBi) EIRP (mW) 0.882 5 2.789 WLAN Maximum measured transmitter power: Conducted Power (mW) Max Antenna Gain (dBi) EIRP (mW) 2.075 5 6.561 Threshold at which no SAR required is 25 mW. Maximum Tx power is 6.561 mW EIRP. Conclusion: No SAR is required. Simultaneous transmission occurs between BT and WLAN. Per FCC KDB 447498 D01 Mobile Portable RF Exposure, 3) (c) requirement, if the output power is ≤ 60/f(GHz) mW for any simultaneous transmitting antenna(s) for which stand-alone SAR evaluation is not required. So since both the output power of BT and WLAN are ≤ 60/f(GHz) mW, then the SAR for simultaneous transmission is not required.

AIRCELL BUSINESS AVIATION SERVICES LLC 2.4GHz Wireless 802.11b/g/n + BT v2.1+EDR Device Model: P18450 Aug 22nd, 2012 Report No.: RF-15.247-WLAN_SL12021703-ACL-001R1_FCC-IC (This report supersedes none) Modifications made to the product : None This Test Report is Issued Under the Authority of: David Zhang Compliance Engineer Choon Sian Ooi Engineering Reviewer This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: 2.4GHz Wireless 802.11b/g/n + BT v2.1+EDR Device Model: P18450 To FCC 15.247:2011, RSS-210 Issue 8:2010 Serial# RF-15.247-WLAN_SL12021703-ACL-001R1_FCC-IC Issue Date Aug 22nd, 2012 Page 2 of 80 www.siemic.com Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom , SAR Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom , SAR Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety , SAR Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety, SAR Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom HongKong OFTA (US002) RF , Telecom Title: 2.4GHz Wireless 802.11b/g/n + BT v2.1+EDR Device Model: P18450 To FCC 15.247:2011, RSS-210 Issue 8:2010 Serial# RF-15.247-WLAN_SL12021703-ACL-001R1_FCC-IC Issue Date Aug 22nd, 2012 Page 3 of 80 www.siemic.com This page has been left blank intentionally. Title: 2.4GHz Wireless 802.11b/g/n + BT v2.1+EDR Device Model: P18450 To FCC 15.247:2011, RSS-210 Issue 8:2010 Serial# RF-15.247-WLAN_SL12021703-ACL-001R1_FCC-IC Issue Date Aug 22nd, 2012 Page 4 of 80 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION ............................................................................................................. 6 2 TECHNICAL DETAILS .................................................................................................................................................. 7 3 MODIFICATION ............................................................................................................................................................ 8 4 TEST SUMMARY .......................................................................................................................................................... 9 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ...................................................................................... 10 ANNEX A. TEST INSTRUMENT & METHOD ......................................................................................................................... 42 ANNEX B. EUT PHOTOGRAPHS ......................................................................................................................................... 47 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................................... 48 ANNEX D. USER MANUAL, BLOCK & CIRCUIT DIAGRAM ................................................................................................... 52 ANNEX E. SIEMIC ACCREDITATION ................................................................................................................................... 53 Title: 2.4GHz Wireless 802.11b/g/n + BT v2.1+EDR Device Model: P18450 To FCC 15.247:2011, RSS-210 Issue 8:2010 Serial# RF-15.247-WLAN_SL12021703-ACL-001R1_FCC-IC Issue Date Aug 22nd, 2012 Page 5 of 80 www.siemic.com This page has been left blank intentionally. Title: 2.4GHz Wireless 802.11b/g/n + BT v2.1+EDR Device Model: P18450 To FCC 15.247:2011, RSS-210 Issue 8:2010 Serial# RF-15.247-WLAN_SL12021703-ACL-001R1_FCC-IC Issue Date Aug 22nd, 2012 Page 6 of 80 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of the Aircell Business Aviation Services LLC, 2.4GHz Wireless 802.11b/g/n + BT v2.1+EDR Device, and Model: P18450 against the current Stipulated Standards. The 2.4GHz Wireless 802.11b/g/n + BT v2.1+EDR Device has demonstrated compliance with the FCC 15.247:2011 & IC RSS210 Issue 8: 2010. EUT Information EUT Description : 2.4GHz Wireless 802.11b/g/n + BT v2.1+EDR Device Model No : P18450 Serial No : N/A Input Power : 3.3 VDC Classification Per Stipulated Test Standard : Spread Spectrum System / Device Title: 2.4GHz Wireless 802.11b/g/n + BT v2.1+EDR Device Model: P18450 To FCC 15.247:2011, RSS-210 Issue 8:2010 Serial# RF-15.247-WLAN_SL12021703-ACL-001R1_FCC-IC Issue Date Aug 22nd, 2012 Page 7 of 80 www.siemic.com 2 TECHNICAL DETAILS Purpose Compliance testing of 2.4GHz Wireless 802.11b/g/n + BT v2.1+EDR Devicewith stipulated standard Applicant / Client Aircell Business Aviation Services LLC Manufacturer Aircell Business Aviation Services LLC 303 Technology Ct. Bldg A Broomfield, CO 80021, USA Laboratory performing the tests SIEMIC Laboratories 775 Montague Expressway, Milpitas, CA 95035 Test report reference number RF-15.247-W…

Text truncated - open the document above for the full version.

TEST SETUP PICTURES Manufacture: Aircell Business Aviation Services LLC Product: 2.4 GHz Wireless 802.11b/g/n + BT V2.1 + EDR Device Model: SOMDM3730-10-1782IFXR Title: Titles: Test Setup Pictures Model : SOMDM3730-10-1782IFXR To FCC 15B 2011(Class B), ICES 003 2004, FCC 15.247:2011 & RSS-210 Issue 8: 2010 Serial#: Setup_SL12021703-ACL-001_FCC-IC Issue Date Jul 6 th , 2012 Page 2 of 4 www.siemic.com Conducted Emission Front View Conducted Emission Back View Title: Titles: Test Setup Pictures Model : SOMDM3730-10-1782IFXR To FCC 15B 2011(Class B), ICES 003 2004, FCC 15.247:2011 & RSS-210 Issue 8: 2010 Serial#: Setup_SL12021703-ACL-001_FCC-IC Issue Date Jul 6 th , 2012 Page 3 of 4 www.siemic.com Radiated Emission Below 1 GHz Front View Radiated Emission Below 1 GHz Back View Title: Titles: Test Setup Pictures Model : SOMDM3730-10-1782IFXR To FCC 15B 2011(Class B), ICES 003 2004, FCC 15.247:2011 & RSS-210 Issue 8: 2010 Serial#: Setup_SL12021703-ACL-001_FCC-IC Issue Date Jul 6 th , 2012 Page 4 of 4 www.siemic.com Radiated Emission Above 1 GHz Front View Radiated Emission Above 1 GHz Back View
