Y7A-WPEA127NI802.11a/b/g/n Industrial-Grade Mini Card, Atheros AR9390-AL1B, 3T3R

Aircell 802.11a/b/g/n Industrial-Grade Mini Card Manual---WPEA-127NI PRODUCT SPECIFICATION Standard IEEE802.11 abgn Chipset Atheros AR9390-AL1B Radio stream 3T3R Antenna Type / con. 3 U.FL connectors Bus Interface PCI Express Form Factor Mini PCIe Data Rate 802.11b: 11, 5.5,2,1Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6Mbps 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 23 for HT20MHz MCS 0 to 23 for HT40MHz Media Access Control CSMA/CA with ACK Spreading /Modulation Techniques 802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g: OFDM (BPSK,QPSK,16-QAM,64-QAM) 802.11n: OFDM (BPSK,QPSK,16-QAM,64-QAM) Frequency Range 2.4GHz 11b/g/n: 2.400 ~ 2.4835GHz 5GHz 11a/n: 5.150GHz ~ 5.825GHz Output Power 92.0mW for 2412~2462MHz 120.8mW for 5745~5825 MHz 27.6mW for 5180~5240 MHz 51.8mW for 5260~5320 MHz 49.3mW for 5500~5700 MHz Receiver Sensitivity 802.11a: 76dBm ± 2dBm@54Mbps 802.11b: 90dBm ± 2dBm@11Mbps 802.11g: 76dBm ± 2dBm@54Mbps 802.11gn HT20: 74dBm ± 2dBm@ MCS7 802.11gn HT40: 70dBm ± 2dBm@ MCS7 802.11n HT20: 69dBm ± 2dBm@ MCS7 802.11n HT40: 68dBm ± 2dBm@ MCS7 Operating Voltage 3.3V ± 5% Power Consumption TX Mode: 970mA RX Mode: 300mA Associated Idle: 50 mA Temperature Range -40 ~ 80°C (Operating), Humidity (non-condensing) 20 ~ 80%(Operating), 5 ~ 95%(Storing) Security WEP / WPA / WPA2 OS supported Windows XP/Vista/Win7, Linux Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: Y7A-WPEA127NI”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Industry Canada statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition…

Text truncated - open the document above for the full version.

FCC ID: Y7A-WPEA127NI Report No. : RF120424C46 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch July 13, 2012 Dear Application Examiner, Aircell Business Aviation Services, LLC., It’s an 802.11a/b/g/n Industrial-Grade Mini Card, Atheros AR9390-AL1B, 3T3R, FCC ID: Y7A-WPEA127NI would like to have your authorization as a mobile device. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR9390. 3. “The modular transmitter must have its own power supply regulation part no.:. RT8010. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration”. The EUT is tested in a stand-alone configuration Mini PCI extender. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: Y7A-WPEA127NI Report No. : RF120424C46 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Gary Chang Technical Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

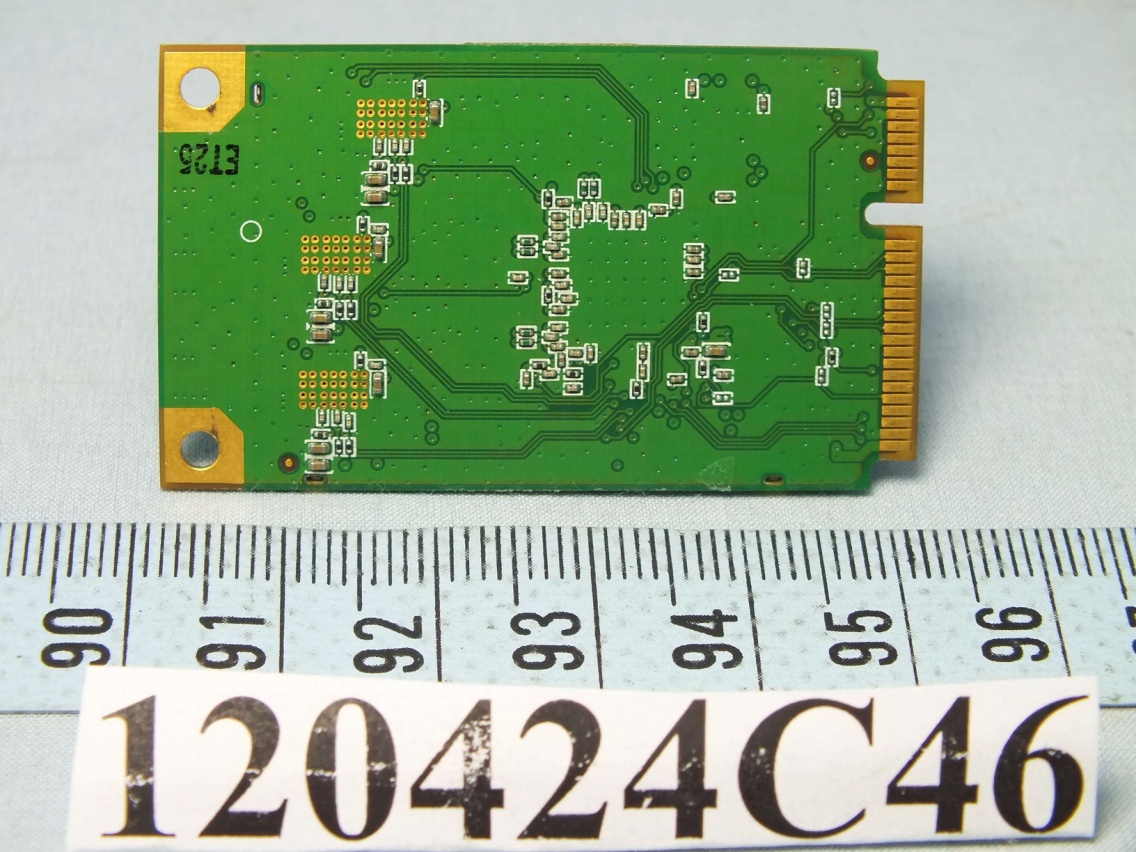

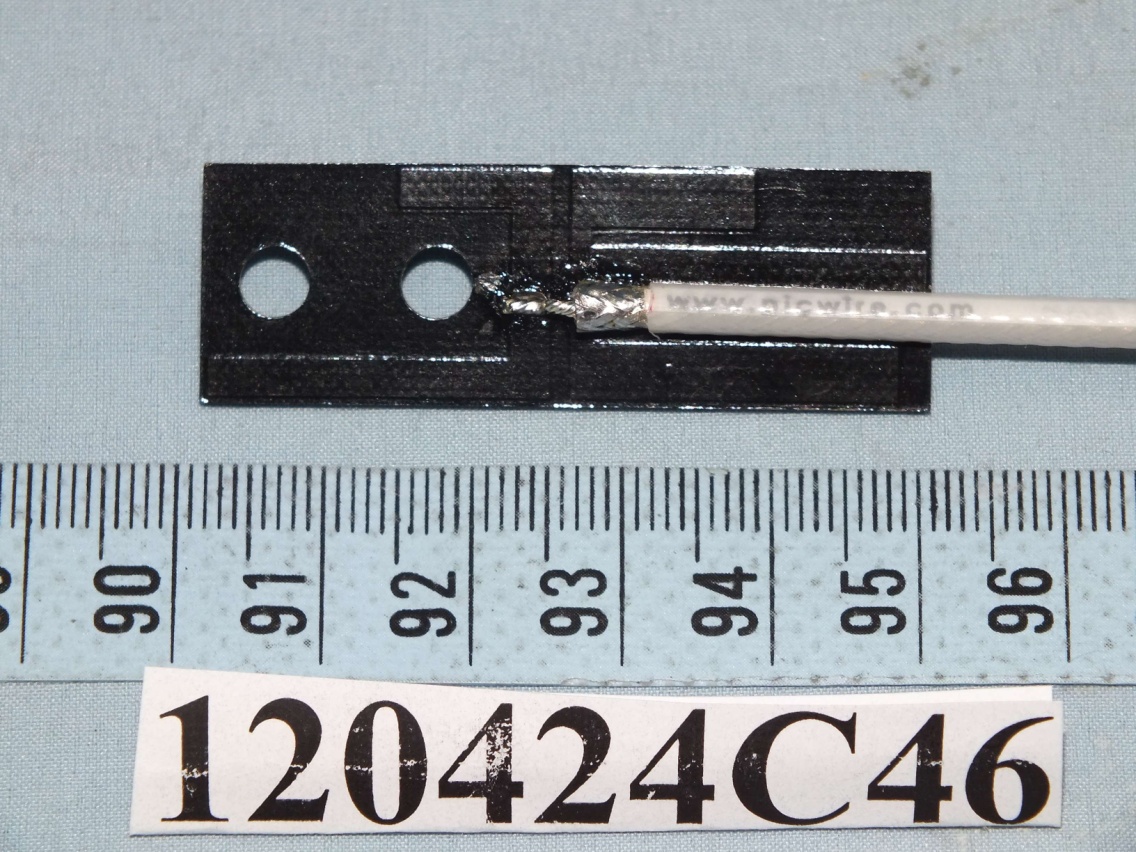

Page 1 CONSTRUCTION PHOTOS OF EUT Page 3 Page 4

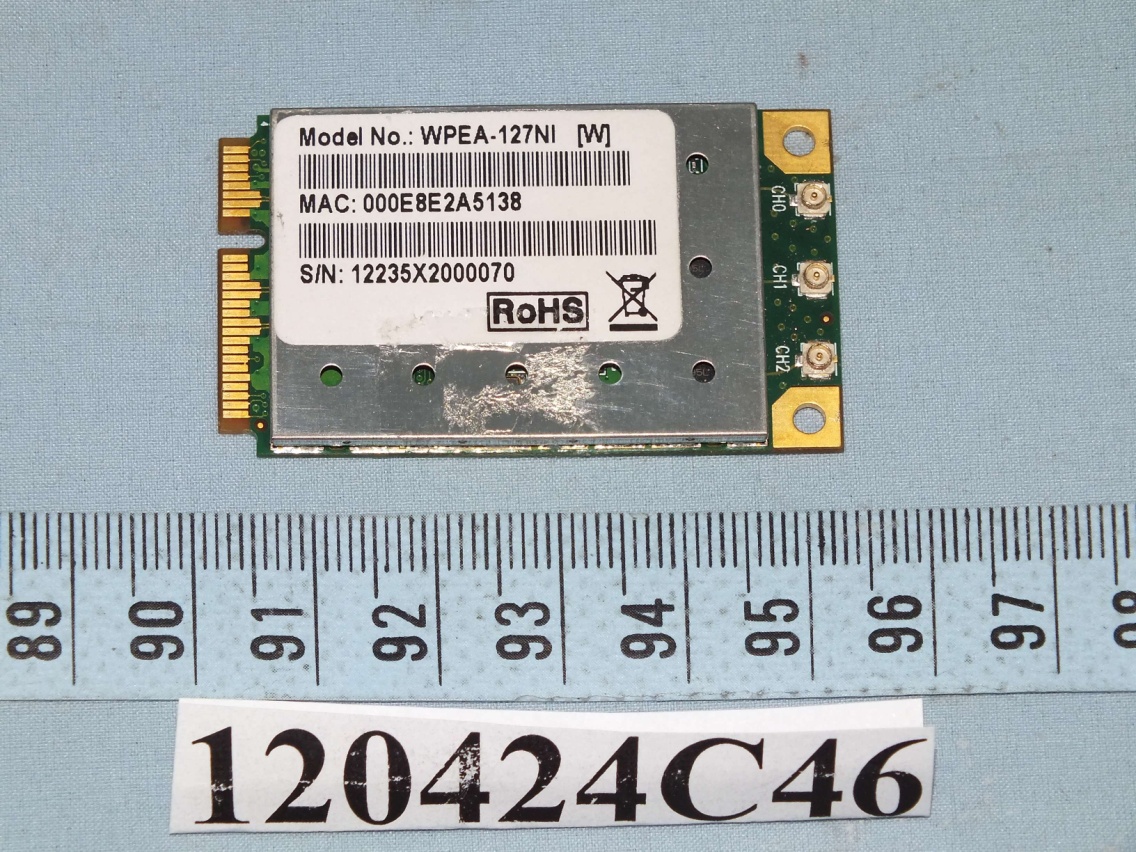

Aircell Label size: 33*20*1.5Rmm MAC: XXXXXXXXXXXX S/N: XXXXXXXXXXXXX Model No.: WPEA-127NI [W] FCC ID: Y7A-WPEA127NI IC: 10226A -WPEA127NI

Label location

Page 2

FCC ID: Y7A-WPEA127NI Report No.: RF120424C46 Operational Description This device which operates in both of the 5GHz and 2.4GHz bands, the maximum data rate could be up to 450Mbps which OFDM technique. If the signal to noise ratio is too poor which could not support 450Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 3.3Vdc from host equipment. The antenna is an Omnidirectional antenna with UFL antenna connector. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA120424C46 1 of 6 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA120424C46 MODEL NO.: WPEA-127NI FCC ID: Y7A-WPEA127NI RECEIVED: Apr. 24, 2012 TESTED: May 10 ~ Jun. 06, 2012 ISSUED: Jun. 13, 2012 APPLICANT: Aircell Business Aviation Services, LLC ADDRESS: 303 S Technology Ct, Bldg. A., Broomfield, CO 80021 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. Report No.: SA120424C46 2 of 6 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................................. 3 1. CERTIFICATION ........................................................................................................................... 4 2. RF EXPOSURE ............................................................................................................................. 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ...................................................... 5 2.2 MPE CALCULATION FORMULA .................................................................................................. 5 2.3 CLASSIFICATION ......................................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ............................................... 6 Report No.: SA120424C46 3 of 6 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120424C46 Original release Jun. 13, 2012 Report No.: SA120424C46 4 of 6 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: 802.11a/b/g/n Industrial-Grade Mini Card MODEL: WPEA-127NI BRAND: Aircell APPLICANT: Aircell Business Aviation Services, LLC TESTED: May 10 ~ Jun. 06, 2012 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: WPEA-127NI) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Jun. 13, 2012 Pettie Chen / Specialist APPROVED BY : , DATE : Jun. 13, 2012 Gary Chang / Technical Manager Report No.: SA120424C46 5 of 6 Report Format Version 5.0.0 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA120424C46 6 of 6 Report Format Version 5.0.0 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MODULATION MODE MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 802.11b 19.35 2 20 0.027 1 802.11g 16.30 2 20 0.013 1 802.11n (20MHz) 19.64 6.8 20 0.088 1 802.11n (40MHz) 18.44 6.8 20 0.066 1 5180-5240 802.11a 14.41 3.9 20 0.013 1 802.11n (20MHz) 12.11 8.7 20 0.024 1 802.11n (40MHz) 12.79 8.7 20 0.028 1 5260-5320 802.11a 15.41 3.9 20 0.017 1 802.11n (20MHz) 17.14 8.7 20 0.076 1 802.11n (40MHz) 16.47 8.7 20 0.065 1 5500-5700 802.11a 15.23 4 20 0.017 1 802.11n (20MHz) 16.80 8.8 20 0.072 1 802.11n (40MHz) 16.93 8.8 20 0.074 1 5745-5825 802.11a 15.25 4 20 0.017 1 802.11n (20MHz) 20.82 8.8 20 0.182 1 802.11n (40MHz) 20.51 8.8 20 0.170 1 2.4GHz: 802.11n (20MHz) & 802.11n (40MHz): Directional gain = 2dBi + 10log(3) = 6.8dBi 5.0GHz: 5180~5240MHz: 802.11n (20MHz) & 802.11n (40MHz): Directional gain = 3.9dBi + 10log(3) = 8.7dBi 5260~5320MHz: 802.11n (20MHz) & 802.11n (40MHz): Directional gain = 3.9dBi + 10log(3) = 8.7dBi 5500~5700MHz: 802.11n (20MHz) & 802.11n (40MHz): Directional gain = 4dBi + 10log(3) = 8.8dBi

Report No.: RF120424C46 1 of 75 Report Format Version 5.0.0 FCC TEST REPORT (15.247) REPORT NO.: RF120424C46 MODEL NO.: WPEA-127NI FCC ID: Y7A-WPEA127NI RECEIVED: Apr. 24, 2012 TESTED: May 10 ~ Jun. 06, 2012 ISSUED: Jun. 13, 2012 APPLICANT: Aircell Business Aviation Services, LLC ADDRESS: 303 S Technology Ct, Bldg. A., Broomfield, CO 80021 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120424C46 2 of 75 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ......................................................................................... 5 1. CERTIFICATION ...................................................................................................... 6 2. SUMMARY OF TEST RESULTS ............................................................................. 7 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 7 3. GENERAL INFORMATION ...................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ........................................................................ 8 3.2 DESCRIPTION OF TEST MODES .......................................................................... 9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................ 10 3.3 DESCRIPTION OF SUPPORT UNITS .................................................................. 14 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ................................................... 14 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 14 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ............................................ 15 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 15 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ............. 15 4.1.2 TEST INSTRUMENTS ........................................................................................... 16 4.1.3 TEST PROCEDURES ........................................................................................... 17 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 17 4.1.5 TEST SETUP ......................................................................................................... 18 4.1.6 EUT OPERATING CONDITIONS .......................................................................... 18 4.1.7 TEST RESULTS .................................................................................................... 19 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................ 32 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 32 4.2.2 TEST INSTRUMENTS ........................................................................................... 32 4.2.3 TEST PROCEDURES ........................................................................................... 33 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 33 4.2.5 TEST SETUP ......................................................................................................... 33 4.2.6 EUT OPERATING CONDITIONS .......................................................................... 33 4.2.7 TEST RESULTS .................................................................................................... 34 4.3 6dB BANDWIDTH MEASUREMENT ..................................................................... 36 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 36 4.3.2 TEST SETUP ......................................................................................................... 36 4.3.3 TEST INSTRUMENTS ........................................................................................... 36 4.3.4 TEST PROCEDURE .............................................................................................. 36 4.3.5 DEVIATION FROM TEST STANDARD ................................................................. 36 4.3.6 EUT OPERATING CONDITIONS .......................................................................... 36 4.3.7 TEST RESULTS .................................................................................................... 37 4.4 CONDUCTED OUTPUT P…

Text truncated - open the document above for the full version.

Report No.: RF120424C46-1 1 of 75 Report Format Version 5.0.0 FCC TEST REPORT (15.407) REPORT NO.: RF120424C46-1 MODEL NO.: WPEA-127NI FCC ID: Y7A-WPEA127NI RECEIVED: Apr. 24, 2012 TESTED: May 10 ~ Jun. 06, 2012 ISSUED: Jun. 13, 2012 APPLICANT: Aircell Business Aviation Services, LLC ADDRESS: 303 S Technology Ct, Bldg. A., Broomfield, CO 80021 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120424C46-1 2 of 75 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................................. 4 1. CERTIFICATION .......................................................................................................................... 5 2. SUMMARY OF TEST RESULTS ................................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY .............................................................................................. 6 3. GENERAL INFORMATION .......................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................ 7 3.2 DESCRIPTION OF TEST MODES .............................................................................................. 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .............................................. 9 3.3 DUTY CYCLE OF TEST SIGNAL .............................................................................................. 11 3.4 DESCRIPTION OF SUPPORT UNITS ...................................................................................... 12 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................................... 12 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................... 12 4. TEST TYPES AND RESULTS ................................................................................................... 13 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................................... 13 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT................................. 13 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS ............................ 13 4.1.3 TEST INSTRUMENTS ............................................................................................................... 14 4.1.4 TEST PROCEDURES ............................................................................................................... 15 4.1.5 DEVIATION FROM TEST STANDARD ..................................................................................... 15 4.1.6 TEST SETUP ............................................................................................................................. 16 4.1.7 EUT OPERATING CONDITION ................................................................................................ 16 4.1.8 TEST RESULTS ........................................................................................................................ 17 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................................ 51 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ......................................................... 51 4.2.2 TEST INSTRUMENTS ............................................................................................................... 51 4.2.3 TEST PROCEDURES ............................................................................................................... 52 4.2.4 DEVIATION FROM TEST STANDARD ..................................................................................... 52 4.2.5 TEST SETUP ............................................................................................................................. 52 4.2.6 EUT OPERATING CONDITIONS .............................................................................................. 52 4.2.7 TEST RESULTS ........................................................................................................................ 53 4.3 PEAK TRANSMIT POWER MEASUREMENT .......................................................................... 57 4.…

Text truncated - open the document above for the full version.

Report No.:RF120424C46-2 1 of 21 Report Format Version 5.0.0 DFS TEST REPORT REPORT NO.: RF120424C46-2 MODEL NO.: WPEA-127NI FCC ID: Y7A-WPEA127NI RECEIVED: Apr. 24, 2012 TESTED:Jun. 06, 2012 ISSUED:Jun. 13, 2012 APPLICANT: Aircell Business Aviation Services, LLC ADDRESS: 303 S Technology Ct, Bldg. A., Broomfield, CO 80021 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.:RF120424C46-2 2 of 21 Report…

Text truncated - open the document above for the full version.
