Y7N-EMIP300Radio Module

Arnold & Richter Cine Technik GmbH & Co. Betriebs KG

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: May 12, 2015
Application Purpose: Original Equipment
Date of Application: May 12, 2015
Equipment Note: Radio Module
Frequency Range: 2405.00000000 - 2480.00000000
Company: Arnold & Richter Cine Technik GmbH & Co. Betriebs KG
Country: Germany

Documents & Files

Select a file to view

Users Manual

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

Ersteller: U. Rodemeier Revision: 04 Erstelldatum: 03.08.01 Datum: 11.05.07 Seite 1 von 1 Request for Confidentiality PHOENIX TESTLAB GmbH Date: 2015-02-19 Product Certification Königswinkel 10 D 32825 Blomberg RE: Certification Application FCC ID: Y7N-EMIP300 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, the applicant hereby requests confidential treatment of information accompanying this application as outlined below:  Block diagram  Schematics diagram  Functional description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Thank you for your attention in this matter. Applicant’s Company address: EMV Testhaus GmbH Gustav Hertz Str. 35 94315 Straubing Signature: Job Title and Dept.: Christian Kiermeier

Cover Letter(s)

Arnold & Richter Cine Technik GmbH • Türkenstr. 89 • D-80799 München Seite 1 von 2 Arnold & Richter Cine Technik GmbH Sitz: München Tel.: +49 (89) 3809 0 Türkenstr. 89 Register: Amtsgericht München, HRB-Nr. 54477 Fax: +49 (89) 3809 1244 D-80799 München Geschäftsführung: www.arri.com Steuer-Nr. 830/21613 Franz Kraus • Dr. Jörg Pohlman• Stephan Schenk • Walter Trauninger – An PHOENIX TESTLAB GmbH Königswinkel 10 32825 Blomberg München, 05.05.2015 CQM/Aj 140719-AU01_FCC Request Modular Approval-pl1 Sehr geehrter Herr Kiermeier, hiermit übersenden wir Ihnen den erforderlichen Antrag für die FCC-Zulassung unseres Funk-Moduls EMIP300. We, Arnold & Richter Cine Technik GmbH & Co Betriebs KG., hereby request for part 15 Limited single-modular transmitter approval of our device, described as follows: Model name: EMIP300 FCC ID: Y7N-EMIP300 In FCC Public Notice DA 00-1407 released June 26,2000 there are eight numbered requirements that our device complies with: 1. The modular transmitter must have its own shielding. -The transmitter has its own shielding. 2. The modular transmitter must have buffered modulation/data inputs -Buffered data inputs are integrated in IC Freescale MKW2x PIP 3. The modular transmitter must have its own power supply regulation -The Module is used only by ARRI or authorized OEMs which use only regulated 3.3V power supply for the module 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c Jürgen Althammer QMB Tel.: +49 (89) 3809 1205 Fax: +49 (89) 3809 111205 Email: [email protected] Seite 2 von 2 -the modular approved transmitter is equipped with two external antenna connectors of MMCX-type. These connectors are not commonly available to end users 5. The modular transmitter must be tested in a stand-alone configuration -The RF module is tested in stand-alone configuration as documented in the test report and on the test setup photos. 6. The modular transmitter must be labelled with its own FCC ID number The modular approved transmitter is labeled with it’s own FCC ID. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. -The module is compliant with all applicable FCC rules. Detailed instructions are given in the Product Installation Guide 8. The modular transmitter must comply with any applicable RF exposure requirements. -The modular transmitter complies with the RF exposure requirements. See test report page 155. -Restriced for use in fixed / portable defined host devices Christian Kiermeier EMV Testhaus GmbH

External Photos

ID Label/Location Info

Label and Location

Internal Photos

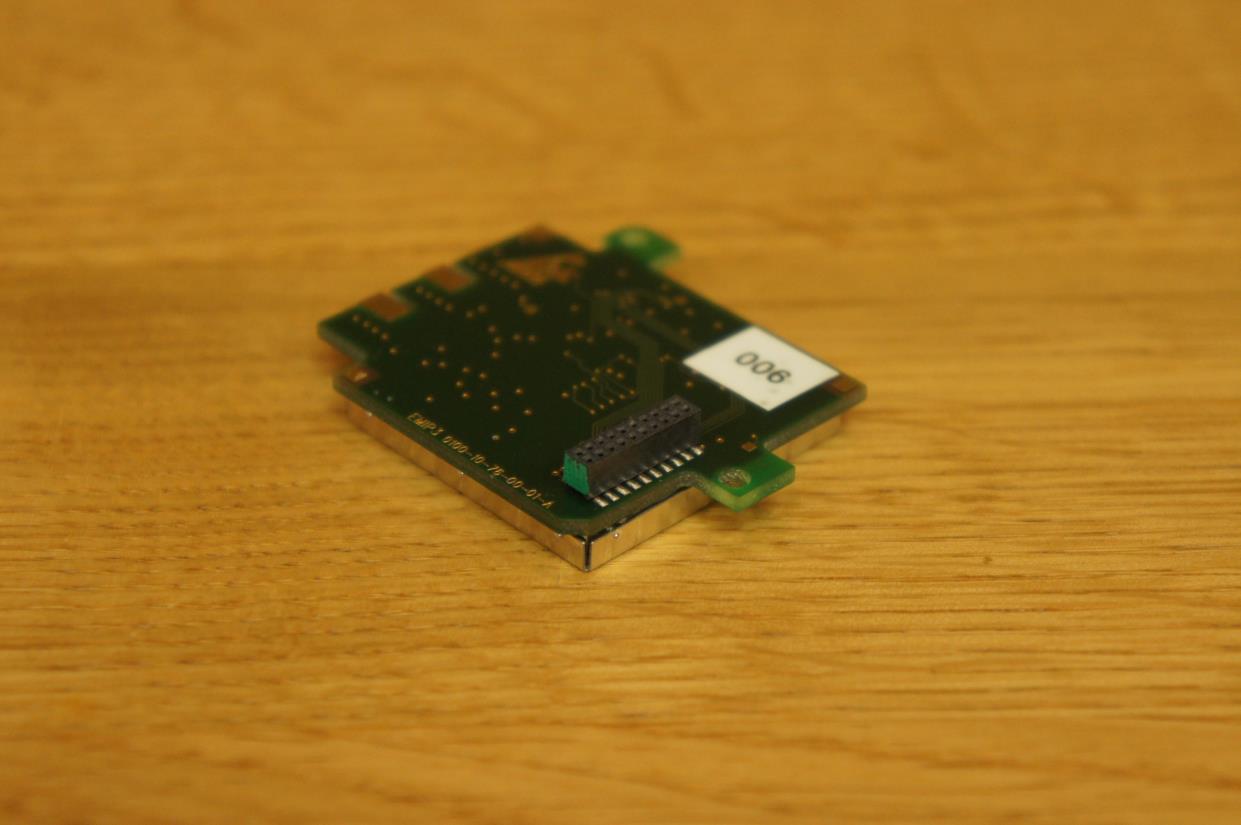

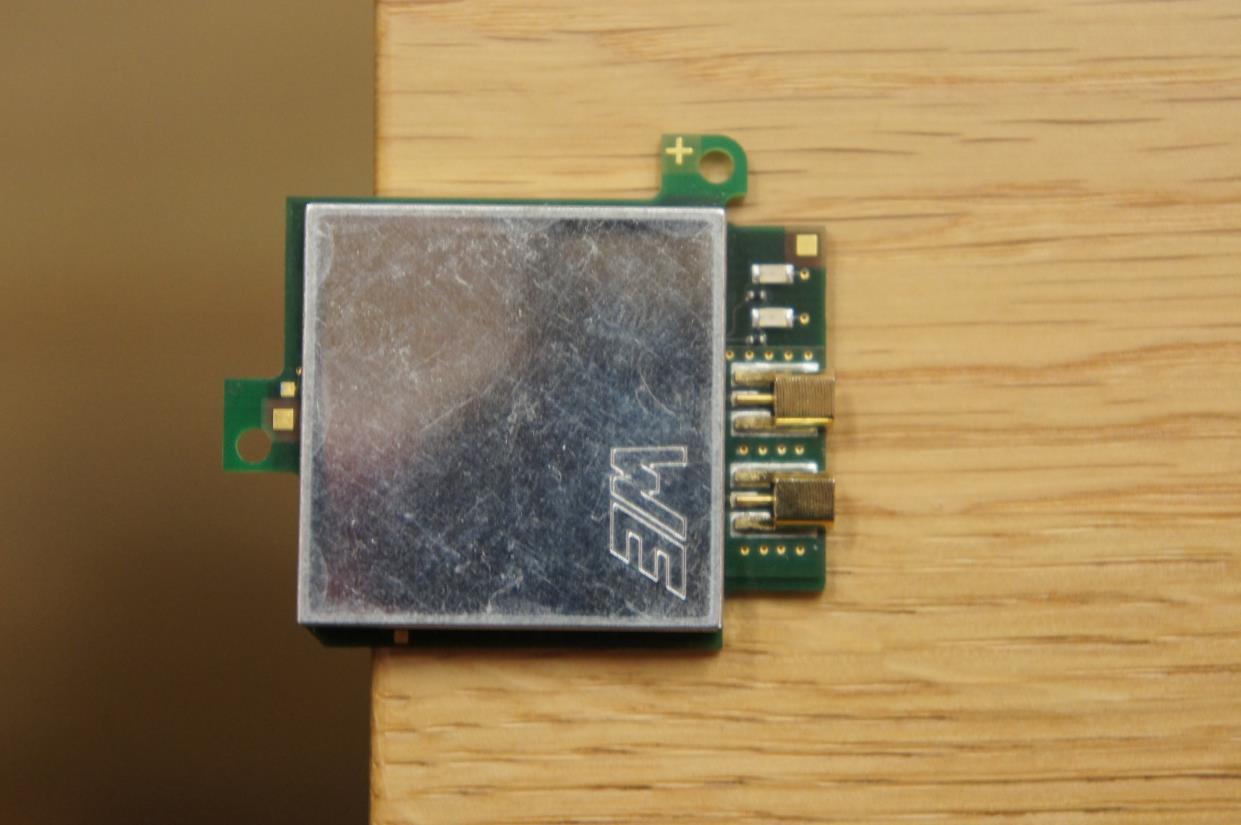

EMV TESTHAUS GmbH Gustav-Hertz-Straße 35 94315 Straubing Germany Revision: 1.0 ARRI Austria Cine & Video Geräte Ges.m.b.H. RF module 2.4 GHz EMIP3 140719-AU02+W02 Annex C Page 1 of 3 1 Annex C – internal pictures 1.1 List of Pictures Picture 1: EUT - RF-shield open ........................................................................................ 2 Picture 2: EUT - zoomed to RF-part .................................................................................. 2 Picture 3: EUT top side ...................................................................................................... 3 Picture 3: EUT bottom side ................................................................................................ 3 EMV TESTHAUS GmbH Gustav-Hertz-Straße 35 94315 Straubing Germany Revision: 1.0 ARRI Austria Cine & Video Geräte Ges.m.b.H. RF module 2.4 GHz EMIP3 140719-AU02+W02 Annex C Page 2 of 3 Picture 1: EUT - RF-shield open Picture 2: EUT - zoomed to RF-part EMV TESTHAUS GmbH Gustav-Hertz-Straße 35 94315 Straubing Germany Revision: 1.0 ARRI Austria Cine & Video Geräte Ges.m.b.H. RF module 2.4 GHz EMIP3 140719-AU02+W02 Annex C Page 3 of 3 Picture 3: EUT top side Picture 4: EUT bottom side

Test Report

The test result refers exclusively to the tested model. This test report may not be copied or published in a part without the written authorization of the accreditation agency and/or EMV TESTHAUS GmbH Revision: 1.0 Customer: Arnold & Richter Cine Technik GmbH & Co Betriebs KG. Türkenstrasse 89 80799 München Tel.: +49 89 3809-0 Fax +49 89 3809-1244 RF test report 140719-AU02+W02 Arnold & Richter Cine Technik GmbH & Co Betriebs KG. RF module 2.4 GHz EMIP300 EMV TESTHAUS GmbH Gustav-Hertz-Straße 35 94315 Straubing Germany Revision: 1.0 Arnold & Richter Cine Technik GmbH & Co Betriebs KG. RF module 2.4 GHz EMIP300 140719-AU02+W02 Page 2 of 160 EMV TESTHAUS GmbH Gustav-Hertz-Straße 35 94315 Straubing Tel.: +49 9421 56868-0 Fax: +49 9421 56868-100 Email: [email protected] Accreditation: FCC facility registration number: 221458 Test Firm Type “2.948 listed”: Valid until 2017-04-22 Test Firm Type “accredited”: Valid until 2015-06-11 MRA US-EU, FCC designation number: DE0010 BnetzA-CAB-02/21-02/04 Valid until 2018-11-27 Industry Canada test site number: 3472A-1 Registration expiry date: 2015-10-02 Test Laboratory: EMV TESTHAUS GmbH Gustav-Hertz-Straße 35 94315 Straubing Germany The technical accuracy is guaranteed through the quality management of the EMV TESTHAUS GmbH EMV TESTHAUS GmbH Gustav-Hertz-Straße 35 94315 Straubing Germany Revision: 1.0 Arnold & Richter Cine Technik GmbH & Co Betriebs KG. RF module 2.4 GHz EMIP300 140719-AU02+W02 Page 3 of 160 Table of contents 1 Test regulations ...................................................................................................................... 10 2 Equipment under Test (EUT) .................................................................................................. 13 3 AC power line conducted emissions ....................................................................................... 16 4 6 dB bandwidth ....................................................................................................................... 17 5 20 dB bandwidth ..................................................................................................................... 25 6 Occupied bandwidth ............................................................................................................... 33 7 Maximum peak conducted output power ................................................................................ 41 8 Power spectral density............................................................................................................ 50 9 Band-edge compliance ........................................................................................................... 73 10 Spurious RF Conducted Emission .......................................................................................... 87 11 Radiated emission measurement (<1 GHz) .......................................................................... 105 12 Radiated emission measurement (>1 GHz) .......................................................................... 125 13 Radio frequency radiation exposure evaluation for mobile devices ....................................... 155 14 Equipment calibration status ................................................................................................. 156 15 Measurement uncertainty ..................................................................................................... 158 16 Summary .............................................................................................................................. 159 EMV TESTHAUS GmbH Gustav-Hertz-Straße 35 94315 Straubing Germany Revision: 1.0 Arnold & Richter Cine Technik GmbH & Co Betriebs KG. RF module 2.4 GHz EMIP300 140719-AU02+W02 Page 4 of 160 List of pictures Picture 1: Test setup for 6 dB bandwidth measurement............................................................ 18 Picture 2: 6dB bandwidth ant00, channel 11 ............................................................................. 19 Picture 3: 6dB bandwidth ant00, channel 13 ............................................................................. 19 Picture 4: 6dB bandwidth ant00, channel 18 ............................................................................. 20 Picture 5: 6dB bandwidth ant00, channel 24 ............................................................................. 20 Picture 6: 6dB bandwidth ant00, channel 26 ............................................................................. 21 Picture 7: 6dB bandwidth ant01, channel 11 ............................................................................. 22 Picture 8: 6dB bandwidth ant01, channel 13 ............................................................................. 22 Picture 9: 6dB bandwidth ant01, channel 18 ............................................................................. 23 Picture 10: 6dB bandwidth ant01, channel 24 ........................................................................... 23 Picture 11: 6dB bandwidth ant01, channel 26 ........................................................................... 24 Picture 12: Test setup for 20 dB bandwidth measurement ........................................................ 26 Picture 13: 20dB bandwidth ant00, channel 11 ......................................................................... 27 Picture 14: 20dB bandwidth ant00, channel 13 ......................................................................... 27 Picture 15: 20dB bandwidth ant00, channel 18 ......................................................................... 28 Picture 16: 20dB bandwidth ant00, channel 24 ......................................................................... 28 Picture 17: 20dB bandwidth ant00, channel 26 ......................................................................... 29 Picture 18: 20dB bandwidth ant01, channel 11 ......................................................................... 30 Pictur…

Text truncated - open the document above for the full version.

Test Setup Photos

EMV TESTHAUS GmbH Gustav-Hertz-Straße 35 94315 Straubing Germany Revision: 1.0 Arnold & Richter Cine Technik GmbH & Co Betriebs KG. RF module 2.4 GHz EMIP3 140719-AU02+W02 Annex A Page 1 of 7 1 Annex A – Test setup 1.1 List of Pictures Picture 1: EUT position 1 ................................................................................................... 2 Picture 2: EUT position 2 ................................................................................................... 2 Picture 3: EUT position 3 ................................................................................................... 3 Picture 4: test setup radiated emission test 9 kHz - 30 MHz ............................................. 4 Picture 5: EUT test setup radiated emission test 30 MHz - 1 GHz .................................... 4 Picture 6: EUT test setup in open area test site (front view) .............................................. 5 Picture 7: EUT test setup in open area test site (rear view) ............................................... 5 Picture 8: EUT test setup conducted measurements ......................................................... 6 Picture 9: EUT test setup radiated emissions > 1GHz ....................................................... 7 Picture 9: EUT test setup radiated emissions > 1GHz - zoomed ....................................... 7 EMV TESTHAUS GmbH Gustav-Hertz-Straße 35 94315 Straubing Germany Revision: 1.0 Arnold & Richter Cine Technik GmbH & Co Betriebs KG. RF module 2.4 GHz EMIP3 140719-AU02+W02 Annex A Page 2 of 7 Picture 1: EUT position 1 Picture 2: EUT position 2 EMV TESTHAUS GmbH Gustav-Hertz-Straße 35 94315 Straubing Germany Revision: 1.0 Arnold & Richter Cine Technik GmbH & Co Betriebs KG. RF module 2.4 GHz EMIP3 140719-AU02+W02 Annex A Page 3 of 7 Picture 3: EUT position 3 EMV TESTHAUS GmbH Gustav-Hertz-Straße 35 94315 Straubing Germany Revision: 1.0 Arnold & Richter Cine Technik GmbH & Co Betriebs KG. RF module 2.4 GHz EMIP3 140719-AU02+W02 Annex A Page 4 of 7 Picture 4: test setup radiated emission test 9 kHz - 30 MHz Picture 5: EUT test setup radiated emission test 30 MHz - 1 GHz EMV TESTHAUS GmbH Gustav-Hertz-Straße 35 94315 Straubing Germany Revision: 1.0 Arnold & Richter Cine Technik GmbH & Co Betriebs KG. RF module 2.4 GHz EMIP3 140719-AU02+W02 Annex A Page 5 of 7 Picture 6: EUT test setup in open area test site (front view) Picture 7: EUT test setup in open area test site (rear view) EMV TESTHAUS GmbH Gustav-Hertz-Straße 35 94315 Straubing Germany Revision: 1.0 Arnold & Richter Cine Technik GmbH & Co Betriebs KG. RF module 2.4 GHz EMIP3 140719-AU02+W02 Annex A Page 6 of 7 Picture 8: EUT test setup conducted measurements EMV TESTHAUS GmbH Gustav-Hertz-Straße 35 94315 Straubing Germany Revision: 1.0 Arnold & Richter Cine Technik GmbH & Co Betriebs KG. RF module 2.4 GHz EMIP3 140719-AU02+W02 Annex A Page 7 of 7 Picture 9: EUT test setup radiated emissions > 1GHz Picture 10: EUT test setup radiated emissions > 1GHz - zoomed

Contact Information

Applicant

Juergen Althammer(QMR)

[email protected]0049-89-3809Fax: 0049-89-3809-111205

Test Firm

EMV Testhaus GmbHMr. Rainer Heller

[email protected]49-9421-56868-0Fax: 49-9421-56868-100

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	35.80 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Output power listed is peak conducted. This modular approval is strictly limited to the installation into the documented host. Approval is strictly limited to the integration by the Grantee himself or the dedicated OEM integrators under the control of the Grantee. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Additional host(s) and/or host platform(s) can be added via Class II Permissive Change by the Grantee.
