YA8-1208AWireless Energy Monitor

Introduction Thanks for using AML Wireless Energy In-Home-display unit. This product is a semi- portable communication product used in the household market. You can view the instant electricity consumption, cost-up-to-current-hour and records (e.g. hourly, daily, weekly, and monthly) as well as estimated CO2 emission produced. The product provides various wireless options (e.g. 315, 433MHz, 868MHz, and 915MHz) with proprietary communication coding for different market segments. Table of Content Introduction Table of Content General Safety Guidelines Get Started Products Key Features and Function Monitor Display Unit Features Sender Features System Settings Setup In-Home-Display Unit Customized Setting System Installation Pairing and un-pairing senders Daily Operation Mode Troubleshooting Specifications General Safety Guidelines 1. Do not subject the devices to impact and shock. 2. Do not use the current clamp and sender outside and near water or in high moisture places. 3. Do not touch the electronic circuitry as it may result in electric shock 4. Take special care when handling a broken LCD display, as the chemical inside can be harmful to your health 5. Take special care when handling batteries and don¡t expose them in the air for a long time. 6. Only use new batteries to ensure the best battery life performance. Getting started What¡s inside in the packing?  1x Current sensor  1x Sender Unit  1x Display Unit  1x Desk Stand  2x AAA battery for display unit  2x AA battery for transmitter With the standard electricity In-Home-Display unit, you can clip the current sensor around the electricity meter¡s live feed supply such that it measures the total electrical power entering to home or office. Power consumption will be recorded and transmitted to the display unit wirelessly. The following features are provided also:  Support dollars, ponds and euros for cost monitoring.  Dual battery system is used to extend operation period and to prevent data lost during battery changing.  Indicate existing cost alert level by Tri-color LED  Display Temperature and current time  Clock alarm and cost alert level setting.  Monitor up to 8 sensors  Support >30m RF transmission Products Key Features Monitor Features TOP View: 1. SET/MODE Key 2. MEM/ESC Key 3. UP KEY 4. DOWN KEY Back View 5. RESET KEY Bottom View 6. Battery compartment Front View 7. Main LCD 8. LED to indicate the data transmission and level of cost limit 9. Desk Stand Sender Features 1. LED to indicate the data transmission and Link Key to pair the sender to the monitor linkage and re-establish the connection after losing tracking. 2. Battery compartment 3. Sensor cable sockets (3pcs) System Settings Setup In-Home-Display Unit Remove all packing, insert two AA batteries into sender and two AAA batteries into display unit. Additionally two AAA batteries can be added to display unit to extend operating life and to prevent data lost during battery changing. It is recommended that the users carry out setting (e.g. clock, alarm level etc¡) for your customized uses. Start the setting mode Press the SET/MODE key for two seconds to access the setting mode. Customization setting will start with Calendar/Time setting as below. Calendar/Time Setting STEP 1. Press arrow keys to change the flashing value for year. Press SET/MODE key to set and move on to month setting. STEP 2. Repeat above process for the month, date and the time in order to complete the calendar settings. Voltage Setting STEP 1. Press arrow keys to change the flashing voltage value between 110V, 220V, 230V, 240V and 250V. STEP 2. Press SET/MODE key once to store the voltage and move on to the next function setting. Currency & Cost/kWh Setting STEP 1. Press arrow keys to change flashing currency between English pound ¢, Dollar $, and Euro £. STEP 2. Press SET/MODE key to store currency setting you have selected. STEP 3. The first digit of Cost/kWh flashes. Use arrow keys to change first flashing value. STEP 4. Press SET/MODE key to set the value of flashing digit. Repeat for all digits and move to CO2 emission setting. CO2 Emission Setting STEP 1. Press arrow keys to change the first flashing digit of CO2 emission value. STEP 2. Press SET/MODE key to set the value of flashing digit and repeat for all digits. Alarm Clock Setting SETP 1. Press arrow keys to turn ¡ ON¡ or ¡ OFF¡ the alarm system. If OFF is chosen, it will go to the next setting mode. STEP 2. If ON is set, press Arrow Keys and ¡SET/MODE¡ to complete alarm time setting. You can set the alarm to repeat everyday by setting to ON and alarm once by setting to OF at the last stage. Cost Alarm Level Setting STEP 1. Press arrow key to turn ¡ ON¡ or ¡ OFF¡ the cost level alarm. If OFF is chosen, it will go to Temperature Unit Setting mode directly. STEP 2. Press Arrow and ¡ SET/MODE¡ key to adjust and set the value of first flashing digit. Repeat the process for all digits to complete. Temperature Setting STEP 1. Press arrow keys to change the flashing units between Celsius °C and Fahrenheit°F. STEP2. Press ¡ SET/MODE¡ key to confirm the save the new setting and complete the whole customization setting. Exit Setting Mode System will return to monitor mode and corresponding device information (e.g. Sensor ID, instant consumption and cost) will be shown at display unit. During the customization process, press ¡ ESC/MEM¡ key at any time, previous modifications will be saved. System Installation Step 1: Remove all items from packaging Step 2: Carry out customization processes Step 3: Locate Electricity Meter and identify live supply cable  Locate your electricity meter  Visually inspect the insulation (plastic covering) to ensure no damage or deterioration such as cracks in the outer covering, visible copper cores etc¡  Extreme care must be taken when working with electrical equipment as touching exposed electrical wires may result in electrocution casing death. If you are in any doubt during the inspection, please cons…

Text truncated - open the document above for the full version.

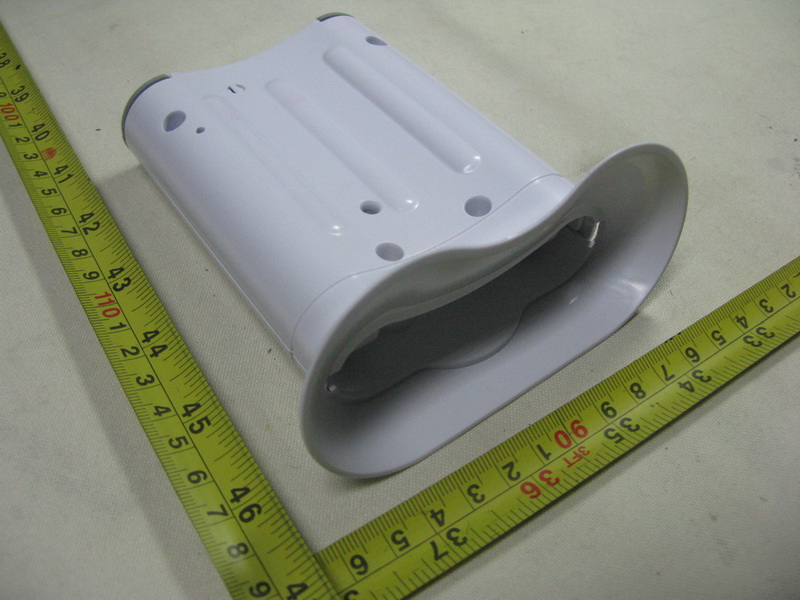

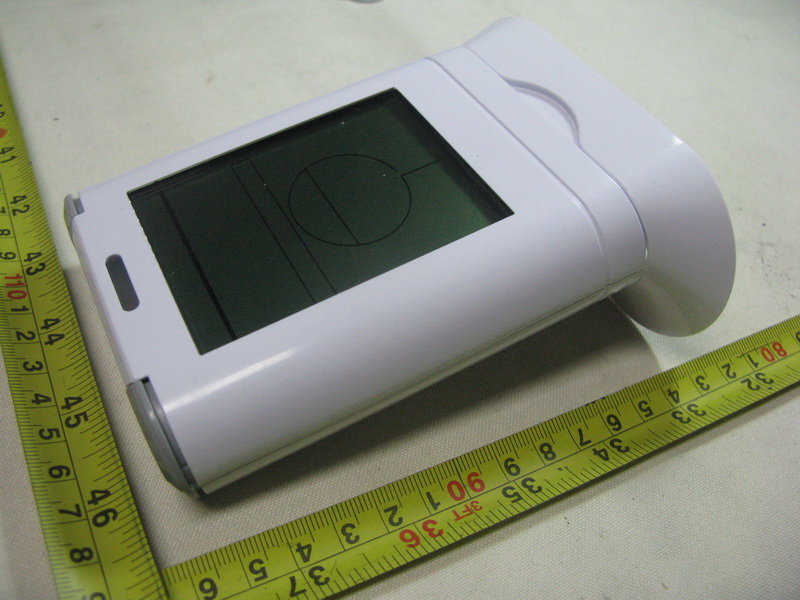

Neutron Engineering Inc. Project No.: 1001C176 Page 2 of 11 Display Sample 1001C176 1001C176 Neutron Engineering Inc. Project No.: 1001C176 Page 2 of 11 Display Sample 1001C176 1001C176

Neutron Engineering Inc. Project No.: 1001C176 Page 2 of 10 Sender Sample 1001C176 1001C176 Neutron Engineering Inc. Project No.: 1001C176 Page 2 of 10 Sender Sample 1001C176 1001C176 Neutron Engineering Inc. Project No.: 1001C176 Page 3 of 10 1001C176 1001C176 Neutron Engineering Inc. Project No.: 1001C176 Page 3 of 10 1001C176 1001C176

Neutron Engineering Inc. Display Sample 1001C17 6 Project No.: 1001C176 Page 3 of 11 1001C17 6 Neutron Engineering Inc. 1001C17 6 Project No.: 1001C176 Page 4 of 11 1001C17 6 Neutron Engineering Inc. 1001C17 6 Project No.: 1001C176 Page 5 of 11 1001C17 6 Neutron Engineering Inc. Project No.: 1001C176 Page 6 of 11 1001C176 Neutron Engineering Inc. RF Module 1001C17 6 Project No.: 1001C176 Page 7 of 11 1001C17 6 Neutron Engineering Inc. 1001C17 6 Project No.: 1001C176 Page 8 of 11 1001C17 6 Neutron Engineering Inc. Project No.: 1001C176 Page 9 of 11 1001C176 Neutron Engineering Inc. 1001C17 6 Project No.: 1001C176 Page 10 of 11 1001C17 6 Neutron Engineering Inc. Project No.: 1001C176 Page 11 of 11 1001C176

Neutron Engineering Inc. Sender Sample 1001C17 6 Project No.: 1001C176 Page 4 of 10 1001C17 6 Neutron Engineering Inc. 1001C17 6 Project No.: 1001C176 Page 5 of 10 1001C17 6 Neutron Engineering Inc. Project No.: 1001C176 Page 6 of 10 1001C176 Neutron Engineering Inc. RFM Module 1001C17 6 Project No.: 1001C176 Page 7 of 10 1001C17 6 Neutron Engineering Inc. 1001C17 6 Project No.: 1001C176 Page 8 of 10 1001C17 6 Neutron Engineering Inc. 1001C17 6 Project No.: 1001C176 Page 9 of 10 1001C17 6 Neutron Engineering Inc. Project No.: 1001C176 Page 10 of 10 1001C176

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C176 Page 2 of 32 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C176 Page 3 of 32 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 9 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 3.4 DESCRIPTION OF SUPPORT UNITS 11 4 . EMC EMISSION TEST 12 4.1 CONDUCTED EMISSION MEASUREMENT 12 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 4.1.2 MEASUREMENT INSTRUMENTS LIST 12 4.1.3 TEST PROCEDURE 13 4.1.4 DEVIATION FROM TEST STANDARD 13 4.1.5 TEST SETUP 13 4.1.6 EUT OPERATING CONDITIONS 13 4.1.7 TEST RESULTS 14 4.2 RADIATED EMISSION MEASUREMENT 15 4.2.1. FIELD STRENGTH OF FUNDAMENTAL EMISSIONS MEASUREMENT LIMIT 15 4.2.2. MEASURING INSTRUMENTS AND SETTING (FIELD STRENGTH OF FUNDAMENTAL EMISSIONS) 15 4.2.3 RADIATED EMISSIONS MEASUREMENT 16 4.2.4. DWELL TIME OF PERIODIC OPERATION MEASUREMENT 17 4.2.5. MEASUREMENT INSTRUMENTS LIST 19 4.2.6. TEST PROCEDURE 19 4.2.7. DEVIATION FROM TEST STANDARD 19 4.2.8. TEST SETUP 20 4.2.9. EUT OPERATING CONDITIONS 20 4.3. TEST RESULTS (BETWEEN 30 – 1000 MHz) 21 4.4 TEST RESULTS (ABOVE 1000 MHz) 25 5. 20dB SPECTRUM BANDWIDTH MEASUREMENT 29 Limit 29 5.1.MEASURING INSTRUMENTS AND SETTING 29 5.2.TEST PROCEDURES 29 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C176 Page 4 of 32 Table of Contents Page 5.3. TEST SETUP LAYOUT 29 5.4. TEST DEVIATION 29 5.5. EUT OPERATION DURING TEST 29 5.6. TEST RESULT 30 6. TIMING TESTING 31 Limit 31 6.1.MEASURING INSTRUMENTS AND SETTING 31 6.2.TEST PROCEDURES 31 6.3. TEST SETUP LAYOUT 31 6.4. TEST DEVIATION 31 6.5. EUT OPERATION DURING TEST 31 6.6. TEST RESULT 32 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C176 Page 5 of 32 1. CERTIFICATION E q u i p m e n t : Wireless Energy Monitor (433MHz version) Trade Name. : N/A Model Name. : 1208A A p p l i c a n t : Dongguan Baoshan Electronic Co., Ltd F a c t o r y : Dongguan Baoshan Electronic Co., Ltd A d d r e s s : Baoshan industry zone, ZMT town, Dongguan city, GD province, China Date of Test : Jan. 26, 2010 ~ Feb. 24, 2010 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.231)/ ANSI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1001C176) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Test result included is only for the Display sample of the product. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C176 Page 6 of 32 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark 15.207 Conducted Emission - Note(1) 15.209 & 15.231(e) Radiated Spurious Emission PASS 15.231(c) 20dB Occupied Bandwidth MeasurementPASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C176 Page 7 of 32 2.1 TEST FACILITY The test facilities used to collect the test data in this report is C01/OS02 at the location of No.132-1, Lane 329, Sec. 2, Palian Road, Shijr City, Taipei, Taiwan. Neutron's test firm number is 95335 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE C01 ANSI 150 KHz ~ 30MHz 1.94 B. Radiated Measurement : Test Site Method Measurement Frequency Range Ant. H / V U，(dB) NOTE OS-01 ANSI 30MHz ~ 200MHz V 3.82 30MHz ~ 200MHz H 3.60 200MHz ~ 1,000MHz V 3.86 200MHz ~ 1,000MHz H 3.94 OS-02 ANSI 30MHz ~ 200MHz V 2.48 30MHz ~ 200MHz H 2.16 200MHz ~ 1,000MHz V 2.50 200MHz ~ 1,000MHz H 2.66 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C176 Page 8 of 32 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT Equipment Wireless Energy Monitor (433MHz version) Trade Name N/A Model Name. 1208A OEM Brand/Model Name N/A Model Difference N/A Product Description The EUT is a Wireless Energy Monito…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-2-1001C176 Page 2 of 32 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-2-1001C176 Page 3 of 32 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 9 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 3.4 DESCRIPTION OF SUPPORT UNITS 11 4 . EMC EMISSION TEST 12 4.1 CONDUCTED EMISSION MEASUREMENT 12 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 4.1.2 MEASUREMENT INSTRUMENTS LIST 12 4.1.3 TEST PROCEDURE 13 4.1.4 DEVIATION FROM TEST STANDARD 13 4.1.5 TEST SETUP 13 4.1.6 EUT OPERATING CONDITIONS 13 4.1.7 TEST RESULTS 14 4.2 RADIATED EMISSION MEASUREMENT 15 4.2.1. FIELD STRENGTH OF FUNDAMENTAL EMISSIONS MEASUREMENT LIMIT 15 4.2.2. MEASURING INSTRUMENTS AND SETTING (FIELD STRENGTH OF FUNDAMENTAL EMISSIONS) 15 4.2.3 RADIATED EMISSIONS MEASUREMENT 16 4.2.4. DWELL TIME OF PERIODIC OPERATION MEASUREMENT 17 4.2.5. MEASUREMENT INSTRUMENTS LIST 19 4.2.6. TEST PROCEDURE 19 4.2.7. DEVIATION FROM TEST STANDARD 19 4.2.8. TEST SETUP 20 4.2.9. EUT OPERATING CONDITIONS 20 4.3. TEST RESULTS (BETWEEN 30 – 1000 MHz) 21 4.4 TEST RESULTS (ABOVE 1000 MHz) 25 5. 20dB SPECTRUM BANDWIDTH MEASUREMENT 29 Limit 29 5.1.MEASURING INSTRUMENTS AND SETTING 29 5.2.TEST PROCEDURES 29 Neutron Engineering Inc. Report No.: NEI-FCCP-2-1001C176 Page 4 of 32 Table of Contents Page 5.3. TEST SETUP LAYOUT 29 5.4. TEST DEVIATION 29 5.5. EUT OPERATION DURING TEST 29 5.6. TEST RESULT 30 6. TIMING TESTING 31 Limit 31 6.1.MEASURING INSTRUMENTS AND SETTING 31 6.2.TEST PROCEDURES 31 6.3. TEST SETUP LAYOUT 31 6.4. TEST DEVIATION 31 6.5. EUT OPERATION DURING TEST 31 6.6. TEST RESULT 32 Neutron Engineering Inc. Report No.: NEI-FCCP-2-1001C176 Page 5 of 32 1. CERTIFICATION E q u i p m e n t : Wireless Energy Monitor (433MHz version) Trade Name. : N/A Model Name. : 1208A A p p l i c a n t : Dongguan Baoshan Electronic Co., Ltd F a c t o r y : Dongguan Baoshan Electronic Co., Ltd A d d r e s s : Baoshan industry zone, ZMT town, Dongguan city, GD province, China Date of Test : Jan. 26, 2010 ~ Feb. 24, 2010 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.231)/ ANSI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-2-1001C176) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Test result included is only for the Sensor sample of the product. Neutron Engineering Inc. Report No.: NEI-FCCP-2-1001C176 Page 6 of 32 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark 15.207 Conducted Emission - Note(1) 15.209 & 15.231(e) Radiated Spurious Emission PASS 15.231(c) 20dB Occupied Bandwidth MeasurementPASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Neutron Engineering Inc. Report No.: NEI-FCCP-2-1001C176 Page 7 of 32 2.1 TEST FACILITY The test facilities used to collect the test data in this report is C01/OS02 at the location of No.132-1, Lane 329, Sec. 2, Palian Road, Shijr City, Taipei, Taiwan. Neutron's test firm number is 95335 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE C01 ANSI 150 KHz ~ 30MHz 1.94 B. Radiated Measurement : Test Site Method Measurement Frequency Range Ant. H / V U，(dB) NOTE OS-01 ANSI 30MHz ~ 200MHz V 3.82 30MHz ~ 200MHz H 3.60 200MHz ~ 1,000MHz V 3.86 200MHz ~ 1,000MHz H 3.94 OS-02 ANSI 30MHz ~ 200MHz V 2.48 30MHz ~ 200MHz H 2.16 200MHz ~ 1,000MHz V 2.50 200MHz ~ 1,000MHz H 2.66 Neutron Engineering Inc. Report No.: NEI-FCCP-2-1001C176 Page 8 of 32 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT Equipment Wireless Energy Monitor (433MHz version) Trade Name N/A Model Name. 1208A OEM Brand/Model Name N/A Model Difference N/A Product Description The EUT is a Wireless Energy Monitor…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C176 Page 33 of 33 7. EUT TEST PHOTO Radiated Measurement Photos TX Mode ~Orthogonal Axis：Z Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C176 Page 33 of 33 7. EUT TEST PHOTO Radiated Measurement Photos TX Mode ~Orthogonal Axis：Z

Neutron Engineering Inc. Report No.: NEI-FCCP-2-1001C176 Page 33 of 33 7. EUT TEST PHOTO Radiated Measurement Photos TX Mode ~Orthogonal Axis：X Neutron Engineering Inc. Report No.: NEI-FCCP-2-1001C176 Page 33 of 33 7. EUT TEST PHOTO Radiated Measurement Photos TX Mode ~Orthogonal Axis：X
