YAHDWS-100Driveway Alert Sensor

 Sensing
window Narrow window adaptor Sun Blocker Adjustable base Sensitivity 12m 8m 7m 4m Filter Test button Night switch Battery compartment 7S30S After detect an intruder the sensor will sleep 7 seconds or 30 seconds to save power 0.5-1m/sec 1-2 m/sec All way active Active at darkness   Battery
installation Open the back cover by unlock the screws Lock the screws Replace sun blocker AA AA AA AA Install the 4 AA batteries into the battery compartment as the indication on the compartment Installation Mark the 4 hole on the wall using a pencil. o / 7mm 25mm Requires an electric drill for holes to fix the Sensor with the provided ram plug and screws. AAAA AA AA Replace the back cover as the diagram  Pairing 2.8 Deg 5.8 deg 12M 26 x 20mm 9 x 14mm Narrow Aperture Normal   1.2M 1.5M Mounting
the
sensor
with
screw
provided Adjust
the
sensor
to
make a
good
operation
angle Narrow
window adaptor Code Conflict If the PIR sensor coding is the same as another transmitter you must change the code. When you have changed the code, you need to re- pair the PIR sensor. AAAA AA AAAA AA AA Press and hold the test button, insert the battery and hold the button 5 seconds. The LED will flash 5 time when a new code is generated AA This sensor works with the receiver (chime) and must be paired before using Step 1: Insert battery to the sensor. Step 2: Insert batteries to the receiver (chime). Step 3: Enter pairing mode for receiver (chime unit). Press and hold the learning button 3 seconds. The LED #1 will flash. Step 4: Press the button again to move to the zone you want to pair with. Press melody selector to scroll through the melodies. Once you hear your preferred melody, do not press again as it is now selected. There are 18 melodies & sound effects in sequence. ID Learning button Melody selector C H I M E L I G H T L I G H T & C H I M E Step 5: Once you have selected the zone and melody, trigger the sensor by pressing test button once. If successful, the receiver will generate a short tone. Press the button to exit pairing mode, the system is now ready to use. FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Modifications to this product will void the user's authority to operate this equipment.

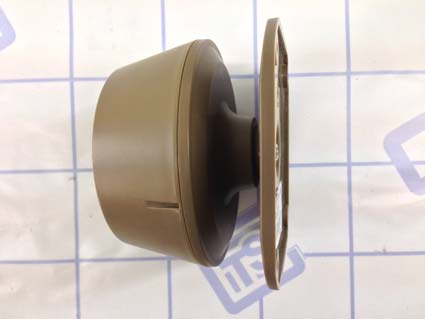

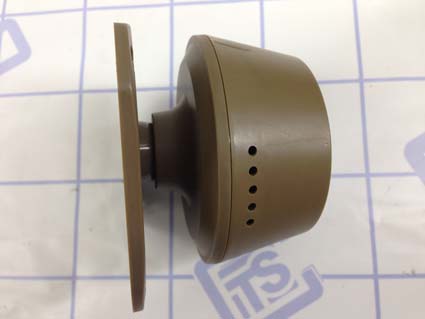

FCC ID:YAHDWS-100 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140819-00936-EF Page 1 of 2 1. External Photos of the EUT External view -1 External view- 2 External view-3 FCC ID:YAHDWS-100 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140819-00936-EF Page 2 of 2 External view-4 External view-5 External view-6

FCC ID:YAHDWS-100 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140819-00936-EF Page 1 of 1 LABEL PHOTOGRAPHS LABEL LOCATION

FCC ID:YAHDWS-100 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140819-00936-EF Page 1 of 2 1. External Photos of the EUT Internal view PCB 1 side1 FCC ID:YAHDWS-100 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140819-00936-EF Page 2 of 2 PCB 1 side 2 Oscillator view

CENTRE OF TESTING SERVICE INTERNATIONAL OPERATE ACCORDING TO ISO/IEC 17025 FCC ID TEST REPORT TEST REPORT NUMBER : CGZ3140819-00936-EF CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China FCC ID:YAHDWS-100 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140819-00936-EF Page 1 of 21 TEST REPORT For FCC ID 47 CFR PART 15 OCT, 2013 Report Reference No. ...........CGZ3140819-00936-EF Date of issue............................23 August 2014 Testing Laboratory Name .....CENTRE OF TESTING SERVICE CO., LTD. Address.................................... A101, No.65, Zhuji Highway,Tianhe District, Guangzhou, China Testing location/ procedure ..... Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s name ...................Venture Global Limited Address....................................Rm:1102,11/F.,Fabrico Industrial Building,78-84 Kwai Cheong Road,Kwai Chung,N.T., HongKong Test specification .................. Standard .................................. 47 CFR PART 15 OCT, 2013 Test Report Form No. ...........CTSEMC-1.0 TRF Originator .........................CENTRE OF TESTING SERVICE CO., LTD Master TRF..............................Dated 2009-01 CENTRE OF TESTING SERVICE CO., LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the CENTRE OF TESTING SERVICE CO., LTD is acknowledged as copyright owner and source of the material. CENTRE OF TESTING SERVICE CO., LTD takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ............Driveway Alert Sensor Trade Mark ..............................VENGUARD Manufacturer............................Venture Global Limited Model/Type reference..............DWS-100 Ratings.....................................Battery 1.5V*4 Operating Frequency ...............914.8 MHz Result ...................................... Positive Compiled by: Supervised by: Approved by: Kate zhang / File administrators Duke yang / Technique principal Vincent yao / Manager FCC ID:YAHDWS-100 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140819-00936-EF Page 2 of 21 FCC ID -- T E S T R E P O R T Test Report No. : CGZ3140819-00936-EF 23 August 2014 Date of issue Type / Model....................... DWS-100 EUT..................................... ..... Driveway Alert Sensor Applicant....................... Venture Global Limited Address............................... Rm:1102,11/F.,Fabrico Industrial Building,78-84 Kwai Cheong Road,Kwai Chung,N.T., HongKong Telephone............................ .... +852-3529 1206 Fax....................................... +852-3692 5980 Contact................................ CHOW.HING SANG ADAM Manufacturer.................. Venture Global Limited Address............................... Rm:1102,11/F.,Fabrico Industrial Building,78-84 Kwai Cheong Road,Kwai Chung,N.T., HongKong Telephone............................ .... +852-3529 1206 Fax....................................... +852-3692 5980 Contact................................ CHOW.HING SANG ADAM Factory.......................... / Address............................... / Telephone............................ / Fax....................................... / Contact................................ / Test Result according to the standards on page 1: PASSED The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. FCC ID:YAHDWS-100 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140819-00936-EF Page 3 of 21 TABLE OF CONTENTS Description Page 1.TEST STANDARDS.................................................................................................................................4 2.SUMMARY...............................................................................................................................................4 2.1 GENERAL REMARKS................................................................................................................................4 2.2 FINAL ASSESSMENT ................................................................................................................................4 3.EQUIPMENT UNDER TEST....................................................................................................................4 3.1 POWER SUPPLY SYSTEM UTILISED..................................................................................................................4 3.2 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) .........................................................................4 3.3 EUT …

Text truncated - open the document above for the full version.

FCC ID:YAHDWS-100 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140819-00936-EF Page 1 of 2 1 Photos of Radiated Emission Test (In Anechoic Chamber) Below 30MHz Below 1GHz Above 1GHz FCC ID:YAHDWS-100 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140819-00936-EF Page 2 of 2 2 Photos of Band Edge Test (In Anechoic Chamber)
