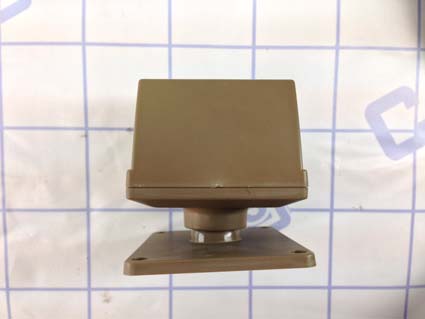

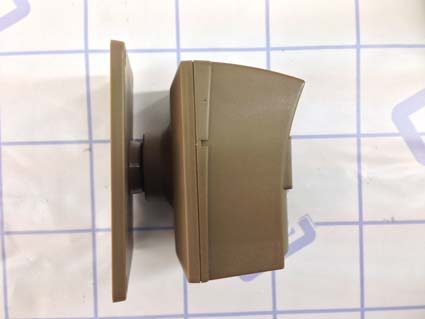

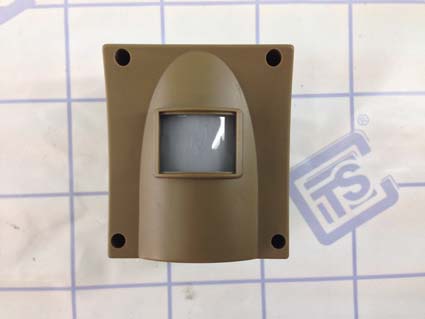

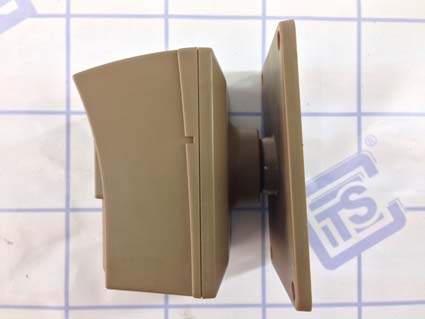

YAHDWS-200Driveway Alert Sensor

USER MANUAL Key Function On Receiver Power On/Off DC jack Volume Indications on Receiver * AC Power Operate: Light up blur LED while using AC adaptor * Back up Battery Operate: Light red LED while operated by battery * RX Battery Low: Flashs red LED with 0.3 sec. On / 5 sec. Off and sounds "beep" every half minute * Remote Sensor Battery low: Flash red LED with 0.3 sec. On / 5 sec. Off and sound "beep" AC Power on/ RX Batt. Low #1 Zone/ Sensor #2 Zone/ Sensor #3 Zone/ Sensor Remote sensor battery low #4 Zone/ Learn/Next Melody/Batt.Chk Pause/Reset Cable come out from Relay Battery Cover Power on/off : To switch on or switch off the receiver using this switch. Volume: To adjust the volume level by rotating volume DC jack: The AC/DC adaptor plug to this jack Pause/Reset: Pause - Temporarily stop the receiver bypress and hold this button 3 sec. Reset - Clear the sound and light on the receiver by press this button once Melody / Batt. chk: See the chapter of learn and Check which sensor in battery low Learn/Next: See the chapter of learn and Check which sensor in battery low Bottom on Receiver Remove the battery cover for setting the connection / time delay. 12V out NO NC COM + - Pause Time Setting Pause mode 12V output control 1 S5 S10 S60 S Delay time setting NO/NC control 30 min US 60 min OffOn EU A B C D E F A Output terminal: Connect to the device that you wanted control, such as Gate opener, Door release or external alarm speaker ..... --- : this terminal output 12v 300mA when the select zone has been 12V out trigger. (This terminal can not output 12V when using the backup battery.) This output cooperate with "E". you can select which zone relayed to this output by slide the DIP witch 1,2,3,4 on or off. --- NO (Normal Open): this terminal output short circuit when the select zone has been trigger. --- NC (Normal Close): this terminal output open circuit when the select zone has been trigger. The NO and NS outputs cooperate with "F". you can select which zone relayed to these output by slide the DIP witch 1,2,3,4 on or off. B. Pause timer setting: Select the pause time 30 min or 60 min C. Pause mode: EU mode: auto turn on when the pause time is over. US mode: the receiver generat a beep tone when the pause time is over. D. Delay time setting: These switch adjust the output time of the output terminal. E. 12V output control: To choose which zone connect to the 12V output. F. NC/NO output control: To choose which zone connect to NO/NC output. Power & Setting AA AA AA Install the 4 AAA batteries into the battery compartment as the indication on the compartment Although this receiver operate with AC/DC adaptor, we still need to install battery for backup. AA Slide to open the battery cover Replace the battery cover Adjust the dip switch as you need and Connect the wire to the device that you want to control The main power of this unit is 12V/500mA AC/DC adaptor FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Modifications to this product will void the user's authority to operate this equipment. Sensor Switch inside the transmitter Sensitivity Filter Photo sensor On/Off Test Button 12m 1-2m/sec0.5-1m/sec 8m7m4m 7 sec 30 sec After detect an intrude the sensor will sleep 7 seconds or 30 seconds. Battery Installation Interval Timer Battery compartment AA AA AA AA Install the 4 AA batteries into the battery compartment as the indication on the compartment Replace the cover and l ock screw Replace the sun blocker Installation Mount the transmitter on the wall 1.5m from the ground and slightly toward the ground and point to the target sensing area. Mark the 4 hole on the wall using a pencil. o / 7mm 25mm Requires an electric drill for holes to fix the Sensor with the provided ram plug and screws. Adjust the sensor to make a good operation angle Remove the screw from the top cabinet. OnOff AC Power on (Blue)/ RX Batt. Low (Red) Remote sensor battery low Learn (Pairing with remote sensor) 1. Press "learn" button and hold 3 second to entering to "learn mode" 2. Press "learn" button to select the preferred zone 3. After select the zone then press "melody" button to select the preferred melody for the sensor going to be paired 4. Trigger the sensor which going to be paired. * Sounds "Beep" whiled sussfully * If the Sensor paired with other Zone: there will not sound and show the Zone paired with the sensor for 3 sec., Then goes back to the selected Zone. * If all the space were occupied. 1,2,3,4 zone's LED flash 3 time. Melody select sequence Melody#1 >> Melody#2>> ....>>Melody#32 >> Melody#1 How to Pause the system Clean all the sensor in a zone 1. Press "Learn: button and hold 3 second to enter "learn mode" 2. Press "next button" to select which zone going to unpair the sens…
