YAMPNC360SPoC Radio

1. Product Overview 2. Before Use 2.1 Installing the Nano SIM Card 1. Remove the battery cover with a proper tool.  The battery cover is tightly fastened to ensure optimum waterproof performance. Therefore, you need to remove the battery cover with a proper tool.  Do not remove the battery cover by force. 2. Open the SIM card slot cover. 3. Install the SIM card. 4. Put the card slot cover back in place. 2.2 Attaching the Battery  Use the approved battery to avoid the risk of explosion.  Dispose of the used battery according to "Precautions for Disposal" in the Safety Information Booklet. Attach the battery as shown below, and then attach the battery cover back. 2.3 Attaching the Belt Clip 2.4 Attaching the Audio Accessory Open the audio jack cover, and then insert the audio accessory into the jack. To ensure optimum waterproof and dustproof performance, close the audio jack cover after disconnecting the audio accessory. 2.5 Charging the Battery  Use the approved charger to charge the battery.  Read the Safety Information Booklet before charging.  The remaining lithium-ion battery power is limited to 30% pursuant to the new lithium battery shipment regulation approved by the International Air Transport Association (IATA). Before initial use, charge the battery. To charge the battery, connect the product to a power adapter, power bank, or computer with the USB cable. To determine the charging status, check the battery icon shown on the LCD display. To ensure optimum waterproof and dustproof performance, close the USB Type-C port cover after charging the product. 3. Basic Operations 3.1 Turning on/off the Product To turn on the product, long press for two seconds. To turn off the product, long press for two seconds, and then select Power off . 3.2 Adjusting the Volume To increase the volume, press the Volume + key. To decrease the volume, press the Volume – key. 3.3 Locking/Unlocking the Screen 1. To lock the screen, go to Settings > Screen locked to enable the feature. If the product is not operated for a specific duration, the screen will be automatically locked. 2. To unlock the screen, press and . 3.4 Connecting to the Network To connect to the cellular network, install the Nano SIM card and activate the cellular data service. 3.5 Checking the Device Information To check the information such as model, serial number, and version, go to Settings > About phone . 4. PoC Services You can use Push-to-Talk over Cellular (PoC) services such as one-to-one or one-to-many voice call over the public network.  To initiate a call, do as follows. a. Select a contact. b. Press and hold the PTT key, and then speak. c. Release the PTT key.  You can receive a call without any operation. WIFI:802.11b/g/n ht20/n ht40 850/1900 B2/B4/B5 B2/B4/B5/B7/B12/B13/B17/B26/B38/B41 B38/B41 5. Specifications Specifications Model PNC360S Frequen cy Range  FDD-LTE:  TDD-LTE:  WCDMA:  TD-SCDMA: B34/B39  GSM:  BT: BT4.1   GPS: GPS/Beidou/Glonass/Galileo/AGPS Operatio nal Temper ature -20°C to +60°C Battery Chargin g Temper ature 10°C to +45°C Softwar e Version V1.0.01.000.02 Hardwar e Version V1.00 Accesso ries Adaptor, Belt Clip, Battery Specifications Tradem ark Adapter Model S010WV0500200 Adapter Input 100-240V~50/60Hz 0.4A Adapter Output 5.0V/2.0A Battery Caution CAUTION Risk of explosion if the battery is replaced by an incorrect type disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can re sult in an explosion; leaving a battery in an extremely high temperature surrounding environment that can result in an explo sion or the leakage of flammable liquid or gas; a battery subjected to extremely low air pressure that may result in an explosion or the leakage of flam mable liquid o gas Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cau undesired operation. de métal et qui avec un accessoire conu pour ce produit ou lorsqu'il est utilisé avec un accessoire qui ne contient pas lorsqu'il est utilisé Pour un fonctionnement porté sur le corps, cet appareil a été testé et répond aux directives d'exposition RF FCC/ISEDC For body worn operation, this device has been tested and meets the FCC/ISEDC RF exposure guidelines when used positions the handset a minimum of 10mm from the body. avec une distance minimale de mm. mm a été utilisé pour l’essai, cet équipement doit être installé et actionné The device has been tested and complies with SAR limits, users can obtain Canadian information on RF exposure and compliance A p rès examen de ce matériel aux conformité aux limites DA…

Text truncated - open the document above for the full version.

QA-FR-170-B Hytera Communications Corporation Limited Add: Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Shenzhen, 518057 China Tel: +86-755-26972999 Fax: +86-755-86139020 Email: [email protected] FCC Authorization Date: 2022-1-6 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Hytera Communications Corporation Limited, Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Tiantian Chen Title: Certification Engineer

QA-FR-171-A Hytera Communications Corporation Limited Add: Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Shenzhen, 518057 China Tel: +86-755-26972999 Fax: +86-755-86139020 Email: [email protected] FCC Confidential Authorization Date: 2022-1-6 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: YAMPNC360S In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (Hytera Communications Corporation Limited) hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Parts List/Tune up procedure (for licensed devices) The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Tiantian Chen Title: Certification Engineer

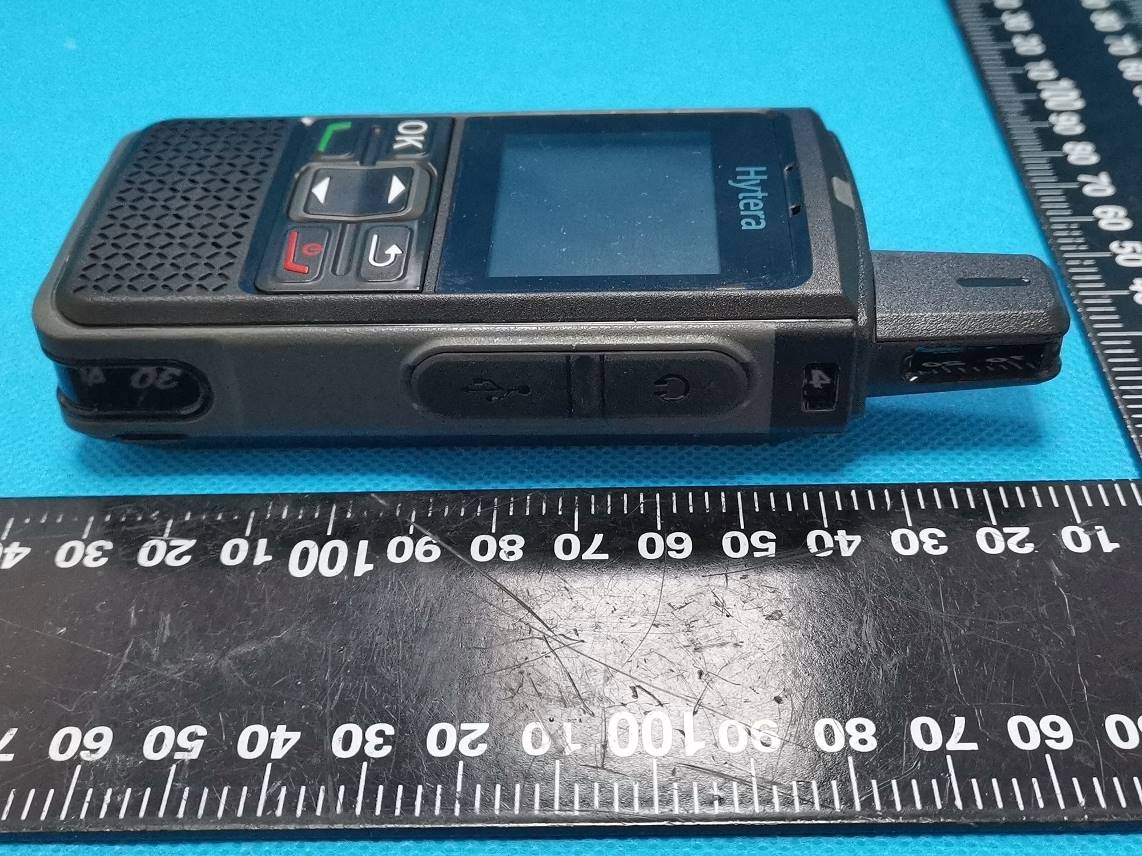

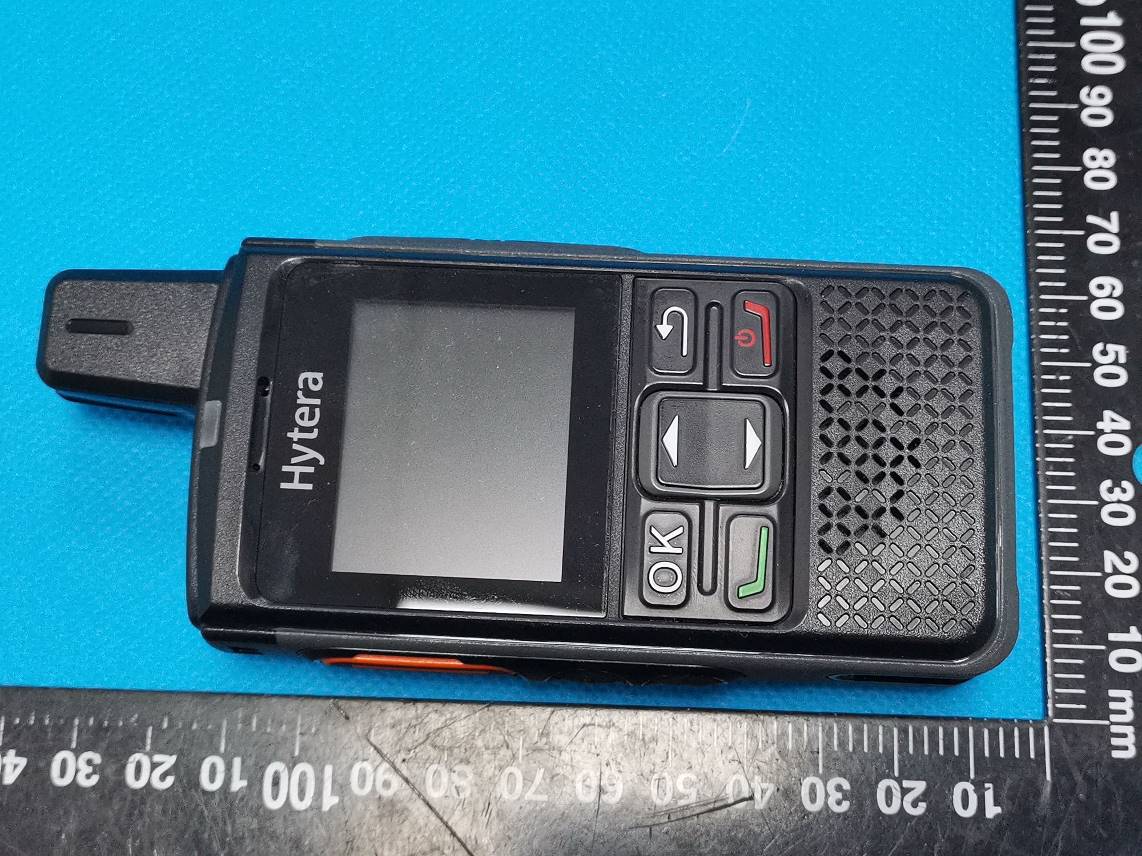

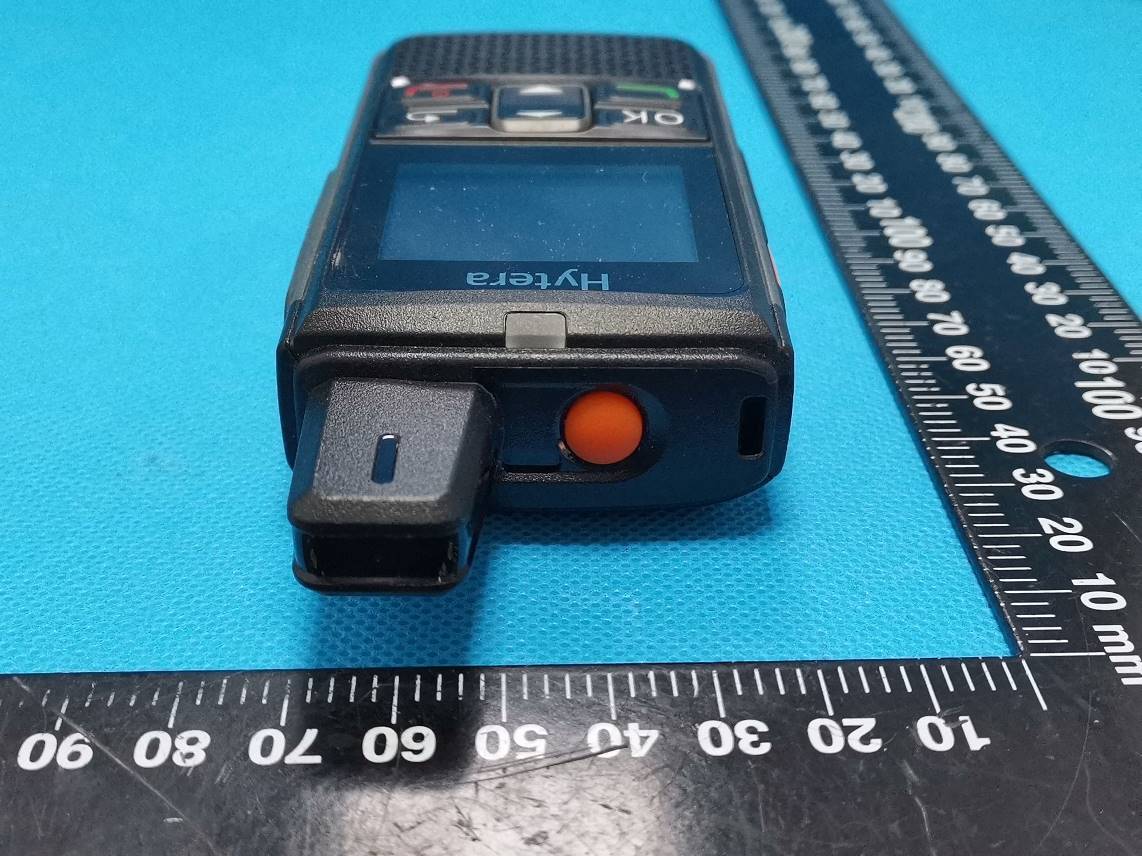

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS DIV Antenna Bluetooth/WiFi Antenna 2G/3G/4G Antenna

SAR TEST REPORT Applicant: Hytera Communications Corporation Limited Address: Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Shenzhen, 518057 China FCC ID: YAMPNC360S Product Name: PoC Radio Model Number: PNC360S Standard(s): 47 CFR Part 2(2.1093) The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR21110036-SA Date Of Issue: 2022-01-04 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR21110036-SA Page 2 of 88 SAR TEST RESULTS SUMMARY Operation Frequency Bands Highest Reported 1g SA R (W/kg) Limits (W/kg) Body -Worn (Back Touch) Head(Face Up) (Gap 25mm) Hotspot (Gap 10mm) GSM 850 0.91 1.091.10 1.6 PCS 1900 0.59 1.140.55 WCDMA Band 2 1.17 0.480.98 WCDMA Band 4 0.99 0.420.96 WCDMA Band 5 1.25 0.621.32 LTE Band 2 0.20 0.530.49 LTE Band 4 0.29 0.460.28 LTE Band 7 0.14 0.270.17 LTE Band 12&17 0.51 1.000.52 LTE Band 13 1.21 1.361.25 LTE Band 26&5 1.24 1.331.27 LTE Band 41&38 0.22 0.230.20 WLAN 2.4G 0.11 0.090.10 Maximum Simultaneous Transmission SAR Items Body -WornHead(Face Up)HotspotLimits Sum SAR(W/kg) 1.55 1.45 1.37 1.6 SPLSR N/A N/A N/A 0.04 EUT Received Date: 2021/10/18 Date Test: 2021/12/25 ~ 2021/12/28 Test Result: Pass China Certification ICT Co., Ltd (Dongguan) Report No.: CR21110036-SA Page 3 of 88 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR21110036-SA Page 4 of 88 CONTENTS SAR TEST RESULTS SUMMARY .............................................................................................. 2 TEST FACILITY .......................................................................................................................................... 3 DECLARATIONS .......................................................................................................................................... 3 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2.2 Test Specification, Methods and Procedures ................................................................................................. 7 1.2.3 SAR Limts ..................................................................................................................................................... 8 3. SAR MEASUREMENT SYSTEM ............................................................................................ 9 Recommended Tissue Dielectric Parameters for Head liquid ............................................................................... 15 EQUIPMENT LIST AND CALIBRATION .............................................................................. 16 EQUIPMENTS LIST & CALIBRATION INFORMATION ............................................................................. 16 SAR MEASUREMENT SYSTEM VERIFICATION ............................................................... 17 LIQUID VERIFICATION ............................................................................................................................ 17 SYSTEM ACCURACY VERIFICATION ....................................................................................................... 20 SAR SYSTEM VALIDATION DATA .................................................................................................. 21 EUT TEST STRATEGY AND METHODOLOGY .................................................................. 27 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR ............................................... 27 CHEEK/TOUCH POSITION ....................................................................................................................... 28 EAR/TILT POSITION ................................................................................................................................ 28 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ...................................................... 29 TEST DISTANCE FOR SAR EVALUATION ................................................................................................ 30 SAR EVALUATION PROCEDURE ............................................................................................................. 31 CONDUCTED OUTPUT POWER MEASUREMENT ............................................................ 32 PROVISION APPLICABLE .…

Text truncated - open the document above for the full version.

APPENDIX C PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Report No.: CR21110036-SA Page 1 of 130 Plot 1#:GSM_850_Low_Face Up DUT: PoC Radio; Type: PNC360S; Serial: CR21110036-SA-S1 Communication System: Generic GSM slots;Frequency: 824.2 MHz;Duty Cycle: 1:8 Medium parameters used: f = 824.2 MHz; σ = 0.897 S/m; ε r = 41.652; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN7522; ConvF(9.93, 9.93, 9.93) @ 824.2 MHz; Calibrated: 2021/4/19 • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1354; Calibrated: 2021/9/1 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.12 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.51 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.26 W/kg SAR(1 g) = 0.897 W/kg; SAR(10 g) = 0.661 W/kg Maximum value of SAR (measured) = 1.13 W/kg 0 dB = 1.13 W/kg = 0.53 dBW/kg Report No.: CR21110036-SA Page 2 of 130 Plot 2#: GSM_850_Mid_Face Up DUT: PoC Radio; Type: PNC360S; Serial: CR21110036-SA-S1 Communication System: Generic GSM2 slots;Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.915 S/m; ε r = 41.532; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN7522; ConvF(9.93, 9.93, 9.93) @ 836.6 MHz; Calibrated: 2021/4/19 • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1354; Calibrated: 2021/9/1 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.25 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.74 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 1.38 W/kg SAR(1 g) = 0.984 W/kg; SAR(10 g) = 0.723 W/kg Maximum value of SAR (measured) = 1.23 W/kg 0 dB = 1.23 W/kg = 0.90 dBW/kg Report No.: CR21110036-SA Page 3 of 130 Plot 3#: GSM_850_High_Face Up DUT: PoC Radio; Type: PNC360S; Serial: CR21110036-SA-S1 Communication System: Generic GSM slots;Frequency: 848.8 MHz;Duty Cycle: 1:8 Medium parameters used: f = 848.8 MHz; σ = 0.931 S/m; ε r = 41.317; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN7522; ConvF(9.93, 9.93, 9.93) @ 848.8 MHz; Calibrated: 2021/4/19 • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1354; Calibrated: 2021/9/1 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.29 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 28.14 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.48 W/kg SAR(1 g) = 1.05 W/kg; SAR(10 g) = 0.772 W/kg Maximum value of SAR (measured) = 1.32 W/kg 0 dB = 1.32 W/kg = 1.21 dBW/kg Report No.: CR21110036-SA Page 4 of 130 Plot 4#: GSM_850_Low_ Body Back With Belt DUT: PoC Radio; Type: PNC360S; Serial: CR21110036-SA-S1 Communication System: Generic GPRS-2 slots;Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium parameters used: f = 824.2 MHz; σ = 0.897 S/m; ε r = 41.652; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN7522; ConvF(9.93, 9.93, 9.93) @ 824.2 MHz; Calibrated: 2021/4/19 • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1354; Calibrated: 2021/9/1 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.809 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.67 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.838 W/kg SAR(1 g) = 0.648 W/kg; SAR(10 g) = 0.477 W/kg Maximum value of SAR (measured) = 0.764 W/kg 0 dB = 0.764 W/kg = -1.17 dBW/kg Report No.: CR21110036-SA Page 5 of 130 Plot 5#: GSM_850_Mid_Body Back With Belt DUT: PoC Radio; Type: PNC360S; Serial: CR21110036-SA-S1 Communication System: Generic GPRS-2 slots;Frequency: 836.6 MHz;Duty Cycle: 1:4 Medium parameters used: f = 836.6 MHz; σ = 0.915 S/m; ε r = 41.532; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN7522; ConvF(9.93, 9.93, 9.93) @ 836.6 MHz; Calibrated: 2021/4/19 • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1354; Calibrated: 2021/9/1 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.01 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.68 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 1.03 W/kg SAR(1 g) = 0.810 W/kg; SAR(10 g) = 0.595 W/kg Maximum value of SAR (measured) = 0.966 W/kg 0 dB = 0.966 W/kg = -0.15 dBW/kg Report No.: CR21110036-SA Page 6 of 130 Plot 6#: GSM_850_High_Body Back With Belt DUT: PoC Radio; Type: PNC360S; Serial: CR21110036-SA-S1 Communication System: Generic GPRS-2 slots;Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium parameters used: f = 848.8 MHz; σ = 0.931 S/m; ε r = 41.317; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN7522; ConvF(9.93, 9.93, 9.93) @ 848.8 MHz; Calibrated: 2021/4/19 • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1354; Calibrated: 2021/9/1 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x101x1): Interpol…

Text truncated - open the document above for the full version.

Report No.: CR21110036-SA Page 1 of 4 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 Report No.: CR21110036-SA Page 2 of 4 Face Up Setup Photo (25mm) Body Back With Belt Setup Photo (0mm) 25 mm 20 mm Report No.: CR21110036-SA Page 3 of 4 Body Back Setup Photo (10mm) Body Left Setup Photo (10mm) 10 mm 10 mm 19 mm Report No.: CR21110036-SA Page 4 of 4 Body Right Setup Photo (10mm) Body Bottom Setup Photo (0mm) 10 mm 10 mm

TEST REPORT Applicant: Hytera Communications Corporation Limited Address: Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Shenzhen, 518057 China FCC ID: YAMPNC360S Product Name: PoC Radio Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR21110036-00C Date Of Issue: 2022-01-06 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR21110036-00C Page 2 of 53 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR21110036-00C Page 3 of 53 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 1. GENERAL INFORMATION .................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 5 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY ........................................................................................................ 10 2. SUMMARY OF TEST RESULTS .......................................................................................... 11 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 12 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 12 3.1.1 Applicable Standard ..................................................................................................................................... 12 3.1.2 EUT Setup.................................................................................................................................................... 13 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 13 3.1.4 Test Procedure ............................................................................................................................................. 14 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 14 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 15 3.2.1 Applicable Standard ..................................................................................................................................... 15 3.2.2 EUT Setup.................................................................................................................................................... 15 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 16 3.2.4 Test Procedure ............................................................................................................................................. 16 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 16 3.3 6 DB EMISSION BANDWIDTH: ............................................................................................................ 17 3.3.1 Applicable Standard ..................................................................................................................................... 17 3.3.2 EUT Setup.............................................................................…
