YB7RCVTC27MHZJX10RC CAR SERIES

© 2010 S. I. LTD. TSIM SHA TSUI EAST, KOWLOON, HONG KONG REF. NO. : A-051AD NAME: WINDOW BOX ITEM NO.: 10 FD19547SF-BRONCO BOX SIZE: 11.875"W X 4.25"H X 4.375"D COLOR: 4C+DIECUT(072C) SOFTWARE: ILLUSTRATOR CS3 DATE: 26/APR/2010 RADIO CONTROLRADIO CONTROL 1:20 1:20 1:20 1:20 1:20 • Goes Forward, Stops & Turns• Goes Forward, Stops & Turns In ReverseIn Reverse RADIO CONTROLRADIO CONTROL KONG Ford Oval and Bronco Concept are registered trademarks owned and licensed by Ford Motor Company. Manufactured by Superway International Ltd. www.ford.com Distributed by FAMILY DOLLER SERVICE, INC. Charlotte, NC., U.S.A. 28201 MADE IN CHINA FD6985678056660000 SKU 0000000 DEPT.00

Block Diagram ANT Filter LC oscillate circuit & Modulator Wanted Signal Driver Control Trigger 27.2 MHz

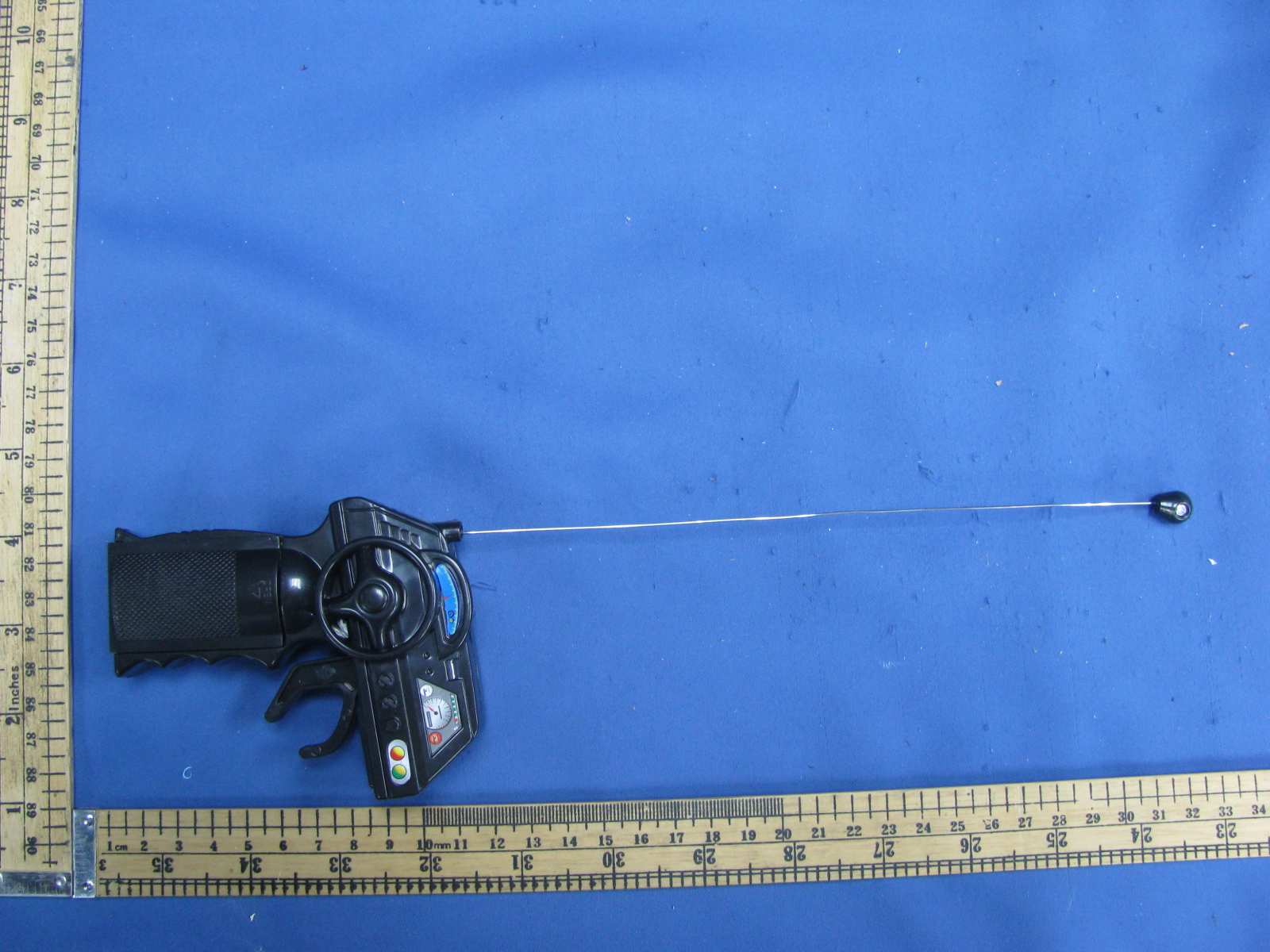

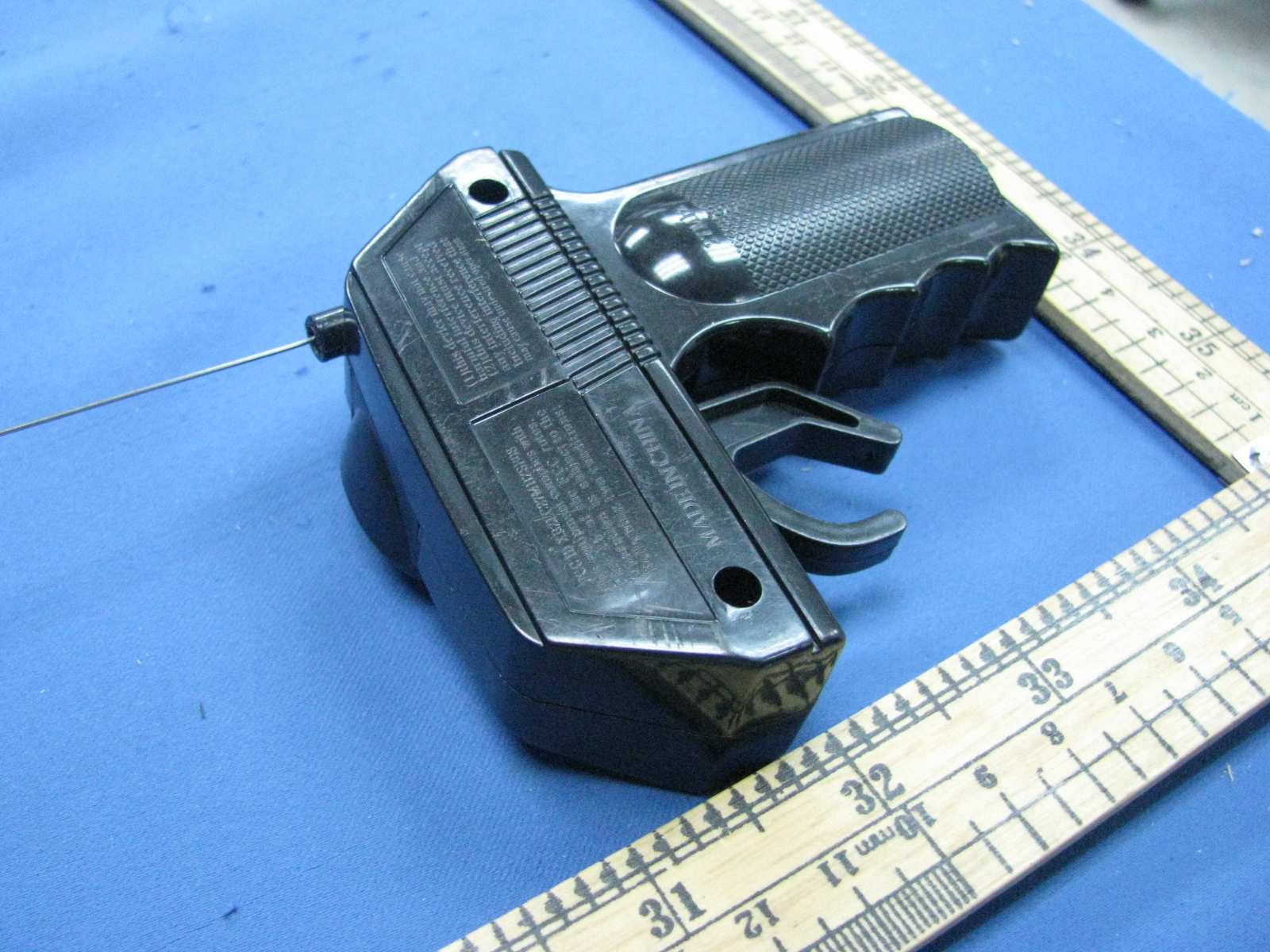

External Photos:

label size: 2.5 x1 cm label size: 2.5 x1 cm

Internal Photos:

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L2, C1 LC oscillate circuit & Modulator Generate the carrier signal and modulate to Antenna L1, C3, C4 &Q1 and associated circuit Signal Driver Generate wanted signal to modulator Q2, Q3 Type of antenna: Integral Antenna Type of modulation: Pulse modulation

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:6-May-2010 Sheet of File:G:\产品\设计文件\原理图\27M两通发射.DDBDrawn By: C945 Q3 C7 223pF R7 39K BATTERY +9V C945 Q2 C945 Q1 R4 39K R6 39K R8 2.2K R5 39K C6 223pF R2 68K C3 45pF R9 180K C4 2pF R3 47 C2 223pF R1 10 C5 68pF L1 ANT D1 4148 SW2SW1 3.3uH For ward Back ward C1 7pF L2 K165-634-014 PDF 文件使用 "pdfFactory" 试用版本创建 www.fineprint.cn

Ref -20 dBmAtt 10 dB * A * * RBW 10 kHz VBW 30 kHz SWT 100 ms 3DB * VIEW 1 PK Start 26.96 MHzStop 27.28 MHz32 kHz/ -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 1 Marker 1 [T1 ] -50.54 dBm 27.201280000 MHz 2 Delta 2 [T1 ] -42.39 dB -241.280000000 kHz 3 Delta 3 [T1 ] -31.30 dB 78.720000000 kHz

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 TEST REPORT Report No.: SZ10040180-1 JUNXING TOYS INDUSTRIAL COMPAMY LTD. Application For Certification (Original Grant) (FCC ID: YB7RCVTC27MHZJX10) Transmitter Prepared and Checked by: Approved by: Billy Li Project Engineer Shawn Xing Assistant Manager Date: April 30, 2010 INTERTEK TESTING SERVICES Report No.: SZ10040180-1 FCC ID: YB7RCVTC27MHZJX10 i GENERAL INFORMATION JUNXING TOYS INDUSTRIAL COMPAMY LTD. MODEL: 80280 FCC ID: YB7RCVTC27MHZJX10 Grantee: JUNXING TOYS INDUSTRIAL COMPAMY LTD. Grantee Address: Xingda Industrial Park, Laimei Road, Fengxiang, Chenghai District, Shantou, Guangdong Province, China Contact Person: XI YING CHAN Tel: 8675485508988 Fax: 8675485509788 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Model: 80280 Additional Model: 19547, 80566 Type of EUT: Transmitter Description of EUT: RC CAR SERIES Serial Number: N/A FCC ID : YB7RCVTC27MHZJX10 Date of Sample Submitted: April 13, 2010 Date of Test: April 30, 2010 Report No.: SZ10040180-1 Report Date: April 30, 2010 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: SZ10040180-1 FCC ID: YB7RCVTC27MHZJX10 ii SUMMARY OF TEST RESULT JUNXING TOYS INDUSTRIAL COMPAMY LTD. MODEL: 80280 FCC ID: YB7RCVTC27MHZJX10 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: SZ10040180-1 FCC ID: YB7RCVTC27MHZJX10 iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment List and Description ...........................................................3 3.0 Emission Results .......................................................................…

Text truncated - open the document above for the full version.

Radiated Photos:
