YB7RCZZ27MHZJX14RC Tarantula

Block Diagram Filter RF power amplifier and Modulator Oscillator 27.145MHz Encoder Control key 27.145 MHz ANT IC1, 128KHz

May 25, 2014

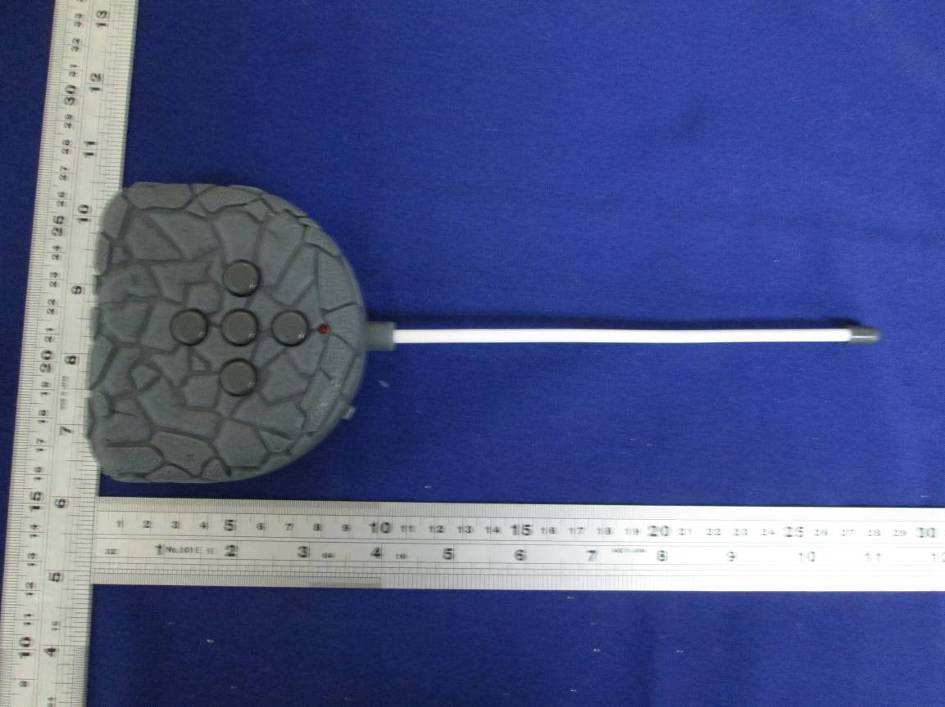

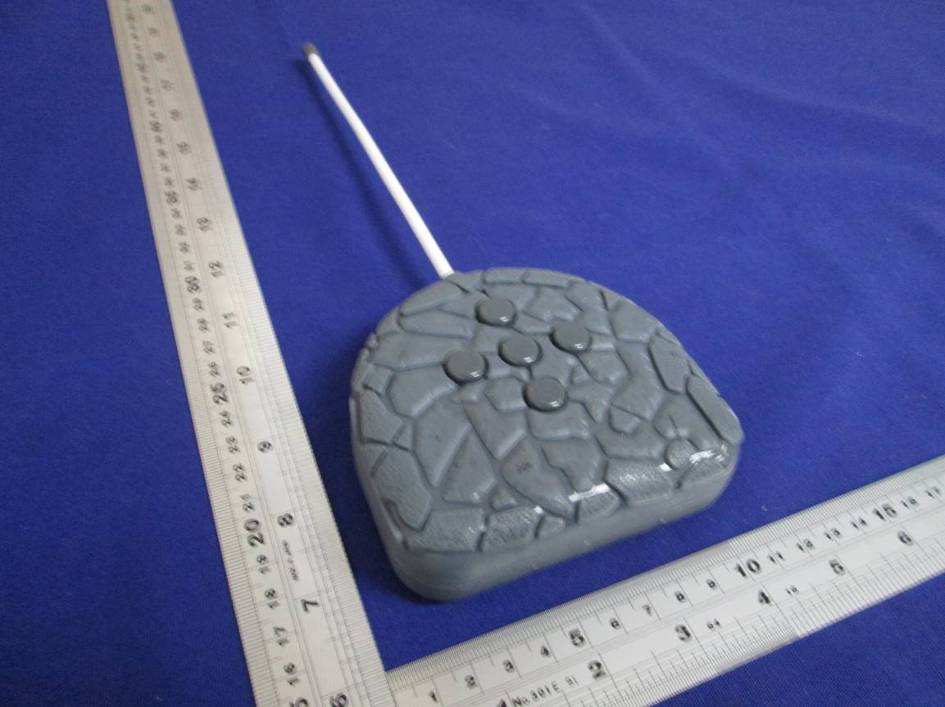

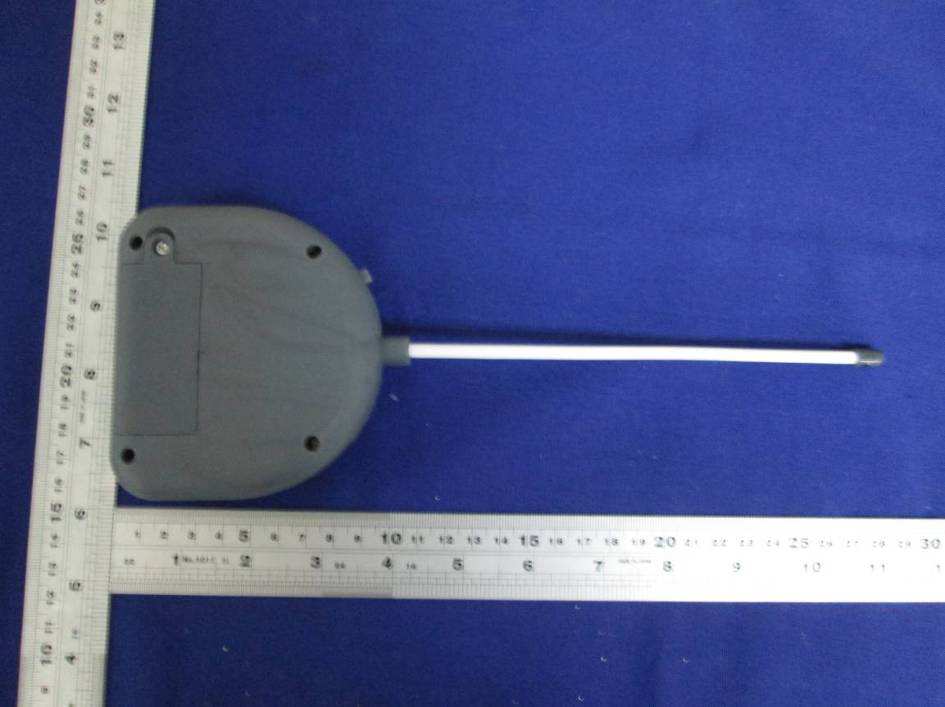

External Photos

Label Artwork and Location 40mm (W) X 19mm (H) FCC ID: YB7RCZZ27MHZJX14 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L1, C1, C3, C4, T1 RF IC Generate code signal to modulator IC1 Oscillator Generate 27.145 MHz carrier Y2, Q3 RF power amplifier and modulator Modulate the carrier and amplify the modulated RF signal Q2 Antenna Type: Integral antenna with plastic enclosure Antenna Gain: 0dBi Modulation Type: Pulse modulation The nominal conducted output power specified: -31.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -33.15dBm (+/- 3dB)

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a RC Tarantula operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by one 9.0V 6F22 size battery. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna with plastic enclosure Antenna Gain: 0dBi The nominal conducted output power specified: -31.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -33.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: T he worst-case peak radiated emission for the EUT is 63.4dBμV/m at 3m in the frequency 27.145MHz The EIRP = [(FS*D) ^2 / 30] mW= -31.83dBm The ERP = EIRP – 2.15 = -33.98dBm which is within the production variation. The maximun conducted output power specified is -28dB m =0.0016mW The source- based time-averaging conducted output power = 0.0016* Duty Cycle mW < 0.1mW (Duty Cycle<100%) T he SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 371.2 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 38.2ms Effective period of the cycle = 400μs x 34 + 1.48ms x 4 = 19.52ms DC = 19.52ms / 38.2ms = 0.5110 or 51.10% FCC ID: YB7RCZZ27MHZJX14
