YBM-MSM2050V2Wireless Remote Controller for Motorcycle Stereo Audio

三键遥控器使用说明书 Three keys remote control using instructions 一， 技术参数： Specification: Working frequency:工作频率： 433.92MHz±150KHz Modulation mode:调制方式： OOK 发射功率： ＜10mW Working voltage:工作电压： DC3V（2302纽扣电池） Working current: 工作电流： ＜8mA Enclode mode: 编码方式： LX2260 1.2M 二， 使用方法 Using instructions Push down the key+ on the remote, the transmitted LED will light at the same time , the transmitted signal is D3. Push off the key, transmitting will tranmilated and the LED will light off. 按下遥控器 + 键，发射指示灯亮，同时发射数据为D3的信号，放 开按键，遥控器停止发射，指示灯熄灭。 Push down the key – on the remote, the transmitted LED will light at the same time , the transmitted signal is D2. Push off the key, transmitting will tranmilated and the LED will light off. 按下遥控器 - 键，发射指示灯亮，同时发射数据为D2的信号，放 开按键，遥控器停止发射，指示灯熄灭。 Push down the key on the remote, the transmitted LED will light at the same time , the transmitted signal is D1. Push off the key, transmitting will tranmilated and the LED will light off. 按下遥控器 键，发射指示灯亮，同时发射数据为D1的信号，放 开按键，遥控器停止发射，指示灯熄灭。 三， 注意事项 Notation: Replace the battery if the remote distance becomes short or the LED light becomes dim. 若发射距离变近或指示灯变暗，请及时更换电池。

FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

1 2 34 ABCD 4 3 2 1 D CBA 当前时间 当前日期 2013/07/08 图名 绘制 图号 文件名 校对 审核 版本号 公司名称公司地址 YDW-XCB100-4-FCC-WQ A/0 VCC K2 K1 K3 R5 4.7K R8 4.7K A0 1 A1 2 A2 3 A3 4 A4 5 A5 6 A6 7 A7 8 GND 9 D3 10 D2 11 D1 12 D0 13 OSC1 14 DOUT 15 VCC 16 U1LX2260 R23M D0D1D2D3TXD VCC 18 HL A0A1A2A3A4A5A6A7 R6 4.7K R7 4.7K Q1 8550 K4 R4220RR322K +3V LED1RED R11K C44.7P C9475 L2 560NH C3 12P L1 68NH C620PC5 20P C11NC C1100P C10NC TXD ANT L3 22NH R9 100K VCC C27P PAOUT 1 GND 2 VDD 3 ASK 6 XTLIN 5 XTLOUT 4 U2MICRF113 X113.560MHz L1 0R C3104 VCCC7 NC

M2501~M7500

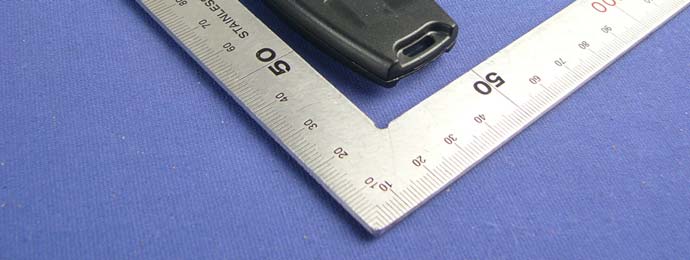

Report No: C130620Z14-RP External Photos of EUT Page 1 / 1
