YC3GLM300Wireless N module

ALPHA Proprietary and Confidential Information Product User Manual Model Number: GLM-300 Wireless N module User Manual /6 2 Revision History: DateReleaseAuthorDescription 2009/9/10.1Steven Chang Primarily Release 2010/3/180.2Steven Chang Remove feature to support Antenna diversity          /6 3 Introduction This module is the wireless networking device based on 802.11b/g technology and compatible for interoperability with 802.11n devices. This device provides up to 300Mbps transfer rate in the wireless network and let users access the Internet resource, sharing file, and email quickly and your wireless communications are protected by up to WPA2 encryption, so your data stays secure. The extremely small design makes it easy to install into new or existing wireless device and lets you to connect wirelessly to your network. It gives you the ability to roam at home or in the office without wires. Features Compatible with IEEE 802.11b/g and 802.11n Standard for 2.4GHz Wireless SoC solution combines 802.11n draft compliant 1T1R MAC/BBP/RF Up to 300Mbps High-Speed PHY transfer rate on the wireless LAN interface Works with All Existing Network Infrastructure. Compatible with Wi-Fi Wireless Products and Services. Capable of 64/128-Bit WEP, 256bit WPA and WPA2 Encryption One I-PEX Connectors for External Antenna Rich hardware interfaces (SPI/I2S/I2C/UART) to enable many possible applications. Support IEEE 802.3 full duplex flow control Support USB host mode Small-sized module with PCI-Express connector interface. Hardware Block Diagram /6 4 Qmfbtf!tff!uif!gjmf!pg!Cmpdl!ejbhsbn/! There are several BAT files for the Ralink testing. Init_DUT.bat, Cz_24g.bat, continu_tx.bat, BC24g.bat, BCM24gHT20.bat, BCM24gHT40.bat, BCM5g.bat, BCM5gHT20.bat, BCM5gHT40.bat 11b mode: 1. plug MiniPCI 2. executeInit_DUT.bat 3. executeCz_24g.bat channel datarate power antenna. Ex. Cz_24g.bat 1 11 18 0channel 1 datarate=11Mbps, power setting=18, antenna 0 4. continu_tx.bat 11g mode: 1. plug MiniPCI 2. executeBCM24g.bat channel datarate power Ex. BCM24g.bat 7 54 16channel 7 datarate=54Mbps, power setting=16, 11g HT20 mode: 1. plug MiniPCI 2executeBCM24gHT20.bat channel datarate power Ex. BCM24gHT20.bat 11 8 16channel 11 datarate=MCS 8, power setting=16, 11g HT40 mode: 1. plug MiniPCI 2executeBCM24gHT40.bat channel datarate power Ex. BCM24gHT40.bat 3 15 12channel 3 datarate=MCS 15, power setting=12, Operating Setup System Hardware Processor : Ralink RT-3050 Single Chip SoC 320MHz CPU CLK MIPS 24KEc 320MHz with 32KB I cache/16KB D cache Embedded 1Tx1R 2.4G CMOS RF Chipset maximum consumption 1.45W 802.11n 1T1R MAC/BBP 1 port 10/100Mbps PHY 16 bit 106MHz SDRAM Support 16 bit NOR FLASH (up-to 8 Mbytes) SDRAM: 32M Byte (16Mx16) Flash ROM: 4M Byte (2Mx16) 3.3V DC switching type power adapter Interface : 1x 10/100 Base-T LAN port Module with PCI-Express connector interface Other interface : UART, JTAG, GPIOs, WPS button, reset button Power Requirement: Operating Voltage: 3.3V DC TX consumption: TBDmA (Max) RX consumption: TBD mA (Max) System Software STANDARDS IEEE 802.11b/g IEEE 802.11n draft 2.0 IEEE 802.3 IEEE 802.3u System use Linux 2.6. WIRELESS SECURITY WEP (64/128 bit) /6 5 WPA / WPA2 QOS- WMM, WMM Power Save Output power: 11b: 17dBm (AVG Power) 11g/n: 15dBm (AVG Power) 22c;!2:/:eCn! 22h;!35/6eCn! 913/22o!)31NI{*;!35/3eCn! 913/22o!)51NI{*;!35/3eCn! Physical dimensions & Environmental Dimensions: 46mm(L) x 40mm(W) x 5.6mm(H) Operation Temperature: 0к~40к ( 32л to 104л) PIN Description TBD PCB Dimension PCBA dimension : TBD mm(W) x mm(H) PCI-Express dimenstion: 46mm(L) ------END------ /6 6 * Recommend operating under the condition of good airflow Storage Temperature: -25к~55к (-13л to 131л) Humidity: 5%~95% non-condensing. * Environmental factors may affect actual range Safety and Emission (Base on region and customer’s request) EMI: FCC class B, CE lass B Safety: UL, TUV EMI: FCC 15C/ FCC MPE/ NCC LP0002 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to…

Text truncated - open the document above for the full version.

General Declaration We, KEEBOX, Inc. declare that device does not have "Ad-Hoc on non-US frequencies"" while applying for the follow product. FCC 10: YC3GLM300 If you have any questions regarding the authorization, please don't hesitate to contact us. Sincerely yours, KEEBOX, Inc. TEL: 310-961-5480 FAX: 310-961-5511 E-mail: [email protected] 2010/11/11

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: YC3GLM300 Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanYl11g documentation will not be made before the date of the Grant for this application. Sincerely yours, KEEBOX, Inc. TEL: 310-961-5480 FAX: 310-961-5511 E-mail: [email protected] 2010/11/11

Power of Attorney To whom it may concern: We, the undersigned KEEBOX, Inc. hereby authorize BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan on our behalf shall have the same effects as acts of our own. FCC 10: YC3GLM300 If you have any questions regarding the authorization, please don't hesitate to contact us. Sincerely yours, ~~ Sonny Su / OirectorornchnOIOgy KEEBOX, Inc. TEL: 310-961-5480 FAX: 310-961-5511 E-mail: [email protected] 2010/11/11

FCC ID: YC3GLM300 Report No.: RF990928E01 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Nov. 22, 2010 Dear Application Examiner, KEEBOX, Inc, It’s a Wireless N module, FCC ID: YC3GLM300 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip RT3050. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is RT3050. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: YC3GLM300 Report No.: RF990928E01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

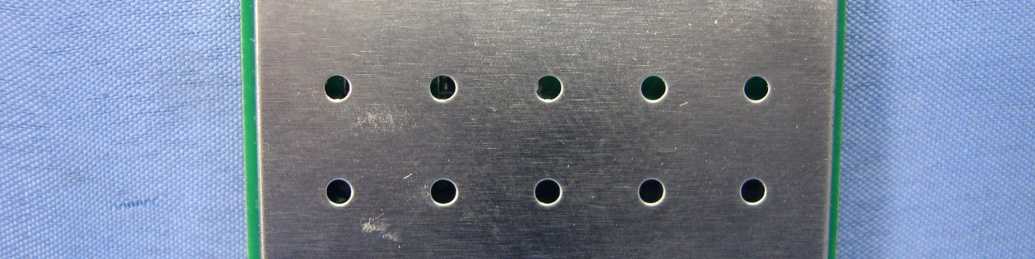

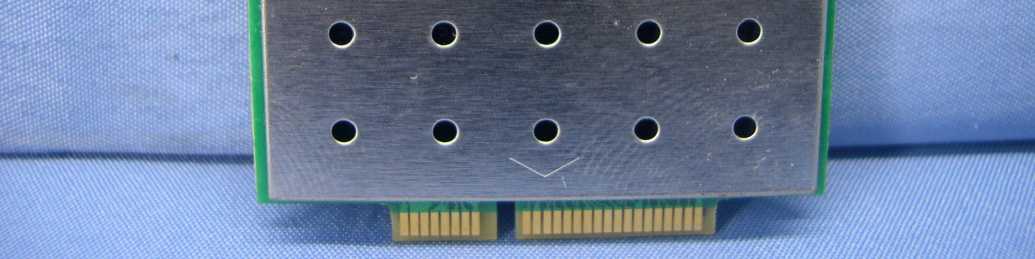

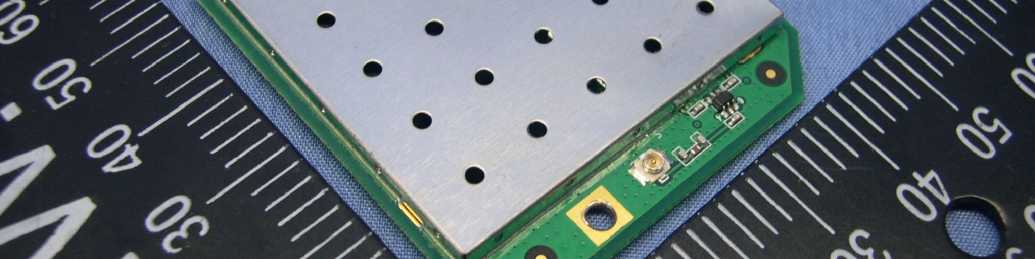

Page 1 CONSTRUCTION PHOTOS OF EUT EUT + Antenna: WSS002 (0dBi) Page 2 EUT + Antenna: WSS002 (-0.6dBi) Page 3 EUT + Antenna: C037-510958-A Page 4 EUT + Antenna: C037-510959-A Page 5 EUT + Antenna: C037-511005-A Page 6 EUT + Antenna: C037-511023-A Page 7

FCC ID： YC3GLM300 FCC Label Drawing FCC Label Location

Page 8 Page 9 Page 10 Antenna: WSS002(0dBi) Page 11 Antenna: WSS002(-0.6dBi) Page 12 Antenna: C037-510958-A Antenna: C037-510959-A Page 13 Antenna: C037-511005-A Page 14 Antenna: C037-511023-A Page 15

FCC ID: YC3GLM300 Report No.: RF990928E01 Operational Description This device is a Wireless N module, which operates in 2.4GHz band; the maximum data rate could be up to 150Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 3.3V±10%dc from the host equipment. The antennas are Dipole and PIFA antennas with I-PEX antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA990928E01 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990928E01 MODEL NO.: GLM-300 FCC ID: YC3GLM300 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: KEEBOX, Inc ADDRESS: P.O. Box 2290, Gardena, CA 90247-9998 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA990928E01 Report Format Version 3.0.1 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA990928E01 Report Format Version 3.0.1 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA990928E01 Report Format Version 3.0.1 4 6. TEST RESULTS 6.1 Antenna Gain There are six sets of antennas provided to this EUT, please refer to the following table: Antenna type Color Manufacture Model name Antenna Gain (dBi) (Included cable loss) Cable Model Cable length (mm) Connector type WSS002 0 THW0796A 80 I-PEX Black WANSHIH ELECTRON IC CO., LTD. WSS002 -0.6 SHW0795A1 150 I-PEX C037-510958-A 1.3 NA 50 I-PEX C037-510959-A 1.3 NA 70 I-PEX Dipole White C037-511005-A 1.2 NA 90 I-PEX PIFA Gray WHA YU GROUP C037-511023-A 1.73 NA 85 I-PEX Above antennas, models: C037-510958-A & C037-511023-A were chosen for final test. Report No.: SA990928E01 Report Format Version 3.0.1 5 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Dipole Antenna: 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 70.8 0.019 1.0 6 2437 95.5 0.026 1.0 11 2462 97.7 0.026 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 281.8 0.076 1.0 6 2437 257.0 0.069 1.0 11 2462 251.2 0.067 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 263.0 0.071 1.0 6 2437 257.0 0.069 1.0 11 2462 251.2 0.067 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 263.0 0.071 1.0 4 2437 263.0 0.071 1.0 7 2452 229.1 0.061 1.0 Report No.: SA990928E01 Report Format Version 3.0.1 6 For PIFA Antenna: 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 70.8 0.021 1.0 6 2437 95.5 0.028 1.0 11 2462 97.7 0.029 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 281.8 0.083 1.0 6 2437 257.0 0.076 1.0 11 2462 251.2 0.074 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 263.0 0.078 1.0 6 2437 257.0 0.076 1.0 11 2462 251.2 0.074 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 263.0 0.078 1.0 4 2437 263.0 0.078 1.0 7 2452 229.1 0.068 1.0 --- END ---
