YC3W150NRWIRELESS N 150 HOME ROUTER

KEEBOX Wireless 11n Router i Table of Contents Table of Contents ........................................................................................................................................... i Before you Begin........................................................................................................................................... 1 Installation Notes ....................................................................................................................................... 1 Information you will need from your ADSL service provider ..................................................................... 2 Information you will need about the Router............................................................................................... 3 Information you will need about your LAN or computer ............................................................................ 3 Wireless Tips ............................................................................................................................................. 4 Device Installation ..................................................................................................................................... 5 Power on Router ........................................................................................................................................... 5 Factory Reset Button .................................................................................................................................... 5 Network Connections ................................................................................................................................ 6 Package Contents ......................................................................................................................................... 6 System Requirements ................................................................................................................................... 6 Hardware Overview....................................................................................................................................... 7 Connections............................................................................................................................................... 7 LEDs .......................................................................................................................................................... 8 WPS Button ............................................................................................................................................... 8 Installation ..................................................................................................................................................... 9 Configuration ................................................................................................................................................. 9 Web-based Configuration Utility ................................................................................................................ 9 System..................................................................................................................................................... 10 Status ................................................................................................................................................... 10 LAN ...................................................................................................................................................... 10 DHCP ................................................................................................................................................... 12 Schedule .............................................................................................................................................. 13 Event Log ............................................................................................................................................. 14 Wizard...................................................................................................................................................... 15 Internet..................................................................................................................................................... 20 Status ................................................................................................................................................... 20 Dynamic IP........................................................................................................................................... 21 Static IP................................................................................................................................................ 22 PPPoE.................................................................................................................................................. 23 PPTP.................................................................................................................................................... 23 L2TP..................................................................................................................................................... 25 Wireless 2.4GHZ ..................................................................................................................................... 26 Basic .................................................................................................................................................... 26 Advanced ............................................................................................................................................. 27 Security ................................................................................................................................................ 28 WPS .........................................................…

Text truncated - open the document above for the full version.

KEEBOX Wireless 11n Router 25 L2TP Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection. Your ISP will provide you with a username and password. This option is typically used for DSL services. Fields Description WAN Interface Type Use the drop-down list to choose between Dynamic IP and Static IP. Hostname The selection appears when choosing Dynamic IP in WAN Interface Type. This field is optional, but may be required by some ISPs. The default host name is the device name of the Router and may be changed. MAC address The selection appears when choosing Dynamic IP in WAN Interface Type. The default MAC address is set to the WAN’s physical interface MAC address on the Router. You can use the Clone MAC button to copy the MAC address of the Ethernet Card installed by your ISP and replace the WAN MAC address with the MAC address of the Router. It is not recommended that you change the default MAC address unless required by your ISP. My IP address The selection appears when choosing Static IP in WAN Interface Type. Enter the IP address assigned by your ISP. My Subnet Mask Enter the subnet mask assigned by your ISP. Gateway IP Address Enter the Gateway assigned by your ISP. Login Enter the L2TP login name. Password Enter the L2TP password. Service IP address Enter the ISP service IP address. MTU Maximum Transmission Unit is for optimal performance with some ISPs. Type Use the drop-down list to select Keep Connection, Automatic Connection or Manual Connection. KEEBOX Wireless 11n Router 26 Idle Timeout This is an age-out value, in minutes, before the Router times out. Click Apply to save the changes. Wireless 2.4GHZ This chapter provides more manual settings about Wireless connection. Basic This window allows you to define SSID and the channel for the wireless connection. Fields Description Radio Use the radio buttons to enable or disable the wireless function. Schedule Use the drop-down list to choose the appropriate time to enable the wireless function. Select Always to enable the function all the time. To create a new schedule, click New Schedule to link to System > Schedule. Wireless Mode Use the drop-down list to choose the type of wireless. SSID Service Set Identifier (SSID) is the name of the wireless network. Auto channel Click Enable to allow the Router to select the channel with the least amount of interference. Click Disable to manually select the channel below. Channel Use the drop-down list to select the channel of wireless network. WMM Enable Tick the check box to enable Wi-Fi Multimedia to enjoy basic quality of service features. Click Apply to save the changes. KEEBOX Wireless 11n Router 27 Advanced This window allows you to change the behavior of the 802.11g wireless radio from the standard settings. Be aware that any changes to the factory default settings may adversely affect the behavior of your network. Fields Description Fragment Threshold The fragmentation threshold, which is specified in bytes, determines whether packets will be fragmented. RTS Threshold This value should remain at its default setting of 2346. If inconsistent data flow is a problem, only a minor modification should be made. Beacon Interval Beacons are packets sent by an Access Point to synchronize a wireless network. Specify a value. 100 is the default setting and is recommended. DTIM Period A DTIM is a countdown informing clients of the next window for listening to broadcast and multicast messages. Preamble Type Select Short or Long Preamble. The Preamble defines the length of the CRC block for communication between the wireless router and the roaming wireless network adapters. CTS Protection CTS is a function used to minimize collisions among wireless devices on a wireless local area network (LAN). CTS will make sure the wireless network is clear before a wireless client attempts to send wireless data. Enabling CTS will add overhead and may lower wireless through put. Band Width Use the drop-down list to select the bandwidth. Select 20/40 MHz (Auto) if you are using both 802.11n and non-802.11n wireless devices. Select 20 MHz if you are not using any 802.11n wireless clients. KEEBOX Wireless 11n Router 28 Tx Power Use the drop-down list to select the percentage of Tx Power. Short Guard Interval Check this box to reduce the guard interval time therefore increasing the data capacity. However, it’s less reliable and may create higher data loss. Click Apply to save the changes. Security This window allows you to configure the wireless security settings. Fields Description Broadcast SSID Use the drop-down list to broadcasting the SSID or not. WMM Use the drop-down list to enable or disable Wi-Fi Multimedia. Encryption Use the drop-down list to select the wireless security mode. The available choices are WEP, WEA Only, WPA2 Only and WPA/WPA2 Mixed. WEP Select WEP from the Encryption drop-down list to see the following window. KEEBOX Wireless 11n Router 29 Fields Description Authentication type Click the radio buttons to select Open System or Shared Key. Shared key provide greater security. Key Length Select either 64Bit or 128Bit encryption from the drop-down list. Key type Select ASCII (5 characters) or ASCII (10 characters) from the drop-down list. Default key Select the default key for the wireless from the drop-down list. Encryption Key 1 to 4 Enter WEP key here. Make sure you enter this key exactly on all your wireless devices. Click Apply to save the changes. WPA Only / WPA2 Only / WPA/WPA2 Mixed Select other types of wireless security modes from the Encryption drop-down list to see the following window. KEEBOX Wireless 11n Router 30 Fields Description PSK / EAP type Use the radio button to select PSK or EAP type. WPA type Use the radio button to select TKIP, AES or Mixed type. RADIUS Server IP address Enter the IP address of a RADIUS server. RADIUS Server port Enter the port you are using with the RADIUS server. RADIUS Server password Enter the passport of the RADIUS server. Click…

Text truncated - open the document above for the full version.

Attestation for FCC Declaration of Conformity FCC 10: YC3W150NR Data: Jun. 30, 2010 Please be notified that we, the undersigned, KEEBOX, Inc. declare that the product which bears the above FCC 10 is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 104234R-ITUSP02V02. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District" Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Sonny Su / Director of ~chnology KEEBOX, Inc. Tel: (310) 961-5480 E-mail: [email protected]

K eB x P.O. Box 2290, Gardena, CA 90247 U.S.A Federal Communications Commission Jun. 30,2010 Authorization and Evaluation Division ATTESTATION FCC ID: YC3W150NR Product: WIRELESS N 150 HOME ROUTER Model: W150NR We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. We also promise that the end user or installer will not be able to change countries. For United States only channels 1-11 will be available. Best Regards Sonny Su I Director of Tec logy KEEBOX, Inc. Tel: (310) 961-5480 E-mail: [email protected]

P.O. Box 2290, Gardena, CA 90247 U.SA K E x Declaration of Authorization We Name: KEEBOX, Inc. Address: P.O. Box 2290 City: Gardena Country: United States Declare that: Name Representative of agent: Gene Chang Agent Company name: QuieTek Corporation Address: 2F, No. 345, Xinhu 2nd Rd., Neihu District, City: Taipei City 114, Country: Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: WIRELESS N 150 HOME ROUTER Type designation: W150NR Tffidema~: KEEBOX FCC ID: YC3W150NR on our behalf. Date: 2010/06/30 Signature: I Sonny Su / Director of T~ nology KEEBOX, Inc. \j Tel: (310) 961-5480 E-mail: [email protected]

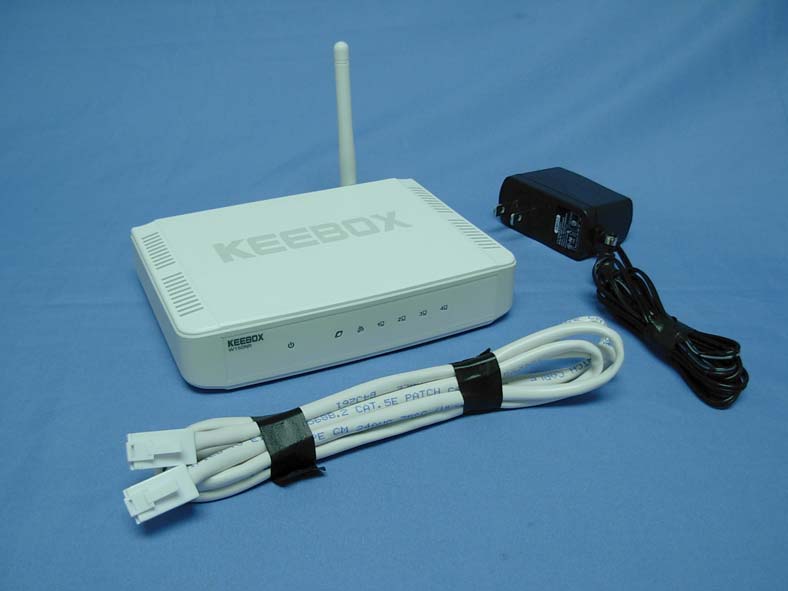

Report No： 104234R-RFUSP05V01 Page: 162 of 170 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

KEEBOX, Inc. P.O. Box 2290, Gardena, CA 90247 U.S.A. FCC ID.: YC3W150NR FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wireless N 150 Home Router Model No.: W150NR FCC ID : YC3W150NR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: KEEBOX Model number.: W150NR

KEEBOX, Inc. P.O. Box 2290, Gardena, CA 90247 U.S.A. FCC ID.: YC3W150NR FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wireless N 150 Home Router Model No.: W150NR FCC ID : YC3W150NR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: KEEBOX Model number.: W150NR

Report No： 104234R-RFUSP05V01 Page: 163 of 170 (3) EUT Photo (4) EUT Photo Report No： 104234R-RFUSP05V01 Page: 164 of 170 (5) EUT Photo (6) EUT Photo Report No： 104234R-RFUSP05V01 Page: 165 of 170 (7) EUT Photo (8) EUT Photo Report No： 104234R-RFUSP05V01 Page: 166 of 170 (9) EUT Photo (10) EUT Photo (Antenna) Report No： 104234R-RFUSP05V01 Page: 167 of 170 (11) EUT Photo (Antenna) (12) EUT Photo Report No： 104234R-RFUSP05V01 Page: 168 of 170 (13) EUT Photo (14) EUT Photo Report No： 104234R-RFUSP05V01 Page: 169 of 170 (15) EUT Photo Report No： 104234R-RFUSP05V01 Page: 170 of 170 (16) EUT Photo

Report No. 104234R-RF-US-Exp Page: 1 of 5 RF Exposure Evaluation declaration Product Name ：Wireless N 150 Home Router Model No. ：W150NR FCC ID. ：YC3W150NR Applicant : KEEBOX, Inc. Address : P.O. Box 2290, Gardena, CA 90247 U.S.A. Date of Receipt : 2009/03/24 Date of Declaration : 2010/06/10 Report No. : 104234R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 104234R-RF-US-Exp Page: 2 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 104234R-RF-US-Exp Page: 3 of 5 1.3. Test Result of RF Exposure Evaluation Product Wireless N 150 Home Router Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.8dBi or 1.51 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 76.2079 0.02395 6 2437 76.5597 0.02407 11 2462 78.3430 0.02463 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 234.4229 0.07369 6 2437 235.5049 0.07403 11 2462 260.6154 0.08192 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 104234R-RF-US-Exp Page: 4 of 5 Product Wireless N 150 Home Router Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.8dBi or 1.58 in linear scale. IEEE 802.11n (ANT A (20M)) Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (ANT A (20MHz)) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 179.4734 0.02279 6 2437 180.3018 0.05667 11 2462 189.6706 0.05962 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 104234R-RF-US-Exp Page: 5 of 5 Product Wireless N 150 Home Router Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.8dBi or 1.58 in linear scale. IEEE 802.11n (ANT A (40M)) Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (ANT A (40M)) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 186.6380 0.05867 6 2437 187.9317 0.05907 9 2452 196.7886 0.06186 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 104234R-RFUSP05V01 Page: 1 of 170 Test Report Product Name ：Wireless N 150 Home Router Model No. ：W150NR FCC ID. ：YC3W150NR Applicant ： KEEBOX, Inc. Address ： P.O. Box 2290, Gardena, CA 90247 U.S.A. Date of Receipt：2009/03/24 Issued Date ：2010/06/10 Report No. ：104234R-RFUSP05V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 104234R-RFUSP05V01 Page: 2 of 170 Test Report Certification Issued Date : 2010/06/10 Report No. : 104234R-RFUSP05V01 Product Name ： Wireless N 150 Home Router Applicant ： KEEBOX, Inc. Address ： P.O. Box 2290, Gardena, CA 90247 U.S.A. Manufacturer ： Alpha Networks Inc. Model No. ： W150NR FCC ID. ： YC3W150NR Rated Voltage : AC 120 V / 60 Hz EUT Voltage : AC 100~240 V, 50 / 60 Hz Trade Name ： KEEBOX Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247:2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Demi Chang / Engineering Adm. Specialist ) Reviewed By : ( Rita Hsu / Assistant Engineer ) Approved By : ( Roy Wang / Manager ) Report No： 104234R-RFUSP05V01 Page: 3 of 170 TABLE OF CONTENTS Description Page 1. General Information........................................................................................................ 5 1.1. EUT Description ............................................................................................................. 5 1.2. Operational Description .................................................................................................. 9 1.3. Test Mode ..................................................................................................................... 10 1.4. Tested System Details .................................................................................................. 11 1.5. Configuration of tested System .................................................................................... 12 1.6. EUT Exercise Software ................................................................................................ 13 1.7. Test Facility...................................................................................................................14 2. Conducted Emission .................................................................................................... 15 2.1. Test Equipment............................................................................................................. 15 2.2. Test Setup .................................................................................................................... 15 2.3. Limits ............................................................................................................................ 16 2.4. Test Procedure ............................................................................................................. 16 2.5. Uncertainty ................................................................................................................... 16 2.6. Test Result....................................................................................................................17 2.7. Test Photo .................................................................................................................... 25 3. Peak Power Output ...................................................................................................... 26 3.1. Test Equipment............................................................................................................. 26 3.2. Test Setup .................................................................................................................... 26 3.3. Test procedures ............................................................................................................ 26 3.4. Limits ............................................................................................................................ 26 3.5. Uncertainty ................................................................................................................... 26 3.6. Test Result....................................................................................................................27 4. Radiated Emission ....................................................................................................... 33 4.1. Test Equipment............................................................................................................. 33 4.2. Test Setup .................................................................................................................... 33 4.3. Limits ............................................................................................................................ 34 4.4. Test Procedure ............................................................................................................. 34 4.5. Uncertainty ................................................................................................................... 34 4.6. Test Result....................................................................................................................35 4.7. Test Photo .................................................................................................................... 75 5. RF antenna conducted test .......................................................................................... 77 5.1. Test Equipment............................................................................................................. 77 5.2. Test Setup .................................................................................................................... 77 5.3. Limits ..............................................................................................…

Text truncated - open the document above for the full version.

Report No： 104234R-RFUSP05V01 Page: 25 of 170 2.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Conducted Emission Test Setup Report No： 104234R-RFUSP05V01 Page: 75 of 170 4.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bilog) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bilog) Report No： 104234R-RFUSP05V01 Page: 76 of 170 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn)
