ENGLISH PS3™ - Before you can play Playstation 3 games with the You Rock Guitar®, you have to Make sure the Gameflex™ wireless cartridge is paired with your USB dongle. In most cases it is shipped this way. To see if your guitar is paired with the Gameflex™ 1. Insert the You Rock Wireless Gameflex™ cartridge into the You Rock Guitar®. 2. Connect the You Rock Wireless USB dongle to the console’s USB port. 3. Press GAME on the You Rock Guitar®. If the LED displays “2” (not blinking), your Gameflex™ cartridge is already ‘paired’ to the USB dongle. If the LED display blinks “2,” the guitar is not yet ‘paired’. To pair to the USB dongle in your console: 1. Press the button on the Gameflex™ cartridge in your guitar. 2. Press the button on the Gameflex™ Wireless USB dongle (connected to your PS3 game console). The dongle LED blinks rapidly. When it stops blinking, the “2” on your Guitar will also stop blinking and your You Rock Guitar® is ready to play with your Playstation 3 console. Wii™ Before you can play Wii games with the You Rock Guitar®, you have to “sync” it with your console. To sync to the Wii: Insert the Wii BlueTooth Gameflex™ cartridge in your You Rock Guitar®. Open the front panel on your Wii game console, and press the red Sync button. On the control panel, press the GAME button. The display blinks a #1 when not in sync. The #1 will be solid when in sync. If the You Rock Guitar® does not sync, press the RECORD button. The LED display blinks for a moment, and then reads a solid “1” to indicate that the sync was successful. Once the You Rock Guitar® has synced to your Wii, the Wii will recognize it every time you use it. If there is a problem syncing please repeat the process or reboot the guitar. Our You Tube Channel also has a video on syncing to the Wii. FRANCAIS PS3™ - Avant de pouvoir utiliser les jeux Playstation 3 avec la guitare You Rock Guitar®, vérifiez que la cartouche Gameflex™ soit appairée au dongle USB. Dans la plupart des cas, le dongle est fourni directement appairé. Pour vérifier si la guitare est appairée avec la cartouche Gameflex™ : 1. Insérez la cartouche sans fil Gameflex™ dans la You Rock Guitar®. 2. Connectez le dongle sans fil USB au port USB de la console. 3. Appuyez sur la touche GAME de la guitare You Rock®. Si l’écran LED affiche “2” (et ne clignote pas), la cartouche Gameflex™ est déjà appairée au dongle USB. Si l’écran affiche “2” et clignote, la guitare n’est pas encore appairée. Pour appairer la guitare au dongle USB de la console : 1. Appuyez sur la touche de la cartouche Gameflex™ de la guitare. 2. Appuyez sur la touche du dongle USB de communication sans fil Gameflex™ (connecté à la console de jeu PS3). La led du dongle clignote rapidement. Lorsqu’elle cesse de clignoter, le numéro “2” sur la guitare cesse également de clignoter et vous pouvez utiliser la guitare You Rock Guitar® avec votre console Playstation 3. Wii™ - Avant de jouer aux jeux de la Wii avec la guitare You Rock Guitar®, vous devez la “synchroniser” à votre console. Pour synchroniser la guitare à la Wii : Insérez la cartouche Gameflex™ BlueTooth Wii dans la guitare You Rock Guitar®. Ouvrez le compartiment avant de la console de jeu Wii, et appuyez sur la touche rouge Sync. Sur la guitare, appuyez sur la touche GAME. L’écran affiche le numéro 1 en clignotant, lorsque La guitare n’est pas synchronisée. Le numéro 1 reste allumé lorsque la guitare est synchronisée. Si La guitare You Rock® n’est pas synchronisée, appuyez sur la touche RECORD. L’écran Led clignote pendant un instant, puis affiche le numéro “1” qui ne clignote plus et indique que la synchronisation est achevée. Une fois que vous avez synchronisé la You Rock Guitar® avec la Wii, la Wii la reconnaît à chaque utilisation. En cas de problème de synchronisation, répétez le processus ou rebootez la guitare. Notre chaîne vidéo sur You Tube vous montre le film d’installation avec la Wii. ESPAÑOL PS3™ - Antes de que pueda controlar sus juegos Playstation 3 con la You Rock Guitar®, deberá asegurarse de que el cartucho inalámbrico Gameflex™ esté emparejado a su mochila USB. Habitualmente ya vienen de fábrica así. Para comprobar que su guitarra esté emparejada con el Gameflex™ 1. Introduzca en la You Rock Guitar® el cartucho You Rock Wireless Gameflex™. 2. Conecte la mochila USB You Rock Wireless al puerto USB de su consola. 3. Pulse GAME en la You Rock Guitar®. Si en la pantalla LED aparece “2” (fijo, sin parpadear), eso indicará que el cartucho Gameflex™ ya está ‘emparejado’ con la mochila USB. Si en la pantalla LED aparece “2” parpadeando, eso querrá decir que la guitarra todavía no está correctamente ‘emparejada’. Para emparejarlo a la mochila USB de su consola: 1. Pulse el botón del cartucho Gameflex™ de su guitarra. 2. Pulse el botón de la mochila USB del Gameflex™ Wireless (conectado a su consola PS3). El piloto de la mochila parpadeará rápidamente. Cuando deje de hacerlo, la indicación “2” de su guitarra también dejará de parpadear y su You Rock Guitar® ya estará lista para que la pueda usar con su consola Playstation 3. Wii™ - Antes de que pueda controlar sus juegos Wii con la You Rock Guitar®, deberá “sincronizarla” con su consola.Para sincronizarla con la Wii: Introduzca en su You Rock Guitar® el cartucho Wii BlueTooth Gameflex™ . Abra el panel frontal de su consola Wii y pulse el botón rojo Sync. En el panel de control pulse el botón GAME. En la pantalla aparecerá un #1 parpadeando si la guitarra no está sincronizada, mientras que dicho #1 quedará iluminado fijo si la sincronización es correcta. Si la You Rock Guitar® no se sincroniza, pulse el botón RECORD. La indicación de la pantalla LED parpadeará durante un momento y después aparecerá un “1” fijo para indicar que la sincronización ha sido correcta. Una vez que la You Rock Guitar® esté sincronizada con la Wii, la consola la reconocerá cada vez que la use. Si se produce algún problema durante la sincronización, repita todo el proceso o reinicie la guitarra. También …

Text truncated - open the document above for the full version.

2.4GHz wireless Cartridge Block: Microcontroller U1 2.4GHz RF Transceiver EM198810-24L U3 Antenna Matching Circuit Crystal 12MHz 2.402~2.481GHz SPI Interface to Guitar RF24DT-10DSUJA Module 2.4GHz RF Transceiver Block:

INSPIRED Instruments Inc Letter of Agency I, an officer of Inspired Instruments, Inc do hereby authorize Intertek Testing Services (Mr. Ben Ho) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 29 th day of April 2010 Cliff Elion President, Inspired Instruments, Inc.

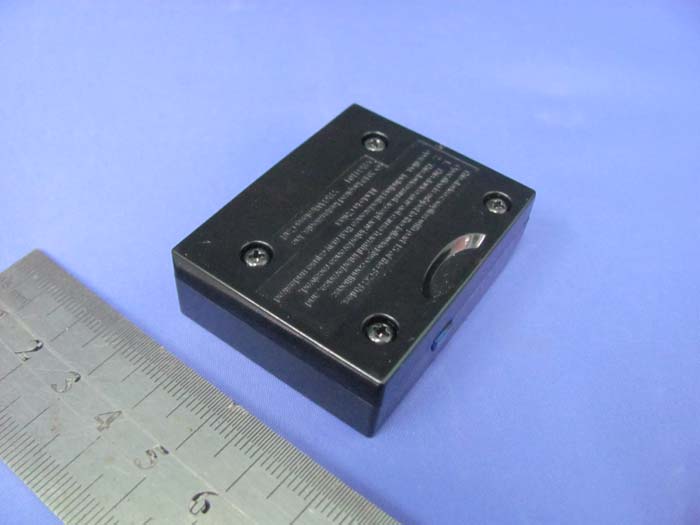

INTERTEK TESTING SERVICE Report No.: HK10031485-1 FCC ID: YC8-YRG1101-00 IC: 9018A-YRG110100 Equipment Photographs Model : YRG1101 (External)

Label size of FCC statement: 45mm X 12mm Label size of FCC ID & IC: 25mm X 5mm Label Location

INTERTEK TESTING SERVICE Report No.: HK10031485-1 FCC ID: YC8-YRG1101-00 IC: 9018A-YRG110100 Equipment Photographs Model : YRG1101 (Internal) INTERTEK TESTING SERVICE Report No.: HK10031485-1 FCC ID: YC8-YRG1101-00 IC: 9018A-YRG110100 Equipment Photographs Model : YRG1101 (Internal) INTERTEK TESTING SERVICE Report No.: HK10031485-1 FCC ID: YC8-YRG1101-00 IC: 9018A-YRG110100 Equipment Photographs Model : YRG1101 (Internal)

Technical Description: The equipment under test (EUTs) is a 2.4GHz transceiver which is designed for a plug in radio device intends to be used with host of “You Rock Guitar”. This wireless cartridge operates at frequency range of 2402MHz to 2481MHz with 1MHz channel spacing. The EUT is powered by four AA size battery of the “You Rock Guitar”. When the wirless cartridge was inserted to Guitar, then the EUT will pair with corresponding Dongle for wireless data transfer. Operating Frequency Band: 2.402GHz ~ 2.481GHz Modulation Method: GFSK. The functions of main ICs are mentioned as below. 1) U3 acts as 2.4GHz RF transceiver 2) U1 acts as Microcontroller. 3) U2 acts as EEPROM. EM198810 Datasheet INTEGRATED CIRCUIT Elan Design DATA SHEET EM198810 2.4 GHz ISM Band Transceiver/Framer IC Preliminary Data Sheet ELAN MICROELECTRONICS CORP. No.12, Innovation 1 st RD., Science-based Industrial Park Hsin Chu, Taiwan, R.O.C. TEL: (03) 5639977 FAX: (03) 5782037(SL) 5630118 (SA2) This spec is subject to change without any notice 1 / 18 24.Dec.2006 EM198810 Datasheet INTEGRATED CIRCUIT Elan Design CONTENTS 1. Features 2. Block Diagram 3. Pins/pads name and pins/pads location 3.1 Pins name 3.2 Package outline 3.3 Pads name and location 3.4 Order information 4. Digital Base Band Interface 4.1 SPI Command Format 4.2 Register Information 4.2.1 Package type define and FIFO point set 4.2.2 Digital Interface 4.2.3 Typical Register Values 4.2.4 State Diagram 5. Electrical Characteristics 6. Application Reference Design 7. Soldering This spec is subject to change without any notice 2 / 18 24.Dec.2006 EM198810 Datasheet INTEGRATED CIRCUIT Elan Design 2.4 GHZ ISM BAND TRANSCEIVER/FRAMER IC 1. FEATURES The EM198810 is a CMOS integrated circuit that performs all functions from the antenna to the microcontroller for transmission and reception of a 2.4GHz digital data. This transceiver IC integrates most of the functions required for data transmission into a single integrated circuit. Additionally, the programmability implemented reduces significantly external components count, board space requirements and external adjustments. Key Features: - Combines 2.4 GHz GFSK RF transceiver with 8-bit data framer function - Eliminates need for external software or hardware FIFO; offloads MCU for other tasks - Simple microprocessor interface – 4 wires for SPI, plus 3 wires for RST/buffer control - Each transmit, receive buffer is 64 bytes deep - Long packets are possible if buffers are read/written before overflow/underflow occurs - Always 1Mbps over-the-air symbol rate, regardless of MCU speed or architecture - Preamble can be 1 to 8 bytes - Supports 1, 2, 3, or 4 word address (up to 64 bits) - Various Payload data formats to eliminate DC offset, enhance receive clock recovery and BER - Programmable data whitening - Supports Forward Error Correction (FEC): none, 1/3, or 2/3 - Supports 16-bit CRC - Baseband output clock available - Power management for minimizing current consumption - 5x5mm QFN package with minimum RF parasitic - Lead-free packaging and dice is available on request Applications - Wireless devices that need quick time-to-market - Simple and fast wireless data networks - Cordless headsets and Cellular Phones - Wireless streaming audio - Wireless voice and VOIP - Wireless Skype earphone - Home and factory automation - Wireless security and access control - Battery Powered wireless devices This spec is subject to change without any notice 3 / 18 24.Dec.2006 EM198810 Datasheet INTEGRATED CIRCUIT Elan Design 1.1 Description The Elan EM198810 IC is a low-cost, fully integrated CMOS radio frequency (RF) transceiver block, combined with a 64-byte buffered framer block. The RF transceiver block is a self-contained, fast- hopping GFSK data modem, optimised for use in the widely available 2.4 GHz ISM band. It contains transmit, receive, VCO and PLL functions, including an on-chip channel filter and resonator, thus minimizing the need for external components. The receiver utilizes extensive digital processing for excellent overall performance, even in the presence of interference and transmitter impairments. Transmit power is digitally controlled. The low-IF receiver architecture results in sensitivity to -80dBm or better, with impressive selectivity. In normal applications, the EM198810 is connected to a low cost microcontroller(ex:EM78P451S). In normal application The on-chip framer processes and stores the RF data in the background, unloading this critical timing function from the MCU. This lowers MCU speed requirements, expedites product development time, and frees the MCU for implementing additional product features. The framer register settings determine the over-the-air formatting characteristics. Many configurations are possible, depending on the user’s specific needs. Raw transmit data is easily sent over-the-air as a complete frame of data, with preamble, address, payload, and CRC. Receiving data is just the opposite, using the preamble to train the receiver clock recovery, then the address is checked, then the data is reverse formatted for receive, followed by CRC. All of this is done in hardware to ease the programming and overhead requirements of the baseband MCU. For longer battery life, power consumption is minimized by automatic enabling of the various transmit, receive, PLL, and PA sections, depending on the instantaneous state of the chip. A sleep mode is also provided for ultra low current consumption. This product is available in 32-lead 5x5 mm JEDEC standard QFN package, featuring an exposed pad on the bottom for best RF characteristics. Lead-free RoHS compliant packaging is available on request. This spec is subject to change without any notice 4 / 18 24.Dec.2006 EM198810 Datasheet INTEGRATED CIRCUIT Elan Design 2. Block diagram ANT TX M OD_ trim 2. 4 G HZ G FSK Transmi tter 2. 4 G HZ GFSK Receiver Clock Recov. Oscil l ator / Bu ffer Analog PLL (A PLL) RF Synth e s i zer TX D a t a L o w Dro pout Vo ltag…

Text truncated - open the document above for the full version.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 21-Oct-2009 Sheet of File: E:\ 舊電腦備份 \Di sk -D\Schemati c_20 09\Wi i\Wi i_2.4G wirel es s_Gu it ar\Wi i_2.4G-RF_Gu it ar_Dev ice_SGW 0 Drawn By: Wii_2.4GHz_RF_Guitar_Device_SGW02-3_V1.0.Sch X1 12M C139P C29P VSS 41 INT 42 DATA 43 CLK 44 P90 1 P91 2 P92/SDI 3 P93/SDO 4 P50 7 P51 8 P54 11 P56 13 P57 14 P80 15 P81 16 P82 18 P83 19 P84 20 P85 21 P86 22 P87 23 P60 24 P61 25 P62 26 P63 27 P64 28 P65 29 P66 30 P67 31 P72 32 P71 33 P70 34 VDD 38 OSCI 39 OSCO 40 P94/SCLK 5 P95/SS 6 P52 9 P53 10 P55 12 NC 17 NC 37 NC 35 NC 36 U1EM78P452 C8 104 A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 U2Atmel 24C02 OSCI C3 47P VCC R3 240K C6104 + C7100uF VCC C5104 R147K VCC VCCVCC RESET R4 56K R5 56K VCC VCC ,10ppm T1 2.4GHz RF Module C9 & Y1 pad RF_VDD 123456789 RF1RF24DT-10DSUJA 2.4GHz RF R24.7 C410uF VCC Spi_Mosi(BDDATA) Fifo_flag(Bxtlen)Spi_Miso(BData1)Spi_clk(BDCLK)Reset_n(Bnpwr)Spi_Mosi(BDDATA)PKT_flag(BPKTCTL)Spi_ss(BnDEN) Fifo_flag(Bxtlen)Spi_Miso(BData1)Spi_clk(BDCLK)Reset_n(Bnpwr)Spi_Mosi(BDDATA)PKT_flag(BPKTCTL)Spi_ss(BnDEN) MOSIMISOSPI_CKCART_CSRESETCART_Busy R72K D1 RED SW1 Pairing Key R6 4.7K 123456789 10 J1SPI Interface CART_CS     ! "# $ %& #& '          &(                          !   "  #$       %  !   "  #$       % & !   "    '(      % $ !   "    '(      % )#))  * !   "  $#+      %  !   "  ( , -(  % + .  "  / , -(  % (+ .  "  $/ , -(  % (+ .  "  0&1 (-230  145 16*&378  +89 "  ::-(6* ቡ့* ;   )       U3

INTERTEK TESTING SERVICES Report No.: HK10031485-1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Bandedge Plot

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK10031485-1 Inspired Instruments, Inc. Application For Certification (Original Grant) (FCC ID: YC8-YRG1101-00) (IC: 9018A-YRG110100) Transceiver Prepared and Checked by: Approved by: Signed On File Kenneth Wong Engineer Chan Chi Hung, Terry Senior Lead Engineer Date: Jul 21, 2010 INTERTEK TESTING SERVICES Report No.: HK10031485-1 FCC ID: YC8-YRG1101-00 IC: 9018A-YRG110100 i GENERAL INFORMATION Inspired Instruments, Inc. BRAND NAME: Inspired, MODEL: YRG1101 FCC ID: YC8-YRG1101-00 IC: 9018A-YRG110100 Grantee: Inspired Instruments, Inc. Grantee Address: 9800 Irvine Center Drive, Irvine, CA 92618, USA. Contact Person: Cliff Elion Tel: 818-825-0385 Fax: (949) 733-9331 e-mail: [email protected] Manufacturer: Wealthwise Industrial Limited Manufacturer Address: Unit B5-B6, 1/F, Block B, Chung Mei Centre, 15 Hing Yip Street, Kwun Tong, Kowloon, Hong Hong Brand Name: Inspired Model: YRG1101 Type of EUT: Transceiver Description of EUT: You Rock Guitar Serial Number: N/A FCC ID / IC: YC8-YRG1101-00 / 9018A-YRG110100 Date of Sample Submitted: March 31, 2010 Date of Test: April 30, 2010 Report No.: HK10031485-1 Report Date: Jul 21, 2010 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK10031485-1 FCC ID: YC8-YRG1101-00 IC: 9018A-YRG110100 ii SUMMARY OF TEST RESULT Inspired Instruments, Inc. BRAND NAME: Inspired, MODEL: YRG1101 FCC ID: YC8-YRG1101-00 IC: 9018A-YRG110100 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 (for 2.4GHz Digital) N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 (for Remote Control) N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 (for 433MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 (for 88-108MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 (for 902-928MHz or 2.4GHz) Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 (for 49MHz) N/A Receiver Radiated Emissions RSS-210 2.6 Pass Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK10031485-1 FCC ID: YC8-YRG1101-00 IC: 9018A-YRG110100 iii Table of Contents 1.0 General Description.......................................................................................... 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants ................................................................................ 1 1.3 Test Methodology................................................................................................ 1 1.4 Test Facility ......................................................................................................... 1 2.0 System Test Configuration ............................................................................... 2 2.1 Justification ......................................................................................................... 2 2.2 EUT Exercising Software .................................................................................... 2 2.3 Special Accessories ............................................................................................ 2 2.4 Equipment Modification ....................................................................................... 2 2.5 Measurement Uncertainty .................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK10031485-1 FCC ID: YC8-YRG1101-00 IC: 9018A-YRG110100 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : YRG1101 INTERTEK TESTING SERVICE Report No: HK10031485-1 FCC ID: YC8-YRG1101-00 IC: 9018A-YRG110100 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : YRG1101
