YCLTSM7TankScan TS Series Monitor

Revision 6/22/10 Confidential – ATEK Products, LLC TankScan TS Series Hardware Installation and User Manual TankScan TS Series Hardware Installation Install the TS Series Controller o Determine the best Controller location
Ensure shortest possible distance between all the Monitor locations and the Controller with no obstructions in the path (line of sight).
Location should be within a building and near a connection for the mode of communication desired (analog dial up, USB, Ethernet, etc.). o Mount the Controller at the desired location
Attach the antenna to the back of the Controller. (Note: the antenna connection is a left-hand thread)
Connect power using the wall plug transformer supplied. The LCD panel on the front of the unit should be on after power is applied.
Connect the Controller to the desired mode of communication. Install the TS Series Monitor(s) o Determine the desired length of the Monitor probe, cut it to length and attach the supplied weight. o Mount the Monitor onto the tank by threading it onto the 1-1/2” or 2” threaded hole. o Remove the battery compartment door using the supplied screwdriver, insert the battery into the compartment and plug it in. The Monitor will take a measurement and send the information to the Controller within about 10 seconds.
Swiping the magnet end of the supplied screwdriver over the “Swipe Magnet Here” label on the Monitor will put the Monitor into “Test” mode. • In “Test” mode the Monitor will continue to take and send measurements approximately every 30 seconds for ten minutes. o Determine and add the “Offset”. The Offset is a function of how and where the monitor is mounted relative to the full level of the tank
Manually measure the level in the tank.
Calculate the Offset as: Offset = Manual Reading - Monitor Reading
Add the calibration Offset to the monitoring software. o Repeat for each Monitor being installed. Refer to the TankScan 2 User Interface Map for viewing data on the LCD panel. Revision 6/22/10 Confidential – ATEK Products, LLC FCC Notes This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. “This device has been designed to operate with the antenna supplied, and having a maximum gain of 3 dB. Antennas not included or having a gain greater than 3 dB are strictly prohibited for use with this device. The required antenna impedance is 50 ohms.” “To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.” “To comply with FCC and Industry Canada RF radiation exposure limits for general population, the antennas used for these transmitters must be installed to provide a separation distance of at least 20cm from all persons and they must not be collocated or operated in conjunction with any other antennas or transmitters.” “Changes or modifications not expressly approved by ATEK Products, LLC could void the user’s authority to operate the equipment.”

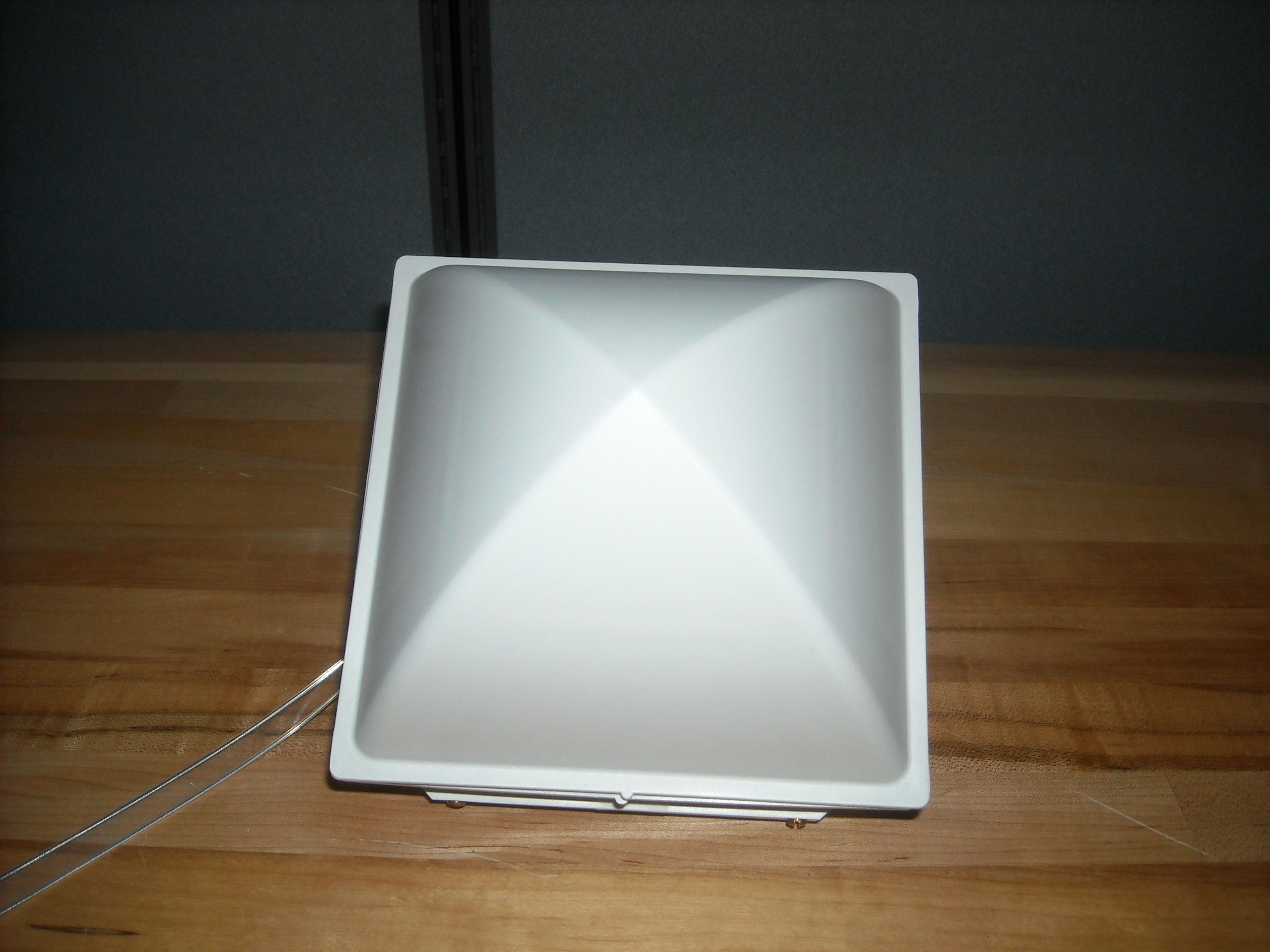

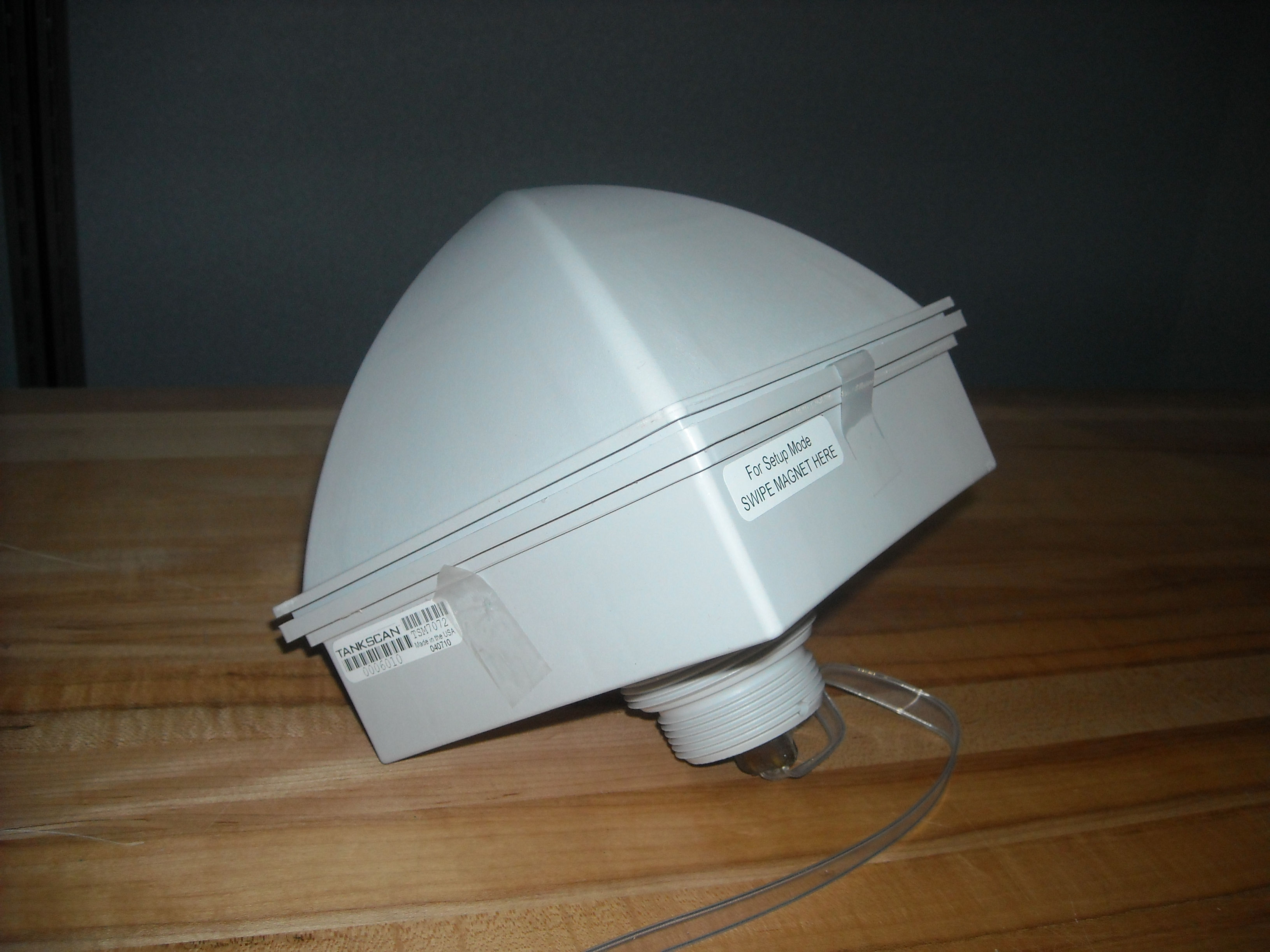

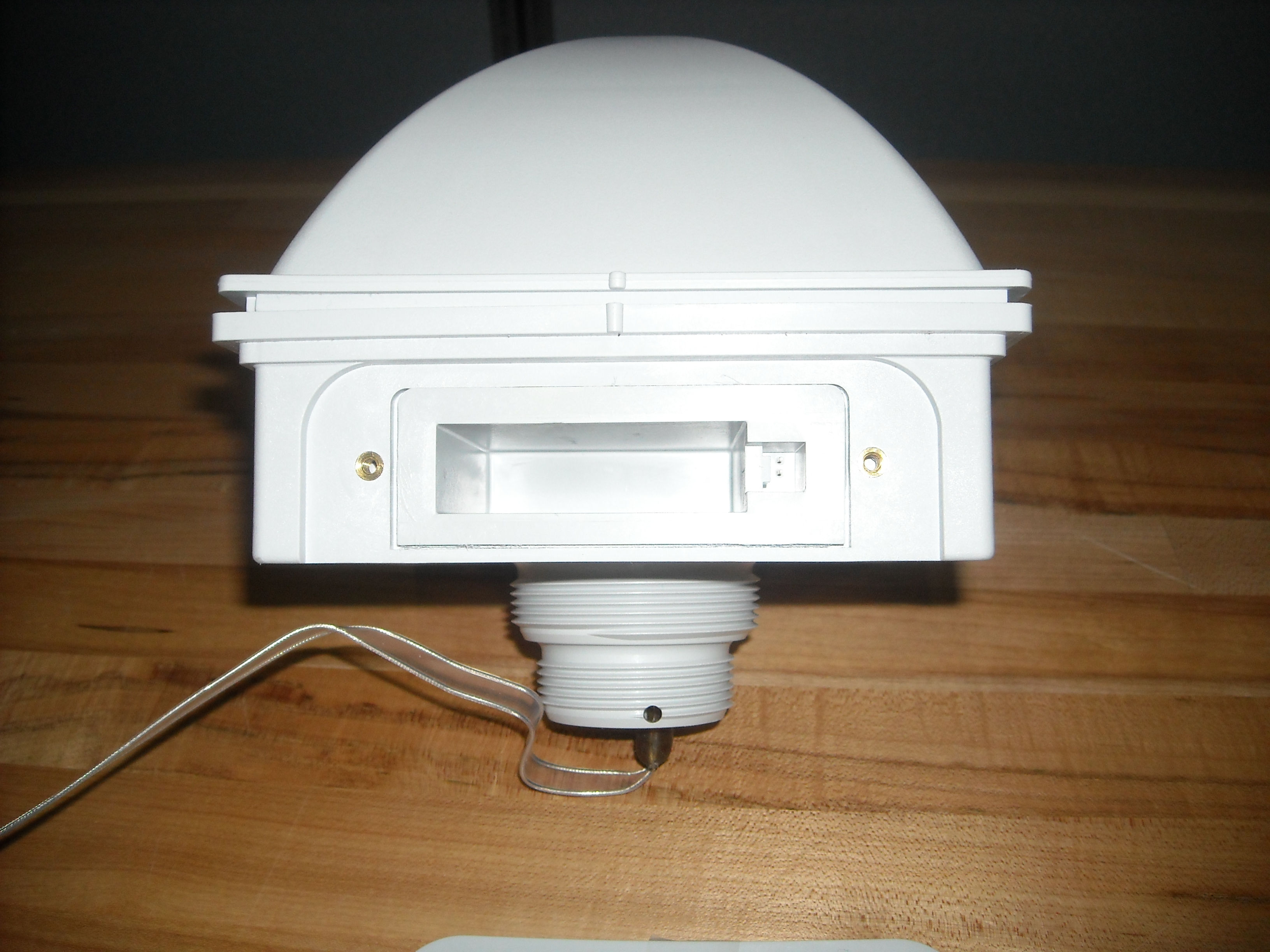

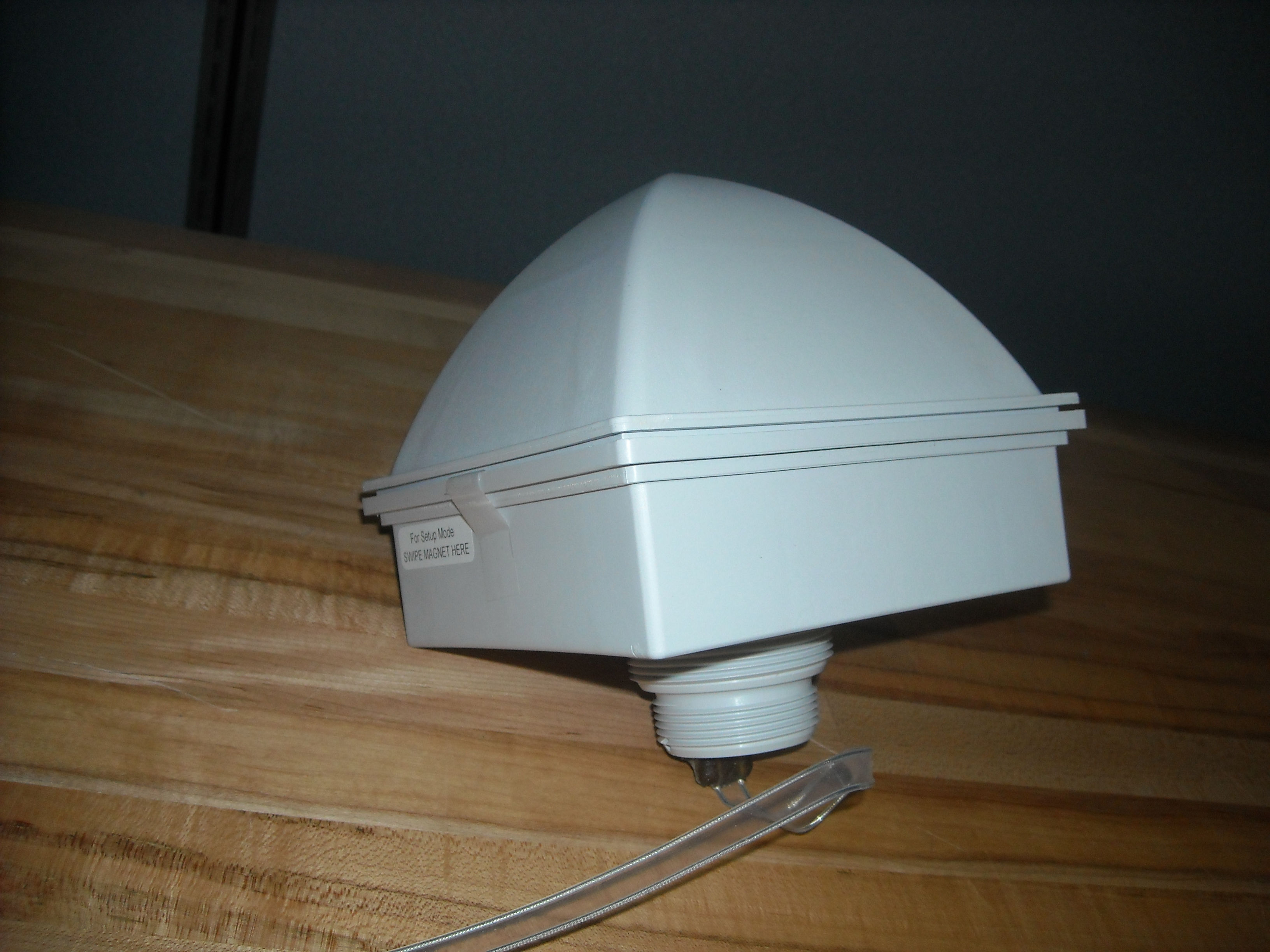

EK0419-2 Atek Companies External Pictures YCLTSM7 EK0419-2 Atek Companies External Pictures YCLTSM7 EK0419-2 Atek Companies External Pictures YCLTSM7 EK0419-2 Atek Companies External Pictures YCLTSM7

Monitor FCC Label location: On the left side near the back on the case bottom.

EK0419-2 Atek Companies Internal Pictures YCLTSM7 EK0419-2 Atek Companies Internal Pictures YCLTSM7

EK0419-2 Atek Companies Internal Pictures YCLTSM7 EK0419-2 Atek Companies Internal Pictures YCLTSM7

Device has 2 operating modes. One as a 15.247 frequency hopper and the other as a 15.249 low power device. Device can not operate in two modes at the same time. 15.249 operation as a low power communication device is categorically excluded from RF exposure evaluation. The following is for 15.247 operation. Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at the antenna terminal: 3.57(dBm) Maximum peak output power at the antenna terminal:2.276145393(mW) Antenna gain(typical):3(dBi) Maximum antenna gain:1.995262315(numeric) Prediction distance:20(cm) Prediction frequency:915(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.6(mW/cm^2) Power density at prediction frequency:0.000904(mW/cm^2) Therefore device complies with FCC and Industry Canada RF radiation exposure limits for gereral population as a mobile device (distance > 20cm) 2 4R PG S π =

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 1 of 28 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EK0419-2 Client ATEK Products, LLC Address 210 NE 10 th Ave. Brainerd, MN 56401 Phone 763.392.5897 Items tested Tank Scan II Monitor FCC ID YCLTSM7 IC ID 8942A-TSM7 FRN 0017195009 Equipment Type Digital Spread Spectrum Equipment Code DSS Emission Designator FCC/IC Rule Parts 47 CFR 15.247, 47 CFR 15.249, RSS 210 issue 7 and RSS GEN issue 2 Test Dates April 27-30, 2010 Results As detailed within this report Prepared by Matthew Burman– Test Engineer Authorized by Mairaj Hussain – EMC Supervisor Issue Date May 28, 2010 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 27 of this report. Test Report for ATEK Products, LLC. • •• • Report No. EK0419-2 July 12, 2010 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • FAX (978) 486-8828 page 2 of 28 Contents Contents..................................................................................................................................2 Summary.................................................................................................................................3 Test Methodology ....................................................................................................................3 Product Tested - Configuration Documentation .......................................................................5 Statement of Conformity......................................................................................................6 Test Results ............................................................................................................................7 Bandwidth............................................................................................................................7 Peak Power.........................................................................................................................9 Fundamental Field Strength...............................................................................................11 Harmonic Field Strength....................................................................................................12 Band Edge Measurements.................................................................................................13 Frequency Hopping Timing Requirements.........................................................................15 Frequency Hopping Channel Separation...........................................................................17 Radiated Spurious Emissions............................................................................................18 Conducted Spurious Emissions.........................................................................................20 Occupied Bandwidth..........................................................................................................22 Measurement Uncertainty......................................................................................................24 Test Equipment Used ............................................................................................................25 Product Documentation .........................................................................................................26 Conditions Of Testing ............................................................................................................27 Form Final Report REV 7-20-07 (DW) Test Report for ATEK Products, LLC. • •• • Report No. EK0419-2 July 12, 2010 ______________________________________________________________________ Release Control Record Issue No. Reason for change Date Issued 1 Original Release July 12, 2010 _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 3 of 28 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 15.247, 47 CFR 15.249 and RSS-210. The product is the Tank Scan II Monitor. It is a transmitter that operates in the range 902-928MHz We found that the product met the above requirements without modifications. Brad Cole from ATEK Products, LLC was present during the testing. The test sample was received in good condition. The EUT has two modes of operation, 15.247 frequency hopping and 15.249. When the product is turned on, it initially operates under the frequency hopping mode and scans for the controller. If the controller is not found, it switches to 15.249 single frequency mode. While in single frequency mode, it radiates a transmission at 916.45MHz at 0dBm. The digital circuitry was evaluated under report EK0419-4. Test Methodology Radiated emission testing was performed according to the procedures specified in ANSI C63.4 (2009) and RSS-GEN. Radiated Emissions were maximized by rotating the device around three orthogonal axes as well as varying the test antenna’s height and polarity. The device antenna cannot be maximized separately. The product was tested with modulation on and peak readings were compared against the average limit presented in section CFR 15.249. Conducted emissi…

Text truncated - open the document above for the full version.

EK0419-2 Atek Companies Test Setup Pictures YCLTSM7 Radiated Measurements Below 1GHz EK0419-2 Atek Companies Test Setup Pictures YCLTSM7 Radiated Measurements Above 1GHz EK0419-2 Atek Companies Test Setup Pictures YCLTSM7 Conductive Measurements
