MyHotspot User Manual (Draft version - 2015.04.01) Model: IML-C4300W INFOMARK Contents 1. Getting Started ........................................................................................................................................ 4 1.1) Your Device ........................................................................................................................................... 4 1.2) Package Contents ............................................................................................................................... 5 1.3) System Requirements ....................................................................................................................... 6 1.4) Setting Up Service .............................................................................................................................. 6 2. Device Information ................................................................................................................................ 7 2.1) Introduction........................................................................................................................................... 7 2.2) How to use ............................................................................................................................................ 7 2.3) LED .......................................................................................................................................................... 10 3. Web Management ............................................................................................................................... 12 3.1) How to Connect to Web Management Page ...................................................................... 12 3.2) Web Management Page Menu .................................................................................................. 14 3.2.1) Home .................................................................................................................................................. 15 3.2.2) Connected Devices ....................................................................................................................... 16 3.2.3) Settings .............................................................................................................................................. 18 3.2.4) Notifications .................................................................................................................................... 38 3.2.5) About .................................................................................................................................................. 39 3.2.6) Support .............................................................................................................................................. 40 4. Frequently Asked Questions ............................................................................................................ 41 5. Technical Specification ....................................................................................................................... 42 5.1) Radio Frequency specification .................................................................................................... 42 5.2) Electrical and Mechanical specification .................................................................................. 42 6. Safety Information ............................................................................................................................... 43 6.1) Important Notice .............................................................................................................................. 43 6.2) Safety and Hazards .......................................................................................................................... 43 6.3) Proper Battery Use and Disposal .............................................................................................. 44 6.4) For Your Safety .................................................................................................................................. 44 7. Regulatory Notice ................................................................................................................................ 45 8. Warranty Information ......................................................................................................................... 47 8.1) TBD ......................................................................................................................................................... 47 1. Getting Started The following topics give you all the information you need to set up your device. 1.1) Your Device 1. Power button 2. Micro USB cable for charging external devices 3. Charger LED (indicates external charging status) 4. Micro USB port 5. LED indicators (Wi-Fi, Network, Power) 6. Reset button 7. Nano SIM Card Slot/Micro SD Card Slot 8. Battery ※ "6, 7, 8" is under the back cover . 1.2) Package Contents 1. MyHotspot 2. Wall charger [5V/1A] 3. Micro USB cable 4. Quick Guide ※ Failure to use approved accessories provided by manufacturer could result in poor performance, electric shock, fire, injury or damage to MyHotspot or other property. 1.3) System Requirements The following items are required to use your MyHotspot.  One or more WiFi enabled devices which support Wi-Fi (IEEE 802.11b/g/n)  Web browser. The following browsers are supported: ® (version 7.0 or higher) oogle Chrome™ (version 2.0.172.28 or higher) ® (version 4.0 or higher)  If you will be connecting your device through USB: or Mac OS® X (version 10.5 or higher) SB 2.0 slot 1.4) Setting Up Service 1. Setting Up MyHotspot - Remove the back cover. - Insert the SIM card if not already installed. - Install the battery. - Install the back cover onto MyHotspot. - Press Power button on the side of the MyHotspot for about three seconds to turn the device on. - Make a Wi-Fi connection fr…

Text truncated - open the document above for the full version.

DT&C Co., Ltd. 42, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935 Date: March 17, 2015 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of UL Verification Services Inc., d.b.a. UL Verification Services Inc., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; DT&C Co., Ltd. 42, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935 g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Harvey Sung Director REMARK: 1. This authorization letter will be sent along with your application when filing with UL Verification Services Inc. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database and Industry Canada contact information.

Infomark Co., Ltd. 3 rd Floor, Humaxvillage, 216, Hwangsaeul-ro, Bundang-gu Seongnam-Si, Gyonggi-Do South Korea 463-875 Date: March 25, 2015 TDD LTE Considerations SAR must be tested with a fixed periodic duty factor - according to the highest transmission duty factor implemented for the device and supported by 3GPP 1) See 3GPP TS 36.211 section 4.2 for Type 2 Frame Structure and Table 4.2-2 for uplink-downlink configurations 2) “Special subframe S” contains both uplink and downlink transmissions and must be taken into consideration to determine the transmission duty factor - According to the worst case uplink and downlink cyclic prefix requirements for UpPTS to determine the highest SAR test duty factor MPR for FCC SAR Testing The maximum output power is permanently limited by the MPR implemented within the device, according to the RB (resource block) configurations specified in 3GPP/LTE standards. Our products are designed to comply with the above. And operates according to the above considerations . Sincerely, Hee-Jun Gu Director

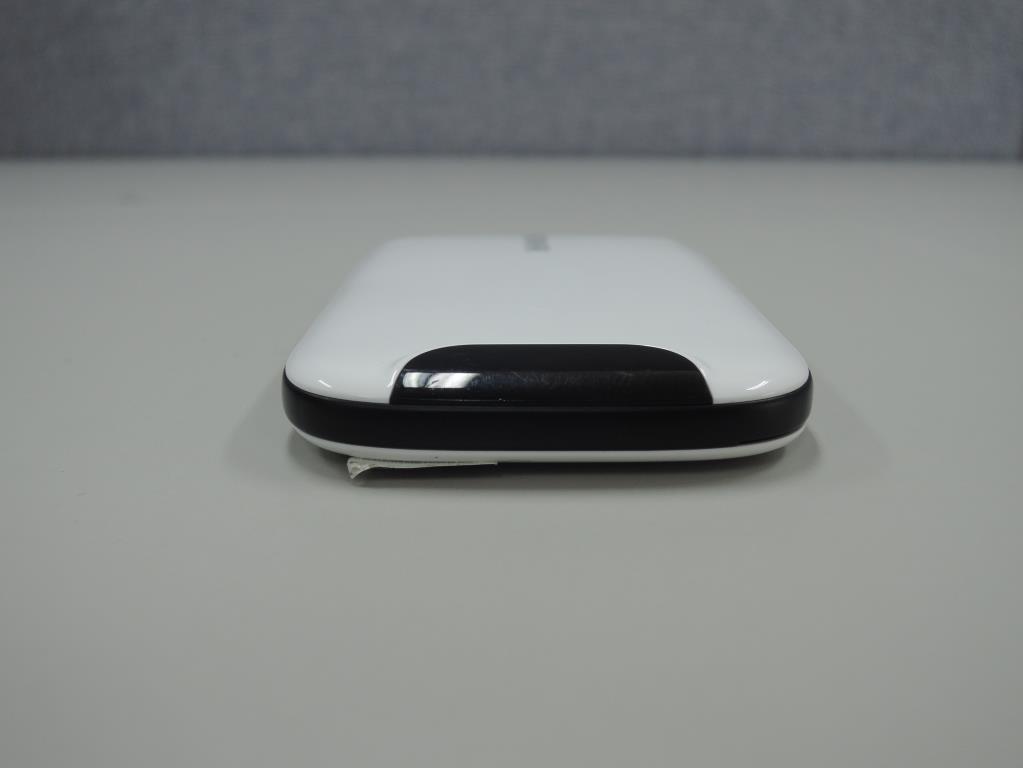

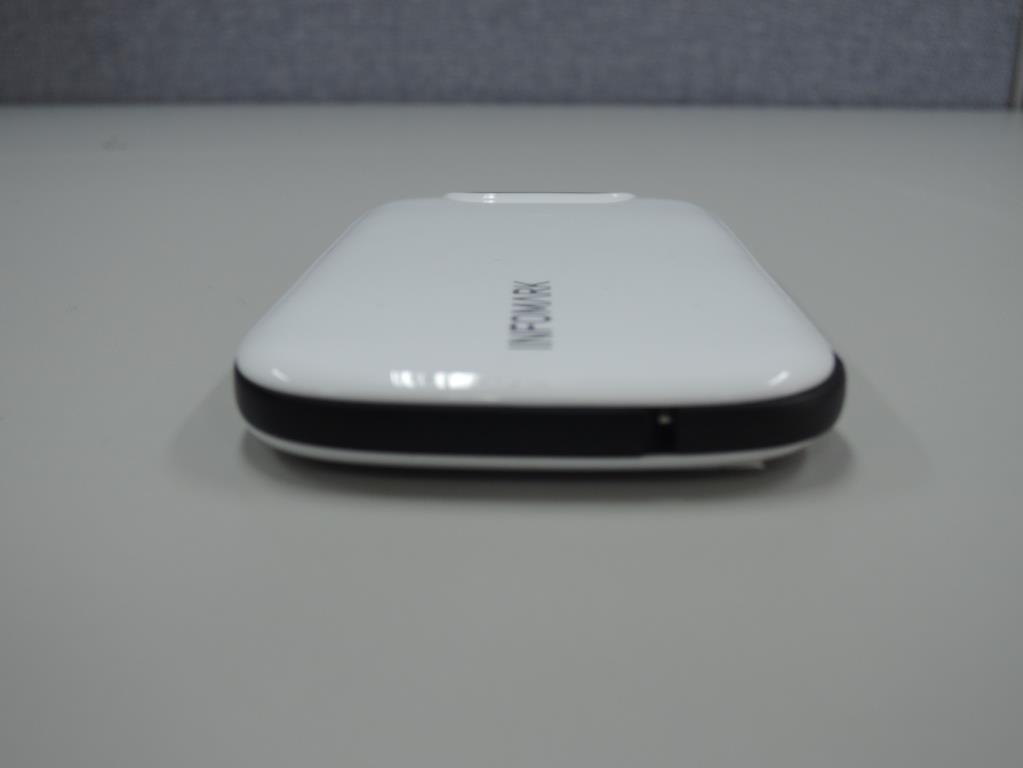

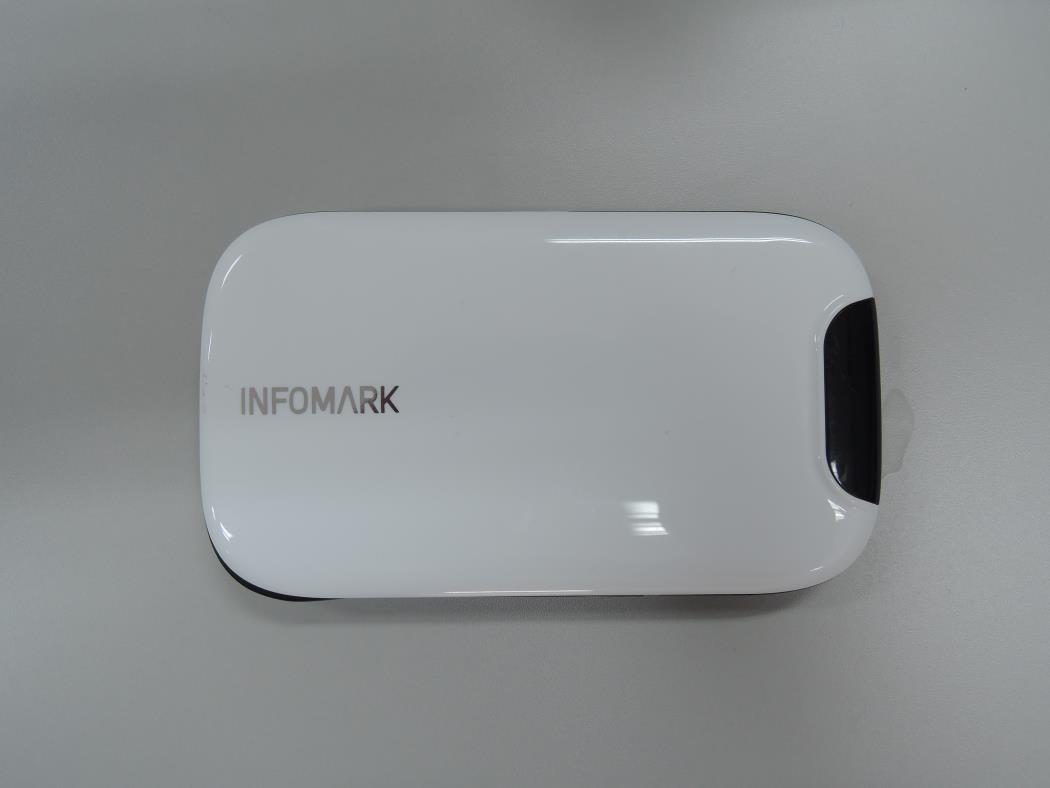

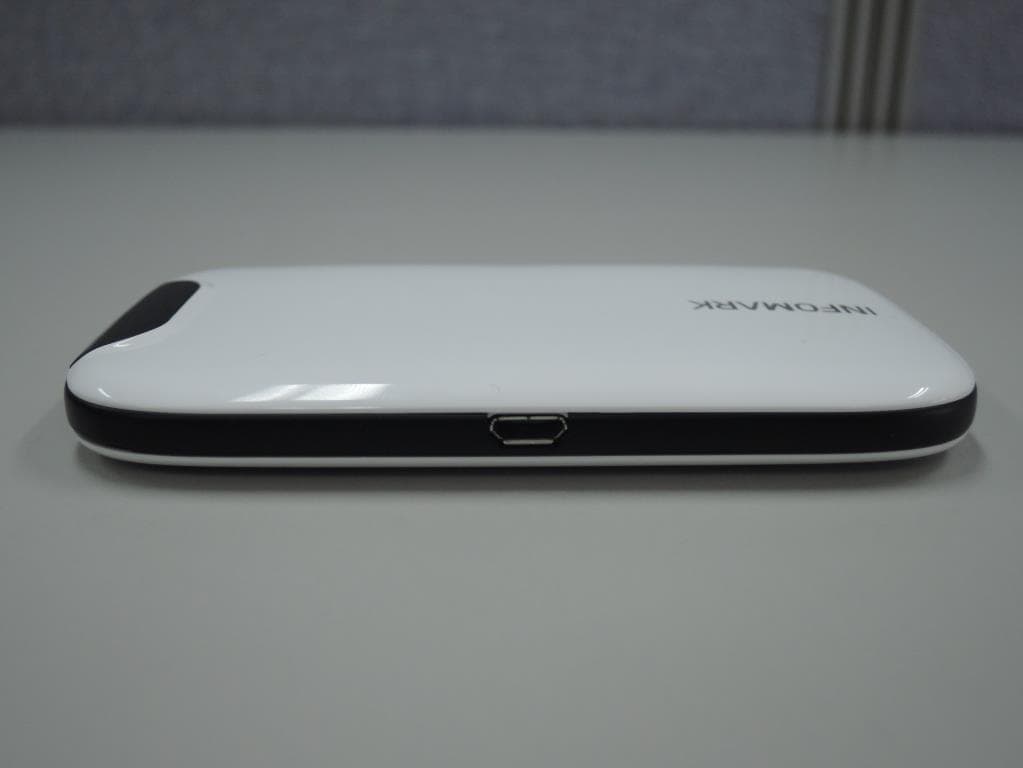

FCCID: YCO-IML-C4300W Copyright Ⓒ 2015, DT&C Co., Ltd. View 1 FCCID: YCO-IML-C4300W Copyright Ⓒ 2015, DT&C Co., Ltd. View 2 FCCID: YCO-IML-C4300W Copyright Ⓒ 2015, DT&C Co., Ltd. View 3

FCC ID: YCO-IML-C4300W Copyright Ⓒ 2015, DT&C Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. - The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual. Label is located inside Battery compartment of EUT

FCC ID: YCO-IML-C4300W Copyright Ⓒ 2015, DT&C Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. - The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual. Label is located inside Battery compartment of EUT

FCCID: BEJHBS760 Copyright Ⓒ 2015, DT&C Co., Ltd. Page 1 / 6 View 1 FCCID: BEJHBS760 Copyright Ⓒ 2015, DT&C Co., Ltd. Page 2 / 6 View 2 FCCID: BEJHBS760 Copyright Ⓒ 2015, DT&C Co., Ltd. Page 3 / 6 View 3 FCCID: BEJHBS760 Copyright Ⓒ 2015, DT&C Co., Ltd. Page 4 / 6 View 4 FCCID: BEJHBS760 Copyright Ⓒ 2015, DT&C Co., Ltd. Page 5 / 6 View 5 FCCID: BEJHBS760 Copyright Ⓒ 2015, DT&C Co., Ltd. Page 6 / 6 View 6 <ANT 1> <ANT 2> <ANT 3>

Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page2 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Table of Contents 1. DESCRIPTION OF DEVICE .......................................................................................................... 5 1.1 Guidance Applied ................................................................................................................... 6 1.2Device Overview ..................................................................................................................... 6 1.3 Nominal and Maximum Output Power Specifications ............................................................ 6 1.4 DUT Antenna Locations ......................................................................................................... 7 1.5 SAR Test Exclusions Applied ................................................................................................. 8 1.6 Power Reduction for SAR ...................................................................................................... 8 1.7 Device Serial Numbers .......................................................................................................... 8 1.8 LTE Information ................................................................................................................. 9 2. INTROCUCTION ......................................................................................................................... 10 3. DESCRIPTION OF TEST EQUIPMENT ..................................................................................... 11 3.1 SAR MEASUREMENT SETUP ............................................................................................ 11 3.2 EX3DV4Probe Specification ................................................................................................ 12 3.3 Probe Calibration Process ................................................................................................... 13 3.3.1E-Probe Calibration .......................................................................................................... 13 3.4 Data Extrapolation ................................................................................................................ 14 3.5 SAM TwinPHANTOM ........................................................................................................... 15 3.6Device Holder for Transmitters .............................................................................................. 15 3.7 Brain & Muscle Simulation Mixture Characterization ........................................................... 16 3.8 SAR TEST EQUIPMENT ..................................................................................................... 17 4. TEST SYSTEM SPECIFICATIONS ............................................................................................. 18 5. SAR MEASUREMENT PROCEDURE ........................................................................................ 19 5.1 Measurement Procedure ...................................................................................................... 19 6. RF EXPOSURE LIMITS .............................................................................................................. 20 7. FCC MEASUREMENT PROCEDURES...................................................................................... 21 7.1 Measured and Reported SAR .............................................................................................. 21 7.2 SAR Measurement Conditions for LTE ................................................................................ 21 7.2.1Spectrum Plots for RB Configurations ............................................................................. 21 7.2.2 MPR ................................................................................................................................. 21 7.2.3 A-MPR ............................................................................................................................. 21 7.2.4 Required RB Size and RB Offsets for SAR Testing ........................................................ 21 7.2.5 TDD LTE Consideration setup for SAR measurement .................................................... 22 7.3 SAR Testing with 802.11 Transmitters ................................................................................ 23 7.3.1 General Device Setup ..................................................................................................... 23 7.3.2 MIMO and other Multiple Antenna Configurations .......................................................... 23 7.3.3 MIMO and SISO Configurations ...................................................................................... 24 7.3.4 Frequency Channel Configurations ................................................................................. 24 8. RF CONDUCTED POWERS ....................................................................................................... 25 8.1 LTE Conducted Powers ....................................................................................................... 25 8.2WLAN Conducted Powers .................................................................................................... 58 9. SYSTEM VERIFICATION ............................................................................................................ 60 9.1 Tissue Verification ................................................................................................................ 60 9.2 Test System Verification ....................................................................................................... 61 10. SAR TEST RESULTS ............................................................................................................... 62 10.1Standalone Wireless router SAR Results ........................................................................... 62 10.2SAR …

Text truncated - open the document above for the full version.

Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page112 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page113 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page114 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page115 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page116 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page117 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page118 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page119 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page120 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page121 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page122 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page123 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page124 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page125 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page126 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page127 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page128 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page129 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page130 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page131 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page132 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page133 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page134 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page135 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page136 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page137 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page138 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page139 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page140 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page141 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page142 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page143 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page144 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page145 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page146 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page147 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. Attachment 3. – SAR SYSTEM VALIDATION Report No.:DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 TRF-RF-601(00)120709 Page148 / 148 Copyright Ⓒ 2015, DT&C Co., Ltd. SAR System Validation Per FCC KDB 865664 D02v01r01, SAR system validation status should be documented to confirmmeasurement accuracy. The SAR systems (including SAR probes, system components and softwareversions) used for this device were validated against its performance specifications prior to the SARmeasurements. Reference dipoles were used with the required tissue- equivalent media for systemvalidation, a…

Text truncated - open the document above for the full version.

Report No.: DRRFCC1503-0032(1) FCC ID: YCO-IML-C4300W Date of issue: Apr. 03, 2015 Copyright Ⓒ 2015, DT&C Co., Ltd. SAR Plots  Verification Plots  SAR Test Plots DT&C Co., Ltd. DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d159 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 1 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3916; ConvF(9.94, 9.94, 9.94); Calibrated: 2014-04-24; Electronics: DAE4 Sn1396 Phantom: SAM with CRP; Type: SAM; Serial: TP-1221 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2015-04-02; Ambient Temp: 22.2; Tissue Temp: 22.7 835 MHz System Verification Area Scan (41x111x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.019 dB Peak SAR (extrapolated) = 4.02 W/kg SAR(1 g) = 2.48 W/kg; SAR(10 g) = 1.64 W/kg 0 dB = 3.31W/kg DT&C Co., Ltd. DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d159 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 1 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3916; ConvF(9.94, 9.94, 9.94); Calibrated: 2014-04-24; Electronics: DAE4 Sn1396 Phantom: SAM with CRP; Type: SAM; Serial: TP-1221 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2015-04-02; Ambient Temp: 22.2; Tissue Temp: 22.7 835 MHz System Verification Area Scan (41x111x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.019 dB Peak SAR (extrapolated) = 4.02 W/kg SAR(1 g) = 2.48 W/kg; SAR(10 g) = 1.64 W/kg DT&C Co., Ltd. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d176 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.55 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3916; ConvF(7.69, 7.69, 7.69); Calibrated: 2014-04-24; Electronics: DAE4 Sn1335 Phantom: SAM with CRP; Type: SAM; Serial: TP-1221 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2015-02-24; Ambient Temp: 21.8; Tissue Temp: 22.3 1900 MHz System Verification Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.061 dB Peak SAR (extrapolated) = 20.4 W/kg SAR(1 g) = 10.7 W/kg; SAR(10 g) = 5.61 W/kg 0 dB = 15.8W/kg DT&C Co., Ltd. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d176 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.55 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3916; ConvF(7.69, 7.69, 7.69); Calibrated: 2014-04-24; Electronics: DAE4 Sn1335 Phantom: SAM with CRP; Type: SAM; Serial: TP-1221 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2015-02-24; Ambient Temp: 21.8; Tissue Temp: 22.3 1900 MHz System Verification Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.061 dB Peak SAR (extrapolated) = 20.4 W/kg SAR(1 g) = 10.7 W/kg; SAR(10 g) = 5.61 W/kg DT&C Co., Ltd. DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:920 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.97 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3916; ConvF(7.24, 7.24, 7.24); Calibrated: 2014-04-24; Electronics: DAE4 Sn1335 Phantom: SAM with CRP; Type: SAM; Serial: TP-1221 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2015-02-26; Ambient Temp: 21.3; Tissue Temp: 21.8 2450 MHz System Verification Area Scan (61x81x1): Measurement grid: dx=12mm, dy=12mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.027 dB Peak SAR (extrapolated) = 28.6 W/kg SAR(1 g) = 12.8 W/kg; SAR(10 g) = 5.95 W/kg 0 dB = 18.1W/kg DT&C Co., Ltd. DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:920 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.97 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3916; ConvF(7.24, 7.24, 7.24); Calibrated: 2014-04-24; Electronics: DAE4 Sn1335 Phantom: SAM with CRP; Type: SAM; Serial: TP-1221 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2015-02-26; Ambient Temp: 21.3; Tissue Temp: 21.8 2450 MHz System Verification Area Scan (61x81x1): Measurement grid: dx=12mm, dy=12mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.027 dB Peak SAR (extrapolated) = 28.6 W/kg SAR(1 g) = 12.8 W/kg; SAR(10 g) = 5.95 W/kg DT&C Co., Ltd. DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:920 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.95 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3916; ConvF(7.24, 7.24, 7.24); Calibrated: 2014-04-24; Electronics: DAE4 Sn1335 Phantom: SAM with CRP; Type: SAM; Serial: TP-1221 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2015-02-27; Ambient Temp: 21.7; Tissue…
