YCO-IMW-C910WWiMAX & WiFi Dual CPE

IMW-C910W User Manuel Table of list Chapter 1. Attention ................................................................................................................................................ 4 Chapter 2. Introduction & Requirements ........................................................................................................ 4 Introduction of goods ......................................................................................................................................... 4 What is the IMW-C910W? .......................................................................................................................... 4 System Requirements. ................................................................................................................................. 4 Specification ..................................................................................................................................................... 4 The points of name & Components list ...................................................................................................... 5 Components List in the package. ............................................................................................................. 5 Points of name & Function .......................................................................................................................... 5 Chapter 3. How to use the IMW-C910W ........................................................................................................ 7 Power ON/OFF .................................................................................................................................................... 7 How to charge battery ....................................................................................................................................... 7 Setting of the WiFi AP ....................................................................................................................................... 8 Setting with Window XP ............................................................................................................................... 8 Setting with Window 7 .................................................................................................................................. 9 Setting with Mac OS ...................................................................................................................................... 9 Setting of USB (RNDIS) ................................................................................................................................ 10 Setting with Window XP ............................................................................................................................ 10 Setting with Window 7 ............................................................................................................................... 11 Chapter 4 Configuring CM ................................................................................................................................ 12 Connect to Web CM (Web Connection Manager) .............................................................................. 12 Start CM .......................................................................................................................................................... 12 Input ID/Password ....................................................................................................................................... 12 Description of Web User Interface ............................................................................................................ 12 Introduction .................................................................................................................................................... 12 Home Menu ................................................................................................................................................... 13 LAN settings ....................................................................................................................................................... 15 WiMAX Configuration ..................................................................................................................................... 18 Parametric Data description .................................................................................................................... 18 Network Information description ............................................................................................................ 19 Device Information ...................................................................................................................................... 20 Frequency Setting ....................................................................................................................................... 20 Authentication Setting ................................................................................................................................ 21 Administration setting................................................................................................................................. 22 Status description ........................................................................................................................................ 22 Firmware information ................................................................................................................................. 23 Administration setting................................................................................................................................. 23 Upgrade description ................................................................................................................................... 24 USB Driver description ...................................................................…

Text truncated - open the document above for the full version.

Infomark Co., Ltd. #801, KINS Tower, 25-1, Jeongja-Dong, Bundang-Gu, Seongnam-Si, Gyeonggi-do, Korea, 137-130 Date: January 11, 2012 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; Infomark Co., Ltd. #801, KINS Tower, 25-1, Jeongja-Dong, Bundang-Gu, Seongnam-Si, Gyeonggi-do, Korea, 137-130 g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Harvey Sung Director REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Infomark Co., Ltd. #801, KINS Tower, 25-1, Jeongja-Dong, Bundang-Gu, Seongnam-Si Gyeonggi-do, Korea, 137-130 Date: January 11, 2012 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA LETTER OF AUTHORIZATION We, the undersigned, hereby authorize Harvey Sung of DIGITAL EMC CO., LTD. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: YCO-IMW-C910W including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of DIGITAL EMC CO., LTD. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Infomark Co., Ltd. Sincerely, Hee-Jun Gu Manager

Infomark Co., Ltd. #801, KINS Tower, 25-1, Jeongja-Dong, Bundang-Gu, Seongnam-Si Gyeonggi-do, Korea, 137-130 Date: January 11, 2012 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: YCO-IMW-C910W To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Infomark Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Infomark Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description File name PERMANENT 1 Block Diagram Block Diagram_YCO-IMW-C910W.pdf 2 Operational Description Operational Description_ YCO-IMW-C910W.pdf 3 Schematics Schematic_ YCO-IMW-C910W.pdf 4 Part Lists Part List_ YCO-IMW-C910W.pdf SHORT-TERM 5 Internal Photos Int Photo_ YCO-IMW-C910W.pdf 6 Test-Setup Photos Test Photo(WLAN)_YCO-IMW-C910W.pdf Test Photo(WIMAX)_YCO-IMW-C910W.pdf 7 Users Manual User Manual_ YCO-IMW-C910W.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Hee-Jun Gu Manager

FCCID: YCO-IMW-C910W Copyright Ⓒ 2012, DIGITAL EMC Co., Ltd. View 1 FCCID: YCO-IMW-C910W Copyright Ⓒ 2012, DIGITAL EMC Co., Ltd. View 2 FCCID: YCO-IMW-C910W Copyright Ⓒ 2012, DIGITAL EMC Co., Ltd. View 3

FCC ID: YCO-IMW-C910W Copyright Ⓒ 2012, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase REAR SIDE

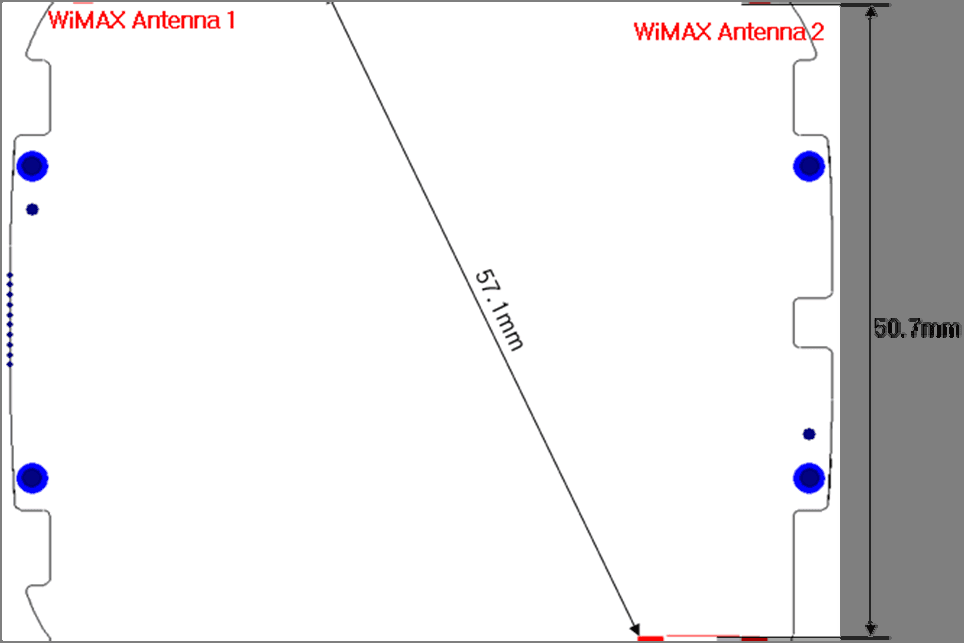

FCCID: YCO-IMW-C910W Copyright Ⓒ 2011, Digital EMC Co., Ltd. Page1 / 5 View 1 FCCID: YCO-IMW-C910W Copyright Ⓒ 2011, Digital EMC Co., Ltd. Page2 / 5 View 2 FCCID: YCO-IMW-C910W Copyright Ⓒ 2011, Digital EMC Co., Ltd. Page3 / 5 View 4 FCCID: YCO-IMW-C910W Copyright Ⓒ 2011, Digital EMC Co., Ltd. Page4 / 5 View 5 FCCID: YCO-IMW-C910W Copyright Ⓒ 2011, Digital EMC Co., Ltd. Page5 / 5 Antenna Information IMW-C910W Antenna Distance Antenna Distance WiMAX ANT 1 WiMAX ANT 2 14.6mm WiMAX ANT 1 WiFi ANT 57.1mm WiMAX ANT 2 WiFi ANT 50.7mm

FCC ID : YCO-IMW-C910W SAR exclusion for W-LAN stand alone According to the below FCC KDB#447498 D01 Section 3), W-LAN stand alone SAR is excluded. FCC KDB#447498 D01 Section 3) 3) Transmitters and modules for use in portable exposure conditions that allow simultaneous transmission b) SAR is not required for the following simultaneous transmission conditions i) When excluded by the procedures in KDB 616217 or KDB 648474. ii) When specific requirements for simultaneous transmission SAR evaluation have not been established for the host platform or device configuration: (1) for the antennas that are located < 5 cm from persons, where (a) The closest antenna separation distance is ≥ 5 cm for all simultaneous transmitting antennas within the host or device; and (b) The sum of the 1-g SAR is < 1.6 W/kg for all simultaneous transmitting antennas that require stand-alone SAR evaluation or the SAR to peak location separation ratios are < 0.3 for all simultaneous transmitting antenna pairs and (c) The output power is ≤ 60/f (GHz) mW for any simultaneous transmitting antenna(s) for which stand-alone SAR evaluation is not required. The power threshold of 60/f(GHz) (Source-Based Time Average of Conducted power) for W-LAN of this device is 24.9mW and the maximum W-LAN average output power of this device is 7.044 mW. Therefore SAR for W-LAN stand alone is excluded.

Report No.: DRTFCC1201-0007(1) FCC ID: YCO-IMW-C910W Date of Issue: Jan.16, 2012 TRF-RF-303(03)100616 Page2 / 58 Copyright ○ C 2012 Digital EMC Co., Ltd. CONTENTS 1. DESCRIPTION OF DEVICE ................................................................................................................................................ 3 1.1 WiMAX Device and System Operating Parameters .................................................................................................... 4 2. INTROCUCTION .................................................................................................................................................................. 6 3. DESCRIPTION OF TEST EQUIPMENT .............................................................................................................................. 8 3.1 SAR MEASUREMENT SETUP ................................................................................................................................... 8 3.2 Probe Measurement System ....................................................................................................................................... 9 3.3 Probe Calibration Process ......................................................................................................................................... 10 3.4 SAM PHANTOM ........................................................................................................................................................ 12 3.5 Device Holder for Transmitters .................................................................................................................................. 12 3.6 Brain & Muscle Simulating Mixture Characterization ................................................................................................. 13 4. SAR MEASUREMENT PROCEDURE ............................................................................................................................... 14 5. DEFINITION OF REFERENCE POINTS ........................................................................................................................... 15 5.1 TEST CONFIGURATION POSITIONS ...................................................................................................................... 16 6. DESCRIPTION OF SUPPORTED UNITS .......................................................................................................................... 18 7. TEST SETUP AND TEST SINGAL DETAIL ...................................................................................................................... 19 8. SUMMARY OF TEST RESULTS ....................................................................................................................................... 22 9. TEST CONFIGURATION POSITIONS .............................................................................................................................. 24 9.1 The exterior of the device .......................................................................................................................................... 24 9.2 The following test configurations have been applied in this test report: .................................................................... 25 10. ANSI / IEEE C95.1-2005 RF EXPOSURE LIMITS .......................................................................................................... 26 11. IEEE P1528 –MEASUREMENT UNCERTAINTIES ......................................................................................................... 27 12. SYSTEM VERIFICATION ................................................................................................................................................ 28 13. SAR exclusion for W-LAN stand alone & Simultaneous transmission ..................................................................... 30 14. DESCRIPTION OF TEST MODE AND SUMMARY OF RESULTS ................................................................................. 31 14.1 DESCRIPTION OF TEST MODES AND JUSTIFICATION FOR SAR REDUCTION .............................................. 31 15. SUMMARY OF TEST RESULTS ..................................................................................................................................... 32 15.1 SAR Value for 5 MHz (Antenna Position: Ant. 1) ..................................................................................................... 32 15.2 SAR Value for 10 MHz (Antenna Position: Ant. 1) ................................................................................................... 33 15.3 SAR Value for 5 MHz (Antenna Position: Ant. 2) ..................................................................................................... 34 15.4 SAR Value for 10 MHz (Antenna Position: Ant. 2) ................................................................................................... 35 16. POWER TABLE ............................................................................................................................................................... 36 17. SAR TEST DATA SUMMARY .......................................................................................................................................... 38 17.1 Measurement Results (Bandwidth: 5 MHz, QPSK) – Antenna Position: Ant. 1 ....................................................... 38 17.2 Measurement Results (Bandwidth: 5 MHz, 16QAM) – Antenna Position: Ant. 1.................................................. ... 39 17.3 Measurement Results (Bandwidth: 5 MHz, 64QAM) – Antenna Position: Ant. 1..................................................... 40 17.4 Measurement Results (Bandwidth: 10 MHz, QPSK) – Antenna Position: Ant. 1 ..................................................... 41 17.5 Measurement Results (Bandwidth: 10 MHz, 16QAM) – Antenna Position: Ant. 1 .................................................. 42 17.6 Measurement Results (Bandwidth: 10 MHz, …

Text truncated - open the document above for the full version.

DIGITAL EMC CO., LTD DUT: Dipole 2600 MHz; Type: D2600V2; Serial: D2600V2 - SN:1016 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2600 MHz; σ = 2.11 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3643; ConvF(6.96, 6.96, 6.96); Calibrated: 2011-01-24; Electronics: DAE3 Sn519 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2011-09-28; Ambient Temp: 22.3; Tissue Temp: 22.5 Dipole Validation Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.101 dB Peak SAR (extrapolated) = 33.7 W/kg SAR(1 g) = 14.8 mW/g; SAR(10 g) = 6.51 mW/g 0 dB = 21.8mW/g DIGITAL EMC CO., LTD DUT: Dipole 2600 MHz; Type: D2600V2; Serial: D2600V2 - SN:1016 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2600 MHz; σ = 2.1 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3643; ConvF(6.96, 6.96, 6.96); Calibrated: 2011-01-24; Electronics: DAE3 Sn519 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2011-10-04; Ambient Temp: 22.1; Tissue Temp: 22.4 Dipole Validation Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.105 dB Peak SAR (extrapolated) = 33.1 W/kg SAR(1 g) = 14.7 mW/g; SAR(10 g) = 6.5 mW/g 0 dB = 21.6mW/g DIGITAL EMC CO., LTD DUT: Dipole 2600 MHz; Type: D2600V2; Serial: D2600V2 - SN:1016 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2600 MHz; σ = 2.16 mho/m; ε r = 51.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3643; ConvF(6.96, 6.96, 6.96); Calibrated: 2011-01-24; Electronics: DAE3 Sn519 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2011-10-18; Ambient Temp: 22.3; Tissue Temp:22.6 Dipole Validation Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.059 dB Peak SAR (extrapolated) = 30.9 W/kg SAR(1 g) = 14.2 mW/g; SAR(10 g) = 6.26 mW/g 0 dB = 16.3mW/g DIGITAL EMC CO., LTD DUT: Dipole 2600 MHz; Type: D2600V2; Serial: D2600V2 - SN:1016 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2600 MHz; σ = 2.12 mho/m; ε r = 51.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3643; ConvF(6.96, 6.96, 6.96); Calibrated: 2011-01-24; Electronics: DAE3 Sn519 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2011-10-19; Ambient Temp: 21.8; Tissue Temp:22.1 Dipole Validation Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.014 dB Peak SAR (extrapolated) = 33.9 W/kg SAR(1 g) = 15.2 mW/g; SAR(10 g) = 6.67 mW/g 0 dB = 21.9mW/g DIGITAL EMC CO., LTD DUT: Dipole 2600 MHz; Type: D2600V2; Serial: D2600V2 - SN:1016 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2600 MHz; σ = 2.14 mho/m; ε r = 52.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3643; ConvF(6.96, 6.96, 6.96); Calibrated: 2011-01-24; Electronics: DAE3 Sn519 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2011-10-20; Ambient Temp: 22.2; Tissue Temp:22.4 Dipole Validation Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.006 dB Peak SAR (extrapolated) = 33.7 W/kg SAR(1 g) = 15.1 mW/g; SAR(10 g) = 6.64 mW/g 0 dB = 21.7mW/g DIGITAL EMC CO., LTD DUT: Dipole 2600 MHz; Type: D2600V2; Serial: D2600V2 - SN:1016 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2600 MHz; σ = 2.08 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3643; ConvF(6.96, 6.96, 6.96); Calibrated: 2011-01-24; Electronics: DAE3 Sn519 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2011-10-21; Ambient Temp: 22.5; Tissue Temp: 22.7 Dipole Validation Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.021 dB Peak SAR (extrapolated) = 32.2 W/kg SAR(1 g) = 14.3 mW/g; SAR(10 g) = 6.32 mW/g 0 dB = 21.0mW/g DIGITAL EMC CO., LTD DUT: Dipole 2600 MHz; Type: D2600V2; Serial: D2600V2 - SN:1016 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2600 MHz; σ = 2.2 mho/m; ε r = 52; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3643; ConvF(6.96, 6.96, 6.96); Calibrated: 2011-01-24; Electronics: DAE3 Sn519 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2011-10-22; Ambient Temp: 21.9; Tissue Temp: 22.1 Dipole Validation Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.035 dB Peak SAR (extrapolated) = 35.2 W/kg SAR(1 g) = 15.4 mW/g; SAR(10 g) = 6.75 mW/g 0 dB = 17.4mW/g DIGITAL EMC CO., LTD DUT: Dipole 2600 MHz; Type: D2600V2; Serial: D2600V2 - SN:1016 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2600 MHz;…

Text truncated - open the document above for the full version.

Time Vector Plots FCCID: YCO-IMW-C910W Copyright Ⓒ 2011, Digital EMC Co., Ltd. Page1 / 16 5MHz & AMC Zone & 16QAM 1/2 Symbol length = Marker 3 – Mark 2 Frame Length = Marker 2 – Marker 1 = 4.950 – 3.402 = 1.548ms = 8.082 – 3.082 = 5ms Duty = (1.548 / 5 ) X 100 = 30.96% 5MHz & AMC Zone & 16QAM 3/4 Symbol length = Marker 3 – Mark 2 Frame Length = Marker 2 – Marker 1 = 4.949 – 3.401 = 1.548ms = 8.082 – 3.080 = 5.002ms Duty = ( 1.548 / 5.002 ) X 100 = = 30.95% Time Vector Plots FCCID: YCO-IMW-C910W Copyright Ⓒ 2011, Digital EMC Co., Ltd. Page2 / 16 5MHz & AMC Zone & 64QAM 1/2 Symbol length = Marker 3 – Mark 2 Frame Length = Marker 2 – Marker 1 = 4.95 – 3.401 = 1.549ms = 8.082 – 3.082 = 5ms Duty = ( 1.549 / 5 ) X 100 = 30.98% 5MHz & AMC Zone & 64QAM 2/3 Symbol length = Marker 3 – Mark 2 Frame Length = Marker 2 – Marker 1 = 4.951 – 3.401 = 1.550ms = 8.082 – 3.084 = 4.998ms Duty = ( 1.550 / 4.998 ) X 100 = 31.01% Time Vector Plots FCCID: YCO-IMW-C910W Copyright Ⓒ 2011, Digital EMC Co., Ltd. Page3 / 16 5MHz & AMC Zone & 64QAM 3/4 Symbol length = Marker 3 – Mark 2 Frame Length = Marker 2 – Marker 1 = 4.949 – 3.401 = 1.548ms = 8.082 – 3.084 = 4.998ms Duty = ( 1.548 / 4.998 ) X 100 = 30.97% 5MHz & AMC Zone & 64QAM 5/6 Symbol length = Marker 3 – Mark 2 Frame Length = Marker 2 – Marker 1 = 4.949 – 3.401 = 1.548ms = 8.081 – 3.084 = 4.997ms Duty = ( 1.548 / 4.997 ) X 100 = 30.98% Time Vector Plots FCCID: YCO-IMW-C910W Copyright Ⓒ 2011, Digital EMC Co., Ltd. Page4 / 16 5MHz & AMC Zone & QPSK 1/2 Symbol length = Marker 3 – Mark 2 Frame Length = Marker 2 – Marker 1 = 4.951 – 3.401 = 1.550ms = 8.082 – 3.082 = 5ms Duty = ( 1.550 / 5 ) X 100 = 31.00% 5MHz & AMC Zone & QPSK 3/4 Symbol length = Marker 3 – Mark 2 Frame Length = Marker 2 – Marker 1 = 4.949 – 3.402 = 1.547ms = 8.082 – 3.084 = 4.998ms Duty = ( 1.547 / 4.998 ) X 100 = 30.95% Time Vector Plots FCCID: YCO-IMW-C910W Copyright Ⓒ 2011, Digital EMC Co., Ltd. Page5 / 16 5MHz & PUSC Zone & 16QAM 1/2 Symbol length = Marker 3 – Mark 2 Frame Length = Marker 2 – Marker 1 = 4.951 – 3.400 = 1.551ms = 8.082 – 3.081 = 5.001ms Duty = ( 1.551 / 5.001 ) X 100 = 31.01% 5MHz & PUSC Zone & 16QAM 3/4 Symbol length = Marker 3 – Mark 2 Frame Length = Marker 2 – Marker 1 = 4.951 – 3.399 = 1.552ms = 8.082 – 3.082 = 5ms Duty = ( 1.552 / 5 ) X 100 = 31.04% Time Vector Plots FCCID: YCO-IMW-C910W Copyright Ⓒ 2011, Digital EMC Co., Ltd. Page6 / 16 5MHz & PUSC Zone & 64QAM 1/2 Symbol length = Marker 3 – Mark 2 Frame Length = Marker 2 – Marker 1 = 4.951 – 3.402 = 1.549ms = 8.081 – 3.084 = 4.997ms Duty = ( 1.549 / 4.997 ) X 100 = 31.00% 5MHz & PUSC Zone & 64QAM 2/3 Symbol length = Marker 3 – Mark 2 Frame Length = Marker 2 – Marker 1 = 4.951 – 3.402 = 1.549ms = 8.082 – 3.082 = 5ms Duty = ( 1.549/ 5 ) X 100 = 30.98% Time Vector Plots FCCID: YCO-IMW-C910W Copyright Ⓒ 2011, Digital EMC Co., Ltd. Page7 / 16 5MHz & PUSC Zone & 64QAM 3/4 Symbol length = Marker 3 – Mark 2 Frame Length = Marker 2 – Marker 1 = 4.949 – 3.402 = 1.547ms = 8.082 – 3.084 = 4.998ms Duty = ( 1.547 / 4.998 ) X 100 = 30.95% 5MHz & PUSC Zone & 64QAM 5/6 Symbol length = Marker 3 – Mark 2 Frame Length = Marker 2 – Marker 1 = 4.952 – 3.401 = 1.551ms = 8.082 – 3.084 = 4.998ms Duty = ( 1.551 / 4.998 ) X 100 = 31.03% Time Vector Plots FCCID: YCO-IMW-C910W Copyright Ⓒ 2011, Digital EMC Co., Ltd. Page8 / 16 5MHz & PUSC Zone & QPSK 1/2 Symbol length = Marker 3 – Mark 2 Frame Length = Marker 2 – Marker 1 = 4.951 – 3.401 = 1.550ms = 8.081 – 3.080 = 5.001ms Duty = ( 1.550 / 5.001 ) X 100 = 30.99% 5MHz & PUSC Zone & QPSK 3/4 Symbol length = Marker 3 – Mark 2 Frame Length = Marker 2 – Marker 1 = 4.951 – 3.398 = 1.553ms = 8.082 – 3.081 = 5.001ms Duty = ( 1.553 / 5.001 ) X 100 = 31.05% Time Vector Plots FCCID: YCO-IMW-C910W Copyright Ⓒ 2011, Digital EMC Co., Ltd. Page9 / 16 10MHz & AMC Zone & 16QAM 1/2 Symbol length = Marker 3 – Mark 2 Frame Length = Marker 2 – Marker 1…

Text truncated - open the document above for the full version.
