YCQ-SPL32TWirelessTourGuideSystem

SPL-32R/SPL-32T UHFWireless Tour Guide System User Manual SPL-32TSPL-32R SOOLAIELECTRONICS CO.,LTD -2- Thank you for choosing SOOLAI! Please take a few moments to read these instructions carefully, as we want you to enjoy your new SOOLAI products quickly and to the fullest. Special features ●Super portable design-Super mini, lightweight, metal shell ●UHF professionalfrequency, PLL synthesized design, 32 channels available ●"DigitalPilotone & Noise Lock" dual-squelch Circuitry ●High performance double-IF circuit design ●96*64 dot matrixWhite LCD display ●LCD display Channel, frequency, volume, battery, RF level, AF level, transmitter gain,RF power, and lock.Mode ●Transmitter dynamic display of AF level,AFoverloadwarning, 31-step microphone gain adjustment design ●Quick-mute function ●Receiverdigital16-step volume control ●Receiverdigital21-step SQ adjusting ●Panellockwith password ●Built-in polymer batteryworking for 10hours ●uniqueclip-worn design ●system support ofinputting background musicwhile talking ●Operatingrange300ft(line-of-sight) Main Applications： IndustryTouring Widely used in touring, visiting museums, exhibitions Guest reception Used in reception of visitants in product presentation, advanced exhibition of large companies Teaching Used in meeting and teaching of school and so on Simultaneous interpretation International conference simultaneous interpretation Stage monitoring Monitoringof performance: especiallyforacting singer to monitor accompaniment -3- CONTENT SPL-32R receiver...... ... ... ....... ... ... ... ... ... ... ... ... ... ... ... ... ... ....... 04 Operating controls... ... ... ... ...... ... ... ......... ... ... ... ... ... ... ... ... ... ...05 Adjusting channel/frequency... ... ... ........ .......... ... ... ... ... ... ... ..... 06 Adjusting the squelch threshold... ... ... ............... ... ... ... ... ... ... ... ..... 06 Setting locking/unlocking... ... ... .......... ...... ... ... ...... ... ... ... ... ... .... 07 Exiting from setting operation... ... ... ... ....... ... ... ... ... ... ... ... ... ... ..... 07 SPL-32T transmitter... ... ... ... ... ... ... ........... ... ... ... ... ...... ... ... ..... 08 Operating controls... ... ... ... ... ... ... ... ... .............. ... ... ... ... ....... ....09 Adjusting channel/frequency... ... ... ... ... ... ........... ...... ... ... ... ... .....10 Adjusting microphone gain... ... ... ... ... ... ... ... ......... ........ ... ... ... .....10 Adjusting transmitting power... ... ... ... ... ... ... ... ........ ... ... ... ... ... .....11 Setting locking/unlocking.... ... ... ... ... ... ... ... ... ... ... ......... ... ...... ....11 Operating belt clip... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ........ ... ... .....12 SC-02 two unit charger... ... ... ... ... ... ....................................................... 14 SCB-20 twenty unit charging and storing case...... ... ... ...... ........ ... ..... 15 Application samples... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ....16 Troubleshooting... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...18 Specifications... ... ... ... ... ... ... ... ... ... ... ...... ... ........ ... ... ....... ... .... 19 FCC STATEMENT.................. ........ ... ......... ... ... ...... ......................20 Warranty... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ......... 21 -4- SPL-32R receiver SPL-32RLCD （figure 1） (1).LCD (2).On/Off button (keeping it pressed for 3 seconds will switch the receiver on) (3).Tiepillar or 1/4 wavelengthflexibleantenna (4).3.5 mm jack socket for headphones (5).Rocker button (UP) (6).Rocker button (DOWN) (7).SET button (8).Charging contact (9).Channeldisplay (10).Frequency display (11).16-step headphone output volume display (12).6-step dynamic RF display (13).Lock mode icon (lock mode is activated) (14).4-step battery status display (15).6-step dynamic AF display (16).Audio overloaddisplay,‘OL’means transmitter microphone input volume is too high.It needs to be reduced (adjusting transmitterAF gain until there is no OL on display) -5- Operating controls 1.Via keeping ON/OFF button pressed for 3 seconds, you can switch the receiver on. 2.Via pressing UP or DOWN button, you can add or reduce headphone volume.(The minimum is 1, and the max is 16.) 3.Via keeping ON/OFF button pressed for 3 seconds, you can switch receiver off. 4.Via keeping“”button pressed for 3 seconds, you can enter the operatingmenu, as shown in the figure 2. If there is no operatingmenu, you will see the code inputting picture, as shown in the figure 3. It means the former user has set the lock mode. You have to input the code, if you want toenter. Please refer to (Setting Locking/unlocking ) （figure 2）（figure 3） ●The battery is flat if you can not switch the receiver on. You have to charge before switchit again. ●The receiver willpoweroff automatically to protect the lithium-ion batterywhen the battery is flat. Please charge the battery. ●While the transmitter off, please check the RF onLCDof receiver. If there is no RF volume display, it means no frequency interference. You can use this channel, as shown in the figure 4. If there is RF volume display, it means the frequency is interfered. Pleaseuseanother channel,as shown in the figure5.（Please refer to adjusting channel/frequency）If there is AF volumeon display, it means the receiver has received signal from one transmitter which is swtiched on(as shown in the figure 6). ●Set the volume for the connected headphones tothe minimum before putting the headphones on. figure 4figure 5figure 6 -6- Adjusting channel/frequency 1.Keeping SET button pressed for 3 seconds, you can enter the operatingmenu. 2.Via“”or“”button, you can select“SET CH”icon, as shown in the figure 7. Then press SET button to enter, as shown in the figure 8. 3.Via“”or“”button, you can go to t…

Text truncated - open the document above for the full version.

SOOLAI ELECTRONICS CO.,LTD _____________________________________________ SCS-F18: Project and Product Certification Representative Authorization LetterPage1of2Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) FromTo Approved Date Initial Release (current)1.01.0Nov-14-2006 Revised wording(current)1.02.0Sept–25-2007 SOOLAI ELECTRONICS CO.,LTD _____________________________________________ SCS-F18: Project and Product Certification Representative Authorization LetterPage2of2Rev 2.0 (April 21, 2010) To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re:Project and ProductCertification Representative Authorization Letter We,SOOLAI ELECTRONICS CO.,LTDhereby authorize SIEMIC, INC. to act as a Certification Bodyforcertifyingfor thefollowing project(s): Product description:Wireless Tour Guide System model name:SPL-32T We affirm that between SIEMIC andSOOLAI ELECTRONICS CO.,LTD, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name:Ocean Si Title:R & D Manager CompanyName:SOOLAI ELECTRONICS CO.,LTD Address:Xishanqiao,Yuhuatai Zone,Nanjing,China 210041 Telephone:86-25-52803489 Fax No.:86-25-84083635

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 SOOLAI ELECTRONICS CO.,LTD _____________________________________________ (May 7, 2010) To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YCQ-SPL32T We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Name : Ocean Si Title: R & D Manager Company Name: SOOLAI ELECTRONICS CO.,LTD Address: Xishanqiao,Yuhuatai Zone,Nanjing,China 210041 Telephone: 86-25-52803489 Fax No.: 86-25-84083635

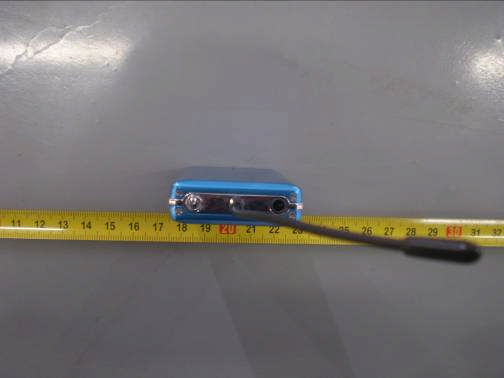

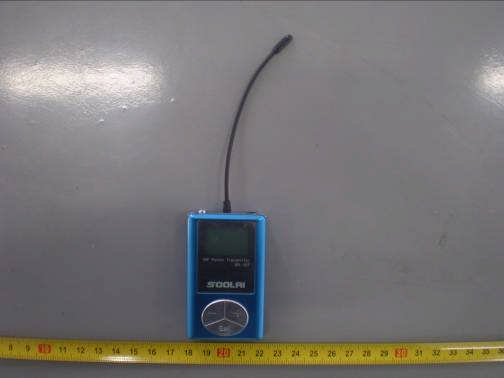

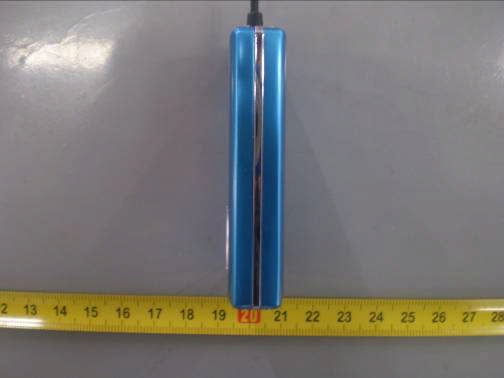

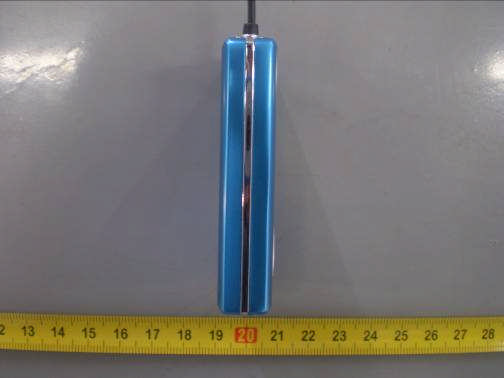

Front View of EUT Rear View of EUT Left View of EUT Right View of EUT Top View of EUT Bottom View of EUT

FCC ID：YCQ-SPL32T This device complies with Part 74 of the FCC Rules

Label Location

file:///C|/Documents and Settings/Administrator/桌面/索莱开案资料/new/SPL-32T_BOM.txt[2010-4-28 17:16:50] SPL-32T(MAIN) Revised: Thursday, March 18, 2010 Revision: 1.0 Bill Of Materials April 28,2010 8:47:03 Page1 Item Quantity Reference Part ______________________________________________ 1 1 BT1 BATTERY 2 1 1CB1 K28-CA-14-2A-G（公座） 3 1 1CB2 PJ327C-2 4 13 1C1,2C2,2C9,1C27,1C28, 1uF 1C31,1C33,1C54,1C59,1C62, 1C64,1C68,2C12 5 12 1C2,2C1,2C6,1C15,1C16, 4.7uF 1C19,1C29,1C35,1C37,1C47, 1C72,2C10 6 5 1C3,2C3,2C5,2C7,1C69 100nF 7 3 1C4,1C23,1C73 2.2uF 8 2 1C5,1C57 220pF 9 6 1C6,2C8,1C22,1C41,1C51, 10uF 1C55 10 3 1C7,1C58,1C61 330pF 11 8 1C8,1C12,1C13,1C17,1C21, 27pF 1C44,1C66,2C13 12 4 1C9,1C36,1C39,1C65 1nF 13 2 2CB3,2CB4 CONT-2 14 4 1C10,1C11,1C14,1C26 47nF file:///C|/Documents and Settings/Administrator/桌面/索莱开案资料/new/SPL-32T_BOM.txt[2010-4-28 17:16:50] 15 1 1C20 820pF 16 5 1C18,1C25,1C32,1C45,1C63 100pF 17 3 1D1,1D2,1D3 99W 18 9 1L3,1L4,1L6,2L1,1L11, 102SN1D 1L12,1L14,1L15,1L16 19 1 1L7 12nH 20 2 1L2,1L9 4.7nH 21 1 1M1 VCO 22 4 1Q1,1Q2,2Q1,2Q2 4101 23 1 1Q4 520 24 1 1R1 39kΩ 25 1 2CB1 K28-CA-14-3A-M 26 1 2CB2 BATT-CONN 27 1 2CB5 CONN PWR 2-H 28 5 2C4,1C34,1C53,1C56,2C11 10nF 29 1 2D2 YSL-3220W11-3 30 1 2LCD1 9664 31 3 2R6,2R15,2R18 1MΩ 32 2 2R8,1R20 2.2kΩ 33 1 2SW3 KEYUP 34 1 2SW4 KEYPOWER 35 1 2U1 24LC00 36 1 2U3 HT46R23-28PIN 37 2 1Y2,2Y1 4MHZ 38 2 1C24,1C30 100uF/TB 39 2 1C38,1C60 2.2pF 40 1 1C40 56pF 41 15 1R7,1R8,1R9,1R18,1R25, 10kΩ 1R31,1R39,1R49,2R10,2R11, file:///C|/Documents and Settings/Administrator/桌面/索莱开案资料/new/SPL-32T_BOM.txt[2010-4-28 17:16:50] 2R12,2R14,2R19,2R20,2R21 42 4 1Q6,1Q7,1Q8,2Q3 3904 43 2 1C42,1C48 8pF 44 1 1C43 1.5pF 45 1 1C46 0.47uF 46 2 1C49,1C50 6.8pF 47 1 1C52 20pF 48 2 2D1,2D3 70 49 1 1C67 3.3pF 50 1 1C70 NC 51 1 1L5 15nH 52 1 1L8 22nH 53 2 1L10,1L13 8.2nH 54 1 1Q3 505 55 1 1Q5 NTR4101PT1G 56 5 1R2,1R6,1R16,1R19,2R16 249Ω 57 5 1R3,1R17,1R32,1R33,1R47 49.9Ω 58 1 1R4 62kΩ 59 4 1R5,1R11,1R44,2R23 22kΩ 60 1 2SW2 KEYSET 61 4 1R10,2R26,2R27,2R28 47kΩ 62 1 1R12 4.99kΩ 63 1 1R13 56kΩ 64 2 1R14,1R46 15kΩ 65 5 1R15,1R23,1R24,2R13,2R22 100kΩ 66 1 1R21 18kΩ 67 1 1R22 1kΩ 68 1 1R26 100Ω 69 1 1R27 2.7kΩ file:///C|/Documents and Settings/Administrator/桌面/索莱开案资料/new/SPL-32T_BOM.txt[2010-4-28 17:16:50] 70 2 1R28,1R34 68Ω 71 1 1R30 36Ω 72 2 1R35,1R38 3.3kΩ 73 1 1R36 1.5kΩ 74 1 1R37 8.2kΩ 75 1 1R40 1.5MΩ 76 5 1R41,1R42,1R43,1R45,2R17 220kΩ 77 1 1R48 33kΩ 78 1 1U1 5237 79 1 1U2 627 80 4 1U3,1U4,1U9,1U10 358 81 1 1U5 8507 82 3 1U6,1U8,2U2 2007 83 1 1U7 1061 84 1 1VC1 ECRKN030G61 85 2 1VR1,1VR2 EVN3YSX50B33/3K 86 1 1Y1 32.768KHZ 87 1 2SW1 KEYDOWN

Tune up Procedure I would like to confirm this device does not have tune upinformation,because the tune up is fixed by the manufacturer. Therefore, the usercannot tune up the device. Sincerely, Signature： Ocean Si/R & D Manager Phone：86-25-52803489 Fax：86-25-84083635 Address：Xishanqiao,Yuhuatai Zone,Nanjing,China 210041

SOOLAIELECTRONICSCO.,LTD WirelessTourGuideSystem Model:SPL-32T 21April,2010 ReportNo.:1002034 (This report supersedesNONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: PeterCai ComplianceEngineer Jackson Chen Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title:EMCTest Report forWirelessTourGuideSystem Model:SPL-32T To:FCCPart74SubpartH:Jul.2009,ANSIC63.4:2009 Serial#:1002034 Issue Date:21April,2010 Page:2of41 www.siemic.com Thispage has been left blank intentionally. Title:EMCTest Report forWirelessTourGuideSystem Model:SPL-32T To:FCCPart74SubpartH:Jul.2009,ANSIC63.4:2009 Serial#:1002034 Issue Date:21April,2010 Page:3of41 www.siemic.com CONTENTS 1EXECUTIVE SUMMARY &EUTINFORMATION.............................................................................................................4 2TECHNICAL DETAILS..................................................................................................................................................5 3MODIFICATION............................................................................................................................................................6 4TEST SUMMARY..........................................................................................................................................................7 5MEASUREMENTS, EXAMINATION AND DERIVED RESULTS........................................................................................8 ANNEX A. TEST INSTRUMENTATION.................................................................................................................................18 ANNEX B.EUT AND TEST SETUPPHOTOGRAPHS...........................................................................................................22 ANNEX C.TEST SETUP AND SUPPORTING EQUIPMENT...................................................................................................23 ANNEXD.USER MANUAL / BLOCKDIAGRAM / SCHEMATICS/ PART LIST.......................................................................27 ANNEXE.SIEMIC ACCREDITATIONCERTIFICATES..........................................................................................................28 Title:EMCTest Report forWirelessTourGuideSystem Model:SPL-32T To:FCCPart74SubpartH:Jul.2009,ANSIC63.4:2009 Serial#:1002034 Issue Date:21April,2010 Page:4of41 www.siemic.com 1Executive Summary & EUTInformation The purpose of this test program was to demonstrate compliance of theSOOLAIELECTRONICS CO.,LTDWirelessTourGuideSystem, against the current Stipulated Standards. TheWirelessTour GuideSystemhasdemonstrated compliance with theFCCPart74SubpartH:Jul.2009. EUT Information EUT Description WirelessTourGuideSystem Model No SPL-32T Serial No N/A Input Power 3.6Vdc,50mA Classification Per Stipulated Test Standard ClassBEmissionProduct Note: Only Model SPL-32T was tested, since the electrical circuit design, layout, components used and internal wiring were identical for the following models. Only difference is appearance. Listed models: H-100T, SPL-79T,SPL-16T,PT-32 Title:EMCTest Report forWirelessTourGuideSystem Model:SPL-32T To:FCCPart74SubpartH:Jul.2009,ANSIC63.4:2009 Serial#:1002034 Issue Date:21April,2010 Page:5of41 www.siemic.com 2TECHNICAL DETAILS Purpose Compliance testing ofWirelessTourGuideSystemwith stipulated standards Applicant / Client SOOLAIELECTRONICSCO.,LTD Xishanqiao,YuhuataiZone,Nanjing,China210041 Manufacturer SOOLAIELECTRONICSCO.,LTD Xishanqiao,YuhuataiZone,Nanjing,China210041 Laboratory performing the tests SIEMIC Nanjing(China)Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number1002034 Date EUT receivedMarch19,2010 Standard applied FCCPart74SubpartH:Jul.2009 Dates of test (from–to) April2toApril21,2010 No of Units#1 Equipment CategoryN/A Trade NameSOOLAI Microprocessor (s)Unidentified RF Operating Frequency (ies)614MHz-634MHz, 678MHz-698MHz Clock/Oscillator Frequency (ies) N/A Rated Input Power 3.6Vdc, 50mA Number of Channels :32 Port/ConnectorsN/A FCC ID：YCQ-SPL32T Title:EMCTest Report forWirelessTourGuideSystem Model:SPL-32T To:FCCPart74SubpartH:Jul.2009,ANSIC63.4:2009 Serial#:1002034 Issue Date:21April,2010 Page:6of41 www.siemic.com 3MODIFICATION NONE Title:EMCTest Report forWirelessTourGuideSystem Model:SPL-32T To:FCCPart74SubpartH:Jul.2009,ANSIC63.4:2009 Serial#:1002034 Issue Date:21April,2010 Page:7of41 www.siemic.com 4TEST SUMMARY The product was tested in accordance with the following specifications. Test Results Summary Test StandardDescriptionPass / Fail §74.861(e)-1 Maximum Carrier PowerPass §74.861(e)-3 Modulation characteristicsPass §74.861(e)-4 Frequency TolerancePass §74.861(e)-5 &§74.861(e)-6 Occupied BandwidthPass §74.861(d)-3 Unwanted RadiationPass All measurement uncertainty is not taken into consideration for all presented test result. Title:EMCTest Report forWirelessTourGuideSystem Model:SPL-32T To:FCCPart74SubpartH:Jul.2009,ANSIC63.4:2009 Serial#:1002034 Issue Date:21April,2010 Page:8of41 www.siemic.com 5MEASUREMENTS, EXAMINATION AND DERIVED RESULTS 5.1MaximumCarrierPower 1.Requirement(s): 47 CFR §74.861(e)-(1) Thepower of the measured unmodulated carrier power at the output of the transmitter power amplifier(antenna input power) may not exceed the following: 470MHz-608MHz and 614-806MHz bands-250mW. 2.Environmental ConditionsTemperature16 o C Relative Humidity53% Atmospheric Pressure1009mbar 3.Test Date:April7, 2010 TestBy:Peter Cai Test Result:Pass Low Channel–614.25MHz Freq. (MHz) Polarity (H/V) Height (cm) Azimuth SGO/P (dBm) Factors (dB) Corrected power (dBm) Corrected power (w) Limit (w) 614.25V26028.35.113.60.02290.25 614.25H27037.85.112.90.01950.25 Mid Channel–633.625MHz Freq. (MHz) Polarity (H/V) Height (cm) Azimuth SGO/P (dBm…
