EMU™ Quick Start 34 W 7 th Ave, Vancouver, BC, Canada V5Y 1L6 [email protected] 1-604-630-4287 EMU™ Energy Monitoring Unit Quick Start Guide FCC/IC Notices Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. FCC/IC RF Exposure Statement This equipment complies with FCC and Industry Canada radiation exposure limits set forth for an uncontrolled environment. The antenna(s) used for this equipment must be installed to provide a separation distance of at least 8 inches (20cm) from all persons. ICES-003 Compliance This Class B digital apparatus complies with Canadian ICES-003. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. www.rainforestautomation.com EMU™ Quick Start Step 1: Check Contents of the box The box should contain the following items: a) 1 x EMU™ Display unit b) 4 x AA Batteries Step 2: Register your EMU™ In order for your EMU™ to connect to the smart meter, you will need to register your EMU™ with your utility. Please follow the procedure provided by your utility. You will need the following information, which is found on the Information Label on the back of your EMU™: Note that it may take some time for your utility to enable the smart meter to connect with your EMU™. You should be advised by your utility how long this will take. Step 3: Assemble your EMU™ a. Open the battery cover on the back of your EMU™ by pushing down on the catch at top of the door. b. Insert 4 AA batteries exactly as shown on inside of the battery compartment. Note that putting a battery in backwards can be hazardous, and may cause extensive damage to the EMU™. Always use alkaline batteries; never mix battery types. Replace all batteries at the same time. c. Replace the battery cover by inserting the bottom tabs first, then snapping the catch closed. Step 4: Wait for the EMU™ to join the smart meter The EMU™ will attempt to connect to the smart meter. This could take 1-2 minutes. When the EMU™ finds the smart meter and successfully communicates with it, you will see a meter reading on the Display screen. MAC ID Information Label Install Code

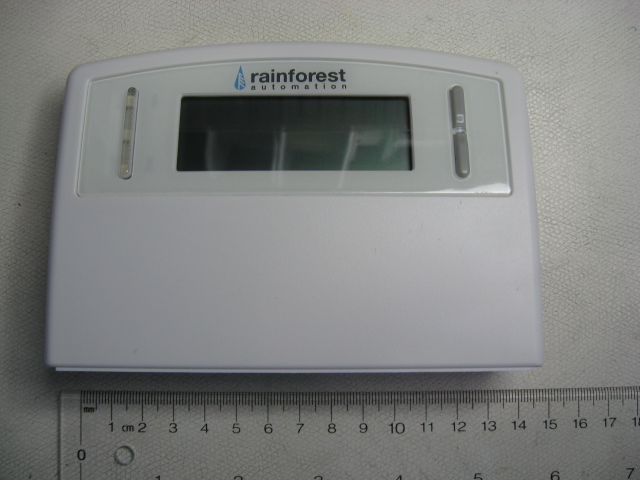

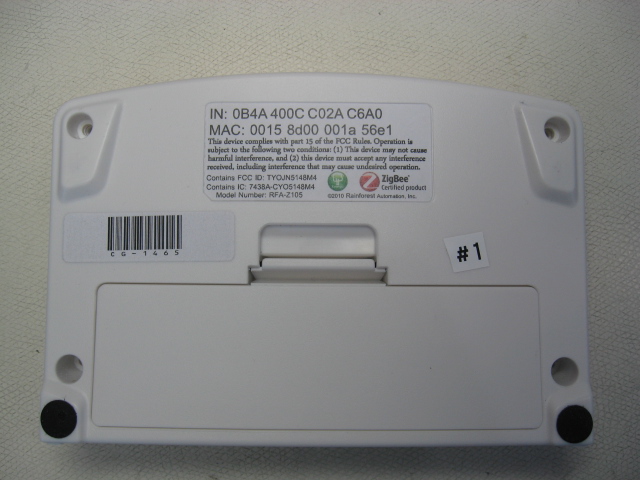

CG-1465-RA-1-1 RFA-Z105 EMU FCC/IC Exhibit Rainforest Automation Date: August 26, 2010 Revision #: 1 External Photographs Top view Rear view Label CG-1465-RA-1-1 RFA-Z105 EMU FCC/IC Exhibit Rainforest Automation Date: August 26, 2010 Revision #: 1 Side view Side view CG-1465-RA-1-1 RFA-Z105 EMU FCC/IC Exhibit Rainforest Automation Date: August 26, 2010 Revision #: 1 Side view Side view CG-1465-RA-1-1 RFA-Z105 EMU FCC/IC Exhibit Rainforest Automation Date: August 26, 2010 Revision #: 1 Battery housing cover off Label

24.29 57.21 2.24 2.50 X 3 SIZE 3D MODEL REV DRAWN DRAWING No. FILE NAME SHEET DATE CHK MATERIAL QUANTITY PART NAME UNITS TOLERANCE FINISH CLIENT PROJECT REVISIONS/ISSUED APPROVEDDATE SCALE PROJECTION DO NOT SCALE DIM ±0.1 ANG: ±.5° MM Pa_label_REV03 Df_091101_back label_REV03 1 OF 1 P0 BFE XX 01 11 2009 1:1B THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF THE CLIENT. ANY REPRODUCTION IN WHOLE OR IN PART WITHOUT THE WRITTEN CONSENT OF THE CLIENT IS PROHIBITED. B C E F 1 2 3 4 5 6 7 8 A B C D E F 1 2 3 45 6 7 8 P0 -ISSUED FOR FABRICATION D A EMU back label EMU Rainforest Automation Inc. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ©2010 Rainforest Automation, Inc. IN: C615 607F 89A5 9A80 MAC: 0015 8d00 001a 5548 FCC ID: YCXRFA-Z105 Model Number: RFA-Z105 IC: 8919A-RFA Z105

CG-1465-RA-1-1 RFA-Z105 EMU FCC/IC Exhibit Rainforest Automation Date: August 26, 2010 Revision #: 1 Internal Photographs Cover off PCB Front CG-1465-RA-1-1 RFA-Z105 EMU FCC/IC Exhibit Rainforest Automation Date: August 26, 2010 Revision #: 1 PCB, LED’s and buttons PCB rear CG-1465-RA-1-1 RFA-Z105 EMU FCC/IC Exhibit Rainforest Automation Date: August 26, 2010 Revision #: 1 PCB with buttons, LED’s and display PCB with buttons, LED’s and display

CG-1457 RFA-Z105 FCC/IC Exhibit Rainforest Automation FCC ID # YCXRFA-Z105 IC ID # 8919A-RFAZ105 Date: November 10, 2010 Revision #: 0 RF Exposure MPE Exhibit Prediction of Maximum Permissible Exposure Equation from page 18 of OET Bulletin 65, Edition 97-01 where: S = power density P = power input to the antenna G = directional power gain of the antenna relative to an isotropic radiator R = distance to the center of radiation of the antenna Max. peak output power at antenna terminal(dBm): 13.55 Max. peak output power at antenna terminal(mW): 22.65 Antenna gain for prediction(dBi): 2.55 Antenna gain (numerical): 1.80 Duty Cycle(%): 100 Prediction distance(cm): 20 Prediction frequency(MHz): 2400-2480 Limit for uncontrolled exposure(mW/cm ²): 1.000 S(mw/cm²) = : 0.008105 mW/cm 2

Confidentiality Statement: This report and the information contained herein represent the results of testing articles/products identified and selected by the client. The tests were performed to specifications and/or procedures approved by the client. National Technical Systems (“NTS”) makes no representations expressed or implied that such testing fully demonstrates efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article or similar products for a particular purpose. This document shall not be reproduced except in full without written approval from National Technical Systems (“NTS”) and the customer. Certification Test Report CFR 47 FCC Part 15, Subpart C Section 15.247 Industry Canada RSS 210, Issue 7 Rainforest Automation RFA-Z105 EMU FCC ID # YCXRFA-Z105 IC ID # 8919A-RFAZ105 Project Code CG-1465 (Report CG-1465-RA-1-1) Revision: 1 (This report supersedes CG-759-RA-1-0) September 16, 2010 Prepared for: Rainforest Automation Author: Deniz Demirci Senior EMC / Wireless Technologist Approved by: Nick Kobrosly Director of Canadian Operations CG-1465-RA-1-1 RFA-Z105 Compliance Test Report Rainforest Automation FCC ID # YCXRFA-Z105 IC ID # 8919A-RFAZ105 ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 2 of 38 September 16, 2010 Report Summary Test Facility: National Technical Systems, Canada Product Integrity Laboratory 5151-47 th Street, N.E. Calgary Alberta T3J 3R2 Accreditation Numbers: 0214.22 Electrical 0214.23 Mechanical Accredited by A2LA The American Association for Laboratory Accreditation CLIENTS SERVED: All interested parties FIELDS OF TESTING: Electrical/Electronic, Mechanical/Physical ACCREDITATION DATE:: May 14, 2009 VALID TO: December 31, 2011 Applicant: Rainforest Automation 34 W 7 th Avenue V5Y 1L6 Vancouver, BC Canada Customer Representative: Name: Jacques Farges Phone #: 604-630-4287 Email Address: [email protected] CG-1465-RA-1-1 RFA-Z105 Compliance Test Report Rainforest Automation FCC ID # YCXRFA-Z105 IC ID # 8919A-RFAZ105 ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 3 of 38 September 16, 2010 Test Summary Appendix Test/Requirement Description Deviations* from: Pass / Fail Applicable FCC Rule Parts Applicable Industry Canada Rule Parts Base Standard Test Basis NTS Procedure A 6 dB Bandwidth No No No Pass FCC Subpart C 15.247 (a) (2) RSS 210 Issue 7 A8.2 (a) B Occupied Bandwidth (99% emission bandwidth) No No No N/A N/A RSS-Gen Issue 2 4.6.1 C Peak Power Output No No No Pass FCC Subpart C 15.247 (b) (3) RSS 210 Issue 7 A8.4 (4) D Power Spectral Density No No No Pass FCC Subpart C 15.247 (e) RSS 210 Issue 7 A8.2 (b) E Conducted Spurious Emissions No No No Pass FCC Subpart C 15.247 (d) RSS 210 Issue 7 A8.5 F Conducted Spurious Emissions Band Edge No No No Pass FCC Subpart C 15.247 (d) RSS 210 Issue 7 A8.5 G Duty Cycle Correction factor No No No N/A FCC Subpart C 15.35 (c) RSS-Gen Issue 2 4.5 H Radiated Spurious Emissions Band Edge No No No Pass FCC Subpart C 15.247, 15.205 RSS 210 Issue 7 2.6, A8.5 I Radiated Spurious Emissions (TX and RX) No No No Pass FCC Subpart C 15.247, 15.205 RSS 210 Issue 7 2.6, A8.5 Test Result: The product presented for testing complied with test requirements as shown above. Prepared By: _______________________ Reviewed By: ______________________ Deniz Demirci Glen Moore Senior Wireless/EMC Technologist Wireless/EMC Manager Approved By: ______________________ Alex Mathews Quality Management Representative CG-1465-RA-1-1 RFA-Z105 Compliance Test Report Rainforest Automation FCC ID # YCXRFA-Z105 IC ID # 8919A-RFAZ105 ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 4 of 38 September 16, 2010 Table of Contents FCC ID # YCXRFA-Z105 .................................................................................................................................................. 1 REPORT SUMMARY ........................................................................................................................................................ 2 TEST SUMMARY .............................................................................................................................................................. 3 REGISTER OF REVISIONS ............................................................................................................................................. 5 1.0 INTRODUCTION ............................................................................................…

Text truncated - open the document above for the full version.

CG-1465-RA-1-1 RFA-Z105 EMU FCC/IC Exhibit Rainforest Automation Date: August 26, 2010 Revision #: 0 Test Setup Photographs Radiated Emission (Horizontal) Radiated Emission (Vertical) CG-1465-RA-1-1 RFA-Z105 EMU FCC/IC Exhibit Rainforest Automation Date: August 26, 2010 Revision #: 0 Radiated Emission (side)
