RFA-Z105-2 EMU-2™ Quick Start www.rainforestautomation.com EMU-2™ Energy Monitoring Unit Quick Start Guide FCC/IC Notices This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. FCC/IC RF Exposure Statement This equipment complies with FCC and Industry Canada radiation exposure limits set forth for an uncontrolled environment. The antenna(s) used for this equipment must be installed to provide a separation distance of at least 8 inches (20cm) from all persons. ICES-003 Compliance This Class B digital apparatus complies with Canadian ICES-003. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Compliance Regulations For Australia and New Zealand This equipment complies with the C-Tick labeling requirements for Australia and in New Zealand. As a radio transmitter, this device complies with the requirements of AS/NZS 4268:2008 as designated in the Radiocommunications (Short Range Devices) Standard 2004 for Australia and as required by the Radiocommunications Regulations (General Users Radio License for Short Range Devices) Notice 2011 for New Zealand. This device is a Category A device as defined in the Radiocommunications (Compliance Labeling - Electromagnetic Radiation) Notice 2003. www.rainforestautomation.com RFA-Z105-2 EMU-2™ Quick Start Step 1: Check Contents of the box The box should contain the following items: EMU-2™ Display unit, AC Power Adapter, 2 x AAA batteries Step 2: Register your EMU-2™ Your EMU-2™ must be registered with your utility to connect to the smart meter. It may come to you preregistered. If so, you can skip to the next step. If not, you will need to contact your utility to register your device. You will need the following information, which is found on the Information Label on the back of your EMU-2™: Note that it may take some time for your utility to enable the smart meter to connect with your device. You must wait until this process is complete before proceeding; your EMU-2™ will not function correctly until the smart meter is enabled. Step 3: Power up your EMU-2™ Plug the AC Adapter into a power outlet, and plug the other end of the cord into your EMU-2™. You can also install the batteries, if you wish: remove the battery door at the back of the unit; insert 2 AAA batteries exactly as shown on inside of the battery compartment; replace the battery cover. Note that putting a battery in backwards can be hazardous, and may cause extensive damage to your EMU-2™. Always use alkaline batteries; never mix battery types. Replace all batteries at the same time Step 4: Wait for your EMU-2™ to join the smart meter The EMU-2™ will attempt to connect to the smart meter. This could take 1-2 minutes. When your EMU-2™ finds the smart meter and successfully communicates with it, you will see the Current Time screen, with dashes instead of digits. As soon as the dashes are replaced with the current time and date, it means that your EMU-2™ is reading the meter data. Step 5: Configure your EMU-2™ a. Press both of the buttons on your EMU-2™ simultaneously and release. b. Press the Bottom Button to skip the Restart screen. c. Press the Top Button to select the language you would like to use; press the Bottom Button to save your selection. d. If your meter does not provide pricing (ask your utility), you will need to set your electricity price. The digit to be modified will be flashing, starting on the right, and working left. After you have entered all 5 digits of the energy price, you will see the Billing Dates screen. e. Press the Bottom Button to see the Battery screen. f. Press any button to return to the Current Time screen. Your EMU-2™ is ready to use. Install Code MAC Address --:---- -----, ---- Top Button increments digit value Bottom Button saves digit value Set Rate 000.00¢/kWh Change  Keep 

34 W 7th Ave A Rainforest Automation, Inc. rainforest rest a u t o m a I Vancouver BC V5Y 1 L6 Canada Date: September 18, 2012 Subject: Confidentiality Request for FCC ID: YCXRFA-Z1052 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Short Term Confidentiality Long Term Confidentiality Exhibit Requested Requested No Yes Block Diagrams No No External Photos No No * Internal Photos No Yes Operation Description/Theory of Operation No Yes Schematics No No Test Setup Photos No No * User's Manual * Note: Rainforest Automation, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify certifying agent in the event information regarding the product or the product is made available to the public. www.rainforestautomation.com Rainforest Automation, Inc. rainforest 34 W 7th Ave a u t o ma I Vancouver BC V5Y 1 L6 Canada Sincerely, By:____ JAC-O LiElFttc (Sign u (Print name) Title: VP Operations email: [email protected] On behalf of: Rainforest Automation, Inc., 34 West 7th Avenue, Vancouver, B.C., Canada, V5Y 11-6 Telephone: 604-630-4287 www.rainforestautomation.com

Island Compliance Services Inc. Rainforest Automation Inc. EMU-2™ Page | 1 of 1 Island Compliance Services Inc. Cover Letter Dear Sir/Madam, Please invoice the “applicant”directly for the costs associated with the TCB submission process. All queries relating to the submission are to continue to be sent directly to the “customer” (Island Compliance Services Inc). Thank you, Andrew Eadie. Operations Manager Senior EMC Engineer Island Labs 6454 Fitzgerald Rd. Courtenay V9J 1N7

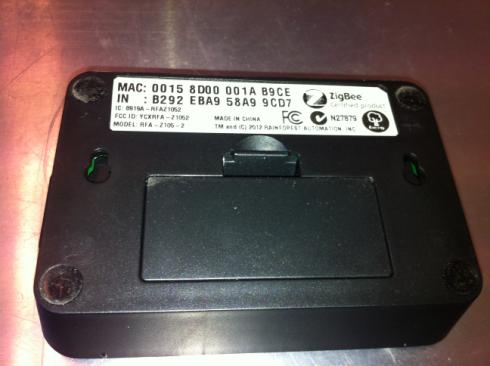

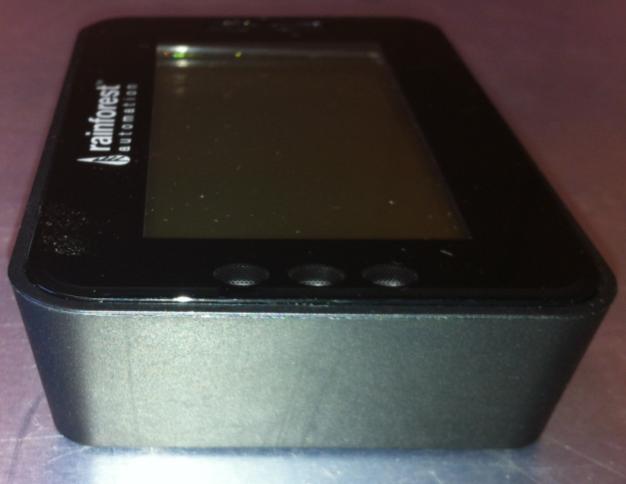

Island Compliance Services Inc. Rainforest Automation Inc. Model : RFA-Z105-2 Trade Name: EMU-2™ Page | 1 of 1 Island Compliance Services Inc. External Photographs Model: RFA-Z105-2, Trade Name: EMU-2™ Residential Energy Monitoring Unit

Island Compliance Services Inc. Rainforest Automation Inc. Model : RFA-Z105-2 Trade Name: EMU-2™ Page | 1 of 2 Island Compliance Services Inc. Internal Photographs Model: RFA-Z105-2, Trade Name: EMU-2™ Residential Energy Monitoring Unit Antenna Transmitter Circuitry Island Compliance Services Inc. Rainforest Automation Inc. Model : RFA-Z105-2 Trade Name: EMU-2™ Page | 2 of 2 Island Compliance Services Inc. Reverse of PCB

Island Compliance Services Inc. Rainforest Automation Inc. Report Number: 0220A Model: RFA-Z105-2 Trade Name: EMU-2™_ Page | 1 of 2 Island Compliance Services Inc. RF Exposure Evaluation Report Prepared for: Rainforest Automation Inc. 34 W 7th Avenue Vancouver, BC V5Y 1L6 Canada Equipment Under Test (EUT): Model: RFA-Z105-2, Trade name: EMU-2™ FCC ID: YCXRFA-Z1052 IC Certification number: 8919A-RFAZ1052 FCC Rule Part(s): Part 15B, 15C Industry Canada Rule Part(s) RSS-210 Tested by: Island Compliance Services Inc. 6454 Fitzgerald Road Courtenay, BC V9J 1N7 Authorized By Andrew Eadie (Manager) Date: 27 th September 2012 FCC OATS registration number: 386117 Industry Canada OATS registration number: 9578B-1 Island Compliance Services Inc. Rainforest Automation Inc. Report Number: 0220A Model: RFA-Z105-2 Trade Name: EMU-2™_ Page | 2 of 2 Island Compliance Services Inc. 1.1 RF EXPOSURE EVALUATION FCC 1.1310 states the criteria listed in the table below shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Section 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Section 2.1093. Further information on evaluating compliance with these limits can be found in the FCC's OST/OET Bulletin Number 65, “Evaluating Compliance with FCC-Specified Guidelines for Human Exposure to Radiofrequency Radiation”. Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (s) (A) Limits for Occupational/Control Exposures 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposures 300-1500 - - F/1500 6 1500-100,000 - - 1 30 TABLE 1 - POWER DENSITY LIMITS 1.2 EUT OPERATING CONDITION Maximum antenna gain = 4.5 dBi at 2.405 MHz and 2.480 MHz 1.3 RF EXPOSURE EVALUATION DISTANCE CALCULATION Frequency (MHz) Conducted Output Power (dBm) Max Antenna Gain (dBi) Max EIRP (W) Power Density Limit (mW/cm 2 ) R (cm) 2.405 14.1 4.5 0.073 1 2.4 2.440 11.2 4.5 0.037 1 1.7 2.480 9.8 4.5 0.028 1 1.5 TABLE 2 - DISTANCE CALCULATIONS where: S = Allowable Power density Limit (mW/cm 2 ) EIRP = Equivalent (or effective) isotropically radiated power (mW) R = Distance to the center of radiation of the antenna (cm) As shown above, the minimum distance where the MPE limit is reached is 2.4 cm from the EUT with 4.5dBi antenna.
=
 4. .

Island Compliance Services Inc. Rainforest Automation Inc. Report Number: 0220A Model: RFA-Z105-2 Trade Name: EMU-2™_ Page | 1 of 12 Island Compliance Services Inc. MEASUREMENT AND TEST REPORT VERSION 1.00 Computer Peripheral Composite Device for demonstration of compliance with Industry Canada ICES-003 & FCC CFR47 Part 15B Certification Report Prepared for: Rainforest Automation Inc. 34 W 7th Avenue Vancouver, BC V5Y 1L6 Canada Equipment Under Test (EUT): Model RFA-Z105-2, Trade name: EMU-2™ FCC ID of associated transmitter: YCXRFA-Z1052 Applicable Standards: Tested by: Island Compliance Services Inc. 6454 Fitzgerald Road Courtenay, BC V9J 1N7 Prepared By Authorized By A. Horel (Technical Writer) A. Eadie (Sr. EMC Eng.) Note: This test report has been prepared for the Applicant and device described herein. It may not be duplicated or used in part without prior written consent from Island Compliance Services Inc. FCC OATS registration number: 386117 Industry Canada OATS registration number: 9578B-1 Emissions FCC CFR 47 Part 15B Emission standard for unintentional radiators ICES-003:2004 4 th Ed. Emission standard for digital apparatus Island Compliance Services Inc. Rainforest Automation Inc. Report Number: 0220A Model: RFA-Z105-2 Trade Name: EMU-2™_ Page | 2 of 12 Island Compliance Services Inc. Revision History Version Date Author Comment 1.00 Composite 03/10/2012 A. Horel Original Release Island Compliance Services Inc. Rainforest Automation Inc. Report Number: 0220A Model: RFA-Z105-2 Trade Name: EMU-2™_ Page | 3 of 12 Island Compliance Services Inc. CONTENTS Contents ................................................................................................................................................ 3 1 Summary of Test Results ............................................................................................................................... 4 1.1 Environmental Conditions ...................................................................................................................... 4 1.2 Standard Test Conditions and Engineering Practices ............................................................................... 4 2 General Equipment Specifications ................................................................................................................. 5 2.1 Auxiliary Equipment ............................................................................................................................... 5 2.2 Engineering Changes to Production Unit ................................................................................................ 5 3 Radiated Emissions Below 1GHz .................................................................................................................... 6 3.1 Test Procedure ...................................................................................................................................... 6 3.2 Corrected Amplitude & Margin Calculation ............................................................................................ 6 3.3 Summary of 15.109 Limits ...................................................................................................................... 6 3.4 Measurement Data ................................................................................................................................ 7 3.5 Emissions Plot ........................................................................................................................................ 7 3.6 Additional Information........................................................................................................................... 7 4 Power Line Conducted Emissions ................................................................................................................... 8 4.1 Test Method .......................................................................................................................................... 8 4.2 Limits as per 15.107 ............................................................................................................................... 8 4.3 Line Results Plot .................................................................................................................................... 9 4.4 Measurement Data, Line ...................................................................................................................... 10 4.5 Measurement Data, Neutral ................................................................................................................ 10 4.6 Additional Information......................................................................................................................... 10 5 Test Equipment ........................................................................................................................................... 11 6 Test Diagrams ............................................................................................................................................. 12 6.1 Power line conducted Emissions Test Setup ......................................................................................... 12 6.2 Radiated Emissions Test Setup ............................................................................................................. 12 Island Compliance Services Inc. Rainforest Automation Inc. Report Number: 0220A Model: RFA-Z105-2 Trade Name: EMU-2™_ Page | 4 of 12 Island Compliance Services Inc. 1 SUMMARY OF TEST RESULTS The equipment under test was found to comply with the test standards and criteria outlined herein. Test Description Reference Specification FCC Reference Specification Industry Canada Result Comment Radiated Emissions Below 1GHz FCC Subpart B 15.109 ICES-003 Issue 4 Complies Power line Conducted EmissionS FCC Subpart B 15.107 ICES-003 Issue 4 Complies 1.1 ENVIRONMENTAL CONDITIONS Description Reading Indoor Temperature 24⁰C Indoor Humidity…

Text truncated - open the document above for the full version.

Island Compliance Services Inc. Rainforest Automation Inc. Report Number: 0220A Model: RFA-Z105-2 Trade Name: EMU-2™_ Page | 1 of 31 Island Compliance Services Inc. MEASUREMENT AND TEST REPORT VERSION 1.01 Report Prepared for: Rainforest Automation Inc. 34 W 7th Avenue Vancouver, BC V5Y 1L6 Canada Equipment Under Test (EUT): Model RFA-Z105-2, Trade name: EMU-2™ FCC ID: YCXRFA-Z1052 IC Certification number: 8919A-RFAZ1052 FCC Rule Part(s): Part 15B, 15C Industry Canada Rule Part(s) RSS-210 Tested by: Island Compliance Services Inc. 6454 Fitzgerald Road Courtenay, BC V9J 1N7 Prepared By Authorized By A. Horel (Technical Writer) A. Eadie (Sr. EMC Eng.) Note: This test report has been prepared for the Applicant and device described herein. It may not be duplicated or used in part without prior written consent from Island Compliance Services Inc. FCC OATS registration number: 386117 Industry Canada OATS registration number: 9578B-1 Island Compliance Services Inc. Rainforest Automation Inc. Report Number: 0220A Model: RFA-Z105-2 Trade Name: EMU-2™_ Page | 2 of 31 Island Compliance Services Inc. Revision History Version Date Author Comment 1.0 18/09/2012 A. Horel Original Release 1.01 26/09/2012 A. Horel Updated the following: Model Number/Trade Name: Running Header, p.1, p.7 FCC ID: Space Removed p.1 Section 2.2 clarification: p.6 Equipment List: p.29 Island Compliance Services Inc. Rainforest Automation Inc. Report Number: 0220A Model: RFA-Z105-2 Trade Name: EMU-2™_ Page | 3 of 31 Island Compliance Services Inc. 1.1 CONTENTS 1.1 Contents ................................................................................................................................................ 3 2 Summary of Test Results ............................................................................................................................... 5 2.1 Environmental Conditions ...................................................................................................................... 5 2.2 Standard Test Conditions and Engineering Practices ............................................................................... 6 3 General Equipment Specifications ................................................................................................................. 7 3.1 Auxiliary Equipment ............................................................................................................................... 7 3.2 Engineering Changes to Production Unit ................................................................................................ 7 4 RF Peak Power Output................................................................................................................................... 8 4.1 Test Method .......................................................................................................................................... 8 4.2 Data ...................................................................................................................................................... 8 4.3 Plot(s) .................................................................................................................................................... 8 4.4 Additional Information........................................................................................................................... 9 5 Occupied Bandwidth ................................................................................................................................... 10 5.1 Test Method ........................................................................................................................................ 10 5.2 Data .................................................................................................................................................... 10 5.3 Plots .................................................................................................................................................... 10 5.4 Additional Information......................................................................................................................... 11 6 Power Spectral Density................................................................................................................................ 12 6.1 Test Method ........................................................................................................................................ 12 6.2 Limits................................................................................................................................................... 12 6.3 Data .................................................................................................................................................... 12 6.4 Additional Information......................................................................................................................... 12 7 Conducted Spurious Emissions .................................................................................................................... 13 7.1 Test Method ........................................................................................................................................ 13 7.2 Limits................................................................................................................................................... 13 7.3 Data .................................................................................................................................................... 13 7.4 Plots .................................................................................................................................................... 14 8 Conducted Spurious Emissions Bandedge .................................................................................................... 16 8.1 Test Method ............................................................................................…

Text truncated - open the document above for the full version.

Island Compliance Services Inc. Rainforest Automation Ltd. Model : RFA-Z105-2 Trade Name: EMU-2™ Page | 1 of 1 Island Compliance Services Inc. Test Set-Up Photographs Model: RFA-Z105-2, Trade Name: EMU-2™ Residential Energy Monitoring Unit Bottom Left: AC Mains Conducted emissions test set-up
