YDXQX-1692.4Ghz wireless multimedia game mouse

Yangtze Alligator Mouse User Manual 2.4GHz Wireless Multimedia GameMouse with PC Remote Control Function MSN Online Support: [email protected] www.quickerstyle.com ©GOEASILY INT'L CO., Ltd. 2010 Package List z Yangtze Alligator Mouse; z Nano Receiver; z MouseWare Disc; z 1pc Disposable AA Battery. Product Parameter List Basic Parameters ： Brand Name QuickerStyle Featured Type Multimedia Wireless GameMouse With Remote Control Function Mouse Type Optical Mouse/Laser Mouse Connection Type Wireless Transmission Band 2.4GHz Mouse: 7 keys 、 1 scroll wheel Buttons & Keys Joypad: 14 buttons Interface Type USB1.1 version / Plug & Forget / Intelligent ID Link Rated Operational Voltage 1.5V Rated Operational Current Optical Mouse:30mA / Laser Mouse:20mA System Platform Windows 95/98/2000/NT/ME/XP/Vista/Win 7 Weight 115g （ without battery inside ） Technical Parameters ： Optical Sensor: 400/800/1000/1200/1600dpi (adjustable) Resolution Laser Sensor: 800/1000/1200/ 1600/2000dpi (adjustable) Sampling Frequency 125Hz Ergonomics Support Optical Sensor Pixart Sensor Other Parameters ： Macro Definition, Shortcut Key Se ttings & Custom Application Settings Other Features Multimedia PC Remote Control, Game Joypad Function Functionality Outline a) Hi-performance low-power consumption central processor; b) 1pc AA battery power supply; c) Multi-Work Modes: Mouse Mode / Joypad Mode / Remote Control Mode / Customize Pad Mode / Mouse & Joypad Mode / Mouse & Remote Control Mode / Mouse & Customize Pad Mode; d) Hi-quality dynamic 2.4GHz frequency hopping communication technology, barrier-free transmission in a range of 10-15 meters; e) 2.4GHz two-way communication technology stably expedites data transmission; f) Nano receiver can be pocketed inside the mouse, more manageable & unforgettable to carry; g) Hi-performance single chip receiver supports standard USB1.1 communication protocol; h) High sensitive optical sensor supports 400/800/1000/1200/1600d pi switch (Laser sensor supports 800/1000/12 00/1600/2000dpi switch); i) Built in charging circuit, low battery & charging status LED indicator (Low battery, red LED flickers; LED becomes green while charging and lights off after battery is fully charged); j) After MouseWare is installed, mouse 7 keys ' functions can be redefined in GameMouse Setting page; k) After switching to Joypad Mode, you can enjoy all PC games that support joypad operation; l) Under Joypad Mode, joypad buttons’ functi ons can be customized according to your gaming habits; m) Two 3D analog sticks on the joypad can achi eve different functions in different PC games; n) Marco Definition: you can record keyboard activities for mouse buttons to simplify & accelerate your operation; o) Under Remote Control Mode, Yangtze Alligator Mouse can be applied as PC remote control. (After relevant setti ngs in Remote Control page, you can control your PC conveniently and remotely, such as: media player control, opening applications, PC sleep & wake-up, PC power off etc.); p) Mouse firmware fully complies with “HID compliant game controller” standard and “HID compliant optical mouse” standard; q) Firmware auto-sleep & move wake-up capability. Product Mould Information a) Streamlined design, stylish appearance, co mfortable handfeel, flexible operation; b) Pull-Button Battery Cover Design & Receiver Pocketed-Inside Principle make Yangtze Alligator Mouse more elegant and manageable; c) Creative Gear-Lock can effectively lock mouse left & right buttons to avoid interference while playing games. MouseWare Installation a) Pull-open mouse battery cover upwards, take out receiver, correctly fix battery and close battery cover; b) Plug receiver into PC USB port, turning on mouse power after device initialization is completed, after ID link between mouse & rece iver is well established, mouse can be workable within a range of 10-15 meters; c) Place MouseWare Disc into PC CD-ROM, find & double click on icon , then follow on screen instructions to finish MouseWare installation: d) After MouseWare is fully installed, we recommend you to choose restart your computer, especially Vista system; e) After restart, a mouse icon will appear in the taskbar at the right bottom of the screen, right click that icon, a menu will pop up (You can redefine mouse parameters and hide icon etc.): Work Modes Yangtze Alligator Mouse has the following seven work modes: z Mouse Mode; z Joypad Mode; z Remote Control Mode; z Customize Pad Mode; z Mouse & Joypad Mode; z Mouse & Remote Control Mode; z Mouse & Customize Pad Mode. After switching work mode, the corresponding mode status icon will appear in the taskbar, e.g. . Other Precautions a ） Battery Specification: AA battery ( While battery charging, do make sure your battery is rechargeable. Manufacturer takes no responsibility for the results caused by wrong operation.); b ） The complimentary AA battery inside the package is disposable, please purchase rechargeable battery, mini USB data cable or battery charger by yourself; c ） To successfully establish ID link, please keep mouse & receiver within 1 meter; d ） After ID link is established, only mouse function & joypad function are available without installing MouseWare; if you want to enjoy PC remote control function, macro definition & custom application program setti ngs, please install MouseWare; e ） Under Mouse & Joypad Mode, the 4 mouse side buttons will perform joypad L1,L2,R1 & R2’s duty ； f ） Under Joypad Mode or Mouse & Joypade Mode, please press down "SELECT" & "START" buttons together to ac tivate Remote Control Mode; g ） To reuse mouse after power is cut off, pl ease directly turn on battery power and use, no need to replug receiver and re-establish ID link; h ） Don’t dismantle mouse and nano receiver if you’re non-professional so as to avoid internal component damamge; i ） Please use dry and soft cotton cloth to clean the mouse; j ） Please put the exhausted batteries into battery recycling bin, don’t arbitrarily discard or…

Text truncated - open the document above for the full version.




 !"#$%& '
 !"#$%&


SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Goeasily Int’l Co., Ltd (April 29, 2010) To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Goeasily Int’l Co., Ltd hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description, model name) FCC ID: YDXQX-169 Product name: 2.4Ghz wireless multimedia game mouse Model: QX-169 We affirm that between SIEMIC and Goeasily Int’l Co., Ltd, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature Zheng Xibing / Director Title: Director Telephone: +86-755-29685702 Email: [email protected] Address: 2F A Bldg., WenTao Tech-Park, ShiYan Town, BaoAn Zone, ShenZhen, GuangDong Province,

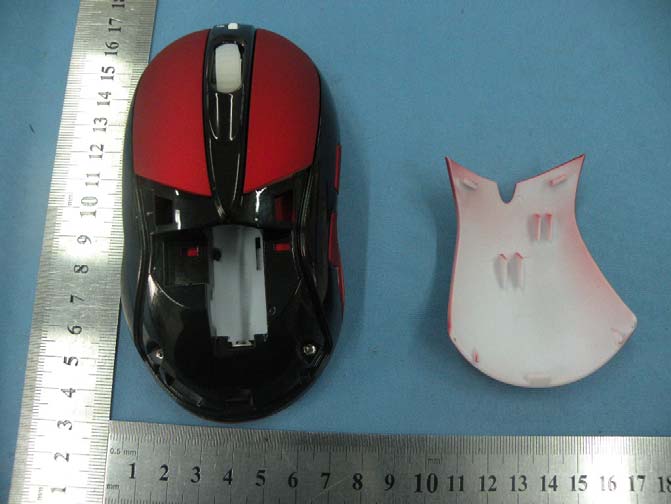

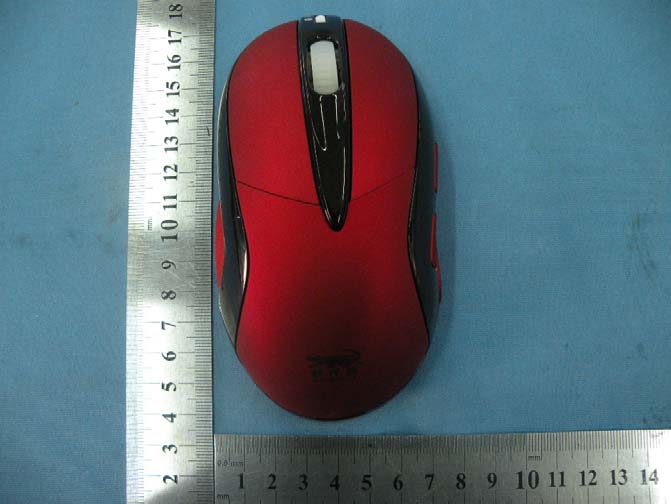

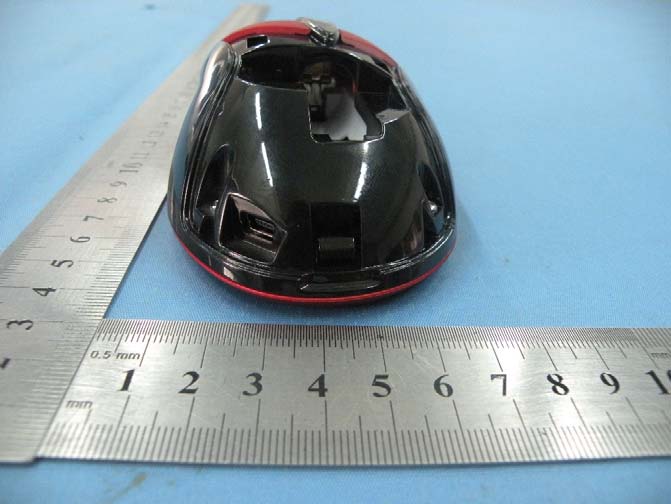

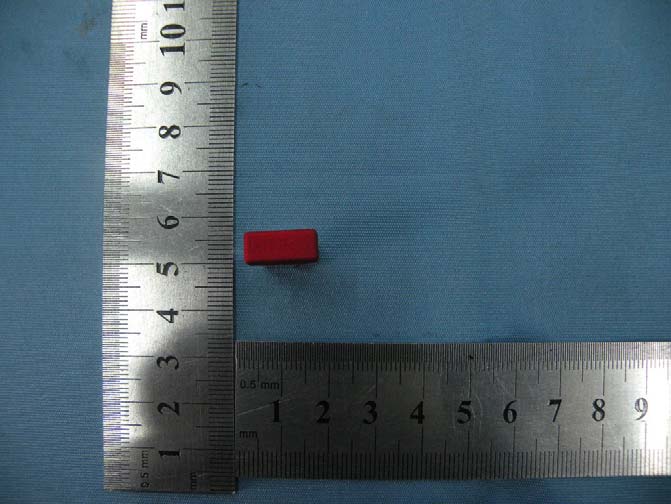

Full View RECEIVE To p Vi e w To p Vi e w Transmitter To p Vi e w To p Vi e w To p Vi e w Bottom View Front View Left View Rear View Right View

FCC ID:YDXQX-169

Label location

79 (2.402-2.480 GHz) channels within 2.400 - 2.4853 GHz Mcu 24LE1 acquire key and move ‘s datasize at regular time and evey time acquired new key and move ‘s data are transmitted with 2.4G RF by different ID. According to the status of communication interference ,Its channels of transmition frequency can modulate automatically and after transmitting ,it can conduct homologous movement by data of aquired reply packets (vibration and CPI’s switch ) Input power voltage is 1.5V,available power is 2A battery MCU 24LU1 enumerate with computer , equipment discription . after received Packets with corresponding address , it will send to different usb_end point of computer analytically.

RF Exposure Report FCC ID: YDXQX-169 According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to TCB Exclusions list, no SAR required if power is lower than the flowing threshold: Frequency Range Maximum measured transmitter power: Threshold at which no SAR required is 24.58 mw. Maximum Tx power is 0.785 mw EIRP. Conclusion: No SAR is required. Conducted Power(mw) Max Antenna Gain(dBi)EIRP(mw) 0.785 0 0.785

11 22 33 44 DD C C BB AA Title Number Revision Size A2 Date: 2010-5-10 Sheet of File: C:\ Documents and Settings \.. \
 -rz .SCHDOCDrawn By: C1133nF C90.1uF C100.1uF C1333nF 4.7p C8 C7 2.2nF C51P C4 1.5P C3 0.1uF C2 15P C1 15P R3 10K R1 10K L3 5.6nH L2 8.2nH L15.6nH P0.1 1 P0.2 2 VDD 3 DEC1 4 DEC2 5 P0.3 6 P0.4 7 P0.5 8 P0.6 9 PROG 10 P0.7 11 VSS 12 VDD 13 P1.0 14 P1.1 15 P1.2 16 P1.3 17 P1.4 18 P1.5 19 P1.6 20 P1.7 21 P2.0 22 P2.1 23 P2.2 24 P2.3 25 P2.4 26 P2.5 27 P2.6 28 P2.7 29 Reset 30 P3.0 31 VDD_PA 32 ANT1 33 ANT2 34 VSS 35 VDD 36 IREF 37 VSS 38 VDD 39 P3.1 40 P3.2 41 P3.3 42 P3.4 43 P3.5 44 XC2 45 XC1 46 P3.6 47 P0.0 48 nRF24LE1 U1 MCU DC+5V 1 D+ 2 DC- 3 NC 4 D- 5 J6 mini-USB GND 100uF C22 C21 100uF/16V 0.1uF C23 C26 0.1uF 100UH L4 BT1BATTERY C24 4.7uF/25V GNDBAT+ S5 LEFT S17 L2 S6 MID S18 R1 S16 L1 S4 RIGHT S19 R2 R1R2L1L2 S15 L_RIGHT S9 R_LEFT S8 R_UP S14 L_DOWN S10 R_DOWN S11 R_RIGHT LULLLDLRRRRDRL RU S3 SELECT S7 START START 10111213 13 2 64 5 J4 F-J08K 13 2 64 5 J5 F-J08K M Motor1 OSCIN 1 OSCOUT 2 SDIO 3 SCLK 4 LED 5 VSS 6 VDD 7 VREF 8 U2 PAN3204 C17 1uF R1220 R1127K C15 0.1uF C16 4.7uF/25v MOTOR RD Res R2 22K 0.1uF C12 START MISO S2 R3 S1 L3 PROG Q2 PNP Q3 PNP D11 IN4148 D10 IN4148 P_PWM R15 10R D12 IN5819 D9 LED 2 31 S22 Vin 3 1 Vout 2 GND U4 MP3 R4200 13 Y116M R8 10R C6 1p C25 0.1uF Q1 NPN 1 1 2 2 3 3 2 2 R G R13 10R C20 47uF/16V R14 1K R18 2K R19 1K R201K R16 5.1K R17 200 0.1uFC19 R10 2.2K R9 2.2K R6 100K R7 100K C140.1uF S13 L_LEFT S12 L_UP L1L2R1R2 LDLR LULLRRRU 321 SWROCK KEY1

Shenzhen Certification Technologh Service Co., Ltd 3F, Bldg27,Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, ShenZhen, Guang dong, P.R. China. FCCID: YDXQX-169 Page 1 of 40 TEST REPORT FCC ID: YDXQX-169 Applicant : Goeasily Int’l Co., Ltd Address : 2F A Bldg., WenTao Tech-Park, ShiYan Town, BaoAn Zone, ShenZhen, GuangDong Province, Equipment under Test (EUT): Name : 2.4Ghz wireless multimedia game mouse Model : QX-169 Standards : FCC PART 15, SUBPART C : 2008 (Section 15.247) Report No. : STE100422281 Date of Test : April 23-26, 2010 Date of Issue : April 28, 2010 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.:STE100422281 FCCID: YDXQX-169 Page 2 of 40 TABLE OF CONTENT Description Page 1 General Information------------------------------------------------------------------------------------- 3 1.1 Description of Device (EUT)------------------------------------------------------------------ 3 1.2 Description of Test Facility-------------------------------------------------------------------- 4 2 EMC Equipment List ------------------------------------------------------------------------------------ 4 3 Test Procedure ------------------------------------------------------------------------------------------- 5 4 Summary of Measurement ------------------------------------------------------------------------- 6 5 Spurious Emission ----------------------------------------------------------------------------------- 7 5.1 Conducted Spurious Emission----------------------------------------------------------------7 5.2 Radiation Emission---------------------------------------------------------------------------- 11 6 Peak Power--------------------------------------------------------------------------------------------- 18 6.1 Test limit------------------------------------------------------------------------------------------ 18 6.2 Test Procedure--------------------------------------------------------------------------------- 18 6.3 Test Setup--------------------------------------------------------------------------------------- 18 6.4 Test Results------------------------------------------------------------------------------------- 18 7 PEAK POWER SPECTRAL DENSITY ---------------------------------------------------------- 19 7.1 Test limit------------------------------------------------------------------------------------------ 19 7.2 Method of measurement--------------------------------------------------------------------- 19 7.3 Test Setup--------------------------------------------------------------------------------------- 19 7.4 Test Results------------------------------------------------------------------------------------- 19 8 FREQUENCY SEPARATION ---------------------------------------------------------------------- 22 8.1 Test limit------------------------------------------------------------------------------------------ 22 8.2 Method of measurement--------------------------------------------------------------------- 22 8.3 Test Setup--------------------------------------------------------------------------------------- 22 8.4 Test Results------------------------------------------------------------------------------------- 22 9 NUMBER OF HOPPING FREQUENCY --------------------------------------------------------- 25 9.1 Test limit------------------------------------------------------------------------------------------ 25 9.2 Method of measurement--------------------------------------------------------------------- 25 9.3 Test Setup--------------------------------------------------------------------------------------- 25 9.4 Test Results------------------------------------------------------------------------------------- 25 10 Band Edge Check------------------------------------------------------------------------------------ 26 10.1 Test limit------------------------------------------------------------------------------------------ 26 10.2 Test Procedure--------------------------------------------------------------------------------- 26 10.3 Test Setup--------------------------------------------------------------------------------------- 26 10.4 Test Result-------------------------------------------------------------------------------------- 26 11 Antenna Requirement ------------------------------------------------------------------------------ 31 11.1 Standard Requirement----------------------------------------------------------------------- 31 11.2 Antenna Connected Construction---------------------------------------------------------- 31 11.3 Result--------------------------------------------------------------------------------------------- 31 12 Photographs of Test Setup ----------------------------------------------------------------------- 32 13 Photographs of EUT--------------------------------------------------------------------------------- 33 Report No.:STE100422281 FCCID: YDXQX-169 Page 3 of 40 1 General Information 1.1 Description of Device (EUT) Trade Name : N/A EUT : 2.4Ghz wireless multimedia game mouse Model No. : QX-169 Type of Antenna : Integral Antenna Antenna Specification : 0 dBi Operation Frequency : 2402~2480MHZ Channel number : 79 Modulation type : GFSK Power Supply : DC 1.5V supply by battery with transmitte…
