YE3800CMobile Tablet

DT398H ENGLISH 1 DT398H BASIC OPERATION GUIDE INTRODUCTION Thank you for acquiring the latest addition to DT Research’s line of mobile tablets— the DT398H. Featuring an IP65-rated, slim yet robust enclosure, the three-pound DT398H with 9.7” TFT display is powered by the Intel® Core™ i dual core processor, offering optimal combinations of performance and power savings. The DT398H is available with Microsoft® Windows® Embedded Standard 7, 7 Professional, Embedded Standard 8 or 8.1 Industry Pro, or Linux operating systems. Each software operating system features web browser, client/ server computing software, media player, accessories, and applications support. PACKAGE CONTENTS  DT398H with internal battery pack, stylus, and bumpers  AC-DC Power Adapter with Power Cord  Basic Operation Guide  Handstrap DT398H ENGLISH 2 Input/ Output Ports A e-SATA USB Hybrid Port B Headphone Jack C DC Power Input D Full Slot Smart Card Reader E SD Slot Button Functions BUTTON ACTION  Power on, Push/release typically enters Standby mode, or Push/release exits Standby mode or restarts device (software dependent) Push and hold (over 4 seconds) invokes hardware shutdown  Programmable, As scanner trigger when equipped with the scanner module  Programmable DT398H ENGLISH 3 Power/Battery LED Status:  Blue indicates the battery is 25% to 100% charged  Blinking blue indicates the battery is charging  Orange indicates that the battery is between 11% to 25%  Blinking orange indicates that the battery is below 10%  Blinking blue and orange alternately indicates the battery is being warmed up. Do not unplug the AC/DC adapter. Precautions  Always exercise care when operating and handling the DT398H.  Do NOT apply excessive pressure to the display screen.  We recommend using the Stylus provided to keep the screen clean.  Avoid prolonged exposure of the display panel to any strong heat source. Wherever possible, the DT398H should face away from direct light to reduce glare.  If the AC-DC power adapter is used to recharge or power the device, do NOT use any AC-DC adapter other than the one provided with the device or acquired from the manufacturer or its partners.  In the unlikely event that smoke, abnormal noise, or strange odor is present, immediately power off the DT398H and disconnect all power sources. Report the problem to your device provider immediately.  Never attempt to disassemble the DT398H, as this will void the warranty.  The DT398H internal battery is designed for wide temperature usage. Please do not use it for other tablet models.  (The wide temperature design is not applicable for external batteries.) THE DT398H Basic Features The DT398H wireless tablet integrates a bright and responsive touch display, 1 e-SATA USB Hybrid port, and embedded networking elements such as wireless LAN or optional 3G. A DT398H typically integrates an 802.11a/b/g/n/ac wireless LAN (WLAN) adapter that may connect to other wireless devices or access points. If your DT398H does not come with such a network adapter, please consult your device provider to establish the desired network connectivity. DT398H ENGLISH 4 OPERATION Internal Battery Warning! The Internal battery pack should only be replaced by an authorized DT Research service representative. Please contact your product and/or service provider for internal battery replacement service. Powering ON and OFF To activate the DT398H, push and quickly release the Power Button. The display will come on in a few seconds. To put the DT398H in Standby mode, push and quickly release the Power Button. To turn the DT398H off for extended storage, power off the device safely using any software function that “shuts down computer” provided in the software operating system. NOTE: The battery packs shipped with your device may be low in power—please use the AC-DC adapter with the DT398H when setting up the device for the first time to fully charge the internal battery pack. You may charge the external battery pack with it attached to the DT398H, or with the optional external battery charger kit. NOTE: When the battery pack(s) is (are) charging, the blue-colored Battery LED should blink slowly. If plugging in the AC-DC adapter does not trigger this blinking activity and the LED stays dark, the battery pack(s) may have been drained substantially. Try unplugging/ replugging the AC-DC adapter to the DT398H a few times to activate the charging process. NOTE: To conserve power, use (push and quick release) the Power Button to put the device in “Standby” mode while not in use. Pushing briefly on the same button will wake up the system within seconds. NOTE: Avoid using the Power Button (“hold 4+ seconds” feature) to turn off the device—this form of hardware shutdown is intended to be a means of recovery from device lockups, and not as normal operation. DT398H ENGLISH 5 Start Up If the power up (from Standby or otherwise) is successful, the appropriate interface will be displayed after a launch sequence of several seconds. The wireless LAN connection may take 10-15 seconds to be established. Configuring the Mobile Tablet The device may be configured using the utilities and methods dictated by the software operating system. The DT398H should be configurable for various properties such as user profiles, network features, and several system elements. Calibration The touch display for the DT398H is calibrated before shipping. In the event that the calibration has been modified or is unsatisfactory, the respective calibration routines (e.g., PenMount (PM) to calibrate the touch interface may be used. Such applications are typically executed through touch input via Stylus or through mouse click via a USB mouse. Wireless Networking Wireless LAN The DT398H is often delivered with an embedded (user-inaccessible) 802.11a/b/g/n/ac WLAN adapter equipped with a hidden custom antenna.  Through the support of typical WLAN adapters, the DT398H should be able to detect all 802.11 access points i…

Text truncated - open the document above for the full version.

FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment.  Operation on the 5.15-5.25GHz frequency band is restricted to indoor use only. The FCC requires indoor use for the 5.15-5.25GHz band to reduce the potential for harmful interference to co-channel Mobile Satellite Systems. RF Exposure Information (SAR) This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. * Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the poser required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. This device was tested according to FCC SAR procedure, and was tested directly contacted with the Body. While there may be differences between the SAR levels of various devices and at various positions, they all meet the government requirement. The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines.

DT Research, Inc. 6F, No.1, NingPo E. St., Taipei 100, Taiwan Tel: 886-2-2351-4101 ; Fax: 886-2-2351-4102 Date: October 8, 2014 FCC Laboratory 7435 Oakland Mills Rd. Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: YE3800C To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________ Tony Lee [email protected]

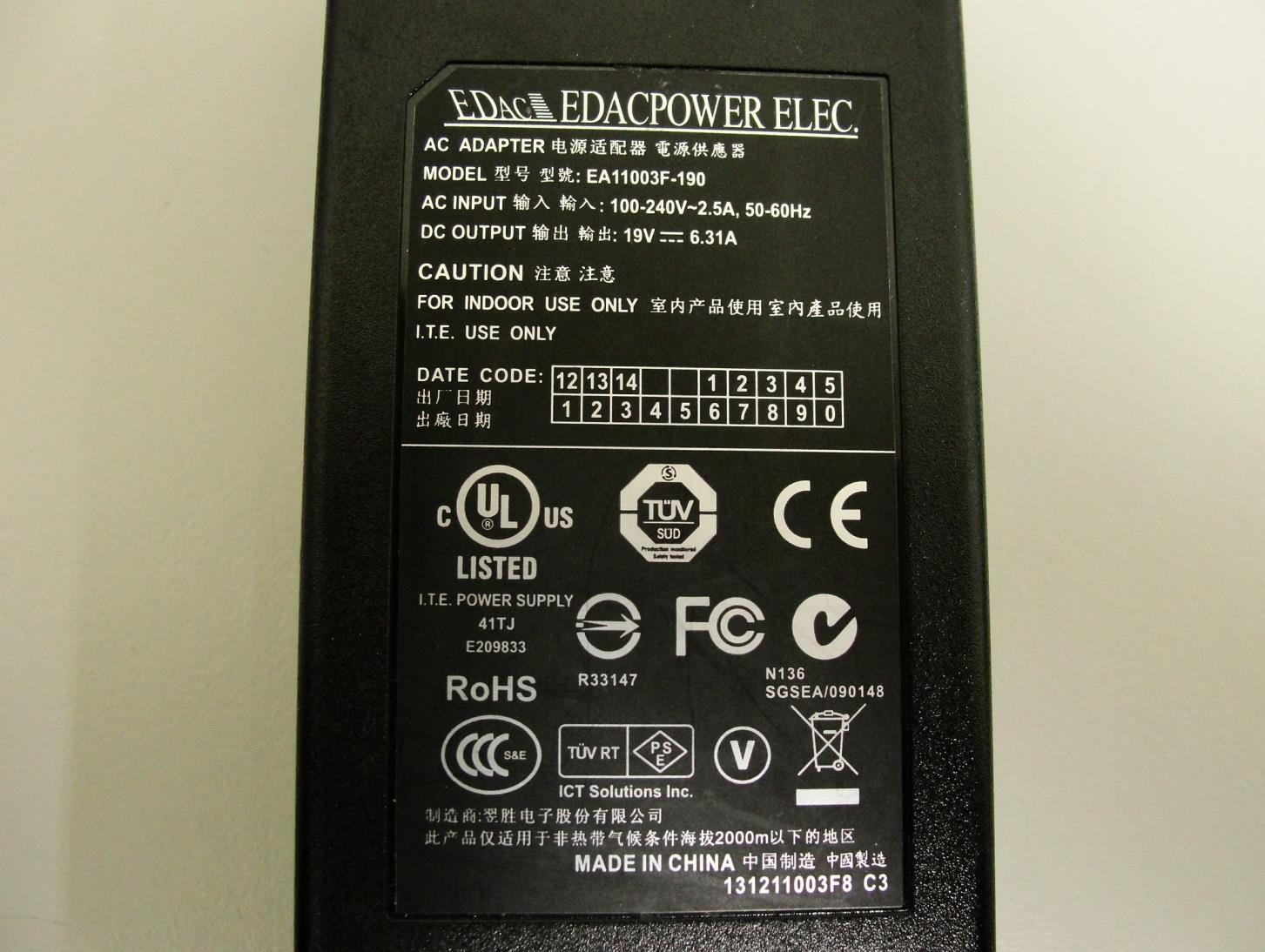

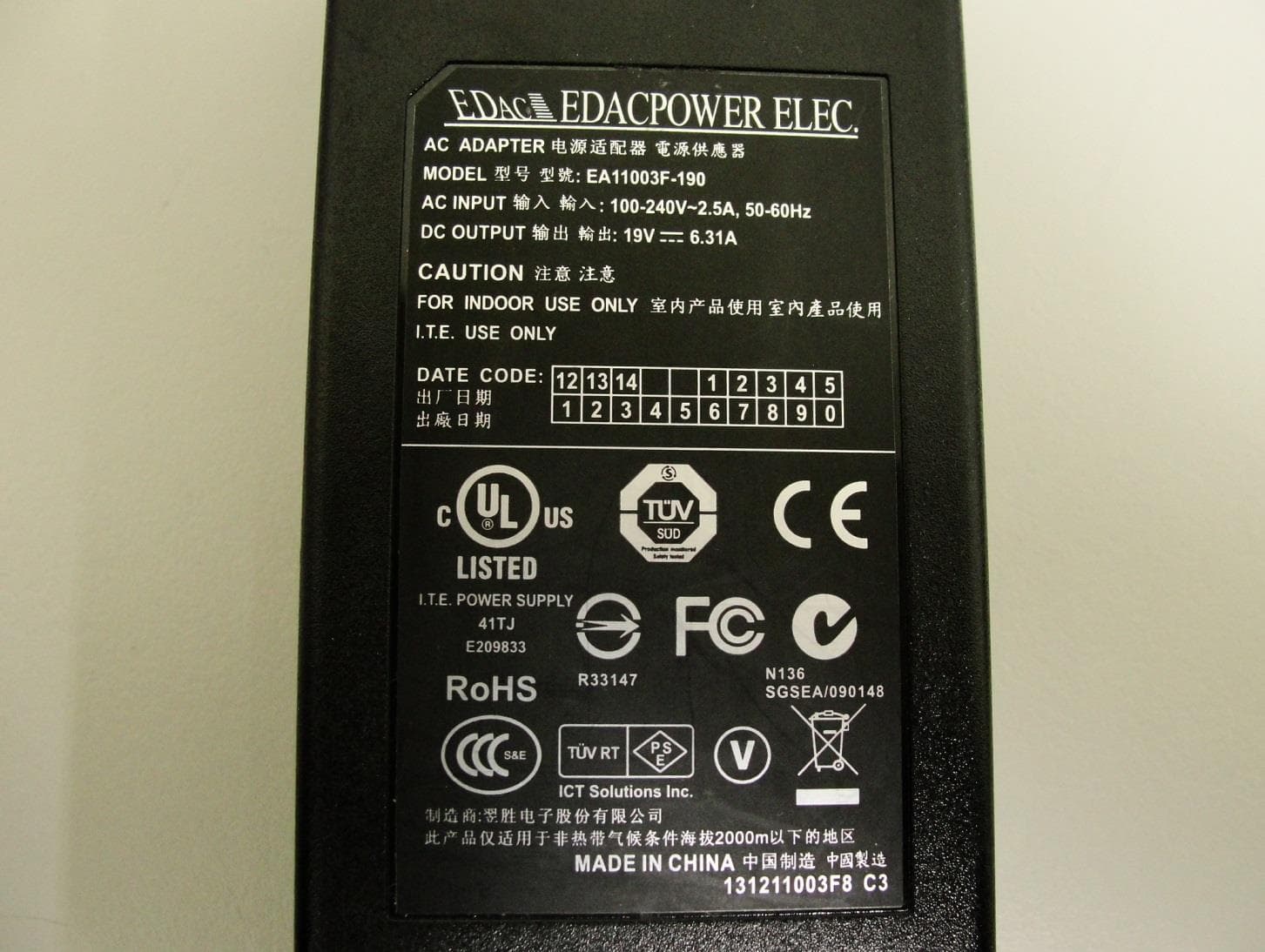

Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 1 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C 1. External Photograph of EUT Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 2 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 3 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C 720510 Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 4 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Specification of Accessory AC Adapter Brand Name EDAC Model Name EA11003F-190 Battery Brand Name Formosa Electronic Industries Inc. Model Name ACC-006-398I WLAN Module Brand Name DT Research Inc. Model Name 600C WWAN Module Brand Name Sierra Wireless AirPrime Model Name MC7355 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 5 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C 720510 Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 6 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C AC Adapter Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 7 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Battery

Back of the EUT Label Location

DT Research, Inc. Taiwan Branch DIM: MM (INCH) TOL UNLESS NOTED .X 0.1 .XX 0.1 O ANGLE 0.1 PART NAME PART NO MATERIAL DWG. NO. UNIT SCALE MM APPROVE DESIGN DRAWN DON'T SCALE DRAWING DATE: 04/18/14’ REV:00 SH:1/1 James James 1:1 FCC LABEL DT398/3G+WiFi 28-410-398190 398L19 Material: PC 8B35 t=0.178 Adhesive: 3M467 Color: Background - PMS 433C Letter/LOGO/Block - WHITE Adhesive 79.5 mm 3 9 . 5 m m 3 . 0 m m 3.0 mm

Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 8 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 9 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 10 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 11 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 12 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 13 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 14 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 15 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 16 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 17 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 18 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 19 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 20 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 21 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 22 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 23 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 24 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 25 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 26 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 27 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 28 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 29 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: EP491670 Brand Name: DT Research Inc. / Model Name: DT398H SPORTON INTERNATIONAL INC. Page Number : 30 of 68 TEL : 886-3-327-3456 Report Issued Date : Jan. 16,2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YE3800C Photographs of EUT Report No.: …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Jan. 16, 2015 FCC ID : YE3800C Page 1 of 29 Form version. : 141020 FCC SAR Test Report Report No. : FA491670 FCC SAR Test Report APPLICANT : DT Research Inc. EQUIPMENT : Mobile Tablet BRAND NAME : DT Research Inc. MODEL NAME : DT398H FCC ID : YE3800C STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Jan. 16, 2015 FCC ID : YE3800C Page 2 of 29 Form version. : 141020 FCC SAR Test Report Report No. : FA491670 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 4 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) ....................................................................................................................................... 5 4.1 General Information ............................................................................................................................................... 5 4.2 Maximum Tune-up Limit ......................................................................................................................................... 6 4.3 General LTE SAR Test and Reporting Considerations ........................................................................................... 7 5. RF Exposure Limits....................................................................................................................................................... 8 5.1 Uncontrolled Environment ...................................................................................................................................... 8 5.2 Controlled Environment .......................................................................................................................................... 8 6. Specific Absorption Rate (SAR) ................................................................................................................................... 9 6.1 Introduction ............................................................................................................................................................ 9 6.2 SAR Definition ........................................................................................................................................................ 9 7. System Description and Setup ...................................................................................................................................10 8. Measurement Procedures ...........................................................................................................................................11 8.1 Spatial Peak SAR Evaluation ................................................................................................................................ 11 8.2 Power Reference Measurement............................................................................................................................12 8.3 Area Scan .............................................................................................................................................................12 8.4 Zoom Scan ............................................................................................................................................................13 8.5 Volume Scan Procedures ......................................................................................................................................13 8.6 Power Drift Monitoring ...........................................................................................................................................13 9. Test Equipment List .....................................................................................................................................................14 10. System Verification ....................................................................................................................................................15 10.1 Tissue Verification ...............................................................................................................................................15 10.2 System Performance Check Results ...................................................................................................................16 11. RF Exposure Positions ..............................................................................................................................................16 11.1 SAR Testing for Tablet .........................................................................................................................................16 12. Conducted RF Output Power (Unit: dBm) ................................................................................................................17 13. Antenna Location .........................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/11/12 #01_CDMA BC0_RTAP 153.6Kbps_Edge1_0cm_Ch384 Communication System: CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: MSL_850_141112 Medium parameters used: f = 837 MHz; σ = 0.965 S/m; ε r = 54.539; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(10.13, 10.13, 10.13); Calibrated: 2014/9/25; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2014/10/6 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (7);SEMCAD X Version 14.6.10 (7164) Configuration/Ch384/Area Scan (51x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.377 W/kg Configuration/Ch384/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.858 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.502 W/kg SAR(1 g) = 0.258 W/kg; SAR(10 g) = 0.136 W/kg Maximum value of SAR (measured) = 0.385 W/kg 0 dB = 0.385 W/kg = -4.15 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/11/12 #02_CDMA BC1_RTAP 153.6Kbps_Edge1_0cm_Ch25 Communication System: CDMA ; Frequency: 1851.25 MHz;Duty Cycle: 1:1 Medium: MSL_1900_141112 Medium parameters used: f = 1851.25 MHz; σ = 1.489 S/m; ε r = 53.059; ρ = 1000 kg/m 3 23.3 22.3 DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(7.8, 7.8, 7.8); Calibrated: 2014/9/25; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2014/10/6 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (7);SEMCAD X Version 14.6.10 (7164) Configuration/Ch25/Area Scan (51x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.365 W/kg Configuration/Ch25/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.905 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.695 W/kg SAR(1 g) = 0.331 W/kg; SAR(10 g) = 0.148 W/kg Maximum value of SAR (measured) = 0.528 W/kg 0 dB = 0.528 W/kg = -2.77 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/11/11 #03_LTE Band 13_10M_QPSK_1RB_0offset_Edge1_0cm_Ch23230 Communication System: LTE ; Frequency: 782 MHz;Duty Cycle: 1:1 Medium: MSL_750_141111 Medium parameters used: f = 782 MHz; σ = 0.988 S/m; ε r = 53.552; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(10.1, 10.1, 10.1); Calibrated: 2014/9/25; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2014/10/6 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (7);SEMCAD X Version 14.6.10 (7164) Configuration/Ch23230/Area Scan (51x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.660 W/kg Configuration/Ch23230/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.345 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.831 W/kg SAR(1 g) = 0.437 W/kg; SAR(10 g) = 0.230 W/kg Maximum value of SAR (measured) = 0.627 W/kg 0 dB = 0.627 W/kg = -2.03 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/11/12 #04_LTE Band 4_20M_QPSK_50RB_0offset_Edge1_0cm_Ch20050 Communication System: LTE ; Frequency: 1720 MHz;Duty Cycle: 1:1 Medium: MSL_1750_141112 Medium parameters used: f = 1720 MHz; σ = 1.477 S/m; ε r = 52.196; ρ = 1000 kg/m 3 23.3 22.3 DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(8.26, 8.26, 8.26); Calibrated: 2014/9/25; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2014/10/6 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (7);SEMCAD X Version 14.6.10 (7164) Configuration/Ch20050/Area Scan (51x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.11 W/kg Configuration/Ch20050/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 28.114 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.45 W/kg SAR(1 g) = 0.802 W/kg; SAR(10 g) = 0.423 W/kg Maximum value of SAR (measured) = 1.16 W/kg 0 dB = 1.16 W/kg = 0.64 dBW/kg

SPORTON INTERNATIONAL I…

Text truncated - open the document above for the full version.
