YE4G9MY13CAR AUDIO VIDEO NAVIGATION SYSTEM

INFOTAINMENT CENTER Owner’s Manual Before using this product, please read this manual fully to ensure correct operation. Keep the manual at hand for future reference. XSG2NA-X 2 THIS IS A DISCLAIMER OF LIABILITY AND DAMAGE RESPONSIBILITY AS REGARDS TO THE INFOTAINMENT CENTER MANUFACTURER AND YOUR USE OF THE PRODUCT. YOU ASSUME TOTAL RESPONSIBILITY AND RISK FOR USING THIS SYSTEM. Failure to properly focus on the operation of your motor vehicle can result in death, serious injury and property damage. The Infotainment Center should never be used at a time or in a manner that distracts you from properly focusing on operation of the motor vehicle in which it is installed. Always operate the vehicle in a safe manner and in full compliance with speed limits, road safety signs and all other laws and devices which regulate operation of a motor vehicle. Always remain aware of driving conditions at all times when using this system while operating a motor vehicle. Operation of this unit, including its camera, navigation, audio and other features, can be distracting to your operation of the motor vehicle. While the system is intended to provide both entertainment and helpful vehicle and navigation information, it is not intended to, nor should you allow it to, distract you from properly focusing on operating the motor vehicle in which it is installed. It is up to you to minimize or prevent such distraction. Learn how to use this system before placing the vehicle in operation. Minimize the amount of time spent viewing the screen of the unit while driving and use voice prompts whenever possible. Do not attempt to adjust settings of the system or resolve any malfunction with it while driving. Instead, pull off the road in a safe and legal manner, and then adjust its settings or deal with any malfunction. In the event of serious malfunction, disable the unit (turn power off or remove power from the system) and contact a qualified service personnel. Your optional navigation feature is intended to assist you with guidance to your destination. The navigation is NOT intended to replace, supersede or take precedence over any traffic signs, street signs, hazard signs, etc. IT IS YOUR RESPONSIBILITY TO ENSURE THE ROADS YOU ARE TRAVELLING ARE APPROPRIATE FOR THE VEHICLE YOU ARE DRIVING. Do not enter destinations, change settings or access any functions requiring prolonged use of the controls of the unit while operating your motor vehicle. For safety, pull off the road before making any adjustments to the system or resolving any navigation discrepancies or questions. If your Infotainment Center includes optional navigation features please refer to your navigation user manual for further specific information regarding its features, warnings, instructions and disclaimers. This device should be permanently mounted in a vehicle using a manufacturer or customer supplied mounting plate so as to insure a separation distance of 20Cm from the body. 3 IMPORTANT SAFETY INFORMATION Safety Information Read the operating instructions for the Infotainment Center and all other components of the system carefully before using the system. FAILURE TO OBSERVE THE INSTRUCTIONS GIVEN IN THIS MANUAL MAY CAUSE INJURY OR DAMAGE AND VOID THE WARRANTY. Warnings Observe the following warnings when using this unit: • The driver should neither watch the display nor operate the system while driving. Watching the display or operating the system will distract the driver from looking ahead of the vehicle and can cause accidents. Always stop the vehicle in a safe location and use the parking brake before watching the display or operating the system. While navigating please use voice prompts. • Use the proper power supply. This product is designed for operation with a negative grounded 12 V DC battery system. Never operate this product with other battery systems, especially not with a 24 V DC battery system. • Protect the DVD loader mechanism. Do not insert any foreign objects into the slot of this unit. Only insert appropriate CD or DVD products. • Do not disassemble or modify the unit. Do not disassemble or modify the unit, or attempt to repair the product yourself. This may cause serious injury or damage and your warranty will be null and void. If the product needs repair, consult your dealer or contact technical support (see page 5). • Do not use the unit when it is out of order. If the unit is out of order (no power, no sound) or in an abnormal state (has foreign objects in it, is exposed to water, is smoking, or smells), turn it off immediately and consult your dealer. • Refer installation to qualified personnel. USA-Federal Communications Commission (FCC) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the distance between the equipment and the receiver. - Connect the equipment to outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced …

Text truncated - open the document above for the full version.

Glosys Inc. #510, Venture Valley B/D 958, GosaekDong, GwonseonGu, SuwonSi, GyeonggiDo, 441-360 South Korea TEL: +82-31-291-1450, FAX: +82-31-291-1451 http://www.glosys.co.kr/ December 8, 2012 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN ATTESTATION: We, the undersigned, would like to declare that the composite portion categorized as Class B digital device has been authorized under the Verification procedure. FCC ID Number Product Description (Model) YE4G9MY13 Car A.V.N.(CAR INFOTAINMENT CENTER) Sincerely, Byung Bin Kong / R&D Director

Glosys Inc. #510, Venture Valley B/D 958, GosaekDong, GwonseonGu, SuwonSi, GyeonggiDo, 441-360 South Korea TEL: +82-31-291-1450, FAX: +82-31-291-1451 http://www.glosys.co.kr/ December 8, 2012 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act, Glosys Inc. requests confidentiality for the following products: FCC ID Number Product Description (Model) YE4G9MY13 Car A.V.N.(CAR INFOTAINMENT CENTER) The requested Permanent and Short-Term Confidential exhibits art listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Part List No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Glosys Inc. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our products. This material is not customarily available to the general public and we request that it be withheld from public inspection. Sincerely, Byung Bin Kong / R&D Director

ID Label Location & Sample LABEL LOCATION: LABEL Drawing: 72mm 82mm

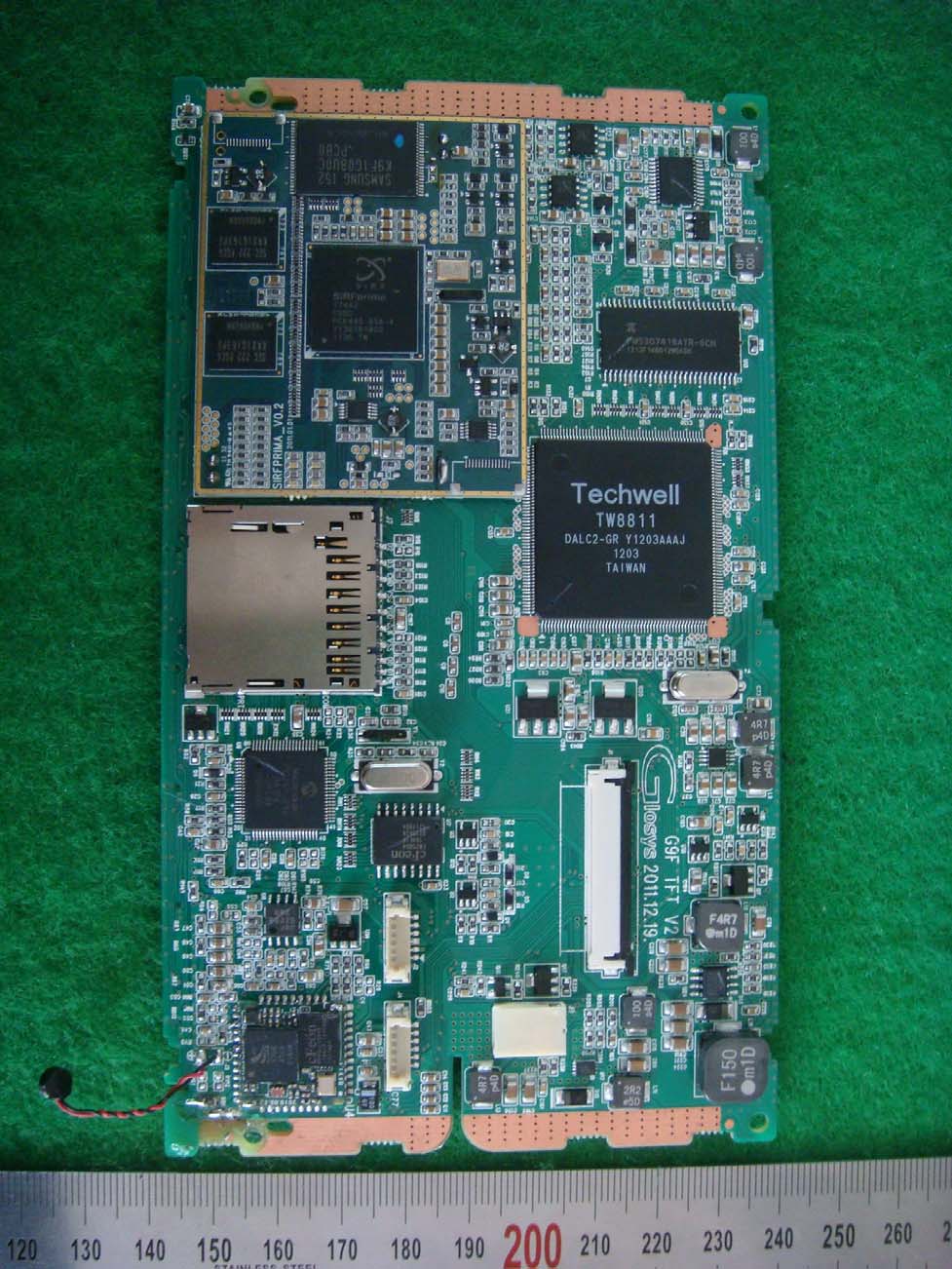

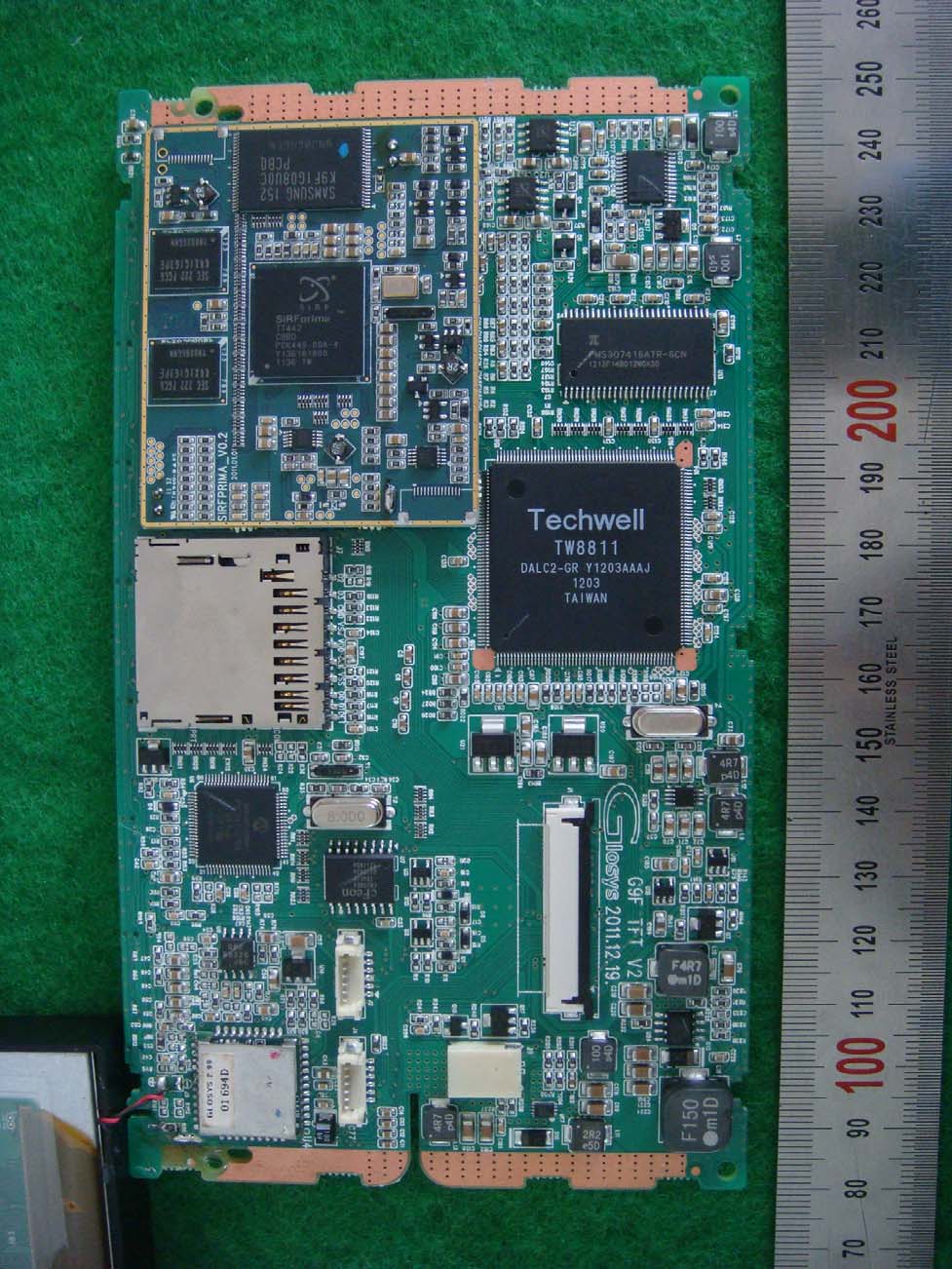

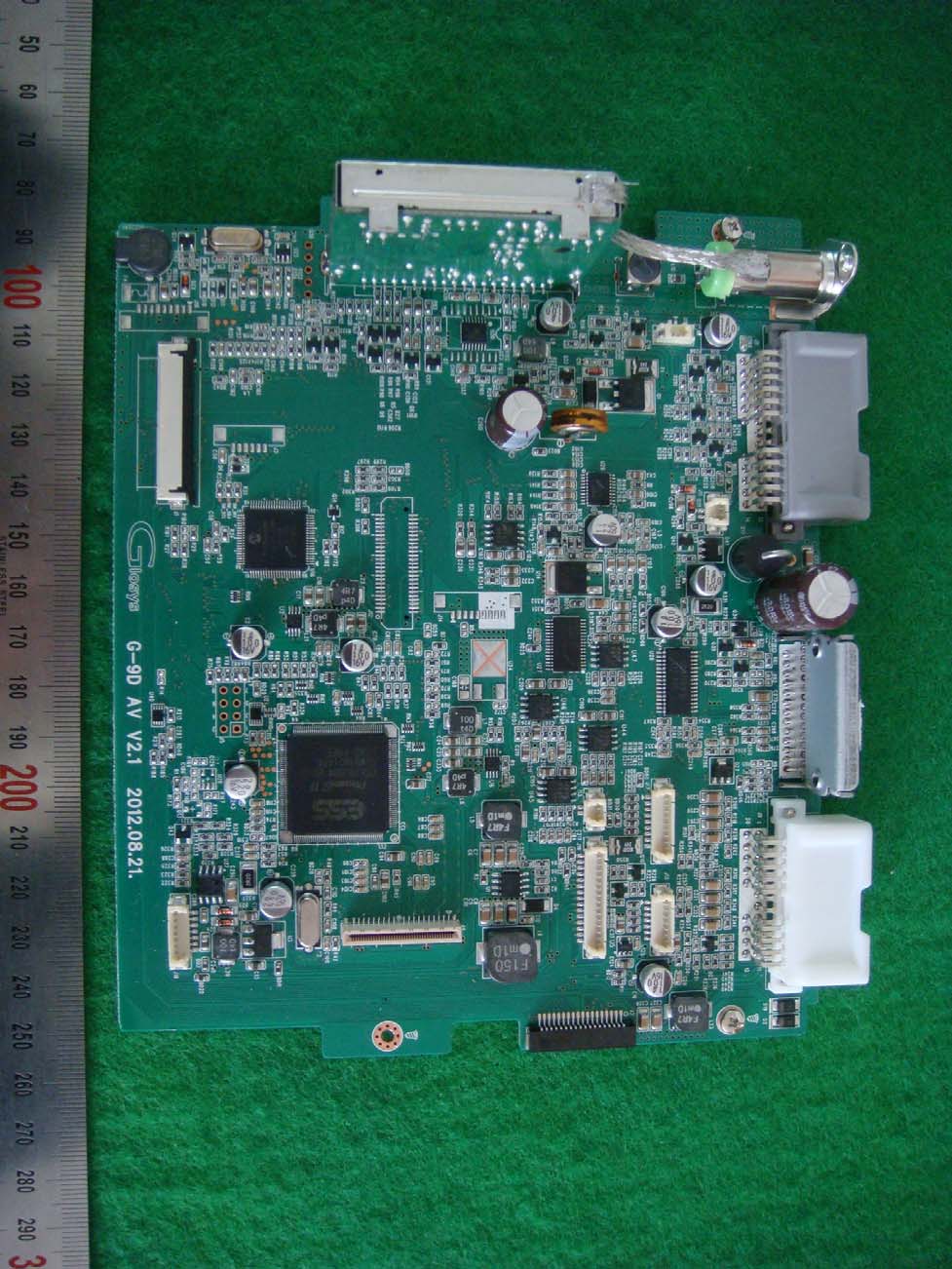

SK TECH CO., LTD. Page 1 of 11 SKTRFC-121211-027 FCC ID: YE4G9MY13 Internal Photographs <Photograph 1: Cover removed> SK TECH CO., LTD. Page 2 of 11 SKTRFC-121211-027 FCC ID: YE4G9MY13 <Photograph 2: Main board Front view> SK TECH CO., LTD. Page 3 of 11 SKTRFC-121211-027 FCC ID: YE4G9MY13 <Photograph 3: Main board Front view(RF module shielded can removed)> SK TECH CO., LTD. Page 4 of 11 SKTRFC-121211-027 FCC ID: YE4G9MY13 <Photograph 4: RF module view> SK TECH CO., LTD. Page 5 of 11 SKTRFC-121211-027 FCC ID: YE4G9MY13 <Photograph 5: Main board Rear view> SK TECH CO., LTD. Page 6 of 11 SKTRFC-121211-027 FCC ID: YE4G9MY13 <Photograph 6: LCD Panel Front view > SK TECH CO., LTD. Page 7 of 11 SKTRFC-121211-027 FCC ID: YE4G9MY13 <Photograph 7: LCD Panel Rear view > SK TECH CO., LTD. Page 8 of 11 SKTRFC-121211-027 FCC ID: YE4G9MY13 <Photograph 8: AV board Front view> SK TECH CO., LTD. Page 9 of 11 SKTRFC-121211-027 FCC ID: YE4G9MY13 <Photograph 9: AV board Rear view> SK TECH CO., LTD. Page 10 of 11 SKTRFC-121211-027 FCC ID: YE4G9MY13 <Photograph 10: Deck board Front view> SK TECH CO., LTD. Page 11 of 11 SKTRFC-121211-027 FCC ID: YE4G9MY13 <Photograph 11: Deck board Rear view>

SK TECH CO., LTD. Page 2 of 28 SKTRFC-121211-027 FCC ID: YE4G9MY13 >> CONTENTS << 1. GENERAL ···························································································4 2. TEST SITE ···························································································4 2.1 Location ·························································································4 2.2 List of Test and Measurement Instruments ·················································5 2.3 Test Date ·························································································5 2.4 Test Environment ···············································································5 3. DESCRIPTION OF THE EQUIPMENT UNDER TEST ··································6 3.1 Rating and Physical Characteristics ·························································6 3.2 Equipment Modifications ·····································································6 3.3 Submitted Documents ·········································································6 4. MEASUREMENT CONDITIONS ······························································7 4.1 Description of test configuration ·····························································7 4.2 List of Peripherals ··············································································7 4.3 Type of Used Cables ···········································································7 4.4 Uncertainty ······················································································7 5. TEST AND MEASUREMENTS ·································································8 5.1 ANTENNA REQUIREMENT ······························································8 5.1.1 Regulation ··················································································8 5.1.2 Result ·······················································································8 5.2 MAXIMUM PEAK OUTPUT POWER ·················································9 5.2.1 Regulation ··················································································9 5.2.2 Test Procedure ·············································································9 5.2.3 Test Results ················································································9 Table 1: Measured values of the Maximum Peak Output Power (Conducted)····························9 Figure 1: Plot of the Maximum Peak Output Power (Conducted) ········································· 10 5.3 CARRIER FREQUENCY SEPARATIONS and 20 dB BANDWIDTH ·········· 11 5.3.1 Regulation ················································································ 11 5.3.2 Test Procedure ··········································································· 11 5.3.3 Test Results ·············································································· 11 Table 2: Measured values of the Carrier Frequency Separation and 20 dB Bandwidth ·············· 11 Figure 2: Plot of the Carrier Frequency Separation ························································ 12 Figure 3: Plot of the 20dB Channel Bandwidth ····························································· 13 5.4 NUMBER OF HOPPING CHANNELS ················································ 14 5.4.1 Regulation ················································································ 14 5.4.2 Test Procedure ··········································································· 14 5.4.3 Test Results ·············································································· 14 Table 3: Measured values of the Number of Hopping Channels ········································ 14 Figure 4: Plot of the Number of Hopping Channels ························································ 15 SK TECH CO., LTD. Page 3 of 28 SKTRFC-121211-027 FCC ID: YE4G9MY13 5.5 TIME OF OCCUPANCY (DWELL TIME) ··········································· 16 5.5.1 Regulation ················································································ 16 5.5.2 Test Procedure ··········································································· 16 5.5.3 Test Results ·············································································· 16 Table 4: Measured values of the Time of Occupancy ····················································· 16 Figure 5: Plot of the Time of Occupancy ···································································· 17 5.6 SPURIOUS EMISSION, BAND EDGE, AND RESTRICTED BANDS ········· 18 5.6.1 Regulation ················································································ 18 5.6.2 Test Procedure ··········································································· 18 5.6.3 Test Results ·············································································· 20 Table 5: Results for the final radiated measurements of the field strength of spurious emission····· 20 Figure 6: Plot of the Band Edge (Conducted) ································································ 22 Figure 7: Plot of the Band Edge (Radiated) ··································································· 23 Figure 8: Spurious RF conducted emission ··································································· 24 Figure 9: Emission plot for the preliminary radiated measurements ······································ 25 5.7 RF EXPOSURE ·············································································· 28 5.7.1 Regulation ················································································· 28 5.7.2 RF Exposure Compliance Issue ························································ 28 SK TECH CO., LTD. Page 4 of 28 SKTRFC-121211-027 FCC ID: YE4G9MY13 1. GENERAL These tests were performed using the test procedure outlined in ANSI C63.10-2009 and ANSI C63.4- 2009 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.247. The EUT (Equ…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 3 SKTRFC-121211-027 FCC ID: YE4G9MY13 Test set up photos <Radiated Emissions - Front View> <Radiated Emissions - Rear View> SK TECH CO., LTD. Page 2 of 3 SKTRFC-121211-027 FCC ID: YE4G9MY13 <Radiated Emissions - below 30 MHz> <Radiated Emissions - below 1 GHz> SK TECH CO., LTD. Page 3 of 3 SKTRFC-121211-027 FCC ID: YE4G9MY13 <Radiated Emissions - above 1 GHz>
