YE4XSG2NA-X1LAVN(CAR AUDIO VIDEO NAVIGATION SYSTEM)

INFOTAINMENT CENTER Owner’s Manual Before using this product, please read this manual fully to ensure correct operation. Keep the manual at hand for future reference. XSG2NA-X1DM XSG2NA-X1L 2 THIS IS A DISCLAIMER OF LIABILITY AND DAMAGE RESPONSIBILITY AS REGARDS TO THE INFOTAINMENT CENTER MANUFACTURER AND YOUR USE OF THE PRODUCT. YOU ASSUME TOTAL RESPONSIBILITY AND RISK FOR USING THIS SYSTEM. Failure to properly focus on the operation of your motor vehicle can result in death, serious injury and property damage. The Infotainment Center should never be used at a time or in a manner that distracts you from properly focusing on operation of the motor vehicle in which it is installed. Always operate the vehicle in a safe manner and in full compliance with speed limits, road safety signs and all other laws and devices which regulate operation of a motor vehicle. Always remain aware of driving conditions at all times when using this system while operating a motor vehicle. Operation of this unit, including its camera, navigation, audio and other features, can be distracting to your operation of the motor vehicle. While the system is intended to provide both entertainment and helpful vehicle and navigation information, it is not intended to, nor should you allow it to, distract you from properly focusing on operating the motor vehicle in which it is installed. It is up to you to minimize or prevent such distraction. Learn how to use this system before placing the vehicle in operation. Minimize the amount of time spent viewing the screen of the unit while driving and use voice prompts whenever possible. Do not attempt to adjust settings of the system or resolve any malfunction with it while driving. Instead, pull off the road in a safe and legal manner, and then adjust its settings or deal with any malfunction. In the event of serious malfunction, disable the unit (turn power off or remove power from the system) and contact a qualified service personnel. Your optional navigation feature is intended to assist you with guidance to your destination. The navigation is NOT intended to replace, supersede or take precedence over any traffic signs, street signs, hazard signs, etc. IT IS YOUR RESPONSIBILITY TO ENSURE THE ROADS YOU ARE TRAVELLING ARE APPROPRIATE FOR THE VEHICLE YOU ARE DRIVING. Do not enter destinations, change settings or access any functions requiring prolonged use of the controls of the unit while operating your motor vehicle. For safety, pull off the road before making any adjustments to the system or resolving any navigation discrepancies or questions. If your Infotainment Center includes optional navigation features please refer to your navigation user manual for further specific information regarding its features, warnings, instructions and disclaimers. 3 IMPORTANT SAFETY INFORMATION Safety Information Read the operating instructions for the Infotainment Center and all other components of the system carefully before using the system. FAILURE TO OBSERVE THE INSTRUCTIONS GIVEN IN THIS MANUAL MAY CAUSE INJURY OR DAMAGE AND VOID THE WARRANTY. Warnings Observe the following warnings when using this unit: • The driver should neither watch the display nor operate the system while driving. Watching the display or operating the system will distract the driver from looking ahead of the vehicle and can cause accidents. Always stop the vehicle in a safe location and use the parking brake before watching the display or operating the system. While navigating please use voice prompts. • Use the proper power supply. This product is designed for operation with a negative grounded 12 V DC battery system. Never operate this product with other battery systems, especially not with a 24 V DC battery system. • Protect the DVD loader mechanism. Do not insert any foreign objects into the slot of this unit. Only insert appropriate CD or DVD products. • Do not disassemble or modify the unit. Do not disassemble or modify the unit, or attempt to repair the product yourself. This may cause serious injury or damage and your warranty will be null and void. If the product needs repair, consult your dealer or contact technical support (see page 5). • Do not use the unit when it is out of order. If the unit is out of order (no power, no sound) or in an abnormal state (has foreign objects in it, is exposed to water, is smoking, or smells), turn it off immediately and consult your dealer. • Refer installation to qualified personnel. USA-Federal Communications Commission (FCC) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the distance between the equipment and the receiver. - Connect the equipment to outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to op…

Text truncated - open the document above for the full version.

Glosys Inc. #510, Venture Valley B/D 958, GosaekDong, GwonseonGu, SuwonSi, GyeonggiDo, 441-360 South Korea Tel : +82-31-291-1450, Fax : +82-31-291-1451 http://www.glosys.co.kr/ Date: 2013.05.10 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize Uk Cho Lim of KOREA TESTING & RESEARCH INSTITUTE and hereafter referred to as KOREA TESTING & RESEARCH INSTITUTE to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Uk Cho Lim of KOREA TESTING & RESEARCH INSTITUTE on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KOREA TESTING & RESEARCH INSTITUTE as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; Glosys Inc. #510, Venture Valley B/D 958, GosaekDong, GwonseonGu, SuwonSi, GyeonggiDo, 441-360 South Korea Tel : +82-31-291-1450, Fax : +82-31-291-1451 http://www.glosys.co.kr/ h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Byung Bin Kong / R&D Director Glosys Inc. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Glosys Inc. #510, Venture Valley B/D 958, GosaekDong, GwonseonGu, SuwonSi, GyeonggiDo, 441-360 South Korea Tel : +82-31-291-1450, Fax : +82-31-291-1451 http://www.glosys.co.kr/ Date: 2013.05.10 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YE4XSG2NA-X1L Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Part List CONF APPENDIX_XSG2NA-X1L _Part List.PDF Schematics Diagram(s) CONF APPENDIX_ XSG2NA-X1L _Schemetics.PDF Block diagram CONF APPENDIX_ XSG2NA-X1L _Block diagram.PDF Operation description CONF APPENDIX_ XSG2NA-X1L _ Operation description.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Byung Bin Kong / R&D Director Glosys Inc.

Glosys Inc. #510, Venture Valley B/D 958, GosaekDong, GwonseonGu, SuwonSi, GyeonggiDo, 441-360 South Korea Tel : +82-31-291-1450, Fax : +82-31-291-1451 http://www.glosys.co.kr/ Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: May, 10, 2013 SUBJECT: FCC Application for (FCCID: YE4XSG2NA-X1L) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Byung Bin Kong / R&D Director Glosys Inc.

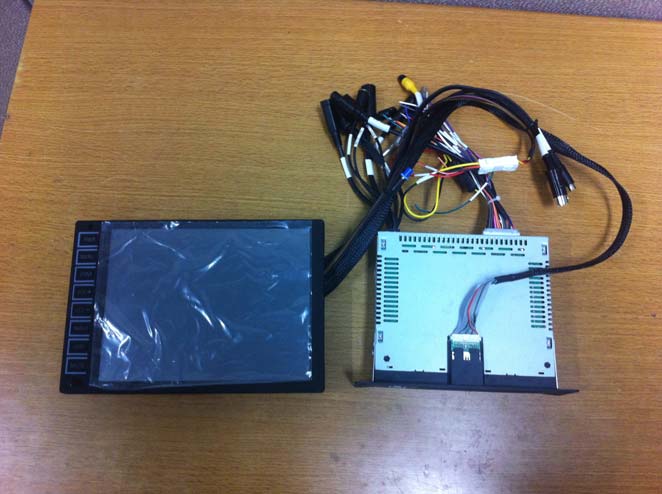

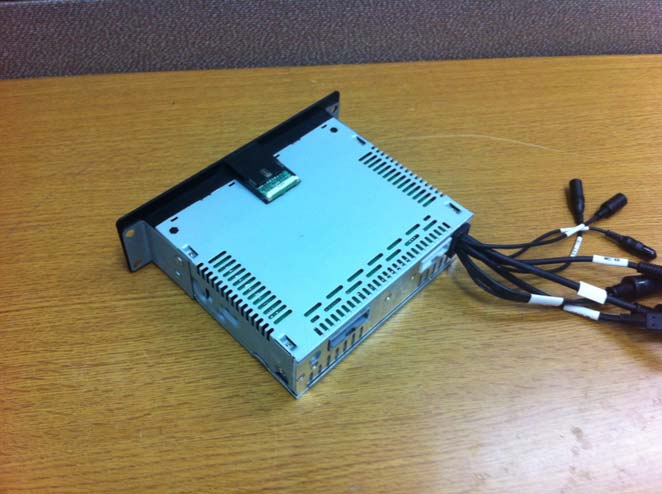

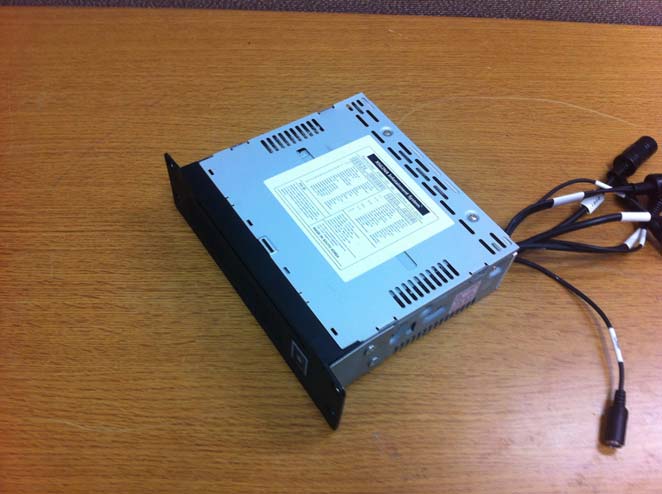

EUT External photographs EUT External photographs EUT External photographs EUT External photographs EUT External photographs

ID Label Location & Sample Label and Location

EUT Internal photographs EUT Internal photographs EUT Internal photographs BT Module BT Module EUT Internal photographs BT Module EUT Internal photographs PCB Antenna EUT Internal photographs N/A

RF exposure According to FCC part 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in § 1.1307(b) Limits for Maximum Permissible Exposure (MPE) f= frequency in ㎒ Friis transmission formula: Pd = (Pout×G)/(4×pi×R 2 ) Where, Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Results - Bluetooth(GFSK) Channel Frequency (㎒) Peak output power (㏈m) Antenna gain (㏈i) Power density at 20 ㎝(㎽/㎠) Limit (㎽/㎠) Low 2402 2.35 -6.81 0.000 07 1 Middle 2441 0.87 -6.81 0.000 04 1 High 2480 0.96 -6.81 0.000 05 1 Frequency range (㎒) Electric field strength(V/m) Magnetic field strength (A/m) Power density (㎽/㎠) Average time (A) Limits for Occupational / Control Exposures 300 – 1 500 -- -- f/300 6 1 500 - 100 000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300 – 1 500 -- -- f/1500 30 1 500 – 100 000 -- -- 1 30

Page 2 of 40 Report Ref. No. FCC2013-0008 •Revision History Report No. Revision Descripton Issued Date FCC2013-0008 0 Initial issued of test report May. 10. 2013 •Testing Location 66-6, Jeil-Ri, Yangji-Myun, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, Korea •Tests Performed FCC Part 15 Subpart C §15.247 •Summary of testing Section in FCC Rule Test Item Result §15.247(b)(1) Peak Output power Pass §15.247(a)(1) Hopping Channel Separation Pass §15.247(a)(1)(iii) Number of Hopping Channel Pass §15.247(a)(1)(iii) Time of Occupancy(Dwell Time) Pass §15.247(a)(1) 20 ㏈ Bandwidth Pass §15.247(a)(1)(iii) Time of occupancy(Dwell time) Pass §15.247(d) Conducted Spurious Emission & Band-edge Pass §15.205(a) &§15.209 Radiated Spurious Emission & Band Edge Pass §15.203(a) &§15.247(b) Antenna Requirement Pass Statement; The measurement procedures described in the American National Standard for Methods of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 ㎓ (ANSI C63.4- 2003) and the guidance provided in FCC OET Public notice DA 00-705 were used in the measurement of the DUT. Possible test case verdicts - Test case does not apply to the test object.........................................:N/A - Test object does meet the requirement..............................................:P (Pass) - Test object does not meet the requirement.........................................: F (Fail) Testing Date of receipt of test item.................................................................: 2013. 04. 12. Date (s) of performance of tests.........................................................: 2013. 04. 22. ~ 2013. 05. 10. Page 3 of 40 Report Ref. No. FCC2013-0008 FCC Part 15 Subpart C §15.247 Item Description 1.1 ... General Description 5 1.1.1 Laboratory information 5 1.1.2 Applicant Information 5 1.1.3 Manufacturer Information 5 1.1.4 Description of EUT 6 1.1.5 Test Frequency 6 1.1.6 Information about variant model 6 1.1.7 Device Modification 6 2.0 Information about the FHSS characteristics 7 2.1 ... Pseudorandom Frequency Hopping Sequence 7 2.2 ... Equal Hopping Frequency Use 7 2.3 ... System Receiver Input Bandwidth 7 2.4 ... Equipment Description 7 2.5 ... Test Result 8 2.5.1 Peak Output Power Measurement 8 2.5.2 Limit of Peak Output Power 8 2.5.3 Test Procedure 8 2.5.4 Test Setup 8 2.5.5 Test Result of Peak Output Power 8 2.6 ... Hopping Channel Separation Measurement 11 2.6.1 Limit of Hopping Channel Separation 11 2.6.2 Test Procedure 11 2.6.3 Test Setup 11 2.6.4 Test Result of Hopping Channel Separation 11 2.7 ... Number of Hopping Channel Measurement 13 2.7.1 Limit of Number of Hopping Frequency 13 2.7.2 Test Procedure 13 2.7.3 Test Setup 13 2.7.4 Test Result of Number of Hopping Frequency 13 2.8 ... Time of Occupancy(Dwell Time) Measurement 15 2.8.1 Limit of Time of Occupancy(Dwell Time) 15 2.8.2 Test Procedure 15 2.8.3 Test Setup 15 2.8.4 Test Result of Number of Hopping Frequency 15 2.9 ... 20 ㏈ Bandwidth Measurement 18 2.9.1 Limit of 20 ㏈ Bandwidth 18 2.9.2 Test Procedure 18 2.9.3 Test Setup 18 Page 4 of 40 Report Ref. No. FCC2013-0008 2.9.4 Test Result of 20 ㏈ Bandwidth 18 2.10 . Conducted Spurious Emission & Band-edge Measurement 21 2.10.1 Limit of Conducted Spurious Emission & Band-edge Measurement 21 2.10.2 Test Procedure for Band-edge Compliance of RF Conducted Emissions 21 2.10.3 Test Procedure for Spurious RF Conducted Emissions 21 2.10.4 Test Setup 21 2.10.5 Test Result of Conducted Spurious Emission & Band-edge 22 2.11 . Radiated Spurious Emission & Band Edge Measurement 26 2.11.1 Limit of Conducted Spurious Emission & Band-edge Measurement 26 2.11.2 Test Procedure 26 2.11.3 Test Setup 27 2.11.4 Test Result 29 2.12 . Antenna Requirement 36 2.12.1 Standard Applicable 36 2.12.2 Antenna Connected Construction 36 3.0 Test Equipment Used 37 4.0 Test Setup Photo 38 Page 5 of 40 Report Ref. No. FCC2013-0008 Applicant : Glosys Inc. Address : #510, Venture Valley B/D, 958, Gosaek-Dong, Gwonseon-Gu, Suwon-Si, Gyeonggi-Do, Korea Contact Person : Byung Bin Kong / R&D Director Phone No. : +82-31-291-1450 Fax No. : +82-31-291-1451 Applicant : Glosys Inc. Address : #510, Venture Valley B/D, 958, Gosaek-Dong, Gwonseon-Gu, Suwon-Si, Gyeonggi-Do, Korea Contact Person : Byung Bin Kong / R&D Director Phone No. : +82-31-291-1450 Fax No. : +82-31-291-1451 1.1 General Description 1.1.1 Laboratory information The 10 m semi-anechoic chamber and/or EMC facilities are used for these testing. These facilities were accredited by KOLAS,KC, KCC of Korea, FCC of USA and VCCI of Japan Address KOREA TESTING & RESEARCH INSTITUTE. 66-6, Jeil-Ri, Yangji-Myun, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, Korea Telephone No. : + 82-31-679-9600 Facsimile No. : + 82-31-336-1184 Registered No. KOLAS : 111 KC : J KCC & FCC : KR0030(Accredited Lab No.) VCCI Reg. No. : C-2363, R-2183 1.1.2 Applicant Information 1.1.3 Manufacturer Information Page 6 of 40 Report Ref. No. FCC2013-0008 1.1.4 Description of EUT Equipment under test Car Audio Video Navigation System Model name XSG2NA-X1L Serial number N/A Frequency Range 2 402 ㎒ ~ 2 480 ㎒(Bluetooth BDR) Modulation technique GFSK Number of channels 79(Bluetooth BDR) Antenna type & gain Integral(PCB antenna) // -6.81 ㏈ i Power source DC 12 V 1.1.5 Test Frequency Low channel (Channel 00) Middle channel (Channel 39) High channel (Channel 78) Frequency (㎒) 2 402 2 441 2 480 1.1.6 Information about variant model N/A 1.1.7 Device Modification N/A Page 7 of 40 Report Ref. No. FCC2013-0008 2.0 Information about the FHSS characteristics 2.1 Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divide into time slots where each slot corresponds to an RF hop frequ…

Text truncated - open the document above for the full version.

Page 38 of 40 Report Ref. No. FCC2013-0008 4.0 Test Setup Photo Radiated Spurious Emission<9 ㎑ to 30 ㎒> Radiated Spurious Emission<9 ㎑ to 30 ㎒> Page 39 of 40 Report Ref. No. FCC2013-0008 Radiated Spurious Emission<30 ㎒ to 1 ㎓> Radiated Spurious Emission<30 ㎒ to 1 ㎓> Page 40 of 40 Report Ref. No. FCC2013-0008 Radiated Spurious Emission<Above 1 ㎓> Radiated Spurious Emission<Above 1 ㎓>
