YE4XSG3CB2In-vehicle Infortainment System

XiteSolutions North America Inc. 1 XSG3CB2 INFOTAINMENT CENTER Owner’s Manual Before using this product, please read this manual fully to ensure correct operation. Keep the manual at hand for future reference. Content XiteSolutions North America Inc. 2 Content.................................................................................2 Disclaimer.......................................................................... 3-5 1. Features............................................................................6 2. Display................................................................................7 2.1 Main Monitor Display.........................................................7 2.2 Secondary Monitor Display..................................................8 2.3 Information Bar.................................................................9 2.4 Main Menu.......................................................................9 2.4.1 House Mode................................................................9 2.4.2 TPMS........................................................................9 2.4.3 Aux Zone....................................................................9 2.5 Aux Zone......................................................................10 3. Setup...............................................................................11 3.1 System Setup.............................................................11-12 3.2 Video Setup...................................................................13 3.3 Audio Setup....................................................................14 4. Radio Operation.............................................................15- 16 5. Media Center.....................................................................17 5.1 Copy, Paste, Delete, Select All, File View.............................17 5.2 Play Audio/Video Files.....................................................18 6. Bluetooth Operation............................................................19 6.1 Bluetooth Setup..............................................................19 6.2 Pairing Your Phone.....................................................20-21 6.3 Incoming Calls...............................................................22 6.4 Outgoing Calls...............................................................22 6.5 AV (A2DP Audio Playback over Bluetooth)...........................23 7. SiriusXM®.................. ..........................................................24 7.1 Subscribing to SiriusXM...................................................24 7.2 Operating SiriusXM.........................................................24 7.3 Tuning to a channel.........................................................25 7.4 Parental Control Channel Locking and Skipping....................27 7.4.1 Lock Code................................................................ 27 7.4.2 Lock Mode/Unlock Mode..............................................27 7.4.3 Mature Channel Locking...............................................27 7.4.4 Channel Locking.........................................................27 7.4.5 Channel Skip.............................................................27 7.5 Artist & Song Alerts.........................................................28 7.5.1 Setting Alerts.............................................................28 7.5.2 Viewing & Managing Alerts...........................................28 7.5.3 My Artists & My Songs Virtual Categories........................28 7.6 Replay..........................................................................29 7.7 SiriusXM Settings Menu...................................................30 7.8 Understanding SiriusXM Advisory Messages........................31 8. iPod & iPhone AV Interface.................................................32-33 9. Split Screen......................................................................34 10. Camera (Optional)..... ........................................................35 11. Navigation (Optional).........................................................35 12. Premium Remote Control (Optional).................................36- 39 Customer Feedback.............................................................. .39 Product registration................................................................40 Notes..................................................................................41 Disclaimer XiteSolutions North America Inc. 3 THIS IS A DISCLAIMER OF LIABILITY AND DAMAGE RESPONSIBILITY AS REGARDS TO THE INFOTAINMENT CENTER MANUFACTURER AND YOUR USE OF THE PRODUCT. YOU ASSUME TOTAL RESPONSIBILITY AND RISK FOR USING THIS SYSTEM. Failure to properly focus on the operation of your motor vehicle can result in death, serious injury and property damage. The Infotainment Center should never be used at a time or in a manner that distracts you from properly focusing on operation of the motor vehicle in which it is installed. Always operate the vehicle in a safe manner and in full compliance with speed limits, road safety signs and all other laws and devices which regulate operation of a motor vehicle. Always remain aware of driving conditions at all times when using this system while operating a motor vehicle. Operation of this unit, including its camera, navigation, audio and other features can be distracting to your operation of the motor vehicle. While the system is intended to provide both entertainment and helpful vehicle and navigation information, it is not intended to, nor should you allow it to, distract you from properly focusing on operating the motor vehicle in which it is installed. It is up to you to minimize or prevent such distraction. Learn how to use this system before placing the vehicle in operation. Minimize the amount of time spent viewing the screen of the unit while driving and use voice prompts whenever possible. Do not attempt to adjust s…

Text truncated - open the document above for the full version.

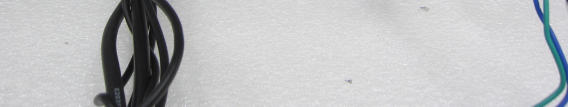

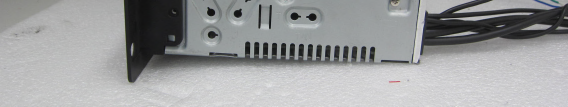

Model No.: XSG3CB2Page 1 of 1 External photos

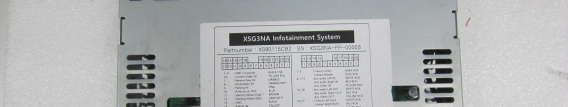

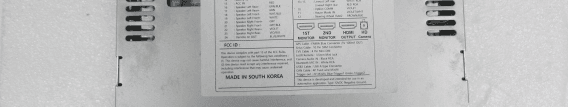

Model No.: XSG3CB2Page 1 of 1 Label photo

Model No.: XSG3CB2Page 1 of 6 Internalphotos Model No.: XSG3CB2Page 2 of 6 Antenna Model No.: XSG3CB2Page 3 of 6 Model No.: XSG3CB2Page 4 of 6 Model No.: XSG3CB2Page 5 of 6 Model No.: XSG3CB2Page 6 of 6

Model Name : XSG3CB2Page 1 of 1 RF exposure According to FCC part 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in § 1.1307(b) Limits for Maximum Permissible Exposure (MPE) f= frequency in㎒ Friis transmission formula: Pd = (Pout×G)/(4×pi×R 2 ) Where, Pd = power density in㎽/㎠ Pout = output power to antenna in㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd the limit of MPE, 1㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Results Operation mode Frequency (㎒) Peak output power (㏈m) Antenna gain (㏈i) Power density at 20㎝(㎽/㎠) Limit (㎽/㎠) BDR 1 Mbps2 402 ~ 2 480-0.61-4.540.00006081 EDR 2 Mbps2 402 ~ 2 480-1.26-4.540.00005231 EDR 3 Mbps2 402 ~ 2 480-0.99-4.540.00005571 Frequency range (㎒) Electric field strength(V/m) Magnetic field strength (A/m) Power density (㎽/㎠) Average time (A) Limits for Occupational / Control Exposures 300 – 1 500----f/3006 1 500 - 100000----56 (B) Limits for General Population / Uncontrol Exposures 300 – 1 500----f/15006 1 500 – 100 000----130

KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-20T0078 Page ( 2 ) of ( 48 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-06 Rev. 7KESA4 Revision history RevisionDate of issueTest report No.Description -2020.04.17KES-RF-20T0078Initial KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-20T0078 Page ( 3 ) of ( 48 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-06 Rev. 7KESA4 TABLE OF CONTENTS 1.General information .................................................................................................................................................... 4 1.1.EUT description ........................................................................................................................................ 4 1.2.Requirements for Bluetooth transmitter .................................................................................................... 5 1.3.Test configuration ...................................................................................................................................... 6 1.4.Device modifications................................................................................................................................. 6 1.5.Accessory information............................................................................................................................... 6 1.6.Sample calculation .................................................................................................................................... 6 1.7.Measurement Uncertainty ......................................................................................................................... 6 1.8.Frequency/channel operations ................................................................................................................... 7 2.Summary of tests ........................................................................................................................................................ 8 Note1 : This device is installed only on vehicles and is used with DC power. ................................................................... 8 3.Test results .................................................................................................................................................................. 9 3.1.20㏈bandwidth ...................................................................................................................................... 9 3.2.Output power ........................................................................................................................................... 12 3.3.Carrier frequency separation ................................................................................................................... 14 3.4.Number of hopping frequency................................................................................................................. 16 3.5.Time of occupancy .................................................................................................................................. 18 3.6.Radiated restricted band and emissions ................................................................................................... 22 3.7.Conducted band edge and out of band emissions .................................................................................... 41 Appendix A.Measurement equipment ......................................................................................................................... 47 Appendix B.Test setup photo ....................................................................................................................................... 48 KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-20T0078 Page ( 4 ) of ( 48 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-06 Rev. 7KESA4 1.General information Applicant:Glosys Inc. Applicant address: #510, 40, Omokcheon-ro 152beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, Korea Test site:KES Co., Ltd. Test site address:3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea 473-21, Gayeo-ro, Yeoju-si, Gyeonggi-do, Korea Test FacilityFCC Accreditation Designation No.: KR0100, Registration No.: 444148 FCC rule part(s):15.247 FCC ID:YE4XSG3CB2 Test device serial No.:ProductionPre-productionEngineering 1.1.EUT description Equipment under testIn-vehicle Infortainment System Frequency range 2 402㎒~ 2 480㎒(BDR / EDR) Model:XSG3CB2 Modulation technique GFSK, π/4DQPSK, 8DPSK Number of channels 2 402㎒~ 2 480㎒(BDR / EDR) : 79ch Antenna specification Antenna type : PCB Antenna // Peak gain: -4.54㏈i Power sourceDC 12 V H/W versionV 2.2 S/W versionV 0.91 KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-20T0078 Page ( 5 ) of ( 48 ) This report shall not be reproduced except in full, without the written approval of…

Text truncated - open the document above for the full version.

KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-20T0078 Page ( 48 ) of ( 48 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-06 Rev. 7KESA4 Appendix B.Test setup photo RadiatedAC conducted N/A N/A N/A The end of test report.
