XiteSolutions North America Inc. 1 XSG3NA INFOTAINMENT CENTER Owner’s Manual Before using this product, please read this manual fully to ensure correct operation. Keep the manual at hand for future reference. Content XiteSolutions North America Inc. 2 Content.................................................................................2 Disclaimer.......................................................................... 3-5 1. Features............................................................................6 2. Display................................................................................7 2.1 Main Monitor Display.........................................................7 2.2 Secondary Monitor Display..................................................8 2.3 Information Bar.................................................................9 2.4 Main Menu.......................................................................9 2.4.1 House Mode................................................................9 2.4.2 TPMS........................................................................9 2.4.3 Aux Zone....................................................................9 2.5 Aux Zone......................................................................10 3. Setup...............................................................................11 3.1 System Setup.............................................................11-12 3.2 Video Setup...................................................................13 3.3 Audio Setup....................................................................14 4. Radio Operation.............................................................15-16 5. Media Center.....................................................................17 5.1 Copy, Paste, Delete, Select All, File View.............................17 5.2 Play Audio/Video Files.....................................................18 6. Bluetooth Operation............................................................19 6.1 Bluetooth Setup..............................................................19 6.2 Pairing Your Phone.....................................................20-21 6.3 Incoming Calls...............................................................22 6.4 Outgoing Calls...............................................................22 6.5 AV (A2DP Audio Playback over Bluetooth)...........................23 7. SiriusXM®.................. ..........................................................24 7.1 Subscribing to SiriusXM...................................................24 7.2 Operating SiriusXM.........................................................24 7.3 Tuning to a channel.........................................................25 7.4 Parental Control Channel Locking and Skipping....................27 7.4.1 Lock Code................................................................ 27 7.4.2 Lock Mode/Unlock Mode..............................................27 7.4.3 Mature Channel Locking...............................................27 7.4.4 Channel Locking.........................................................27 7.4.5 Channel Skip.............................................................27 7.5 Artist & Song Alerts.........................................................28 7.5.1 Setting Alerts.............................................................28 7.5.2 Viewing & Managing Alerts...........................................28 7.5.3 My Artists & My Songs Virtual Categories........................28 7.6 Replay..........................................................................29 7.7 SiriusXM Settings Menu...................................................30 7.8 Understanding SiriusXM Advisory Messages........................31 8. iPod & iPhone AV Interface.................................................32-33 9. Split Screen......................................................................34 10. Camera (Optional).............................................................35 11. Navigation (Optional).........................................................35 12. Premium Remote Control (Optional).................................36-39 Customer Feedback...............................................................39 Product registration................................................................40 Notes..................................................................................41 Disclaimer XiteSolutions North America Inc. 3 THIS IS A DISCLAIMER OF LIABILITY AND DAMAGE RESPONSIBILITY AS REGARDS TO THE INFOTAINMENT CENTER MANUFACTURER AND YOUR USE OF THE PRODUCT. YOU ASSUME TOTAL RESPONSIBILITY AND RISK FOR USING THIS SYSTEM. Failure to properly focus on the operation of your motor vehicle can result in death, serious injury and property damage. The Infotainment Center should never be used at a time or in a manner that distracts you from properly focusing on operation of the motor vehicle in which it is installed. Always operate the vehicle in a safe manner and in full compliance with speed limits, road safety signs and all other laws and devices which regulate operation of a motor vehicle. Always remain aware of driving conditions at all times when using this system while operating a motor vehicle. Operation of this unit, including its camera, navigation, audio and other features can be distracting to your operation of the motor vehicle. While the system is intended to provide both entertainment and helpful vehicle and navigation information, it is not intended to, nor should you allow it to, distract you from properly focusing on operating the motor vehicle in which it is installed. It is up to you to minimize or prevent such distraction. Learn how to use this system before placing the vehicle in operation. Minimize the amount of time spent viewing the screen of the unit while driving and use voice prompts whenever possible. Do not attempt to adjust settin…

Text truncated - open the document above for the full version.

Glosys Inc. #510, Venture Valley B/D, OmokcheonRo 152beonGil GwonseonGu, SuwonSi, GytonggiDo, korea Date: August 28, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize KT Kang of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by KT Kang of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; Glosys Inc. #510, Venture Valley B/D, OmokcheonRo 152beonGil GwonseonGu, SuwonSi, GytonggiDo, korea g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, YoungJin Choi / Assistant Manager REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Glosys Inc. #510, Venture Valley B/D, 40, OmokcheonRo 152beonGil GwonseonGu, SuwonSi, GyeonggiDo, korea Date: August 28, 2015 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YE4XSG3NA Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Part List CONF APPENDIX_ XSG3NA_Part L ist.PDF Schematics Diagram(s) CONF APPENDIX_ XSG3NA_Schemetics.PDF Block diagram CONF APPENDIX_ XSG3NA_Block diagram.PDF Operation description CONF APPENDIX_ XSG3NA_Operation description.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, YoungJin Choi / Assistant Manager

Declarationof Conformity NOTTRANSFERABLE Declaration of Conformity isherebyissuedtothenamed Applicant,andis VALIDONLYfortheequipment identified hereon for useundertheRulesand Regulationslisted below: Applicant'sName:GlosysInc. Applicant's Address: #510, Venture Valley B/D, 40, OmokcheonRo 152beonGilGwonseonGu,SuwonSi, GyeonggiD o,korea Manufacturer'sName:GlosysInc. Manufacturer's Address: #510, Venture Valley B/D, 40, OmokcheonRo 152beonGilGwonseonGu,SuwonSi, GyeonggiD o,korea ProductDescription:In-vehicleInfotainment System Base Model: XSG3NA VariantModel: - ApplicableRegulation:FCCPart 15Subpart B -Part 15.107(b): ConductedEmission -Part 15.109(b): RadiatedEmission I, the undersigned, hereby declare that the equipment specified above conforms to the above FCC Rule(s) and Regulation(s) Part 15 Subpart B as described in the attached test report. GlosysInc. #510, VentureValleyB/D, 40, OmokcheonRo 152beonGil GwonseonGu,SuwonSi,GyeonggiDo,korea Date: 08. 18. 2015 Signature: Choi YoungJin Assistant manager

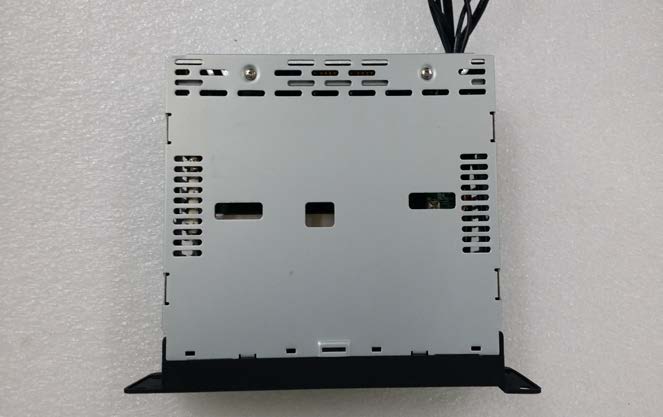

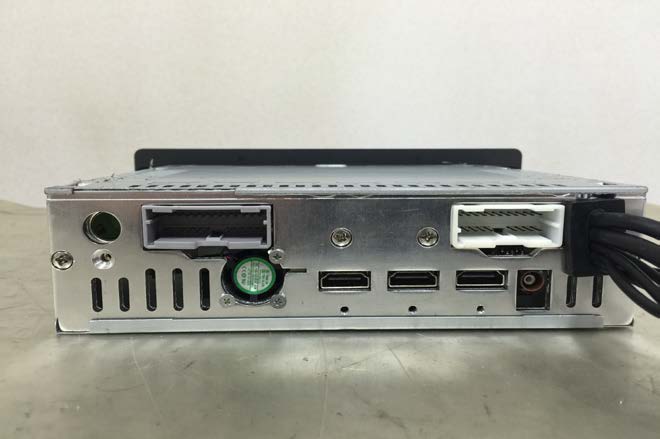

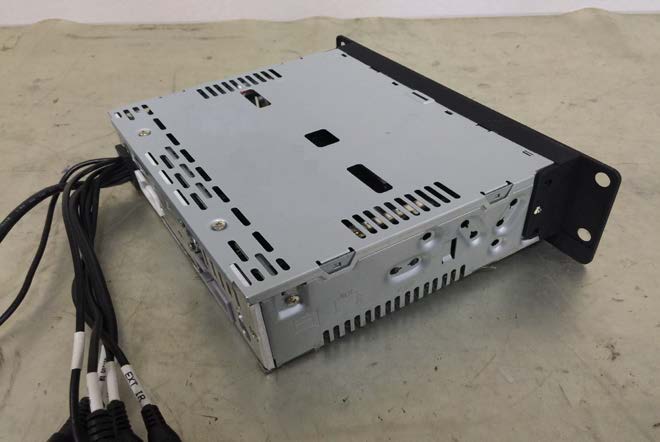

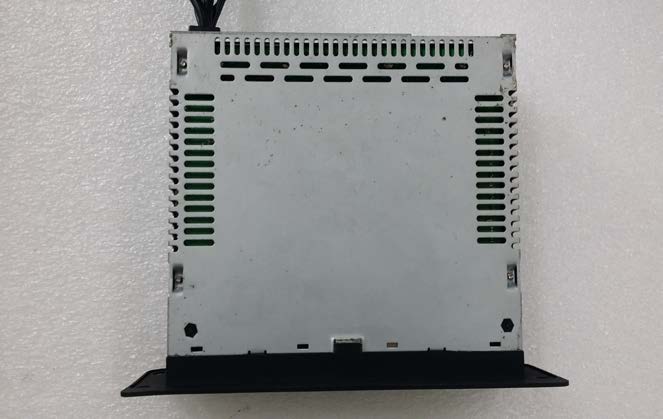

www.kes.co.kr EUT External p hotographs Top Bot FCC ID.: YE4XSG3NA Page 1 of 4 www.kes.co.kr Edge1 Edge2 FCC ID.: YE4XSG3NA Page 2 of 4 www.kes.co.kr Edge3 Edge4 FCC ID.: YE4XSG3NA Page 3 of 4 www.kes.co.kr Side1 Side2 FCC ID.: YE4XSG3NA Page 4 of 4

Label and Location FCC ID.: YE4XSG3NA Page 1 of 1

www.kes.co.kr EUT Internal photographs AV board (Top) AV board (Bot) FCC ID.: YE4XSG3NA Page 1 of 3 www.kes.co.kr CPU board (Top) CPU board (Bot) FCC ID.: YE4XSG3NA Page 2 of 3 www.kes.co.kr RF Module PCB Antenna FCC ID.: YE4XSG3NA Page 3 of 3

RF exposure According to FCC part 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in § 1.1307(b) Limits for Maximum Permissible Exposure (MPE) f= frequency in ㎒ Friis transmission formula: Pd = (Pout×G)/(4×pi×R 2 ) Where, Pd = power density Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd the limit of MPE, f/1500 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Results Operation mode / Data Rate Frequency (㎒) Peak output power (㏈m) Antenna gain (㏈i) Power density at 20 ㎝(㎽/㎠) Limit (㎽/㎠) Bluetooth / 1 Mbps 2 402 -1.80 -4.54 0.0000 5 1 Bluetooth / 2 Mbps 2 402 -3.07 -4.54 0.0000 3 1 Bluetooth / 3 Mbps 2 402 -2.85 -4.54 0.0000 4 1 Result: The power density does NOT exceed the limit Frequency range (㎒) Electric field strength(V/m) Magnetic field strength (A/m) Power density (㎽/㎠) Average time (A) Limits for Occupational / Control Exposures 300 – 1 500 -- -- f/300 6 1 500 - 100000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300 – 1 500 -- -- f/1500 6 1 500 – 100 000 -- -- 1 30 FCC ID.: YE4XSG3NA Page 1 of 1

KES Co., Ltd. C-3701, Simin-daero 365-40 , Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel : + 8 2-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Test report No.: KES-RF-1 5T0057 Page (2 ) of (50) Revision history Revision Date of issue Test report No. Description - 2015.08.31 KES-RF-15T0057 Initial R1 2015.09.22 KES-RF-15T0057-R1 A change of product name This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 KES Co., Ltd. C-3701, Simin-daero 365-40 , Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel : + 8 2-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Test report No.: KES-RF-1 5T0057 Page (3 ) of (50) TABLE OF CONTENTS 1. General information .................................................................................................................................................... 4 1.1. EUT description ........................................................................................................................................ 4 1.2. Test configuration ...................................................................................................................................... 5 1.3. Frequency/channel operations ................................................................................................................... 5 1.4. Information about derivative model .......................................................................................................... 5 2. Summary of tests ........................................................................................................................................................ 6 3. Test results .................................................................................................................................................................. 7 3.1. Radiated restricted band and emissions ..................................................................................................... 7 3.2. Conducted band edge and out of band emissions .................................................................................... 22 3.4. Output power ........................................................................................................................................... 34 3.5. Carrier frequency separation ................................................................................................................... 39 3.6. Number of hopping frequency ................................................................................................................. 41 3.7. Time of occupancy .................................................................................................................................. 44 Appendix A. Measurement equipment ......................................................................................................................... 49 Appendix B. Test setup photo ....................................................................................................................................... 50 This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 KES Co., Ltd. C-3701, Simin-daero 365-40 , Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel : + 8 2-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Test report No.: KES-RF-1 5T0057 Page (4 ) of (50) 1. General information Applicant: Glosys Inc. Applicant address: #510, Venture Valley B/D, 40, OmokcheonRo 152beonGil GwonseonGu, SuwonSi, GyeonggiDo, korea Test site: KES Co., Ltd. Test site address: C-3701, Simin-daero 365-40, Dongan- gu, Anyang-si, Gyeonggi-do,14057, Korea 473-29, Gayeo-ro, Yeoju-si, Gyeonggi-do, 12658, Korea FCC/IC rule part(s): 15.247 Model: XSG3NA FCC ID: YE4XSG3NA Test device serial No.: Production Pre-production Engineering 1.1. EUT description Equipment under test In-vehicle Infotainment System Frequency range 2402 ㎒ ~ 2480 ㎒ Modulation technique FHSS Number of channels 79 Antenna specification Antenna type: PCB Peak gain: -4.54 ㏈i Power source DC 12.0 V 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Pseudorandom frequency hopping sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. Equal hopping frequency use The channels of this system will be used equally over the long-term distribution of the hopsets. Example of a 79 hopping sequence in data mode: 02, 05, 31, 24, 20, 10, 43, 36, 30, 23, 40, 06, 21, 50, 44, 09, 71, 78, 01, 13, 73, 07, 70, 72, 35, 62, 42, 11, 41, 08, 16, 29, 60, 15, 34, 61, 58, 04, 67, 12, 22, 53, 57, 18, 27, 76, 39, 32, 17, 77, 52, 33, 56, 46, 37, 47, 64, 49, 45, 38, 69, 14, 51, 26, 79, 19, 28, 65, 75, 54, 48, 03, 25, 66, 05, 16, 68, 74, 59, 63, 55, This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test resul…
