DATE: 03.11.10 DIVISION: FA PRODUCT: Mouse Instructions NOTES: Artwork is scale. GRAPHIC SPECS PRINTED PAPER GRAPHICS ARE SCALE PRINTS CMYK FRONTBACK 8cm 10cm WIRELESS MOUSE INSTRUCTIONS WIRELESS MOUSE INSTRUCTIONS PANTONE 698 C PANTONE BLACK 7 U INSTALLATION: 1. Install 2 AAA batteries (not included). 2. Connect the USB reeiver to an open USB port on your computer or to a port on an additional USB hub. 3. Follow instructions that appear for driver installation. 4. Ensure that the USB receiver is connected. You may now start to use the mouse. PRODUCT FEATURES: Wireless optical mouse/USB receiver Product Specifications: 2.4 GHZ High Speed/10M Maximum distance Mini receiver/3 keys/Key lifecycle: 2,000,000/Resolution: 1000DPI SYSTEM COMPATIBILITY: Windows: 98/ME/2000/XP/Vista/MAC compatible CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver . • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may cause harmful interference, and (2) this device must accept any interference recieved, including interference that may cause undesired operation. Features and speci!cations subject to change without notice. Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All trademarks and registered trademarks are the properties of their respective owners. All rights reserved. ©2011 USB RECEIVER USB PORT

Block Diagram of Mouse Unit FCC ID: YE6DAZZL8 MCU SN8P2613X (U5) LED KEY coder RFIC MU2400 (U3) 12MHz Crystal (Y1) DATA PCB embedded antenna 2V7 DC/DC (U6) SENSOR (U4) 2.402-2.480GHz Data SheetMU2400 MuChip Co., Ltd. Version 1.5.0 Confidential Page 9 of 55 July, 2009 18B_DDigital Output Battery detector output 19DVDD3Power Digital I/O power supply 20CEDigital Input Chip enable 21DMC_PAnalog Output Demodulator analog output, connecting to an external AC coupling capacitor 22DMC_NAnalog Input Demodulator analog input, connecting to an external AC coupling capacitor 23AVDD_IF Power RX IF power supply, voltage regulator output 24AVDD3 Power Voltage regulator power supply Back side plate GNDGround Table 1: Pin Function Description 3. Block Diagram DEMOD PLL On-Chip Switch RSSI IREFXC1XC2 IRQ CSn SCK MOSI MISO Voltage Regulator Filter FIFO IN/OUT CRC Code/ Decode ADDR Decode Data Slicer Clock Recovery Auto-ACK Protocol CE Mini MAC Figure 2: Block Diagram of RF Module RF I/O

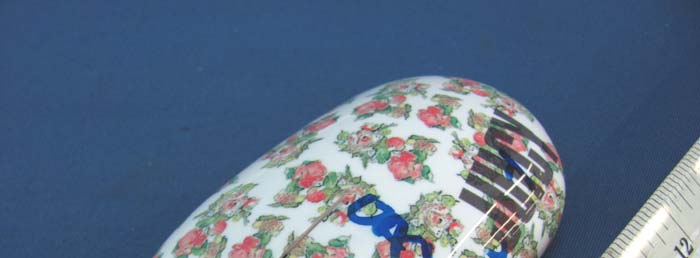

INTERTEK TESTING SERVICE Report No.: HK11050813-1 FCC ID: YE6DAZZL8 Equipment Photographs Model : YTRUG281 (External)

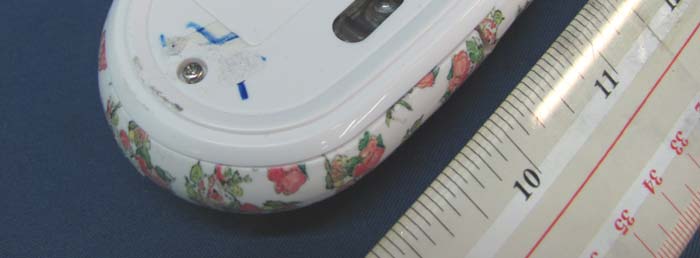

INTERTEK TESTING SERVICE Report No.: HK11050813-1 FCC ID: YE6DAZZL8 Equipment Photographs Model: YTRUG281 (Internal) INTERTEK TESTING SERVICE Report No.: HK11050813-1 FCC ID: YE6DAZZL8 Equipment Photographs Model: YTRUG281 (Internal) INTERTEK TESTING SERVICE Report No.: HK11050813-1 FCC ID: YE6DAZZL8 Equipment Photographs Model: YTRUG281 (Internal)

FCC ID: YE6DAZZL8 Model: YTRUG281 Technical Description of Wireless Optical Mouse The equipment under test (EUT) is the Mouse Unit (2.4GHz transceiver) of a wireless optical mouse system (mouse and dongle) operating in 2.402GHz - 2.480GHz using FSK technique. The Mouse Unit radio system has two parts: radio modem and microcontroller. The microcontroller scans keystrokes, wheel and sensor, then packs the data by adding preambles, frame information, and error checking bytes. The radio system employs 79 channels (the frequency range is 2.402- 2.480GHz) in random. When the data validation has error, the system switches channel. The Mouse Unit radio system will send sync packets after being powered on, and then search Dongle's responses. This is search mode. If any responses-packet is received, the Mouse Unit radio system will enter normal working mode. If the Mouse Unit radio system loses synchronization, it will enter sleep mode. The Mouse Unit radio system is powered by two 1.5V "AAA". The power consumption of RF module is about 2.7mA. The total power consumption is about 9.5mA in normal working mode. It will enter sleep mode if no key is pressed or no motion after 30 second. The total power consumption is 100-200uA in sleep mode. Modulation Type: FSK Antenna Type: Internal, Integral antenna The functions of main Components are mentioned as below. 1) U5 acts as MCU dealing with internal data. 2) U3 acts as RF transceiver module (2.402GHz-2.480GHz). 3) Y1 generates 12MHz clock to U3. 4) U6 acts as voltage regulator 5) U4 acts as Optical sensor. MU2400 2.4GHz Low Data Rate RF Transceiver Data Sheet Version 1.5.0 July, 2009 MuChip Co., Ltd Data Sheet MU2400 MuChip Co., Ltd. Version 1.5.0 Confidential Page 2 of 55 July, 2009 MuChip RF Solution Provider --- World Wide Distributors For Any RF Application Design, Please Refer to www.muchip.com.tw Main Office: 3F, No.9, Park Avenue II, Science-Based Industrial Park Hsinchu, Taiwan, ROC Phone: +886-36668000 ext: 115 Email: [email protected] Data Sheet MU2400 MuChip Co., Ltd. Version 1.5.0 Confidential Page 3 of 55 July, 2009 MU2400 – 2.4GHz Low Data Rate RF Transceiver General Description The MU2400 is a single-chip FSK low data rate RF transceiver for the world wide 2.4 – 2.5GHz ISM band. The data rate of the MU2400 can be operated up to 1.6Mbps in buffer mode. The MU2400 uses the standard CMOS process to offer a complete FSK RF transceiver solution with small die size, low power consumption, minimum external parts and high reliability. The MU2400 consists of a fully integrated frequency synthesizer, a power amplifier, a crystal oscillator, a demodulator, modulator, and Auto-ACK protocol engine. A reduced off-chip filter is realized by the low-IF architecture in RX chain. The MU2400 is programmable for frequency channels, and protocol setup easily through a 4-wire SPI interface. Features z Single-chip FSK transceiver z Auto-ACK & Auto-retransmission z Star-Network with 6 channels z Address and CRC computation z 1/1.6Mbps data rate z 1 ~ 64 bytes payload length z 64 bytes FIFO size z 4-wire digital interface (SPI) z Power supply range: 1.8 to 3.6V z Battery low supply voltage detector z Support 4 power modes: Active/Standby/Idle/Power Down z Operation range: -40 o C to +85 o C z Standard CMOS process z 24-pin 4x4 QFN package z On-chip VCO, PLL and PLL loop filter z On chip channel filter Applications z Wireless mouse, keyboard, joystick z Keyless entry z Alarm and security system z Home automation z Surveillance z Automotive z Telemetry z Industrial sensors z Wireless data communication z Toys Data Sheet MU2400 MuChip Co., Ltd. Version 1.5.0 Confidential Page 7 of 55 July, 2009 1. Pin Configuration AVDD_IF DMC_N DMC_P DVDD3 AVDD3 CE 24 2322212019 18 17 16 15 14 13 7 89101112 1 2 3 4 5 6 QFN-24 4x4 MU2400 MuChip MISO MOSI SCK CSn EN_PA/IRQ_RSSI B_D IREF VREG_OUT AVDD_RF GND GND RFIO GND Exposed die attach pad XC1 XC2 DVDD IRQ (DR) VMOD A VDD_PLL Figure 1: Pin Configuration The exposed die attach pad must be connected to a solid ground plate because this is the main ground connection for the MU2400. Data Sheet MU2400 MuChip Co., Ltd. Version 1.5.0 Confidential Page 8 of 55 July, 2009 2. Pin Description Pin Name Type Description 1 IREF Analog Input Reference resistor pin, connect to an external resistor 2 VREG_OUT Power On-chip voltage regulator output 3 AVDD_RF Power RF power supply 4 GND Ground Connect to PCB ground 5 GND Ground Connect to PCB ground 6 RFIO Analog I/O RF input/output 7 VMOD Analog I/O Connect to external capacitor for filtering 8 AVDD_PLL Power PLL power supply 9 XC1 Analog I/O Be configured as the two pin definitions: a. Crystal pin1 for external crystal b. For external clock signal, it connects to ground. 10 XC2 Analog I/O Be configured as the two pin definitions: a. Crystal pin2 for external crystal b. For external clock signal, it’s the input pin of external clock 11 DVDD Power Digital power supply 12 IRQ(DR) Digital I/O Be configured as the two operation modes: a. IRQ: Interrupt signal in buffer mode b. DR: data input/data output in direct mode 13 MISO Digital Output Be configured as the two operation modes: a. master input/slave output in SPI mode b. data output in buffer mode 14 MOSI Digital Input Be configured as the two operation modes: a. master output/slave input in SPI mode b. data input in buffer mode 15 SCK Digital Input SPI input clock 16 CSn Digital Input SPI selection / programming enable 17 EN_PA/ IRQ_RSSI Digital Output Be configured as the two output modes: 1. EN_PA: To control the external PA chip 2. IRQ_RSSI outputs high – To indicate the MCU to read the RSSI digital registers, RSSI is only valid during receiving signal. – Let MCU know whether the channel is occupied. Data Sheet MU2400 MuChip Co., Ltd. Version 1.5.0 Confidential Page 9 of 55 July, 2009 18 B_D Digital Output Battery detector output 19 DVDD3 Power Digital I/O power supply 20 CE Digital Input Chip enable 21 DMC_P Analog Output Demodulator analog…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A SDIO KLKR BA BATT-IN 2V7 SCLK BATT-IN A BATT+ RF_MOSI B SDIOMOTSWK DPI5KEY4KEY KLKRKM DPI 2V7 2V7 RF_CE RF_CSnRF_SCKRF_MOSIRF_MOSORF_IRQ 2V7 LED LED RF_MOSO MOTSWKRF_MOSO MOTSWK RF_IRQ RF_SCKRF_CSnRF_CE RF_MOSI 2V7 KM SCLK 4KEY5KEY 2V7 TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode > RB-20-VFR1.1 B 11 Tuesday, September 28, 2010 TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode > RB-20-VFR1.1 B 11 Tuesday, September 28, 2010 TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode > RB-20-VFR1.1 B 11 Tuesday, September 28, 2010 PAN3204A5030 R4 R5 R6 R7 C23 NC NC NC NC0E 100E 0E 33E NC 105 R1043E2E7 R11NCOE R8NC0E U3 MU2400 U3 MU2400 VREG_OUT 3 SCAN-MODE 6 GND 7 RFIO 8 VMOD 10 AVDD_PLL 11 XC1 13 XC2 14 CSn 20 SCK 19 MOSI 18 MISO 17 IRQ/DR 16 DVDD 15 IREF 1 CE 25 DVDD3 24 B_D 22 EN_PA/IRQ_RSSI 21 AVDD_RF 5 DMC_P 26 DMC_N 27 AVDD_IF 28 AVDD3 30 GND 9 GND 12 GND 23 GND 29 GND 2 GND 31 C12 NC C12 NC C5 1pFC5 1pF U5 SN8P2613X SSOP20 U5 SN8P2613X SSOP20 P0.1/INT1 1 P1.2 2 P1.3 3 P0.0/INT0 4 P1.5-RST/VPP 5 GND 6 P5.0-CLK 7 P5.1-OE 8 P5.2-ALSB/PDB 9 P5.3 10 P5.4-BZ0/PWM0 11 P5.5 12 P5.6 13 P5.7 14 VDD 15 XO/P1.4 16 XI/P1.6 17 P1.0-PGM 18 P1.1-ALSB/PDB 19 P1.7 20 C11 33PC11 33P C27 2U2C27 2U2 U6 QX2304-2.7 U6 QX2304-2.7 GND 1 IN 2 OUT 3 C10 33PC10 33P L25.6NHL25.6NH EC7 47U/16V EC7 47U/16V C6 104C6 104 K3KW-1204K3KW-1204 1 2 3 L4 4.7NH L4 4.7NH L1 47uH L1 47uH C16104C16104 R10 41ER10 41E U2 SN8P2613X SSOP20 U2 SN8P2613X SSOP20 P0.1/INT1 1 P1.2 2 P1.3 3 P0.0/INT0 4 P1.5-RST/VPP 5 GND 6 P5.0-CLK 7 P5.1-OE 8 P5.2-ALSB/PDB 9 P5.3 10 P5.4-BZ0/PWM0 11 P5.5 12 P5.6 13 P5.7 14 VDD 15 XO/P1.4 16 XI/P1.6 17 P1.0-PGM 18 P1.1-ALSB/PDB 19 P1.7 20 R3 10E R3 10E C22 0.1UFC22 0.1UF R8NCR8NC CN4CON2-2.0CN4CON2-2.0 12 C7105C7105 C3 7pFC3 7pF R12 10KR12 10K SW2 2XSW2 2X 1 2 EC147U/16VEC147U/16V R4 NC R4 NC R13 10KR13 10K R162KR162K R9 34K8 1%R9 34K8 1% Y116MHzY116MHz 1 2 C8 104C8 104 D2 SS14 D2 SS14 1 2 coder1CON3-2.0coder1CON3-2.0 123 MOSI MOSO SCLK GND VDD3 LEDNRESET NCS U4 PAN3204 MOSI MOSO SCLK GND VDD3 LEDNRESET NCS U4 PAN3204 OSC_RES 1 MOTSWK 2 SDIO 3 SCLK 4 LED 5 VSS 6 VDD 7 VDDA 8 R11 NCR11 NC C2 105C2 105 C9105C9105 R7100ER7100E TP1 0ETP1 0E C4 4pFC4 4pF D1LED3D1LED3 1 2 EC4 220U/10V EC4 220U/10V R5 0E R5 0E C13 NC C13 NC R6 NC R6 NC C1 33PC1 33P SW1 2XSW1 2X 1 2 U7A74221U7A74221 1 1 2 2 3 3 4 4 R2 1M R2 1M C23 1UFC23 1UF SW3 2XSW3 2X 1 2 EC5 47U/16V EC5 47U/16V PDF
 "pdfFactory Pro"  www.fineprint.com.cn 2.402GHz - 2.480GHz FCC ID: YE6DAZZL 8 12MHz

INTERTEK TESTING SERVICES Report No. : HK11050813-1 Sample No. : 1/1 Code: FCC15C_e / Effective Date: 20 Dec 2010 ( of ) Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass ) marker1(peak) = 85.4dBuV/m marker1(peak) – delta = 85.4dBuV/m – 32.11dB = 53.29dBuV/m lower than 54dBuV/m limit marker1(peak) = 84.7dBuV/m marker1(peak) – delta = 84.7dBuV/m – 38.75dB = 45.95dBuV/m lower than 54dBuV/m limit
