YE7-OV2411NTDigital Home Monitor System (Camera)

OV2411N HOME MONITOR The features & specifications described in this user’s guide may be subjected to modifications without prior notice. User Manual HOME MONITOR Safety Instructions P.1 - This product is not a toy. Do not allow children to play with it. - Keep this user’s guide for future ref er ence. - Keep the cords out of reach of children. - Test the home monitor before use. Become familiar with its functions and features. - Do not place the baby unit or cables in the cot or within arm’s reach of the baby (the unit should be at least 1 metre away). - Do not cover the home monitor with a towel or blanket. - Never use extension cords with AC adapters. Only use the ACadapters provided. - Do not install the home monitor near a heat source. - Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and batt er ies. - Do not touch the charger or plug contacts with sharp or metal objects . WARNING This home monitor is compliant with all relevant standards regarding Guide, safe to use. Therefore, always read the instructions in this User’s Guide carefully before using the device. OV2411N CAUTION Risk of explosion if batt ery is replaced by an incorrect type. Dispose of used batt er ies according to the instructions HOME MONITOR 1.1 Overview of OV2411 Viewer 2 3 4 5 1 6 7 8 9 10 11 12 17 13 14 15 16 1 1. Up /Talk Key 2. Enter Key 3. Cam 1 Key 4. Cam 2 Key 5. Lef t Key /Volume Down 6. Signal LED 7. Display 9. Cam 3 Key 10. Cam 4 key 11. Right /Volume up 12. Down /Snapshot 13. SD Slot 14. Str ing holder 15. Batt ery cover 16. Speaker 17. USB power plug 1.2 Keys All ovizee handset operation are done with the following keys : Power , Menu, Enter , Cam1, Cam2, Cam3, Cam4, Up, Down, Lef t, Right. Press <Menu> to go to enter the main menu. The main menu consist of the pairing, LCD contr ast, brightness, video display timer, night-vision, voice trigger and snap-shot video viewer selection. Press <Menu> again to quit. P.2 OV2411N BABY MONITOR 1.3 Overview of Ovizee Camera 6 7 1 2 3 4 5 1. Power LED 2. Infrar ed LEDs 3. Light Sensor 4. Camera lens 5. Microphone 6. Speaker Push the ON/OFF switch down to switch on the camera. The Power LED indicator will turn on. There is no setup involved. Just plug-in power and it will start working. For additional camera, pairing procedures must be done before usage, please ref er 2.1 for details. The camera unit comes with built-in light-sensor, IR-LED, Power LED, microphone and speakers that work with Ovizee handset unit. P.3 OV2411N HOME MONITOR 2.1 Camera unit power supply 1. Connect the small plug of the AC adaptor to the baby unit and the other end to the mains socket (230V/50Hz). NOTE Only use the enclosed power adapter (5V DC / 1000mA). 2. Push down the power switch to switch on the baby unit. The power LED will light up in green. P.4 OV2411N HOME MONITOR 2.2 Vision unit batt ery installation lithium batt ery BL-5C 1. Insert the wire tab of the rechargeable batt ery pack into the contact 2. Close the batt ery compartment and tighten the screw in a clockwise direction. - I t will take a few seconds to start up the unit. The batt ery icon indicates that the batt ery pack is low and needs to be recharged. The batt ery pack takes about 15 hours to charge fully. P.5 OV2411N HOME MONITOR 2.3 Vision unit power supply IMPORTANT Install the rechargeable batt ery pack before connecting the AC power supply. 1. Connect the small plug of the AC adaptor to the parent unit and the other end to the mains socket (230V/50Hz) NOTE Only use the enclosed power adapter (5V DC / 1000mA).. 2. The LCD screen illuminates and starts up automatically after a few seconds. 3. Press and hold Enter to turn OFF the parent unit. NOTE Once the baby and parent units are switched on, the display on the parent unit will show the video captured by the baby unit. P.6 OV2411N HOME MONITOR 2.4 First time installation done before normal operation (Note: Devices comes with Camera/Viewer pair needs no pairing as they are already pre-paired in the factory). Choose the zone for paring by pressing ZONE1 to ZONE4. Press <MENU> to go to main menu, and then press <UP> and <DOWN> to select sub-menu <PAIRING> to start the pairing action. Press <ENTER> to start pairing function. At this moment, the wireless device should also be enter ed into pairing state. This can be done by: Depends on the camera type, either (1) Power OFF and Power ON the device, or (2) Press <Pairing> key if presented. No further pairing is needed for subsequent use. Just switch on the devicesin future and the camera and viewer units are already pair. P.7 OV2411N HOME MONITOR 3.1 Select Camera (Zone) 3.2 Speaker Volume Contr ol press <ZONE1> to go to video zone 1, press <ZONE2> to go to video zone 2, press <ZONE3> to go to video zone 3, press <ZONE4> to go to video zone 4. The corresponding video and audio will be activated. Zone1 Zone3 Zone3 Zone4 Lef tright <LEFT> to decrease volume or press <RIGHT> to increase. Continue pressing <LEFT> will mute the speaker. P.8 OV2411N HOME MONITOR 3.3 Talk function(Vision to Camera) 3.4 Snap-shot Function (Handheld to Camera ) Up/Talk Down/Snap Press <UP/TALK> to set two ways audio, a “Talking” icon will be showed on the top of the display. Hold this key to continue talking. Release the key after speaking. Press <Down/Snap shot> to take one photo on current display. The photo will be stored on the Micro-SD card. Note that a mini-SD card is needed ( not-supplied ) for this function. P.9 OV2411N HOME MONITOR 3.6 Night-Vision Press <MENU> then <UP> and <DOWN> to select Video Timer Press <LEFT> and <RIGHT> to set video on timer ( 15s, 1 min and always on ) Press <MENU> again to quit * Note that the power up default setting is 1 min * Video Timer setting is applied to all cameras Press <MENU> then <UP> and <DOWN> to select Night-Vision function. Press <Lef t> or <Right> to activate the IR-LED. * Note that the camera will automatically go to…

Text truncated - open the document above for the full version.

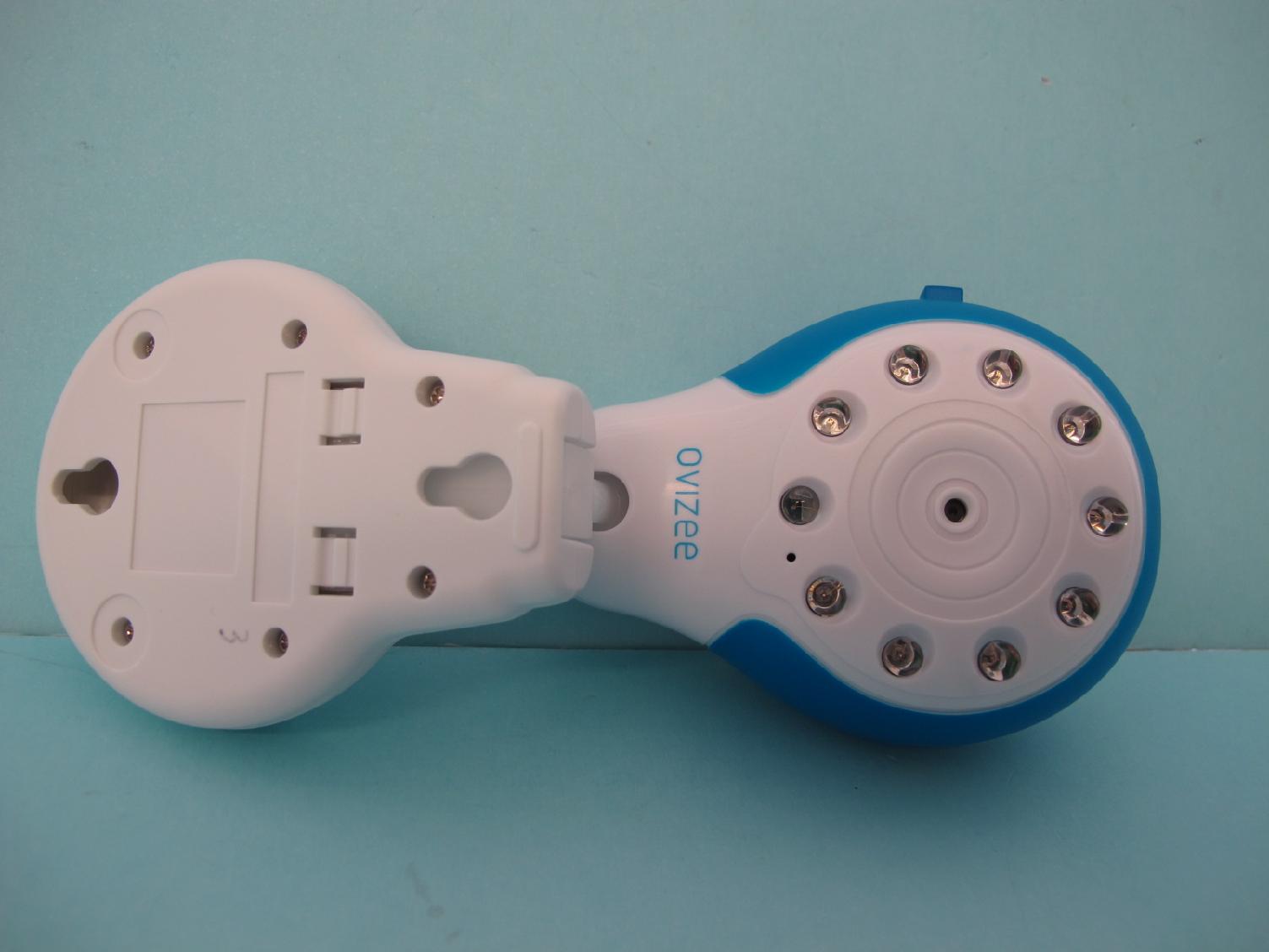

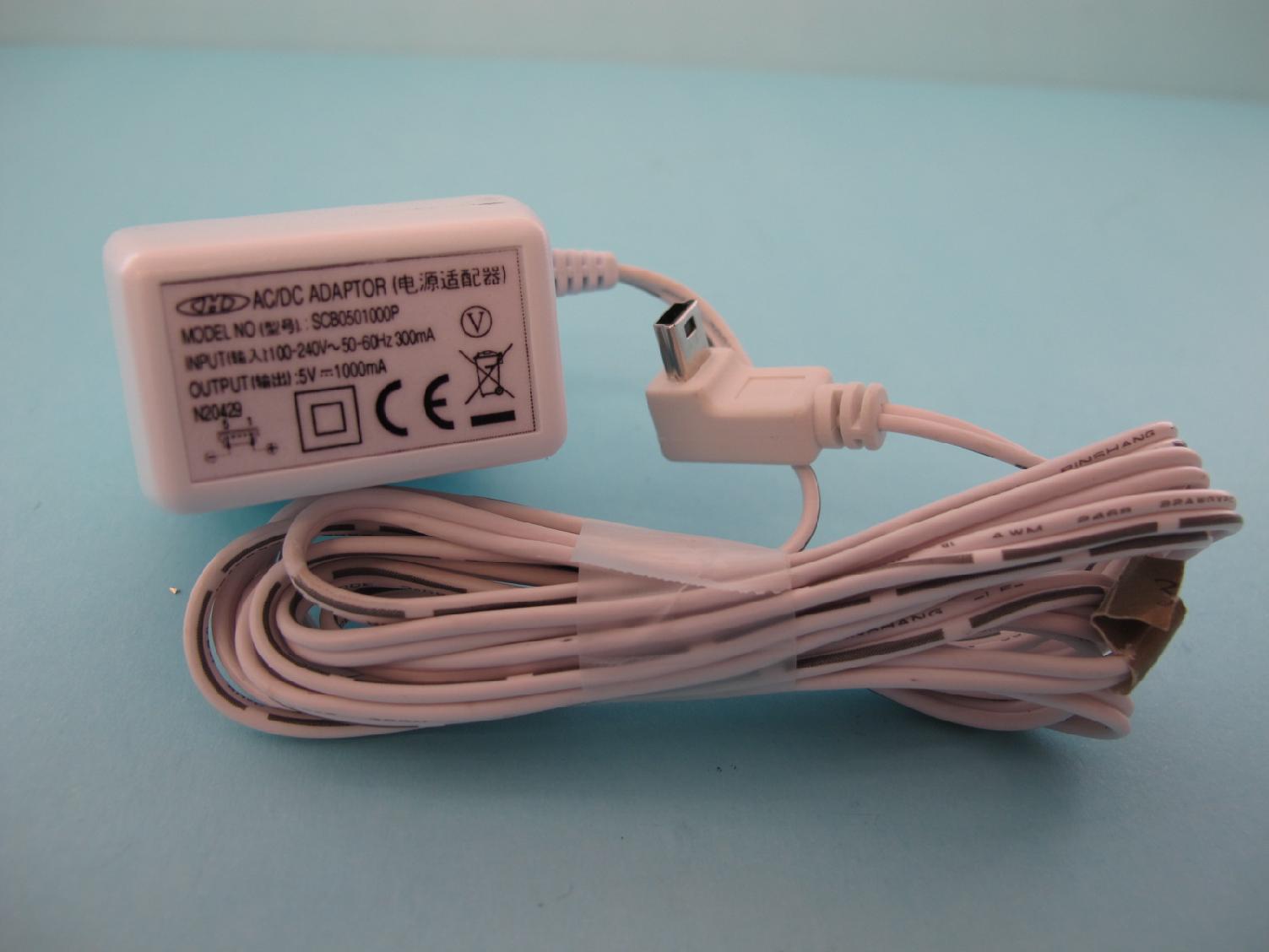

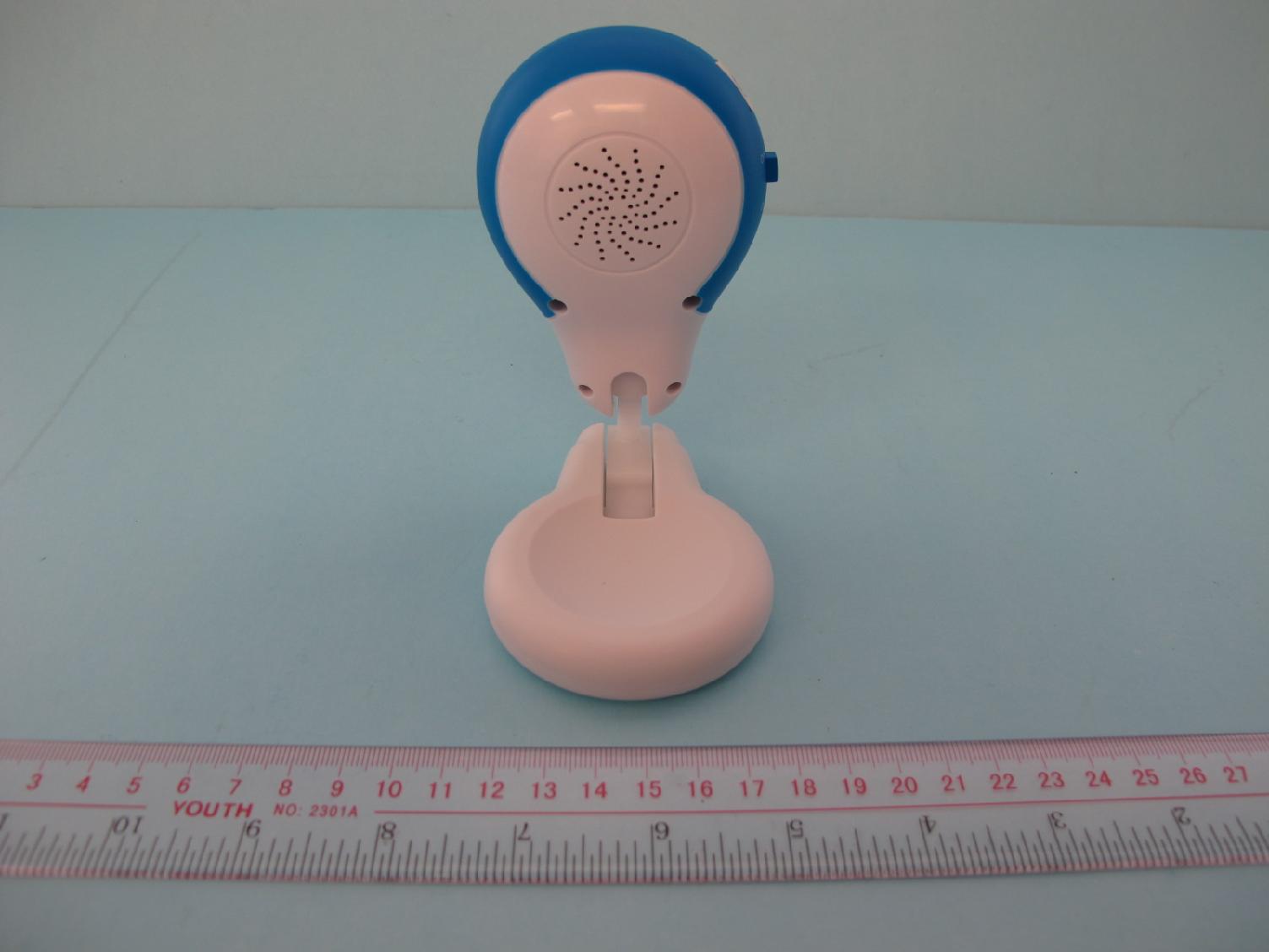

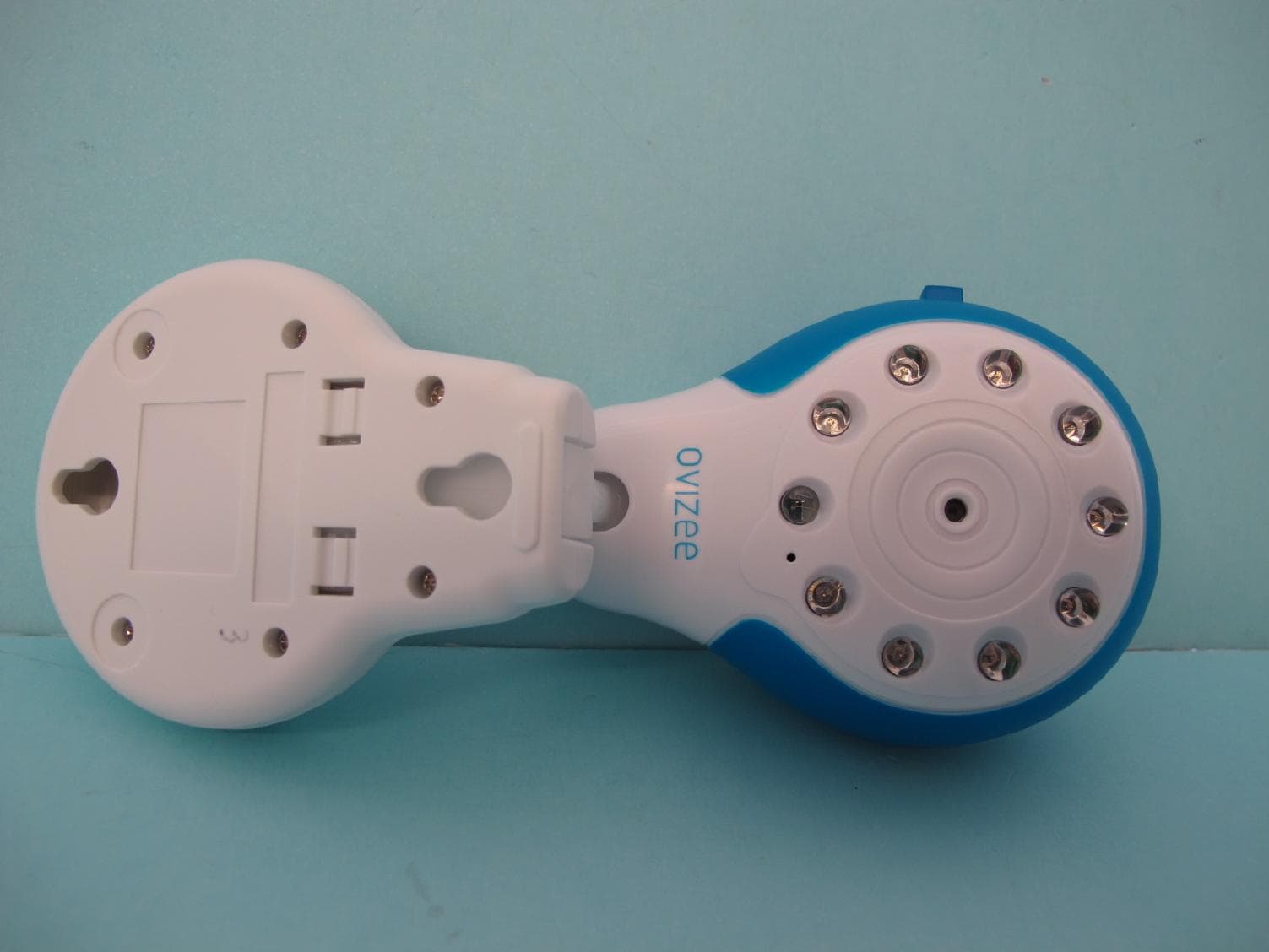

Page 1 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix B Date: 2010-12-13 Test report no.: 60.870.10.015.01F Model no.: OV2411NT (Camera) Photos of EUT – External EUT Photos Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.10.015.01F Model no.: OV2411NT (Camera) Page 3 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.10.015.01F Model no.: OV2411NT (Camera) Ancillary - AC/DC adaptor

LW2003 RECEIVER RATING LABEL CAMERA RATING LABEL CAMERA SERIAL NUMBER LABEL Lorex Giftbox Label 2) material: adhesive label with plastic lamination on top 4) Pandachip Code:222-011000017-140 1) White background black letters 3) scale: 1:1, si ze: 3x2m m 33 white background black letters scale: 1:1, size: 52mm X 35mm RECEIVER SERIAL NUMBER LABEL white background black letters scale: 1:1, size: 29.5x6mm P 00 000001G 9 5 4) Pandachip Code:222-011000015-140 Pandachip Code:222-011000014-140 Pandachip Code:222-011000014-140 Pandachip Code:222-011000019-140 1) White background black letters 2) Materi al : l abel paper w i th pl asti c l am i nati on on top 3) scale: 1:1, size: 22.5x17.5mm China 2.4 2003 1050 5 2.4GHz Wireless Color LCD Receiver China YE7-OV2411R 8575A 2.4GHz Wireless Color LCD Receiver WL2003 1050 3.7 Size of UPC should be at least 1.5” W x 1” H, can vary +/- .5” scale: 1:1 003 Model No: L W2003 1xRec 1xCam 128MB D/C: YE7-OV2411NR 8575A-WL2003N WL2003N 5V 400mA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation. China white background black letters scale: 1:1, size: 29.5x6mm YE7-OV2411NT 8575A-MC2003N 2.4 2003N 5V 450 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation. China WB01100400001 WB01100400001

1) 2) material: adhesive label with plastic lamination on top 3) scale: 1:1, 4) Pandachip Code:222-011000001-134 OV2411 FCC Unit Label Parent unit battery label si ze: 3x 3m m White background black letters 35 Produce date " G " f or R oH S Date code and service no. label on base unit back and handset -battery compartment Y our factory code is ‘P’ 09 = Year (2009) ________ Serial no. start from ‘000001’ (6 digits) white background black letters scale: 1:1, size: 30x6mm Date code and serial no. label for base unit -back Date code and serial no. label for cordless handset-battery compartment 05 = Month (May) P 00 000001G 9 5 P 00 000001G 9 5 P 00 000001G 9 5 OV2411 series P 00 000001G 9 5 4) Pandachip Code:222-013000001-134 1) White background black letters 2) Materi al : l abel paper w i th pl asti c l am i nati on on top Baby unit rating label 3) scale: 1:1, size: 23x18mm Model: OV2411NT INPUT : DC5V 1000mA MADE IN CHINA Rechargeable Batteries Only Use Only Power Supplies listed in the user instructions. FCC ID : YE7-OV2411NT IC : 8575A-MC2003N 1) Pandachip Code:222-011000004-134 MADE IN CHINA Model No: OV2411NR FCC ID : YE7-OV2411NR IC : 8575A-WL2003N Battery pack 3.7V, 1050mAh INPUT : Adaptor DC 5V 1000mA Rechargeable Batteries Only Use Only Batteries and Power Supplies listed in the user instructions. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation. FCC ID: IC: Model: OV2411 INPUT : DC5V 1000mA MADE IN CHINA Rechargeable Batteries Only Use Only Batteries and Power Supplies listed in the user instructions. MADE IN CHINA Model No: OV2411 FCC ID : IC : Ni-MH Battery pack 3.7V, 1050mAh INPUT : Adaptor DC 5V 1000mA Rechargeable Batteries Only Use Only Batteries and Power Supplies listed in the user instructions. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation.

Page 1 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix C Date: 2010-12-13 Test report no.: 60.870.10.015.01F Model no.: OV2411NT (Camera) Photos of EUT – Internal EUT Photos Page 2 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.10.015.01F Model no.: OV2411NT (Camera) Page 3 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.10.015.01F Model no.: OV2411NT (Camera) Page 4 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.10.015.01F Model no.: OV2411NT (Camera) Page 5 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.10.015.01F Model no.: OV2411NT (Camera)

Report No.: 60.870.10.015.01F Page 27 of 28 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Test Requirement:FCC part 15 section 15.247 (i) Test Method:FCC part 15 section 1.1307 (b1) OET Bulletin 65, Edition 01-01 Results: PASS Systems operation under the provision of this section shall be operated in a manner that ensures the public is not exposed to radio frequency energy levels in excess of the Commission’s guideline, The EUT is considered as a mobile device according to OET Bulletin 65, Edition 01-01, therefore distance to human body of min. 20cm is determined. Frequency Band:2.407.5GHz ~2.475GHz Device Category: Portable (< 20cm separation ) Mobile ( >20cm separation ) Others : Exposure Classification: Occupational/ Controlled exposure General Population / Uncontrolled exposure Max. Output Power77.1mW Antenna Gain0dBi ( Numeric gain:1) Evaluation Applied: MPE Evaluation SAR Evaluation MPE calculation: The radiated ( EIRP) = 77.1 mW The power density at 20cm from the antenna : = EIRP / 4ʌ R² = 0.0153mW / cm² Limits for General Population/Uncontrolled Exposure [OET Bulletin 65, Edition 01-01]: FrequencyElectric FieldMagnetic FieldPower DensityAveraging Time RangeStrength (E)Strength (H)(S)|E| 2 , |H| 2 or S (MHz)(V/m)(A/m)(mW/cm 2 )(minutes) 0.3-1.346141.63(100)*30 1.34-30824/f2.19/f(180/f 2 )*30 30-30027.50.0730.230 300-1500----f/150030 1500-100,000----1.030

TEST REPORT Date: 2010-12-13 Report No.: 60.870.10.015.01F Page 1 of 28 TUV SUD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Applicant: PandachipLtd. Unit 211, 2/F., IC Development Centre, No.6 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T. Hong Kong Description of Samples:Model name: Digital Home Monitor System (Camera) Brand name: OVIZee Model no.:OV2411NT / MC2003N FCCID:YE7-OV2411NT Date Samples Received:2010-11-09 Date Tested:2010-11-09 to 2010-12-10 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Nicolas ChengJeff Pong Assistant Project ManagerProject Manager Wireless & Telecom DepartmentWireless & Telecom Department Report No.: 60.870.10.015.01F Page 2 of 28 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong CONTENT: Cover Page 1 of 28 Content Page 2-3 of 28 1.0General Details 1.1Test Laboratory Page 4 of 28 1.2Applicant Details Page 4 of 28 1.3Equipment Under Test [EUT] Page 5 of 28 1.4 Related Submittal(s) Grants Page 5 of 28 2.0Technical Details 2.1Investigations Requested Page 6 of 28 2.2Test Standards and Results Summary Page 6 of 28 3.0Test Methodology 3.1Radiated Emission Page 7 of 28 3.2Field Strength Calculation Page 7 of 28 3.3Conducted Emission Page 7 of 28 4.0Test Results 4.1 Number of Frequency Hopping Page 8 of 28 4.2 20dB Bandwidth Measurement Page 9-10 of 28 4.3 Hopping Channel Carrier Frequency Separation Page 11 of 28 4.4 Average Time of Occupancy Page 12-13 of 28 4.5 Pseudorandom Hopping Algorithm Page 14 of 28 4.6 Band Edge Measurement Page 15-16 of 28 4.7 Maximum Output Power Page 17-18 of 28 4.8 Out ofBand Emissionsand Emissions in Restricted Bands Page 19-24 of 28 4.9 Conducted Emission on AC Mains Page 25-26 of 28 Report No.: 60.870.10.015.01F Page 3 of 28 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Page 27 of 28 6.0List of Measurement Equipments Page 28 of 28 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Report No.: 60.870.10.015.01F Page 4 of 28 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.0General Details 1.1Test Laboratory EMC Laboratoryregistered by FCC with FCCRegistration Number:607756 1.2Applicant Details Applicant PandachipLtd. Unit 211, 2/F., IC Development Centre, No.6 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T. Hong Kong Manufacturer PandachipLtd. Unit 211, 2/F., IC Development Centre, No.6 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T. Hong Kong Report No.: 60.870.10.015.01F Page 5 of 28 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.3Equipment Under Test [EUT] Description of EUT Product Description:Digital Home MonitorSystem(Camera) ModelNo.:OV2411NT/ MC2003N Brand Name: OVIZee FCCID:YE7-OV2411NT Rating:-DC5.0V,1000mApowered by AC/DC power adaptor or DC 3.7V,”Li-ion rechargeable battery. Operated Frequency:2407.5 -2475 MHz No. of Operated Channel:16 Accessories and Auxiliary Equipments:- AC/DC power adaptor. Antenna Type:Integral Manufacture of Antenna:PandachipLtd. Antenna Gain:0dBi Antenna Model:N/A General Operation of EUT The Equipment Under Test (EUT) is a Camera of the Home Digital Monitor System operated at 2.4GHz. As per Client Declaration, the circuit design, PCB Layout, shielding and interface of OV2411NT and MC2003N are identical, only the cosmetic are different. So we use OV2411NT as a representative model to perform all testing. FHSS Operation Principle: This module is controlled by microchip to generate Pseudorandom Frequency Hopping Sequence, this module support 16 hopping channels. Refer to section 4.5 of this report to have more detail of Pseudorandom Hopping Algorithm. 1.4Related Submittal(s) Grants This is a signal application subjected to Certificate Authorization. Report No.: 60.870.10.015.01F Page 6 of 28 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 and ANSI C63.4: 2003 for FCC Verification 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency Hopping Section 15.247 ( a1 ) 20dB Bandwidth Measurement Section 15.247 ( a1 ) Hopping Channel Carrier Frequency Separation Section 15.247 ( a1 ) Average Time of Occupancy Section 15.247 ( a1 ) Pseudorandom Hopping Algorithm Section 15.247 ( a1 ) Band Edge Measurement Section 15.247 Maximum Output PowerSection 15.247 ( b1 ) Out of Band EmissionSection 15.247 ( d ) Radiated Emission in Restricted Band Section 15.247 ( d ) Conducted Emission on AC Mains Section 15.207 RF ExposureSection 15.247 ( i ) Antenna RequirementSection 15.203 See note 1 Note 1 :The EUT uses a permanently attached antenna, which in accordance to Section 15.203, is considered sufficient to comply with the provisions of this section. Remark: N/A - Not Applicable Report No.: 60.870.10.015.01F Page 7 of 28 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical …

Text truncated - open the document above for the full version.

Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix A Date: 2010-12-13 Test report no.: 60.870.10.015.01F Model no.: OV2411NT (Camera) Photos of Test Setup – Radiated Emission Photos of Test Setup – Conducted Emission
