YEATL108GPS Tracker

1 TracUSA TL108 VEHICLE GPS TRACKER SOLUTION 2 Content Tables 1. Introduction--------------------------------------------------------------1 2. What’s new? ------------------------------------------------------------2 3.Main Features------------------------------------------------------------3 4. Applications--------------------------------------------------------------3 5. Specification-------------------------------------------------------------3 6. Installation----------------------------------------------------------------4 7. Set the authorized numbers----------------------------------------6 8. Delete authorized number-------------------------------------------7 9. Get position SMS-------------------------------------------------------7 10. Switch to listen in or talk mode----------------------------------8 11. All of the SMS commands list ------------------------------------8 1 1. Introduction Working Based on existing GSM /GPRS network and GPS satellites, TracUSA‟s TL108 vehicle tracking solution is a professional system that consists of highly sensitive and reliable car GPS tracker and server/internet based tracking software. The TL108 will transmit the longitude and latitude coordinate to your cell phone by SMS(text message), but it will also transmit the coordinate, vehicle status and alarm information to the designated server by GPRS(internet connection) .This allows you to know where the vehicle is, where it has been, and what various parameters(speed etc) have been. You can also stop the vehicle by cutting off the circuit and fuel using a simple text message command. What‟s more, it support‟s hand-free phone call between the driver and call center. This solution can be widely used in the vehicle tracking, valuable assets monitoring, fleet management area. 2 2. What’s new?  Support‟s hand-free phone call between driver and call center. This function is very useful for taxi, rental vehicle, ambulance and police car.  Easy to install. Designed with inner relays, we remove the most complex part of installation.  The server software is especially designed for tracking from a single vehicle to fleet operations, very versatile tracking software. 3 3. Main Features Tracker Software Real-time locating and tracking on web History replay Hand-free phone call with call center Listen in function Door detective ACC detective SOS alarm In or out Geo-fence alarm Speeding alarm Power-lost alarm Cut off the circuit or fuel Customizations are welcome(your TracUSA agent will discuss options) Server based Based on Google map/Google earth Support multi-users Support more then 10000 trackers Real-time tracking Set the tracking interval History replay SOS alarm Speeding alarm GEO fence alarm Power-lost alarm Customizations are welcome(your TracUSA agent will discuss options) 4. Applications Rental vehicle monitoring and management Monitoring kids, loved ones vehicles as to location, speed and emergency situations(SOS alarm) Taxi/ ambulance/police car dispatch management Fleet management GPS tracking service 4 5. Specification Content Specs. Dimension 96mm x 64mm x 25mm Weight 150g Network GSM/GPRS Band 900/1800Mhz 900/1800/1900Mhz 850/900/1800/1900Mhz GPS chip SIRF3 chip GPS sensitivity -159dBm Input Voltage 9-36V DC Cold start 42 sec. Warm starts 38 sec. Hot start 1 sec. Battery Chargeable 3.7V 870mAh battery Operation temperature -20°C to +70°C Humidity 5%--95% non-condensing 5 6. Installation ALL INSTALLATION SHOULD BE PERFORMED BY TracUSA’s APPROVED INSTALLERS. DO NOT ALTER ANY INSTALLATION LOCATIONS, CONNECTIONS ETC. THIS WILL VOID THE LIMITED 1 YEAR WARRANTY. INFORMATION BELOW IS FOR INFORMATIONAL PORPOUSE ONLY. 6.1 Recommend placement for GPS antenna 6.2. Connect the GSM antenna and GPS antenna 6 6.3. Connect the cables and buttons Po wer S p e a k e r D o o r S O S b ut t on C a l l b u t t on M i c r o p h o n e 123456 789101112 A B ACC M u l ti fu n c ti o n li n e 7 6.4. Insert the SIM card 6.5. After inserting the SIM card into the tracker, it will be switched on automatically.GSM LED and GPS LED will be bright at the same time. That means tracker is starting. After starting the GSM LED is going to blink if the tracker has got GSM signal. The GSP LED is going to blink if the tracker has got GPS signal. 7. Set the authorized numbers Your TracUSA representative will pre-program these numbers. This is informational only, do not attempt to change any of the preset programmed numbers. Contact 8 your TracUSA agent for any changes. There are 3 SOS numbers and 1 call center number which can be set. If SOS button is pressed for 3 seconds, The SOS alarm will be sent to 3 SOS numbers by SMS(text message) and sent to the TracUSA web based server by GPRS(internet connection). If call button is pressed for 3 seconds, the TL108 will make a call to the preset call center number. The tracker will pick up the incoming call automatically then the call center can talk with the driver using the microphone and speaker. All of the authorized numbers do not need to be programmed, but your TracUSA agent will ask that at least one of these numbers‟s is provided. The tracker will accept the SMS commands from the authorized numbers only. So your TracUSA agent needs at least one cell phone number to program into the TracUSA TL108 unit. PASSWORDS THIS IS FOR INFORMATIONAL PORPOUSE ONLY, YOUR TracUSA AGENT WILL PRE-PROGRAM ALL OF YOUR SOS NUMBERS WHEN YOU PURCHASE AND OUR AUTHORIZED INSTALLATION SERVICE INSTALLS THE TL108 UNIT. DO NOT ATTEMPT TO CHANGE THESE SETTINGS, CONTACT TracUSA IS CHANGES ARE NEEDED. 123456 is the default password of the tracker and we will take 123456 as the password to explain all the commands in this document. Send SMS“123456A1,phone number” to set the first SOS number. 9 Send SMS“123456A2,phone number” to set the second SOS number. Send SMS“123456A3,phone number” to set the third SOS number. Send SMS“123456A4,phone number” to set the call center number. Note: 123456 is the default passw…

Text truncated - open the document above for the full version.

Rev. 1/1/03 OE Power Systems Inc. 5100 Poplar Ave Suite 2700 Memphis, TN 38137 USA Tel: 001-901-322-6167 ; Fax: 001-901-299-7735 Date: March 14, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YEATL108 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: TL108_Schem.pdf) Block Diagram (file: TL108 _BlkDia.pdf) Parts List (file: TL108 _PartsLst.pdf) Operation Description (file: TL108 _OpDes.pdf) Tune up Procedure (file: TL108 _TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ William Oxley

OE Power Systems Inc. 5100 Poplar Ave Suite 2700 Memphis, TN 38137 USA Tel: 001-901-322-6167 Fax: 001-901-299-7735 Date: March 15, 2011 Power of Attorney To whom it may concern, Please be notified that I, William Oxley, have designated Roy Wu in Sporton International Inc. as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: YEATL108 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: William Oxley Company: OE Power Systems Inc. TEL: 001-901-322-6167 FAX: 001-901-299-7735 E-mail: [email protected]

1/1 OE Power Systems Inc. 5100 Poplar Ave Suite 2700 Memphis, TN 38137 USA Tel: 001-901-322-6167 Fax: 001-901-299-7735 Date: March 14, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : YEATL108 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: TL108 _ExtPho.pdf)  Internal Photos (file: TL108 _IntPho.pdf)  Test Setup Photos (file: TL108 _Tsup.pdf)  User Manual (file: TL108 _UserMan.pdf) The application contains technical information, which OE Power Systems Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, William Oxley

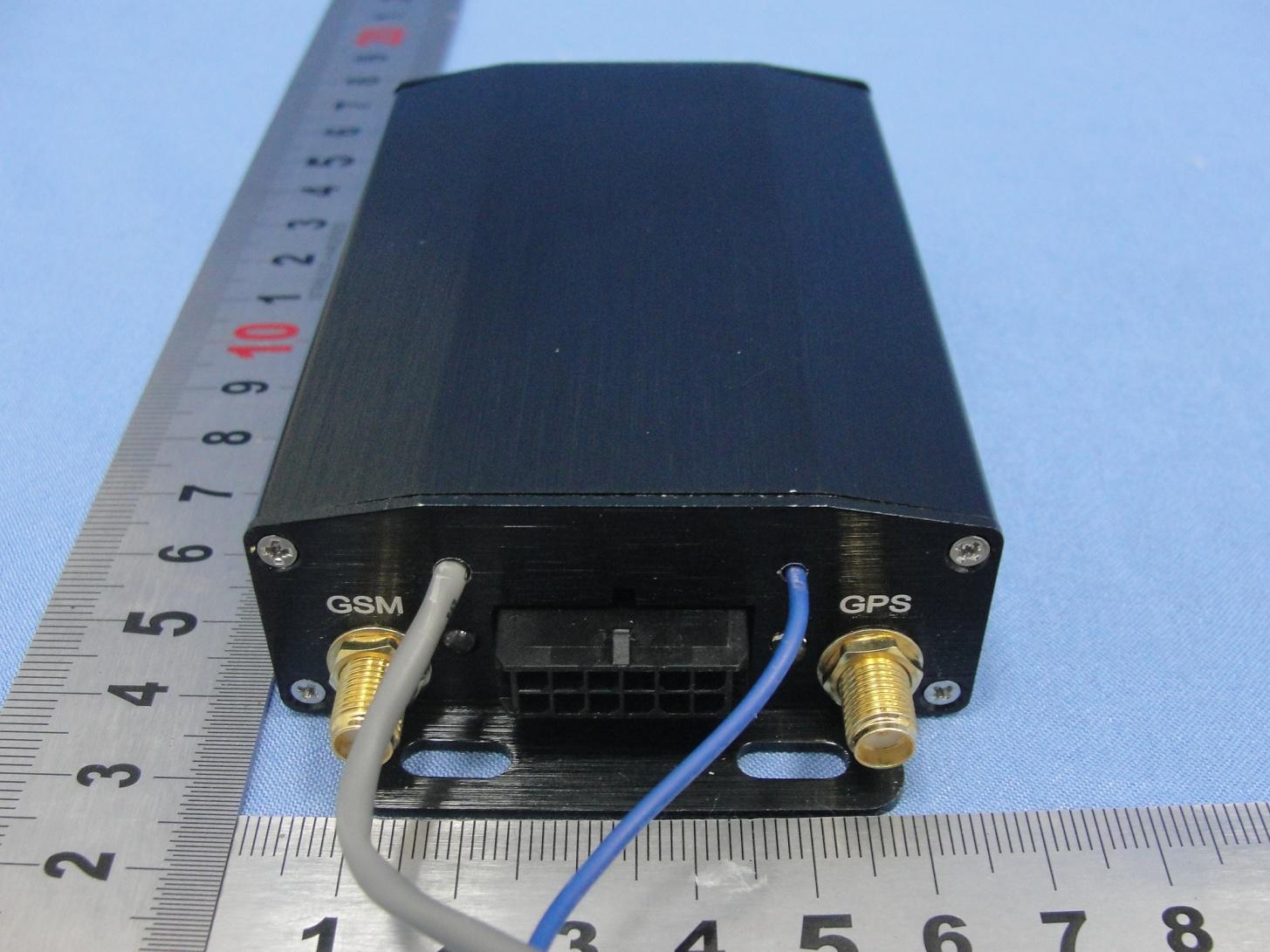

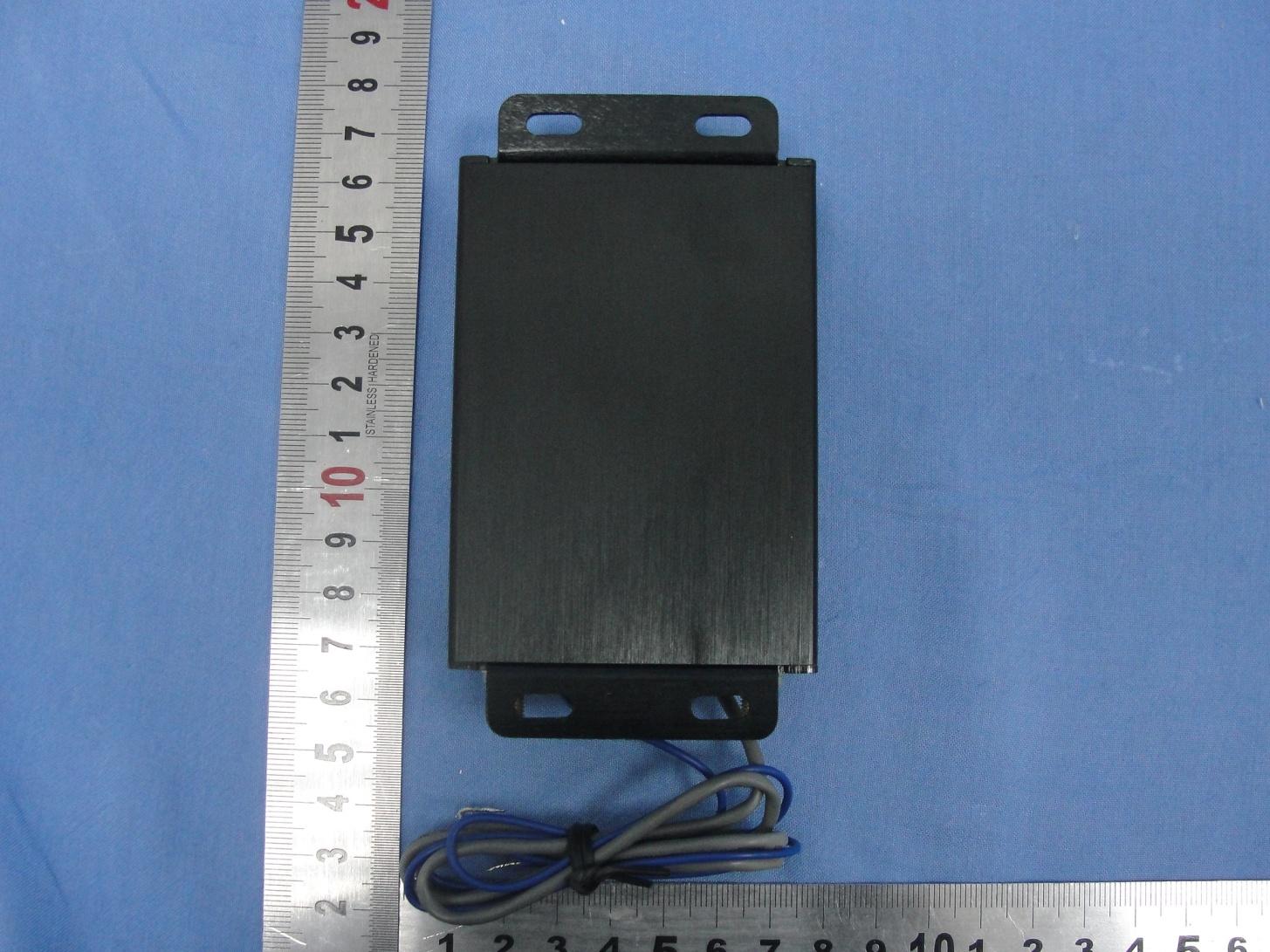

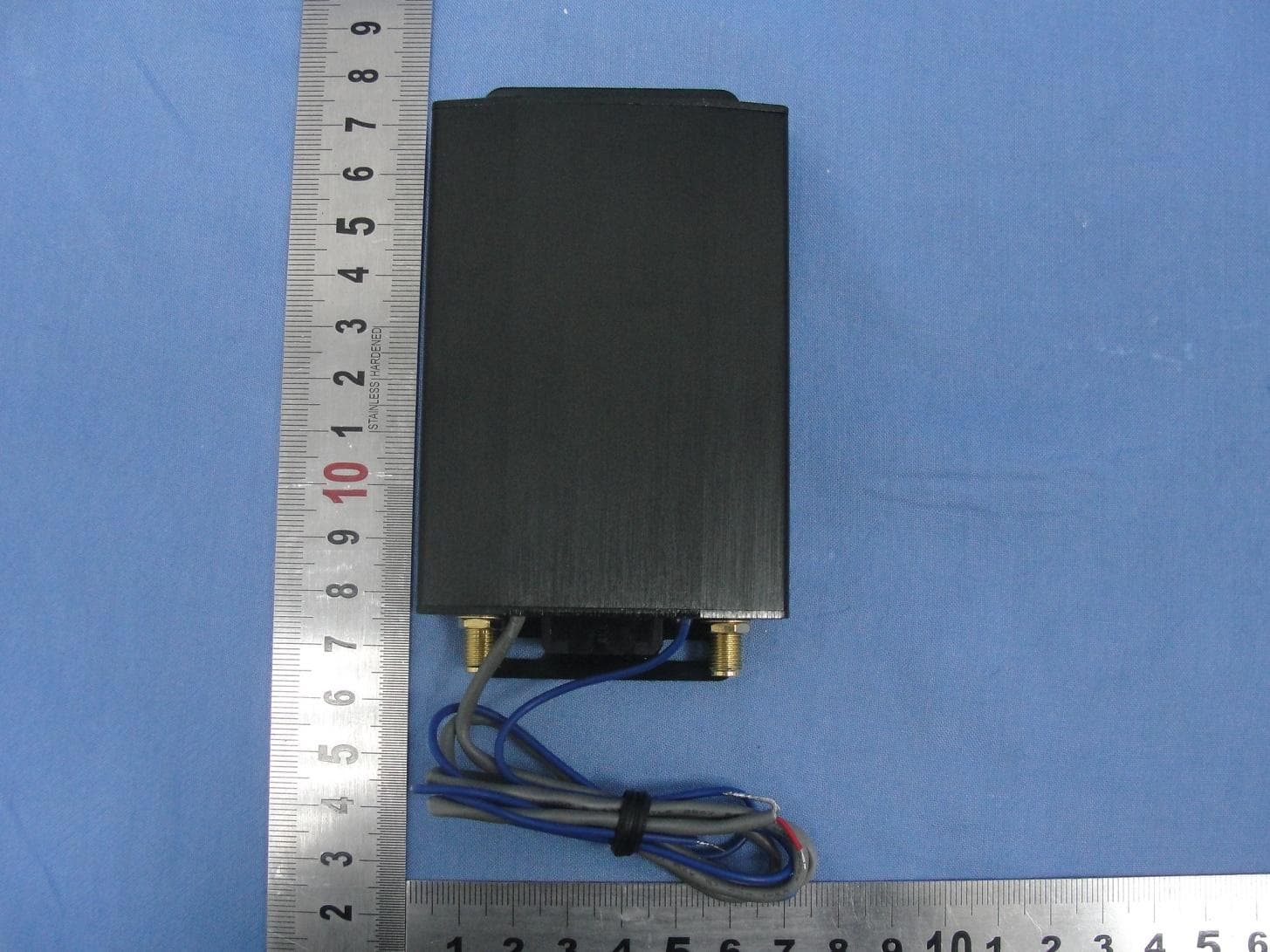

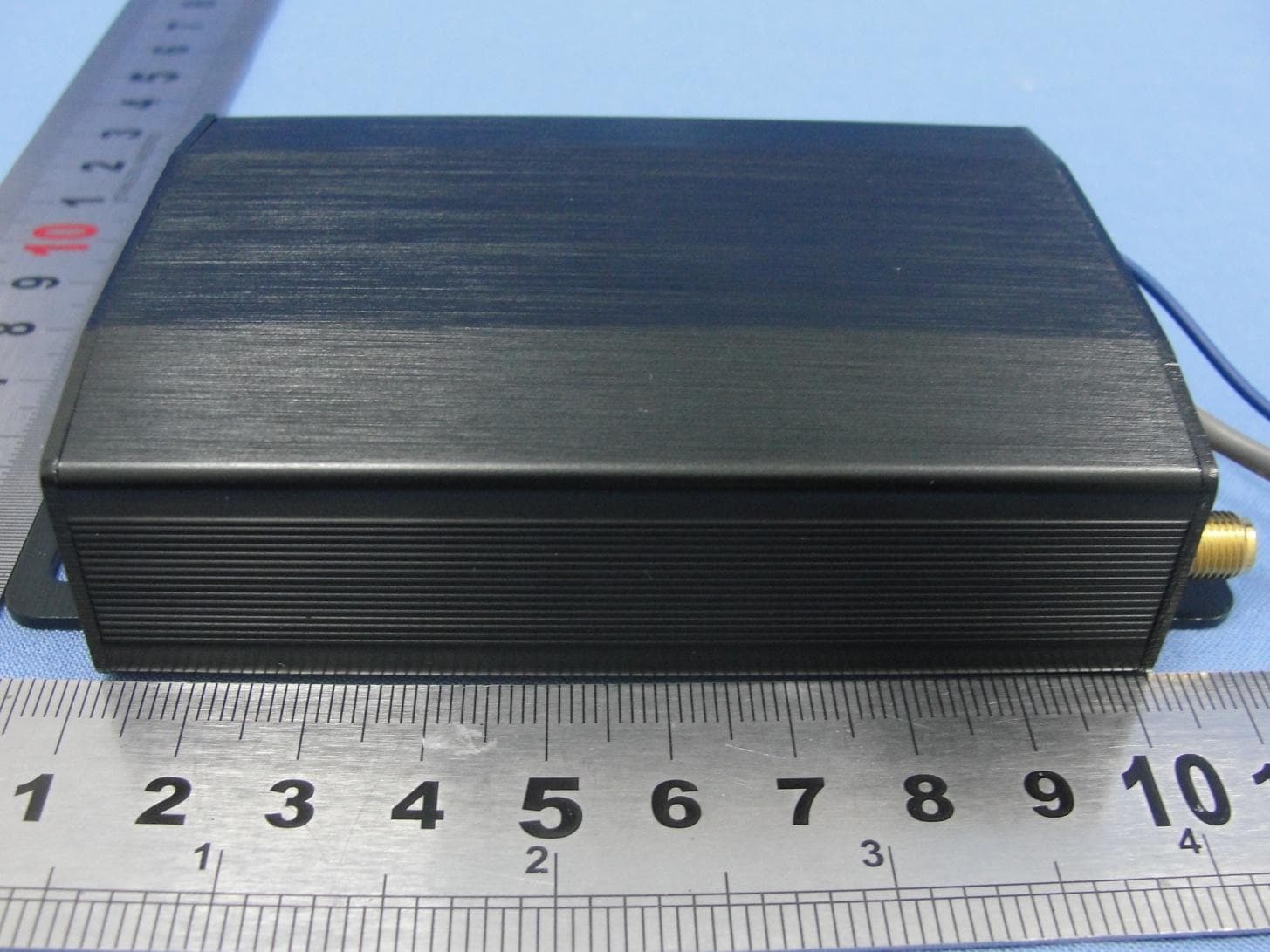

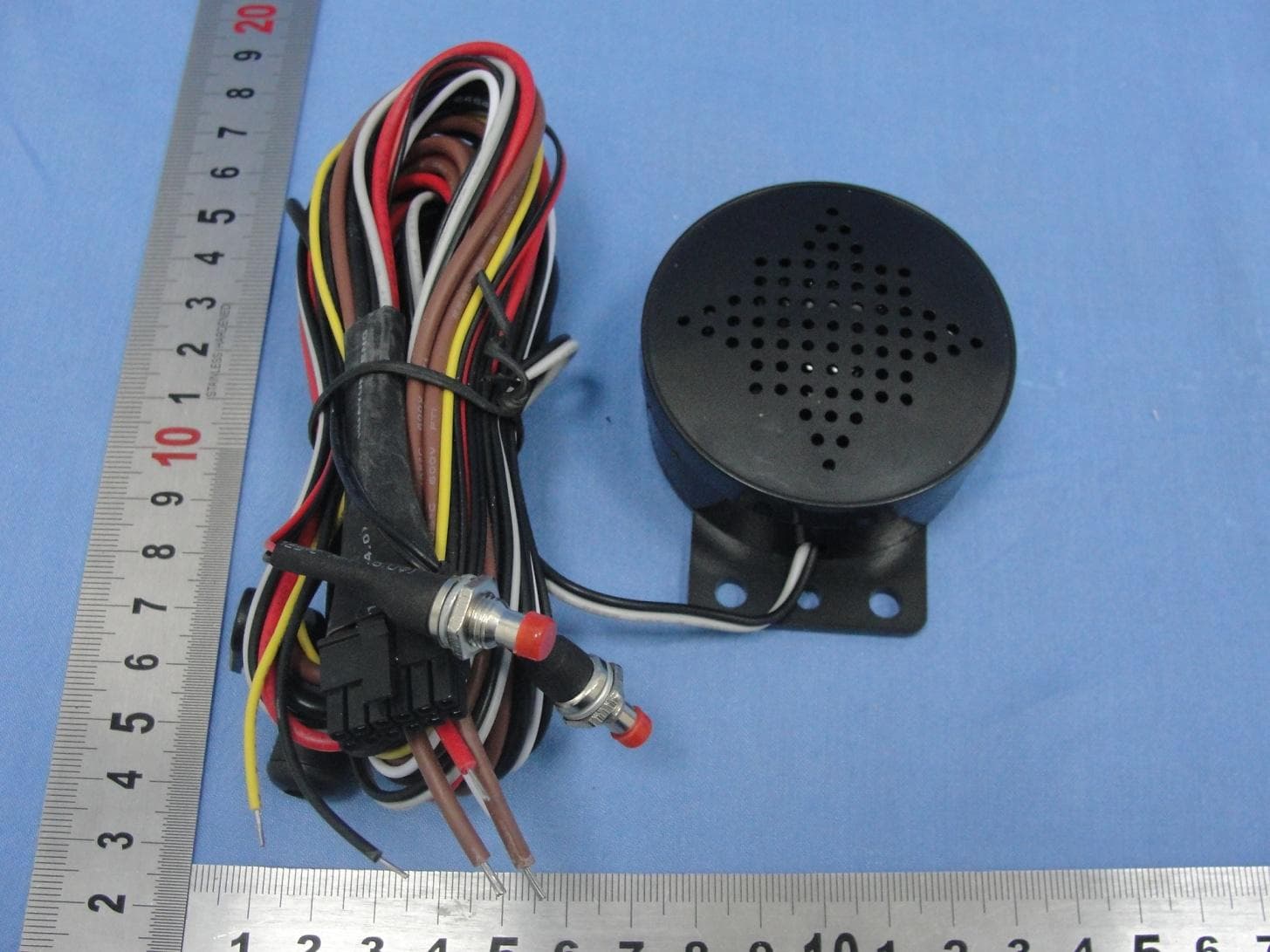

Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I List of Accessory: Specification of Accessory Battery Brand Name JHY Model Name 583442 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I 720510 Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I

Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I 3. Internal Photograph of EUT Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I 720510 Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I WWAN Antenna Photographs of EUT Report No.: EP061728 Brand Name: TracUSA / Model Name: TL108 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 I GPS Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 8 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 RF Exposure Evaluation Report Report No. : FA061728 RF Exposure Evaluation Report APPLICANT : OE Power Systems Inc. EQUIPMENT : GPS Tracker BRAND NAME : TracUSA MODEL NAME : TL108 FCC ID : YEA TL108 FILING TYPE : Certification STANDARD : OET Bulletin 65 Supplement C (Edition 01-01) The product was integrated the WWAN Module (Brand Name: SIMCOM / Model Name: SIM900, FCC ID: UDV-0912142009007) during the test. We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with FCC OET Bulletin 65 Supplement C (Edition 01-01), and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 8 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 RF Exposure Evaluation Report Report No. : FA061728 Table of Contents REVISION HISTORY .......................................................................................................................................... 3 1. RF EXPOSURE INTRODUCTION ............................................................................................................... 4 2. ADMINISTRATION DATA ........................................................................................................................... 6 2.1 Testing Laboratory ............................................................................................................................. 6 2.2 Applicant ............................................................................................................................................ 6 2.3 Manufacturer ...................................................................................................................................... 6 3. GENERAL INFORMATION ......................................................................................................................... 7 3.1 Description of Device Under Test (DUT) ........................................................................................... 7 4. RF EXPOSURE EVALUATION ................................................................................................................... 8 4.1 Radio Frequency Radiation Exposure Evaluation ............................................................................. 8 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 8 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 RF Exposure Evaluation Report Report No. : FA061728 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA061728 Rev. 01 Initial issue of report Feb. 24, 2011 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 8 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 RF Exposure Evaluation Report Report No. : FA061728 1. RF Exposure Introduction Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows:  Fixed installation: Fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters.  Mobile Devices: A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitters’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091.  Portable Devices: A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 8 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 RF Exposure Evaluation Report Report No. : FA061728 The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows:  Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks.  General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may b…

Text truncated - open the document above for the full version.

Page 1 of 61 47 CFR PART 22 SUBPART H & 24 SUBPART E TEST REPORT of GSM/GPRS 850/900/1800/1900 Module Model Name: M10 Brand Name: QUECTEL Report No.: SH09070021AR02 FCC ID: XMR-16182009002 prepared for Quectel Wireless Solutions Co.,Ltd Room 801, Building E,No 1618 Yishan Road, Shanghai,China,201103 prepared by Shenzhen Electronic Product Quality Testing Center Morlab Laboratory 3/F, Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055 P. R. China Tel: +86 755 86130398 Fax: +86 755 86130218 NOTE: This test report can be duplicated completely for the legal use with the approval of the applicant; it shall not be reproduced except in full, without the written approval of Shenzhen Electronic Product Quality Testing Center Morlab Laboratory. Any objections should be raised to us within thirty workdays since the date of issue. Report No.: SH09070021AR02 Page 2 of 61 TABLE OF CONTENTS 1. TEST CERTIFICATION ........................................................................................................... 4 2.GENERAL INFORMATION .................................................................................................... 5 2.1EUT Description ........................................................................................................................... 5 2.2Test Standards and Results ........................................................................................................... 7 2.3Facilities and Accreditations ......................................................................................................... 8 2.3.1Facilities .................................................................................................................................... 8 2.3.2Test Environment Conditions .................................................................................................... 8 3.47 CFR PART 2, PART 22H REQUIREMENTS .................................................................... 9 3.1Frequencies ................................................................................................................................... 9 3.1.1Requirement .............................................................................................................................. 9 3.1.2Test Description ........................................................................................................................ 9 3.1.3Test Result ............................................................................................................................... 10 3.2Conducted RF Output Power ...................................................................................................... 15 3.2.1Requirement ............................................................................................................................ 15 3.2.2Test Description ...................................................................................................................... 15 3.2.3Test Result ............................................................................................................................... 15 3.320dB Occupied Bandwidth ......................................................................................................... 22 3.3.1Definition ................................................................................................................................ 22 3.3.2Test Description ...................................................................................................................... 22 3.3.3Test Verdict .............................................................................................................................. 22 3.4Frequency Stability ..................................................................................................................... 29 3.4.1Requirement ............................................................................................................................ 29 3.4.2Test Description ...................................................................................................................... 29 3.4.3Test Verdict .............................................................................................................................. 29 3.5Conducted Out of Band Emissions ............................................................................................. 31 3.5.1Requirement ............................................................................................................................ 31 3.5.2Test Description ...................................................................................................................... 31 3.5.3Test Result ............................................................................................................................... 31 3.6Band Edge ................................................................................................................................... 44 3.6.1Requirement ............................................................................................................................ 44 3.6.2Test Description ...................................................................................................................... 44 Report No.: SH09070021AR02 Page 3 of 61 3.6.3Test Result ............................................................................................................................... 44 3.7Transmitter Radiated Power (EIRP/ERP)................................................................................... 49 3.7.1Requirement ............................................................................................................................ 49 3.7.2Test Description ...................................................................................................................... 49 3.7…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 FCC RF Test Report Report No. : FG061728 Partial FCC RF Test Report APPLICANT : OE Power Systems Inc. EQUIPMENT : GPS Tracker BRAND NAME : TracUSA MODEL NAME : TL108 FCC ID : YEA TL108 STANDARD : FCC 47 CFR Part 2, 22(H), 24(E) CLASSIFICATION : PCS Licensed Transmitter (PCB) Tx/Rx FREQUENCY RANGE : GSM850 : 824.2 ~ 848.8 MHz / 869.2 ~ 893.8 MHz GSM1900 : 1850.2 ~ 1909.8 MHz / 1930.2 ~ 1989.8 MHz MAX. ERP/EIRP POWER : GSM850 (GPRS 8) : 0.29 W GSM1900 (GPRS 8) : 0.15 W This is a partial report which is only valid combined with the WWAN Module (Brand name: SIMCOM / Model name: SIM900, FCC ID: UDV-0912142009007) Report. The product was received on Jun. 17, 2010 and completely tested on Feb. 18, 2011. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEA TL108 FCC RF Test Report Report No. : FG061728 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site........................................................................................................................................ 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST .........................…

Text truncated - open the document above for the full version.
