YEATL201TracUSA Model TL201 Personal GPS Tracker

1 TracUSA™ MODEL TL201 PERSONAL GPS TRACKING USER MANUAL Contents Tables 1. Introduction------------------------------------------------------------------------------------------------------2 2. What’s new? ----------------------------------------------------------------------------------------------------3 3. Main Features---------------------------------------------------------------------------------------------------3 4. Applications-----------------------------------------------------------------------------------------------------3 5. Specification----------------------------------------------------------------------------------------------------3 6. Start up-----------------------------------------------------------------------------------------------------------4 7. Get the position by calling the tracker-----------------------------------------------------------------5 8. Set the authorized number---------------------------------------------------------------------------------5 9. Delete authorized number----------------------------------------------------------------------------------5 10. Get position by sending SMS command-------------------------------------------------------------6 11. Continuous tracking function----------------------------------------------------------------------------6 12. SOS function---------------------------------------------------------------------------------------------------6 13. Listen in function---------------------------------------------------------------------------------------------6 14. Speeding alert-------------------------------------------------------------------------------------------------6 15. GEO-FENCE----------------------------------------------------------------------------------------------------7 16. Low battery alert----------------------------------------------------------------------------------------------7 17. Set the local time---------------------------------------------------------------------------------------------7 18. Modify the password----------------------------------------------------------------------------------------8 19. GPRS setting---------------------------------------------------------------------------------------------------8 20. Displaying location on Google map--------------------------------------------------------------------8 21. Displaying location on your cell phone---------------------------------------------------------------9 22. Tracking in the PC software------------------------------------------------------------------------------9 23. Caution & User Instructions IMPORTANT !!-----------------------------------------------------10 2 1. Introduction Working Based on existing CDMA/GSM /GPRS(cellular phone system) network and GPS satellites, this tracker is a small and powerful tracking device that is developed for personal, vehicle and pet protection. In addition to transmitting the longitude and latitude coordinate to your cell phone by SMS, The TL201 will also transmit the longitude and latitude coordinate to the designated server by GPRS. This allows users to track the TL201 using the Google map function of your cell phone and the TracUSA PC tracking software website. The TL201, when any of the three SOS buttons are depressed for 3-5 seconds, will 3 2. What’s new?  Mini size: Small enough to be attached to the key chain.  Excellent design: Especially design for personal use, especially tracking children.  Phone call function: It can make a phone call by pressing the button.  Get position by 3 ways: SMS location report using cell phone, server based tracking software (provided by TracUSA) and SMS link to Google Maps via smart phone. 3. Main Features  Locating and tracking via SMS(text messaging) or GPRS(internet connection)  Support voice call in SOS mode The TL201 is not a phone. When in SOS mode, it will call a SOS phone number allowing communication, but the TL201 does not have a key pad giving it the ability to call any phone number it wishes. This unit is NOT a cell phone.  Listen in function  SOS alert  Geo-fence alarm  Speeding alert  Low battery alert 4. Applications  Protect the child/elderly/disabled/pet etc.  Personnel management  Track the vehicle/ equipment etc.  Provide peace-of-mind for businessmen 5. Specification Content Specs. Dimension 70.7mm x 42.9mm x 20.1mm Weight 40g Network CDMA/GSM/GPRS 4 Band 700/800Mhz 850/900/1800/1900Mhz GPS chip SIRF3 chip GPS sensitivity -159dBm GPS accuracy 5-20m Cold start 42 sec. Warm starts 38 sec. Hot start 1 sec. Battery Chargeable 3.7V 870mAh battery Operation temperature -20°C to +55°C Humidity 5%--95% non-condensing 6. Start up: Fully charge the battery to capacity in 8 -12 hours (overnight) for the first use using the supplied USB/microUSB cable and 120VAC adapter. The USB end of the charging cable should never be connected to a computer while connected to the model TL201. This cable is strictly a charging cable for theTL201’s internal battery. Connecting the USB end of the charging cable to a computer while connected to the TL201 will void the warranty. . After the first use, the battery can be charged fully in 2-3 hours. In order to protect the device, use the original charger and battery, NEVER use an un-authorized charger. This WILL damage the unit and VOID the warranty. Contact TracUSA if original charger is lost or malfunctions. A fully charged battery will last 24-28 hours. When charging, the red light will come on, once charged...the red light will go off. Insert the SIM card into the tracker like this. 5 Press the on/off button for 2-5 seconds until the LED lights operate, then unit will be turned on. Three LEDs will be bright at the same time during the tracker initialization. In 10 to 30seconds, the unit will begin to work and indicators will blink as the following: Three LED Bright at the same time The device is starting Orange LED(GSM) Blink like Work in GSM mode Orange LED(GSM) Blink like Connecting G…

Text truncated - open the document above for the full version.

Rev. 1/1/03 OE Power Systems Inc. 5100 Poplar Ave Suite 2700 Memphis, TN 38137 USA Tel: 001-901-322-6167 ; Fax: 001-901-299-7735 Date: February 9, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YEATL201 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: TL201_Schem.pdf) Block Diagram (file: TL201 _BlkDia.pdf) Parts List (file: TL201 _PartsLst.pdf) Operation Description (file: TL201 _OpDes.pdf) Tune up Procedure (file: TL201 _TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _____________________ William Oxley

OE Power Systems Inc. 5100 Poplar Ave Suite 2700 Memphis, TN 38137 USA Tel: 001-901-322-6167 ; Fax: 001-901-299-7735 Date: February 9, 2011 Power of Attorney To whom it may concern, Please be notified that I, William Oxley, have designated Roy Wu in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: YEATL201 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: William Oxley Company: OE Power Systems Inc. TEL: 001-901-322-6167 Fax: 001-901-299-7735 E-mail: [email protected]

1/1 OE Power Systems Inc. 5100 Poplar Ave Suite 2700 Memphis, TN 38137 USA Tel: 001-901-322-6167 ; Fax: 001-901-299-7735 Date: February 9, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : YEATL201 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: TL201 _ExtPho.pdf)  Internal Photos (file: TL201 _IntPho.pdf)  Test Setup Photos (file: TL201 _Tsup.pdf)  User Manual (file: TL201 _UserMan.pdf) The application contains technical information, which OE Power Systems Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, ____________________ William Oxley

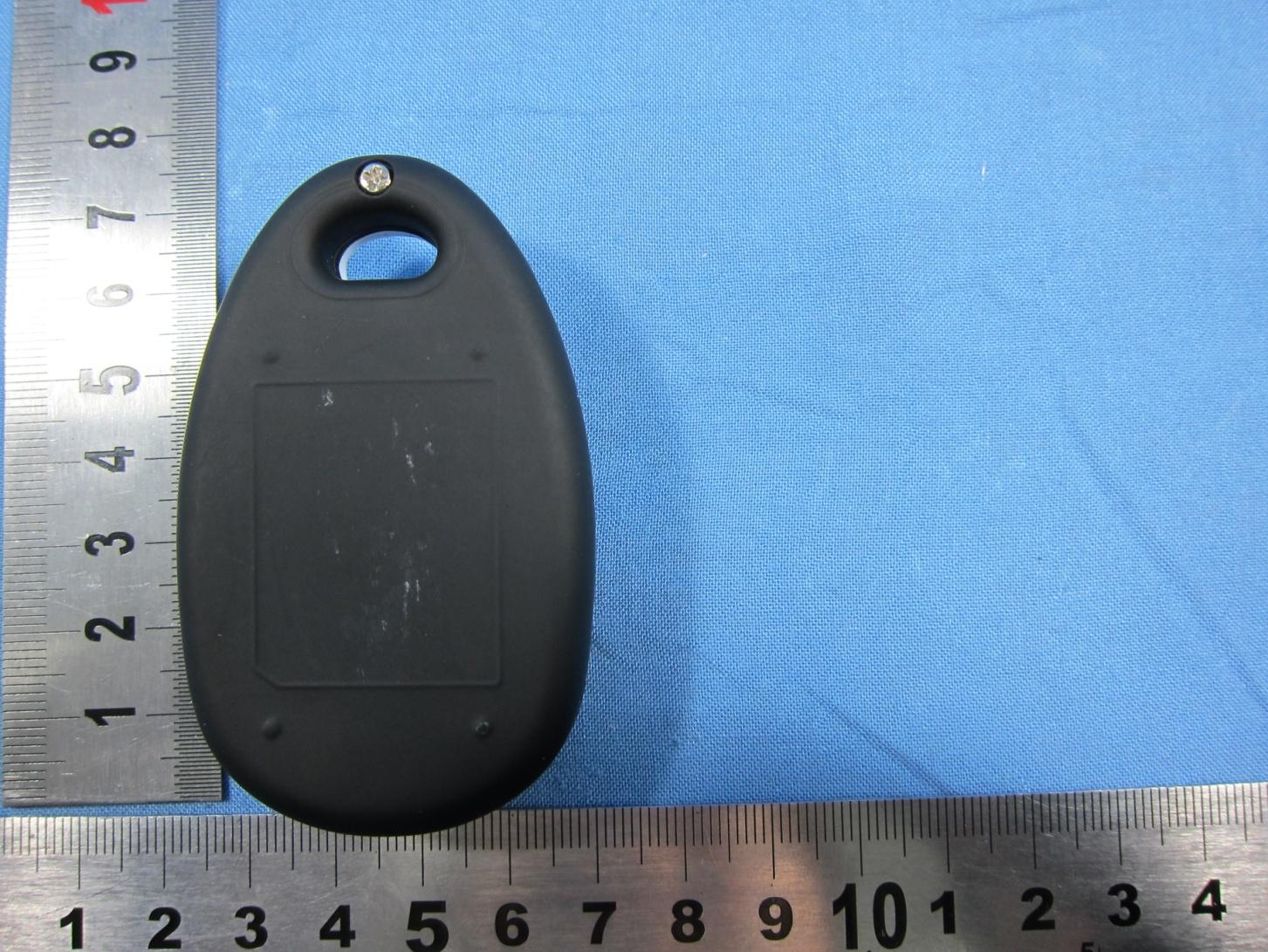

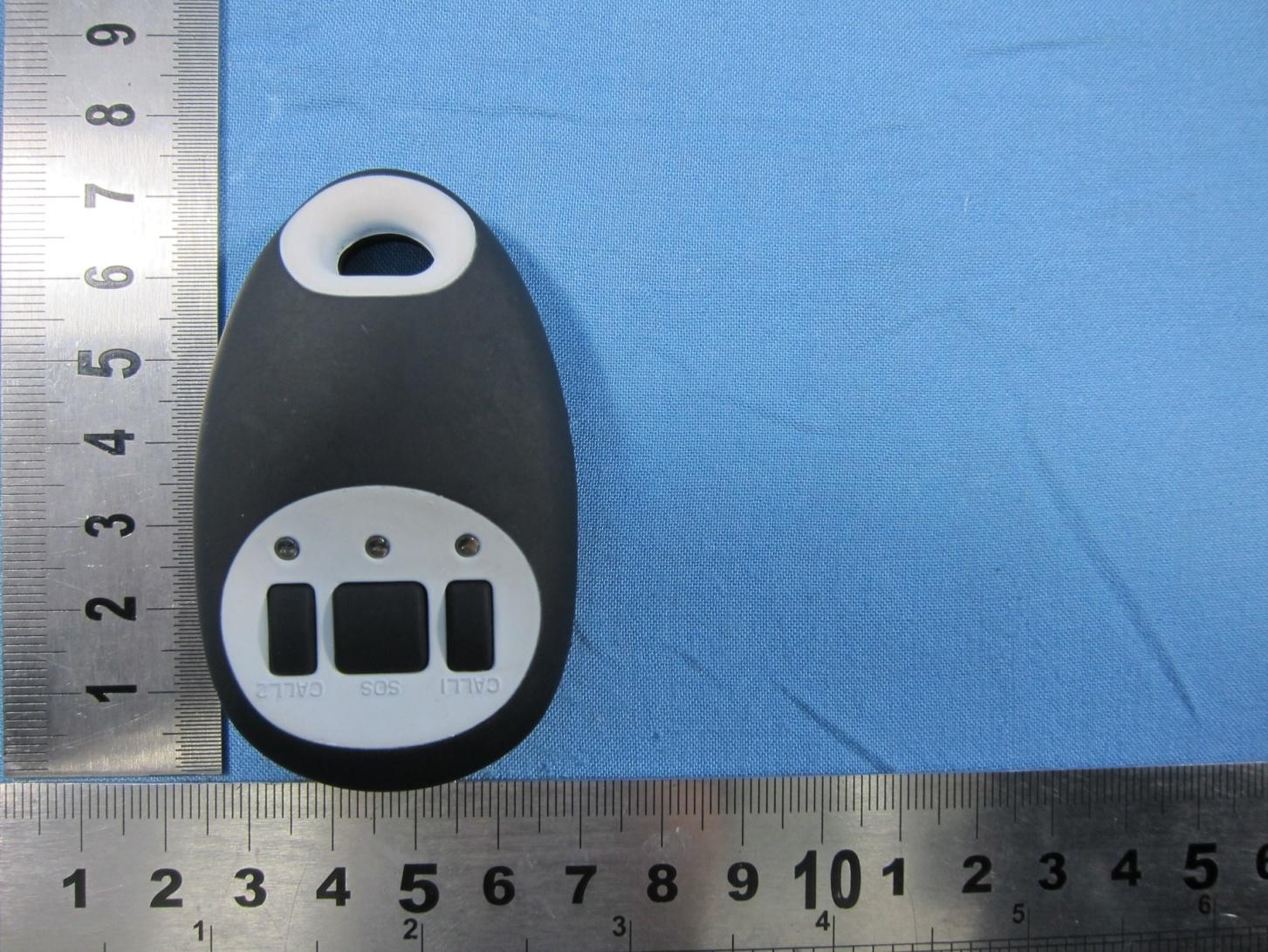

Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 1. External Photograph of EUT Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 720510 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 List of Accessory: Specification of Accessory AC Adapter Brand Name TRAVEK Model Name MIC-3 Battery Brand Name ATX Model Name 533443 USB Cable Brand Name MIC Model Name Mini USB 8P Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201

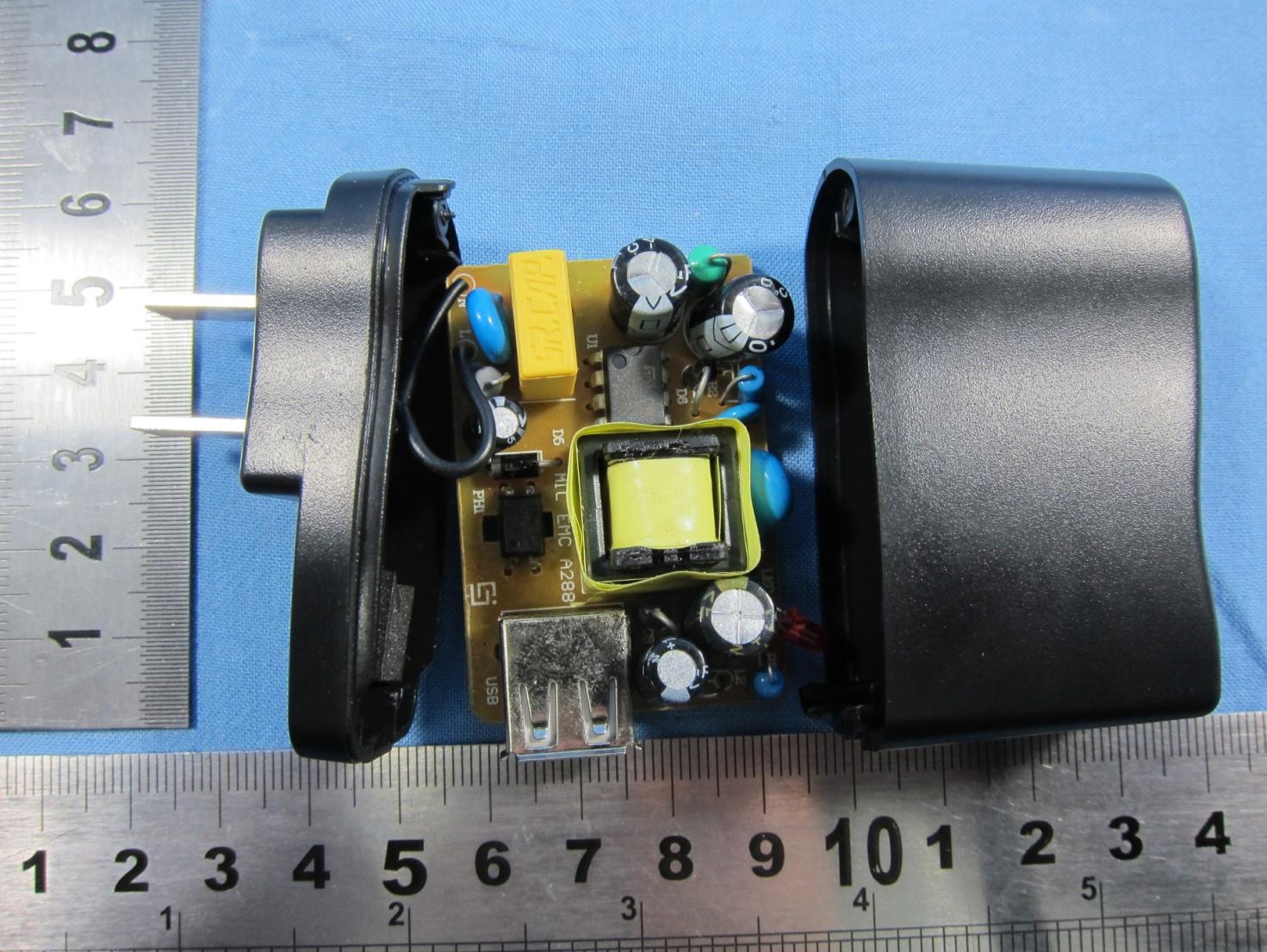

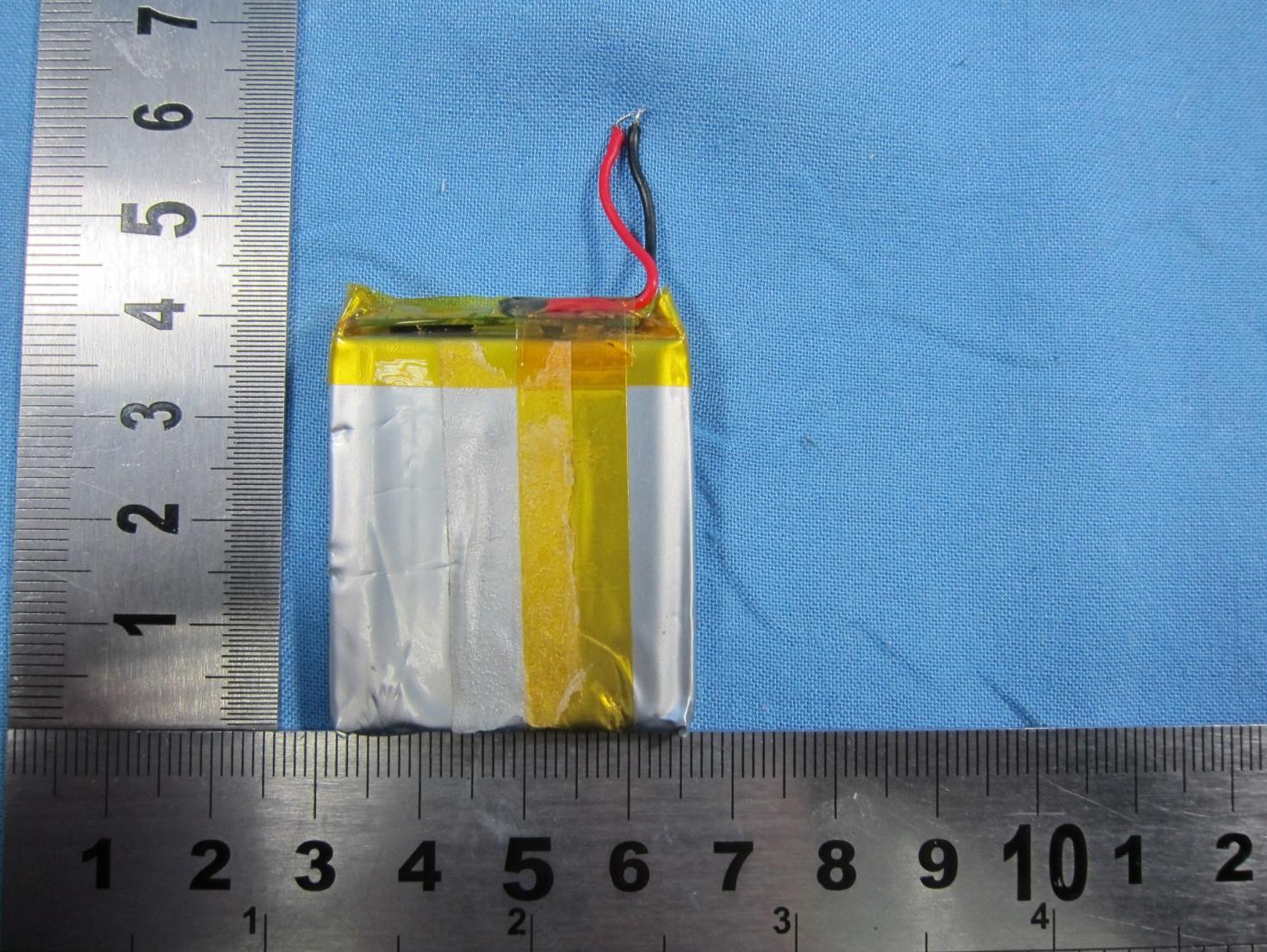

Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 3. Internal Photograph of EUT Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 720510 Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 WWAN Antenna Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 WWAN Antenna Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 GPS Antenna Photographs of EUT Report No.: EP061725 Brand Name: TracUSA / Model Name: TL201 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 26 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 01, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 GPS Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 FCC RF Test Report Report No. : FG061725 Partial FCC RF Test Report APPLICANT : OE Power Systems Inc. EQUIPMENT : TracUSA Model TL201 Personal GPS Tracker BRAND NAME : TracUSA MODEL NAME : TL201 FCC ID : YEATL201 STANDARD : FCC 47 CFR Part 2, 22(H), 24(E) CLASSIFICATION : PCS Licensed Transmitter (PCB) Tx/Rx FREQUENCY RANGE : GSM850 : 824.2 ~ 848.8 MHz / 869.2 ~ 893.8 MHz GSM1900 : 1850.2 ~ 1909.8 MHz / 1930.2 ~ 1989.8 MHz MAX. ERP/EIRP POWER : GSM850 (GPRS 8) : 0.42 W GSM1900 (GPRS 8) : 1.08 W This is a partial report which is only valid combined with the WWAN Module (Brand name: SIMCOM / Model name: SIM900, FCC ID: UDV-0912142009007) Report. The product was received on Jun. 17, 2010 and completely tested on Feb. 18, 2011. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 FCC RF Test Report Report No. : FG061725 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site........................................................................................................................................ 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Test Mode.......................................................................................................................................... 7 2.2 Connection Diagram of Test System ................................................................................................ 7 3 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT .......................................................... 8 3.1 Effective Radiated Power and Effective Isotropic Radiated Power Measurement ........................... 8 3.2 Description of Field Strength of Spurious Radiated Measurement ................................................. 11 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 17 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 18 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 FCC RF Test Report Report No. : FG061725 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FG061725 Rev. 01 Initial issue of report Feb. 24, 2011 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 FCC RF Test Report Report No. : FG061725 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 §22.913(a)(2) RSS-132(4.4) SRSP-503(5.1.3) Effective Radiated Power < 7 Watts PASS - 3.1 §24.232(c) RSS-133 (6.4) SRSP-510(5.1.2) Equivalent Isotropic Radiated Power < 2 Watts PASS - 3.2 §2.1053 §22.917(a) §24.238(a) RSS-132 (4.5.1) RSS-133 (6.5.1) Field Strength of Spurious Radiation < 43+10log 10 (P[Watts]) PASS Under limit 15.88 dB at 1674 MHz SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 18 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YEATL201 FCC RF Test Report Report No. : FG061725 1 General Description 1.1 Applicant OE Power Systems Inc. 5100 Poplar Ave Suite 2700 Memphis, TN 38137 USA 1.2 Manufacturer Toplovo Industrial Co., Ltd. No. 25, Caitain Road, Shatain Industrial Zone, Kengzi Town, Longgang District, Shenzhen, P.R.C. 1.3 Feature of Equipment Under Test Product Feature & Specification Equipment TracUSA Model TL201 Personal GPS Tracker Brand Name TracUSA Model Name TL201 FCC ID YEATL201 Tx Frequency GSM850 : 824 MHz ~ 849 MHz GSM1900 : 1850 MHz ~ 1910 MHz Rx Frequency GSM850 : 869 MHz ~ 894 MHz GSM1900 : 1930 MHz ~ 1990 MHz Maximum ERP/EIRP GSM850 (GPRS 8…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Date: 2011/1/16 System Check_Body_835MHz_110116 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_110116 Medium parameters used: f = 835 MHz; σ = 0.976 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.72 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.6 V/m; Power Drift = 0.00226 dB Peak SAR (extrapolated) = 3.8 W/kg SAR(1 g) = 2.52 mW/g; SAR(10 g) = 1.65 mW/g Maximum value of SAR (measured) = 2.73 mW/g 0 dB = 2.73mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Date: 2011/1/16 System Check_Body_1900MHz_110116 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_110116 Medium parameters used: f = 1900 MHz; σ = 1.53 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.26, 7.26, 7.26); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.9 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87 V/m; Power Drift = 0.00619 dB Peak SAR (extrapolated) = 20.7 W/kg SAR(1 g) = 10.6 mW/g; SAR(10 g) = 5.37 mW/g Maximum value of SAR (measured) = 11.8 mW/g 0 dB = 11.8mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Date: 2011/1/16 #03 GSM850_GPRS10_Bottom_1.5cm_Ch189 DUT: 061301 Communication System: GPRS 10; Frequency: 836.4 MHz;Duty Cycle: 1:4 Medium: MSL_835_110116 Medium parameters used: f = 836.4 MHz; σ = 0.977 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (41x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.01 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.4 V/m; Power Drift = 0.00835 dB Peak SAR (extrapolated) = 1.24 W/kg SAR(1 g) = 0.929 mW/g; SAR(10 g) = 0.665 mW/g Maximum value of SAR (measured) = 0.978 mW/g 0 dB = 0.978mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Date: 2011/1/16 #03 GSM850_GPRS10_Bottom_1.5cm_Ch189_2D DUT: 061301 Communication System: GPRS 10; Frequency: 836.4 MHz;Duty Cycle: 1:4 Medium: MSL_835_110116 Medium parameters used: f = 836.4 MHz; σ = 0.977 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (41x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.01 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.4 V/m; Power Drift = 0.00835 dB Peak SAR (extrapolated) = 1.24 W/kg SAR(1 g) = 0.929 mW/g; SAR(10 g) = 0.665 mW/g Maximum value of SAR (measured) = 0.978 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Date: 2011/1/16 #02 GSM850_GPRS10_Face_1.5cm_Ch128 DUT: 061301 Communication System: GPRS 10; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: MSL_835_110116 Medium parameters used: f = 824.2 MHz; σ = 0.966 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (41x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.791 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.6 V/m; Power Drift = 0.0091 dB Peak SAR (extrapolated) = 1.05 W/kg SAR(1 g) = 0.709 mW/g; SAR(10 g) = 0.492 mW/g . Maximum value of SAR (measured) = 0.742 mW/g 0 dB = 0.742mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Date: 2011/1/16 #05 GSM1900_GPRS10_Bottom_1.5cm_Ch661 DUT: 061301 Communication System: GPRS 10; Frequency: 1880 MHz;Duty Cycle: 1:4 Medium: MSL_1900_110116 Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.26, 7.26, 7.26); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch661/Area Scan (41x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.821 mW/g Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.2 V/m; Power Drift = 0.0053 dB Peak SAR (extrapolated) = 1.18 W/kg SAR(1 g) = 0.754 mW/g; SAR(10 g) = 0.465 mW/g Maximum value of SAR (measured) = 0.807 mW/g 0 dB = 0.807mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Date: 2011/1/16 #05 GSM1900_GPRS10_Bottom_1.5cm_Ch661_2D DUT: 061301 Communication System: GPRS 10; Frequency: 1880 MHz;Duty Cycle: 1:4 Medium: MSL_1900_110116 Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.26, 7.26, 7.26); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW : DAS…

Text truncated - open the document above for the full version.
