YEG0001IMImmobilizer

User Manual for Delphi Gen2-09 immobilizer The electronic immobilizer protects the car against theft using an electronic engine locking device, thus the engine cannot be started. The components of immobilizer system are as follows: The main component parts - Immobilizer control unit - Antenna - Transponder Key The related component parts - Engine control unit - Diagnostic device Brief description of the main function o Regularity ID reference function o The radio wave communication function with Transponder. o The communication function with engine control unit o The communication function with diagnostic device o Indicator lamp signal output function In each communication, the control unit is collated key ID and send to collation result to engine control unit. In case of collation result is regularly, the engine control unit permits engine start and in case of collation result is not regularly, engine control unit prohibits engine start. Anti-theft strategy As the transponder needs specified field strength, the antenna coil will be fixed axially with the key lock. The Immobilizer ECU should be mounted on proper place in vehicle. The coil cable connects with immobilizer ECU through a connector. The Engine ECU communicates with immobilizer by CAN-line. When the key is inserted into the ignition lock and the ignition is turned on, the communication between transponder and immobilizer, Engine ECU and immobilizer are set up. The immobilizer will authenticate them. If the authentications are successful, the engine start is permitted, otherwise go into fuel cut mode. Vehicle Environment The coil shall be mounted on the steering lock assembly consisting of lock and bracket. This assembly influences the transponder read / write performance of the Immobilizer system. This system is installed a position that satisfy regulation requirement. Coil and Immobilizer ECU installation position is showed below: Immobilizer Connector Pin list: B2 B6B5A1A3 B3 B7B8A2 B1 B4 Front View Side View G Sensor Accelerometer Air bag ECU PinTypeI/OPin Name B1NANA B2SupplyGNDGround connection of the module B3SupplyBATT+Power Source, Input B4SupplyBATT+Power Source, Input B5SupplyGNDGround connection of the module B6I/OCAN LCAN L B7NANA B8I/OCAN H CAN H A1OutputCoil+Analogue A2NANA A3OutputCoil-Analogue Interfaces requirements 1) Operating Voltage Range The normal operating voltage range: 6 .0V to 16.0V 2) Operating Temperature Range Operational Temperature: -40 o C to +85 o C The Storage temperature: - 40 °C to +85 °C 3) Current Consumption Imax = 0.3 mA (temperature: 25 +/- 3 °C) Immobilizer ECU Registration 1) Supplier plant At supplier plant, the necessary tasks are as follows. - Write secret key into Immobilizer ECU. - Write key ID into transponder 2) Manufacturer plant At manufacturer plant, the necessary tasks are as follows - Write secret key into transponder and key ID into immobilizer ECU - Write secret key into Engine ECU 3) Immobilizer ECU replacement When Immobilizer ECU replacement, the necessary task are as follows. - Write secret key into transponder and key ID into immobilizer ECU - Write secret key into Engine ECU 4) Engine ECU replacement When Engine ECU replacement, the necessary task are as follows. - Write secret key into Engine ECU Table of Diagnostic Trouble Codes No . Priorit y/self_ healin g level DescriptionDTC value [Hex] 11/1 Immobilizer fault This error code appears if a RAM-/ROM-Error was detected or the EEPROM is defect. 0EF6EC 22/3 Missing transponder modulation No TxP code was received. (i.e. IGN On with 0FF6E2 No/mechanical key or No/broken/bad TxP in key) Reading of transponder information failed within the timeout after ignition-on. Transponder has a fault. Hardware fault in reading circuit. 32/3 Invalid Secret Key This error appears if the lowest 6 bytes of Secret Key is set to all 0’s or 1’s 10F6E2 42/3 Bad ECM Authentication This Error appears if the ECM authentication was N.G. 11F6E2 52/3 No ECM Challenge / Acknowledge This error code appears if CAN-LINE is open or ECM damaged. This error code reflects a problem in the communications CAN-Line. 12F6E2 62/3 Transponder Authentication Failed. ID Not in EEPROM or Wrong Secret Key. 13F6E2 72/3 Transponder ID table empty Not TxP Code in EEPROM 14F6E2 82/3 Transponder Data Format Error TxP-Data format error (Format of the data received from TxP do not match with predefined format) 15F6E2 92/3 CAN Bus Performance Defines the status information about failure conditions of the transceiver (Bus-Off) provided by the communication controller. 16F6F3 102/3 lost communication with SSAM Defines the absence of specific bus messages as expected from SSAM at predefined periodic rates, or as required from SSAM for acknowledgement purposes. 17F6F3 112/3 Watchdog reset0EF6FF FCC COMPLIANCE STATEMENT The device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications made to this device not expressly approved by Delphi.

Delphi Electronics (Suzhou) Co, Ltd. 123, Chang Yang Street, Suzhou Industrial Park, Jiangsu province, China Authorization Letter BABT Forsyth House Churchfield Road Walton-on-Thames Surrey KT12 2TD Dear Sir or Madam: We, the undersigned, hereby authorize Ms. Chen Jie from TUV Product Service Limited, Beijing Branch. 9th Landmark Tower 2, 8 North Dongsanhuan Road, 100004 Beijing, act on our behalf, as our agent, in all matters relating to applications for Product Name: Immobilizer, Product Model: Gen2-09 authorization, including the signing of all documents relating to these matters. This authorization shall expire 3 months from original date. If you have any question regarding the authorization, please don’t hesitate to contact with me. Sincerely Signature: Name: Title: Date:

Delphi Electronics (Suzhou) Co, Ltd. 123, Chang Yang Street, Suzhou Industrial Park, Jiangsu province, China Confidentiality Letter BABT Forsyth House Churchfield Road Walton-on-Thames Surrey KT12 2TD Dear Sir or Madam: The Applicant hereby requests confidential treatment of information accompanying of following product: Product Name:Immobilizer Product Model:Gen2-09 The following information should be held confidential: All Schematics/block diagrams All Parts list for the above schematic diagram Tune-Up Procedure Operational description and technical overview of product The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Signature: Name: Title: Date:

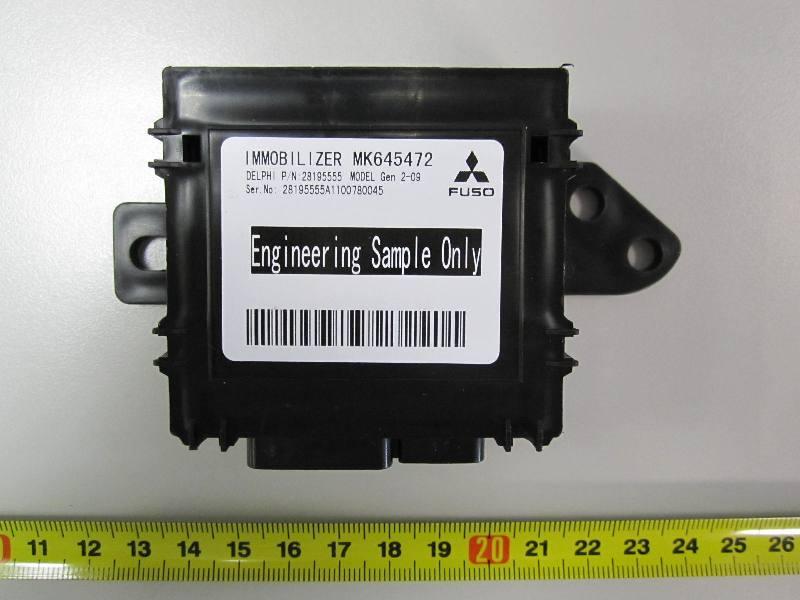

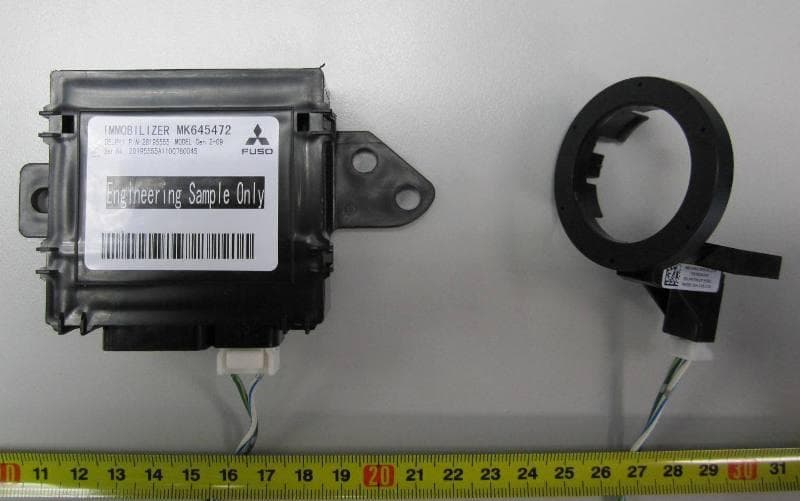

FCC ID: YEG0001IM COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE PHOTOGRAPHS OF EQUIPMENT UNDER TEST (EUT) External photos FCC ID: YEG0001IM COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE FCC ID: YEG0001IM COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE

FCC ID: YEG0001IM COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE PHOTOGRAPHS OF EQUIPMENT UNDER TEST (EUT) Internal photos FCC ID: YEG0001IM COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE

REPORT ON FCC CFR 47 Parts 15C:2009, Part 2:2009, Testing of the Delphi Electronics (Suzhou) Co, Ltd. Immobilizer Gen2-09 COMMERCIAL-IN-CONFIDENCE FCC ID: YEG0001IM Doc Number 57010031 Report 02 Issue 01May 2010 Competence. Certainty. Quality COMMERCIAL-IN-CONFIDENCE Jiangsu TÜV Product Service Ltd. Beijing Branch 9 th , Landmark Tower 2, No.8 North Dongshanhuan Road, Beijing 100004,P.R.China Tel: +86 10 6590 6186. Website:www.tuv-sud.cn Doc Number 57010031 Report 02 Issue 01 Page 1 of 17 COMMERCIAL-IN-CONFIDENCE REPORT ONFCC CFR 47 Parts 15C:2009, Part 2:2009, Testing of the Delphi Electronics (Suzhou) Co, Ltd. Immobilizer Gen2-09 Doc Number 57010031 Report 02 Issue 01 FCC ID: YEG0001IM PREPARED FOR Delphi Electronics (Suzhou) Co, Ltd. 123, Chang Yang Street, Suzhou Industrial Park, Suzhou, China PREPARED BY Chen Jie Project Engineer APPROVED BY Li Qun Project Manager 2010-5-6 DATED ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47 Parts 15C_2009, Part 2_2009. The sample tested was found to comply with the requirements defined in the applied rules. FCC ID: YEG0001IMCOMMERCIAL-IN-CONFIDENCE Doc Number 57010031 Report 02 Issue 1 Page 2 of 17 COMMERCIAL-IN-CONFIDENCE CONTENTS Section Page No. 1REPORT SUMMARY 1.1Status............................................................................................................................. 4 1.2Introduction .................................................................................................................... 5 1.3Brief Summary of Results .............................................................................................. 5 1.4Product Information ........................................................................................................ 6 1.5Test Conditions .............................................................................................................. 7 1.6Deviations from the Standard .........................................................................................7 1.7Modification Record ....................................................................................................... 7 1.8 Alternative Test Site ....................................................................................................... 7 2 TEST DETAILS 2.1 Labelling requirements ................................................................................................... 9 2.2 Antenna requirement Measurement Uncertainty ............................................................. 9 2.3 External radio frequency power amplifiers and antenna modifications ............................ 9 2.4 Restricted bands of operation ......................................................................................... 9 2.5 Conducted limits ............................................................................................................ 10 2.6 Radiated emission limits---Below 30MHz ....................................................................... 11 2.7 Radiated emission limits---Above 30MHz ....................................................................... 12 2.8 Occupied Bandwidth ...................................................................................................... 13 2.9 Radiofrequency radiation exposure evaluation ............................................................... 13 3TEST EQUIPMENT 3.1Test Equipment .............................................................................................................. 15 3.2Measurement Uncertainty .............................................................................................. 15 4DISCLAIMERS AND COPYRIGHT 4.1Disclaimers and Copyright .............................................................................................. 17 FCC ID: YEG0001IMCOMMERCIAL-IN-CONFIDENCE Doc Number 57010031 Report 02 Issue 01 Page 3 of 17 COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY FCC CFR 47 Parts 15C:2009, Part 2:2009, Testing of the Delphi Electronics (Suzhou) Co, Ltd. Immobilizer Gen2-09 FCC ID: YEG0001IMCOMMERCIAL-IN-CONFIDENCE Doc Number 57010031 Report 02 Issue 01 Page 4 of 17 COMMERCIAL-IN-CONFIDENCE 1.1STATUS Equipment Under TestImmobilizer ObjectiveTo undertake measurements to determine the Equipment Under Test's (EUT's) compliance with the specification. Name and Address of ClientDelphi Electronics (Suzhou) Co, Ltd. TypeGen2-09 Serial Number(s)NA Declared VariantsNone FCC ID NumberYEG0001IM Test Specification/Issue/DateFCC CFR 47 Parts 15C:2009, Part 2:2009. Number of Items TestedOne Start of Test19 th April 2010 Finish of Test20 th April 2010 Related DocumentsANSI C63.4: 2009 FCC ID: YEG0001IMCOMMERCIAL-IN-CONFIDENCE Doc Number 57010031 Report 02 Issue 01 Page 5 of 17 COMMERCIAL-IN-CONFIDENCE 1.2INTRODUCTION The information contained within this report is intended to show the sample compliance with the requirements of FCC CFR 47 Parts 15C:2009, Part 2:2009. 1.2.1Declaration of Build Status The above EUT information is declared by the manufacturer, for the detailed features description please refer to the manufacturer’s specification or user manual. 1.3BRIEF SUMMARY OF RESULTS A brief summary of the tests carried out is shown as below. Section FCC Specification Requirements Description ResultComments 2.1Part 15.19Labelling requirements Pass 2.2Part 15.203Antenna requirement Pass 2.3Part 15.204. External radio frequency power amplifiers and antenna modifications Pass 2.4Part 15.205 Restricted bands of operation Pass 2.5Part 15.207Conducted limits ----- NA 2.6Part 15.209 Radiated emission limits--- Below 30MHz Pass 2.7Part 15.209 Radiated emission limits--- Above 30MHz Pass 2.8Part 2.202Occupied Bandwidth Pass 2.9Part 2.1091 Radiofrequency radiation exposure evaluation ----- NA MAIN EUT MANUFACTURER Delphi Ele…
