YEJSHENQIWEI-6R/C Boat

User Manual RC Boat (Model: 3352) Use instruction 1) Turn the power switch of boat to “ON” position; 2) When the user control the control stick, the LED light will be turn on; When the light is turning dimmer, the batteries are to be replaced; 3) Operate the handle of the controller, the boat can move Forward, Backward Turn Left & Right. After play, turn the power switches of car-body to “OFF” position. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:14-Dec-2012Sheet of File:E:\超力PCB文件\超力电子pcb\原理图.DdbDrawn By: Forward control switch Reverse control switch Left control switch MCU Code control Attitude indicator Coding modulation Carrier signal generator 9V power Antenna Right control switch JG-CX01TX Square principle diagram (launch)27.145MHz Rf amplification 27.145MHz Transmission power 90 DB The power switch 3.3V Voltage circuit Low voltage detection Low-pass filter PDF 文件使用 "pdfFactory Pro" 试用版本创建 ° www.fineprint.com.cn

CREATE TOYS FACTORY 1-2 Floor, No. 6 Building Longtian Guanghua Industrial Park, Chengjiang Road, Chenghai, Shantou City, Guangdong, China. Tel: 86-(0)754-85630833 Fax: 86-(0)754-85630813 www.shengqiwei.com Authorization Letter December 17, 2013 Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Dear Sir/Madam We, the undersigned, hereby authorize Mr Wilson Loke of SGS IECC Limited to act on our behalf in all matter relating to FCC equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS IECC Limited on our behalf shall have the same effect as acts of our own. This authorization is valid for the FCC Certification with FCC ID: YEJSHENQIWEI-6 and expires on December 16, 2013

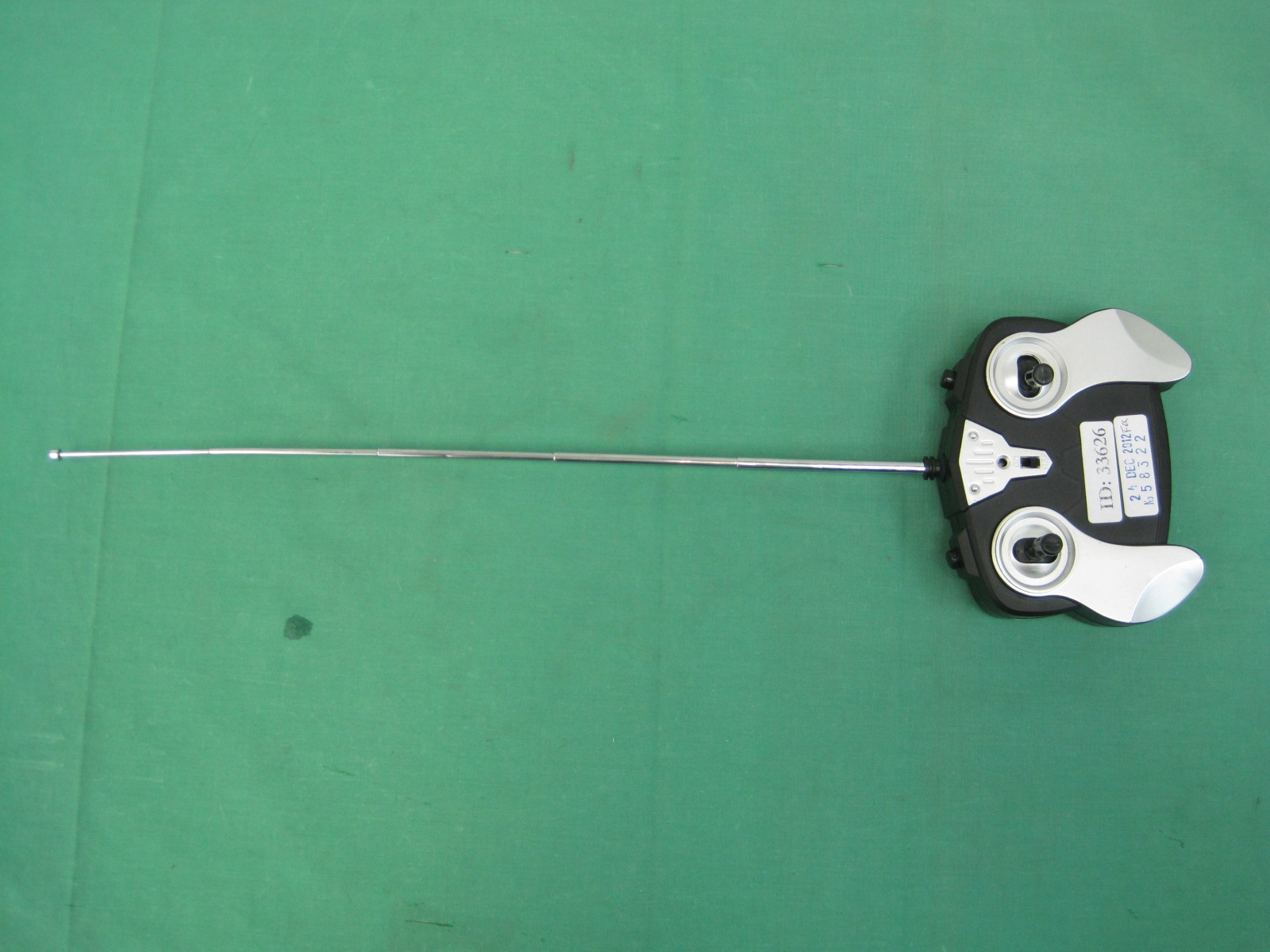

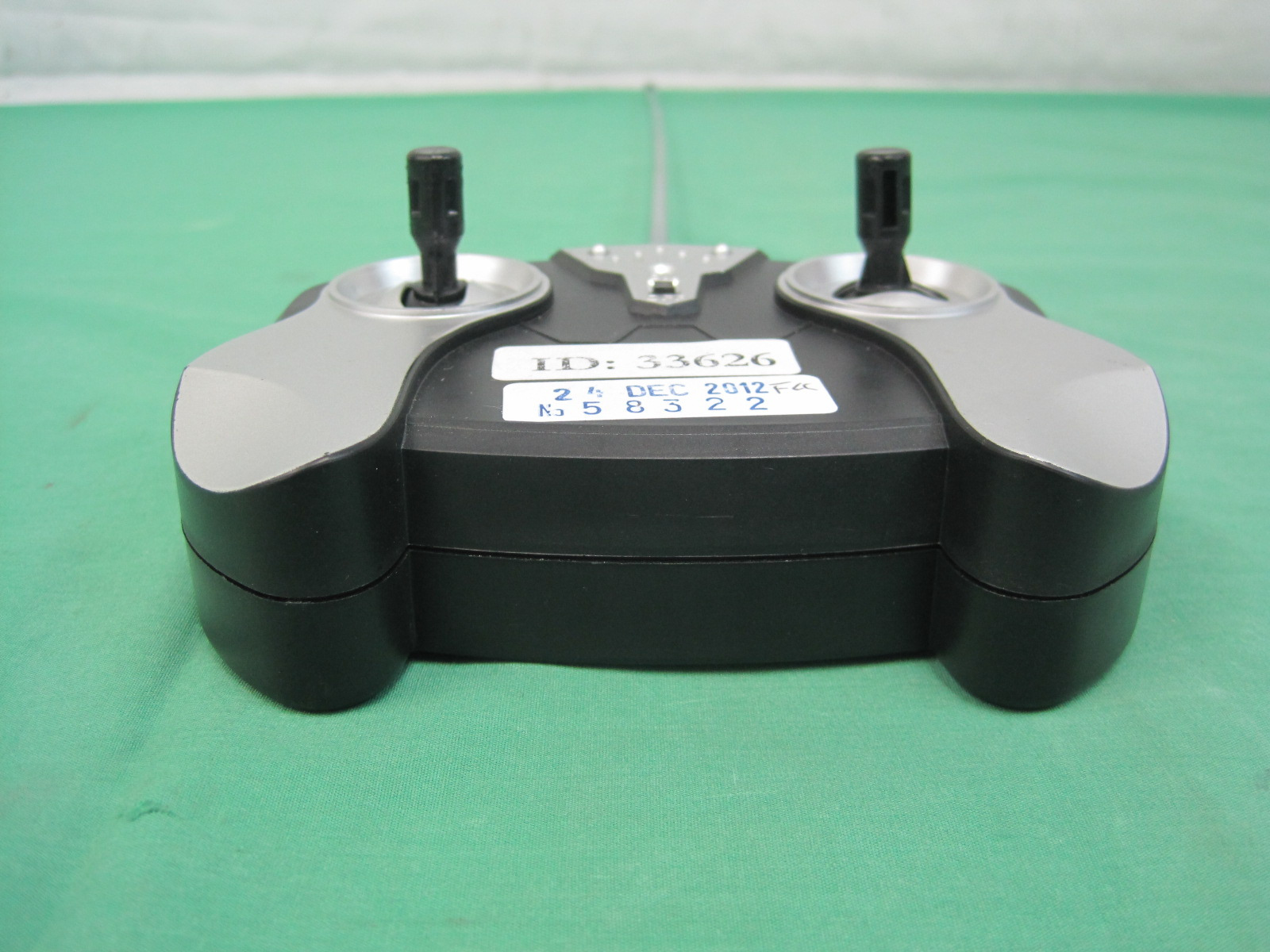

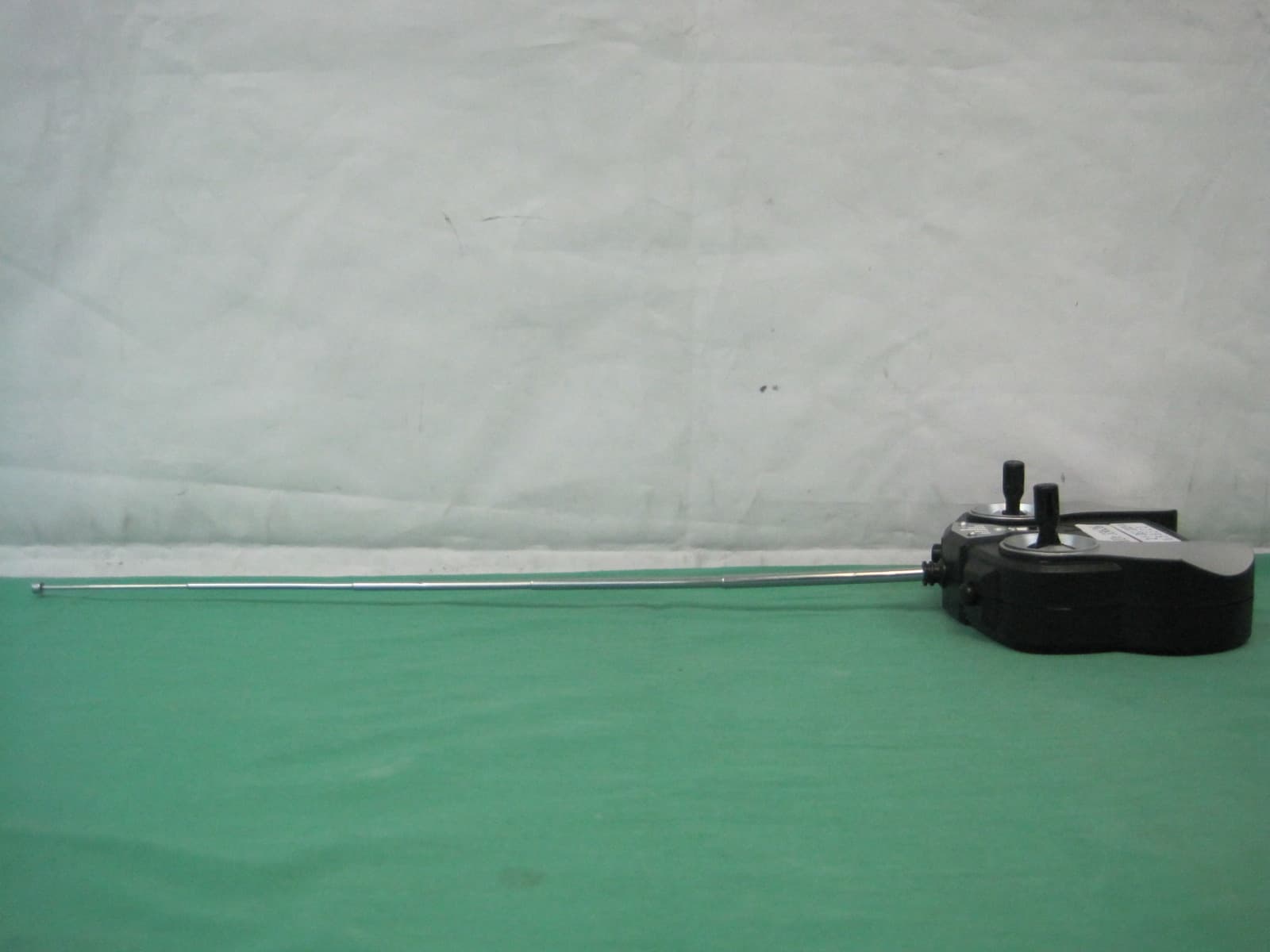

FCC ID: YEJSHENQIWEI-6 EXTERNAL PHOTO FCC ID: YEJSHENQIWEI-6 FCC ID: YEJSHENQIWEI-6

FCC ID: YEJSHENQIWEI-6 Label Artwork and Location

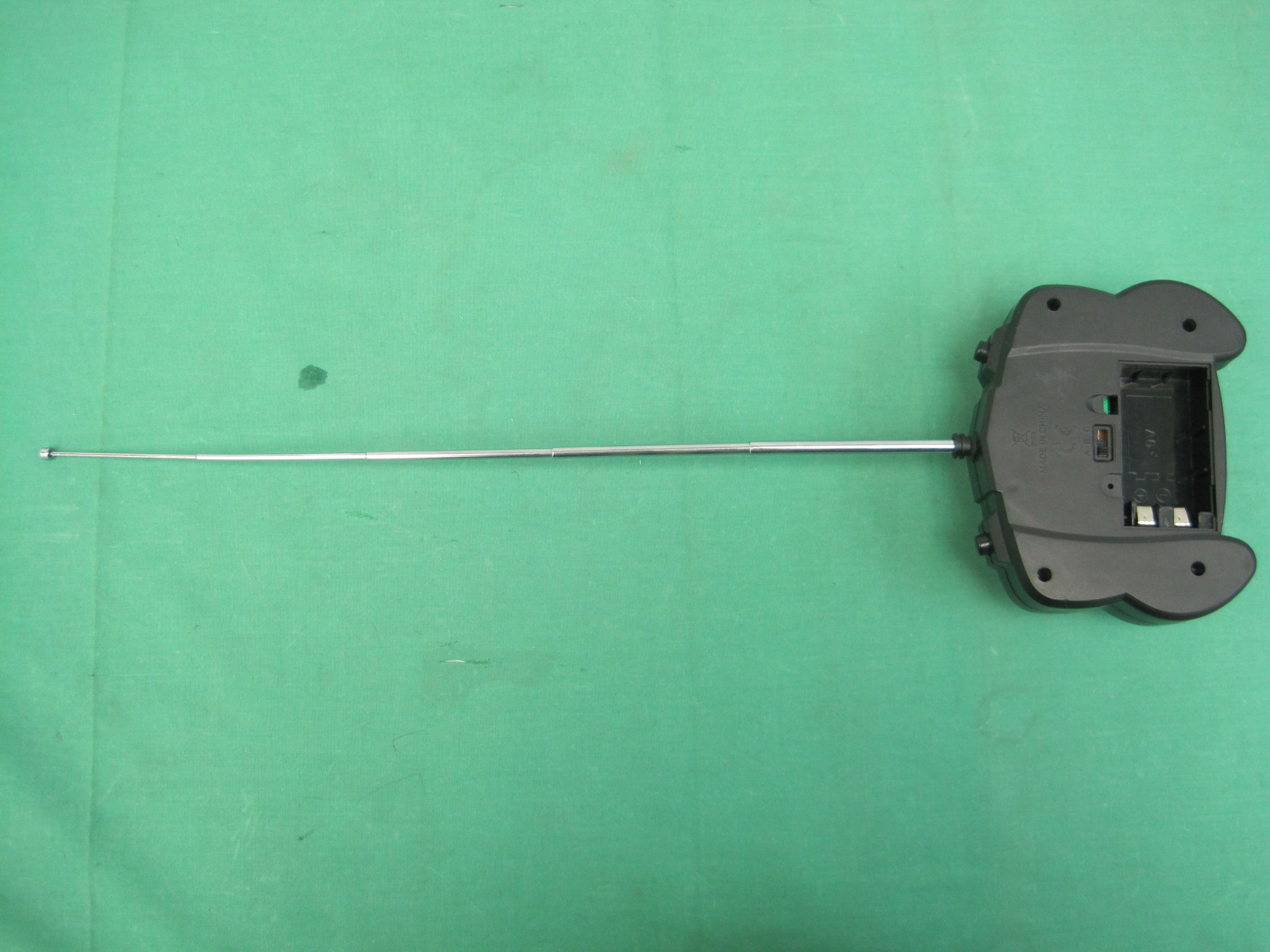

FCC ID: YEJSHENQIWEI-6 INTERNAL PHOTO FCC ID: YEJSHENQIWEI-6

Operational Description (FCCID:YEJSHENQIWEI-6) The device is the 27MHz transmitter of remote control boat. The transmitter is operating at 27.145MHz and powered by DC 9V (one 6F22 battery). The device having two control lever to control moving forward backward and turn around respectively. The control signals from the two levers are encoded by IC U1 and send the code to modulator, Q1 which is connected to the oscillator X1 and Q2 and modulated by Pulse Code Modulation. The modulated signal goes through the RF filter C6 and L1 to transmit out by the extendable antenna.

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:14-Dec-2012Sheet of File:E:\超力PCB文件\超力电子pcb\原理图.DdbDrawn By: LED1 R2 30K R5 10K VCC R4 1K L1 4.7uH ANT C6 501 Q1 C8050 Q2 C8050 L2 3.3uH L1 1uH R6 100R X1 27.145MHz C4 33P C5 47P C3 221 R8 390K R7 22K VCC C2 104 C1 104 CD1 47uF VDD JG-CX01TX原理图（27.145MHz） 9V SW1 VCC R3 470R D1 3.3V VDD P50 1 P67 2 P66 3 VDD 4 P65 5 P64 6 P63 7 P62 8 P61 9 P60 10 GND 11 P53 12 P52 13 P51 14 U1 (JG-CX01TX) LED RF F LVD LVD LED RF K2 K6 K3 K5 B R L F B R L VDD ID ID A B C R1 2.2K VDD SW2 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Address: Units 303-305, 3/F., 31 Lok Yip Road, On Lok Tsuen, Fanling, N.T., Hong Kong Report No.: 58322B-R1 Page: 1 of 22 Telephone: +852 23052570 Fax: +852 27564480 Email: [email protected] Authorized Signature: LOKE Sai Kit, Wilson Senior Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of International Electrical Certification Centre Ltd. or testing done by International Electrical Certification Centre Ltd. in connection with, distribution or use of the product described in this report must be approved by International Electrical Certification Centre Ltd. in writing. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC ID: FCC ID:YEJSHENQIWEI-6 IECC a wholly-owned subsidiary of SGS Group FCC Test Report Application No.: 58322 Applicant: CREATE TOYS FACTORY Address: 1- 2 Floor, No. 6 Building, Longtian Guanghua Industrial Park Chengjiang Road, Chenghai District, Shantou City, Guangdong China Product Information: Product Description: RC Boat Model: CT307A, CT307B, 3352, 3362 Product Class : Low Power Communication Device – Transmitter (27 MHz) FCC ID number: YEJSHENQIWEI-6 Requirement: CFR 47 FCC PART 15 SUBPART C, 2011 - Intentional Radiators. Date of Receipt: Dec 24, 2012 Date of Test: Jan 07, 2013 Date of Issue: Jan 30, 2013 Test Result : PASS* * In the configuration tested, the EUT complied with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. This report supersedes our previous report 58322B, issued on January 10, 2013, which is hereby deemed to be null and void Report No.: 58322B-R1 Page: 2 of 22 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC ID: YEJSHENQIWEI-6 IECC a wholly-owned subsidiary of SGS Group 2 Test Summary Test Test Requirement Test Method Class / Severity Result Conducted Emission (150KHz to 30MHz) FCC PART 15, SUBPART C: 2011 ANSI C63.4:2009 Class B N/A 1) Radiated Emission below 30MHz FCC PART 15, SUBPART C: 2011 ANSI C63.4:2009 Class B PASS Radiated Emission (30MHz to 1GHz) FCC PART 15, SUBPART C: 2011 ANSI C63.4:2009 Class B PASS Radiated Emission above 1 GHz FCC PART 15, SUBPART B: 2011 ANSI C63.4:2009 Class B N/A 1) Remark : 1) Please refer to section 6.1 & 6.4 of this report for explanation. Report No.: 58322B-R1 Page: 3 of 22 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unl…

Text truncated - open the document above for the full version.

FCC ID: YEJSHENQIWEI-6 TEST CONFIGURATION PHOTO (RADIATED)
