YEKAC3100FM Transmitter Module & Multiple Cradle

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

DIGIDOCK DEVELOPMENT INC. 6F, No.151, Xinhu 1st Rd., Neihu Dist., Taipei City 11494, Taiwan(R.O.C.) AC-3100 Specification for FM Transmitter 1. How is the device installed and operated? ANS: Insert the Transmitter into the Cigar Lighter of the motor vehicle. Pull out the adjustable plug to fit into the voice output of i-POD. Choose one of the frequency from channel 88.3, 88.5, 88.7, 88.9 MHz of the transmitter, and tune the FM receiver to the same frequency, then you’ll enjoy the music from the i-POD. 2. Information on the device and its antenna ANS: This device can be operated from 88.3 to 88.9 MHz. The main function of this EUT is used to encode analog signal to become FM code, and control the transmitter frequency to the radio receivers and broadcast. This transmitter is fed by 12V car power supply. This EUT use PCB Antenna. 3. Describe the test procedure used ANS: Supported Ancillary Equipment Item Name of Equipment ManufacturerModel Number FCC ID Note 1 DC Power Supply ABM 9306D N/A N/A 2 iPod nano Apple A1199 N/A N/A The relevant cables of Supported Ancillary Equipment Item Name of Cables Shielded Used Ferrite Used LengthNote C1 Audio Line Non-ShieldedN/A 0.5m Detachable C2 Power Line Non-ShieldedN/A 1.2m Detachable DIGIDOCK DEVELOPMENT INC. 6F, No.151, Xinhu 1st Rd., Neihu Dist., Taipei City 11494, Taiwan(R.O.C.) Setup Configuration Description of Test Mode The system was configured for testing in a typical arrangement as the manufacturer’s declaration. During the test, the i-POD played program and set the volume to the maximum level. There was no special software to be exercised during the test. There are four channels on EUT, and the operating frequency range of EUT is from 88.3 MHz to 88.9 MHz. We choose the middle channel (88.7 MHz) for main final test. 4. Was the tuning range properly verified? ANS: Yes, the low channel is 88.3 MHz and the high channel is 88.9 MHz. The tuning control was manually adjusted to verify maximum tuning range. 5. Was the bandwidth properly tested with maximum audio input? ANS: Yes, the system was configured for testing in a typical arrangement as the manufacturer’s declaration. iPod nano EUT DC Power Supply C2 C1

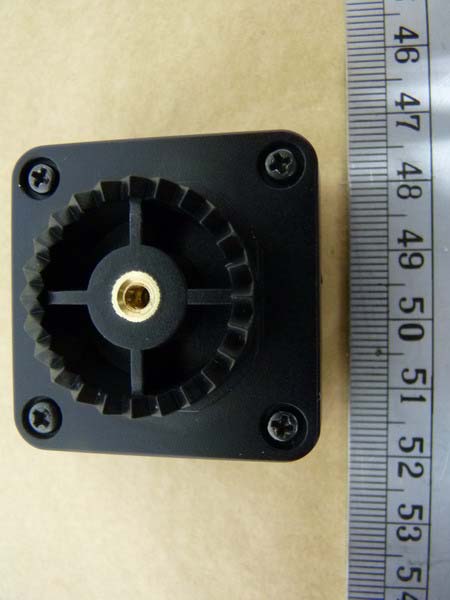

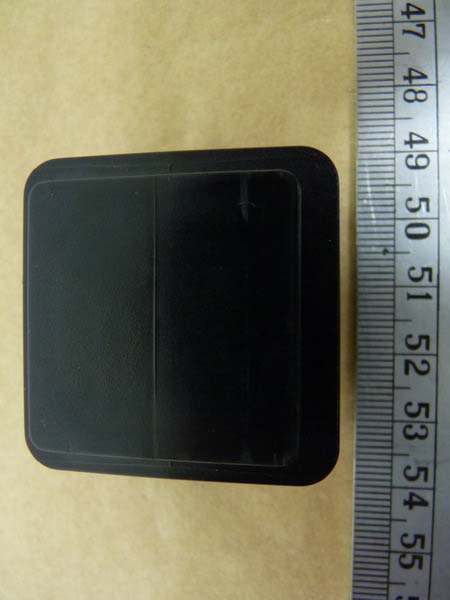

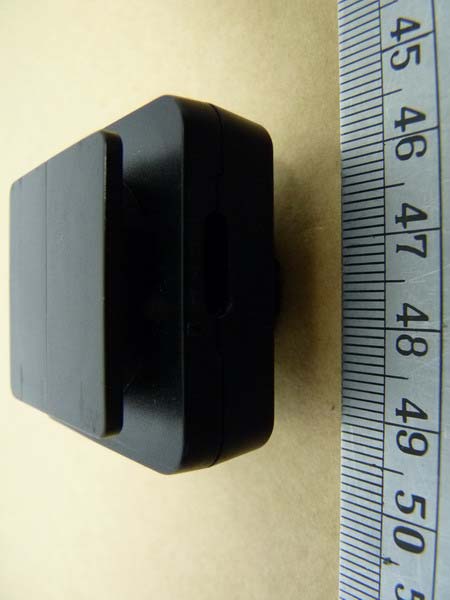

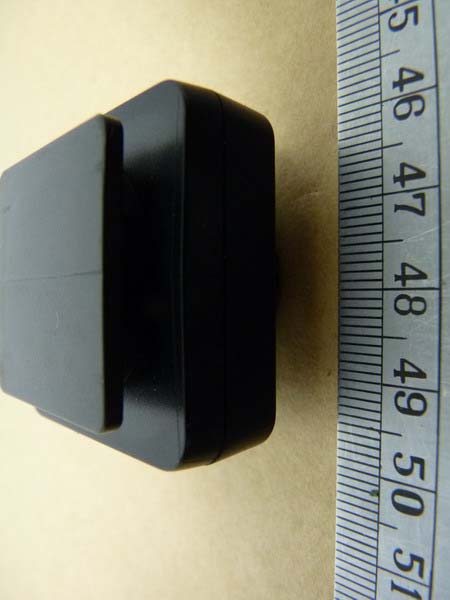

Registration number: W6M21004-10592-P-15 FCC ID: YEKAC3100 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 21 External Photos Registration number: W6M21004-10592-P-15 FCC ID: YEKAC3100 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 21 Registration number: W6M21004-10592-P-15 FCC ID: YEKAC3100 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 10 of 21 Registration number: W6M21004-10592-P-15 FCC ID: YEKAC3100 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 11 of 21 Registration number: W6M21004-10592-P-15 FCC ID: YEKAC3100 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 12 of 21 Registration number: W6M21004-10592-P-15 FCC ID: YEKAC3100 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 13 of 21

FCC ID: YEKAC3100 Model No.: AC-3100 FCC ID Label information: The label size is 3cm X0.5cm and because of the size of this device is too small to be placed the other required statement, the following will be placed in the user’s manual: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: YEKAC3100

Registration number: W6M21004-10592-P-15 FCC ID: YEKAC3100 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 14 of 21 Internal Photos Registration number: W6M21004-10592-P-15 FCC ID: YEKAC3100 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 15 of 21 Registration number: W6M21004-10592-P-15 FCC ID: YEKAC3100 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 16 of 21 Registration number: W6M21004-10592-P-15 FCC ID: YEKAC3100 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 17 of 21 Registration number: W6M21004-10592-P-15 FCC ID: YEKAC3100 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 18 of 21 Registration number: W6M21004-10592-P-15 FCC ID: YEKAC3100 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 19 of 21 Registration number: W6M21004-10592-P-15 FCC ID: YEKAC3100 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 20 of 21

of Applicant: DIGIDOCK DEVELOPMENT INC. Address: 6F, No.151, Xinhu 1st Rd., Neihu Dist., Taipei City 11494, Taiwan(R.O.C.) Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21004-10592-P-15 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for FM Transmitter Module &Multiple Cradle Model No.: AC-3100 FCC ID: YEKAC3100 Registration number: W6M21004-10592-P-15 FCC ID: YEKAC3100 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 21 TABLE OF CONTENTS 1 GENERAL INFORMATION ..................................................................................................... 2 1.1 NOTES........................................................................................................................................ 2 1.2 TESTING LABORATORY........................................................................................................3 1.2.1 LOCATION ................................................................................................................................ 3 1.2.2 DETAILS OF ACCREDITATION STATUS ............................................................................ 3 1.3 DETAILS OF APPROVAL HOLDER ...................................................................................... 3 1.4 APPLICATION DETAILS......................................................................................................... 4 1.5 GENERAL INFORMATION OF TEST ITEM ......................................................................... 4 1.6 TEST STANDARDS .................................................................................................................. 4 2 TECHNICAL TEST ................................................................................................................... 5 2.1 SUMMARY OF TEST RESULTS ............................................................................................. 5 2.2 TEST ENVIRONMENT............................................................................................................. 5 2.3 TEST EQUIPMENT UTILIZED................................................................................................ 6 2.4 GENERAL TEST PROCEDURE .............................................................................................. 9 2.5 PRODUCT DESCRIPTION AND SYSTEM TEST CONFIGURATION .............................. 11 2.6 THE DESCRIPTION OF MODIFICATION ........................................................................... 12 3 TEST RESULTS (ENCLOSURE) .......................................................................................... 13 3.1 EMISSION BANDWIDTH ...................................................................................................... 14 3.2 BAND EDGE MEASUREMENT ............................................................................................ 15 3.3 CARRIER ( FIELD STRENGTH) ........................................................................................... 16 3.4 SPURIOUS EMISSION ........................................................................................................... 17 3.5 POWER LINE CONDUCTED EMISSION ............................................................................. 20 APPENDIX.......................................................................................................21 Registration number: W6M21004-10592-P-15 FCC ID: YEKAC3100 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 21 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Tester: July 27, 2010 Rick Chen Date WTS-Lab. Name Signature Technical responsibility for area of testing: July 27, 2010 Chang Tse-Ming Date WTS Name Signature Note: 1. This test report is valid in connection to the model has been tested, any modification to the product which is different from the test model will avoid the certification of the test report. 2. This test report shall always be duplicated in full pages unless the written approval of the testing laboratory is obtained. 3. The X and Y in multi-listing model number are representing different accessories. Registration number: W6M21004-10592-P-15 FCC ID: YEKAC3100 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 21 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei County 207, Taiwan (R.O.C.) Company Worldwide Testing Services(Taiwan) Co., Ltd. 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C. Tel : 886-2-66068877 Fax : 886-2-66068879 1.2.2 Details of accreditation status Accredited testing laboratory A2LA accredited number: 2732.01 FCC filed test laboratory Reg. No. 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 Test location, wh…

Text truncated - open the document above for the full version.

Registration number: W6M21004-10592-P-15 FCC ID: YEKAC3100 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 21 of 21 Set Up Photo of Radiated Emission
