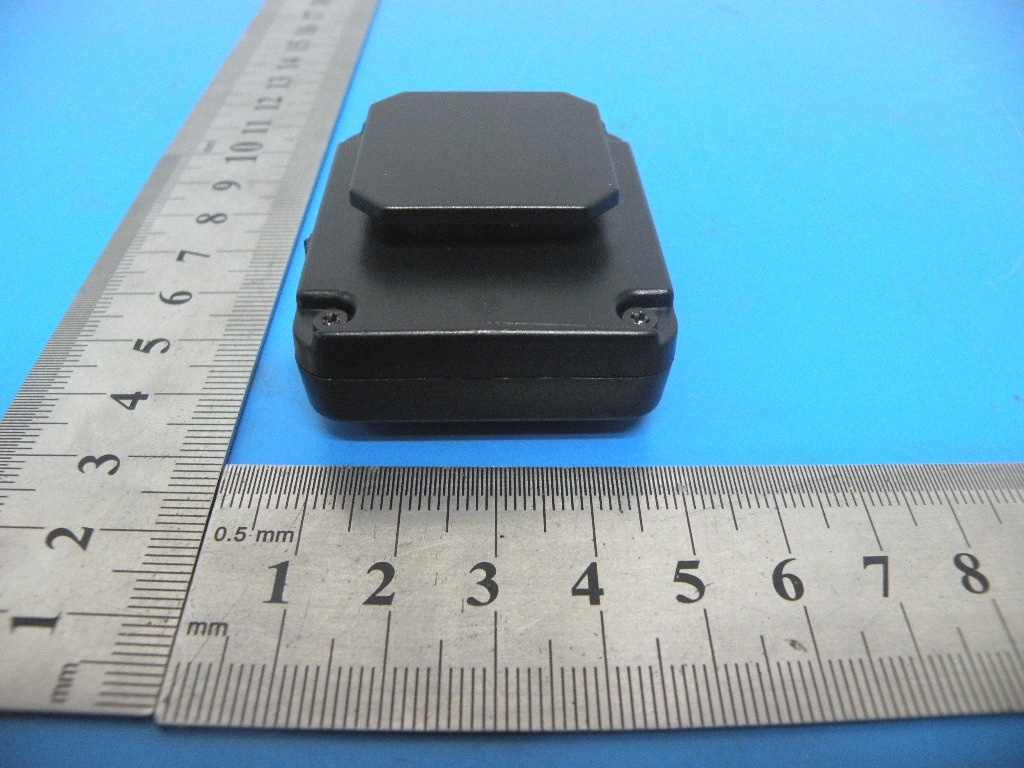

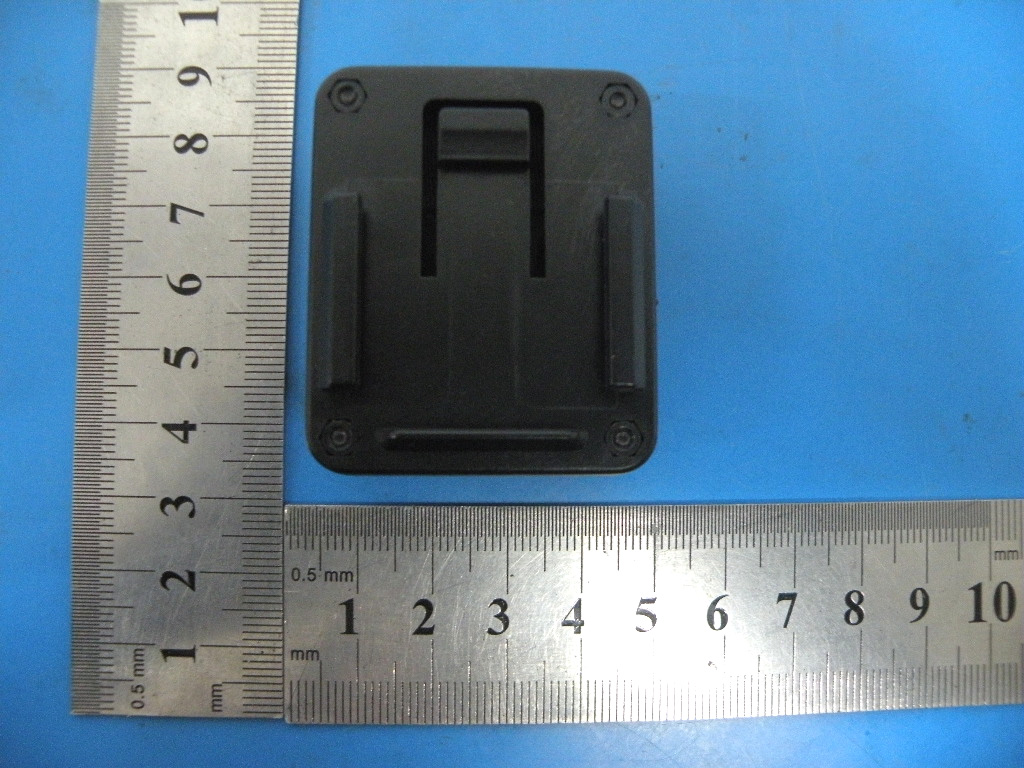

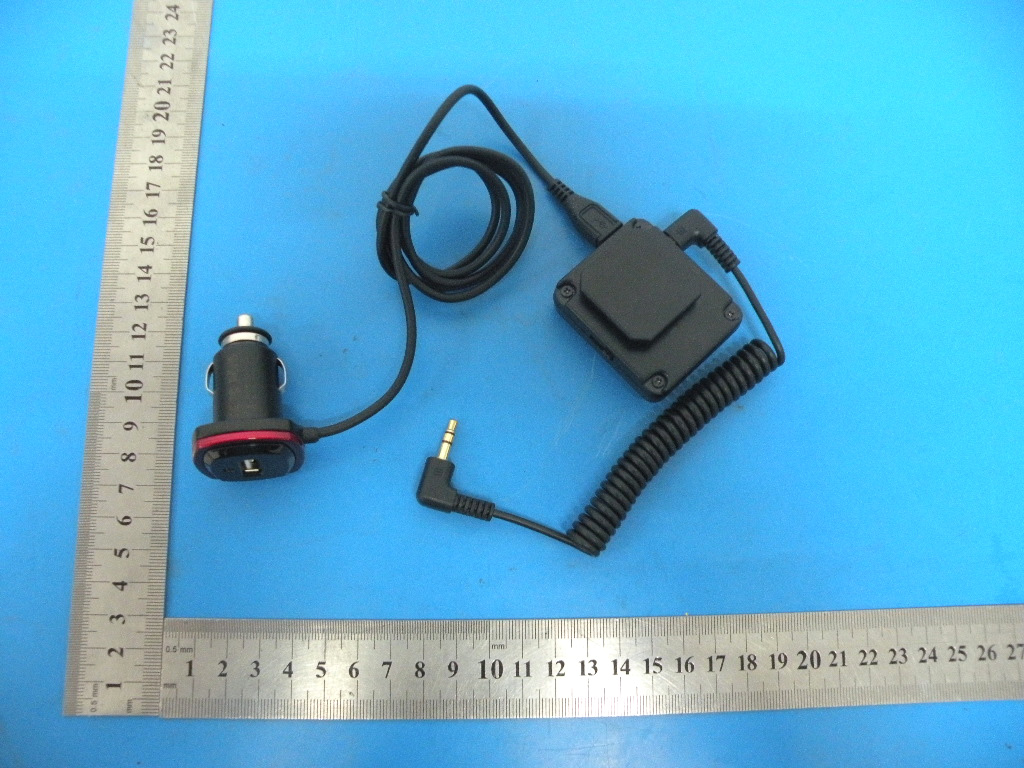

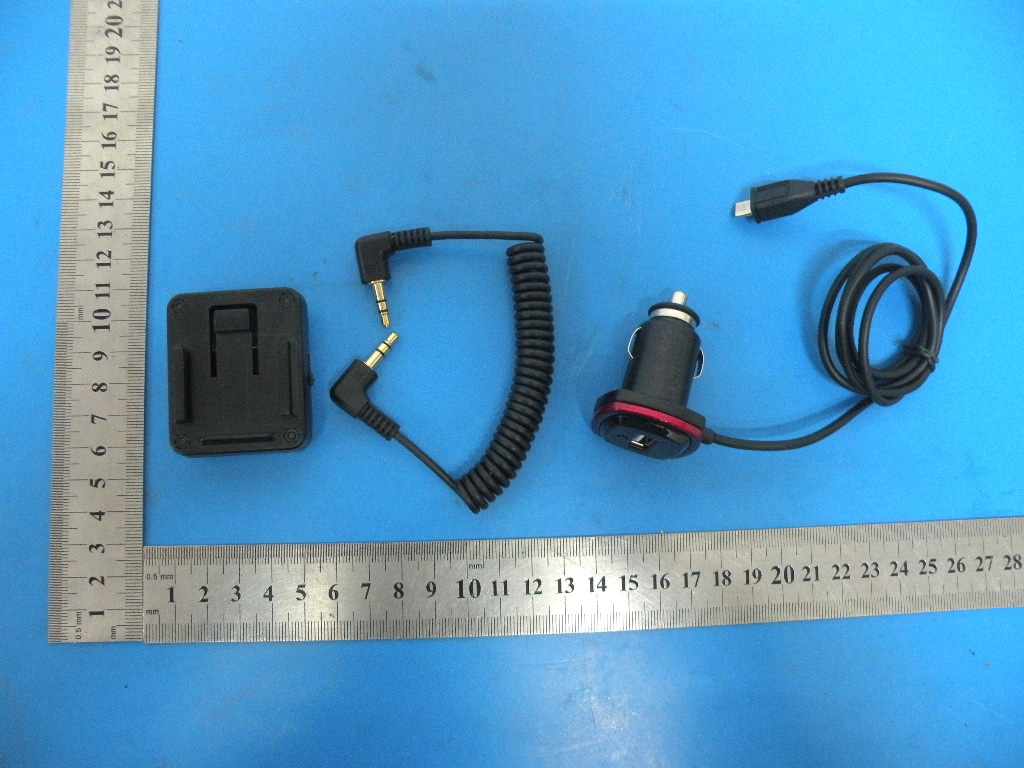

YEKFMXP-T1Bluetooth FM Transmitter

CF-3501FMXP User’s Guide CF-3501FMXP-V1-1212 Notice Operating Instructions Specifications Sketch Map 1 2 3 4 Foam rubber Quick release button Extendable clamp arms (Available for 37-85mm device) Support shelfs 1 2 3 4 5 6 7 8 9 Key Features Cradle(A)FM Transmitter (B) THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFIVATIONS TOTHIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Don’t leave FM transmitter in your car in a hot sunny weather. To keep same tacky power, please clean the smart pad with water when contaminated. “Hereby, DIGIDOCK DEVELOPMENT INC., declares that this FM Transmitter is in compliance with the essential requirements and other relevant provisions of Directive 1999 / 5 / EC.” AT CZ FI IS LT PT SE FR BE DK DE IE MT SK CH IT EE BG LV NL RO TR LU CY HU PL ES GB NO TR LI 88.3579MHz 1 Cradle (A) FM Transmitter with mount (B) 2 2 3 3 4 180 1 2 360 ° 1 88. 9 7 5 3 88.3579MHz dashboard windshield 88.3579MHz 88.3579MHz 37~85mm The smart pad design on the bottom of sucker allows you to x cradle on dashboard tightly. 3 in 1 Universal Bluetooth FM Transmitter Car Charger and Cradle Universal holder, Car Charger and Bluetooth FM Transmitter Module Bluetooth 3.0+EDR, Class 2, eective range around 10 meters 4 channels selection for better audio quality transmission CA-2721μis a powerful and low prole design 2.1A car chargerquickly and easily in any d irection FMXP-T1 Oers an USB port for mobile device charging with own cable Soft holder grips and backing that will not scr atch your device. 360° rotating connector and swiveling joint let you adjust the viewing angle of your mobile device quickly and easily in many directions Special "Smart Pad™" design is suitable for windshield / dashboard and middle console The "Smart Pad™" is re-workable after cleaning and drying the surface of sticky material with water or alcohol softly when contaminated Soft holder grips and backing that will not scratch your device Connectφ3.5mm audio cable from AUX output to your car, get more better audio quality directly             4 3 9 8 7 6 5 1 2 3 Operation / Storage Temp FM Channel Micro USB Input Car Charger Output Car charge input FM Transmitter USB Output Dimension Net Weight Accessories 0°C~50°C / -20°C~80°C 88.3 / 88.5 / 88.7 / 88.9 MHz 5V 5V / 2.1A(Max) 12V / 24V 5V / 1A 135*110*80mm(Accessories are not included) 137g (Accessories are not included) Smart Pad TM / Alcohol Cleaning Pad Universal Holder / Bluetooth FM Transmitter Suction Mount Specication Eective Range Bluetooth Bluetooth V3.0 + EDR , Class 2 10 meters Package content Mount (C) 360° rotating support holder Channel switch USB output(5V/1A) Car charger(5V/1A,5V/2.1A) Micro USB input(5V/1A) φ3.5mm Audio cable Bluetooth LED indication Bluetooth pairing button φ3.5mm AUX input 180° hinge Screw ring Smart pad MHz 88. 9 7 5 3 MHz 88. 9 7 5 3 MHz 88. 9 7 5 3 M H z 88. 9 7 5 3 MHz 88. 9 7 5 3 MHz 88. 9 7 5 3 MHz 88. 9 7 5 3 M H z 88. 9 7 5 3 MHz 9 7 5 3 MHz 88. Cigarette lighter socket 1. Unify Cradle ,FM transmitter and Car Charger. 2. Press the suction and clockwise rotate the ring to Install CF-3501FMXP on a windshield or dashboard. 3. Press and hold “PRESS” button to adjust direction. 4.The USB port provides 5V/1A output for charge your USB-Powered device through USB cable ( Please make sure your device can be charged through USB ). 5. Position the channel switch to match FM channel on your car radio. 6.Press pairing button over 2 seconds to entry bluetooth pairing mode. 7. Turn on MP3 device’s bluetooth function, search and pair with CF-3501FMXP, then Play the music with MP3 device. 8. Charge, cradle and enjoy the music while driving. Press pairing button Mount (C) Press and Rotate clockwiseor counter clockwise to fasten or loose. Search new device Set up Bluetooth Precautions The mounting surface should be clean and dry, use alcohol pad to remove any waxes or polishes. When PU suction cup is aging or does not stick, please loosen the suction cup and clean the surface with water.   Red and blue lights ashing 車架型多功能 全頻藍芽MP3播放暨充電器 CF-3501FMXP 使用說明書 使用說明 規格說明 產品示意圖 1 2 3 4 彈性壓條軟墊 快速釋放按鈕 固定夾臂 (適用於37-85mm的裝置) 可收式支撐腳架 貼心設計 通用型車架(A) 通用型車架(A) FM 調頻播放器 (B) FM 調頻 播放器 (B) FM調頻頻道 操作溫度 儲存溫度 Mini USB 車充輸出電壓 Mini USB 車充輸入電壓 充電電流輸出 調頻器電力來源 車架材質 淨重 尺寸 附件 88.3 / 88.5 / 88.7 / 88.9 MHz 0 °C ~50 °C -20°C ~ 80 °C DC 5V DC 12V / 24V 800 mA 車用點煙器(專用Mini USB 車充) POM (塑鋼) 以及 ABS 複合設計 161克 12.8 mm × 12 mm × 8 mm (不含配件) Mini USB車充 SmartPad設計讓您的車架緊緊地固定在儀表板上。 SmartPad髒污時，恐影響其固定黏性，請視情況使用 清水或酒精棉片擦拭，以保持最佳使用狀態。 CF-3501FMXP-V1-1212  整合性通用型手機車架、FM Transmitter及車充設計  藍芽 3.0 + EDR , Class 2 , 有效範圍約10公尺  四組頻道供彈性選擇，以取得理想之頻道來取得品質較佳音樂傳輸  CA-2721μ提供強而有力的2.1A電流，可隨時可對iPhone / iPod進行 充電  獨特的”Smart Pad ™ ”，強化了旋轉型吸盤的吸附能力，可更廣泛 地使用在汽車前擋、玻璃或大部份平面的儀表板上  "Smart Pad ™ "具重複使用性，表面髒污在經過水洗或酒精輕拭後， 即可有效回復其強化吸附的效果  360°旋轉頭及雙向的兩段式關結設計，更便利了iPhone / iPod使用 時在角度上的調整  夾具兩側的軟墊設計，不僅更能緊緊抓住，同時也不致刮、撞傷您 的裝置  透過φ3.5mm的音源輸出接到汽車的AUX輸入，將最直接取得更好 的音質享受 1 3 4 2 吸盤式車架(C) 1 2 3 4 5 6 7 8 9 1 2 3 順時針旋轉鬆動或 下壓逆時針擰緊 88.3579MHz 2 180 1 4 3 9 8 7 6 5 吸盤式車架(C) 360°旋轉結構 頻道切換鈕 Micro USB 5V輸入 USB 5V/1A 輸出 Smart Pad專利吸盤 φ3.5mm音源線 車用充電器 (5V/1A,5V/2.1A) φ3.5mm音源輸出孔 藍芽配對鈕 藍芽狀態指示 180°專利旋轉結構 旋轉式吸盤固定鈕 藍芽 1. 組合通用型手機架(A)、FM調頻播放器(B)及吸盤式車架(C)。 2. 順序將吸盤下壓並正時針方向旋轉旋鈕以將 CF-3501FMXP 安裝在 擋風玻璃或儀表板上。 3. 按壓 “ PRESS ＂按鈕來調整適當的方向及角度。 4. 透過裝置充電線分別連接於裝置及FM調頻播放器上的USB輸出 (5V/1A)，即可為您的裝置進行充電。 5.將音響與CF-3501FMXP調整至相同頻道，即可透過FM調頻 播放器從車上的廣播頻道播放音樂。 6. 壓按配對鍵(約2-3秒)進行藍芽配對模式(紅藍閃爍狀態)。 7. 開啟MP3播放器的藍芽功能，搜尋並連線到CF-3501FMXP後 播放MP3播放器中的音樂。 8. FM調頻播放器，同時兼具車架及充電功能，讓您在開車的同時， 不間斷地享受喜愛的音樂。 88. 9 7 5 3 MHz 88. 9 7 5 3 MHz 88.3579MHz dashboard windshield 88. 9 7 5 3 MHz 88. 9 7 5 3 M H z 88. 9 7 5 3 MHz 88. 9 7 5 3 MHz 88. 9 7 5 3 MHz 88. 9 7 5 3 MHz 88.3579MHz 37~85mm 置入點菸器插座孔內 …

Text truncated - open the document above for the full version.

DIGIDOCK DEVELOPMENT INC. PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 09.01.2013 Authority to Act as an Agent We declare that the following representative (agent) Name Mark Zhu Position Manager Company Name Shenzhen Certification Technology Service Co., Ltd. Address 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2 nd Road, Bao’an District, Shenzhen 518126, P.R. China Tel / Fax 0755-86375541/0755-26736857 Email [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name Bluetooth FM Transmitter Model Name FMXP-T1 Multi-listing model No.: CF-3XXXFMYYY(XXX=0~9, Y=A~Z) Brand Name N/A We also authorize BZT – TCP Certification GmbH, Ms.Wanida Patthanavoj (address: Hermann - Loens - Weg 6, 15859 Storkow b. Berlin Germany) to process the application. Yours sincerely, Signatory Name Ben Chen Position General Manager Company Name DIGIDOCK DEVELOPMENT INC. Address 6F, No.151, Xinhu 1st Rd., Neihu Dist., Taipei City 11494, Taiwan (R.O.C.) Tel 886-2-2790-1089 Fax 886-2-2790-2429 Email [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

DIGIDOCK DEVELOPMENT INC. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: DIGIDOCK DEVELOPMENT INC. FCC ID : YEKFMXP-T1 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Ben Chen Position General Manager Company Name DIGIDOCK DEVELOPMENT INC. Address 6F, No.151, Xinhu 1st Rd., Neihu Dist., Taipei City 11494, Taiwan (R.O.C.) Tel 886-2-2790-1089 Fax 886-2-2790-2429 Email [email protected]

RF EXPOSURE STATEMENT According to KDB616217, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to TCB Exclusions list, no SAR required if power is lower than the flowing threshold: Frequency Rang Low Frequency (MHz) High Frequency (MHz) Center Frequency (MHz) 60/f SAR Limitation 2402 2480 2441 24.19 Maximum average measured transmitter power of this device is: Maximum average output power(mW) Max Antenna Gain(dBi) EIRP(mW) 1.54 1.13 1.99 Threshold at which no SAR required is 24.19 mW. Maximum Tx power is 1.99 mW EIRP. Conclusion: No SAR is required.

30mm 16mm FCC ID: YEKFMXP-T1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label Location

FM ANTENNA BT ANTENNA

Shenzhen Certification Technology Service Co., Ltd. 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2 nd Road, Bao'an District, Shenzhen 518126, P.R. China FCC ID: YEKFMXP-T1 Page 1 of 57 TEST REPORT FCC ID: YEKFMXP-T1 Applicant : DIGIDOCK DEVELOPMENT INC. Address : 6F, No.151, Xinhu 1st Rd., Neihu Dist., Taipei City 11494, Taiwan (R.O.C.) Equipment Under Test (EUT): Name : Bluetooth FM Transmitter Model : FMXP-T1 Multi-listing model No.: CF-3XXXFMYYY(XXX=0~9, Y=A~Z) In Accordance with: FCC PART 15.247 Report No : STE121226831 Date of Test : January 4-8, 2013 Date of Issue : January 9, 2013 Test Result: PASS In the configuration tested, the EUT complied with the standards specified above Authorized Signature ___________________________ (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.: STE121226831 FCC ID: YEKFMXP-T1 Page 2 of 57 Contents 1. General Information ...................................................................................................4 1.1. Description of Device (EUT) ...............................................................................4 1.2. Accessories of device (EUT) ...............................................................................4 1.3. Test Lab information ............................................................................................4 2. Summary of test ..........................................................................................................5 2.1. Summary of test result .........................................................................................5 2.2. Assistant equipment used for test.........................................................................5 2.3. Block Diagram .....................................................................................................5 2.4. Test mode .............................................................................................................6 2.5. Test Conditions.....................................................................................................6 2.6. Measurement Uncertainty (95% confidence levels, k=2) ....................................6 2.7. Test Equipment.....................................................................................................7 3. Maximum Peak Output power ..................................................................................8 3.1. Limit .....................................................................................................................8 3.2. Test Procedure ......................................................................................................8 3.3. Test Result ............................................................................................................8 4. 20dB bandwidth ..........................................................................................................9 4.1. Limit .....................................................................................................................9 4.2. Test Procedure ......................................................................................................9 4.3. Test Result ............................................................................................................9 5. Carrier Frequency Separation.................................................................................12 5.1. Limit ...................................................................................................................12 5.2. Test Procedure ....................................................................................................12 5.3. Test Result ..........................................................................................................12 6. Number Of Hopping Channel..................................................................................14 6.1. Limit ...................................................................................................................14 6.2. Test Procedure ....................................................................................................14 6.3. Test Result ..........................................................................................................14 7. Dwell Time .................................................................................................................17 7.1. Test limit ............................................................................................................17 7.2. Test Procedure....................................................................................................17 7.3. Test Results ........................................................................................................17 8. Radiated emissions....................................................................................................28 8.1. Limit ...................................................................................................................28 8.2. Block Diagram of Test setup ..............................................................................29 8.3. Test Procedure ....................................................................................................29 8.4. Test Result .....................................................................................…

Text truncated - open the document above for the full version.

Radiated Emission Test Setup in Chamber
