1/4 WIRELESS LAN MODULE QCA9531 USER’S MANUAL 2/4 1. Overview The Qualcomm Atheros QCA9531 is highly integrated and feature-rich IEEE 802.11n 2x2 2.4GHz System-on--a-Chip(SoC) for advances WLAN platforms. It includes a MIPS 24Kc processor ,one PCI Express 1.1 Root Complex interface, five port IEEE 802.3 Fast Ethernet Switch With MAC/PHY, one USB 2.0 MAC/PHY, and external memory Interface for serial Flash,DDR1 or DDr2,SDRAM,UART,and GPIOs that can be used for LED controls or other general purpose interface configurations. The QCA9531 PCIE root complex interface can be used to connect to an endpoint such as the Qualcomm Atheros single-chip MAC/BB/radio for dual concurrent WLAN application. The QCA9531 supports 802.11n operations up to 144 Mbps for 20 MHz Likelihood(ML) decoding, Low- Density Parity Check(LDPC) and Maximal Ratio Combining(MRC). The QCA9531 supports booting from NOR flash. 2. Features  24Kc MIPS processor with 64KB I-Cache and 32KB D-Cache, operating at up to 550MHz  External 16-bit DDR1,operating at up to 200 MHz,DDR2 operating at up to 275MHz  External SDRAM interface operating at 166 MHz  SPI NOR Flash memory support  10/100 Ethernet Switch with four IEEE 802.3 Ethernet LAN ports and one WAN post  802.3az Energy Efficient Ethernet compliant  PCI Express 1.1 Root Complex interface  One USB 2.0 controller with built-in MAC/PHY supports Host mode  One low-speed UART(115 Kbps) and multiple GPIO pins for general purpose I/O  Fully integrated RF Front-End including Pas and LNAs  Optional external LNA/PA  25 MHz reference clock input  1.2V switching regulator  Advanced power management with dynamic clock switching for ultra-low power modes  156-pin 12mmx12mm DRQFN package 3/4 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Non-modification Statement: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Limited Channels fixed for use in the US: IEEE 802.11b or 802.11g or 802.11n(HT20) operation of this product in the U.S. is firmware-limited to Channel 1 through 11. IEEE 802.11n(HT40) operation of this product in the U.S. is firmware-limited to Channel 3 through 9. 4/4 This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co‐located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end‐product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co‐location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re‐evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: YFXQCA9531”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual.

FCC ID: YFXQCA9531 Report No.: RF140211C09 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch March 11, 2014 Dear Application Examiner, fitivision technology Inc., It’s a 802.11bgn module, FCC ID: YFXQCA9531 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip QCA9531. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is QCA9531. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: YFXQCA9531 Report No.: RF140211C09 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Robert Huang Senior Engineer Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

*Label location as below： 銅板紙33*10mm Label location

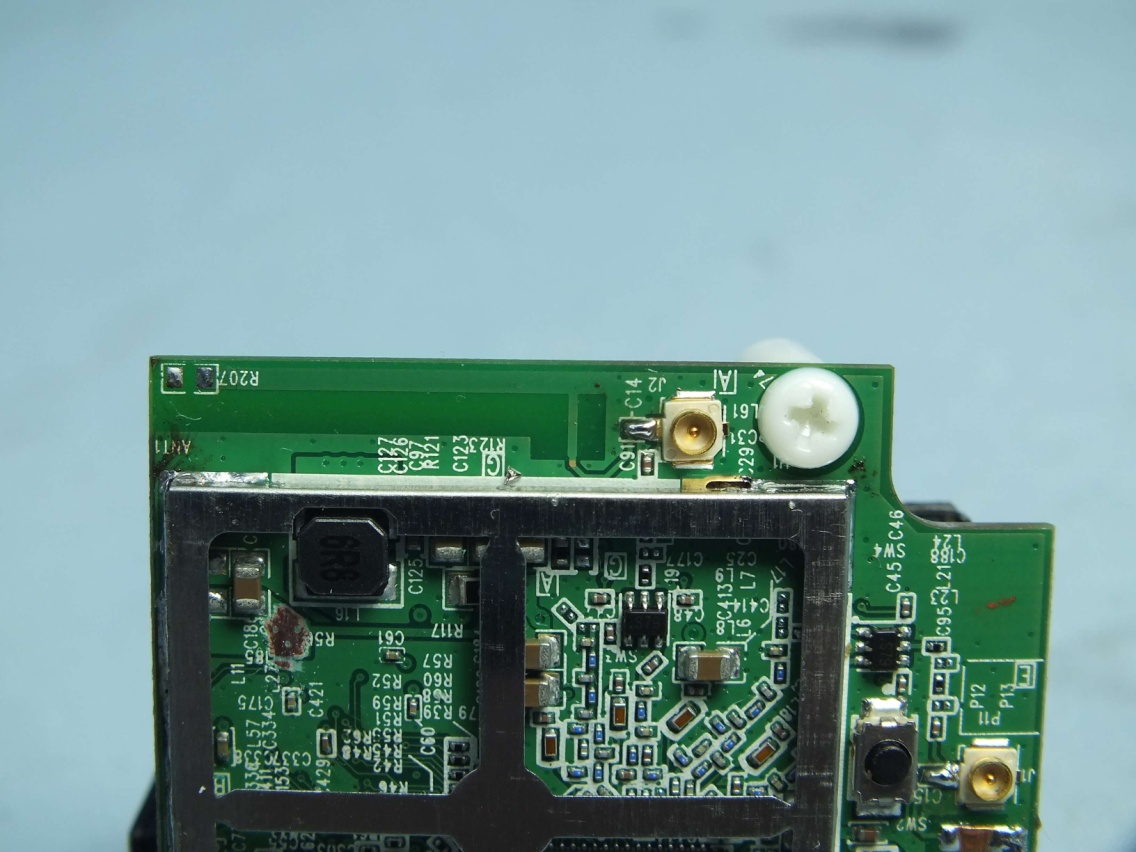

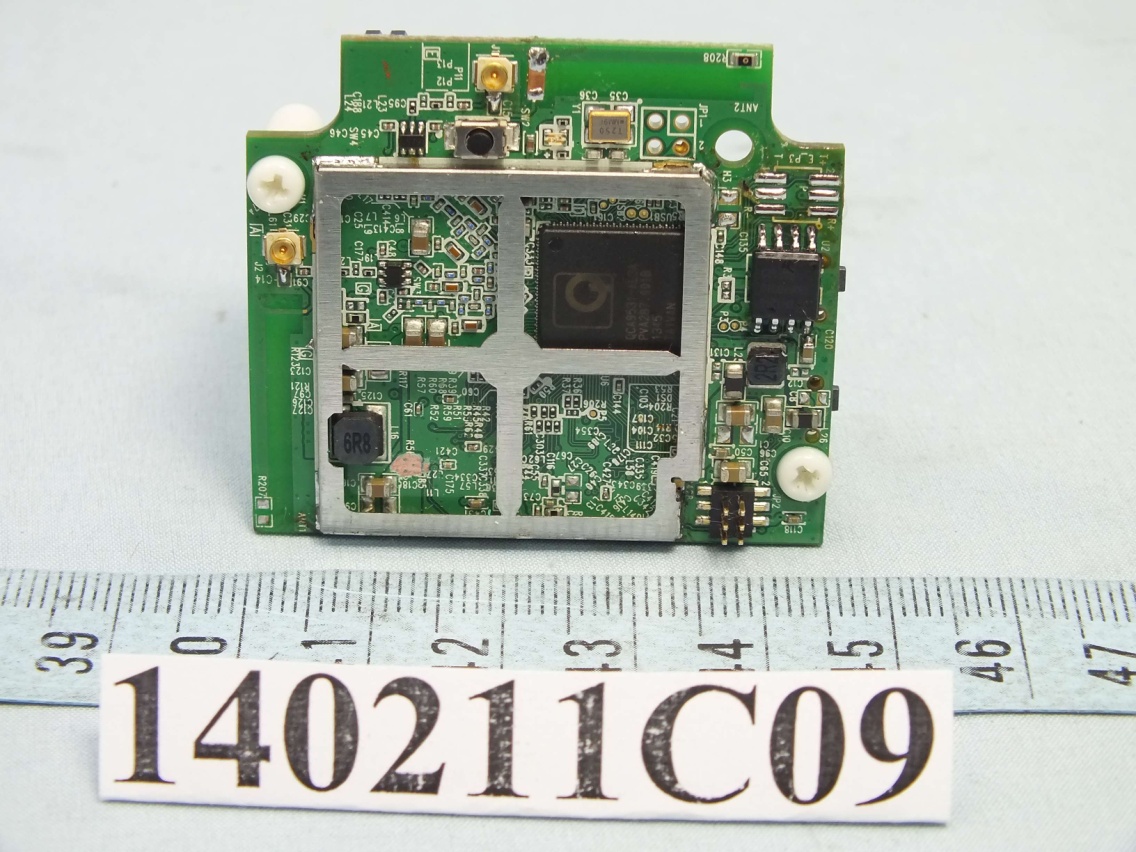

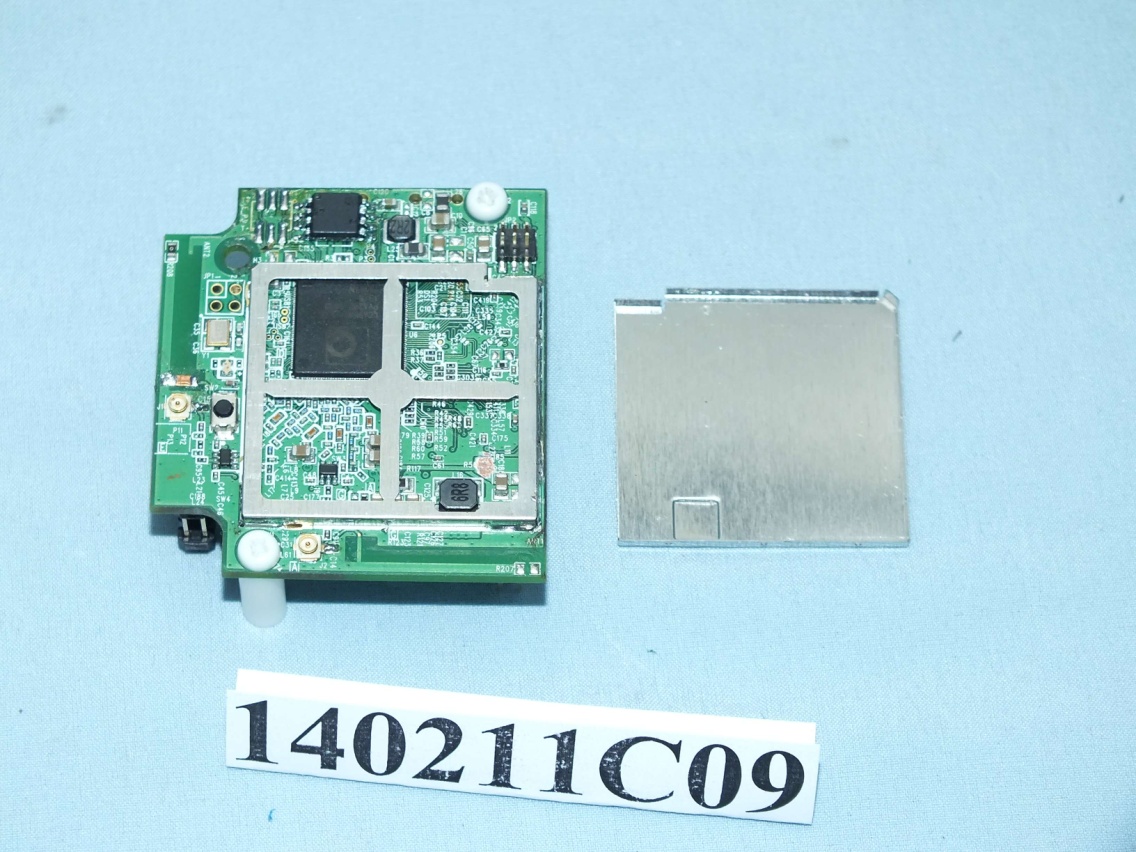

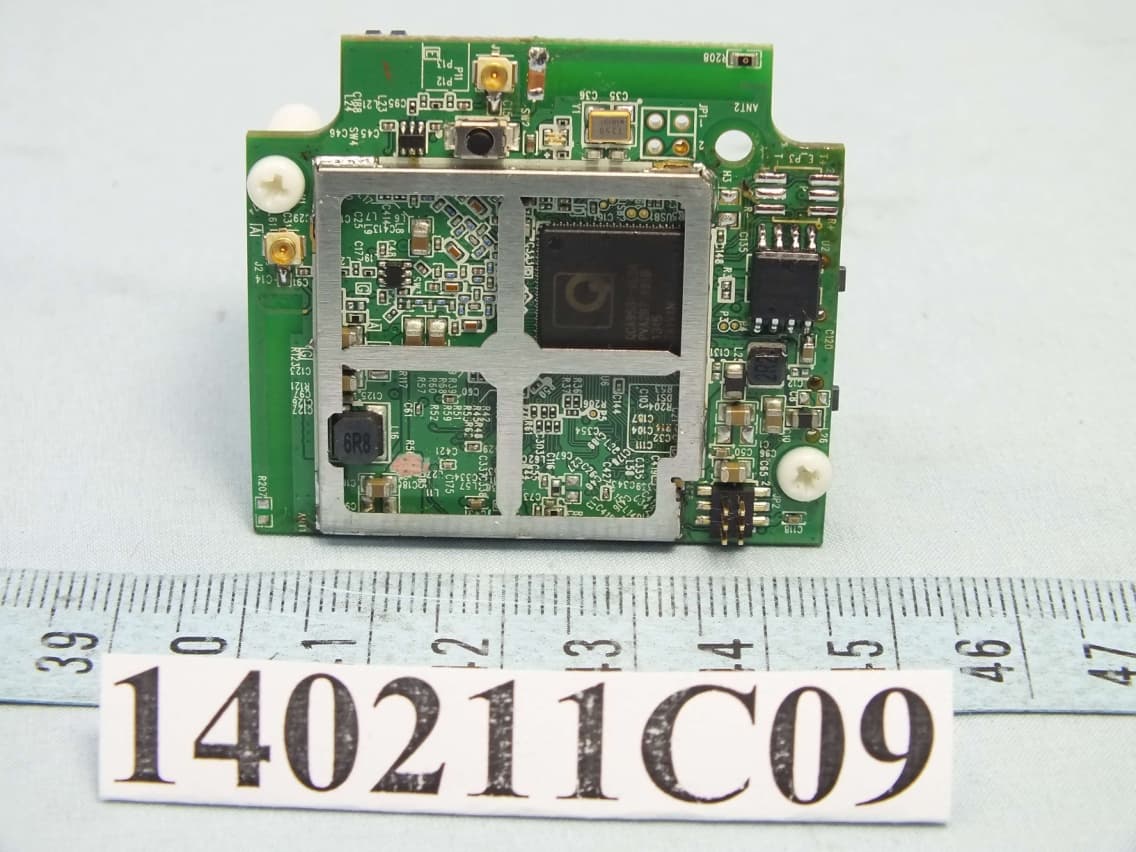

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID: YFXQCA9531 Report No.: RF140211C09 Operational Description This device is a 802.11bgn module, which operates in 2.4GHz bands; the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with OFDM technique will be applied. The transmitter of the EUT is powered by 100-120Vac. The antenna is PCB antenna without antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA140211C09 1 of 5 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA140211C09 MODEL NO.: QCA9531 FCC ID: YFXQCA9531 RECEIVED: Jan. 28, 2014 TESTED: Jan. 28 ~ Feb. 19, 2014 ISSUED: Feb. 27, 2014 APPLICANT: fitivision technology Inc. ADDRESS: 2F., No.13-22, Sec. 6, Minquan E. Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. Report No.: SA140211C09 2 of 5 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 3 1. CERTIFICATION ............................................................................................................ 4 2. RF EXPOSURE .............................................................................................................. 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................ 5 2.2 MPE CALCULATION FORMULA ................................................................................... 5 2.3 CLASSIFICATION .......................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ................................. 5 Report No.: SA140211C09 3 of 5 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA140211C09 Original release Feb. 27, 2014 Report No.: SA140211C09 4 of 5 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: 802.11bgn module MODEL NO.: QCA9531 APPLICANT: fitivision technology Inc. TESTED: Jan. 28 ~ Feb. 19, 2014 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (model: QCA9531) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Feb. 27, 2014 Maggie Wu / Specialist APPROVED BY : , DATE :Feb. 27, 2014 Ken Liu / Senior Manager Report No.: SA140211C09 5 of 5 Report Format Version 5.0.0 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 Calculation result of maximum conducted power FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 27.29 3.01 20 0.213 1 NOTE: Directional gain = 0dBi + 10log(2) = 3.01dBi

Report No.: RF140211C09 1 of 59 Report Format Version 5.2.0 FCC TEST REPORT REPORT NO.: RF140211C09 MODEL NO.: QCA9531 FCC ID: YFXQCA9531 RECEIVED: Jan. 28, 2014 TESTED: Jan. 28 ~ Feb. 19, 2014 ISSUED: Feb. 27, 2014 APPLICANT: fitivision technology Inc. ADDRESS: 2F., No.13-22, Sec. 6, Minquan E. Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF140211C09 2 of 59 Report Format Version 5.2.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................................ 4 1. CERTIFICATION ............................................................................................................................ 5 2. SUMMARY OF TEST RESULTS ................................................................................................... 6 2.1 MEASUREMENT UNCERTAINTY ................................................................................................ 6 3. GENERAL INFORMATION ............................................................................................................ 7 3.1 GENERAL DESCRIPTION OF EUT .............................................................................................. 7 3.2 DESCRIPTION OF TEST MODES ................................................................................................ 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ................................................ 9 3.3 DUTY CYCLE OF TEST SIGNAL ................................................................................................ 11 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................ 12 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ......................................................................... 12 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................. 13 4. TEST TYPES AND RESULTS ..................................................................................................... 14 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ..................................................... 14 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................... 14 4.1.2 TEST INSTRUMENTS ................................................................................................................. 15 4.1.3 TEST PROCEDURES ................................................................................................................. 16 4.1.4 DEVIATION FROM TEST STANDARD ....................................................................................... 16 4.1.5 TEST SETUP ............................................................................................................................... 17 4.1.6 EUT OPERATING CONDITIONS ................................................................................................ 17 4.1.7 TEST RESULTS .......................................................................................................................... 18 4.2 CONDUCTED EMISSION MEASUREMENT .............................................................................. 31 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................................... 31 4.2.2 TEST INSTRUMENTS ................................................................................................................. 31 4.2.3 TEST PROCEDURES ................................................................................................................. 32 4.2.4 DEVIATION FROM TEST STANDARD ....................................................................................... 32 4.2.5 TEST SETUP ............................................................................................................................... 32 4.2.6 EUT OPERATING CONDITIONS ................................................................................................ 32 4.2.7 TEST RESULTS .......................................................................................................................... 33 4.3 6dB BANDWIDTH MEASUREMENT .......................................................................................... 35 4.3.1 LIMITS OF 6dB BANDWIDT…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 3 RADIATED EMISSION TEST 4
